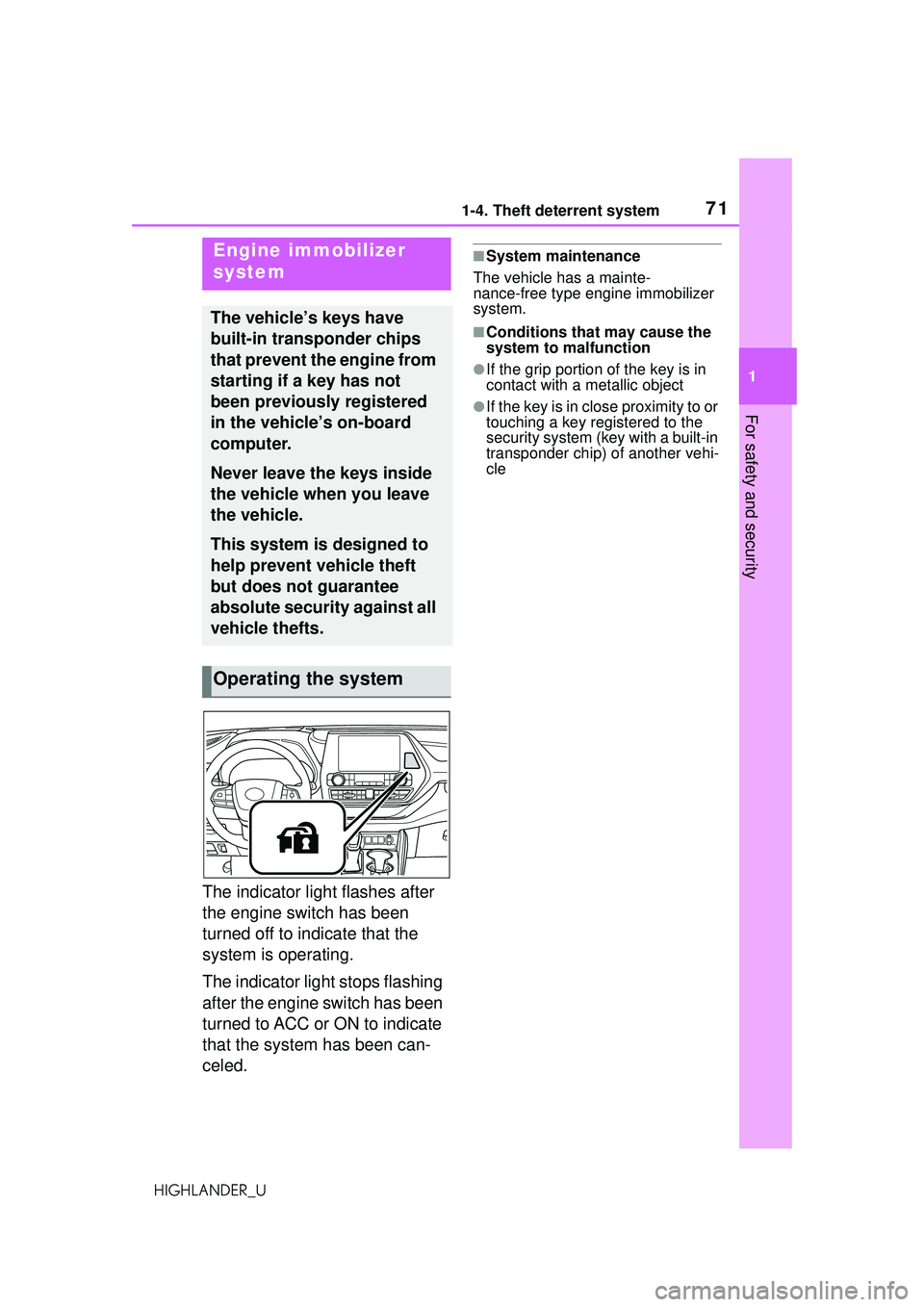

Page 71 of 568

711-4. Theft deterrent system
1
For safety and security
HIGHLANDER_U
1-4.Theft deterrent system
The indicator light flashes after
the engine switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.
■System maintenance
The vehicle has a mainte-
nance-free type e ngine immobilizer
system.
■Conditions that may cause the
system to malfunction
●If the grip portion of the key is in
contact with a metallic object
●If the key is in close proximity to or
touching a key registered to the
security system (key with a built-in
transponder chip) of another vehi-
cle
Engine immobilizer
system
The vehicle’s keys have
built-in transponder chips
that prevent the engine from
starting if a key has not
been previously registered
in the vehicle’s on-board
computer.
Never leave the keys inside
the vehicle when you leave
the vehicle.
This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.
Operating the system

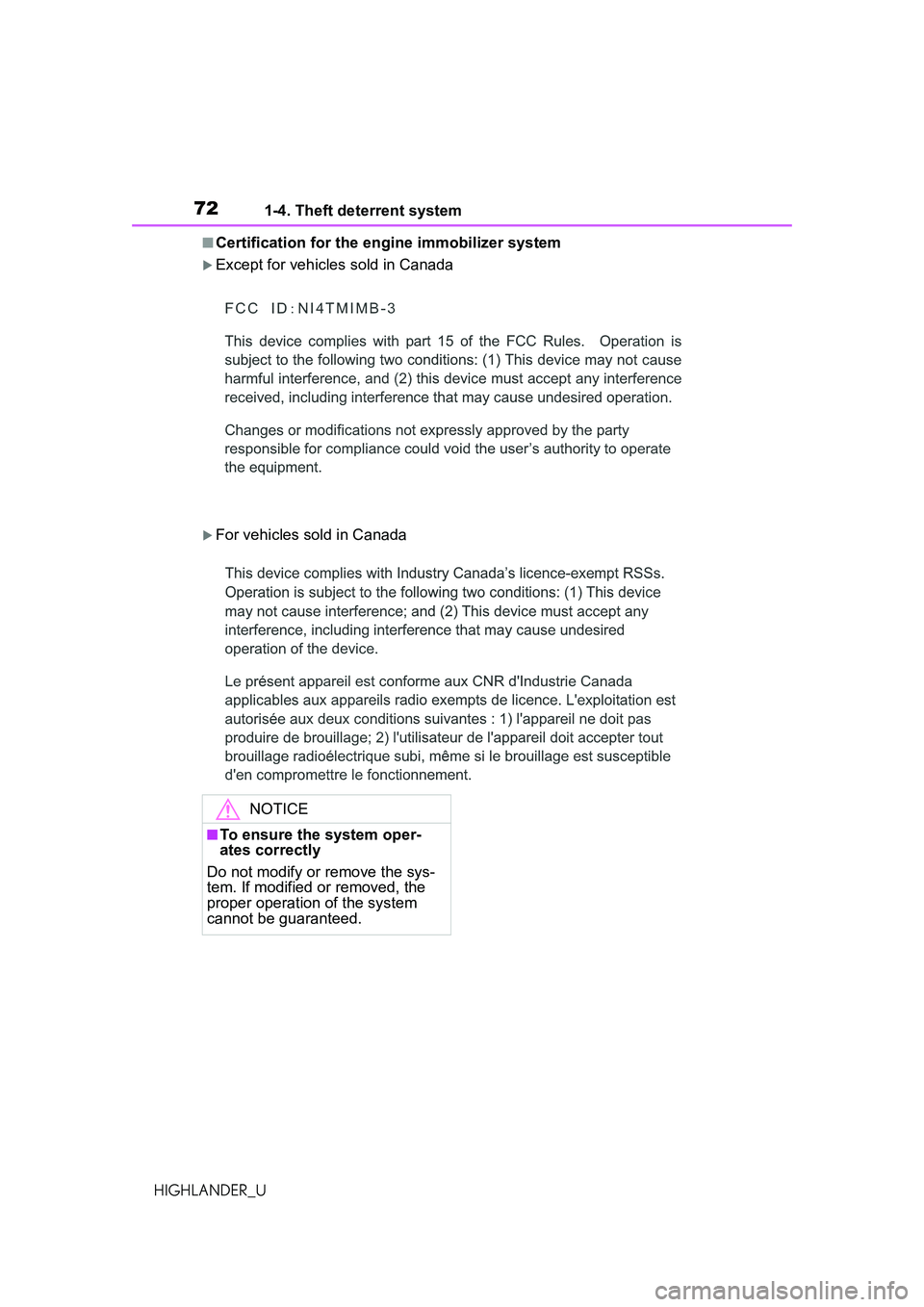

Page 72 of 568

721-4. Theft deterrent system
HIGHLANDER_U
■Certification for the engine immobilizer system
Except for vehicles sold in Canada
For vehicles sold in Canada
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

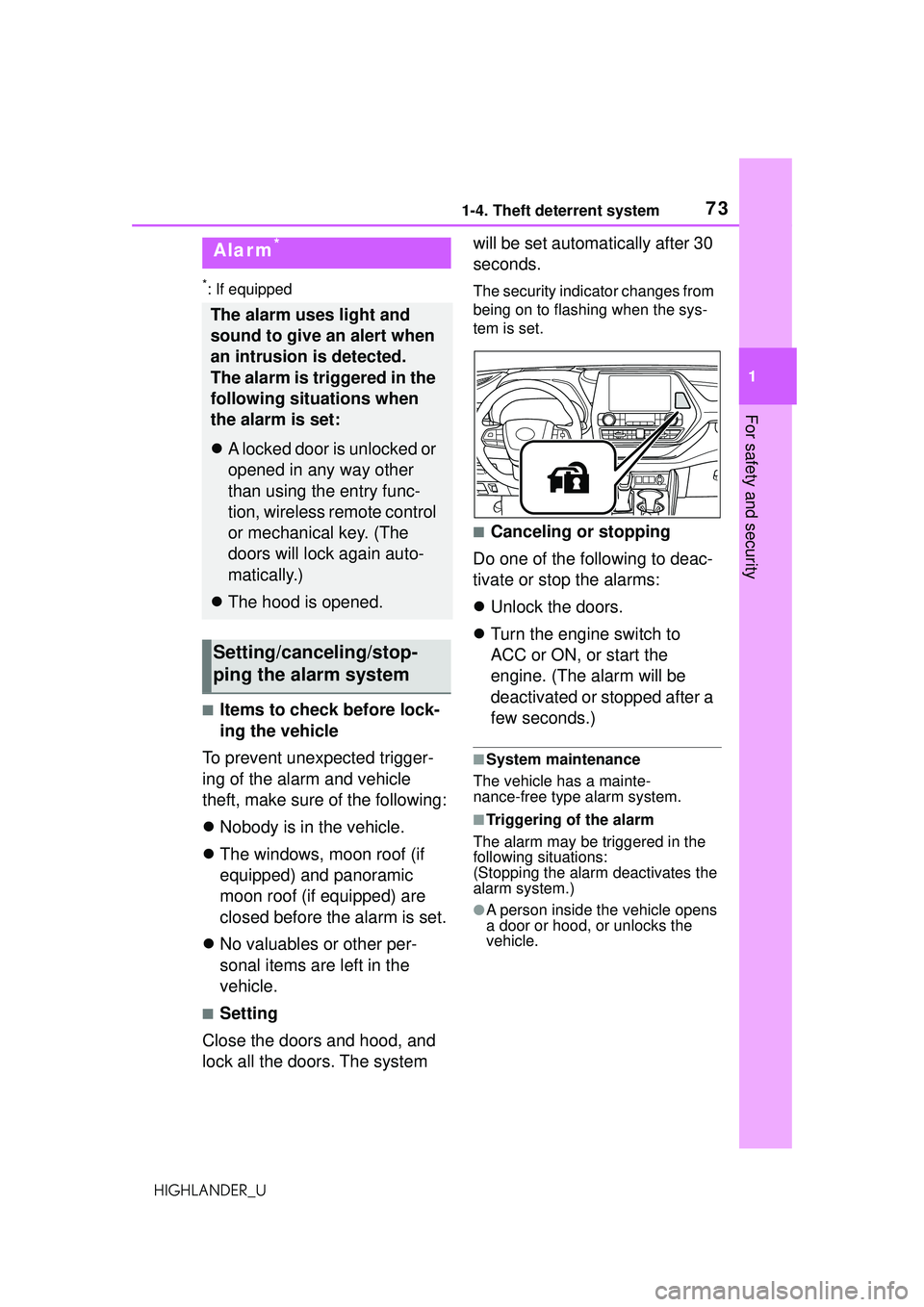

Page 73 of 568

731-4. Theft deterrent system
1
For safety and security
HIGHLANDER_U
*: If equipped
■Items to check before lock-
ing the vehicle
To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:
Nobody is in the vehicle.
The windows, moon roof (if
equipped) and panoramic
moon roof (if equipped) are
closed before the alarm is set.
No valuables or other per-
sonal items are left in the
vehicle.
■Setting
Close the doors and hood, and
lock all the doors. The system will be set automatically after 30
seconds.
The security indicator changes from
being on to flashing when the sys-
tem is set.
■Canceling or stopping
Do one of the following to deac-
tivate or stop the alarms:
Unlock the doors.
Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)
■System maintenance
The vehicle has a mainte-
nance-free type alarm system.
■Triggering of the alarm
The alarm may be triggered in the
following situations:
(Stopping the alarm deactivates the
alarm system.)
●A person inside the vehicle opens
a door or hood, or unlocks the
vehicle.
Alarm*
The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:
A locked door is unlocked or
opened in any way other
than using the entry func-
tion, wireless remote control
or mechanical key. (The
doors will lock again auto-
matically.)
The hood is opened.
Setting/canceling/stop-
ping the alarm system

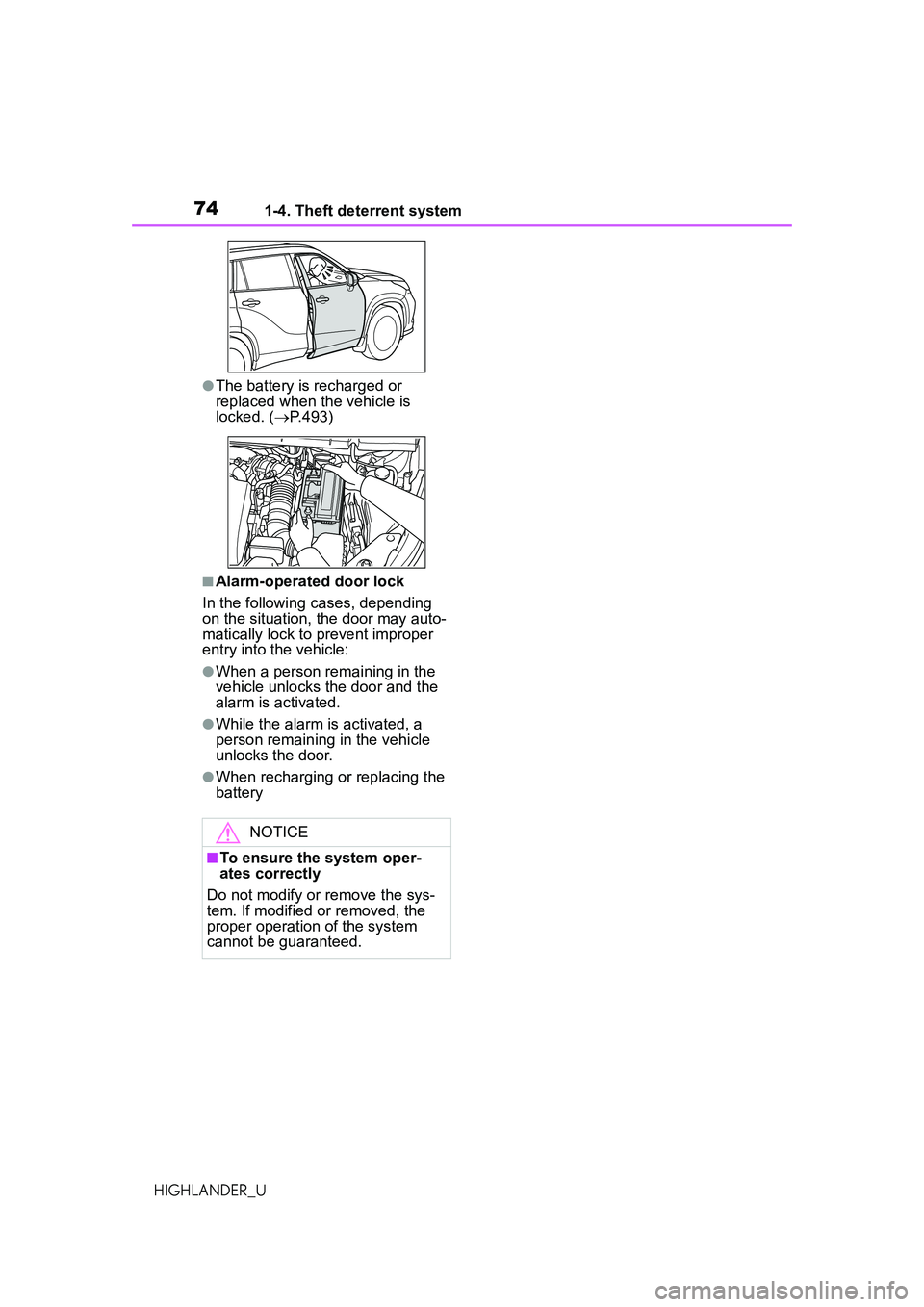

Page 74 of 568

741-4. Theft deterrent system
HIGHLANDER_U
●The battery is recharged or
replaced when the vehicle is
locked. (P.493)
■Alarm-operated door lock
In the following cases, depending
on the situation, the door may auto-
matically lock to prevent improper
entry into the vehicle:
●When a person remaining in the
vehicle unlocks the door and the
alarm is activated.
●While the alarm is activated, a
person remaining in the vehicle
unlocks the door.
●When recharging or replacing the
battery
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

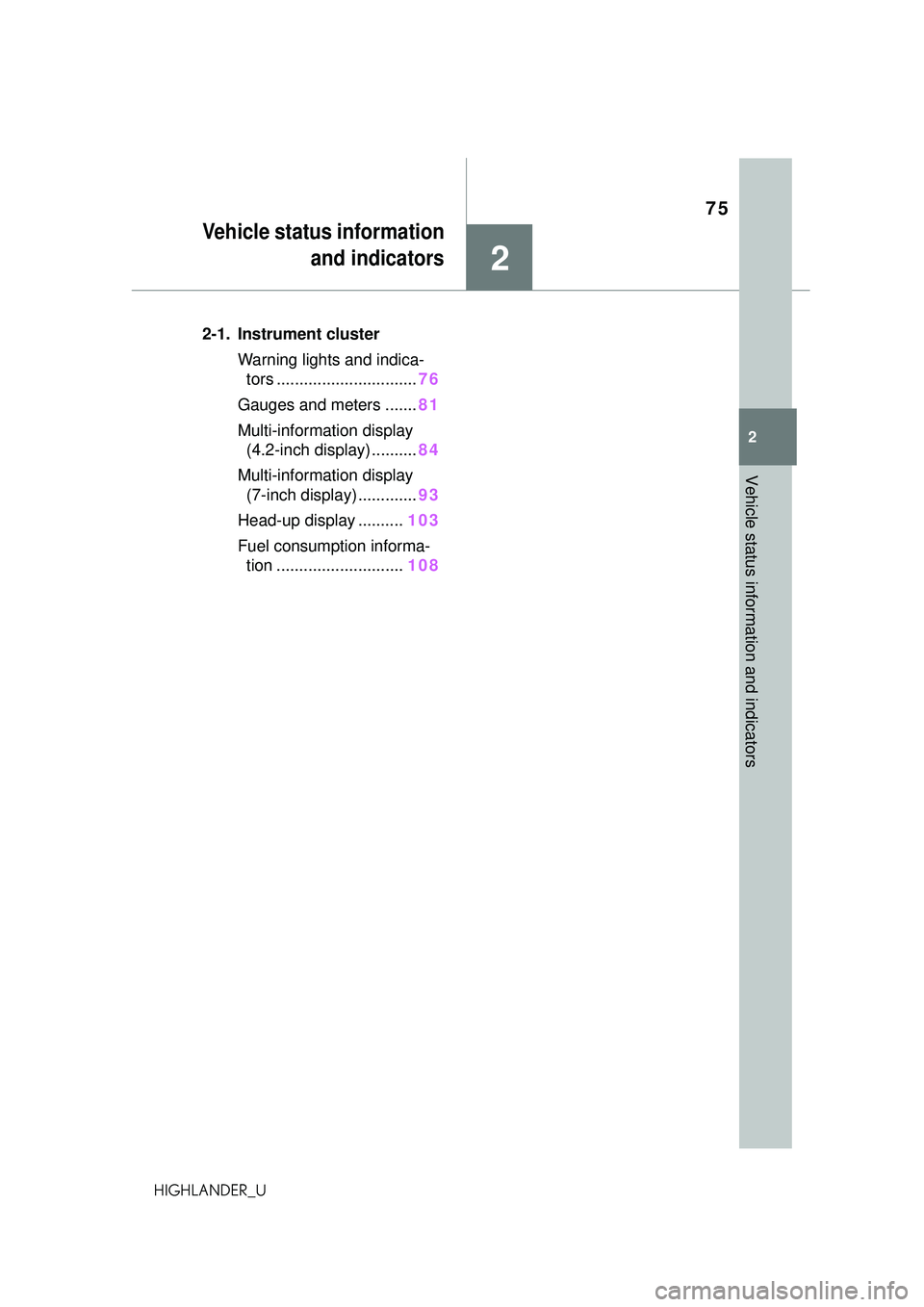

Page 75 of 568

75
2
2
Vehicle status information and indicators
HIGHLANDER_U
Vehicle status informationand indicators
.2-1. Instrument cluster
Warning lights and indica-tors ............................... 76
Gauges and meters ....... 81
Multi-information display (4.2-inch display) .......... 84
Multi-information display (7-inch display) ............. 93
Head-up display .......... 103
Fuel consumption informa- tion ............................ 108

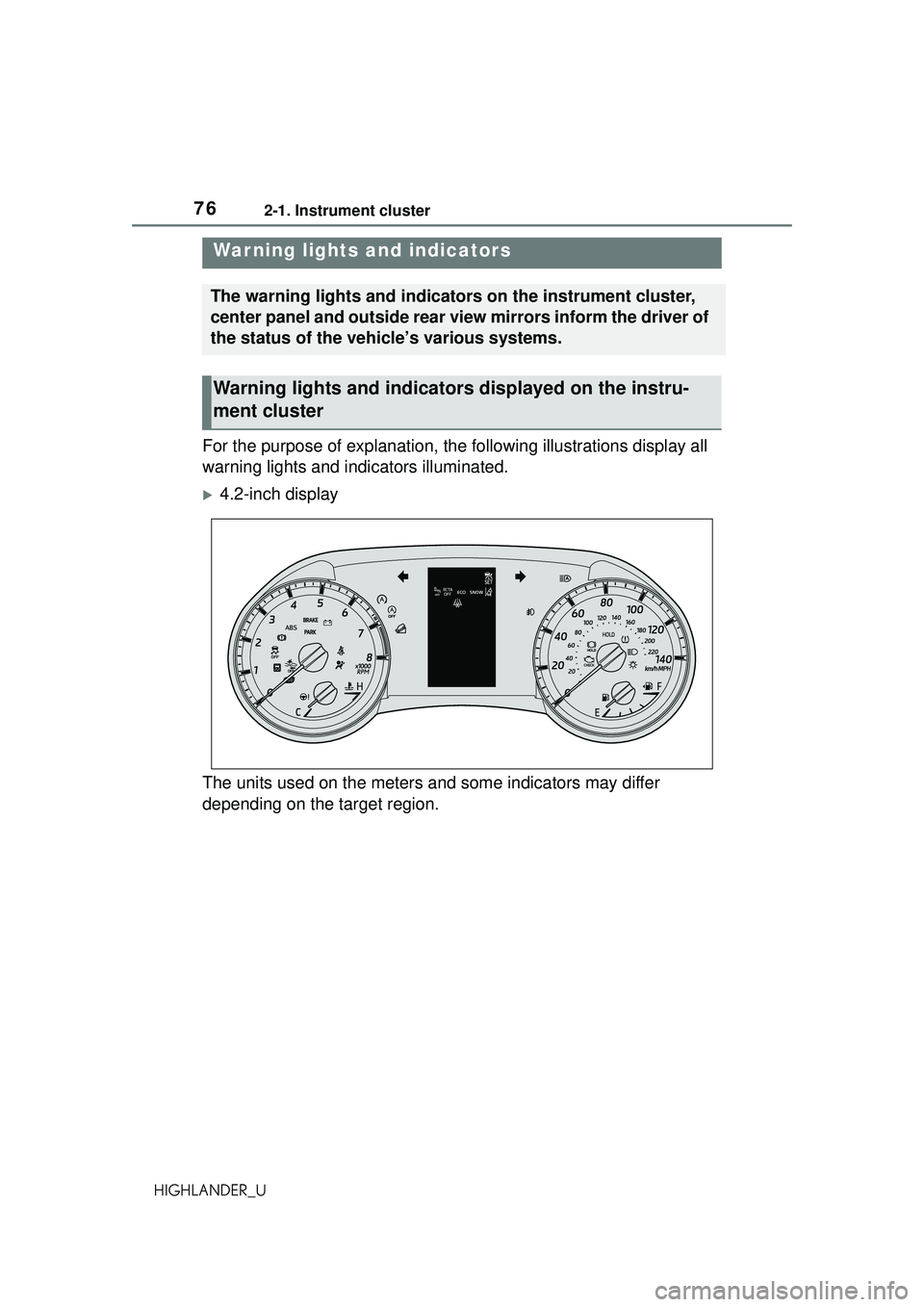

Page 76 of 568

762-1. Instrument cluster
HIGHLANDER_U
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
4.2-inch display
The units used on the meters and some indicators may differ
depending on the target region.
War ning lights and indicators
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver of
the status of the vehicle’s various systems.
Warning lights and indicators displayed on the instru-
ment cluster

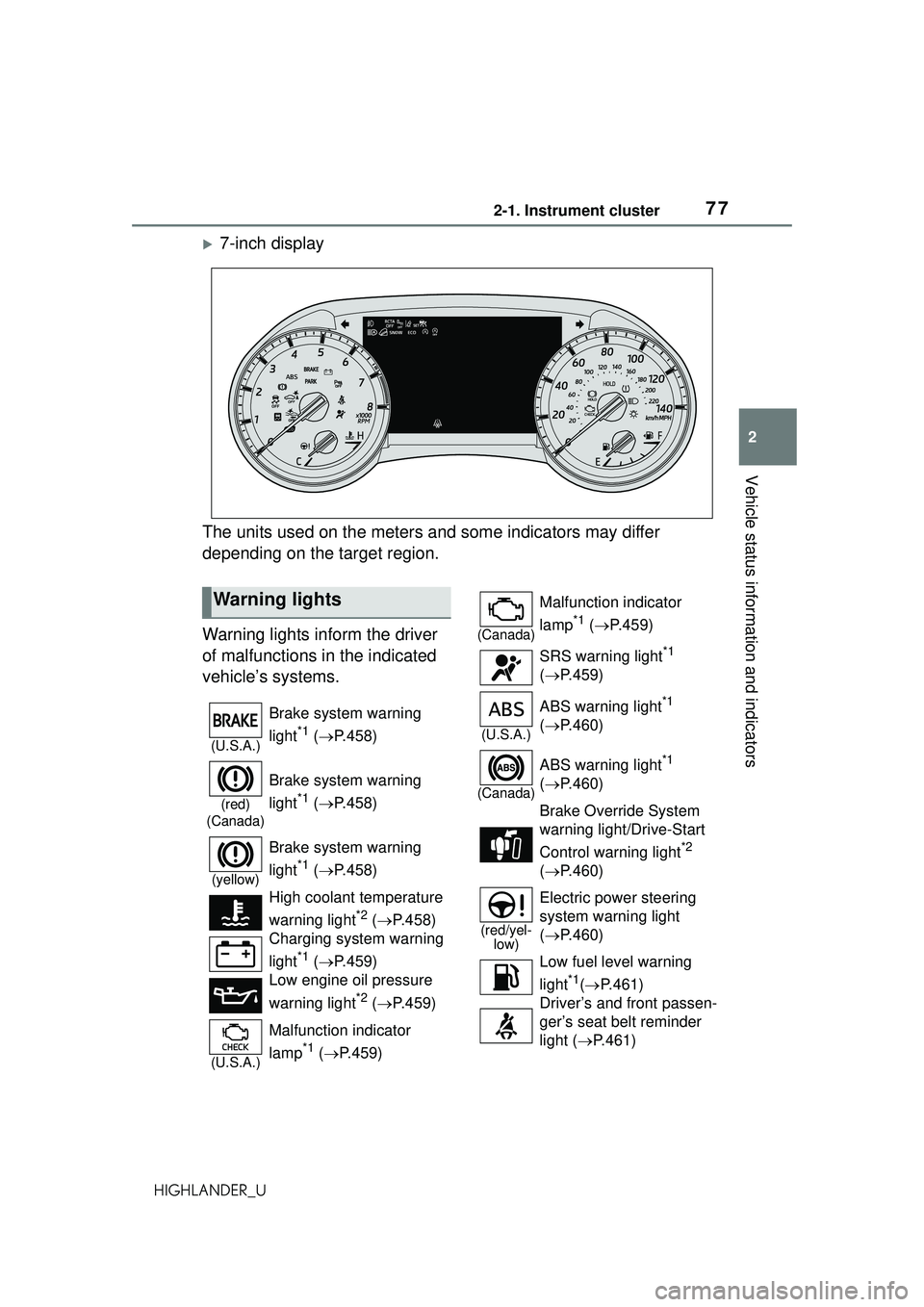

Page 77 of 568

772-1. Instrument cluster
2
Vehicle status information and indicators
HIGHLANDER_U
7-inch display
The units used on the meters and some indicators may differ
depending on the target region.
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.
Warning lights
(U.S.A.)
Brake system warning
light
*1 ( P.458)
(red)
(Canada)
Brake system warning
light
*1 ( P.458)
(yellow)
Brake system warning
light
*1 ( P.458)
High coolant temperature
warning light
*2 ( P.458)
Charging system warning
light
*1 ( P.459)
Low engine oil pressure
warning light
*2 ( P.459)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.459)
(Canada)
Malfunction indicator
lamp
*1 ( P.459)
SRS warning light
*1
( P.459)
(U.S.A.)
ABS warning light*1
( P.460)
(Canada)
ABS warning light*1
( P.460)
Brake Override System
warning light/Drive-Start
Control warning light
*2
( P.460)
(red/yel-
low)
Electric power steering
system warning light
( P.460)
Low fuel level warning
light
*1( P.461)
Driver’s and front passen-
ger’s seat belt reminder
light ( P.461)

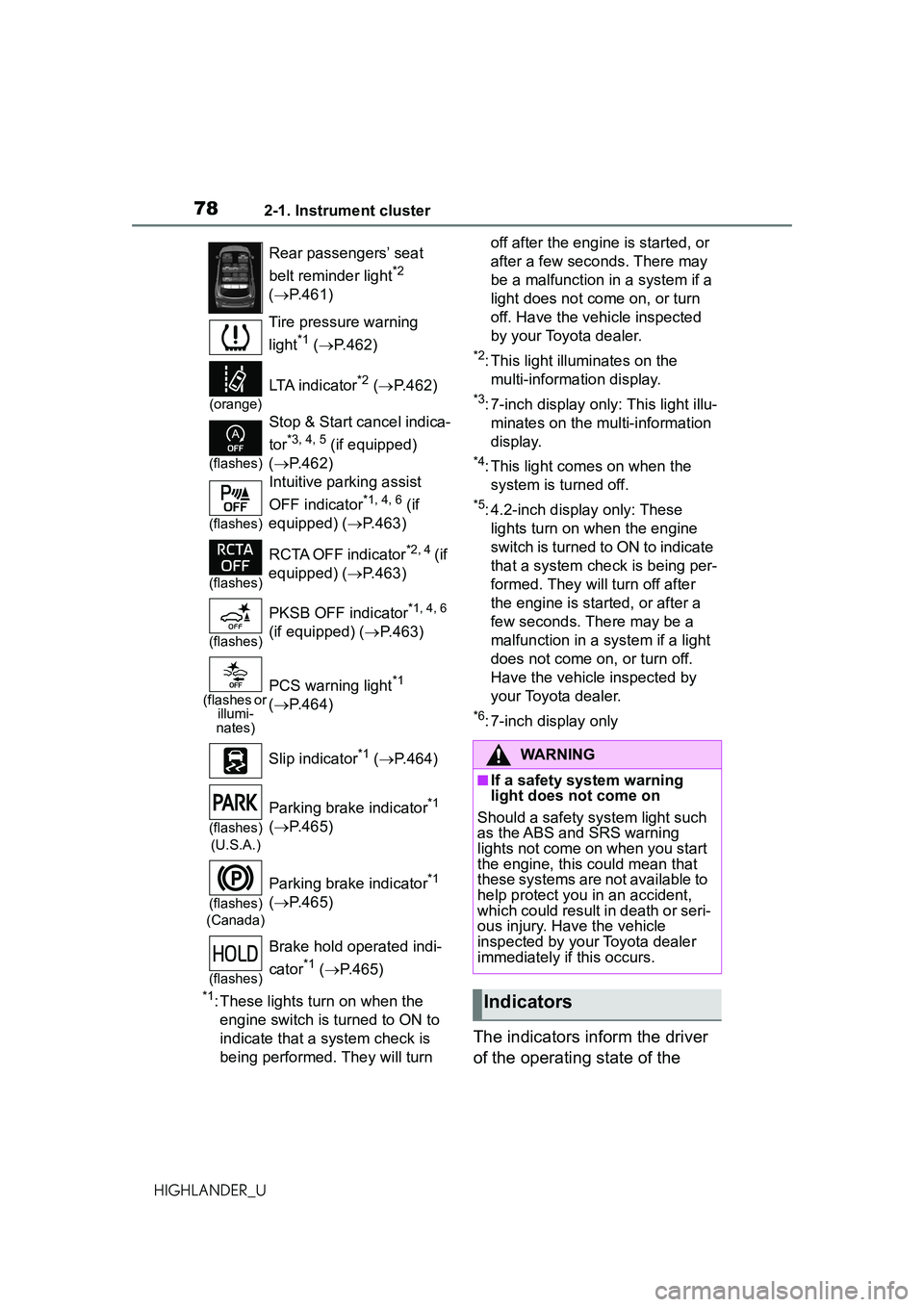

Page 78 of 568

782-1. Instrument cluster
HIGHLANDER_U
*1: These lights turn on when the engine switch is turned to ON to
indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few sec
onds. There may
be a malfunction in a system if a
light does not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: 7-inch display only : This light illu-
minates on the mu lti-information
display.
*4: This light comes on when the system is turned off.
*5: 4.2-inch display only: These lights turn on when the engine
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after
the engine is started, or after a
few seconds. There may be a
malfunction in a system if a light
does not come on, or turn off.
Have the vehicle inspected by
your Toyota dealer.
*6: 7-inch display only
The indicators inform the driver
of the operating state of the
Rear passengers’ seat
belt reminder light
*2
( P.461)
Tire pressure warning
light
*1 ( P.462)
(orange)
LTA indicator*2 ( P.462)
(flashes)
Stop & Start cancel indica-
tor
*3, 4, 5 (if equipped)
( P.462)
(flashes)
Intuitive parking assist
OFF indicator
*1, 4, 6 (if
equipped) ( P.463)
(flashes)
RCTA OFF indicator*2, 4 (if
equipped) ( P.463)
(flashes)
PKSB OFF indicator*1, 4, 6
(if equipped) ( P.463)
(flashes or
illumi-
nates)PCS warning light*1
( P.464)
Slip indicator
*1 ( P.464)
(flashes)
(U.S.A.)
Parking brake indicator*1
( P.465)
(flashes)
(Canada)
Parking brake indicator*1
( P.465)
(flashes)
Brake hold operated indi-
cator
*1 ( P.465)
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SRS warning
lights not come on when you start
the engine, this could mean that
these systems are not available to
help protect you in an accident,
which could result in death or seri-
ous injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.
Indicators

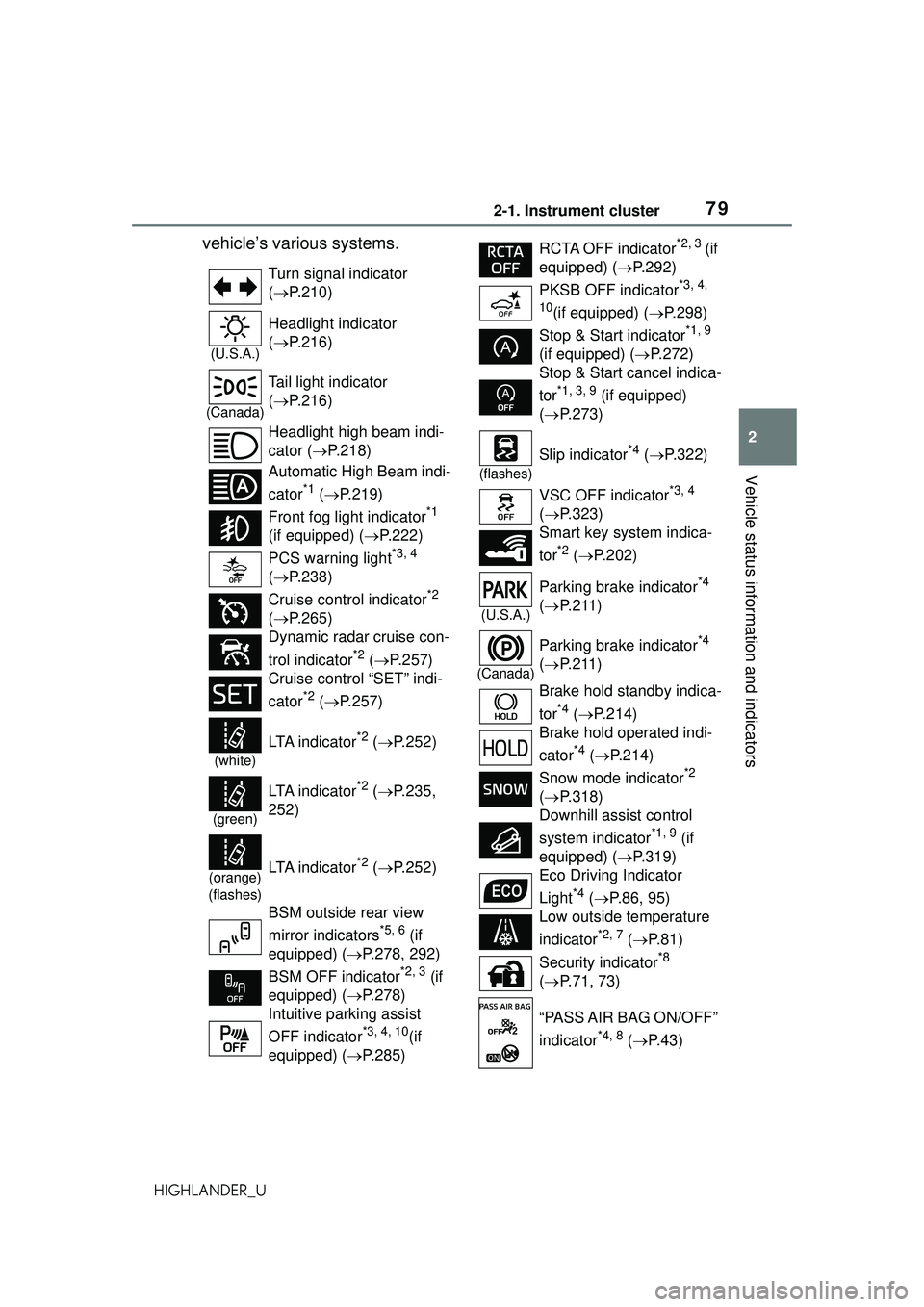

Page 79 of 568

792-1. Instrument cluster
2
Vehicle status information and indicators
HIGHLANDER_U
vehicle’s various systems.
Turn signal indicator
( P.210)
(U.S.A.)
Headlight indicator
( P.216)
(Canada)
Tail light indicator
( P.216)
Headlight high beam indi-
cator ( P.218)
Automatic High Beam indi-
cator
*1 ( P.219)
Front fog light indicator
*1
(if equipped) ( P.222)
PCS warning light
*3, 4
( P.238)
Cruise control indicator
*2
( P.265)
Dynamic radar cruise con-
trol indicator
*2 ( P.257)
Cruise control “SET” indi-
cator
*2 ( P.257)
(white)
LTA i n d i c a t o r*2 ( P.252)
(green)
LTA i n d i c a t o r*2 ( P.235,
252)
(orange)
(flashes)LTA i n d i c a t o r*2 ( P.252)
BSM outside rear view
mirror indicators
*5, 6 (if
equipped) ( P.278, 292)
BSM OFF indicator
*2, 3 (if
equipped) ( P.278)
Intuitive parking assist
OFF indicator
*3, 4, 10(if
equipped) ( P.285)
RCTA OFF indicator*2, 3 (if
equipped) ( P.292)
PKSB OFF indicator
*3, 4,
10
(if equipped) ( P.298)
Stop & Start indicator
*1, 9
(if equipped) ( P.272)
Stop & Start cancel indica-
tor
*1, 3, 9 (if equipped)
( P.273)
(flashes)
Slip indicator*4 ( P.322)
VSC OFF indicator
*3, 4
( P.323)
Smart key system indica-
tor
*2 ( P.202)
(U.S.A.)
Parking brake indicator*4
( P. 2 1 1 )
(Canada)
Parking brake indicator*4
( P. 2 1 1 )
Brake hold standby indica-
tor
*4 ( P.214)
Brake hold operated indi-
cator
*4 ( P.214)
Snow mode indicator
*2
( P.318)
Downhill assist control
system indicator
*1, 9 (if
equipped) ( P.319)
Eco Driving Indicator
Light
*4 ( P. 8 6 , 9 5 )
Low outside temperature
indicator
*2, 7 ( P. 8 1 )
Security indicator
*8
( P.71, 73)
“PASS AIR BAG ON/OFF”
indicator
*4, 8 ( P. 4 3 )

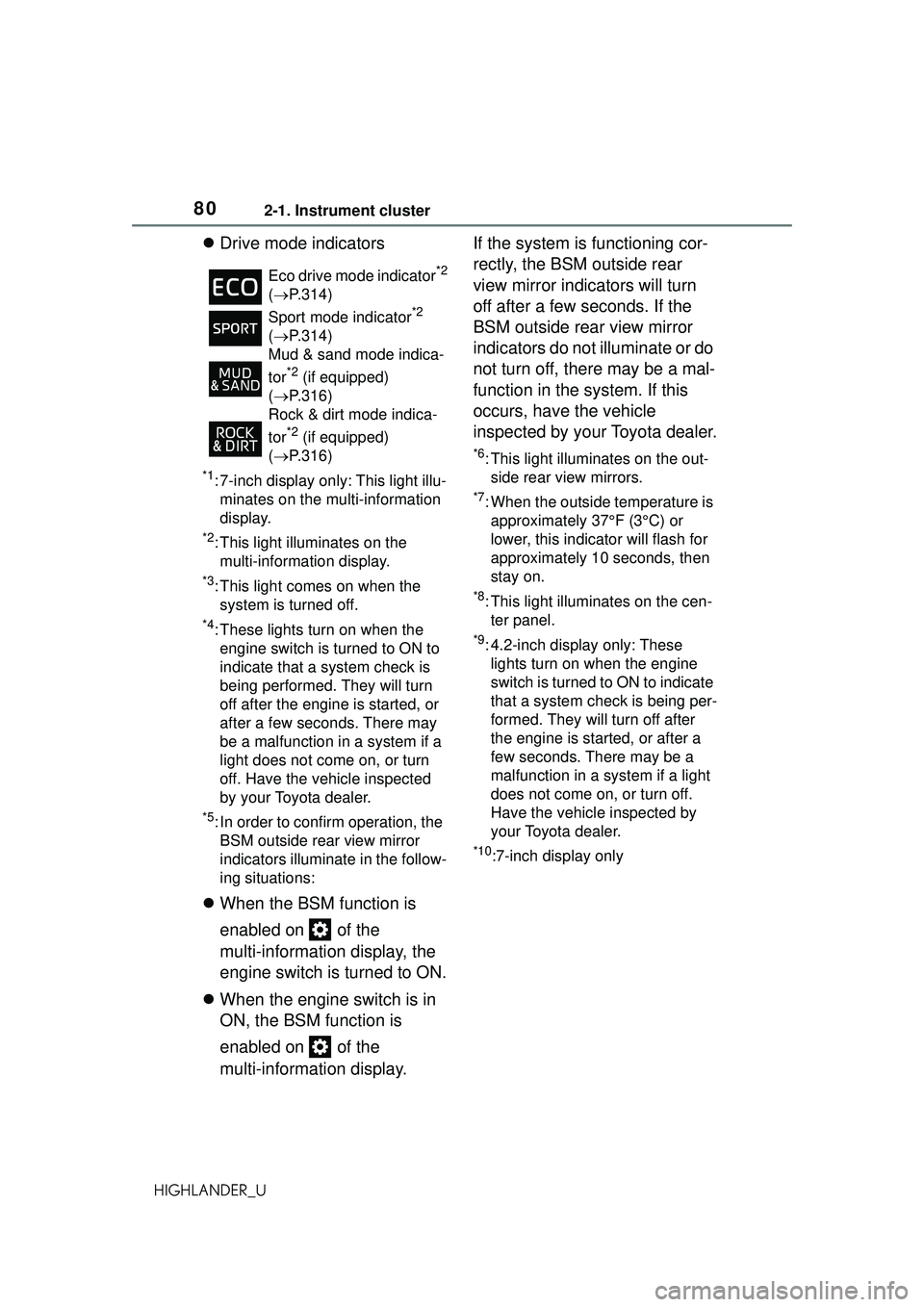

Page 80 of 568

802-1. Instrument cluster
HIGHLANDER_U
Drive mode indicators
*1: 7-inch display only: This light illu-
minates on the multi-information
display.
*2: This light illuminates on the multi-information display.
*3: This light comes on when the system is turned off.
*4: These lights turn on when the engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if a
light does not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*5: In order to confirm operation, the BSM outside rear view mirror
indicators illumina te in the follow-
ing situations:
When the BSM function is
enabled on of the
multi-information display, the
engine switch is turned to ON.
When the engine switch is in
ON, the BSM function is
enabled on of the
multi-information display. If the system is functioning cor-
rectly, the BSM outside rear
view mirror indicators will turn
off after a few seconds. If the
BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a mal-
function in the system. If this
occurs, have the vehicle
inspected by your Toyota dealer.
*6: This light illuminates on the out-
side rear view mirrors.
*7: When the outside temperature is approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.
*8: This light illuminates on the cen-ter panel.
*9: 4.2-inch display only: These lights turn on when the engine
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after
the engine is started, or after a
few seconds. There may be a
malfunction in a system if a light
does not come on, or turn off.
Have the vehicle inspected by
your Toyota dealer.
*10:7-inch display only
Eco drive mode indicator
*2
( P.314)
Sport mode indicator
*2
( P.314)
Mud & sand mode indica-
tor
*2 (if equipped)
( P.316)
Rock & dirt mode indica-
tor
*2 (if equipped)
( P.316)
