TOYOTA HIGHLANDER HYBRID 2007 XU40 / 2.G Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
89
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

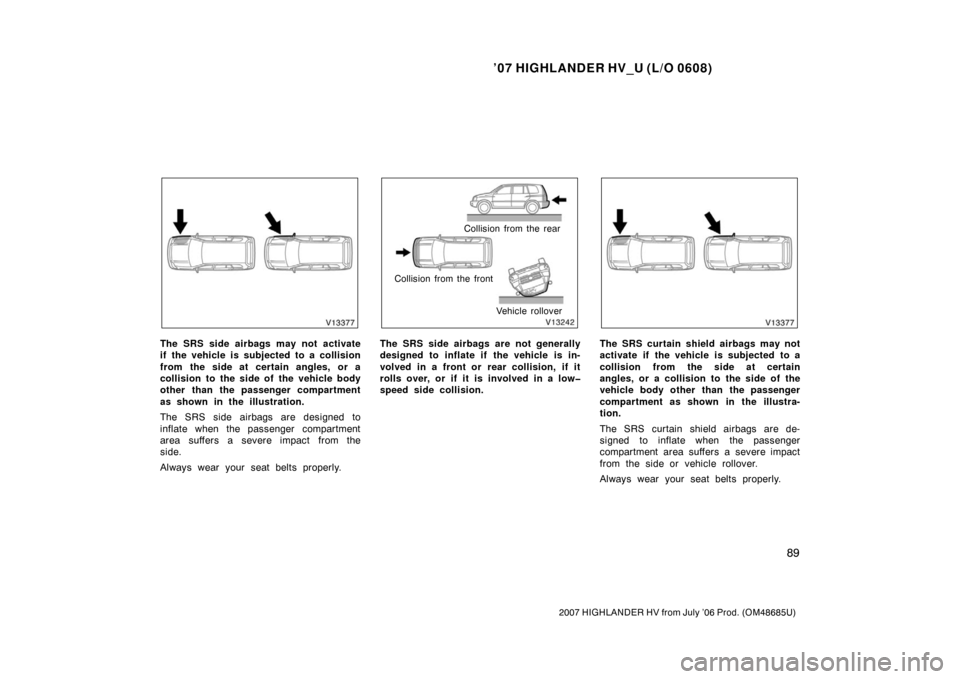

The SRS side airbags may not activate
if the vehicle is subjected to a collision
from the side at certain angles, or a
collision to the side of the vehicle body
other than the passenger compartment
as shown in the illustration.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
Always wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags are not generally
designed to inflate if the vehicle is in-
volved in a front or rear collision, if it
rolls over, or if it is involved in a low
speed side collision.The SRS curtain shield airbags may not
activate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The SRS curtain shield airbags are de-
signed to inflate when the passenger
compartment area suffers a severe impact
from the side or vehicle rollover.
Always wear your seat belts properly.

’07 HIGHLANDER HV_U (L/O 0608)
90
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The angle of
vehicle tip−up
is marginal Skidding vehicle
hitting a curb
stone
The SRS curtain shield airbags may in-
flate if the angle of vehicle tipup is
marginal or if the skidding vehicle’s
tires hit a curb stone laterally as shown
in the illustration.
Collision from
the front
Collision from
the rear
Pitch end over end
The SRS curtain shield airbags are not
generally designed to inflate if the ve-
hicle is involved in a front or rear colli-
sion, if it pitches end over end, or if
it is involved in a lowspeed side colli-
sion.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS side and curtain shield airbags
may deploy if a serious impact occurs
to the underside of your vehicle. Some
examples are shown in the illustration.

’07 HIGHLANDER HV_U (L/O 0608)
91
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations are
shown in the illustration.1. SRS warning light
2. “AIRBAG ON” and “AIRBAG OFF” indi- cator lights
3. Curtain shield airbag modules (airbag and inflator)
4. Front passenger occupant classification system (ECU and sensors)
5. Side airbag modules (airbag and inflator)
6. Curtain shield airbag sensors
7. Side and curtain shield airbag sensors 8. Front passenger ’s seat belt buckle
switch
9. Airbag sensor assembly
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. At this time a
chemical reaction in the inflators quickly
fills the airbags with non −toxic gas to help
restrain the lateral motion of the occu-
pants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non −toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately. Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, and roof side rail may be
hot for several minutes, but the airbags
themselves will not be hot. The airbags
are designed to inflate only once.
CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
second outside passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.

’07 HIGHLANDER HV_U (L/O 0608)
92
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

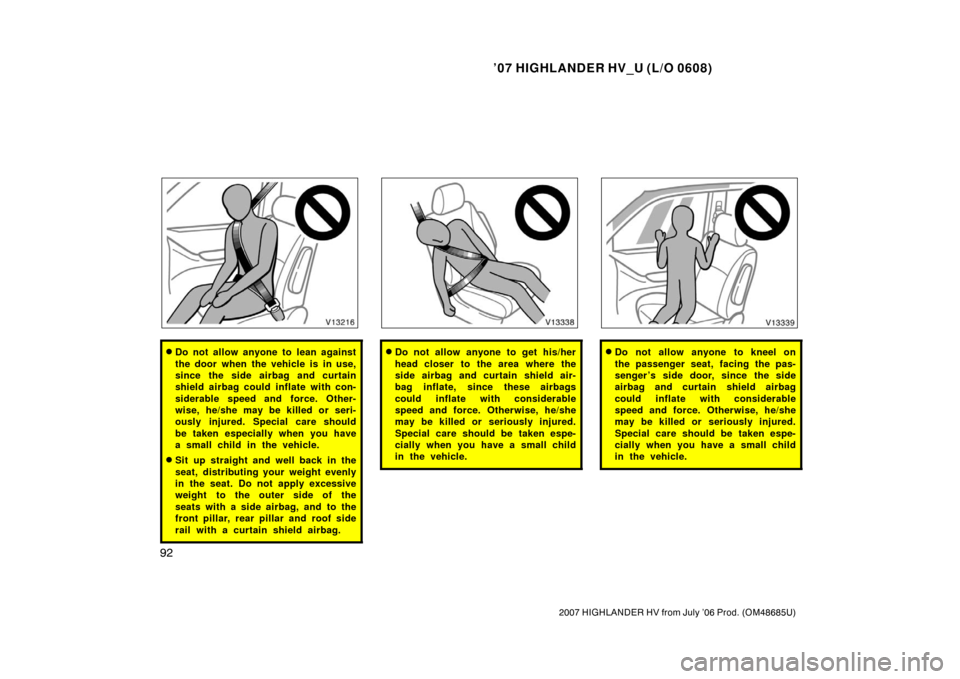

Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.
Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield air-
bag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to kneel on
the passenger seat, facing the pas-
senger ’s side door, since the side
airbag and curtain shield airbag
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.

’07 HIGHLANDER HV_U (L/O 0608)
93
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

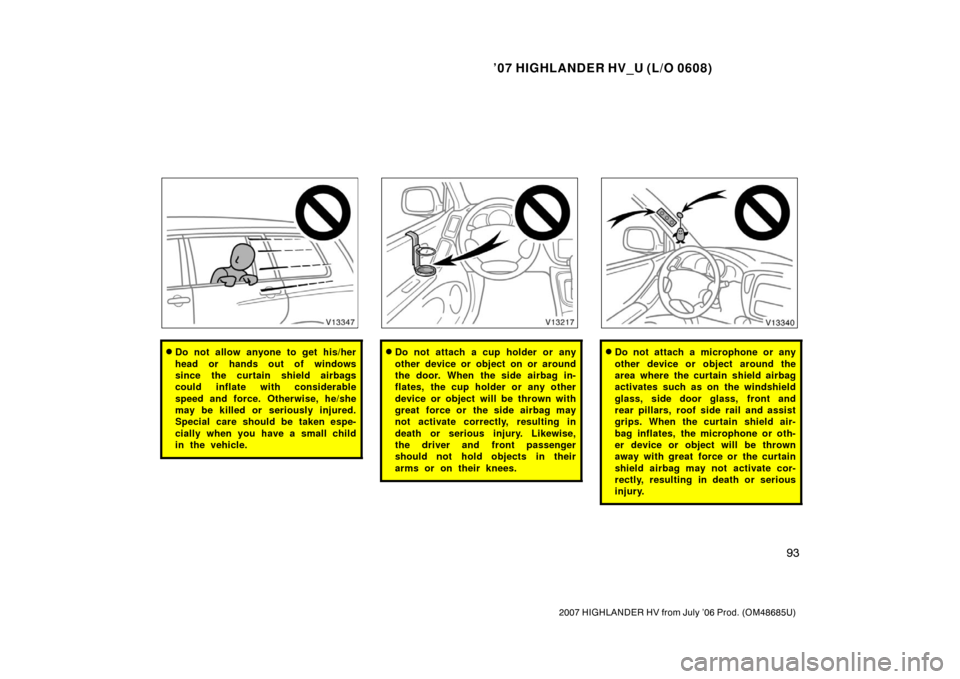

Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.Do not attach a microphone or any
other device or object around the
area where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
rear pillars, roof side rail and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.

’07 HIGHLANDER HV_U (L/O 0608)
94
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front and rear pillars and roof side
rail containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
side airbags and curtain shield air-
bags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat

’07 HIGHLANDER HV_U (L/O 0608)
95
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 144 in Section 1
−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving. If the light stays on, it indicates that the
SRS driver and front passenger airbag
system and/or front passenger occupant
classification system and “AIRBAG ON”
and “AIRBAG OFF” indicator lights have a
problem. If the light flashes, the SRS side
airbag system and/or curtain shield airbag
system have a problem.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.

’07 HIGHLANDER HV_U (L/O 0608)
96
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1—4 in the table on page 99 and based
on these conditions activates or deacti-
vates the following systems;
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the front passenger seat, and
the seat belt buckle switch to determine
conditions 1—4.
In order for the system to detect the
conditions correctly, do not do any of
the following.
Apply a heavy load in the front passen-
ger seat or equipment (e.g. seatback
pocket).
Attach a commercial seatback table,
etc. to the front passenger seat seat-
back.
Put weight on the front passenger seat
by putting your hands or feet on the
seatback from the rear passenger seat.
—Front passenger occupant
classification system

’07 HIGHLANDER HV_U (L/O 0608)
97
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The “AIRBAG ON” and “AIRBAG OFF”
indicator lights indicate the actuation of
the front passenger airbag, side airbag
on the front passenger seat and front
passenger ’s seat belt pretensioner.
The “AIRBAG OFF” indicator light will be
illuminated when the ignition switch is in
the “ON” position with the condition 2 in
the table shown below.If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “AIRBAG OFF” indicator light is
illuminated, one of the following is likely
to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the second seat.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “AIRBAG ON” indicator
light is illuminated when an adult is
seated in the front passenger seat. If the
“AIRBAG OFF” indicator light is illumina-
ted, ask the passenger to sit up straight,
well back in the seat, and with the seat
belt worn correctly. If the “AIRBAG OFF”
indicator light still remains illuminated, ei-
ther ask the passenger to move to the
rear seat, or if that is not possible, move
the front passenger seat fully rearward. The “AIRBAG ON” and “AIRBAG OFF”
indicator lights will be illuminated ini-
tially when the ignition key is turned to
the “ON” position. After about 4 sec-
onds, they will go off. After that, the
front passenger occupant classification
system operates and judges which indi-
cator light be illuminated.

’07 HIGHLANDER HV_U (L/O 0608)
98
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The SRS warning light and “AIRBAG
OFF” indicator light will come on if
there is a malfunction in the front pas-
senger occupant classification system.
