OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 133
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior lights 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Personal lights 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Ignition switch light 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers and windshield wiper de −icer 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 5

’07 HIGHLANDER HV_U (L/O 0608)
130
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
The headlight indicator lights up in the
instrument cluster.
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
Headlights and turn signals
(with automatic light control
system)

’07 HIGHLANDER HV_U (L/O 0608)
131
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position. To
turn them on again, turn the key to the
“ON” position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the 12 volt battery from
being discharged, do not leave the
lights on for a long period when the
hybrid system is off.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the hybrid system turned on, even with
the light switch in the “OFF” position.
They will not go off until the ignition
switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for driving at
night.
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 404 in Section 7 −3.

’07 HIGHLANDER HV_U (L/O 0608)
132
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
For the U.S.A.
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator lights
up in the instrument cluster.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight indicator
lights up in the instrument cluster.
The lights automatically turn off when the
driver ’s door is opened with the ignition
turned off. To turn them on again, turn the
key to the “ON” position or actuate the
headlight switch. If you are going to park
for over one week, make sure the head-
light switch is off.
NOTICE
To prevent the 12 volt battery from
being discharged, do not leave the
lights on for a long period when the
hybrid system is off.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the hybrid system turned on, even with
the light switch in the “OFF” position.
They will not go off until the ignition
switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for driving at
night.
Headlights and turn signals
(without automatic light
control system)

’07 HIGHLANDER HV_U (L/O 0608)
133
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 404 in Section 7 −3.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
Emergency flashers

’07 HIGHLANDER HV_U (L/O 0608)
134
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
NOTICE
To prevent the 12 volt battery from
being discharged, do not leave the
switch on longer than necessary when
the hybrid system is off.
To adjust the brightness of the instru-
ment panel lights, turn the knob.
With the knob turned fully clockwise, the
intensity of the instrument panel lights will
not be reduced when the headlight switch
is on.To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Instrument panel light control Front fog lights

’07 HIGHLANDER HV_U (L/O 0608)
135
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—
Center: Turns the light on when any of the
side doors and back door are opened.
Rear: Turns the light on when the back
door is opened.ILLUMINATED ENTRY SYSTEM
(center interior light)
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After all the side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately:
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the side doors and back
door are closed.
All the side doors and back door are
locked when the light is still on.
When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the light will come on and re-
main on for about 15 seconds before fad-
ing out. The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
Interior lights

’07 HIGHLANDER HV_U (L/O 0608)
136
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
With moonroof
Without moonroof

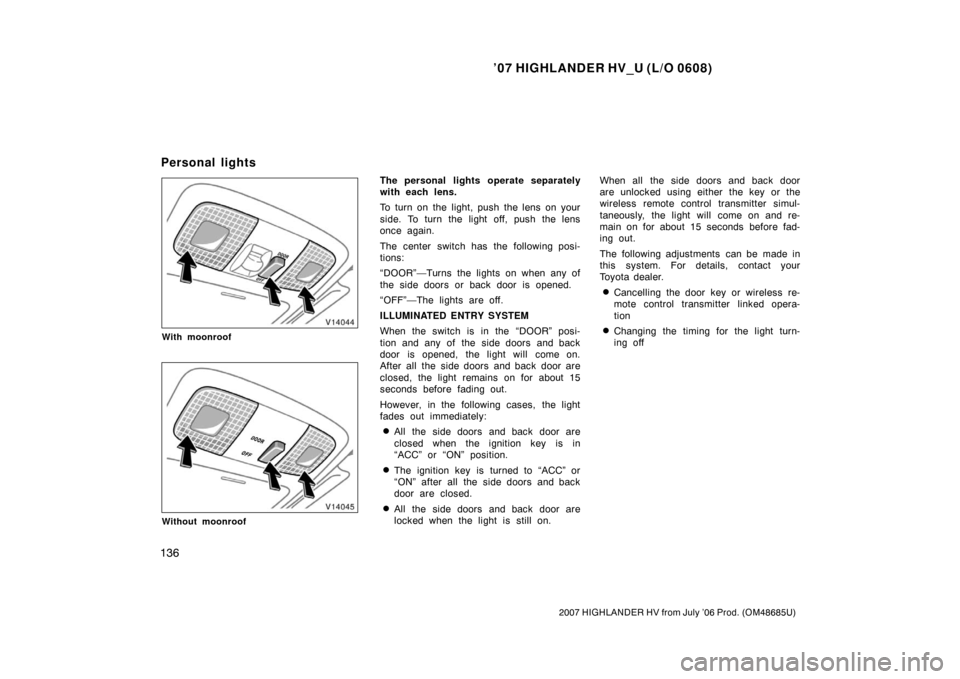

The personal lights operate separately
with each lens.
To turn on the light, push the lens on your
side. To turn the light off, push the lens
once again.
The center switch has the following posi-
tions:
“DOOR”—Turns the lights on when any of
the side doors or back door is opened.
“OFF”—The lights are off.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After all the side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately:
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the side doors and back
door are closed.
All the side doors and back door are
locked when the light is still on.When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the light will come on and re-
main on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
Personal lights

’07 HIGHLANDER HV_U (L/O 0608)
137
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors are opened.
The light remains on for some time after
all the side doors and back door are
closed.
However, in the following cases, the lights
go off immediately.
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the side doors and back
door are closed.
All the side doors and back door are
closed and locked when the light is still
on.
When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the light will come on and re-
main on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
Ignition switch light Windshield wipers and washer

’07 HIGHLANDER HV_U (L/O 0608)
138
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The “INT” band lets you adjust the wiping
time interval when the wiper lever is in
the intermittent position (position 1). Twist
the band upward to increase the time be-
tween sweeps, and downward to decrease
it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 403 in
Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 403 in
Section 7 −3.
Rear window wiper and
washer
