TOYOTA HIGHLANDER HYBRID 2007 XU40 / 2.G Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
169
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
“ABS” warning light
When the ignition key is turned to the
“ON” position, the “ABS” warning light
comes on. It will go off when the
“READY” light comes on. If the “ABS”
warning light does not come on when
the ignition is turned on, contact your
Toyota dealer.
If the “ABS” warning light remains on
after the ignition is turned on or if it
comes on while driving, the antilock
brake system function may not operate
properly. Although the brake system op-
erates without the function, drive care-
fully and have your vehicle checked by
a Toyota dealer as soon as possible.
For details, see “Service reminder indi-
cators and warning buzzers” on page
144 in Section 16.
Warning message “CHECK VSC SYSTEM”
If “CHECK VSC SYSTEM” appears on
the multiinformation display, the trac-
tion control and vehicle stability control
functions may not operate properly. Al-
though the brake system operates nor-
mally without these functions, drive
carefully and have your vehicle checked
by a Toyota dealer as soon as possible.
For details, see “—Warning messages”
on page 155 in Section 16.BRAKE ASSIST FUNCTION
The brake assist function is designed to
assist with emergency braking. When the
driver suddenly depresses the brake ped-
al, the device treats it as emergency brak-
ing and adds braking force.
If you slam the brakes on or apply the
brakes more firmly, more powerful braking
will be applied. At this time, you may hear
a sound in the engine compartment and
feel the vibrations of the brake pedal. This
does not indicate a malfunction.
CAUTION
The brake assist function is not de-
signed to shorten braking distance.
Always drive at a moderate speed and
maintain a safe distance from the ve-
hicle in front of you. Depending on
road conditions, braking distance may
be longer than that of a vehicle with-
out the brake assist device. If tire
chains are used, braking distance
may become longer.

’07 HIGHLANDER HV_U (L/O 0608)
170
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
ANTILOCK BRAKE SYSTEM FUNCTION
The anti −lock brake system function is de-
signed to help prevent lock −up of the
wheels during sudden braking or when
braking on slippery road conditions. This
assists in providing directional stability
and steering performance of the vehicle
under these circumstances.
Effective way to press the ABS brake
pedal: When the anti −lock brake system
function is in action, you may feel the
brake pedal pulsating and hear a noise.
In this situation, to let the anti −lock
brake system work for you, just hold the
brake pedal down more firmly. Do not
pump the brake in a panic stop. This
will result in reduced braking perfor-
mance.
Depressing the brake pedal on slippery
road conditions such as on a manhole
cover, a steel plate at a construction site,
joints in a bridge, etc. on a rainy day
tends to activate the anti −lock brake sys-
tem function. You may hear a click or motor sound in
the engine compartment for a few seconds
just after the vehicle begins to move. This
means that the anti
−lock brake system
function is in the self −check mode, and
does not indicate a malfunction.
When the antilock brake system func-
tion is activated, the following condi-
tion may occur. This does not indicate
a malfunction of the function:
You may hear the anti −lock brake system
function operating and feel the brake ped-
al pulsating and the vibrations of the ve-
hicle body and steering wheel. You may
also hear the motor sound in the engine
compartment even after the vehicle is
stopped.
CAUTION
The antilock brake system function
is not designed to shorten braking
distance. Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you. De-
pending on road conditions, braking
distance may be longer than that of
a vehicle without the antilock brake
system. If tire chains are used, brak-
ing distance may become longer.

’07 HIGHLANDER HV_U (L/O 0608)
171
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Compared with vehicles without an
antilock brake device, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
TRACTION CONTROL FUNCTION
The traction control function is designed to
help prevent skid of the drive wheels dur-
ing sudden acceleration on slippery road
surfaces.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against drive wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at a moderate speed.
VEHICLE STABILITY CONTROL
FUNCTION
The vehicle stability control function is de-
signed to help prevent skid of the wheels
while cornering on slippery road surfaces
or when turning the steering wheel abrupt-
ly.
The system controls the driving and brak-
ing forces on each tire and also controls
the power steering assistance to help the
driver to recover vehicle stability.
CAUTION
Depending on the road conditions,
the vehicle stability control function
may not be able to stabilize your ve-
hicle. Always drive at a moderate
speed.

’07 HIGHLANDER HV_U (L/O 0608)
172
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Ty p e A
Ty p e B
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light (red
brake system warning light) in the instru-
ment panel remains on until you release
the parking brake.
A warning message “PARK BRAKE” ap-
pears on the multi−information display and
a warning tone sounds to remind you to
release the parking brake when the ve-
hicle speed rises above 5 km/h (3 mph)
with the parking brake is applied.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the vehicle capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Parking brake Cruise control

’07 HIGHLANDER HV_U (L/O 0608)
173
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

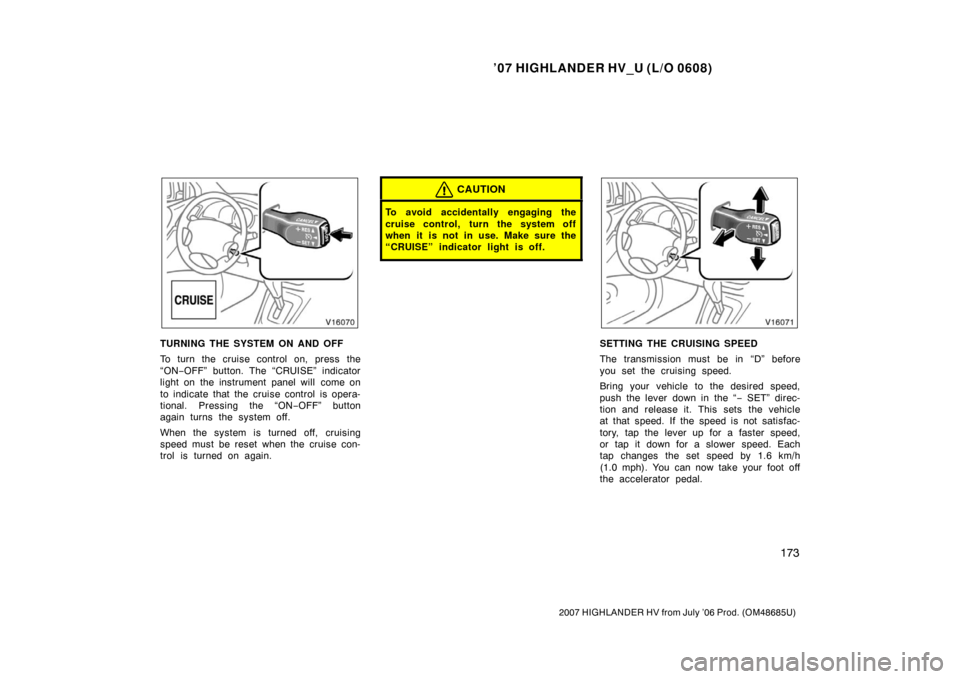

TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
SETTING THE CRUISING SPEED
The transmission must be in “D” before
you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.

’07 HIGHLANDER HV_U (L/O 0608)
174
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory. The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON
−OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction. RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON −OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’07 HIGHLANDER HV_U (L/O 0608)
175
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Rear seat entertainment system 194
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 244
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’07 HIGHLANDER HV_U (L/O 0608)
176
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

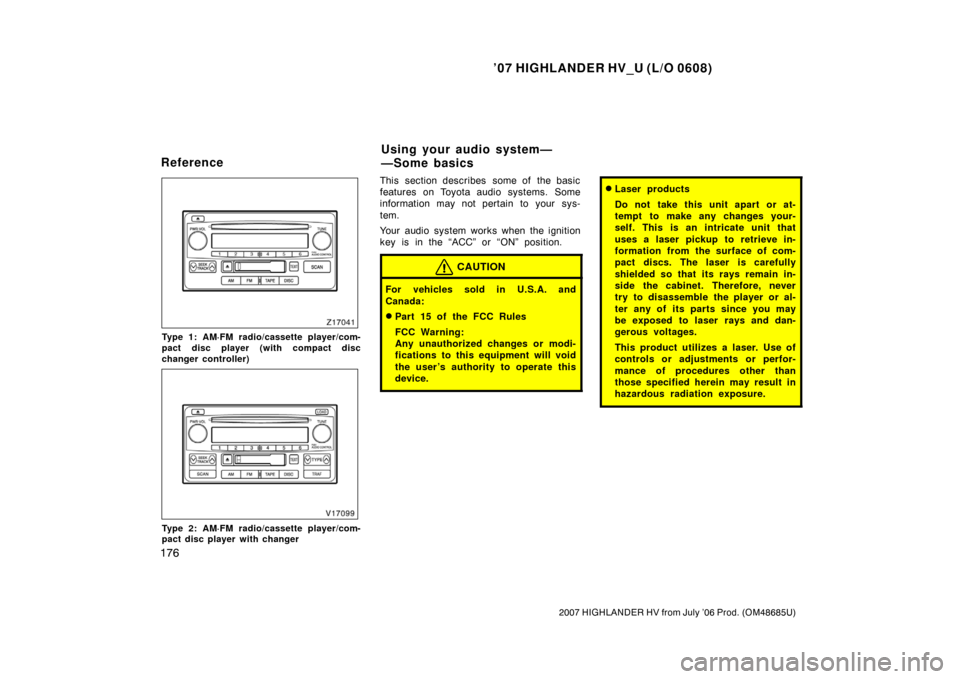

Type 1: AM·FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)
Type 2: AM·FM radio/cassette player/com-
pact disc player with changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
CAUTION
For vehicles sold in U.S.A. and
Canada:
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modi-
fications to this equipment will void
the user’s authority to operate this
device.
Laser products
Do not take this unit apart or at-
tempt to make any changes your-
self. This is an intricate unit that
uses a laser pickup to retrieve in-
formation from the surface of com-
pact discs. The laser is carefully
shielded so that its rays remain in-
side the cabinet. Therefore, never
try to disassemble the player or al-
ter any of its parts since you may
be exposed to laser rays and dan-
gerous voltages.
This product utilizes a laser. Use of
controls or adjustments or perfor-
mance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Reference Using your audio system—
—Some basics

’07 HIGHLANDER HV_U (L/O 0608)
177
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM”, “TAPE”, “DISC” or
“LOAD” to turn on that function without
pushing “PWR·VOL”. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM”, “TAPE”, “DISC” or
“LOAD” if the system is already on but
you want to switch from one function to
another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has the on
−glass antenna
printed on the inside of the rear quarter
window.
NOTICE
Putting a film (especially a conductive
or metallic film) on the rear quarter
window will noticeably reduce the
sensitivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Never try to disassemble or oil any
part of the cassette player. Do not
insert anything other than cassette
tapes into the slot.

’07 HIGHLANDER HV_U (L/O 0608)
178
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter−smaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (4.7 in.) disc
until “DISC” disappears from the display.
NOTICE
Do not use an adaptor for compact
disc singles —it could cause tracking
errors or interfere with the ejection of
compact discs.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. This compact disc play-
er can store up to six discs. The player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
 Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc changer. Insert
only one compact disc into slot at
a ti me.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.
