USING THE CONTROLLER
To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the console box or front seatback
pocket when it is not in use.
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
 Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

’07 HIGHLANDER HV_U (L/O 0608)
200
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
LOCATING THE CONTROLLER

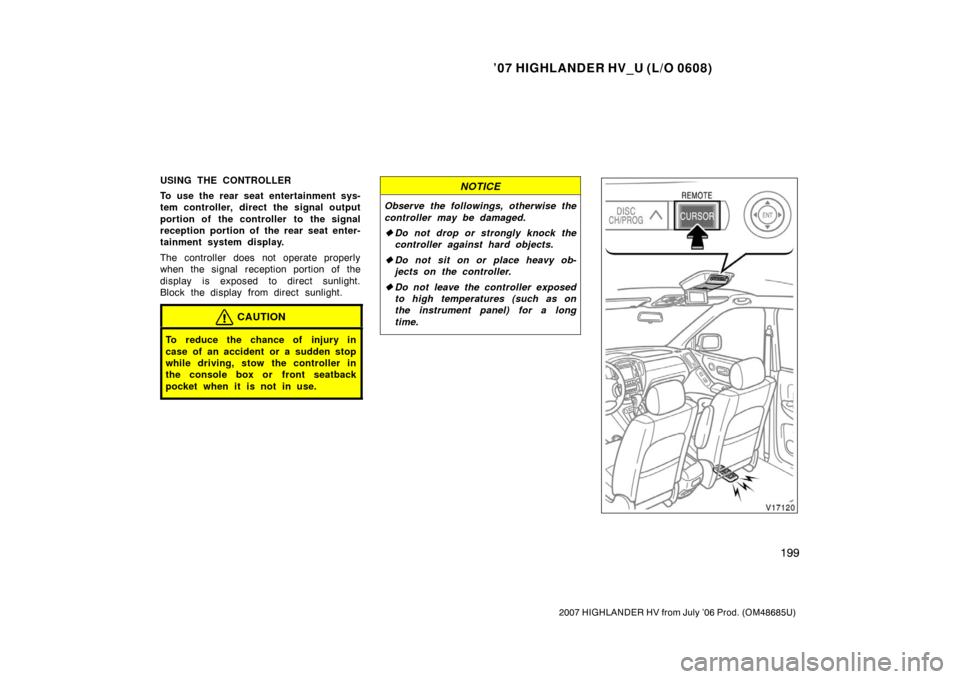

If you lose sight of the controller, push
and hold the “CURSOR (REMOTE)” button
on the DVD player unit until you hear a
beep. A buzzer sounds from the controller
to let you know where it is.
To stop the buzzer, push any button of the
controller.
If the controller is located close to some-
thing that blocks the signal, such as some
kind of metal, the controller may not re-
ceive the signal and the buzzer may not
sound.FCC InformationCaution: Any changes or modifica-
tions in construction of this device
which are not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
FCC Label Information This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received, In-
cluding interference that may cause
undesired operation.

’07 HIGHLANDER HV_U (L/O 0608)
201
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

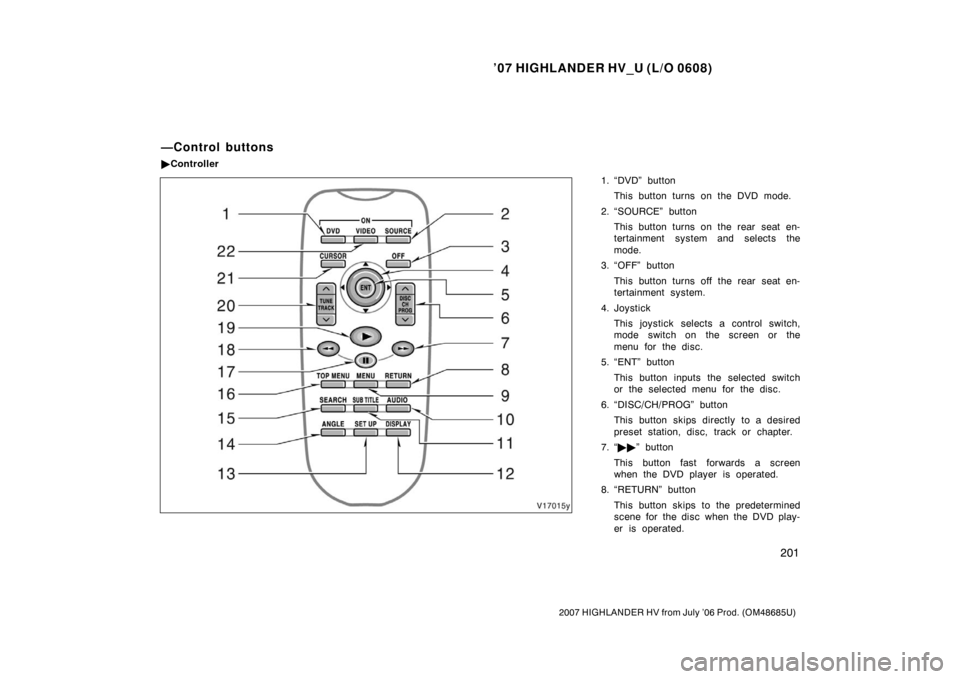

1. “DVD” buttonThis button turns on the DVD mode.
2. “SOURCE” button This button turns on the rear seat en-
tertainment system and selects the
mode.
3. “OFF” button
This button turns off the rear seat en-
tertainment system.
4. Joystick This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. “ENT” button
This button inputs the selected switch
or the selected menu for the disc.
6. “DISC/CH/PROG” button This button skips directly to a desired
preset station, disc, track or chapter.
7. “  ” button
This button fast forwards a screen
when the DVD player is operated.
8. “RETURN” button
This button skips to the predetermined
scene for the disc when the DVD play-
er is operated.
—Control buttons
Controller

’07 HIGHLANDER HV_U (L/O 0608)
202
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
9. “MENU” buttonThis button indicates the menu screen
for DVD video when the DVD player is
operated.
10. “AUDIO” button
This button indicates the changing au-
dio screen when the DVD player is
operated.
11. “SUB TITLE” button This button indicates the changing sub-
title screen when the DVD player is
operated.
12. “DISPLAY” button This button adjusts the color, tone,
contrast and brightness of the screen.
13. “SET UP” button
This button indicates the initial set up
screen when the DVD player is oper-
ated.
14. “ANGLE” button This button selects the angle of the
screen when the DVD player is oper-
ated.
15. “SEARCH” button
This button indicates the title search
screen when the DVD player is oper-
ated. 16. “TOP MENU” button
This button indicates the title selection
screen for DVD video when the DVD
player is operated.
17. “
” button
This button pauses a screen when the
DVD player is operated.
18. “ ” button
This button reverses a screen when
the DVD player is operated.
19. “ ” button
This button plays a screen when the
DVD player is operated.
20. “TUNE/TRACK” button
This button seeks a radio station or
selects track/chapter.
21. “CURSOR” button
This button indicates the control
switches on the screen when the DVD
player is operated.
22. “VIDEO” button
This button causes the display to use
the video signal from an external video
device.

’07 HIGHLANDER HV_U (L/O 0608)
203
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

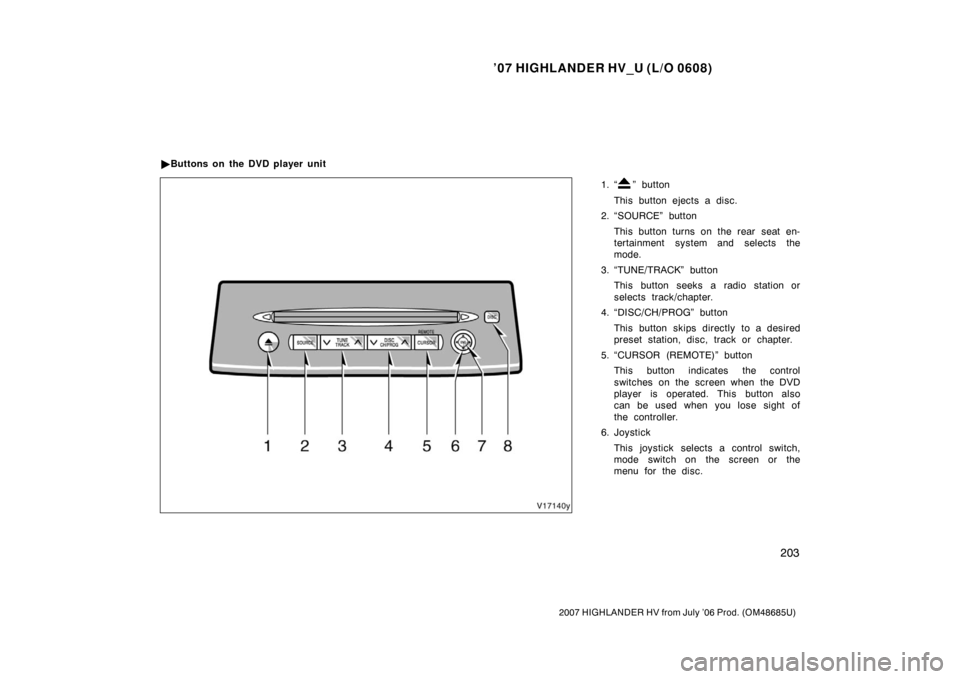

1. “” button
This button ejects a disc.
2. “SOURCE” button
This button turns on the rear seat en-
tertainment system and selects the
mode.
3. “TUNE/TRACK” button This button seeks a radio station or
selects track/chapter.
4. “DISC/CH/PROG” button
This button skips directly to a desired
preset station, disc, track or chapter.
5. “CURSOR (REMOTE)” button This button indicates the control
switches on the screen when the DVD
player is operated. This button also
can be used when you lose sight of
the controller.
6. Joystick
This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.

Buttons on the DVD player unit

’07 HIGHLANDER HV_U (L/O 0608)
204
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
7. “ENT” buttonThis button inputs the selected switch
or the selected menu for the disc.
8. “DISC” indicator light This light indicates that the disc is
loaded.
Controller
DVD player unit

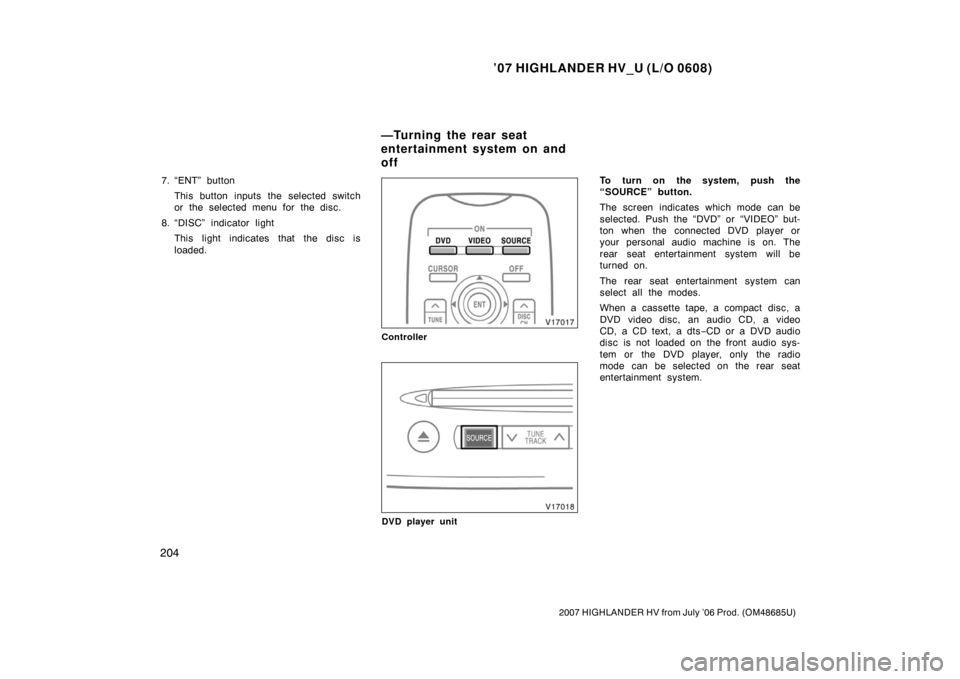

To turn on the system, push the
“SOURCE” button.
The screen indicates which mode can be
selected. Push the “DVD” or “VIDEO” but-
ton when the connected DVD player or
your personal audio machine is on. The
rear seat entertainment system will be
turned on.
The rear seat entertainment system can
select all the modes.
When a cassette tape, a compact disc, a
DVD video disc, an audio CD, a video
CD, a CD text, a dts −CD or a DVD audio
disc is not loaded on the front audio sys-
tem or the DVD player, only the radio
mode can be selected on the rear seat
entertainment system.
—Turning the rear seat
entertainment system on and
off

’07 HIGHLANDER HV_U (L/O 0608)
205
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

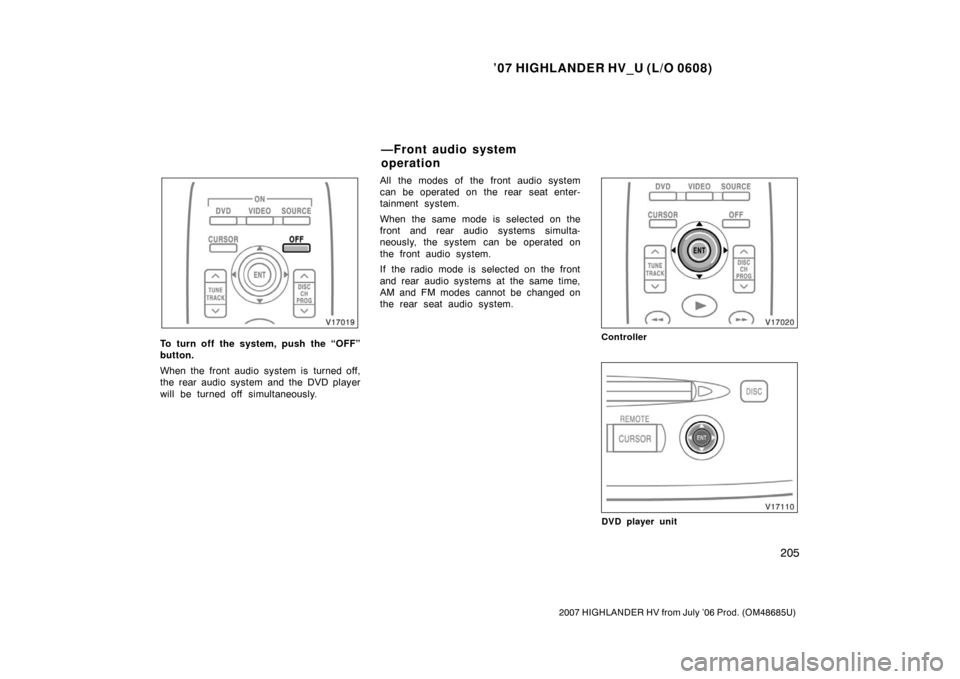

To turn off the system, push the “OFF”
button.
When the front audio system is turned off,
the rear audio system and the DVD player
will be turned off simultaneously.All the modes of the front audio system
can be operated on the rear seat enter-
tainment system.
When the same mode is selected on the
front and rear audio systems simulta-
neously, the system can be operated on
the front audio system.
If the radio mode is selected on the front
and rear audio systems at the same time,
AM and FM modes cannot be changed on
the rear seat audio system.Controller
DVD player unit
—Front audio system
operation

’07 HIGHLANDER HV_U (L/O 0608)
206
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

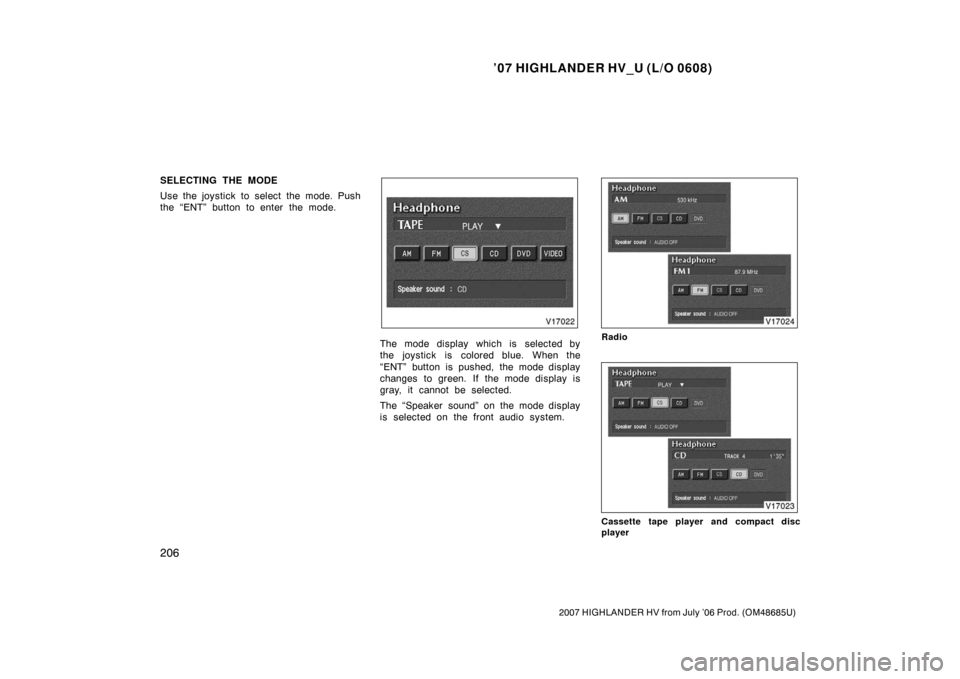

SELECTING THE MODE
Use the joystick to select the mode. Push
the “ENT” button to enter the mode.
The mode display which is selected by
the joystick is colored blue. When the
“ENT” button is pushed, the mode display
changes to green. If the mode display is
gray, it cannot be selected.
The “Speaker sound” on the mode display
is selected on the front audio system.Radio
Cassette tape player and compact disc
player

’07 HIGHLANDER HV_U (L/O 0608)
207
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
When you select a mode, the screen indi-
cates which is selected.
Radio
AM mode:
When you select the AM mode, “AM” will
appear on the screen.
FM mode:
When you select the FM mode, “FM1” or
“FM2” will appear on the screen.
Tape mode
“TAPE” appears on the screen while this
mode is selected.
Compact disc mode
“CD” appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
Controller
DVD player unit
OPERATING FRONT AUDIO SYSTEM
To operate the front audio system, use

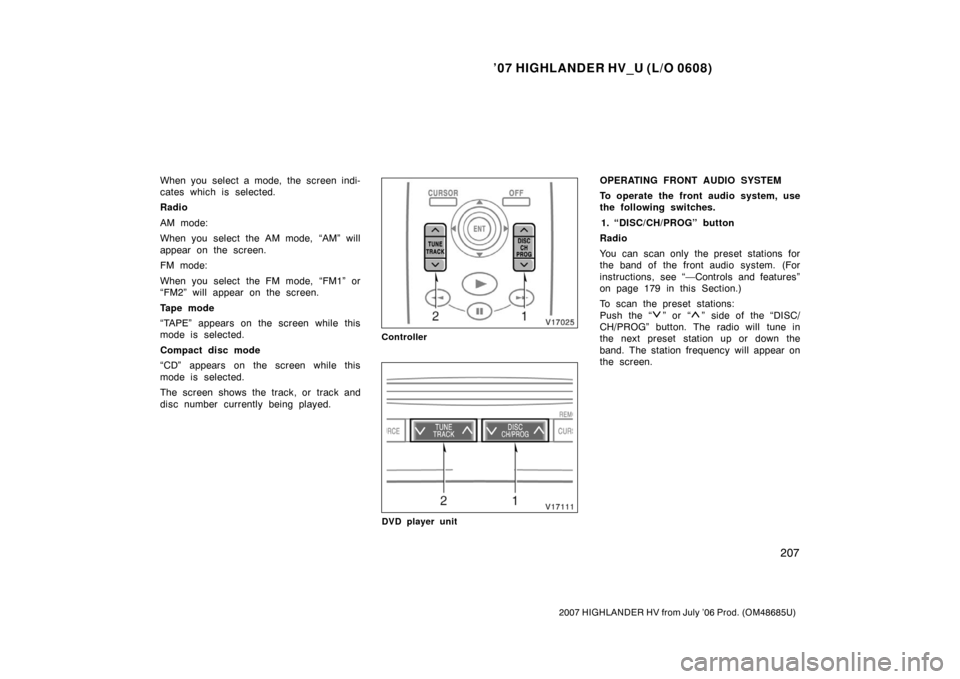

the following switches.1. “DISC/CH/PROG” button
Radio
You can scan only the preset stations for
the band of the front audio system. (For
instructions, see “—Controls and features”
on page 179 in this Section.)
To scan the preset stations:
Push the “
” or “” side of the “DISC/
CH/PROG” button. The radio will tune in
the next preset station up or down the
band. The station frequency will appear on
the screen.

’07 HIGHLANDER HV_U (L/O 0608)
208
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Cassette tape player
Push the “
” or “” side of the “DISC/
CH/PROG” button to select the other side
of a cassette tape. The screen indicates
which side is currently selected. (“
” indi-
cates the top side, “
” indicates the bot-
tom side.)
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the “
” or “” side of the “DISC/
CH/PROG” button until the number of the
disc you want to listen appears on the
display. 2. “TUNE/TRACK” button
Radio
Push the “
” or “” side of the “TUNE/
TRACK” button to tune or seek.
Tuning:
Quickly push and release the “
” or “”
side of the “TUNE/TRACK” button. Each
time you push the button, the radio will
step up or down to another frequency. If
you push and hold the button, and the
radio will go into the seek mode.
Seeking:
Push and hold the “
” or “” side of the
“TUNE/TRACK” button. The radio will seek
up or down for a station of the nearest
frequency and will stop on reception. Each
time you push the button, the stations will
be searched one after another.
Cassette tape player
To fast forward a cassette tape, push and
hol d the “
” side of the “TUNE/TRACK”
button until “FF” appears on the screen.
Push and hold the “
” side of the “TUNE/
TRACK” button until “REW” appears on
the screen to rewind a tape.
Use this button to skip up or down to
locate a song or recording. You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” side of the “TUNE/
TRACK” button. “FF 1” or “REW 1” will
appear on the screen.
Next, push either side of the track button
until the number on the screen reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
