’07 HIGHLANDER HV_U (L/O 0608)
9
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
The driver should pay special atten-
tion to pedestrians when the vehicle
is powered only by the traction mo-
tor. Because there is no engine
noise, the pedestrians may mis-
judge the vehicle’s movement.
When you leave your vehicle, be
sure to turn off the hybrid system.
Be sure to put the transmission in
the “P” position because the ve-
hicle can move when the “READY”
light is on even if the engine is
stopped. When the “READY” light is
on, do not leave your vehicle in a
shift position other than the “P”
and “N” positions. The vehicle will
creep and start abruptly if the ac-
celerator pedal is depressed by
mistake. This may cause death or
serious injury.
The multi information display
The navigation system screen
If you open the door with the hybrid
system turned on and the transmission
is not in the “P” position, a message
appears on the multi information dis-
play and navigation system screen (for
vehicles with navigation system).
When you leave your vehicle, or stop
or park for a while, put the transmis-
sion in the “P” position.
Charging the hybrid battery while driv-
ing is important. In the “N” position,
the hybrid battery will not be charged.
Do not leave the transmission in the
“N” position. The motor generator oper-
ates in the “P”, “R”, “D” and “B” posi-
tions. When you drive, put the trans-
mission in the “D” or “B” position and
depress the accelerator pedal. When
driving in a traffic jam, operate the
vehicle in the “D” position to prevent
the hybrid battery from being dischar-
ged.
Page 22 of 436
’07 HIGHLANDER HV_U (L/O 0608)
10
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

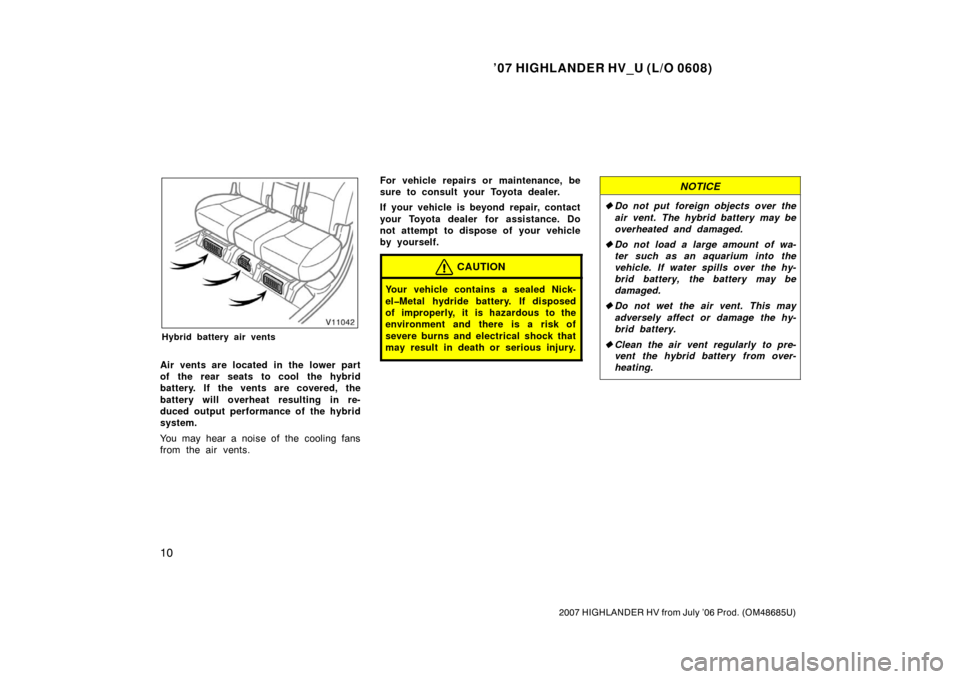

Hybrid battery air vents
Air vents are located in the lower part
of the rear seats to cool the hybrid
battery. If the vents are covered, the
battery will overheat resulting in re-
duced output performance of the hybrid
system.
You may hear a noise of the cooling fans
from the air vents.For vehicle repairs or maintenance, be
sure to consult your Toyota dealer.
If your vehicle is beyond repair, contact
your Toyota dealer for assistance. Do
not attempt to dispose of your vehicle
by yourself.
CAUTION
Your vehicle contains a sealed Nick-
el Metal hydride battery. If disposed
of improperly, it is hazardous to the
environment and there is a risk of
severe burns and electrical shock that
may result in death or serious injury.
NOTICE
Do not put foreign objects over the
air vent. The hybrid battery may be
overheated and damaged.
Do not load a large amount of wa-
ter such as an aquarium into the
vehicle. If water spills over the hy-
brid battery, the battery may be
damaged.
Do not wet the air vent. This may
adversely affect or damage the hy-
brid battery.
Clean the air vent regularly to pre-
vent the hybrid battery from over-
heating.
Page 23 of 436
’07 HIGHLANDER HV_U (L/O 0608)
11
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
Pull your vehicle off the road, put
the transmission in the “P” posi-
tion, apply the parking brake, turn
the hybrid system off and remove
the key.
In order to avoid personal injuries,
do not touch high voltage wiring,
connectors or high voltage parts
(inverter unit, hybrid battery and
etc.).
If exposed electric wires are pro-
truding inside or outside of your
vehicle, an electric shock may oc-
cur. Never touch the electric wires.
If fluid leaks or gets into some
parts of the vehicle, never touch it
because it may be strong alkaline
electrolyte from the hybrid battery.
If it contacts your skin or eyes,
wash it off immediately with a large
amount of water or if possible, bo-
ric acid solution. Get immediate
medical attention in order to help
avoid serious injury.
If a fire occurs in the hybrid ve-
hicle, leave the vehicle as soon as
possible. Never use a fire extin-
guisher that is not meant for elec-
tric fires. Using a small amount of
water may be also dangerous.
If your vehicle needs to be towed,
do it with the front wheels raised
(front wheel drive models) or all
four wheels raised (all models). If
the wheels with the traction motor
are on the ground when towing, the
motor may continue to generate
electricity. This may cause the elec-
tricity leakage. Depending on the
severity of the damage, electricity
leakage may cause fire. See “If your
vehicle needs to be towed” on page
353 in Section 4.
The emergency shut off system blocks
off the high voltage current and stops
the fuel pump to minimize the risk of
the electric leakage and the fuel leak-
age when a certain level of impact is
detected by the impact sensor. If the
system activates, your vehicle will not
restart. To restart the hybrid system,
contact a Toyota dealer.
CAUTION
Check to see if there are exposed
high voltage parts and cables. Nev-
er touch the parts and cables. See
“—High voltage components” on
page 6 in this Section for the loca-
tions of the high voltage parts and
cables.
Inspect the ground under the ve-
hicle. If you find that liquid has
leaked onto the ground, the fuel
system may have been damaged.
Leave the vehicle as soon as pos-
sible.
Road accident cautions——Emergency shut off system
Page 24 of 436
’07 HIGHLANDER HV_U (L/O 0608)
12
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moonroof switch and personallights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Transmission selector lever
12. Ashtrays
13. A/V input adapter
14. Power outlet (115 VAC)
15. Cup holder
16. Container
17. Power outlet (12 VDC)
18. Audio remote control switches
19. Hood lock release lever
20. Fuel filler door switch
21. Parking brake pedal
22. Window lock switch
Instrument panel overview
Vehicles with rear seat entertainment system (view A)
Page 25 of 436
’07 HIGHLANDER HV_U (L/O 0608)
13
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moonroof switch and personallights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Transmission selector lever
12. Ashtrays
13. Cup holder
14. Container
15. Power outlet (12 VDC)
16. Audio remote control switches
17. Hood lock release lever
18. Fuel filler door switch
19. Parking brake pedal
20. Window lock switch
Vehicles without rear seat entertainment system (view A)
Page 26 of 436
’07 HIGHLANDER HV_U (L/O 0608)
14
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
7. Air conditioning controls
8. Audio system
9. Front passenger airbag on −off indicator
lights
10. Seat heater switches 11. Power outlet (12 VDC)
12. Cruise control switch
13. Ignition switch
14. Tilt steering lock release lever
15. Power outlet (115 VAC) main switch
16. Rear heater main switch
17. Theft deterrent system/engine immobilizer system indicator light
18. Power rear view mirror control switches
Vehicles with manual air conditioning controls (view B)
Page 27 of 436
’07 HIGHLANDER HV_U (L/O 0608)
15
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Trip information button
6. Front passenger ’s seat belt reminder light
7. Air conditioning controls and trip information display
8. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
9. Audio system
10. Front passenger airbag on −off indicator
lights
11. Seat heater switches
12. Power outlet (12 VDC)
13. Cruise control switch
14. Ignition switch
15. Tilt steering lock release lever
16. Power outlet (115 VAC) main switch
17. Rear heater main switch
18. Theft deterrent system/engine immobilizer system indicator light
19. Power rear view mirror control switches
Vehicles with automatic air conditioning controls (view B without navigation system)
Page 28 of 436
’07 HIGHLANDER HV_U (L/O 0608)
16
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
∗
5. Front passenger ’s seat belt reminder light
6. Navigation system including air conditioning controls
∗
7. Rear window and outside rear viewmirror defogger and windshield wiper
de− icer switch
8. Audio system
∗
9. Front passenger airbag on− off indicator
lights
10. Seat heater switches
11. Power outlet (12 VDC)
12. Cruise control switch
13. Ignition switch
14. Tilt steering lock release lever
15. Power outlet (115 VAC) main switch
16. Rear heater main switch
17. Theft deterrent system/engine immobilizer system indicator light
18. Power rear view mirror control switches
∗: See the separate “Navigation System Owner ’s Manual”.
Vehicles with automatic air conditioning controls (view B with navigation system)
Page 29 of 436
’07 HIGHLANDER HV_U (L/O 0608)
17
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Power meter
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Multi
−information mode button
8. Multi −information display
9. Instrument panel light control/trip meter reset knob
Instrument cluster overview
Page 30 of 436
’07 HIGHLANDER HV_U (L/O 0608)
18
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1
Open door warning light∗1
Electric power steering system warning light∗1
oror
Master warning light
∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
(red
indicator)
Hybrid battery warning light
∗1Driving ready light
(yellow
indicator)
Indicator symbols on the instrument panel
