TOYOTA HIGHLANDER HYBRID 2007 XU40 / 2.G Workshop Manual
Manufacturer: TOYOTA, Model Year: 2007, Model line: HIGHLANDER HYBRID, Model: TOYOTA HIGHLANDER HYBRID 2007 XU40 / 2.GPages: 436, PDF Size: 9.17 MB
Page 51 of 436
’07 HIGHLANDER HV_U (L/O 0608)
39
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

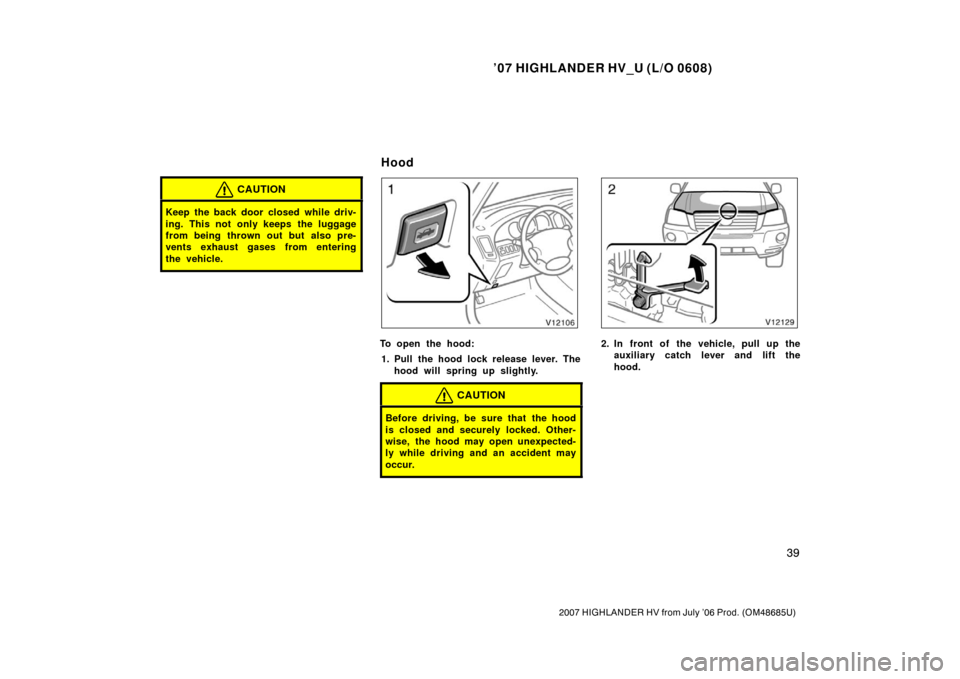

CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood
Page 52 of 436
’07 HIGHLANDER HV_U (L/O 0608)
40
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
3. Hold the hood open by inserting thesupport rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or the battery termi-
nal is disconnected and then recon-
nected when the system is set.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
light.SETTING THE SYSTEM 1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 25 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
Theft deterrent system
Page 53 of 436
’07 HIGHLANDER HV_U (L/O 0608)
41
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
Canceling the system
The system will cancel within 30 seconds
before the system is set automatically un-
der any of the following conditions:
Any of the side doors, back door or
hood is opened.
Any of the side doors or back door is
unlocked.
The key is inserted into the ignition.
The battery terminal is reconnected.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors and back door
is unlocked or opened without the key
or wireless remote control transmitter,
or if the hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hot
−wired.
The indicator light will come on when the
system is activated.
If any of the side doors and back door is
unlocked without the key or wireless re-
mote control transmitter and the key is
not in the ignition switch, all the side
doors and back door will be automatically
locked again.
After about 1 minute, the alarm will auto-
matically stop and the indicator light will
start flashing again. Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
conditions:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
If the 12 volt battery becomes dis-
charged due to the vehicle being un-
used for a long time, etc., when the
battery is recharged or replaced, the sys-
tem will give the alarm. If this happens,
immediately unlock any of the side doors
or back door with the key or the wireless
remote control transmitter, and the alarm
will stop.
Page 54 of 436
’07 HIGHLANDER HV_U (L/O 0608)
42
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light starts flash-
ing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door is
on the left side of your vehicle.
To refuel your vehicle, turn the hybrid
system off.
CAUTION
Do not smoke, cause sparks or allow
open flames in the area when refuel-
ing. The fumes are flammable.
1. To open the fuel filler door, push the switch.
Fuel tank cap
Page 55 of 436
’07 HIGHLANDER HV_U (L/O 0608)
43
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

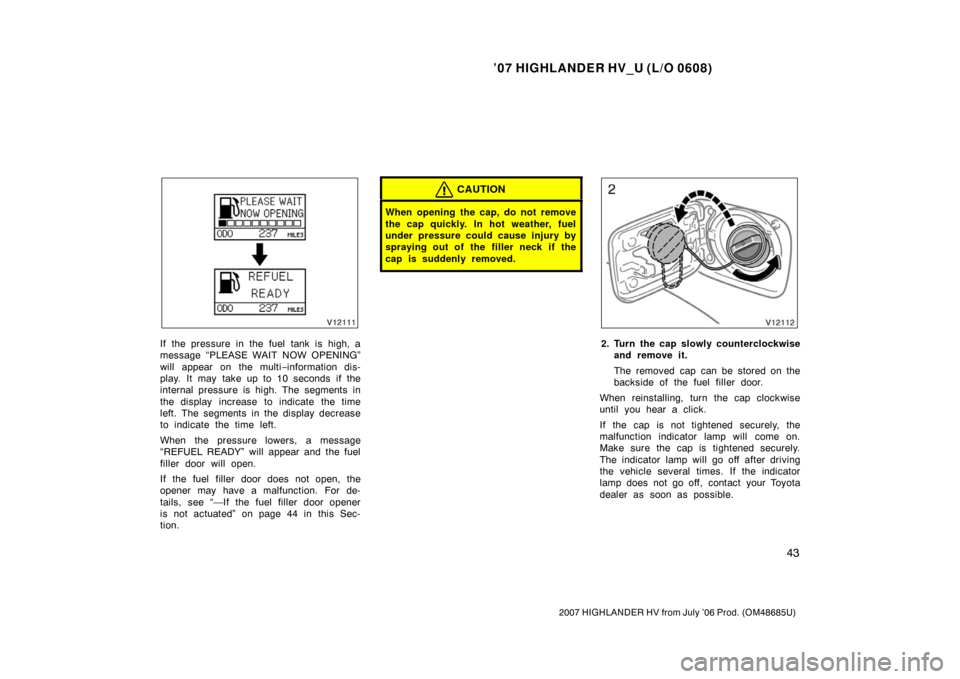

If the pressure in the fuel tank is high, a
message “PLEASE WAIT NOW OPENING”
will appear on the multi−information dis-
play. It may take up to 10 seconds if the
internal pressure is high. The segments in
the display increase to indicate the time
left. The segments in the display decrease
to indicate the time left.
When the pressure lowers, a message
“REFUEL READY” will appear and the fuel
filler door will o pen.
If the fuel filler door does not o pen, the
opener may have a malfunction. For de-
tails, see “—If the fuel filler door op ener
is not actuated” on page 44 in this Sec-
tion.
CAUTION
When opening the cap, do not remove
the cap quickly. In hot weather, fuel
under pressure could cause injury by
spraying out of the filler neck if the
cap is suddenly removed.
2. Turn the cap slowly counterclockwise and remove it.
The removed cap can be stored on the
backside of the fuel filler door.
When reinstalling, turn the cap clockwise
until you hear a click.
If the cap is not tightened securely, the
malfunction indicator lamp will come on.
Make sure the cap is tightened securely.
The indicator lamp will go off after driving
the vehicle several times. If the indicator
lamp does not go off, contact your Toyota
dealer as soon as possible.
Page 56 of 436
’07 HIGHLANDER HV_U (L/O 0608)
44
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If you leave the fuel filler door open and
start the hybrid system, a message
“CLOSE FUEL LID” will appear. Make sure
the fuel filler door is closed.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
Finish refueling within 30 minutes. If
more than 30 minutes passes, the in-
ternal valve closes. In this condition,
fuel may spill out if you continue to
refuel the vehicle. About 5 seconds
after the valve is closed, a message
“CLOSE FUEL LID” will appear on the
display. To refuel the vehicle again,
tighten the fuel tank cap and close
the fuel filler door, and then push the
fuel filler door opener switch again.
If the opener is not actuated, contact
your Toyota dealer to service the ve-
hicle. If you must refuel your vehicle,
you can open the fuel filler door manu-
ally as instructed below.
The system to lower internal pressure
in the fuel tank may not be functioning
so you must turn the cap slowly with
releasing the pressure. In addition, fuel
may spill out during refueling. Fill the
fuel tank carefully and slowly. 1. Open the left side auxiliary box in
the luggage compartment.
2. Pull the manual lock release tab.
The fuel filler door will open.
3. Turn the cap slowly counterclock- wise.
You may hear a slight swoosh when
you remove the cap.
CAUTION
When opening the cap, do not remove
it quickly. The fuel may spray out of
the filler opening if the cap is sud-
denly removed.
—If the fuel filler door opener
is not actuated
Page 57 of 436
’07 HIGHLANDER HV_U (L/O 0608)
45
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

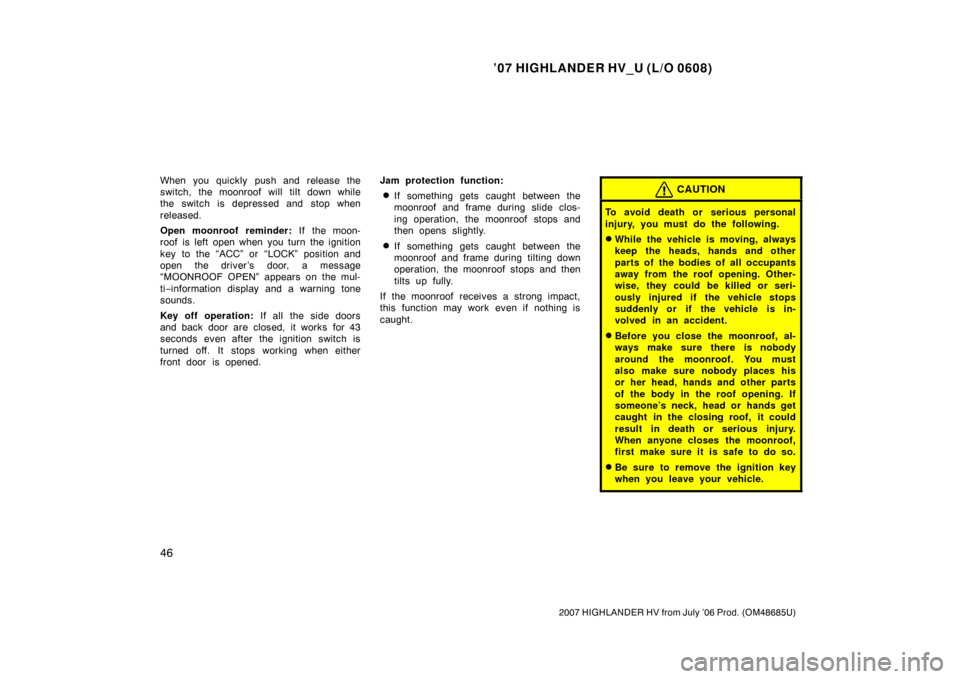

Sliding operation
Tilting operation
To operate the moonroof, use the
switch between the personal lights.
The moonroof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch toward the
“SLIDE OPEN” side.
The roof will open and stop partway 45
mm (1.8 in.) from the fully opened posi-
tion. When you push the switch toward
the “SLIDE OPEN” side again, the moon
roof will open fully. To stop the roof part-
way, push the switch toward either the
“SLIDE OPEN” or “TILT UP” side quickly
while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
45 mm (1.8 in.) from the fully opened
position.
When you quickly push and release the
switch, the moonroof will open while the
switch is depressed and stop when re-
leased.
The sun shade will be opened together
with the roof.To close: Push the switch toward the
“TILT UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch
toward either the “SLIDE OPEN” or “TILT
UP” side quickly.
When you quickly push and release the
switch, the moonroof will close while the
switch is depressed and stop when re-
leased.
Tilting operation—
To tilt up: Push the switch toward the
“TILT UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push the switch
toward either the “SLIDE OPEN” or “TILT
UP” side quickly.
When you quickly push and release the
switch, the moonroof will tilt up while the
switch is depressed and stop when re-
leased.
To tilt down: Push the switch toward the
“SLIDE OPEN” side.
The roof will fully tilt down automatically.
To stop the roof partway, push the switch
toward either the “SLIDE OPEN” or “TILT
UP” side quickly.
Electric moonroof
Page 58 of 436
’07 HIGHLANDER HV_U (L/O 0608)
46
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
When you quickly push and release the
switch, the moonroof will tilt down while
the switch is depressed and stop when
released.
Open moonroof reminder: If the moon-
roof is left open when you turn the ignition
key to the “ACC” or “LOCK” position and
open the driver ’s door, a message
“MOONROOF OPEN” appears on the mul-
ti −information display and a warning tone
sounds.
Key off operation: If all the side doors
and back door are closed, it works for 43
seconds even after the ignition switch is
turned off. It stops working when either
front door is opened. Jam protection function:
If something gets caught between the
moonroof and frame during slide clos-
ing operation, the moonroof stops and
then opens slightly.
If something gets caught between the
moonroof and frame during tilting down
operation, the moonroof stops and then
tilts up fully.
If the moonroof receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
To avoid death or serious personal
injury, you must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be killed or seri-
ously injured if the vehicle stops
suddenly or if the vehicle is in-
volved in an accident.
Before you close the moonroof, al-
ways make sure there is nobody
around the moonroof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moonroof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Page 59 of 436
’07 HIGHLANDER HV_U (L/O 0608)
47
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moonroof switch and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the moonroof is fully
closed.
Page 60 of 436
’07 HIGHLANDER HV_U (L/O 0608)
48
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
