TOYOTA HIGHLANDER HYBRID 2007 XU40 / 2.G Service Manual
Manufacturer: TOYOTA, Model Year: 2007, Model line: HIGHLANDER HYBRID, Model: TOYOTA HIGHLANDER HYBRID 2007 XU40 / 2.GPages: 436, PDF Size: 9.17 MB
Page 41 of 436
’07 HIGHLANDER HV_U (L/O 0608)
29
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the center
interior light, personal lights and ignition
switch light come on for about 15 seconds
before fading out, even if the door is not
opened. (For details, see “Interior lights”
on page 135, “Personal lights” on page
136 and “Ignition switch light” on page
137 in Section 1−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again. At this time, one beep
will be heard, and the turn signal lights
flash once.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again. The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK” or “PANIC” switch
twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep on/off operation by push-
ing the transmitter switch after you finish
this procedure. If the beep does not oper-
ate as expected, repeat this procedure
from step 1.
—Switching beep sound
Page 42 of 436
’07 HIGHLANDER HV_U (L/O 0608)
30
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock any of side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ON” position.The “PANIC” mode does not work when
the ignition key is in the “ON” position.
The alarm function can be disabled. For
details, contact your Toyota dealer.
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
—Activating panic mode —Replacing transmitter
battery
Page 43 of 436
’07 HIGHLANDER HV_U (L/O 0608)
31
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

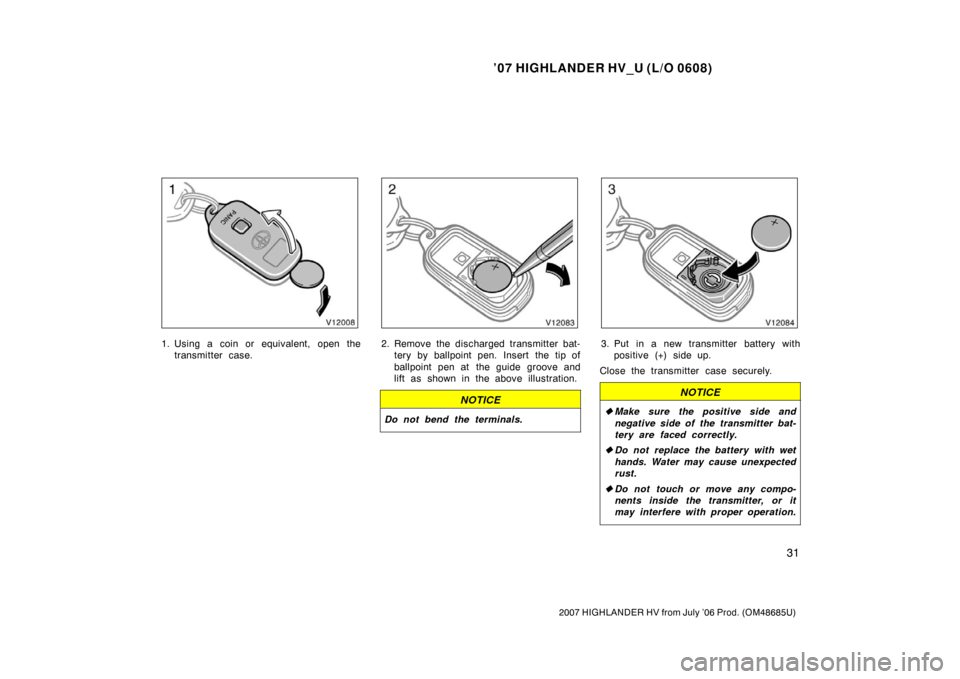

1. Using a coin or equivalent, open thetransmitter case.2. Remove the discharged transmitter bat-tery by ballpoint pen. Insert the tip of
ballpoint pen at the guide groove and
lift as shown in the above illustration.
NOTICE
Do not bend the terminals.
3. Put in a new transmitter battery withpositive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
Page 44 of 436
’07 HIGHLANDER HV_U (L/O 0608)
32
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver ’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
This double key turning operation to un-
lock all the side doors and back door can
be changed to a single key turning opera-
tion. For details, contact your Toyota deal-
er. When all the side doors and back door
are unlocked simultaneously using a key,
the center interior light, personal lights
and ignition switch light will come on and
remain on for about 15 seconds before
fading out. (For further information, see
“Interior lights” on page 135, “Personal
lights” on page 136 and “Ignition switch
light” on page 137 in Section 1
−5.)
The driver ’s window can be opened or
closed with the key operation in the driv-
er ’s door keyhole. (For details, see “Power
windows” on page 35 in this Section.)
Side doors
Page 45 of 436
’07 HIGHLANDER HV_U (L/O 0608)
33
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

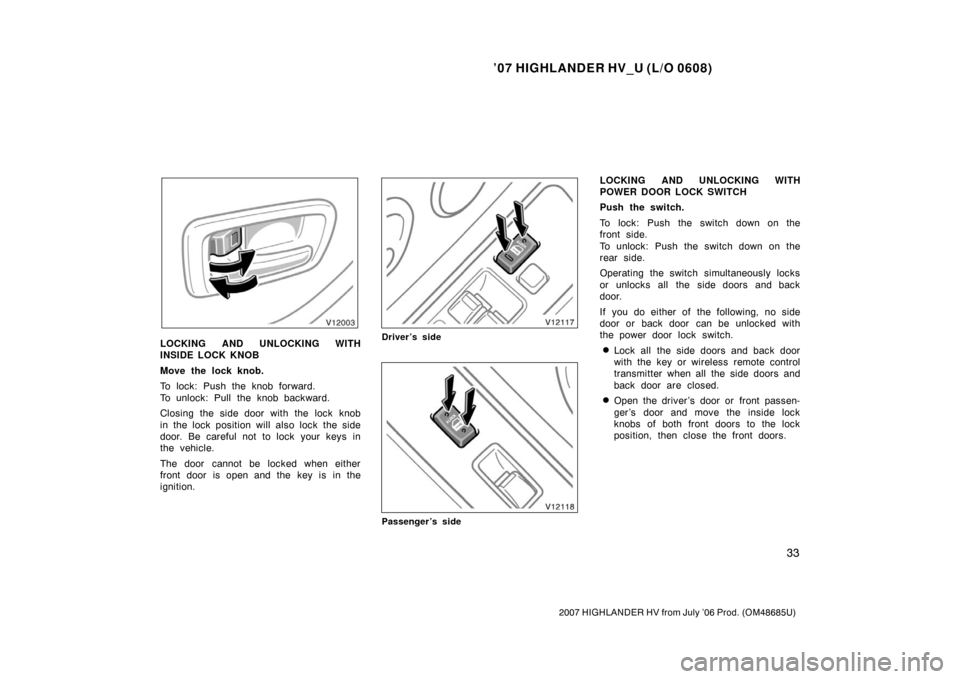

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
The door cannot be locked when either
front door is open and the key is in the
ignition.Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do either of the following, no side
door or back door can be unlocked with
the power door lock switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when all the side doors and
back door are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
Page 46 of 436
’07 HIGHLANDER HV_U (L/O 0608)
34
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
and back door with the power door
lock switch.

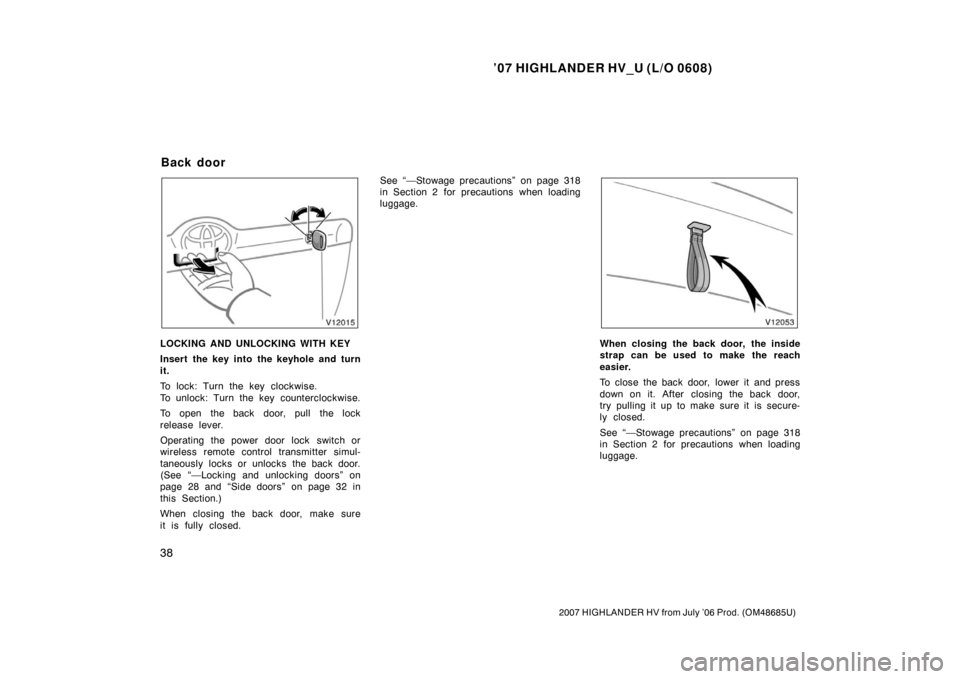

REAR DOOR CHILD PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Page 47 of 436
’07 HIGHLANDER HV_U (L/O 0608)
35
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If all the side doors
and back door are closed, they work for
43 seconds even after the ignition switch
is turned off. They stop working when the
either front door is opened.

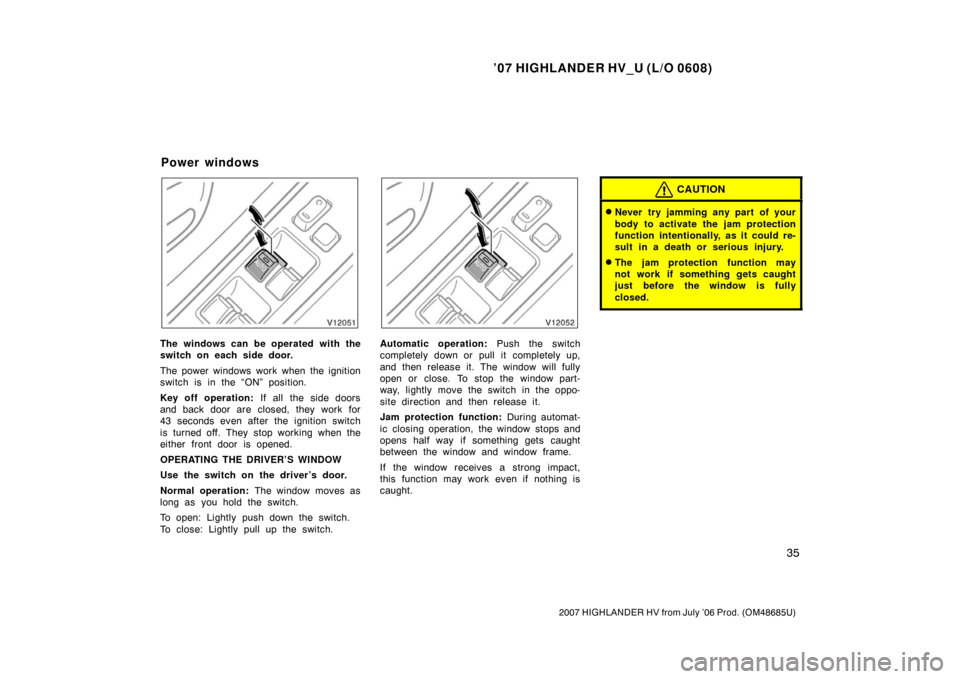

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Power windows
Page 48 of 436
’07 HIGHLANDER HV_U (L/O 0608)
36
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

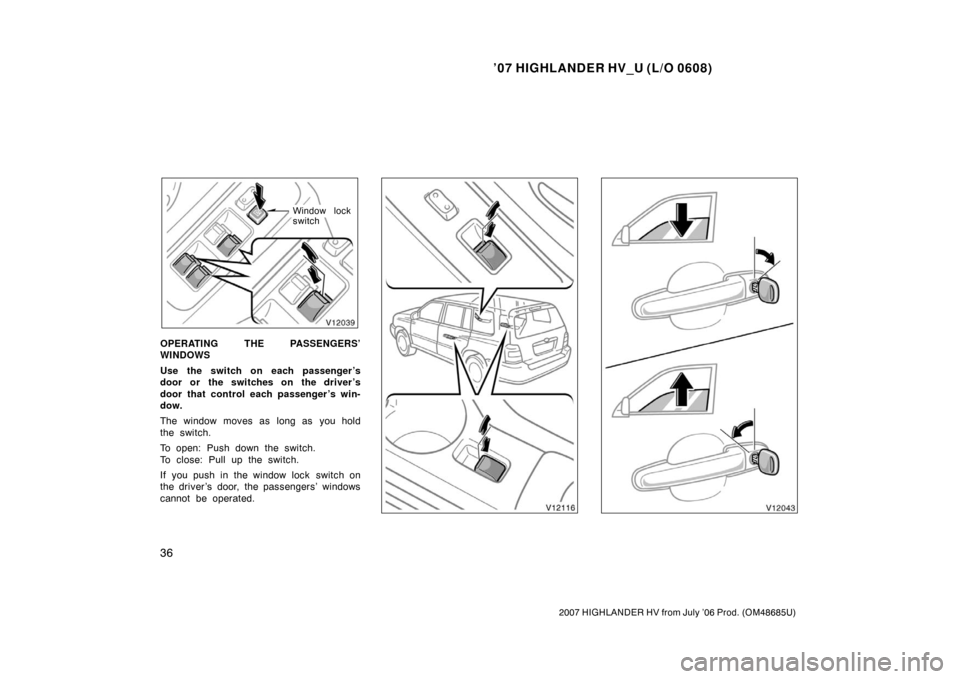

Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Page 49 of 436
’07 HIGHLANDER HV_U (L/O 0608)
37
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
OPERATING THE DRIVER’S WINDOW
FROM OUTSIDE THE VEHICLE
The driver ’s window can be operated
with the key inserted in the driver’s
door keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This feature can be disabled. For details,

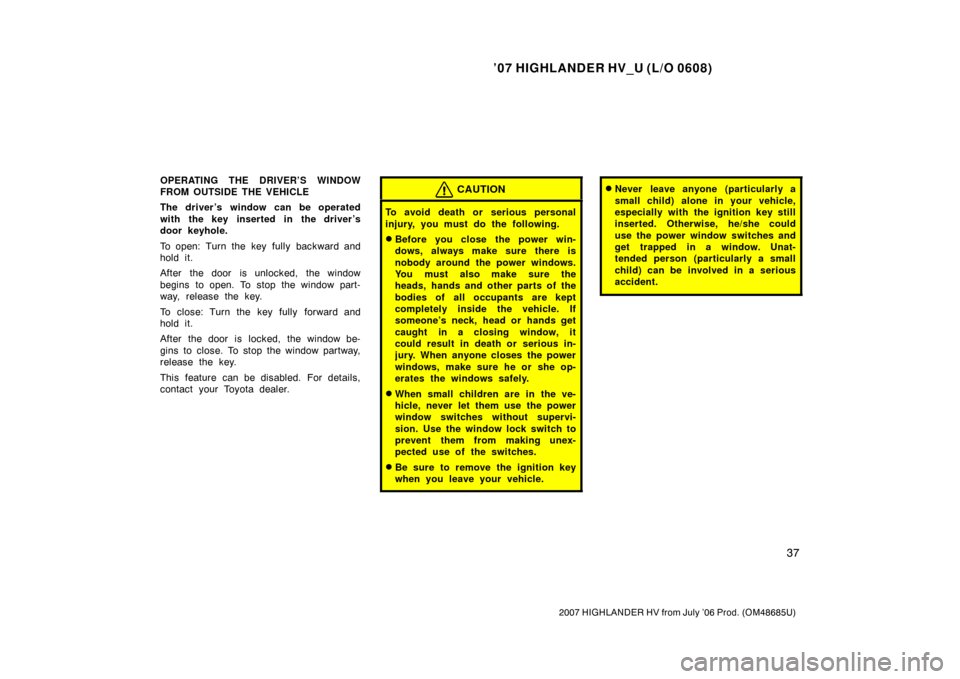

contact your Toyota dealer.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Page 50 of 436
’07 HIGHLANDER HV_U (L/O 0608)
38
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock
release lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See “—Locking and unlocking doors” on
page 28 and “Side doors” on page 32 in
this Section.)
When closing the back door, make sure
it is fully closed.See “—Stowage precautions” on page 318
in Section 2 for precautions when loading
luggage.When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “—Stowage precautions” on page 318
in Section 2 for precautions when loading
luggage.
Back door
