TOYOTA HIGHLANDER HYBRID 2014 XU50 / 3.G Warranty And Maintenance Guide

JOBNAME:1491132-2014-hhvWG-E PAGE:39SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

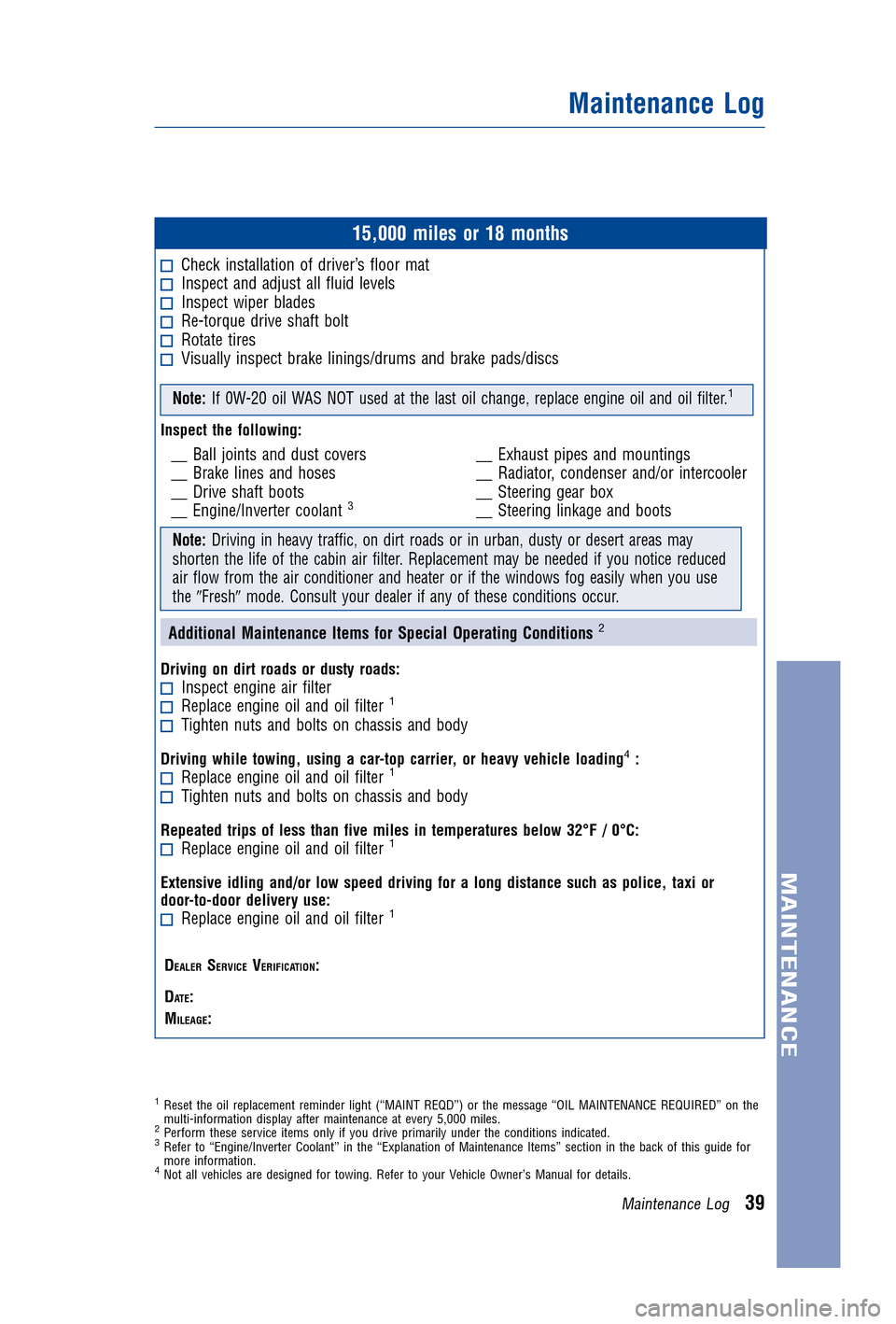

15,000 milesor18 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Rotate tires Visually inspectbrakelinings/drums andbrake pads/discs
Note: If0W-20 oilWAS NOTused atthe last oilchange, replaceengineoiland oilfilter.1
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive shaftboots
__ Engine/Inverter coolant
3
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions2
Drivingondirt roads ordusty roads:Inspect engineairfilterReplace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading4:Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Repeated tripsofless than fivemiles intemperatures below32°F/0°C:Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
4Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog39

JOBNAME:1491132-2014-hhvWG-E PAGE:40SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
20,000 milesor24 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading5: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 milesor30 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading5: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
40MaintenanceLog

JOBNAME:1491132-2014-hhvWG-E PAGE:41SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

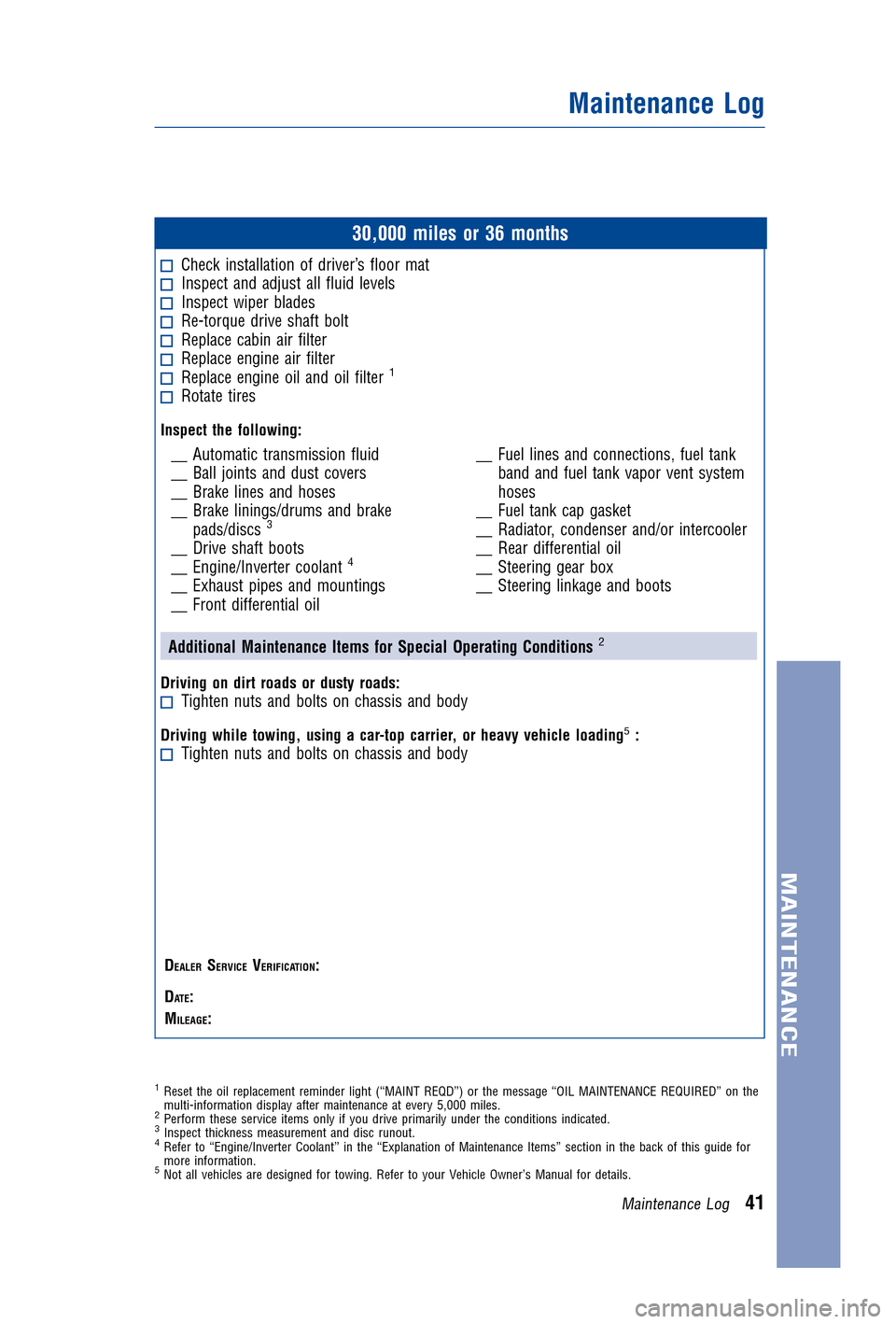

30,000 milesor36 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Replace cabinairfilter Replace engineairfilter Replace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive shaftboots
__ Engine/Inverter coolant4
__Exhaust pipesandmountings
__ Front differential oil __
Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Rear differential oil
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads: Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading5: Tightennutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
5Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog41

JOBNAME:1491132-2014-hhvWG-E PAGE:42SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

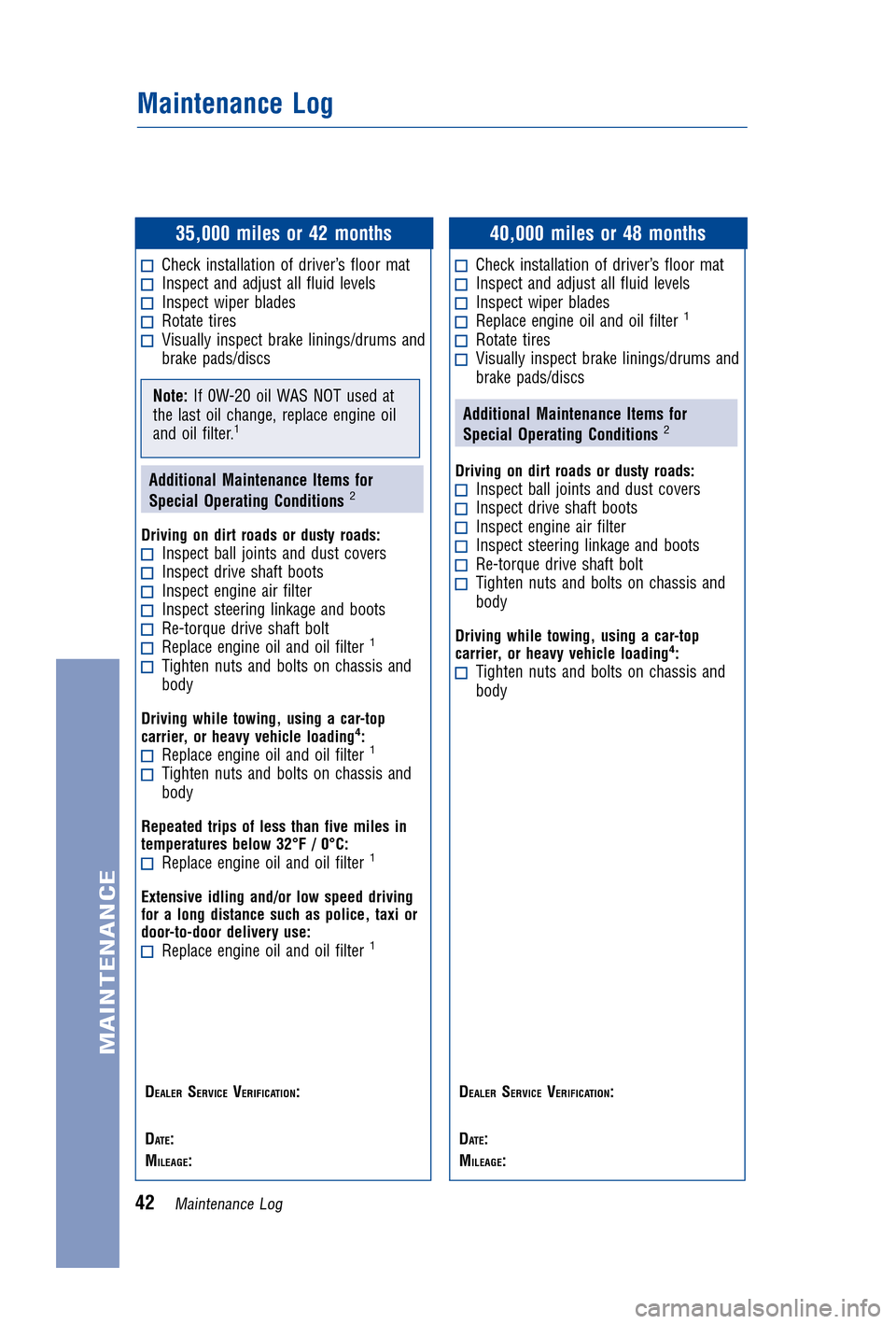

35,000 milesor42 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading4: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 milesor48 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading4: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
42MaintenanceLog

JOBNAME:1491132-2014-hhvWG-E PAGE:43SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
45,000 milesor54 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Rotate tires Visually inspectbrakelinings/drums andbrake pads/discs
Note: If0W-20 oilWAS NOTused atthe last oilchange, replaceengineoiland oilfilter.1
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive shaftboots
__ Engine/Inverter coolant
3
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions2
Drivingondirt roads ordusty roads:Inspect engineairfilterReplace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading4:Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Repeated tripsofless than fivemiles intemperatures below32°F/0°C:Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
4Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog43

JOBNAME:1491132-2014-hhvWG-E PAGE:44SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

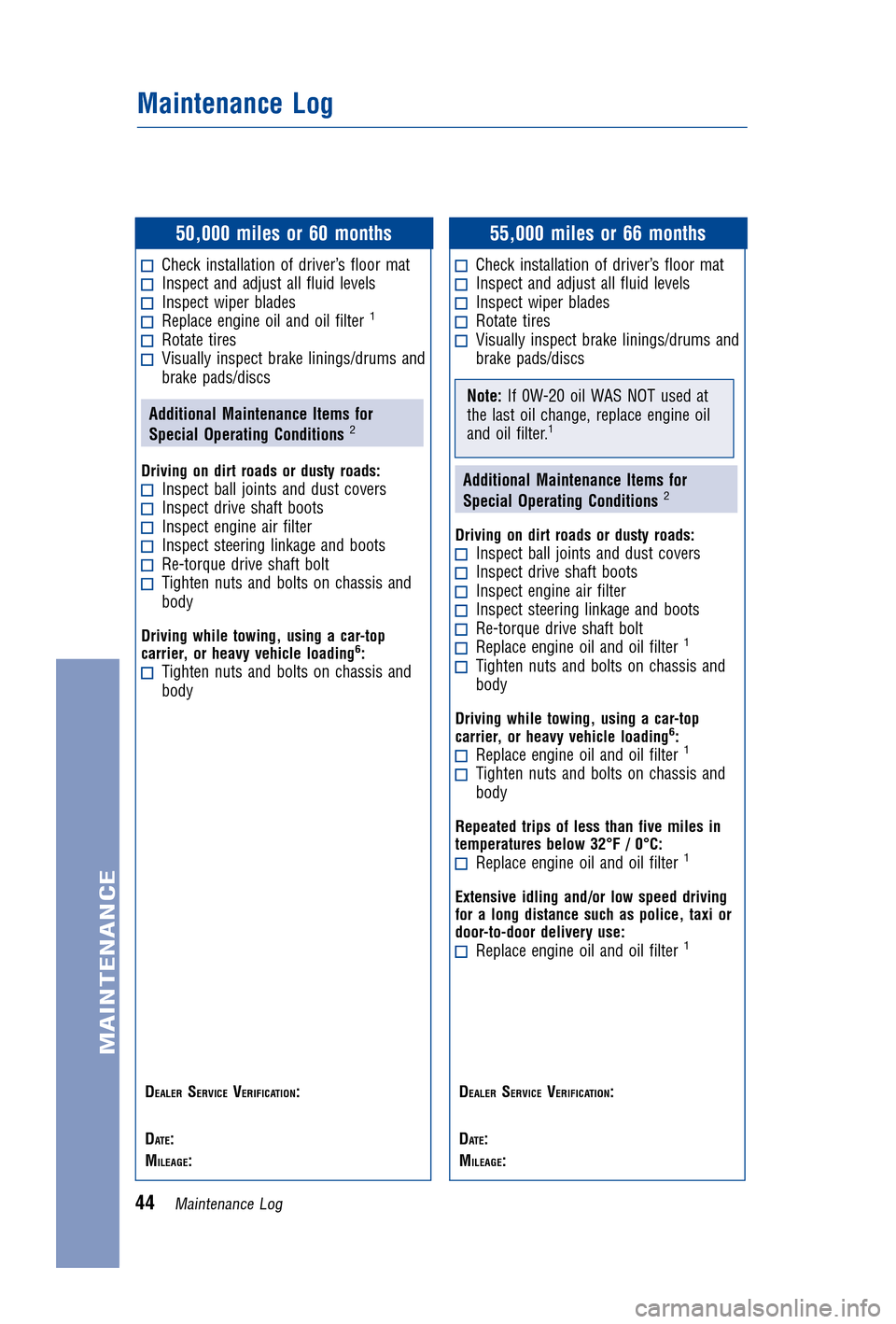

50,000 milesor60 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading6: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 milesor66 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading6: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
44MaintenanceLog

JOBNAME:1491132-2014-hhvWG-E PAGE:45SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

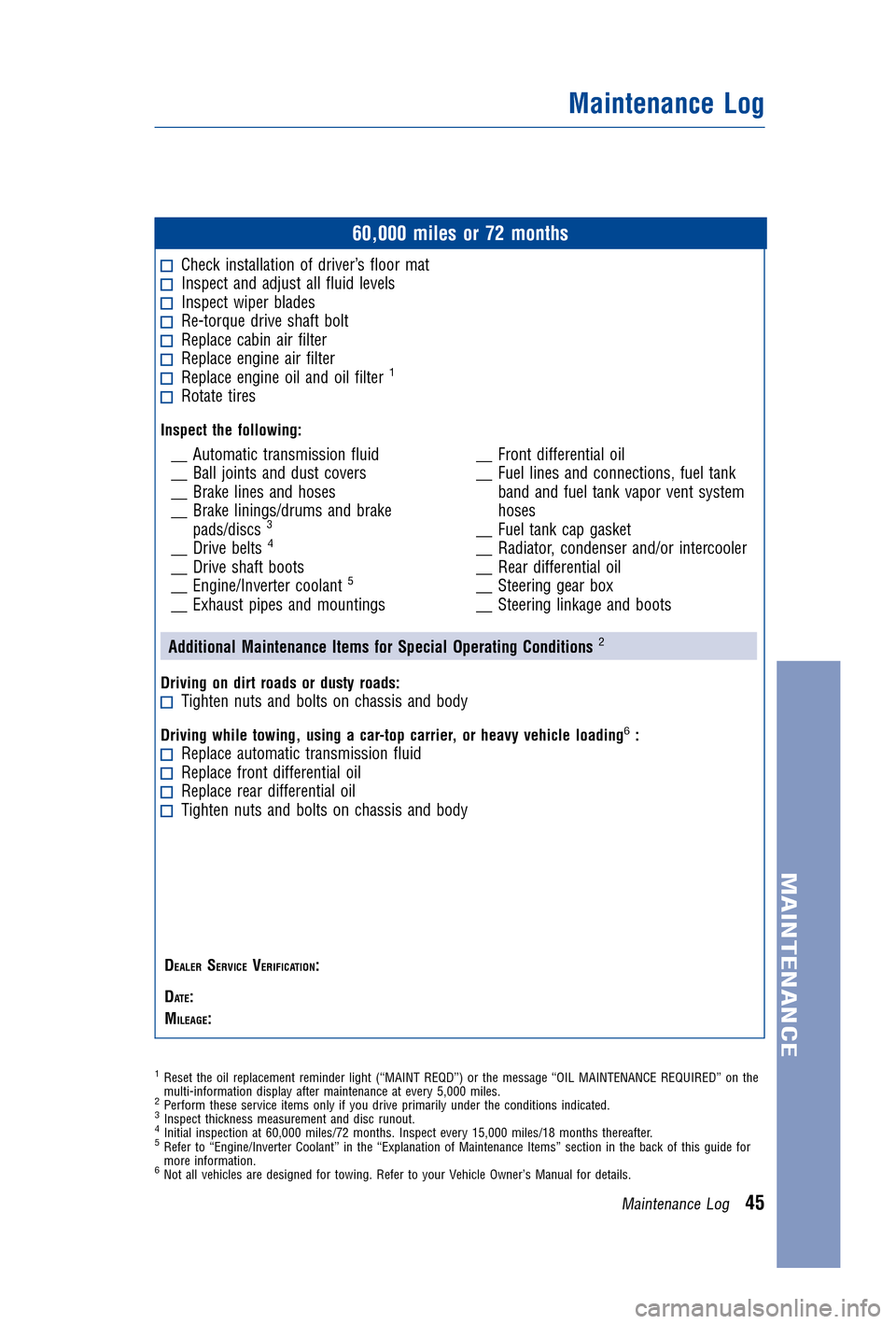

60,000 milesor72 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Replace cabinairfilter Replace engineairfilter Replace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive belts4
__Drive shaftboots
__ Engine/Inverter coolant5
__Exhaust pipesandmountings __
Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Rear differential oil
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads: Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading6: Replace automatic transmission fluid Replacefrontdifferential oil Replacereardifferential oil Tightennutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Initial inspection at60,000 miles/72 months.Inspectevery15,000 miles/18 monthsthereafter.5Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
6Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog45

JOBNAME:1491132-2014-hhvWG-E PAGE:46SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
65,000 milesor78 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading4: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
70,000 milesor84 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading4: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
46MaintenanceLog

JOBNAME:1491132-2014-hhvWG-E PAGE:47SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
75,000 milesor90 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Rotate tires Visually inspectbrakelinings/drums andbrake pads/discs
Note: If0W-20 oilWAS NOTused atthe last oilchange, replaceengineoiland oilfilter.1
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
3
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions2
Drivingondirt roads ordusty roads:Inspect engineairfilterReplace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading4:Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Repeated tripsofless than fivemiles intemperatures below32°F/0°C:Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Referto“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
4Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog47

JOBNAME:1491132-2014-hhvWG-E PAGE:48SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
80,000 milesor96 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading5: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
85,000 milesor102 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading5: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
48MaintenanceLog
