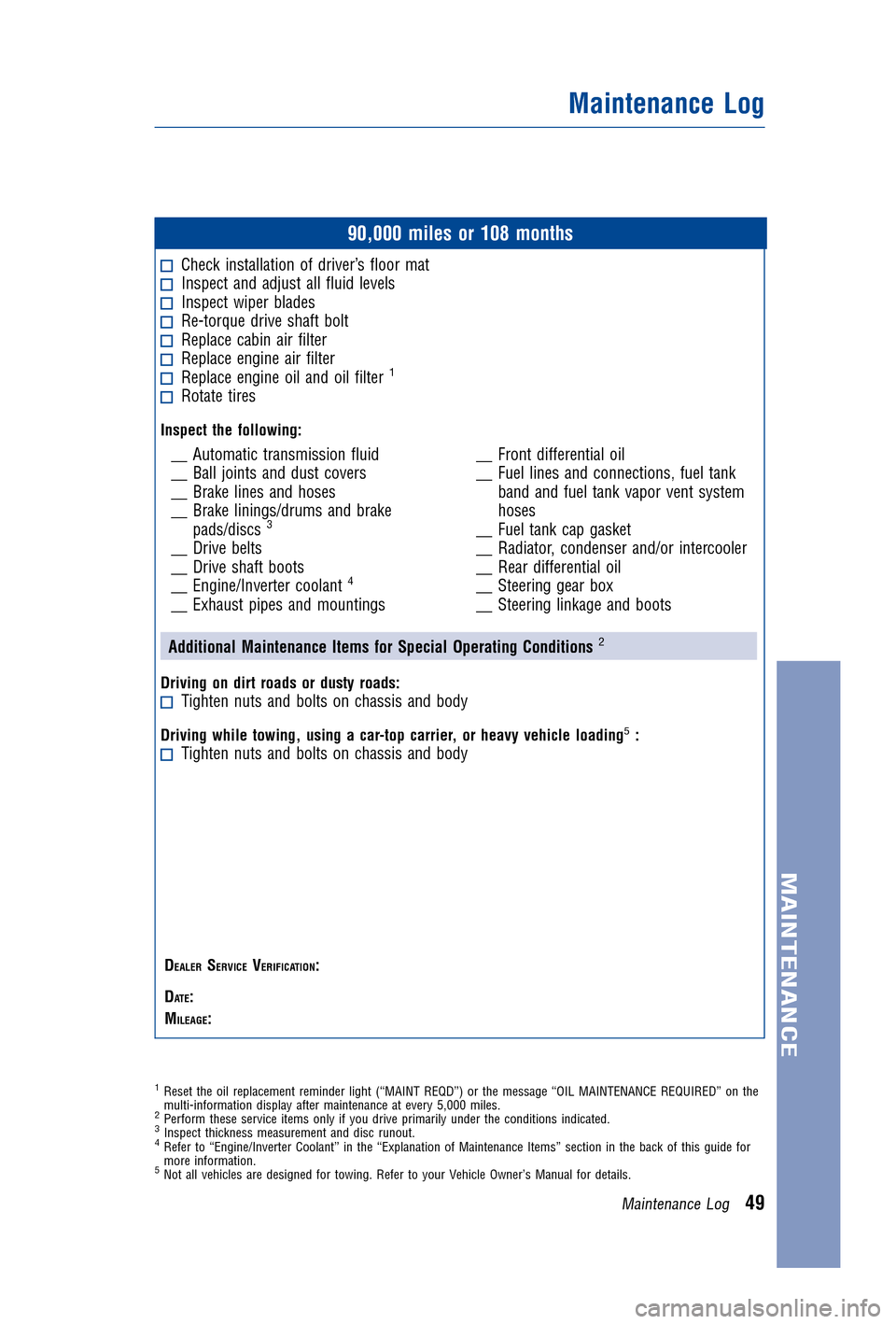

90,000 milesor108 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Replace cabinairfilter Replace engineairfilter Replace engineoiland oilfilter1
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
3
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
4
__Exhaust pipesandmountings __
Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Rear differential oil
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads: Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading5: Tightennutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Inspectthickness measurement anddisc runout.4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
5Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog49
Page 52 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:50SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
95,000 milesor114 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading5: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
100,000 milesor120 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engine/inverter coolant3
Replaceengineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading5: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
50MaintenanceLog
Page 53 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:51SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

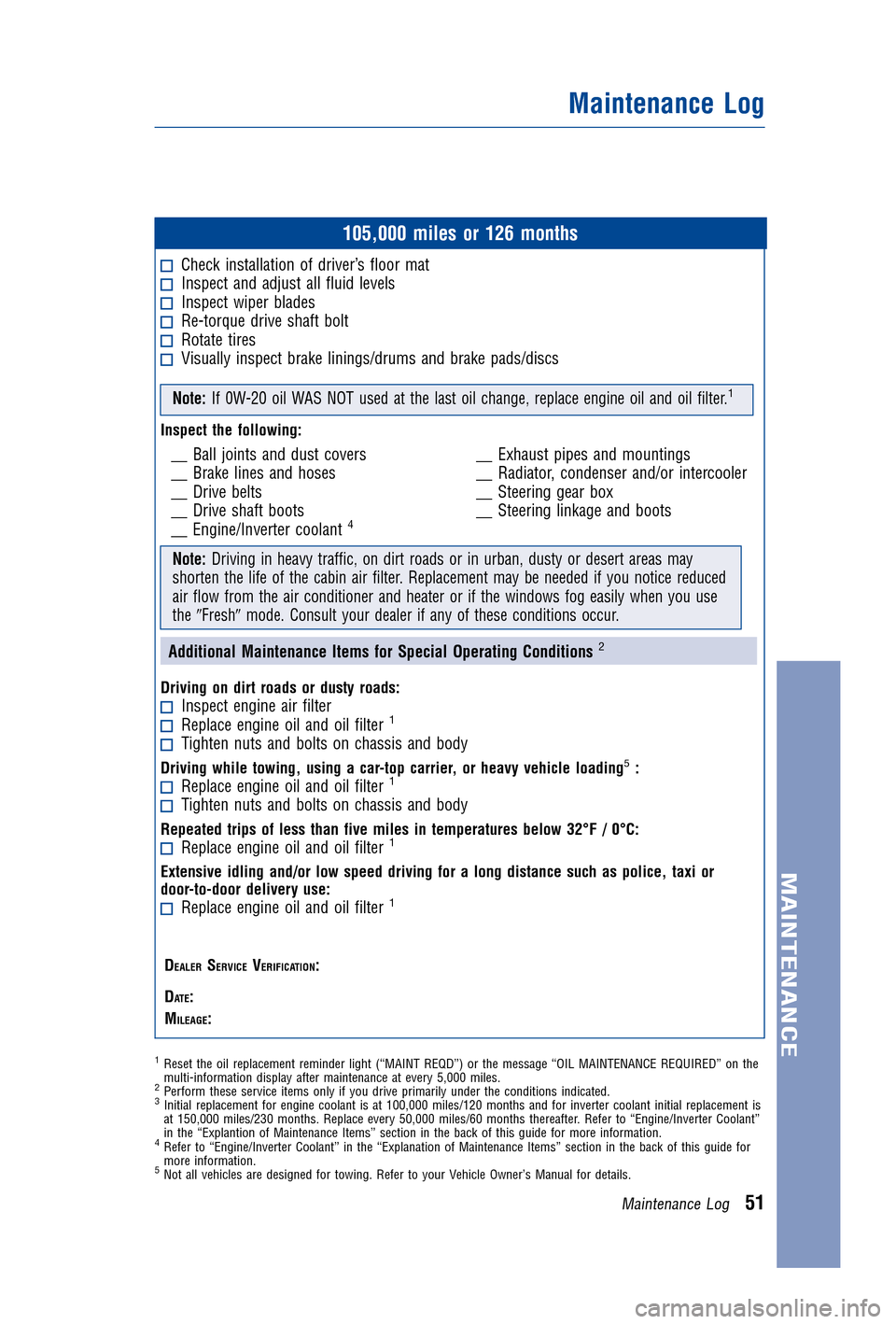

105,000 milesor126 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Rotate tires Visually inspectbrakelinings/drums andbrake pads/discs
Note: If0W-20 oilWAS NOTused atthe last oilchange, replaceengineoiland oilfilter.1
Inspect thefollowing:
__Ball joints anddust covers
__ Brake linesandhoses
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
4
__Exhaust pipesandmountings
__ Radiator, condenser and/orintercooler
__ Steering gearbox
__ Steering linkageandboots
Note: Driving inheavy traffic, ondirt roads orinurban, dustyordesert areasmay
shorten thelifeofthe cabin airfilter. Replacement maybeneeded ifyou notice reduced
air flow from theairconditioner andheater orifthe windows fogeasily whenyouuse
the Fresh mode.Consult yourdealer ifany ofthese conditions occur.
Additional Maintenance ItemsforSpecial Operating Conditions2
Drivingondirt roads ordusty roads:Inspect engineairfilterReplace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading5:Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis andbody
Repeated tripsofless than fivemiles intemperatures below32°F/0°C:Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Initialreplacement forengine coolant isat 100,000 miles/120 monthsandforinverter coolantinitialreplacement is
at 150,000 miles/230 months.Replaceevery50,000 miles/60 monthsthereafter. Referto“Engine/Inverter Coolant”
in the “Explantion ofMaintenance Items”section inthe back ofthis guide formore information.
4Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
5Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog51
Page 54 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:52SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

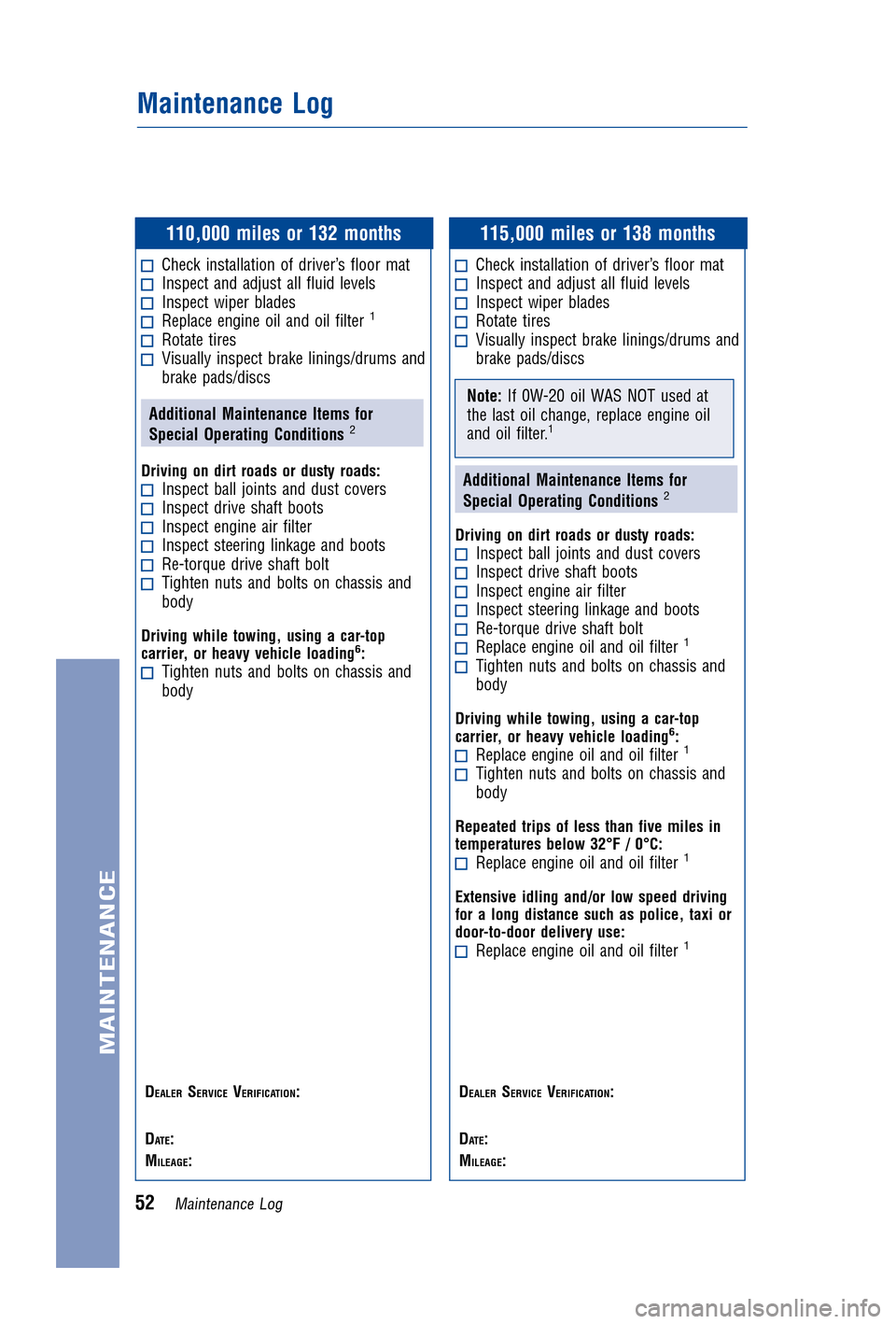

110,000 milesor132 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Replace engineoiland oilfilter1
Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Additional Maintenance Itemsfor
Special Operating Conditions
2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading6: Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
115,000 milesor138 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Rotate tires Visually inspectbrakelinings/drums and
brake pads/discs
Note: If0W-20 oilWAS NOTused at
the last oilchange, replaceengineoil
and oilfilter.
1
Additional Maintenance Itemsfor
Special Operating Conditions2
Drivingondirt roads ordusty roads: Inspect balljoints anddust covers Inspect driveshaft boots Inspect engineairfilter Inspect steering linkageandboots Re-torque driveshaft bolt Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading6: Replace engineoiland oilfilter1
Tighten nutsandbolts onchassis and
body
Repeated tripsofless than fivemiles in
temperatures below32°F/0°C:
Replace engineoiland oilfilter1
Extensive idlingand/or lowspeed driving
for along distance suchaspolice, taxior
door-to-door deliveryuse:
Replaceengineoiland oilfilter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
52MaintenanceLog
Page 55 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:53SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

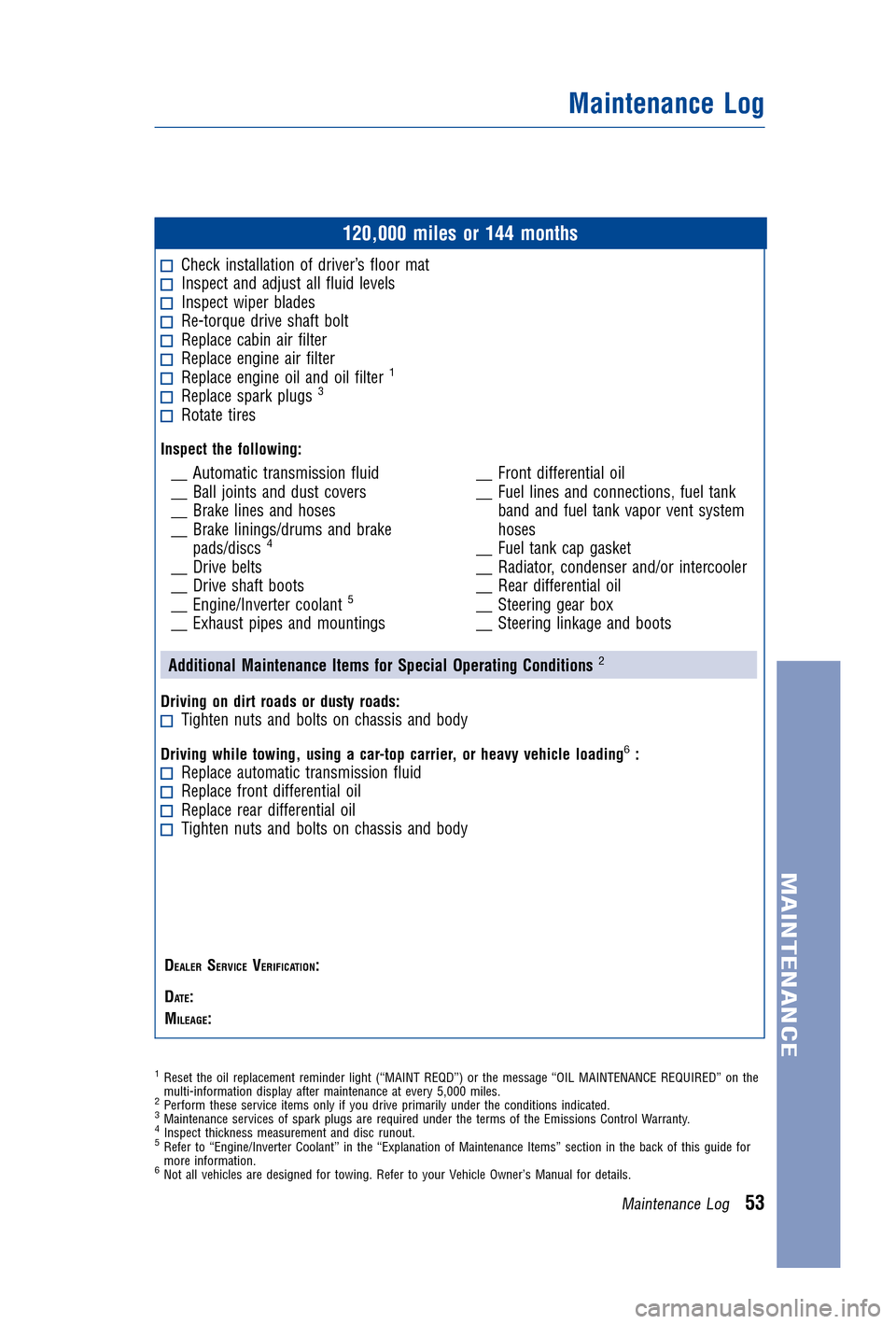

120,000 milesor144 months
Check installation ofdriver’s floormat Inspect andadjust allfluid levels Inspect wiperblades Re-torque driveshaft bolt Replace cabinairfilter Replace engineairfilter Replace engineoiland oilfilter1
Replace sparkplugs3
Rotate tires
Inspect thefollowing:
__Automatic transmission fluid
__ Ball joints anddust covers
__ Brake linesandhoses
__ Brake linings/drums andbrake
pads/discs
4
__ Drive belts
__ Drive shaftboots
__ Engine/Inverter coolant
5
__Exhaust pipesandmountings __
Front differential oil
__ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
__ Fuel tank capgasket
__ Radiator, condenser and/orintercooler
__ Rear differential oil
__ Steering gearbox
__ Steering linkageandboots
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads: Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading6: Replace automatic transmission fluid Replacefrontdifferential oil Replacereardifferential oil Tightennutsandbolts onchassis andbody
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Maintenance servicesofspark plugs arerequired undertheterms ofthe Emissions ControlWarranty.4Inspectthickness measurement anddisc runout.5Refer to“Engine/Inverter Coolant”inthe “Explanation ofMaintenance Items”section inthe back ofthis guide for
more information.
6Notallvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
Maintenance Log
MAINTENANCE
MaintenanceLog53
Page 56 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:54SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

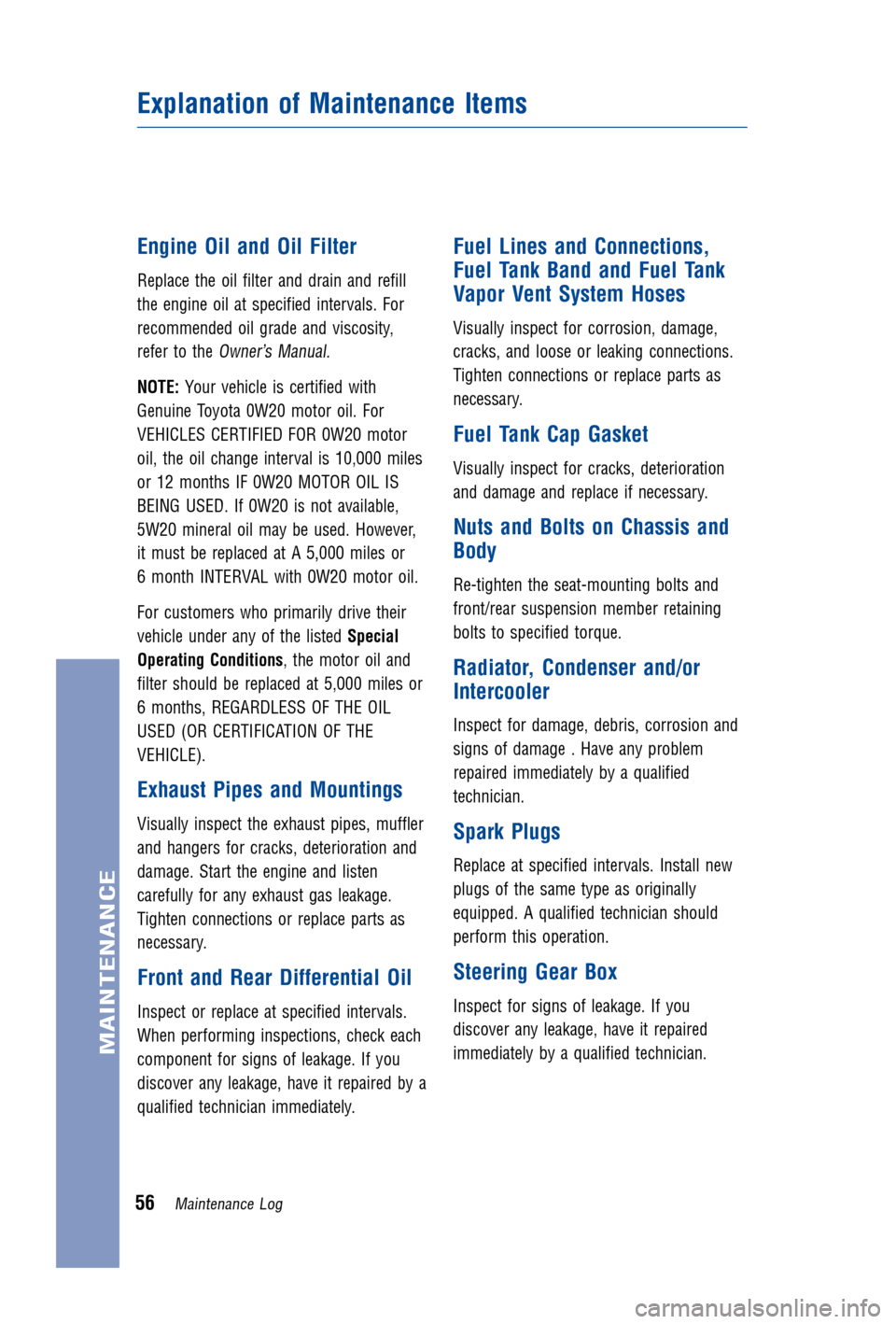

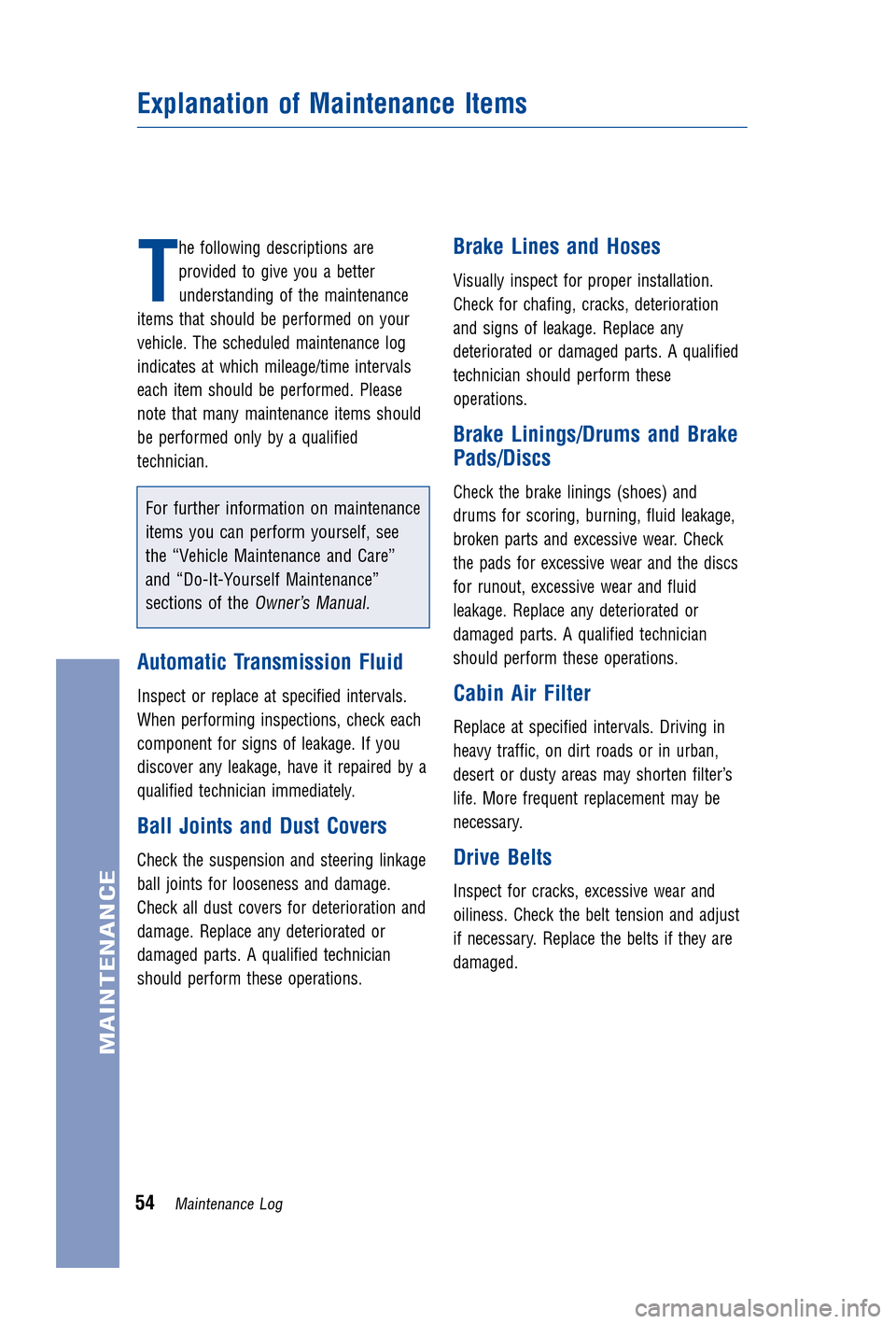

T
he following descriptions are
provided togive youabetter
understanding ofthe maintenance
items thatshould beperformed onyour
vehicle. Thescheduled maintenance log
indicates atwhich mileage/time intervals
each itemshould beperformed. Please
note thatmany maintenance itemsshould
be performed onlybyaqualified
technician.
For further information onmaintenance
items youcanperform yourself, see
the “Vehicle Maintenance andCare”
and “Do-It-Yourself Maintenance”
sections ofthe
Owner’s Manual.
Automatic Transmission Fluid
Inspectorreplace atspecified intervals.
When performing inspections, checkeach
component forsigns ofleakage. Ifyou
discover anyleakage, haveitrepaired bya
qualified technician immediately.
BallJoints andDust Covers
Check thesuspension andsteering linkage
ball joints forlooseness anddamage.
Check alldust covers fordeterioration and
damage. Replaceanydeteriorated or
damaged parts.Aqualified technician
should perform theseoperations.
Brake LinesandHoses
Visually inspectforproper installation.
Check forchafing, cracks,deterioration
and signs ofleakage. Replaceany
deteriorated ordamaged parts.Aqualified
technician shouldperform these
operations.
Brake Linings/Drums andBrake
Pads/Discs
Check thebrake linings (shoes) and
drums forscoring, burning, fluidleakage,
broken partsandexcessive wear.Check
the pads forexcessive wearandthediscs
for runout, excessive wearandfluid
leakage. Replaceanydeteriorated or
damaged parts.Aqualified technician
should perform theseoperations.
Cabin AirFilter
Replace atspecified intervals. Drivingin
heavy traffic, ondirt roads orinurban,
desert ordusty areasmayshorten filter’s
life. More frequent replacement maybe
necessary.
Drive Belts
Inspect forcracks, excessive wearand
oiliness. Checkthebelt tension andadjust
if necessary. Replacethebelts ifthey are
damaged.
Explanation ofMaintenance Items
54MaintenanceLog
MAINTENANCE
Page 57 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:55SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

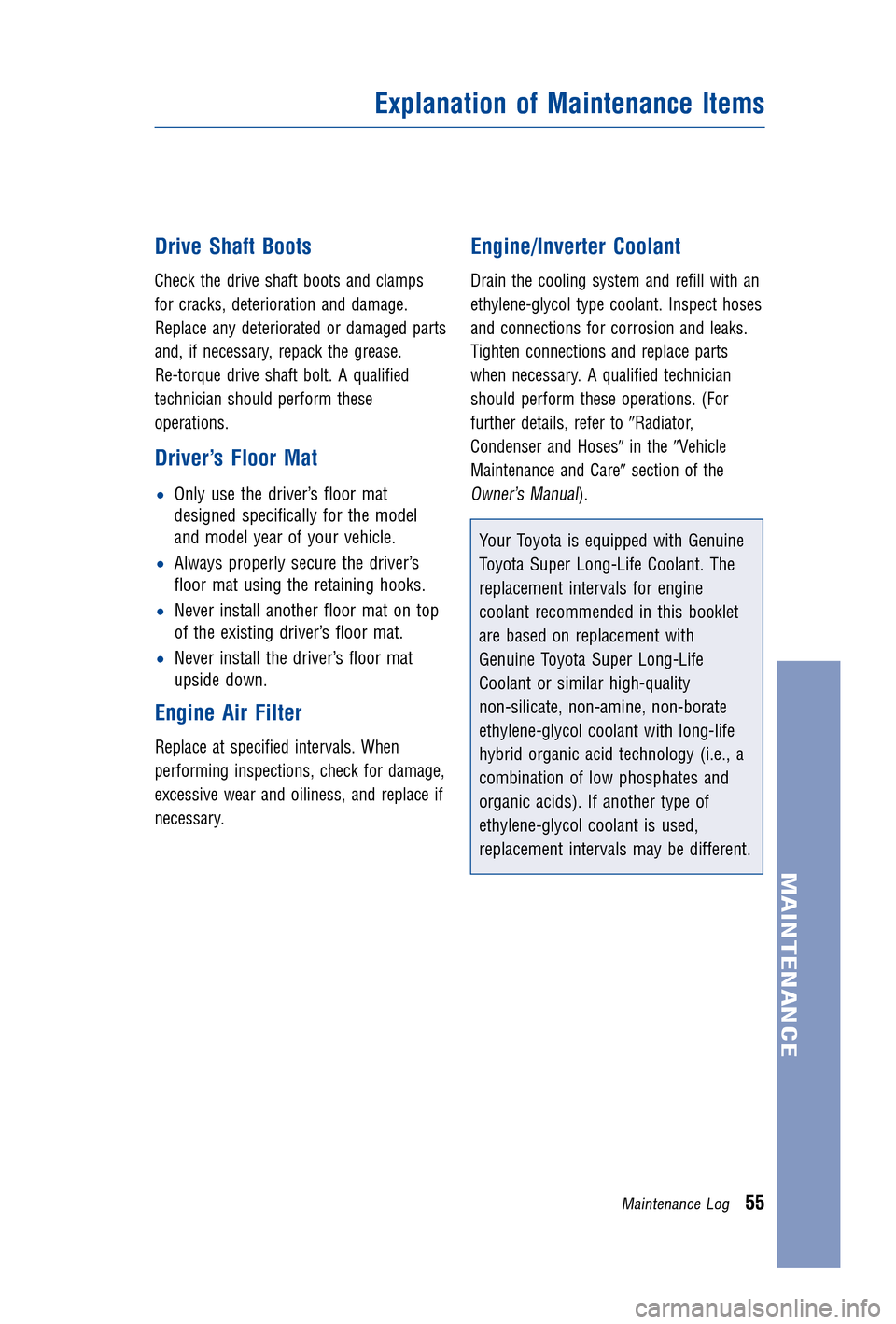

Drive ShaftBoots
Check thedrive shaft boots andclamps
for cracks, deterioration anddamage.
Replace anydeteriorated ordamaged parts
and, ifnecessary, repackthegrease.
Re-torque driveshaft bolt.Aqualified
technician shouldperform these
operations.
Driver’s FloorMat
•Only usethedriver’s floormat
designed specifically forthe model
and model yearofyour vehicle.
• Always properly securethedriver’s
floor matusing theretaining hooks.
• Never install another floormatontop
of the existing driver’sfloormat.
• Never install thedriver’s floormat
upside down.
Engine AirFilter
Replace atspecified intervals. When
performing inspections, checkfordamage,
excessive wearandoiliness, andreplace if
necessary.
Engine/Inverter Coolant
Drainthecooling systemandrefill withan
ethylene-glycol typecoolant. Inspecthoses
and connections forcorrosion andleaks.
Tighten connections andreplace parts
when necessary. Aqualified technician
should perform theseoperations. (For
further details, referto Radiator,
Condenser andHoses in the Vehicle
Maintenance andCare section ofthe
Owner’s Manual).
YourToyota isequipped withGenuine
Toyota SuperLong-Life Coolant.The
replacement intervalsforengine
coolant recommended inthis booklet
are based onreplacement with
Genuine ToyotaSuperLong-Life
Coolant orsimilar high-quality
non-silicate, non-amine,non-borate
ethylene-glycol coolantwithlong-life
hybrid organic acidtechnology (i.e.,a
combination oflow phosphates and
organic acids).Ifanother typeof
ethylene-glycol coolantisused,
replacement intervalsmaybedifferent.
Explanation ofMaintenance Items
MaintenanceLog55
MAINTENANCE
Page 58 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:56SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
Engine Oiland OilFilter
Replace theoilfilter anddrain andrefill
the engine oilatspecified intervals. For
recommended oilgrade andviscosity,
refer tothe
Owner’s Manual.
NOTE: Yourvehicle iscertified with
Genuine Toyota0W20motor oil.For
VEHICLES CERTIFIED FOR0W20 motor
oil, the oilchange interval is10,000 miles
or 12 months IF0W20 MOTOR OILIS
BEING USED.If0W20 isnot available,
5W20 mineral oilmay beused. However,
it must bereplaced atA5,000 milesor
6 month INTERVAL with0W20 motor oil.
For customers whoprimarily drivetheir
vehicle underanyofthe listed Special
Operating Conditions ,the motor oiland
filter should bereplaced at5,000 milesor
6 months, REGARDLESS OFTHE OIL
USED (ORCERTIFICATION OFTHE
VEHICLE).
Exhaust PipesandMountings
Visually inspecttheexhaust pipes,muffler
and hangers forcracks, deterioration and
damage. Starttheengine andlisten
carefully forany exhaust gasleakage.
Tighten connections orreplace partsas
necessary.
Front andRear Differential Oil
Inspectorreplace atspecified intervals.
When performing inspections, checkeach
component forsigns ofleakage. Ifyou
discover anyleakage, haveitrepaired bya
qualified technician immediately.
FuelLines andConnections,
Fuel Tank Band andFuel Tank
Vapor VentSystem Hoses
Visually inspectforcorrosion, damage,
cracks, andloose orleaking connections.
Tighten connections orreplace partsas
necessary.
Fuel Tank CapGasket
Visually inspectforcracks, deterioration
and damage andreplace ifnecessary.
Nuts andBolts onChassis and
Body
Re-tighten theseat-mounting boltsand
front/rear suspension memberretaining
bolts tospecified torque.
Radiator, Condenser and/or
Intercooler
Inspect fordamage, debris,corrosion and
signs ofdamage .Have anyproblem
repaired immediately byaqualified
technician.
Spark Plugs
Replace atspecified intervals. Installnew
plugs ofthe same typeasoriginally
equipped. Aqualified technician should
perform thisoperation.
Steering GearBox
Inspect forsigns ofleakage. Ifyou
discover anyleakage, haveitrepaired
immediately byaqualified technician.
Explanation ofMaintenance Items
56MaintenanceLog
MAINTENANCE
Page 59 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:57SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg
Steering LinkageandBoots
With thevehicle stopped, checkfor
excessive freeplayinthe steering wheel.
Inspect thelinkage forbending and
damage andthedust boots for
deterioration, cracksanddamage. Replace
any damaged parts.Aqualified technician
should perform theseoperations.
TireRotation
Tires should berotated according tothe
instructions inthe
Owner’s Manual.When
rotating tires,check fordamage and
uneven wear.Replace ifnecessary.
Wiper Blades
Thewiper blades should notshow any
signs ofcracking, splitting,wear,
contamination ordeformation. Thewiper
blades should clearthewindshield without
streaking orskipping.
Explanation ofMaintenance Items
MaintenanceLog57
MAINTENANCE
Page 60 of 66
JOBNAME:1491132-2014-hhvWG-E PAGE:58SESS: 11OUTPUT: MonDec3010:35:57 2013
/tweddle/toyota/sched-maint/1491132-en-hhv/wg

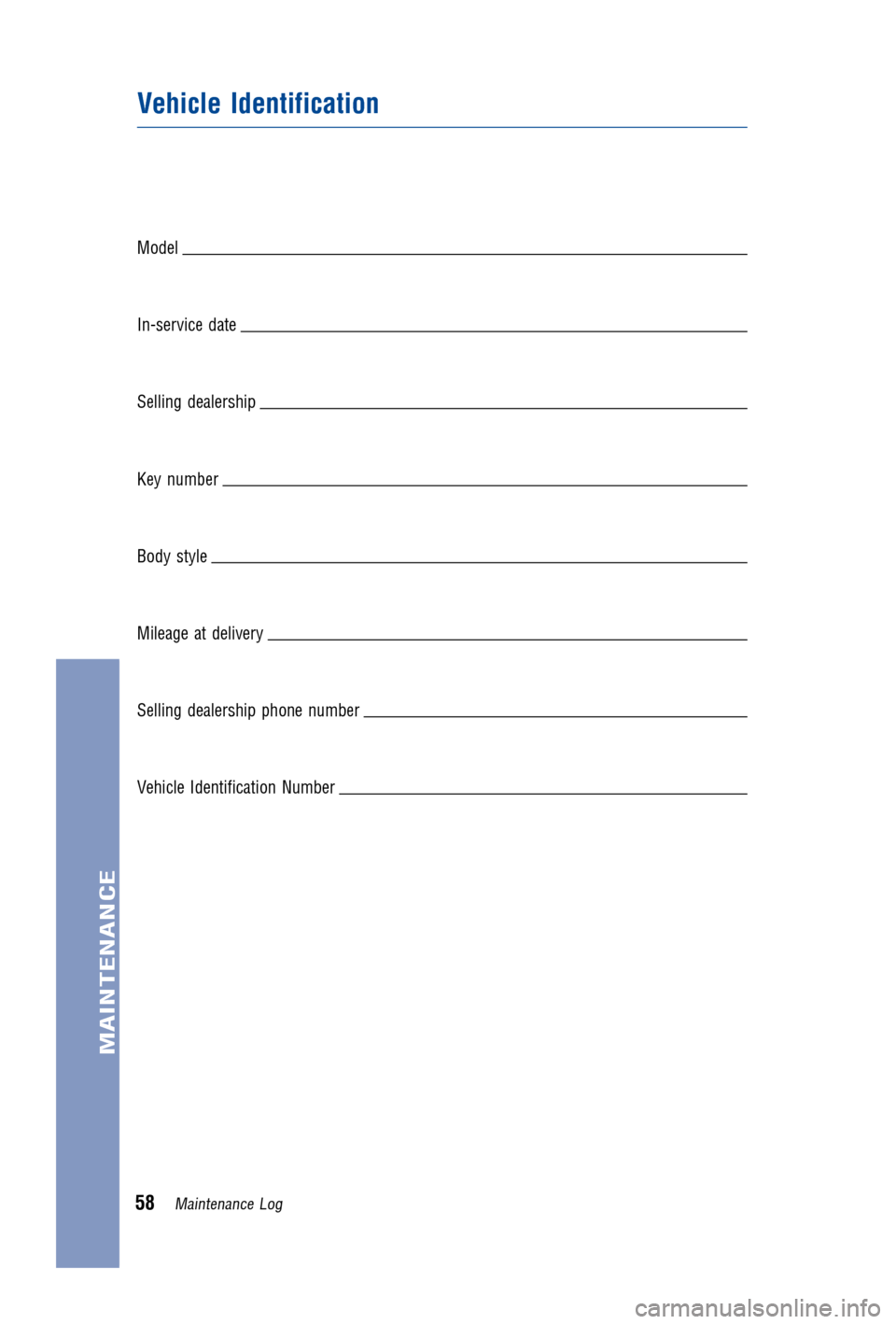

Model
In-service date
Sellingdealership
Keynumber
Body style
Mileage atdelivery
Selling dealership phonenumber
Vehicle Identification Number
VehicleIdentification
MAINTENANCE
58Maintenance Log
