TOYOTA HIGHLANDER HYBRID 2019 Owners Manual (in English)

6018-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U
Attach the adapter socket to the
spare tire clamp bolt.
Assembling the jack handle.
Remove the jack handle and
assemble it by following these
steps.
Loosen the screw.
Assemble the jack handle
and tighten the screw.
Check that the screw is firmly
tightened.
Connect the jack handle to the
adapter socket. Turn the jack
handle counterclockwise.
The tire will be lowered com-
pletely to the ground.
Turn the jack handle slowly to
lower the spare ti re. If the handle
is turned quickly, as doing so
may cause the shaft to disen-
gage and the tire may not be low-
ered.
If the spare tire cannot be lowered: P. 6 0 8
4
5
1
2
6

6028-2. Steps to take in an emergency
HIGHLANDER_HV_U
Pull out the spare tire and stand
it against the bumper.With a compact spare tire
With a full-size spare tire
7

6038-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U
Vehicles with a compact spare tire
Fully depress the secondary
latch (A) and remove the hold-
ing bracket (B) from the hoist
assembly (C).
Tilt the bracket (B) and pass it
through the wheel opening.
Then remove the hoist assem-
bly (C).
8
9

6048-2. Steps to take in an emergency
HIGHLANDER_HV_U
Vehicles with a full-size spare tire
Remove the inside spare tire
cover.
Fully depress the secondary
latch (A) and remove the hold-
ing bracket (B) from the hoist
assembly (C).
Tilt the holding bracket (B) so
that it can easily be passed
through the wheel opening.
After passing the holding
bracket through the wheel
opening, remove the hoist
assembly (C).
8
9
10

6058-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U
Remove the outside spare tire
cover.11

6068-2. Steps to take in an emergency
HIGHLANDER_HV_U
Chock the tires.
Vehicles with wheel locks:
Use the wheel lock key to
loosen the wheel lock.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

6078-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U

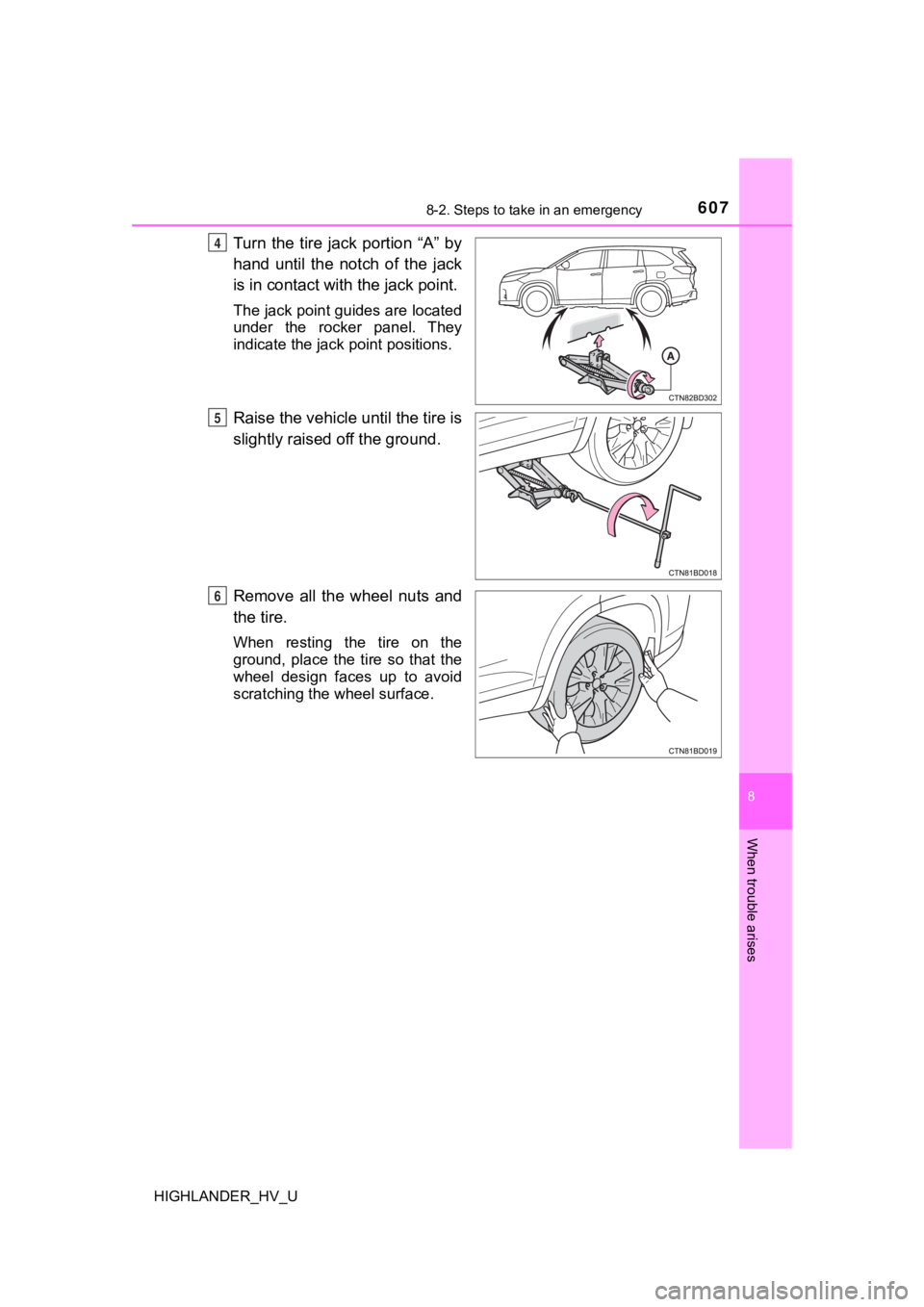

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6

6088-2. Steps to take in an emergency
HIGHLANDER_HV_U

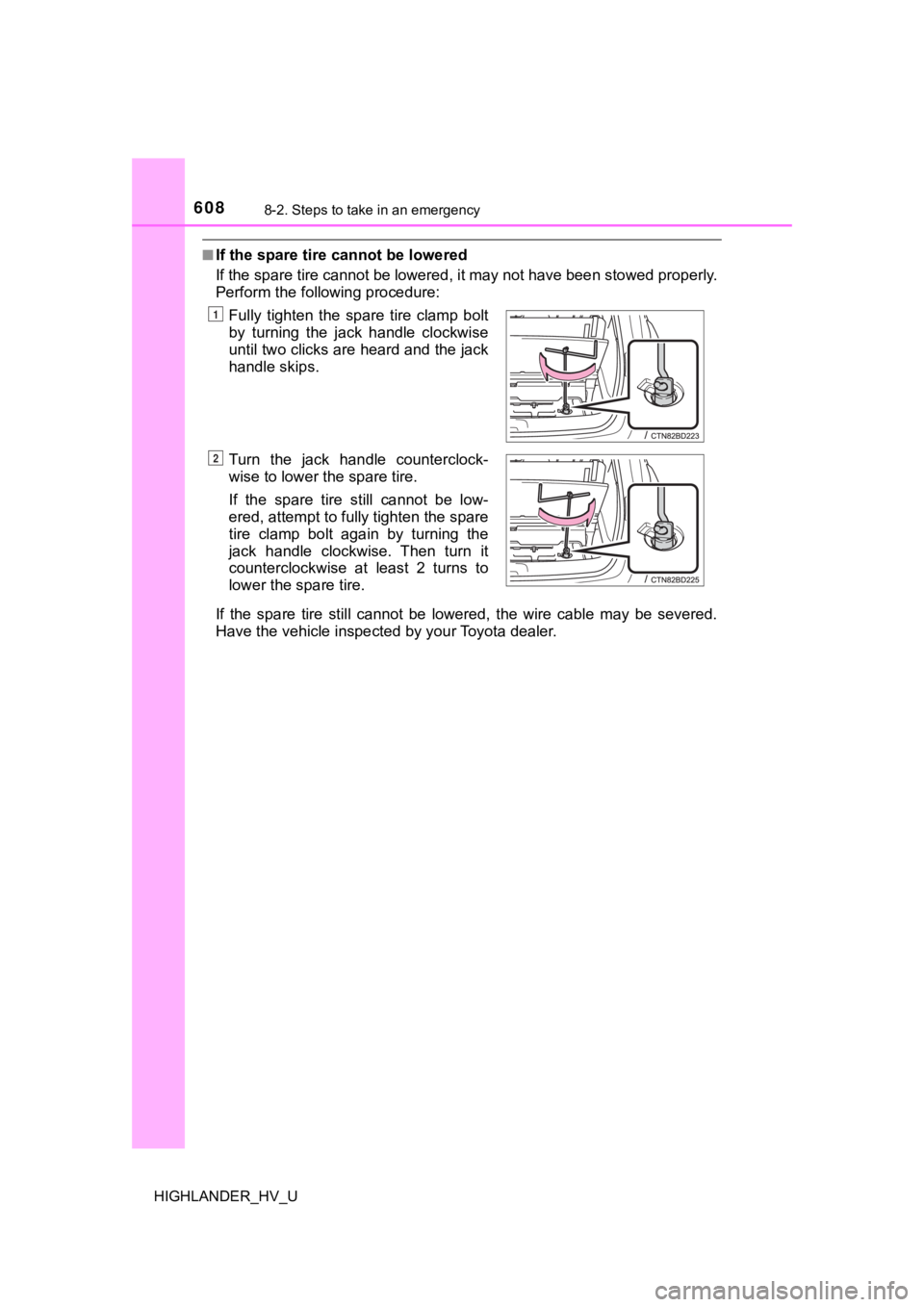

■If the spare tire cannot be lowered
If the spare tire cannot be lowered, it may not have been stowed properly.
Perform the following procedure:
If the spare tire still cannot be lowered, the wire cable may be severed.
Have the vehicle inspected by your Toyota dealer. Fully tighten the spare tire clamp bolt
by turning the jack handle clockwise
until two clicks are heard and the jack
handle skips.
Turn the jack handle counterclock-
wise to lower the spare tire.
If the spare tire still cannot be low-
ered, attempt to fully tighten the spare
tire clamp bolt again by turning the
jack handle clockwise. Then turn it
counterclockwise at least 2 turns to
lower the spare tire.
1
2

6098-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_HV_U
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehi cle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changin g a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the t ire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened wit h a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as po ssible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been spe cifi-
cally designed for that wheel.
• If there are any cracks or defo rmations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, b e sure to install them with the
tapered ends facing inward. ( P. 536)
●Observe the followi ng precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Lower the spare tire completely to the ground before removing it
from under the vehicle.

6108-2. Steps to take in an emergency
HIGHLANDER_HV_U
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Vehicles with a full-size spare tire
Turn the nuts until the washers
come into contact with the
wheel.
Installing the spare tire
1
2
Tapered portion
Disc
wheel
seat
Washer
Disc wheel
