5017-2. Steps to take in an emergency
HIGHLANDER HV_U
7
When trouble arises
WA R N I N G
■When attempting to free a
stuck vehicle
If you choose to push the vehicle
back and forth to free it, make
sure the surrounding area is clear
to avoid striking other vehicles,
objects or people. The vehicle
may also lunge forward or lunge
back suddenly as it becomes free.
Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift
lever with the ac celerator pedal
depressed.
This may lead to unexpected
rapid acceleration of the vehicle
that may cause an accident
resulting in death or serious injury.
NOTICE
■To avoid damage to the
hybrid transmission and
other components
●Avoid spinning the front wheels
and depressing the accelerator
pedal more than necessary.
●If the vehicle remains stuck
even after these procedures are
performed, the vehicle may
require towing to be freed.

5027-2. Steps to take in an emergency
HIGHLANDER HV_U

503
HIGHLANDER HV_U
8
8
Vehicle specifications
Vehicle specifications
.8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 504
Fuel information .......... 514
Tire information ........... 516
8-2. Customization Customizable features.................................. 526
8-3. Initialization Items to initialize ......... 538

5048-1. Specifications
HIGHLANDER HV_U
8-1.Specifications
*1: Unladen vehicle
*2: For 7-seat models
*3: For 8-seat models
*4: For AXUH70L-ARXGHA, AXUH78L-ARXMHA, AXUH78L-ARXGHA models
*6
*5
: For AXUH70L-ARXNHA, AXUH70L-ARXMHA, AXUH78L-ARXNHA models
*6
*6
: The model code is indicated o n the Certification Label. (P.504)
■Vehicle identification num-
ber
The vehicle identification num- ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for

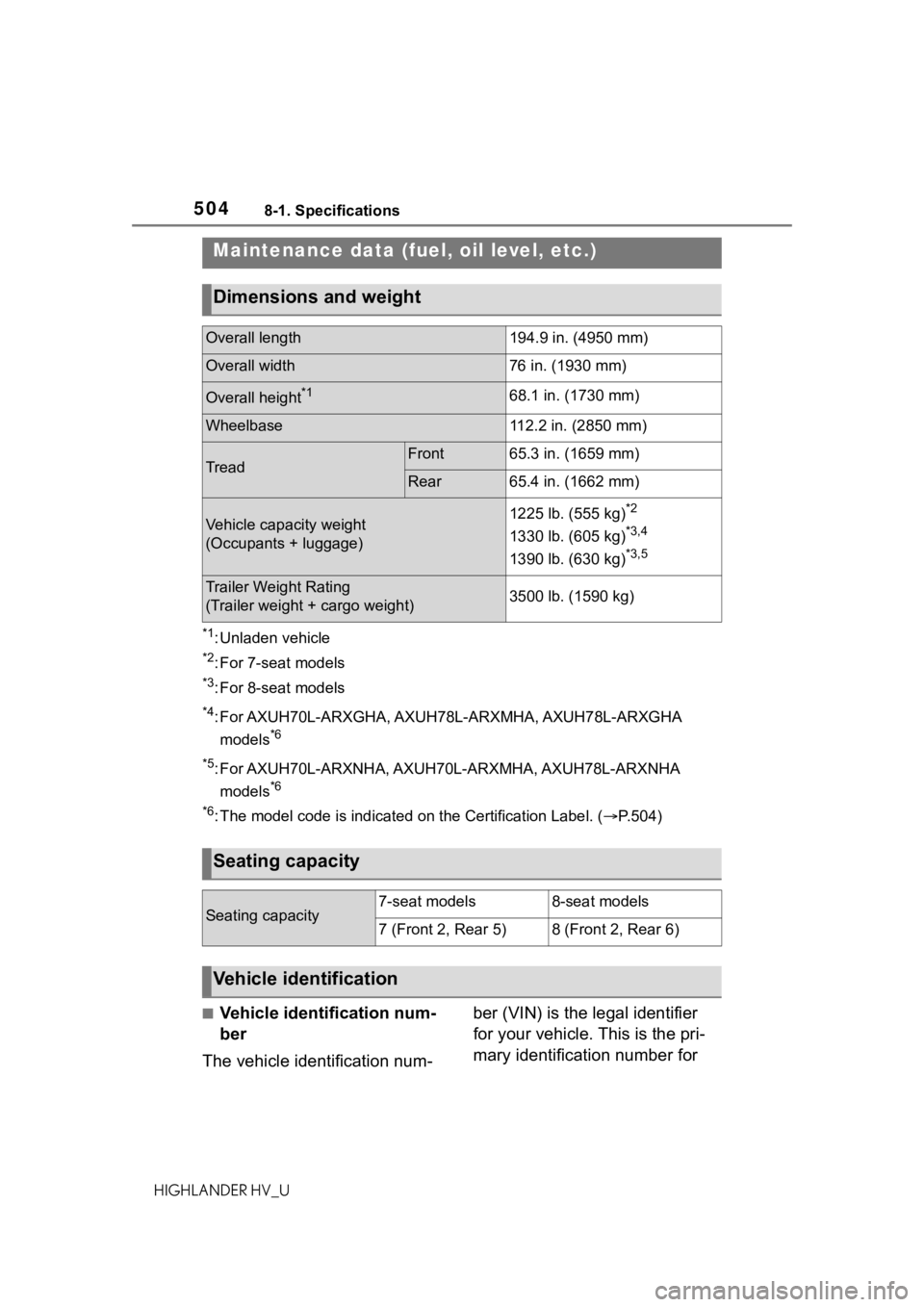

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length194.9 in. (4950 mm)
Overall width76 in. (1930 mm)
Overall height*168.1 in. (1730 mm)
Wheelbase112.2 in. (2850 mm)
TreadFront65.3 in. (1659 mm)
Rear65.4 in. (1662 mm)
Vehicle capacity weight
(Occupants + luggage)1225 lb. (555 kg)*2
1330 lb. (605 kg)*3,4
1390 lb. (630 kg)*3,5
Trailer Weight Rating
(Trailer weight + cargo weight)3500 lb. (1590 kg)
Seating capacity
Seating capacity7-seat models8-seat models
7 (Front 2, Rear 5)8 (Front 2, Rear 6)
Vehicle identification

5058-1. Specifications
HIGHLANDER HV_U
8
Vehicle specifications
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
Top left of the instrument
panel
The vehicle identification number is
stamped.
Under the right-hand front
seat

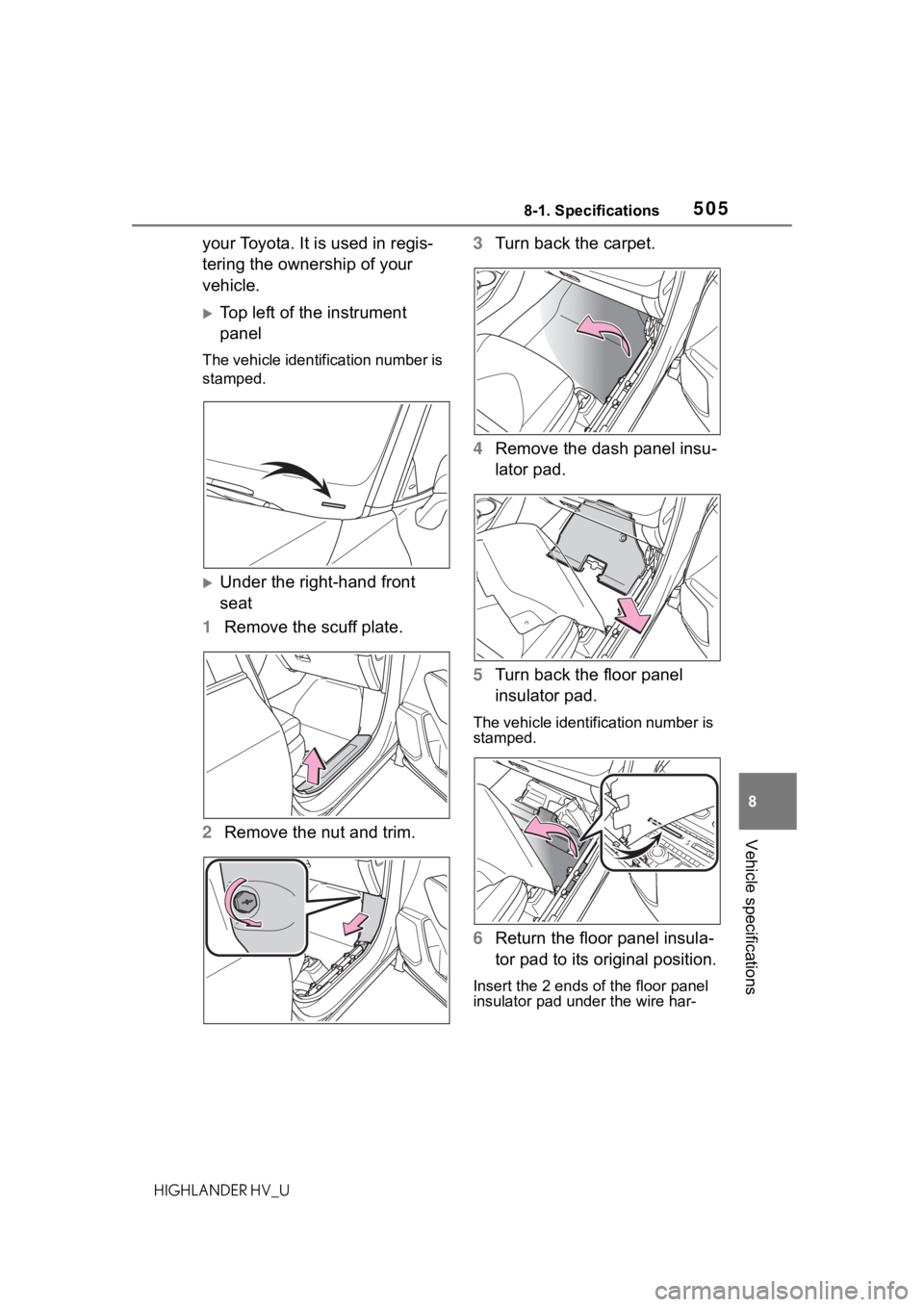

1 Remove the scuff plate.
2 Remove the nut and trim. 3
Turn back the carpet.
4 Remove the dash panel insu-
lator pad.
5 Turn back the floor panel
insulator pad.
The vehicle identification number is
stamped.
6Return the floor panel insula-
tor pad to its original position.
Insert the 2 ends of the floor panel
insulator pad under the wire har-

5068-1. Specifications
HIGHLANDER HV_Uness.
7

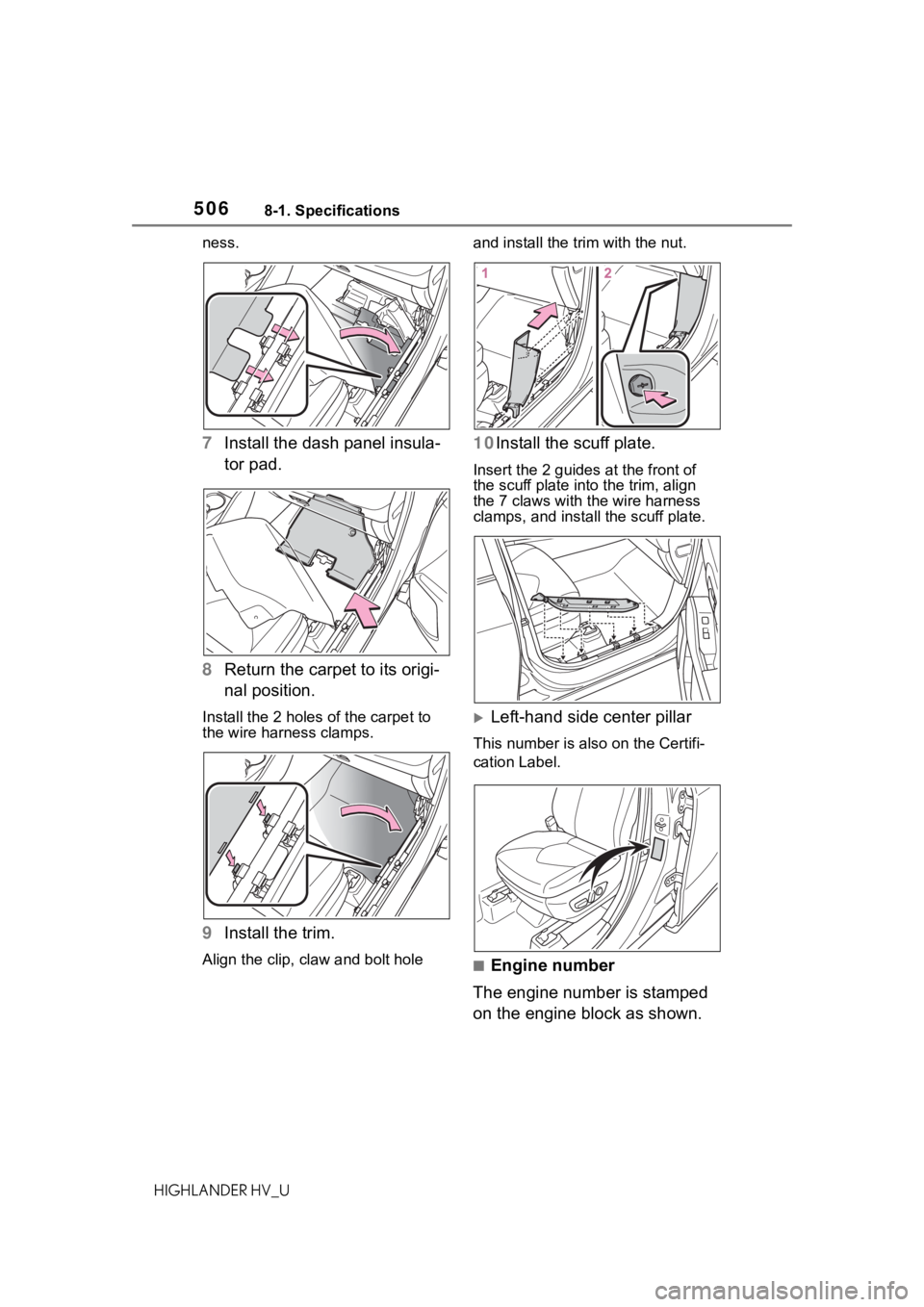

Install the dash panel insula-
tor pad.
8 Return the carpet to its origi-
nal position.
Install the 2 holes of the carpet to
the wire harness clamps.
9Install the trim.
Align the clip, claw and bolt hole and install the trim with the nut.
10Install the scuff plate.
Insert the 2 guides
at the front of
the scuff plate into the trim, align
the 7 claws with the wire harness
clamps, and install the scuff plate.
Left-hand side center pillar
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.

5078-1. Specifications
HIGHLANDER HV_U
8
Vehicle specifications
Front

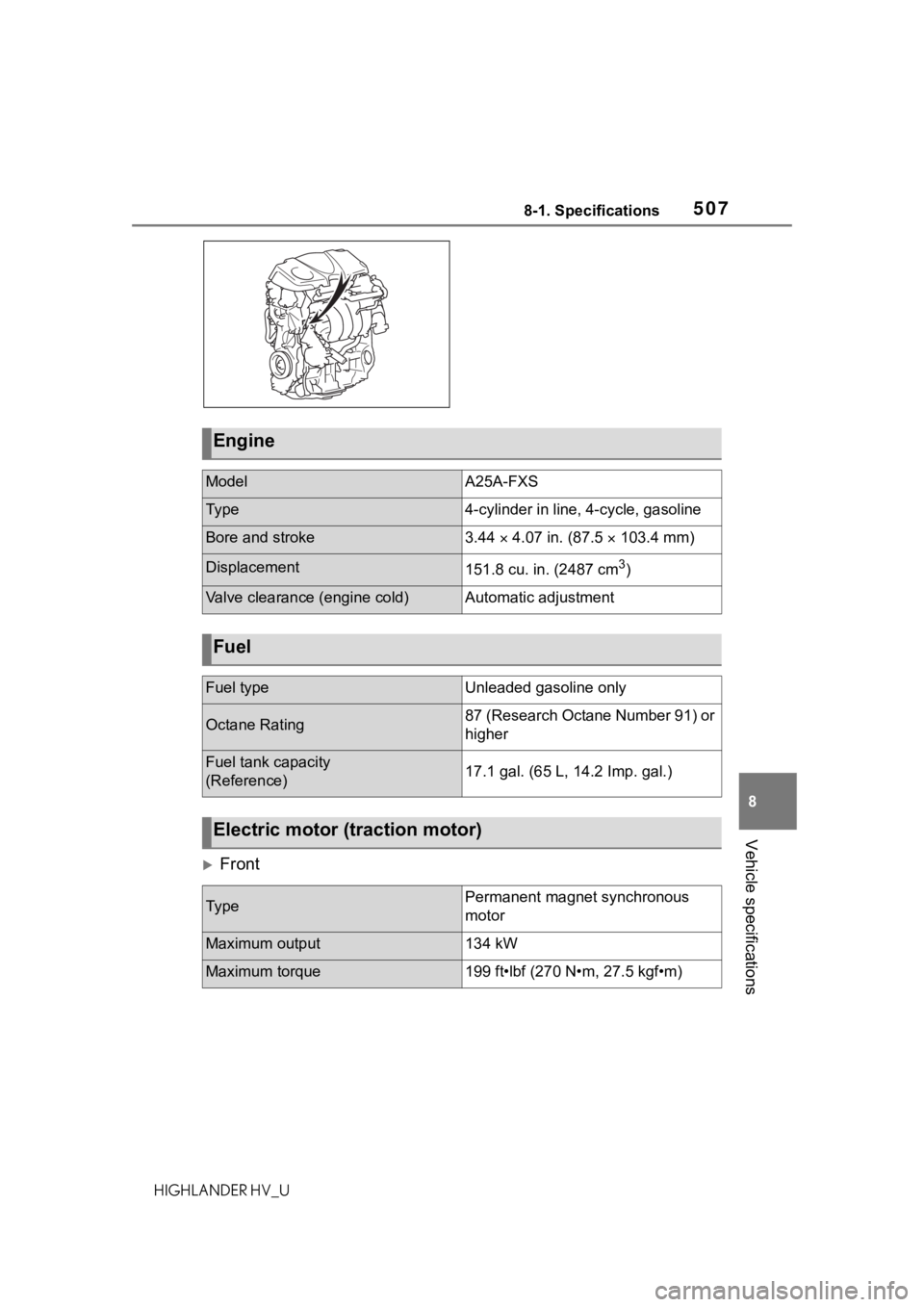

Engine
ModelA25A-FXS
Ty p e4-cylinder in line , 4-cycle, gasoline
Bore and stroke3.44  4.07 in. (87.5  103.4 mm)
Displacement151.8 cu. in. (2487 cm3)
Valve clearance (engine cold)Automatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or
higher
Fuel tank capacity
(Reference)17.1 gal. (65 L, 14.2 Imp. gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous
motor
Maximum output134 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)

5088-1. Specifications
HIGHLANDER HV_U
Rear
■Oil capacity (Drain and
refillreference
*)
*: The engine oil capacity is a refer-
ence quantity to be used when
changing the engine oil. Warm up
the engine and turn off the hybrid
system, wait more than 5 min-
utes, and check the oil level on
the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity. Oil grade: API SN/RC multi-
grade engine oil
Recommended viscosity: SAE
0W-16
Outside temperature
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
Ty p ePermanent magnet synchronous
motor
Maximum output40 kW
Maximum torque89 ft•lbf (121 N•m, 12.3 kgf•m)

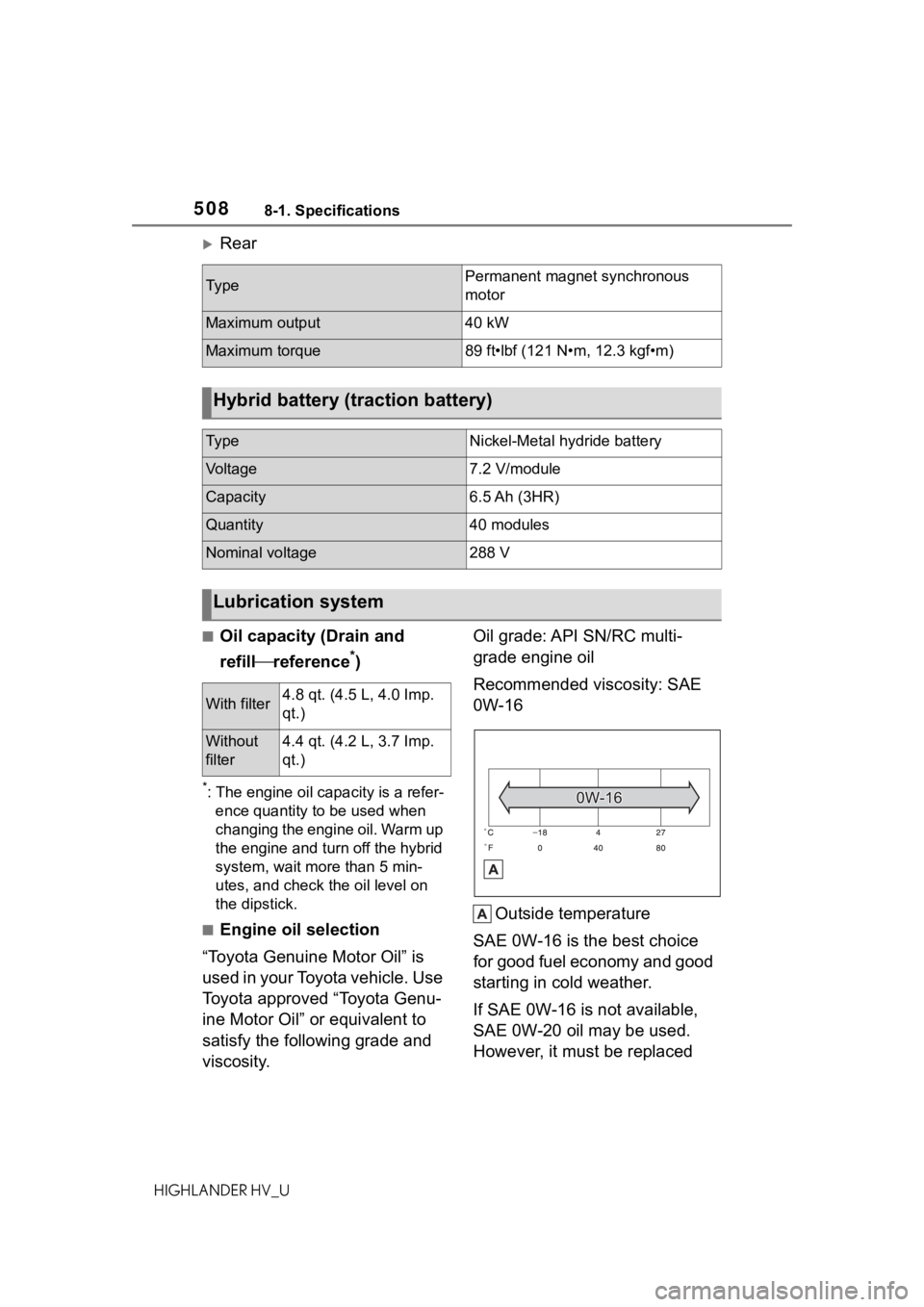

Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7.2 V/module
Capacity6.5 Ah (3HR)
Quantity40 modules
Nominal voltage288 V
Lubrication system
With filter4.8 qt. (4.5 L, 4.0 Imp.
qt.)
Without
filter4.4 qt. (4.2 L, 3.7 Imp.
qt.)

5098-1. Specifications
HIGHLANDER HV_U
8
Vehicle specifications
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if the vehicle is operated at high
speeds, or under extreme
load conditions.
How to read oil container label:
API registered marks is added
to some oil containers to help
you select the oil you should
use.

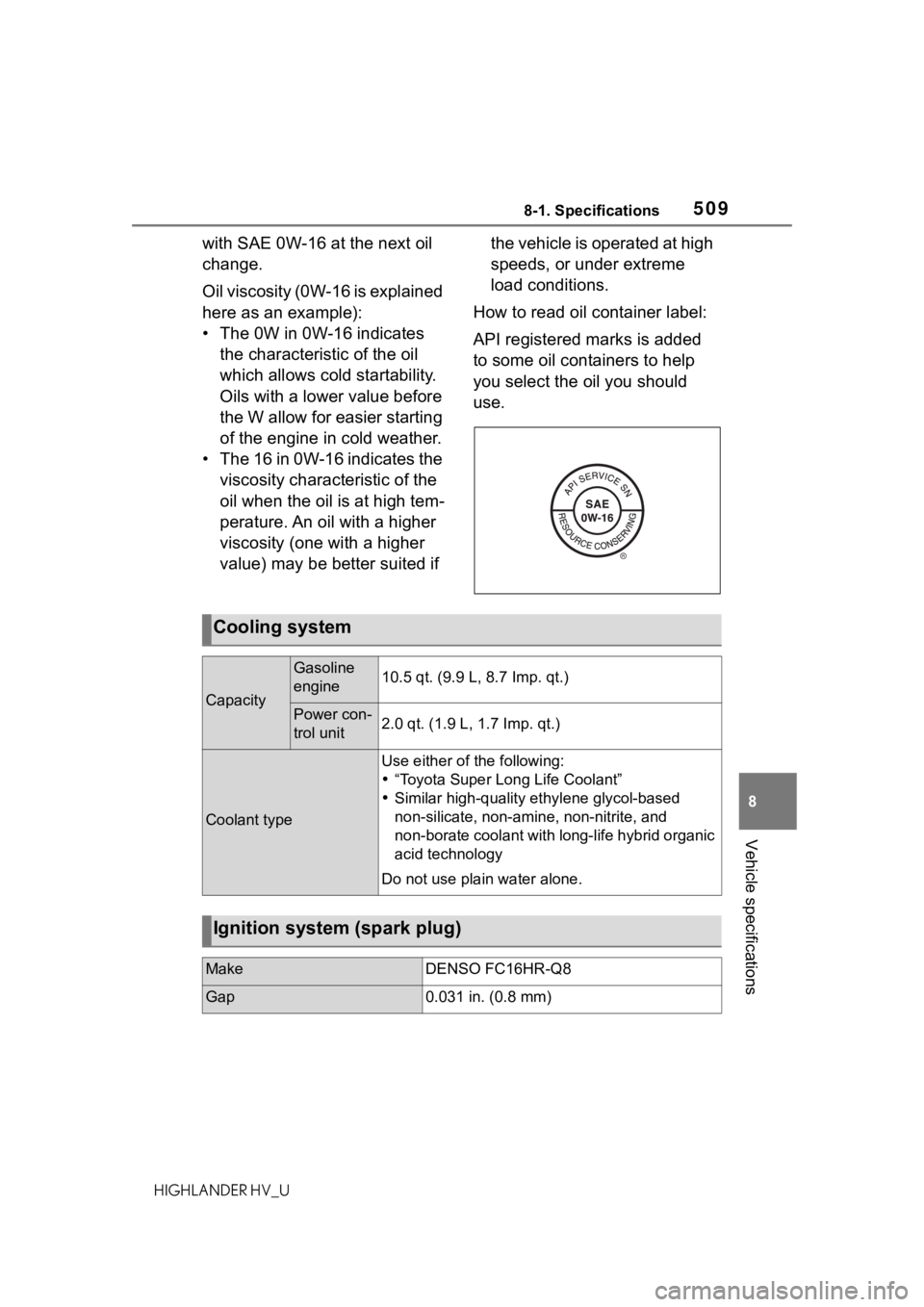

Cooling system
Capacity
Gasoline
engine10.5 qt. (9.9 L , 8.7 Imp. qt.)
Power con-
trol unit2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality et hylene glycol-based
non-silicate, non -amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology
Do not use pla in water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
Gap0.031 in. (0.8 mm)

5108-1. Specifications
HIGHLANDER HV_U
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.

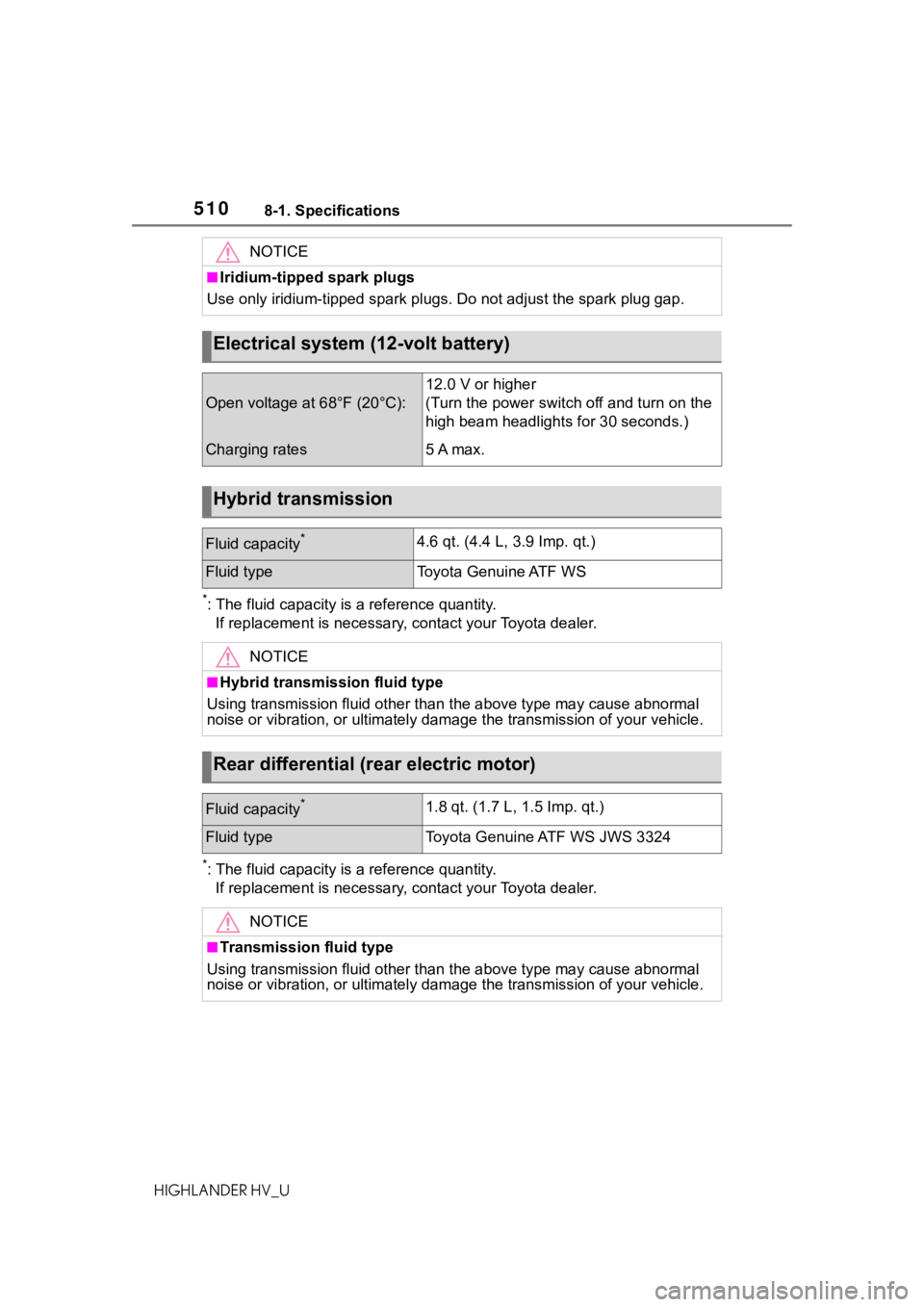

Electrical system (12-volt battery)
Open voltage at 68°F (20°C):
12.0 V or higher
(Turn the power switch off and turn on the
high beam headlights for 30 seconds.)
Charging rates5 A max.
Hybrid transmission
Fluid capacity*4.6 qt. (4.4 L, 3.9 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than the above type may cause ab normal
noise or vibration, or ultimately damage the transmission of yo ur vehicle.
Rear differential (rear electric motor)
Fluid capacity*1.8 qt. (1.7 L, 1.5 Imp. qt.)
Fluid typeToyota Genuine ATF WS JWS 3324
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause ab normal
noise or vibration, or ultimately damage the transmission of yo ur vehicle.
