Page 31 of 72
29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

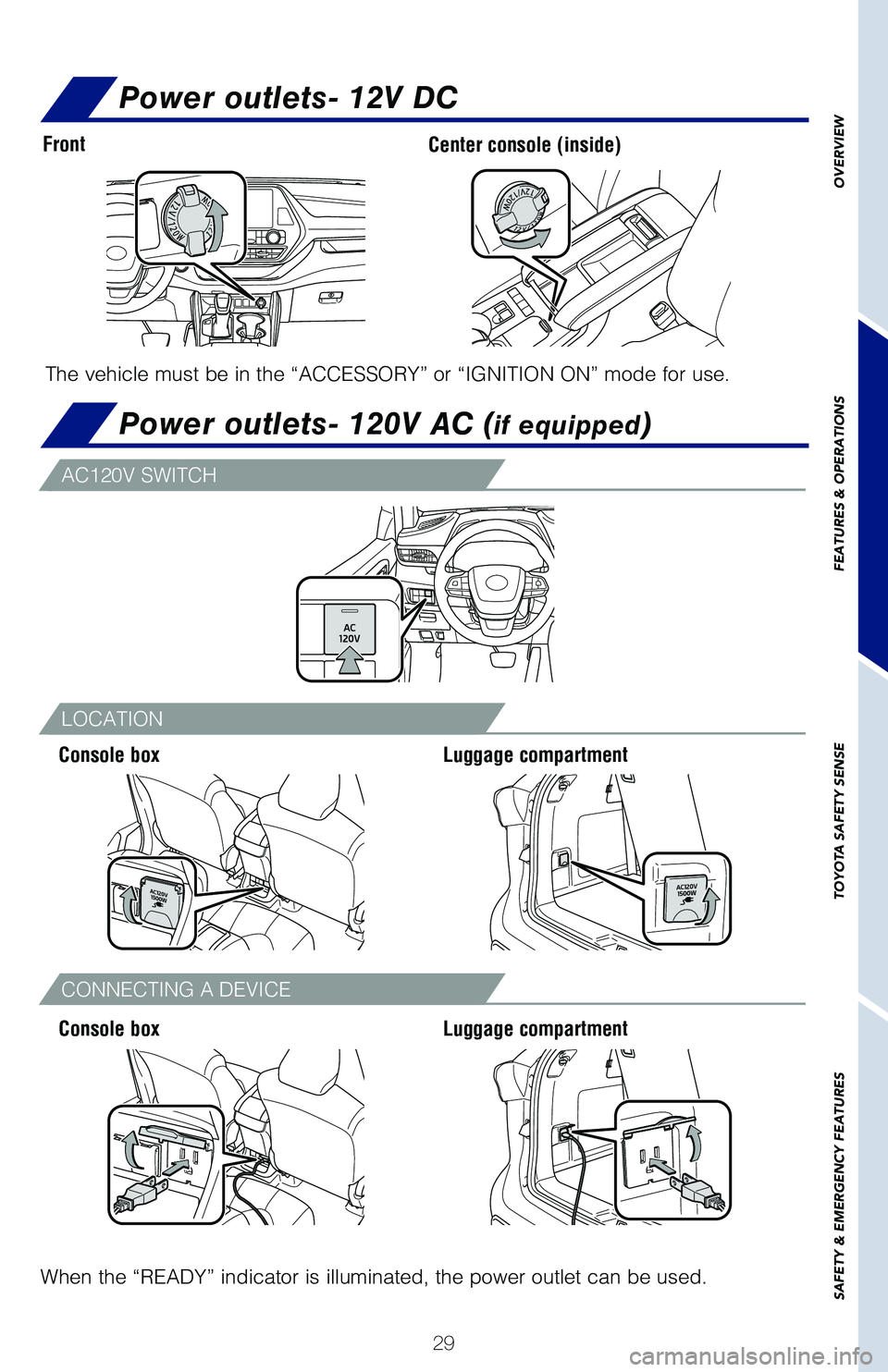

Power outlets- 12V DC
Power outlets- 120V AC (if equipped)
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode\� for use.
When the “READY” indicator is illuminated, the power outlet can be\� used.
FrontCenter console (inside) Luggage compartment
Luggage compartment
Console box
Console box
LOCATION
CONNECTING A DEVICE
AC120V SWITCH
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 29130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 297/9/21 2:41 AM7/9/21 2:41 AM
Page 32 of 72
30

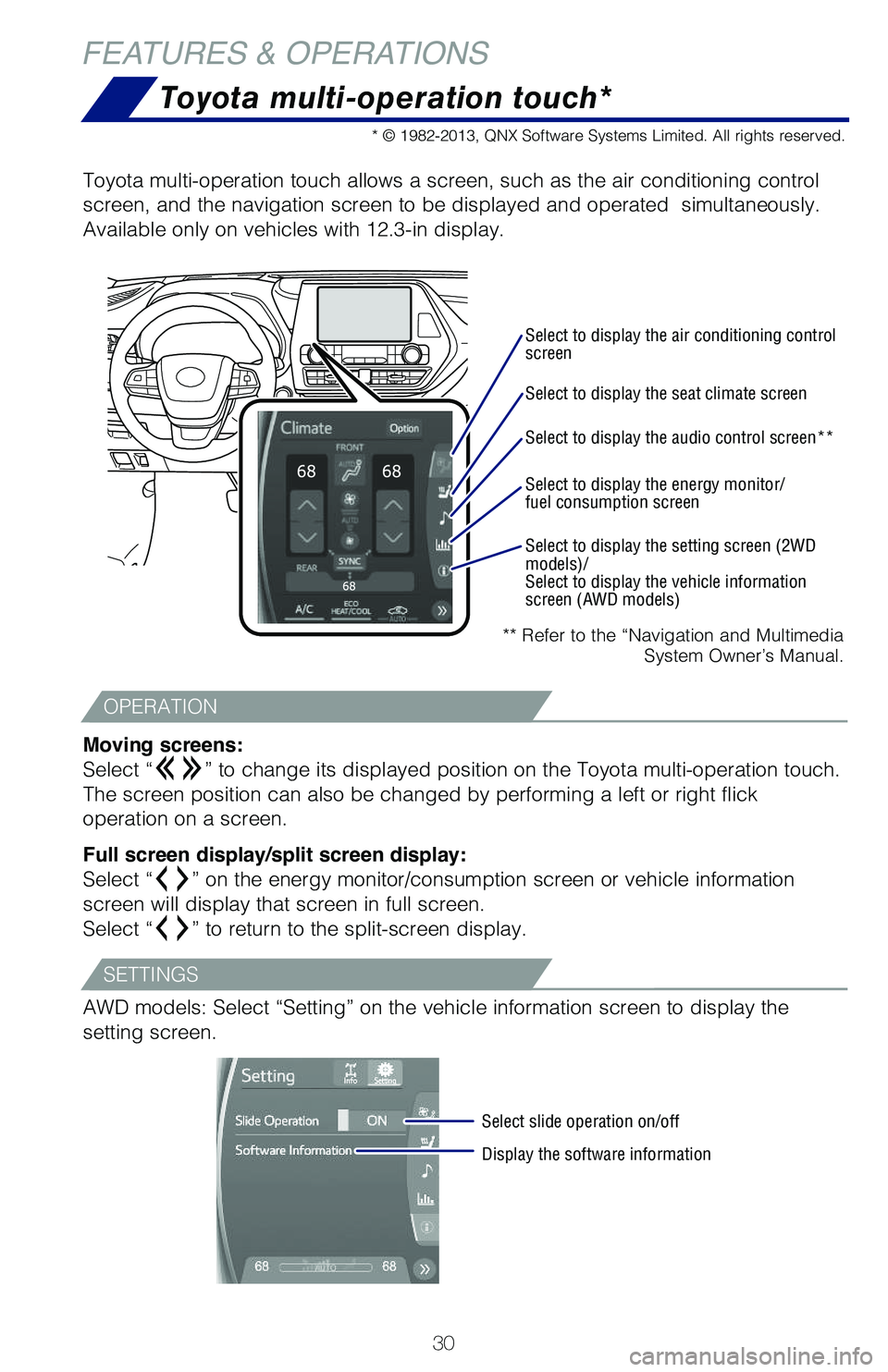

Toyota multi-operation touch*
** Refer to the “Navigation and Multimedia System Owner’s Manual.
Toyota multi-operation touch allows a screen, such as the air conditioni\�ng control
screen, and the navigation screen to be displayed and operated simultan\�eously.
Available only on vehicles with 12.3-in display.
Moving screens:
Select “
” to change its displayed position on the Toyota multi-operation touc\�h.
The screen position can also be changed by performing a left or right fl\�ick
operation on a screen.
Full screen display/split screen display:
Select “
” on the energy monitor/consumption screen or vehicle information
screen will display that screen in full screen.
Select “
” to return to the split-screen display.
AWD models: Select “Setting” on the vehicle information screen to \�display the
setting screen.
Select to display the air conditioning control
screen
Select slide operation on/off
Display the software information
Select to display the seat climate screen
Select to display the audio control screen**
Select to display the energy monitor/
fuel consumption screen
Select to display the setting screen (2WD
models)/
Select to display the vehicle information
screen (AWD models)
* © 1982-2013, QNX Software Systems Limited. All rights reserved.
FEATURES & OPERATIONS
OPERATION
SETTINGS
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 30130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 307/9/21 2:41 AM7/9/21 2:41 AM

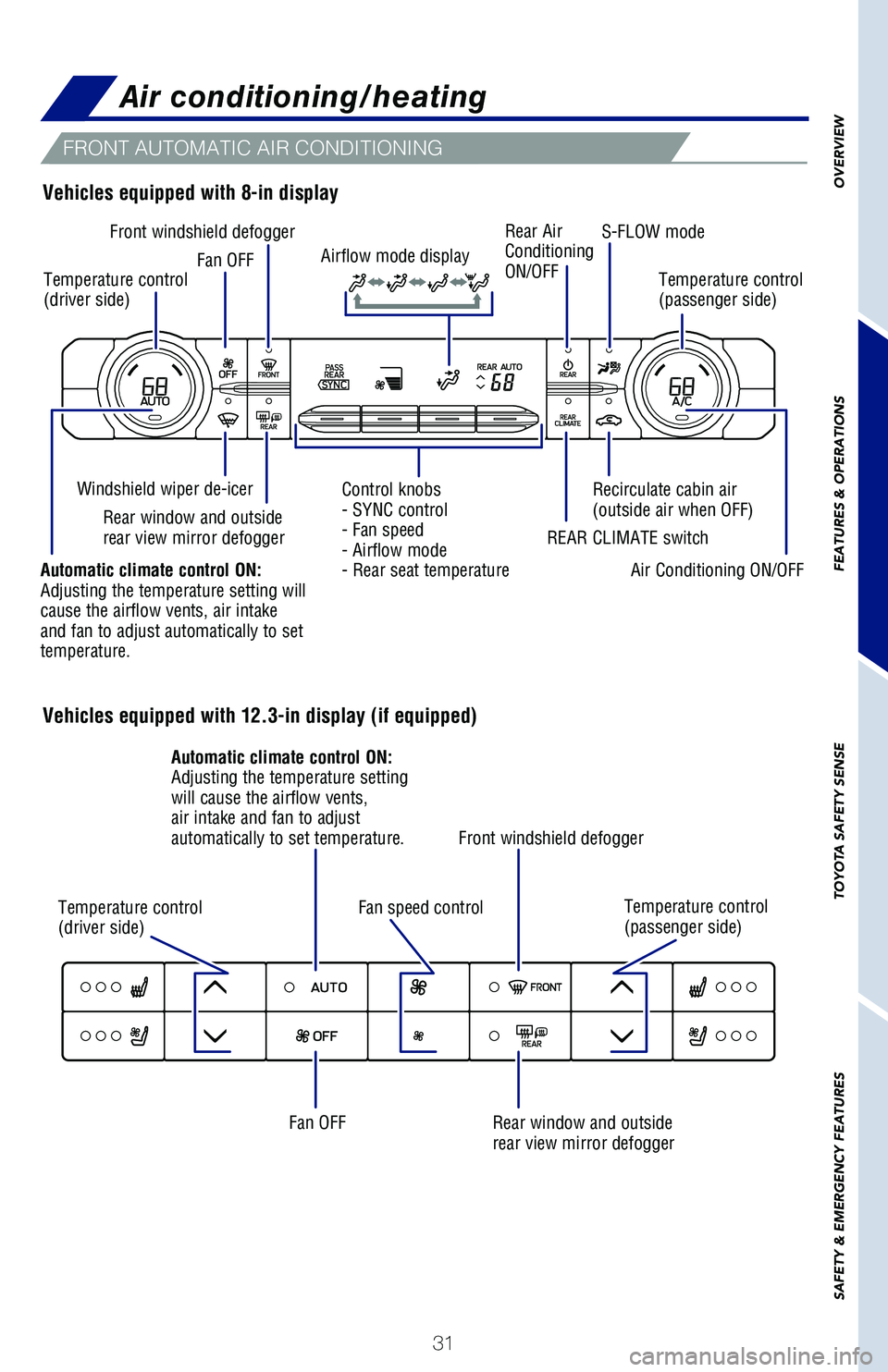

Page 33 of 72
31
Air conditioning/heating
Temperature control
(driver side)
Front windshield defoggerFan OFF Temperature control
(passenger side)
Rear Air
Conditioning
ON/OFF
S-FLOW mode
Automatic climate control ON:
Adjusting the temperature setting will
cause the airflow vents, air intake
and fan to adjust automatically to set
temperature.
Rear window and outside
rear view mirror defogger
Windshield wiper de-icer
REAR CLIMATE switchAir Conditioning ON/OFF
Control knobs
- SYNC control
- Fan speed
- Airflow mode
- Rear seat temperature Recirculate cabin air
(outside air when OFF)
Airflow mode display
Temperature control
(driver side) Front windshield defogger
Fan OFF Temperature control
(passenger side)
Automatic climate control ON:
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Rear window and outside
rear view mirror defogger Fan speed control
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURESVehicles equipped with 8-in display
Vehicles equipped with 12.3-in display (if equipped)
FRONT AUTOMATIC AIR CONDITIONING
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 31130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 317/9/21 2:41 AM7/9/21 2:41 AM

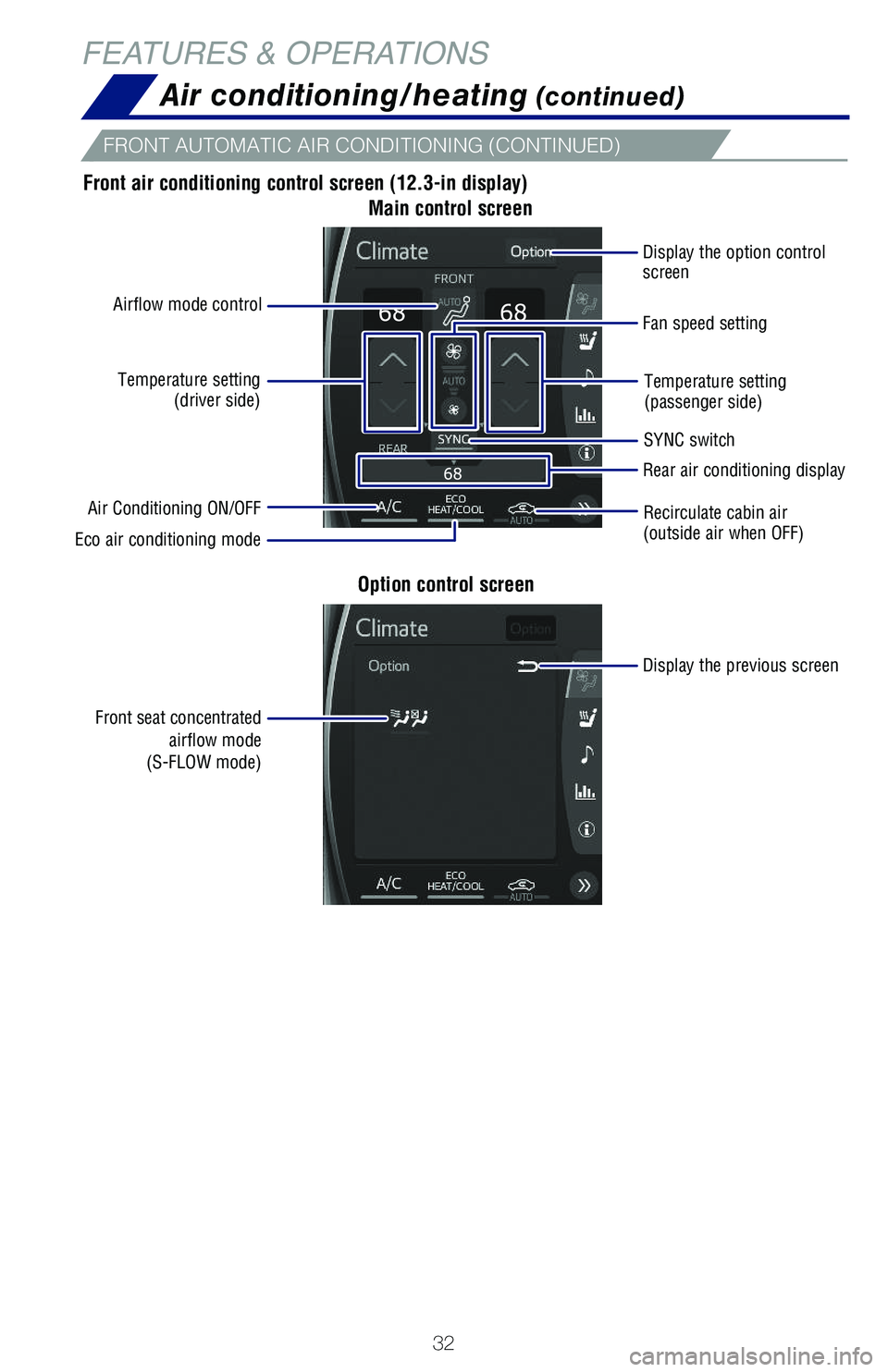

Page 34 of 72
32
Air conditioning/heating (continued)
Recirculate cabin air
(outside air when OFF)
Front air conditioning control screen (12.3-in display)Main control screen
Option control screen
Temperature setting (driver side) Display the option control
screen
Display the previous screen Rear air conditioning display
Fan speed setting
SYNC switchTemperature setting
(passenger side)
Airflow mode control
Air Conditioning ON/OFF
Eco air conditioning mode
FRONT AUTOMATIC AIR CONDITIONING (CONTINUED)
Front seat concentrated airflow mode
(S-FLOW mode)
FEATURES & OPERATIONS
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 32130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 327/9/21 2:41 AM7/9/21 2:41 AM
Page 35 of 72
33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Fan OFF Temperature selector
Rear A/C indicator Rear A/C ON/OFF
REAR CLIMATE switch
Rear fan speed, rear airflow mode,
rear temperature control
Rear fan speed Rear airflow mode control Rear temperature setting
Fan OFF
Rear AUTO switch Airflow mode selector
Front air conditioning control panel (8-in display) Rear air conditioning control panel
Rear air conditioning control panel (12.3-in display)
Fan speed
Airflow mode display

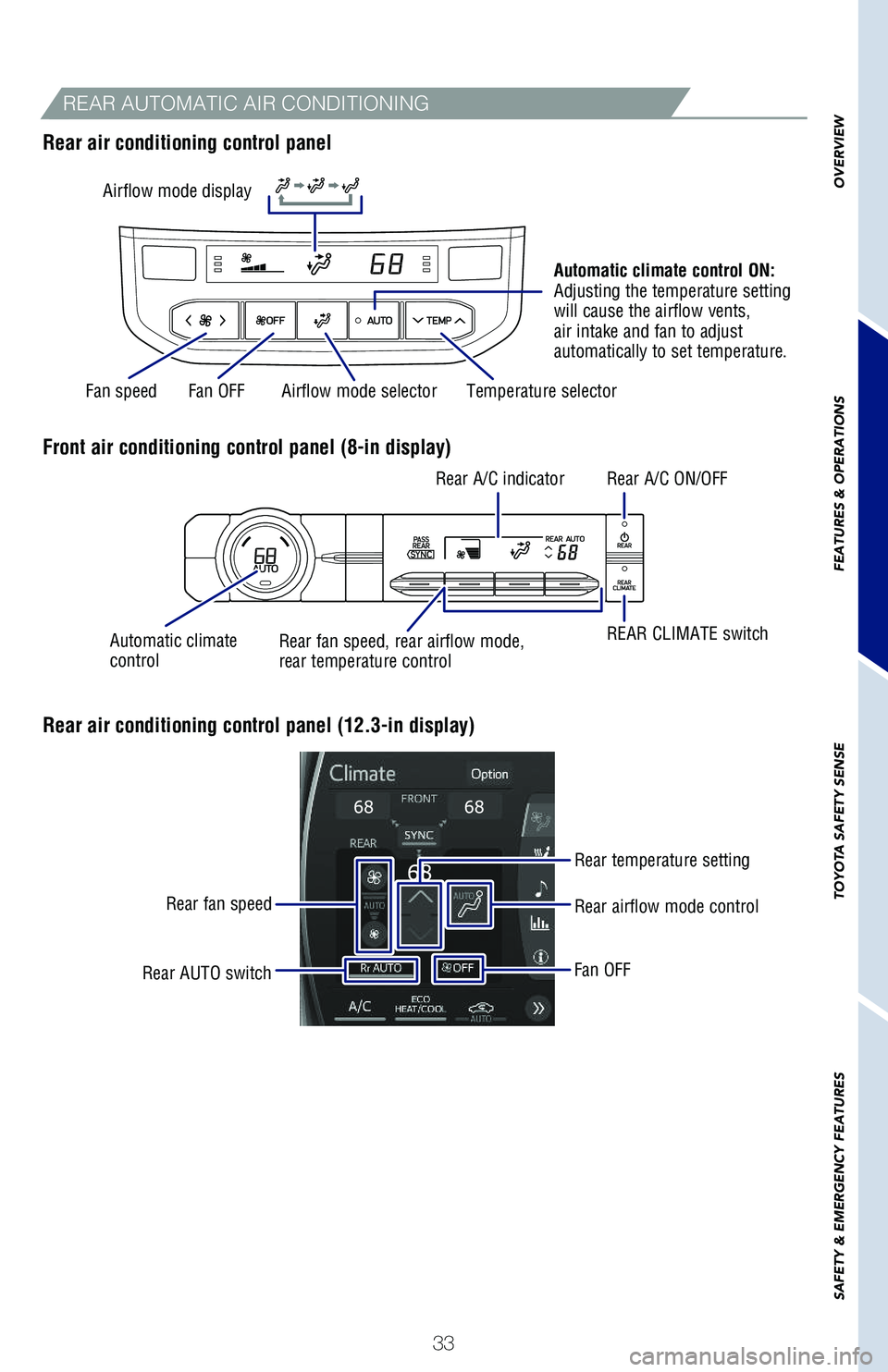

REAR AUTOMATIC AIR CONDITIONING
Automatic climate control ON:
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Automatic climate
control
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 33130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 337/9/21 2:41 AM7/9/21 2:41 AM
Page 36 of 72
34

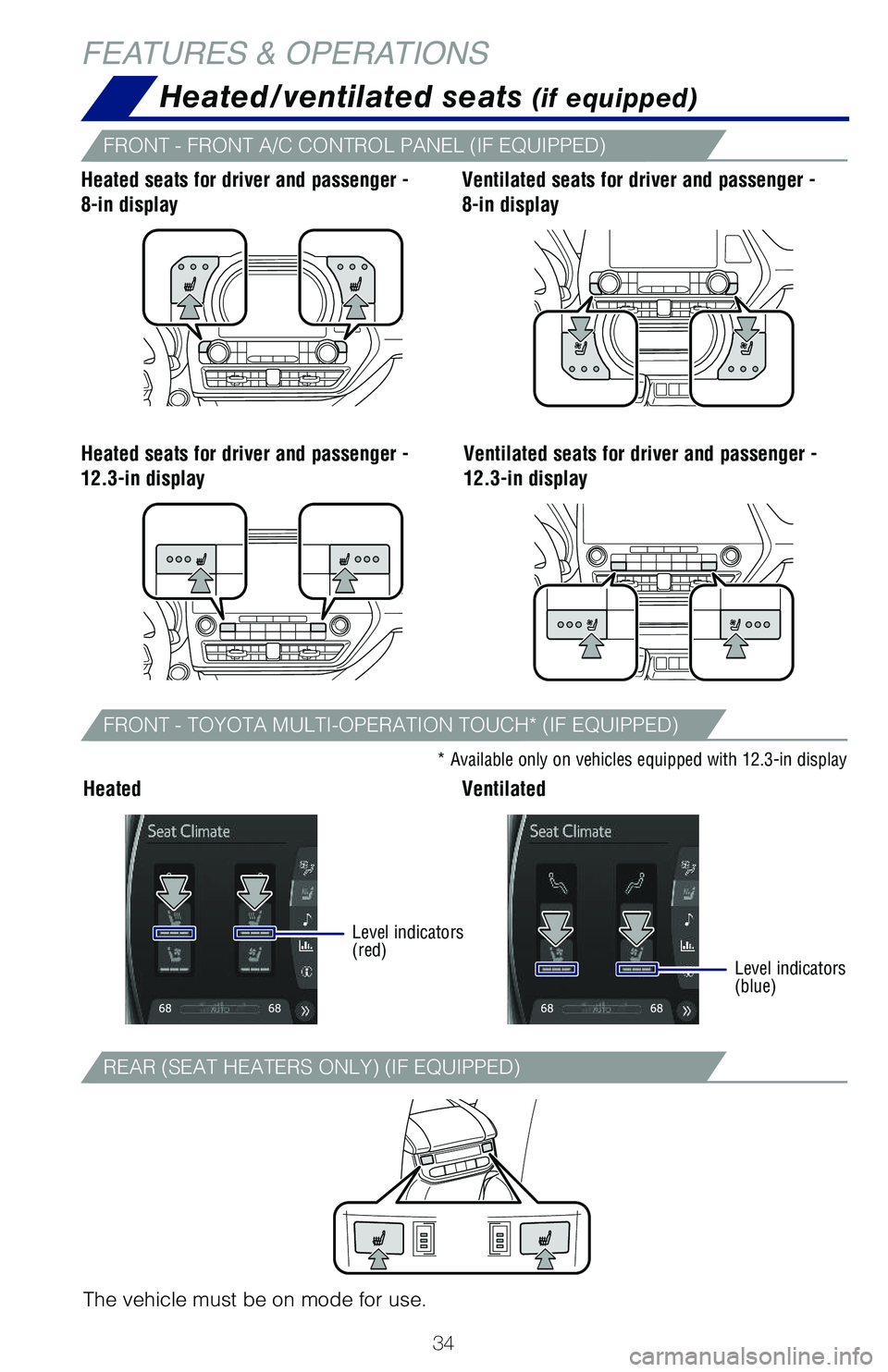

Heated/ventilated seats (if equipped)
* Available only on vehicles equipped with 12.3-in display
Heated seats for driver and passenger -
8-in displayHeated
Heated seats for driver and passenger -
12.3-in display
Ventilated seats for driver and passenger -
8-in display
VentilatedVentilated seats for driver and passenger -
12.3-in display
FRONT - FRONT A/C CONTROL PANEL (IF EQUIPPED)
FRONT - TOYOTA MULTI-OPERATION TOUCH* (IF EQUIPPED)
REAR (SEAT HEATERS ONLY) (IF EQUIPPED)
The vehicle must be on mode for use.
Level indicators
(red)
Level indicators
(blue)
FEATURES & OPERATIONS
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 34130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 347/9/21 2:41 AM7/9/21 2:41 AM
Page 37 of 72
35

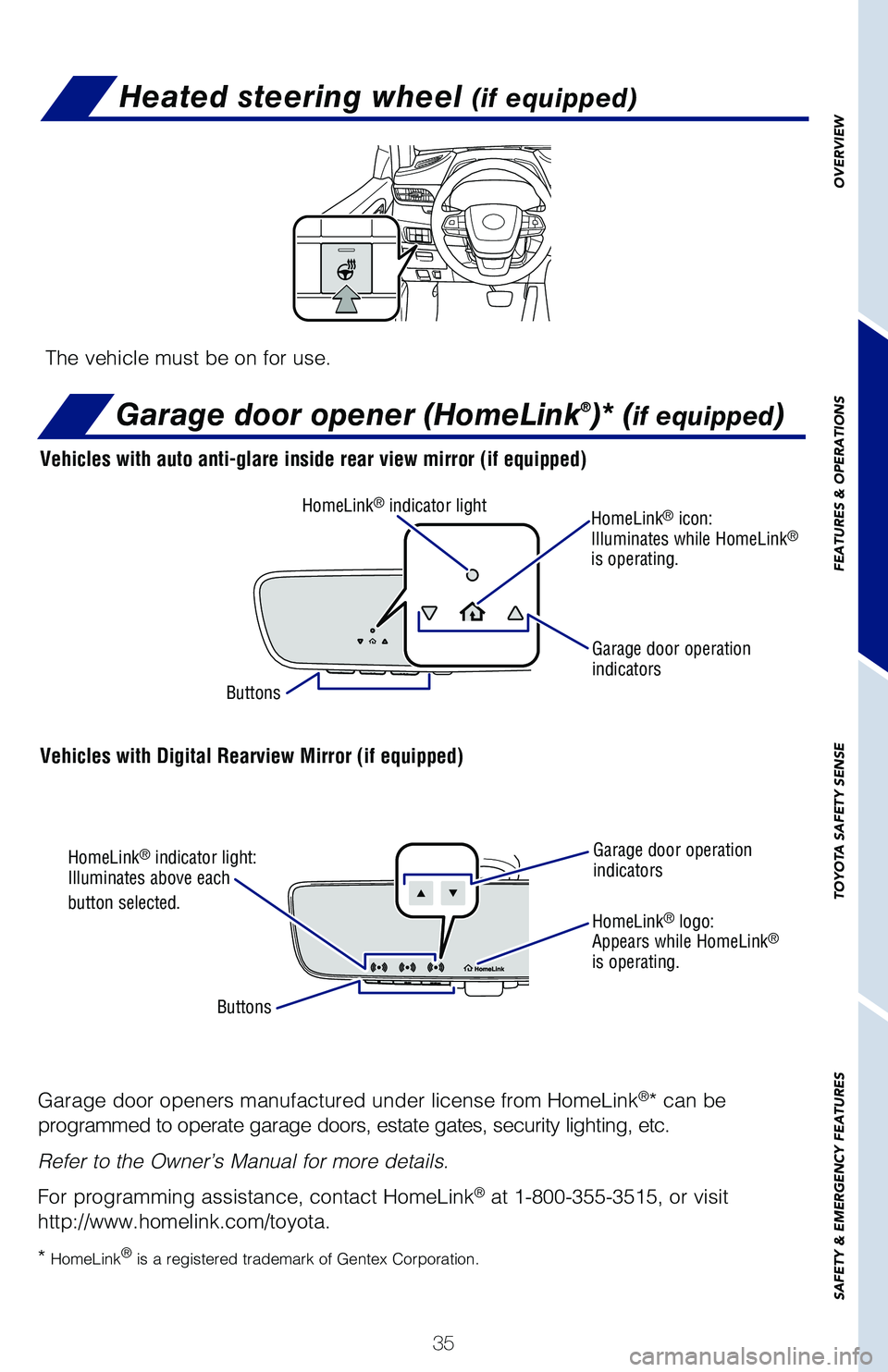

Heated steering wheel (if equipped)
The vehicle must be on for use.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Garage door opener (HomeLink®)* (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\�.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
*
HomeLink® is a registered trademark of Gentex Corporation.
Garage door operation
indicators
Garage door operation
indicators
HomeLink
® icon:
Illuminates while HomeLink®
is operating.
HomeLink
® logo:
Appears while HomeLink®
is operating.
Buttons
Buttons HomeLink
® indicator light
HomeLink
® indicator light:
Illuminates above each
button selected.
Vehicles with auto anti-glare inside rear view mirror (if equipped)
Vehicles with Digital Rearview Mirror (if equipped)
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 35130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 357/9/21 2:41 AM7/9/21 2:41 AM
Page 38 of 72
36

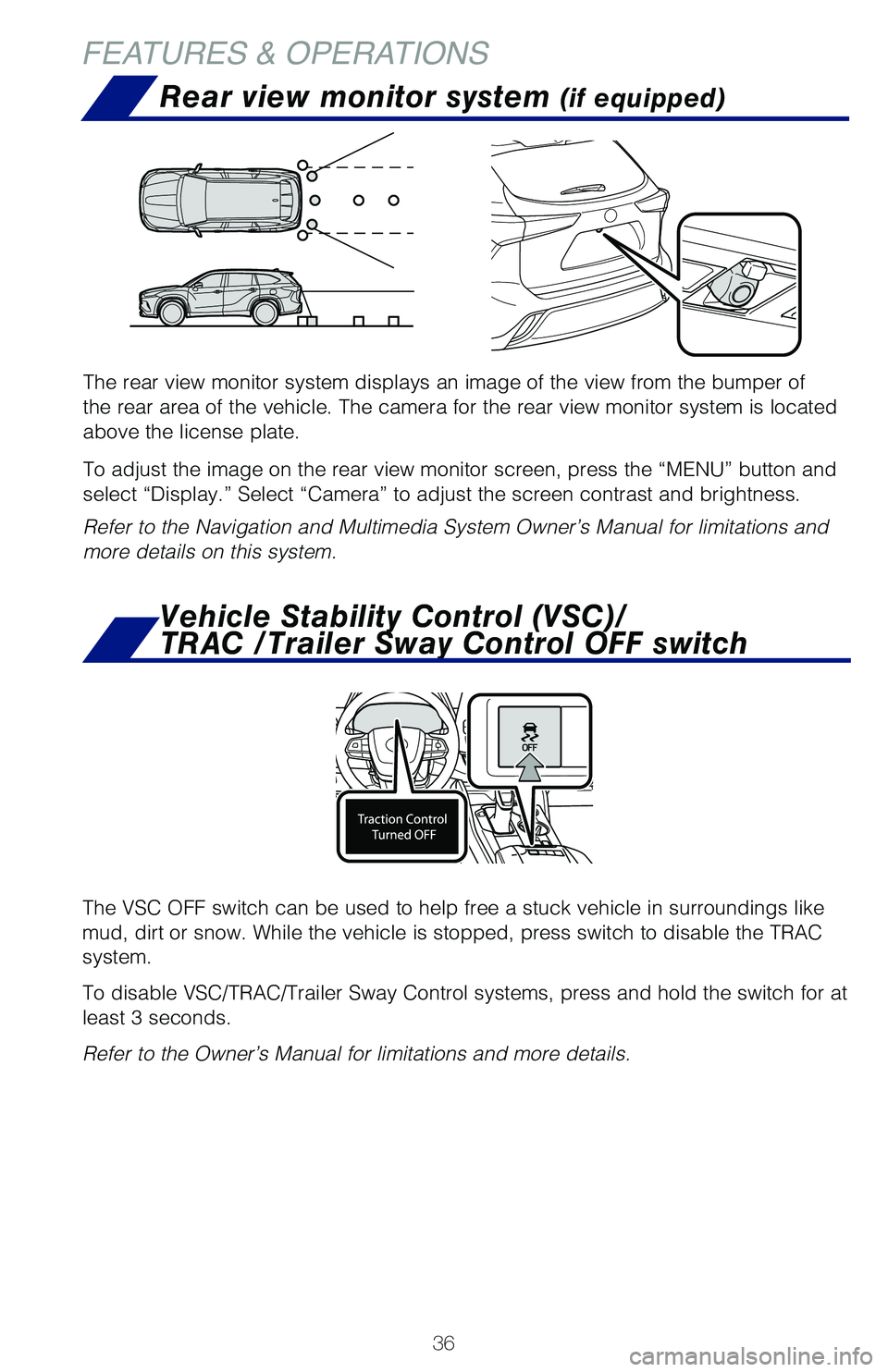

FEATURES & OPERATIONSRear view monitor system
(if equipped)
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display.” Select “Camera” to adjust the screen contrast and brightness.
Refer to the Navigation and Multimedia System Owner’s Manual for limitations and
more details on this system.
Vehicle Stability Control (VSC)/
TRAC /Trailer Sway Control OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable VSC/TRAC/Trailer Sway Control systems, press and hold the switch for at
least 3 seconds.
Refer to the Owner’s Manual for limitations and more details.
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 36130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 367/9/21 2:41 AM7/9/21 2:41 AM
Page 39 of 72
37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

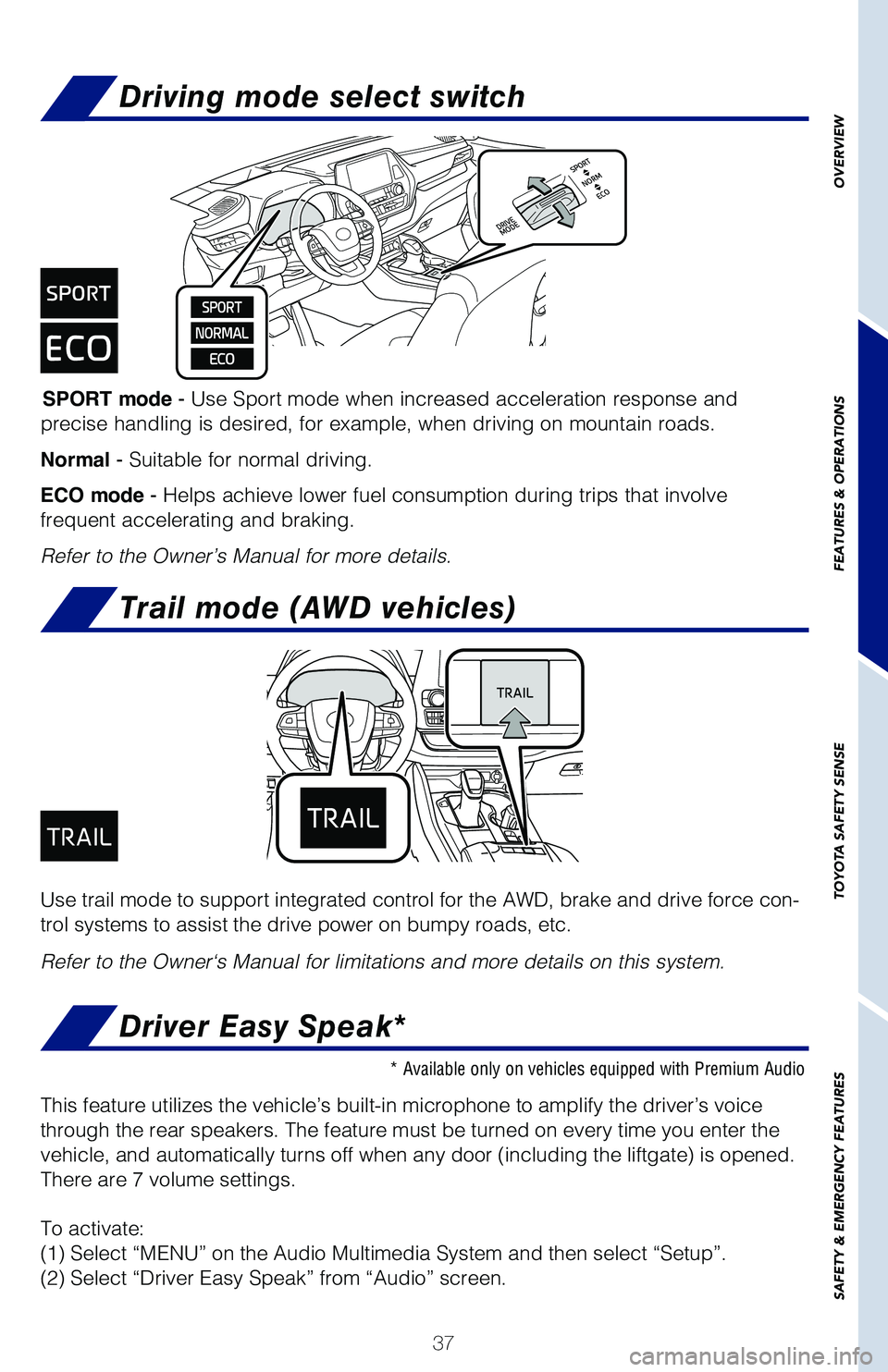

Driving mode select switch
SPORT mode - Use Sport mode when increased acceleration response and
precise handling is desired, for example, when driving on mountain roads\�.
Normal - Suitable for normal driving.
ECO mode - Helps achieve lower fuel consumption during trips that involve
frequent accelerating and braking.
Refer to the Owner’s Manual for more details.
Use trail mode to support integrated control for the AWD, brake and driv\�e force con-
trol systems to assist the drive power on bumpy roads, etc.
Refer to the Owner‘s Manual for limitations and more details on this \�system.
Trail mode (AWD vehicles)
* Available only on vehicles equipped with Premium Audio
This feature utilizes the vehicle’s built-in microphone to amplify th\�e driver’s voice
through the rear speakers. The feature must be turned on every time you \�enter the
vehicle, and automatically turns off when any door (including the liftg\�ate) is opened.
There are 7 volume settings.
To activate:
(1) Select “MENU” on the Audio Multimedia System and then select\� “Setup”.
(2) Select “Driver Easy Speak” from “Audio” screen.
Driver Easy Speak*
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 37130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 377/9/21 2:41 AM7/9/21 2:41 AM
Page 40 of 72
38
FEATURES & OPERATIONS
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “” and then press “.” The setting screen
is displayed.
(3) Press “
” to select the desired setting.
(4) Press “
” to go back to the menu.
Refer to all of the section “Parking Support Brake function” (sta\�tic objects and rear-
crossing vehicles) in the Owner’s Manual for limitations and more de\�tails.
When traveling at a low
speed and the brake
pedal is not depressed,
or is depressed late. When the accelerator
pedal is depressed
excessively.
When the vehicle moves in
the unintended direction
due to the wrong shift
position.
When reversing, a vehicle is
approaching and the brake pedal is
not depressed, or is depressed late.

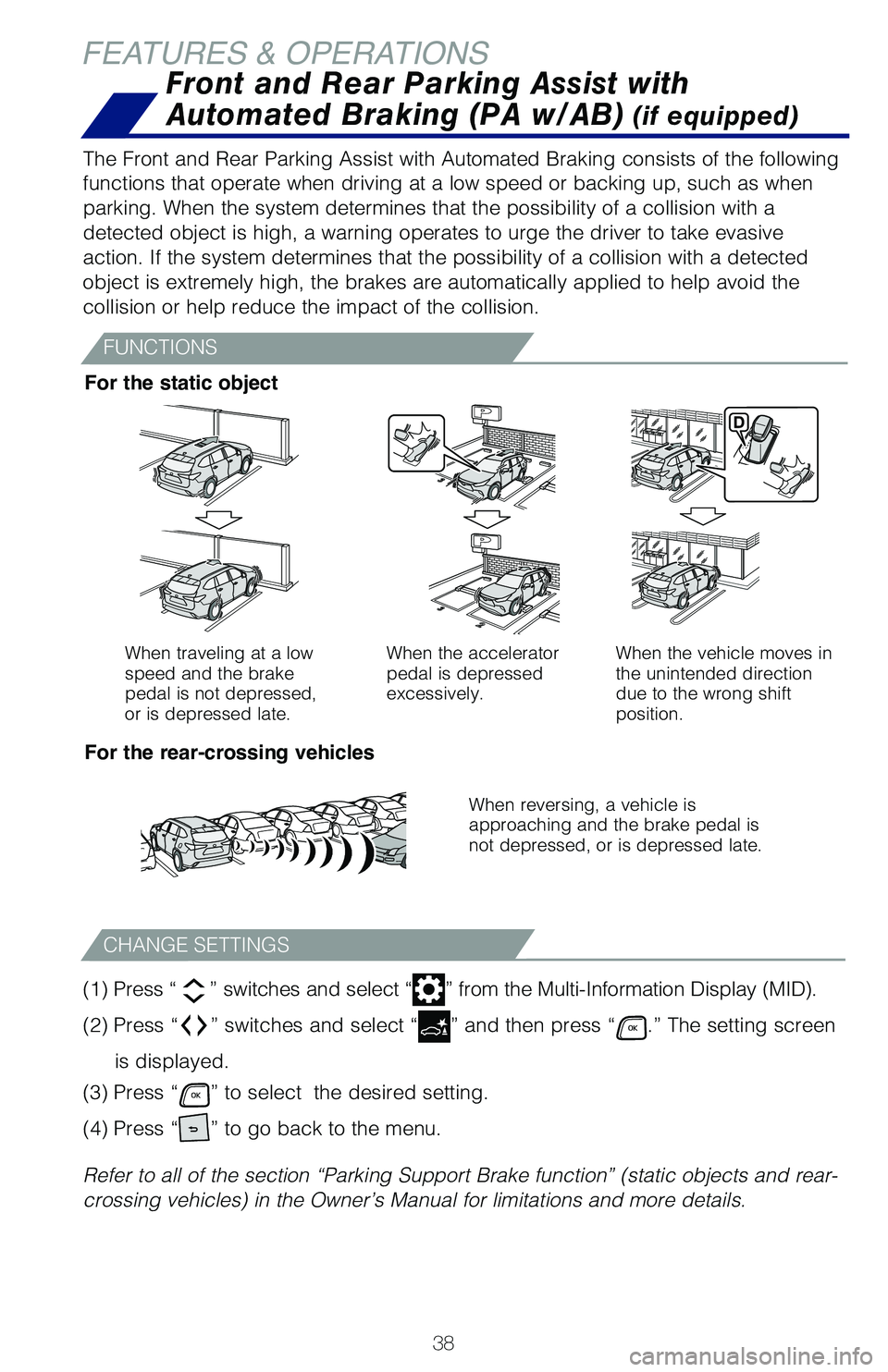

The Front and Rear Parking Assist with Automated Braking consists of the\� following
functions that operate when driving at a low speed or backing up, such a\�s when
parking. When the system determines that the possibility of a collision \�with a
detected object is high, a warning operates to urge the driver to take e\�vasive
action. If the system determines that the possibility of a collision wit\�h a detected
object is extremely high, the brakes are automatically applied to help a\�void the
collision or help reduce the impact of the collision. For the static object
For the rear-crossing vehicles
CHANGE SETTINGS
Front and Rear Parking Assist with
Automated Braking (PA w/AB)
(if equipped)
FUNCTIONS
