Page 21 of 72
19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
ON SET
OFFRELEASE

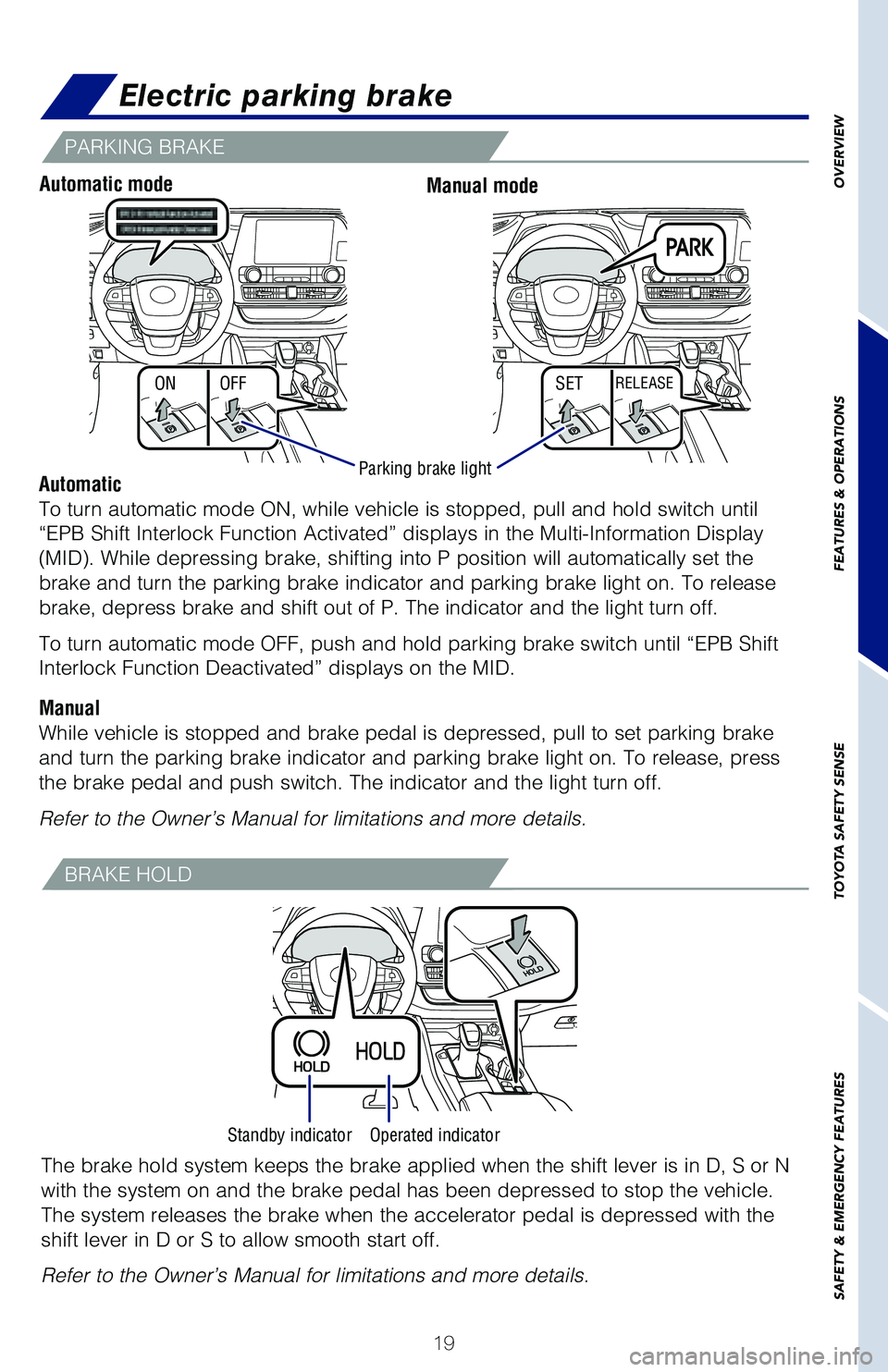

Electric parking brake
Automatic
To turn automatic mode ON, while vehicle is stopped, pull and hold switc\�h until
“EPB Shift Interlock Function Activated” displays in the Multi-Inf\�ormation Display
(MID). While depressing brake, shifting into P position will automatic\�ally set the
brake and turn the parking brake indicator and parking brake light on. T\�o release
brake, depress brake and shift out of P. The indicator and the light tur\�n off.
To turn automatic mode OFF, push and hold parking brake switch until “\�EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parki\�ng brake
and turn the parking brake indicator and parking brake light on. To rele\�ase, press
the brake pedal and push switch. The indicator and the light turn off.
Refer to the Owner’s Manual for limitations and more details.Parking brake light
Standby indicatorOperated indicator
PARKING BRAKE
The brake hold system keeps the brake applied when the shift lever is in\� D, S or N
with the system on and the brake pedal has been depressed to stop the ve\�hicle.
The system releases the brake when the accelerator pedal is depressed wi\�th the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
BRAKE HOLD
Driver sideAutomatic modeManual mode
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 19130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 197/9/21 2:41 AM7/9/21 2:41 AM
Page 22 of 72
20
MANUAL SEAT
POWER SEAT
Refer to the Owner’s Manual for more details.
Seat position
(forward/backward)
Seatback angle
Seatback angle
Seat position
(forward/backward)
Seat cushion
(front) angle
(driver’s side only)
Seat height
(driver’s side only) Lumbar support
(driver’s side only)
Lock release button Lock release button Lock release button
FrontSecond rowThird row-center seat
Seat adjustments-Front
Seats-Head restraints
FEATURES & OPERATIONS
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 20130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 207/9/21 2:41 AM7/9/21 2:41 AM
Page 23 of 72
21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Second row (8-seat models)
Third row seat
Stowing Returning (from outside)
Returning (from inside) Returning the outer head restraints
Second row (7-seat models)
Refer to the Owner’s Manual for more details.
Refer to the Owner’s Manual for more details.
PullPull
Pull
Raise
Seatback angle
adjustment lever
Seatback angle
adjustment leverSeatback angle
adjustment lever
Seat position
adjustment lever

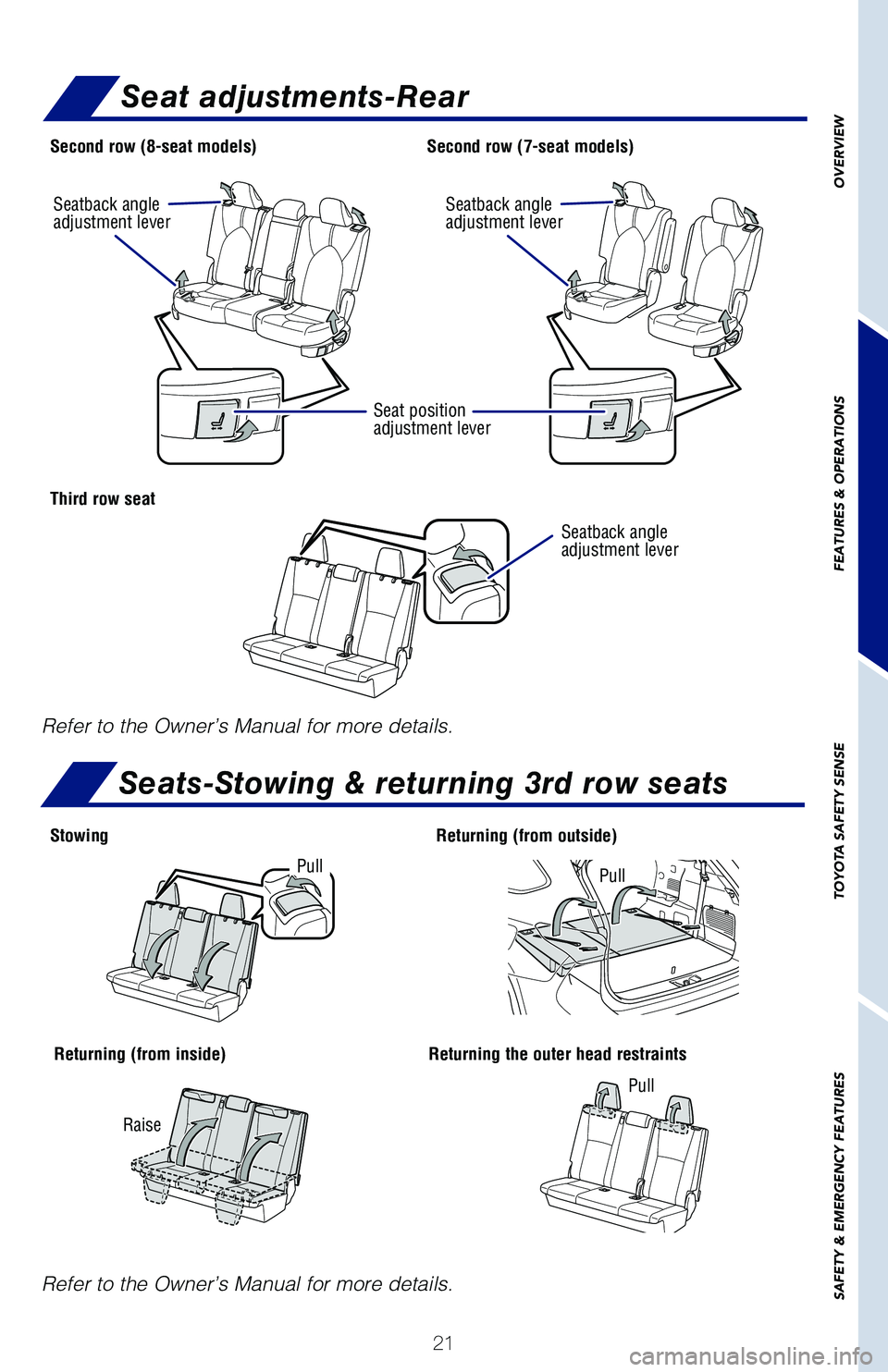

Seat adjustments-Rear
Seats-Stowing & returning 3rd row seats
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 21130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 217/9/21 2:41 AM7/9/21 2:41 AM
Page 24 of 72
22
OnInterval wipe
Off
Push to wash and wipe
1 Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wiper frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Rain sensing
(AUTO)
Slow
Fast
Adjust sensitivity2
Interval wipe
OFFOFF
Slow
Fast
Adjust frequency
1
Pull to wash
and wipe
Pull to wash
and wipe
With intermittent wiper
With rain-sensing wiper

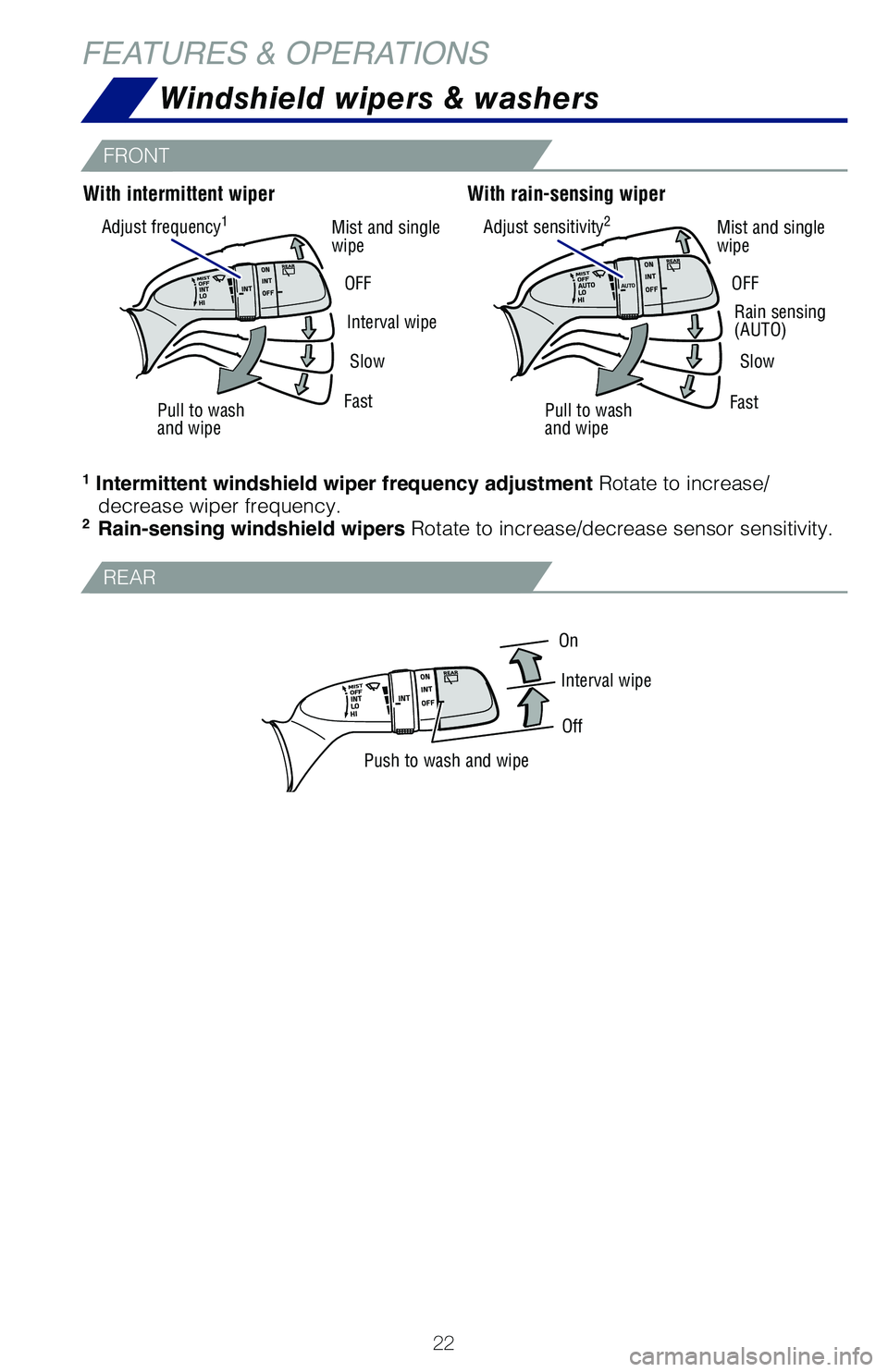

Windshield wipers & washers
FRONT
REAR
Mist and single
wipe Mist and single
wipe
FEATURES & OPERATIONS
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 22130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 227/9/21 2:41 AM7/9/21 2:41 AM
Page 25 of 72
23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
or
Automatic High Beams*
High beam (Push)
Front fog lights come on only when the headlights are on low beam.
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\� night. Automatic light cut off system Lights automatically turn off after 30 second delay,
or when lock switch on the remote is pushed after all doors are locked.
Automatic High Beams (AHB) system Automatically switches between high and
low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.5+ (TSS 2.5+) in this guide or the \�Owner’s Manual
for more details on the Automatic High Beams feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\�etails.
Low beam (Original position)
Parking lights
Auto
DRL OFF High beam
flasher (Pull)
Headlights
Turn
Right turn
Left turn

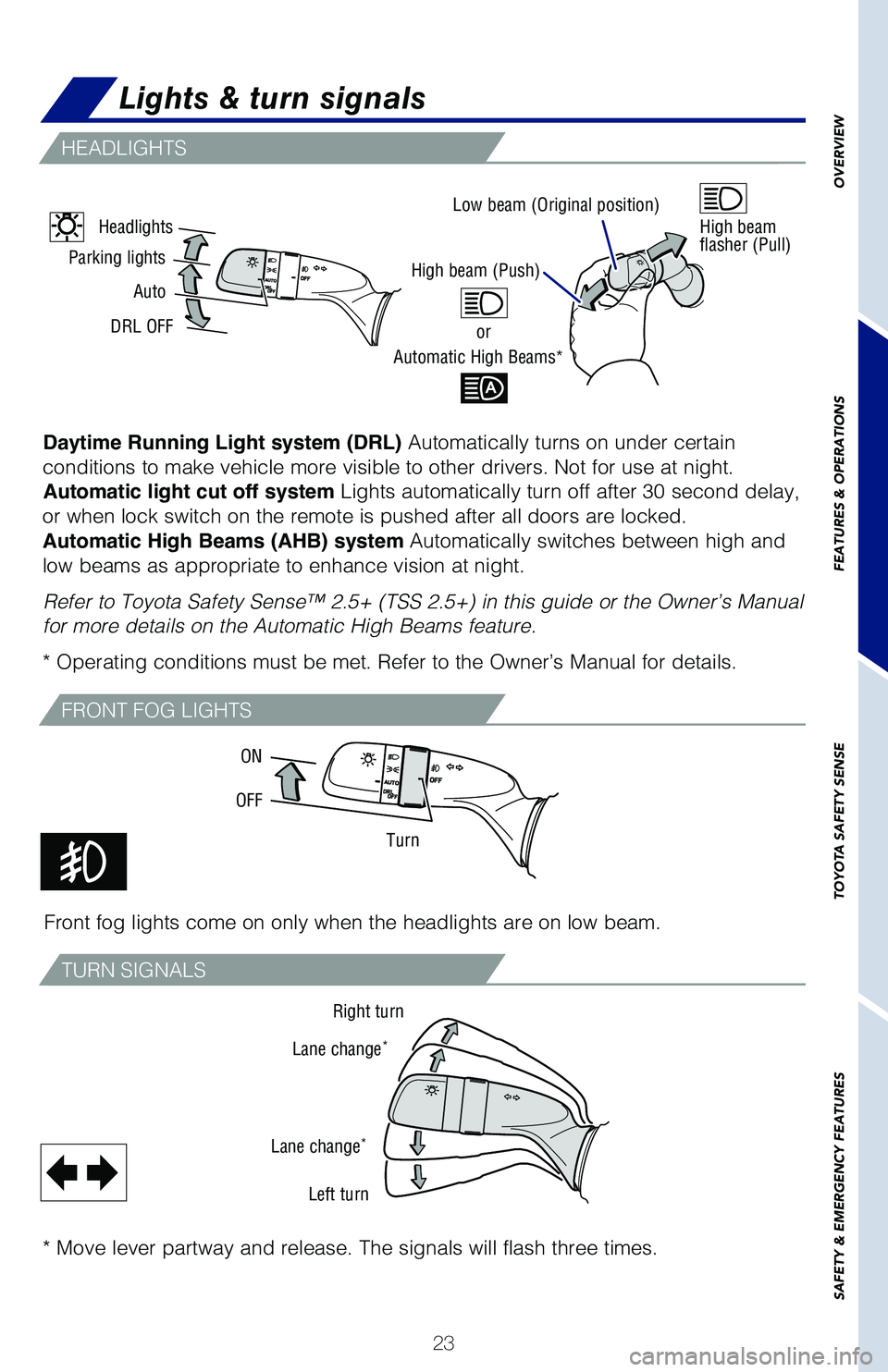

Lights & turn signals
HEADLIGHTS
FRONT FOG LIGHTS
TURN SIGNALS
OFF ON
* Move lever partway and release. The signals will flash three times.
Lane change*
Lane change*
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 23130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 237/9/21 2:41 AM7/9/21 2:41 AM
Page 26 of 72
24
FEATURES & OPERATIONS
Refer to the Owner’s Manual for more details.

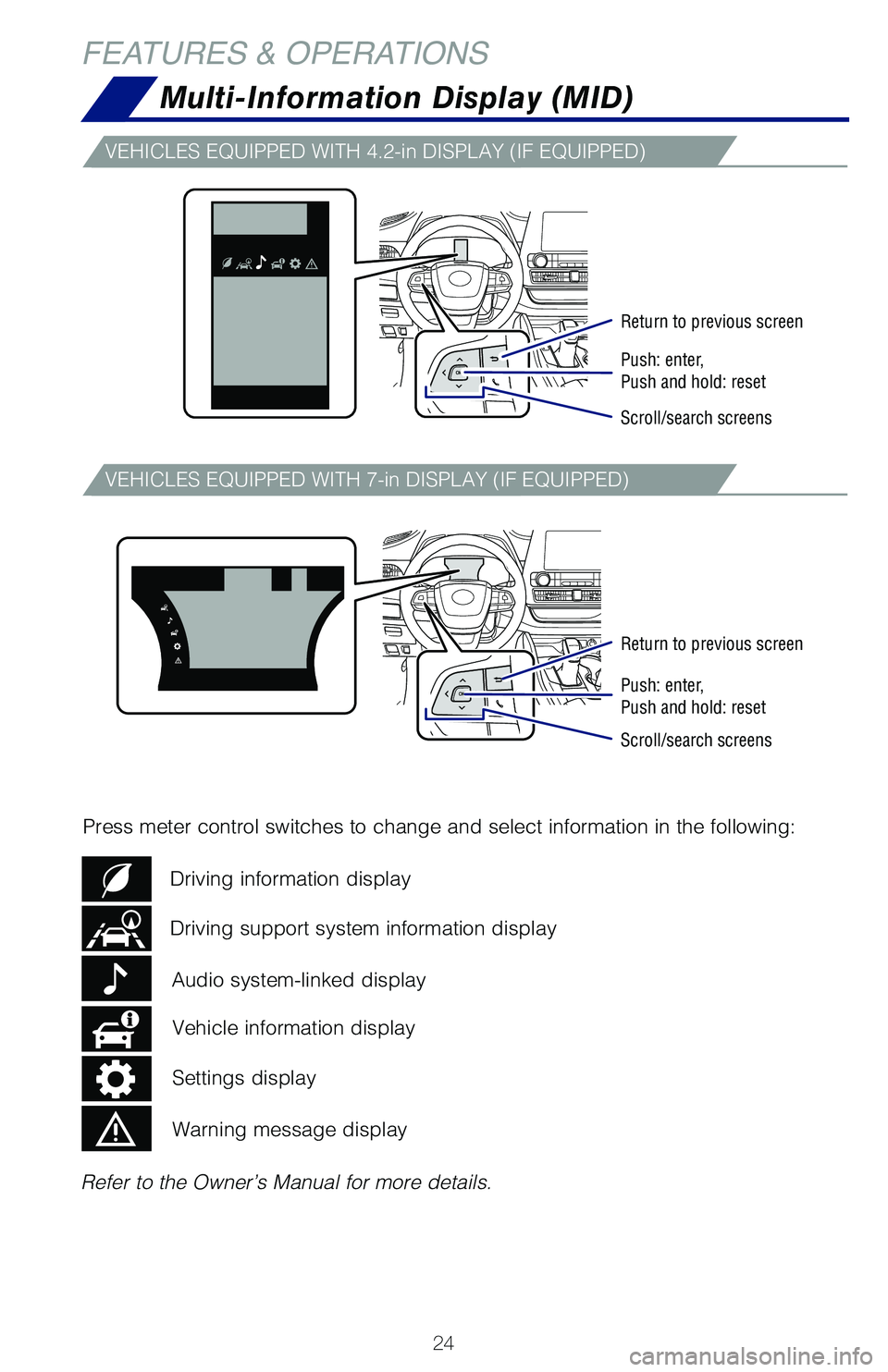

Multi-Information Display (MID)
Press meter control switches to change and select information in the fol\�lowing:
Driving support system information display Driving information displayVehicle information display
Audio system-linked display
Settings display
Warning message display
VEHICLES EQUIPPED WITH 4.2-in DISPLAY (IF EQUIPPED)
VEHICLES EQUIPPED WITH 7-in DISPLAY (IF EQUIPPED)
Return to previous screen
Push: enter,
Push and hold: reset
Scroll/search screens
Return to previous screen
Push: enter,
Push and hold: reset
Scroll/search screens
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 24130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 247/9/21 2:41 AM7/9/21 2:41 AM
Page 27 of 72
25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Head-Up Display (HUD) (if equipped)
- Navigation system-linked display area (if equipped)
- Driving assist system status display Speed limit/RSA (Road
Sign Assist) display
Shift position display
Hybrid System indicator/
Tachometer/
Outside temperature
Message display Vehicle speed display
Clock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting
screen.
3) Select “Clock.”
4) Select desired items to be set.
Refer to the “Navigation and Multimedia System Owner’s Manual” \�for more details.
* Available only on vehicles equipped with Premium Audio/12.3-in display\� The head-up display is linked to the meters and navigation system (if e\�quipped)
and projects a variety of driving related information and the operating \�state of the
driving support systems on the windshield.
Press meter control switches and select “
” in the Multi-Information Display
(MID) and then select “
” to access Head-up display settings. And push “,”
to enter selection.
Refer to the Owner’s Manual for more details.
Select to change the time zone.
Select to set daylight saving
time ON/OFF/AUTO*.
Select to set to automatic GPS
adjustment of clock.
Select to set the 24 hour time
format on/off.
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 25130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 257/9/21 2:41 AM7/9/21 2:41 AM
Page 28 of 72
26
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
Microphone
Voice command
switch
Start and end call

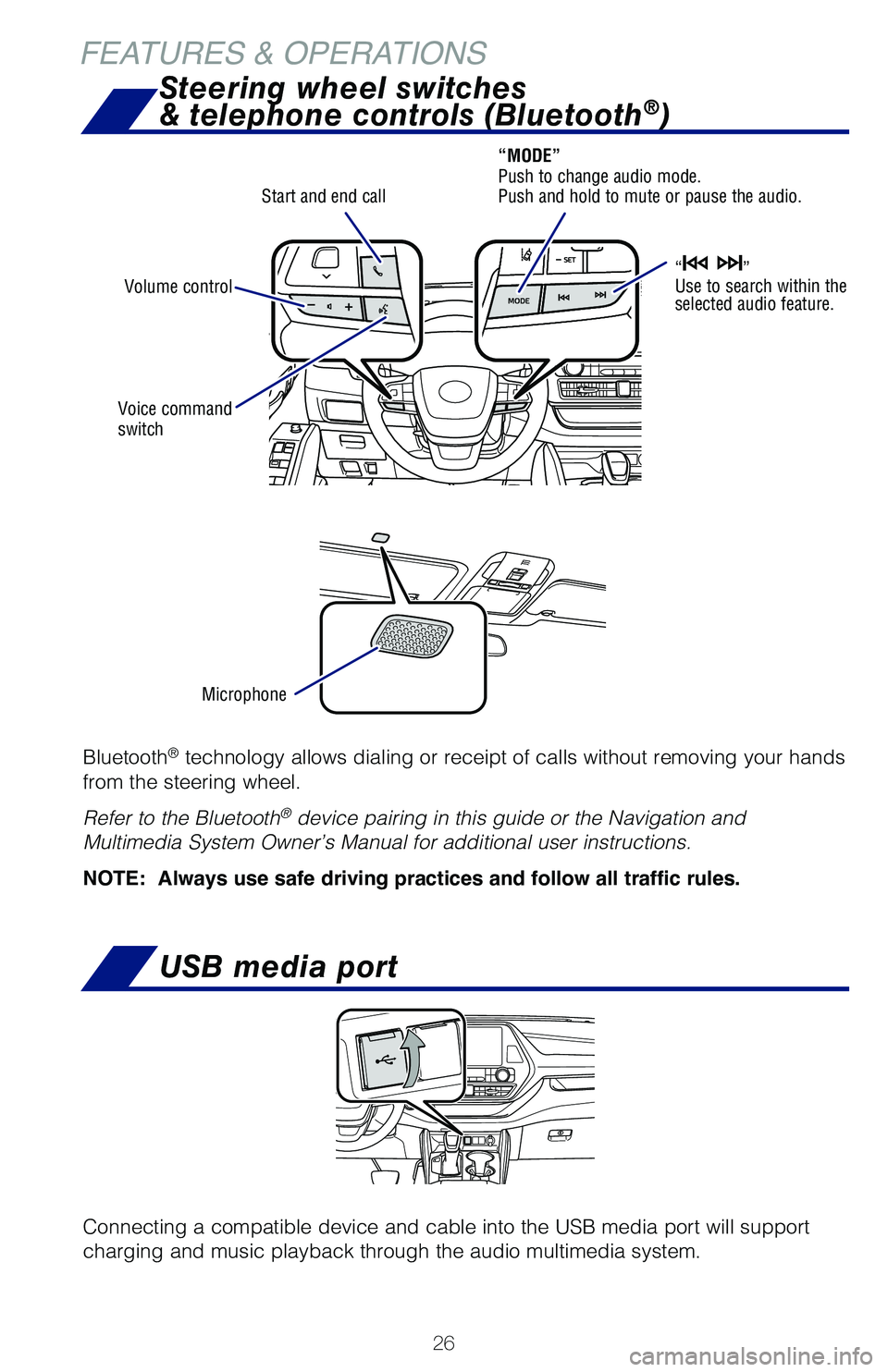

Steering wheel switches
& telephone controls (Bluetooth®)
“MODE”
Push to change audio mode.
Push and hold to mute or pause the audio.
“
”
Use to search within the
selected audio feature.Volume control
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
FEATURES & OPERATIONS
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 26130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 267/9/21 2:41 AM7/9/21 2:41 AM
Page 29 of 72
27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
“ ”
Use to search within the
selected audio feature.
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.

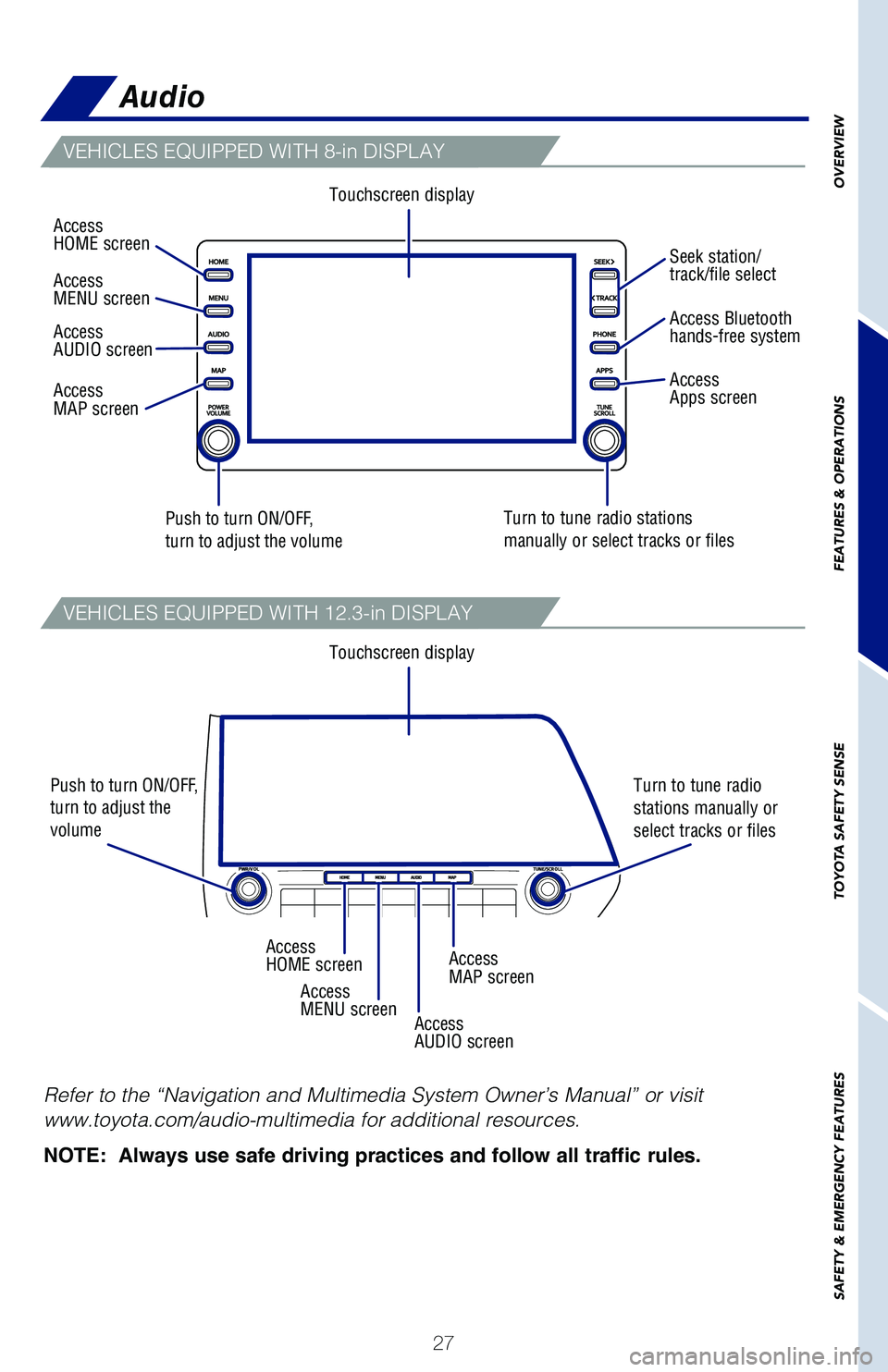

Audio
Touchscreen display
Touchscreen display
Push to turn ON/OFF,
turn to adjust the volume
Push to turn ON/OFF,
turn to adjust the
volume
Turn to tune radio stations
manually or select tracks or files
Turn to tune radio
stations manually or
select tracks or files
Access
HOME screen
Access
HOME screen
Access
MENU screen
Access
MENU screen
Access
AUDIO screen
Access
AUDIO screen
Access
MAP screen
Access
MAP screen
Seek station/
track/file select
Access Bluetooth
hands-free system
Access
Apps screen
VEHICLES EQUIPPED WITH 8-in DISPLAY
VEHICLES EQUIPPED WITH 12.3-in DISPLAY
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 27130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 277/9/21 2:41 AM7/9/21 2:41 AM
Page 30 of 72
28
Power supply switch
Charge area
Operation indicator light

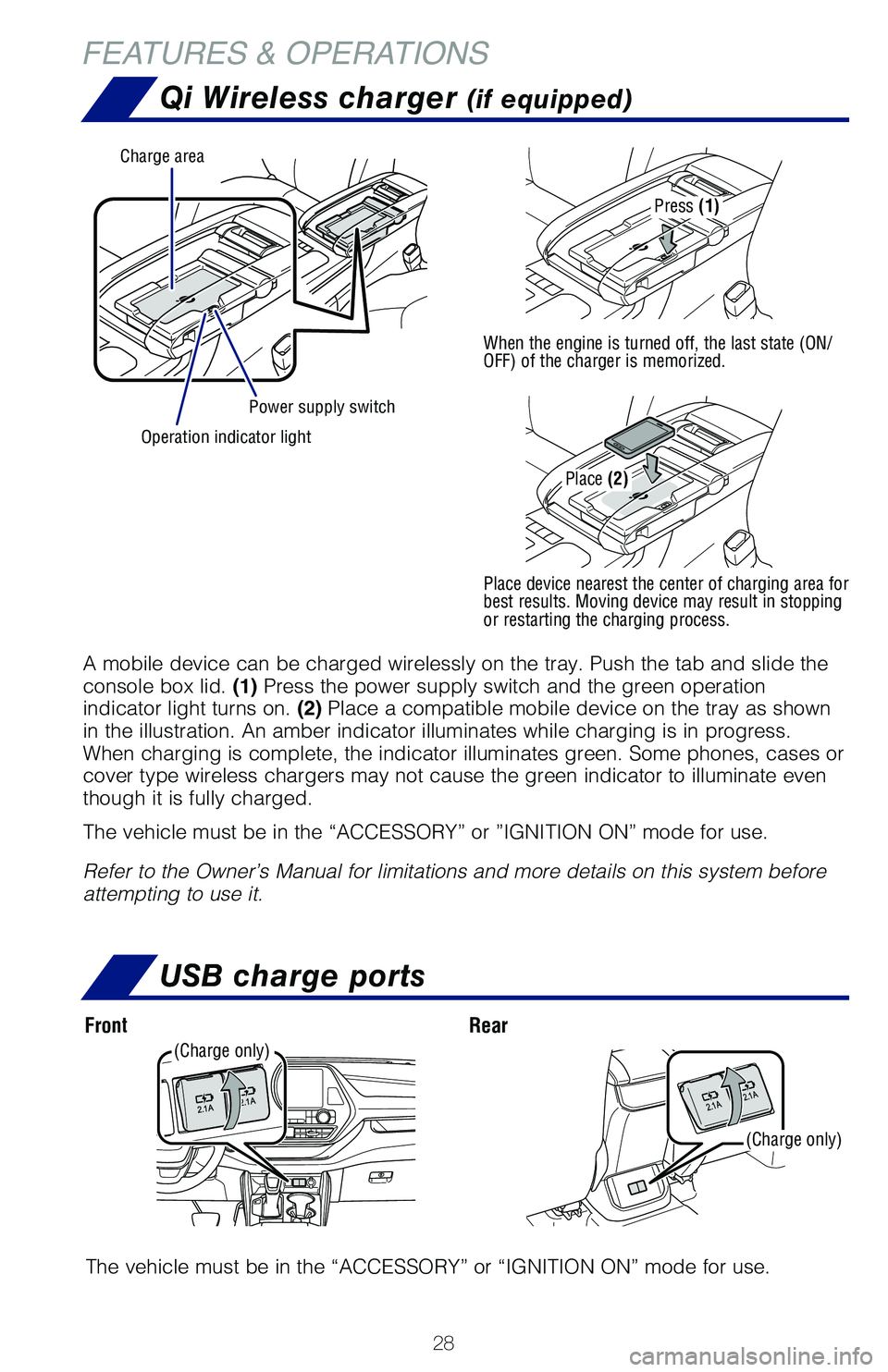

Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. Push the tab and \�slide the
console box lid. (1) Press the power supply switch and the green operation
indicator light turns on. (2) Place a compatible mobile device on the tray as shown
in the illustration. An amber indicator illuminates while charging is in\� progress.
When charging is complete, the indicator illuminates green. Some phones,\� cases or
cover type wireless chargers may not cause the green indicator to illumi\�nate even
though it is fully charged.
The vehicle must be in the “ACCESSORY” or ”IGNITION ON” mode\� for use.
Refer to the Owner’s Manual for limitations and more details on this \�system before
attempting to use it.
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode\� for use.
RearFront
USB charge ports
(Charge only)
(Charge only)
FEATURES & OPERATIONS
