39
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

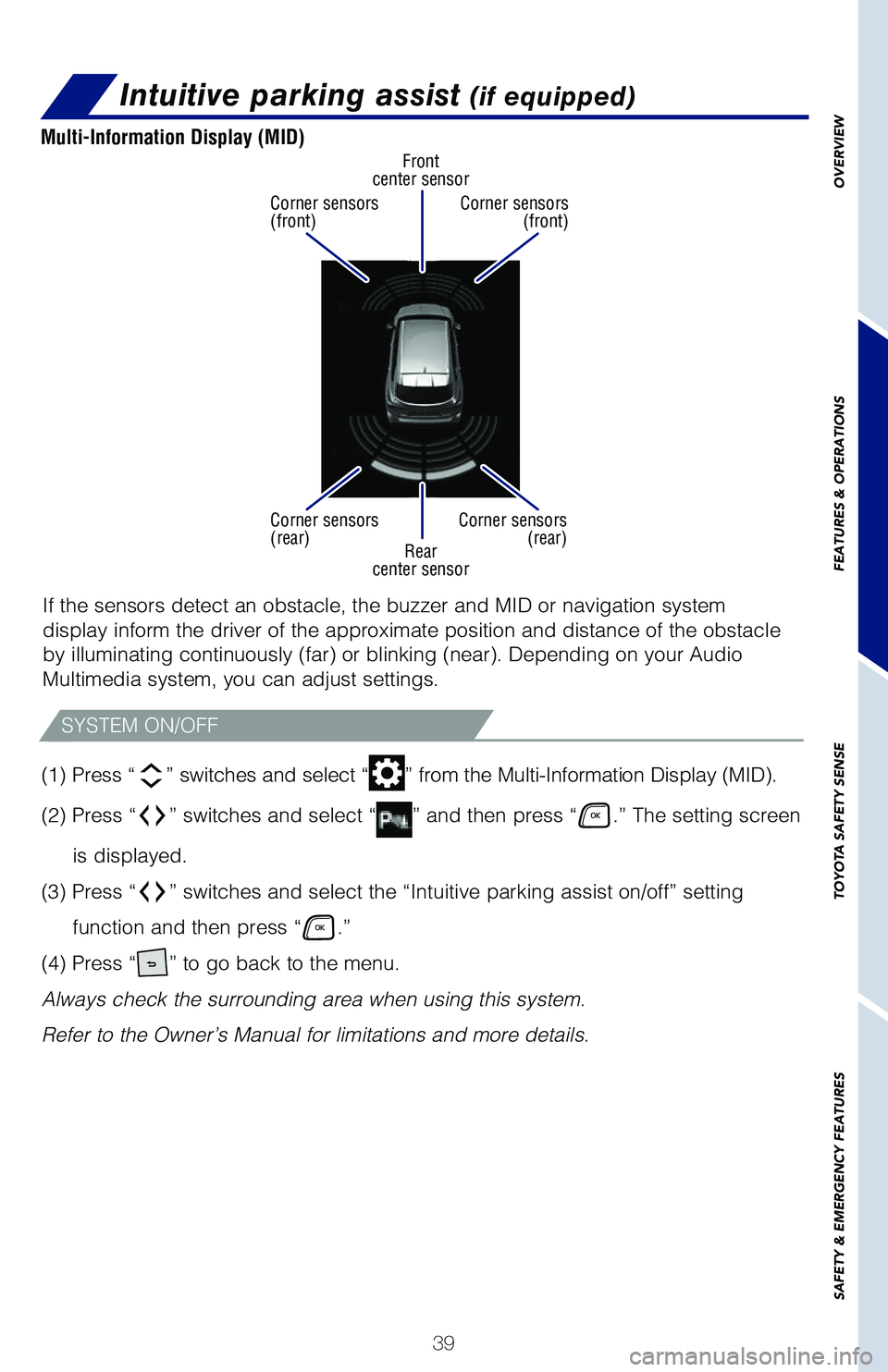

Intuitive parking assist (if equipped)
Rear
center sensor Front
center sensor
Corner sensors
(front)
Corner sensors
(rear) Corner sensors
(front)
Corner sensors (rear)
Multi-Information Display (MID)
If the sensors detect an obstacle, the buzzer and MID or navigation syst\�em
display inform the driver of the approximate position and distance of th\�e obstacle
by illuminating continuously (far) or blinking (near). Depending on \�your Audio
Multimedia system, you can adjust settings.
(1) Press “
” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “” and then press “.” The setting screen
is displayed.
(3) Press “
” switches and select the “Intuitive parking assist on/off” set\�ting
function and then press “
.”
(4) Press “
” to go back to the menu.
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for limitations and more details.
SYSTEM ON/OFF
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 39130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 397/9/21 2:41 AM7/9/21 2:41 AM
Page 42 of 72
40
FEATURES & OPERATIONSBlind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA)
Buzzer*
Outside rear view mirror indicators

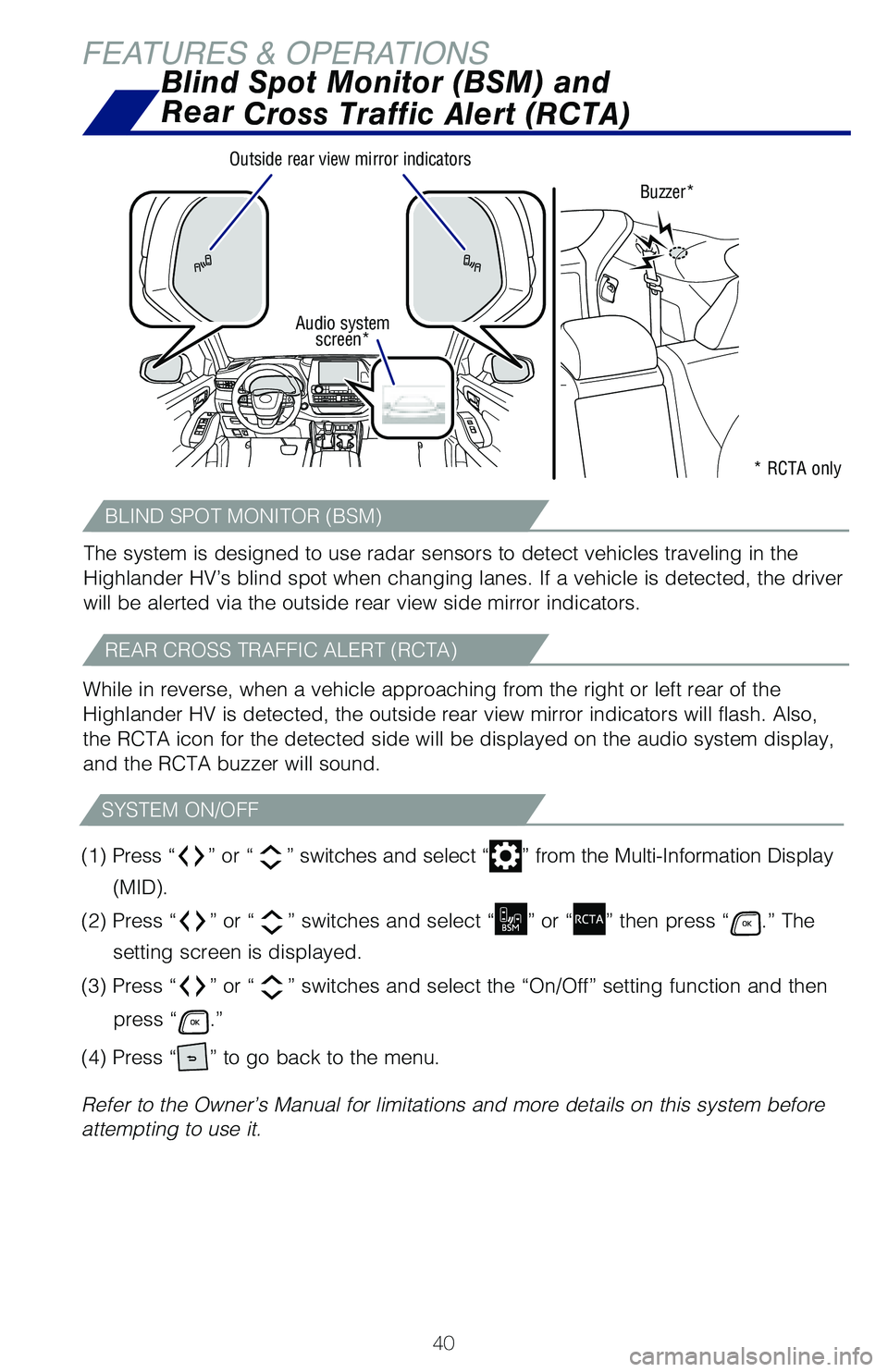

The system is designed to use radar sensors to detect vehicles traveling\� in the
Highlander HV’s blind spot when changing lanes. If a vehicle is detec\�ted, the driver
will be alerted via the outside rear view side mirror indicators.
While in reverse, when a vehicle approaching from the right or left rear\� of the
Highlander HV is detected, the outside rear view mirror indicators will \�flash. Also,
the RCTA icon for the detected side will be displayed on the audio syste\�m display,
and the RCTA buzzer will sound.
BLIND SPOT MONITOR (BSM)
REAR CROSS TRAFFIC ALERT (RCTA)
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “” or “” then press “.” The
setting screen is displayed.
(3) Press “
” or “” switches and select the “On/Off” setting function and then
press “
.”
(4) Press “
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this \�system before
attempting to use it.
SYSTEM ON/OFF
Audio system screen*
* RCTA only
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 40130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 407/9/21 2:41 AM7/9/21 2:41 AM
Page 43 of 72
41
Display mode switching button Body color setting switchBody color setting switch
Display mode switching button
Rotation pause switch
Rotation pause switch

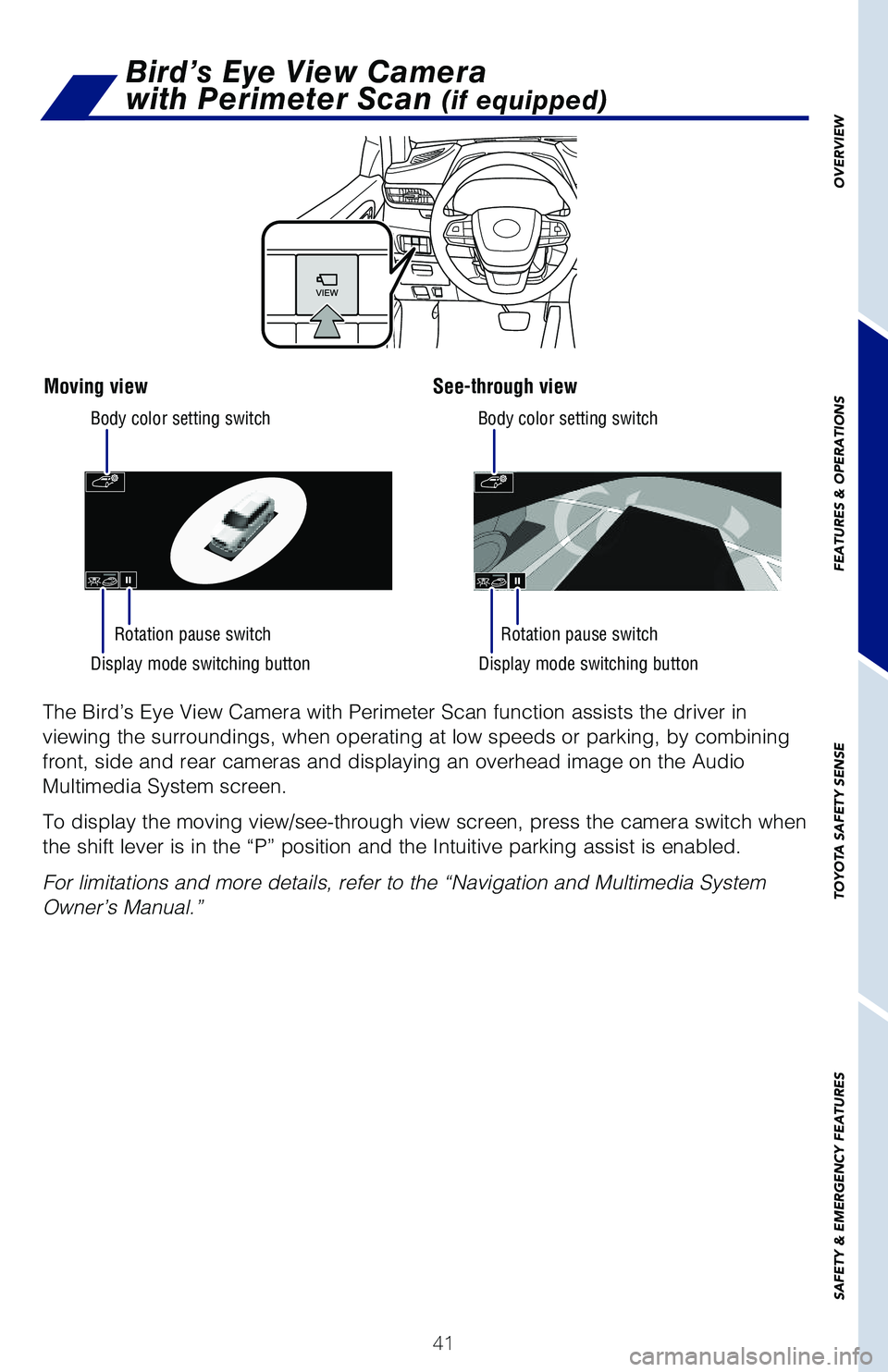

The Bird’s Eye View Camera with Perimeter Scan function assists the d\�river in
viewing the surroundings, when operating at low speeds or parking, by co\�mbining
front, side and rear cameras and displaying an overhead image on the Aud\�io
Multimedia System screen.
To display the moving view/see-through view screen, press the camera swi\�tch when
the shift lever is in the “P” position and the Intuitive parking a\�ssist is enabled.
For limitations and more details, refer to the “Navigation and Multim\�edia System
Owner’s Manual.”
Moving viewSee-through view
Bird’s Eye View Camera
with Perimeter Scan
(if equipped)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 41130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 417/9/21 2:41 AM7/9/21 2:41 AM
Page 44 of 72
42
TOYOTA SAFETY SENSE™

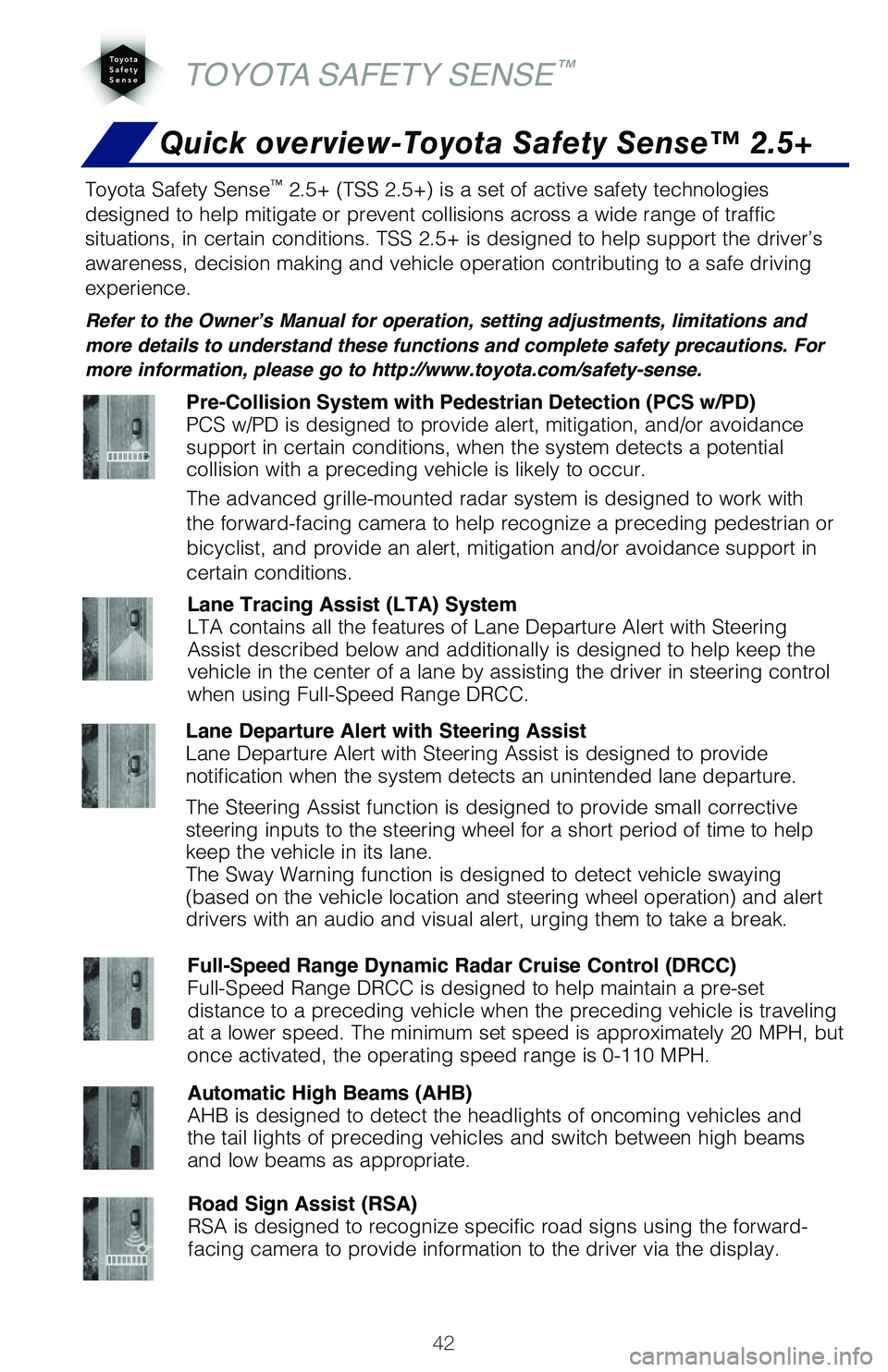

Toyota Safety Sense™ 2.5+ (TSS 2.5+) is a set of active safety technologies
designed to help mitigate or prevent collisions across a wide range of t\�raffic
situations, in certain conditions. TSS 2.5+ is designed to help support \�the driver’s
awareness, decision making and vehicle operation contributing to a safe \�driving
experience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense.
Quick overview-Toyota Safety Sense™ 2.5+
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced grille-mounted radar system is designed to work with
the forward-facing camera to help recognize a preceding pedestrian or
bicyclist, and provide an alert, mitigation and/or avoidance support in \�
certain conditions.
Lane Departure Alert with Steering Assist
Lane Departure Alert with Steering Assist is designed to provide
notification when the system detects an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help\�
keep the vehicle in its lane.
The Sway Warning function is designed to detect vehicle swaying
(based on the vehicle location and steering wheel operation) and alert\�
drivers with an audio and visual alert, urging them to take a break.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and
the tail lights of preceding vehicles and switch between high beams
and low beams as appropriate.
Road Sign Assist (RSA)
RSA is designed to recognize specific road signs using the forward-
facing camera to provide information to the driver via the display.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)
Full-Speed Range DRCC is designed to help maintain a pre-set
distance to a preceding vehicle when the preceding vehicle is traveling \�
at a lower speed. The minimum set speed is approximately 20 MPH, but
once activated, the operating speed range is 0-110 MPH.
Lane Tracing Assist (LTA) System
LTA contains all the features of Lane Departure Alert with Steering
Assist described below and additionally is designed to help keep the
vehicle in the center of a lane by assisting the driver in steering cont\�rol
when using Full-Speed Range DRCC.
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 42130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 427/9/21 2:41 AM7/9/21 2:41 AM
Page 45 of 72
43
Grille-mounted radarForward-facing camera
Sensors

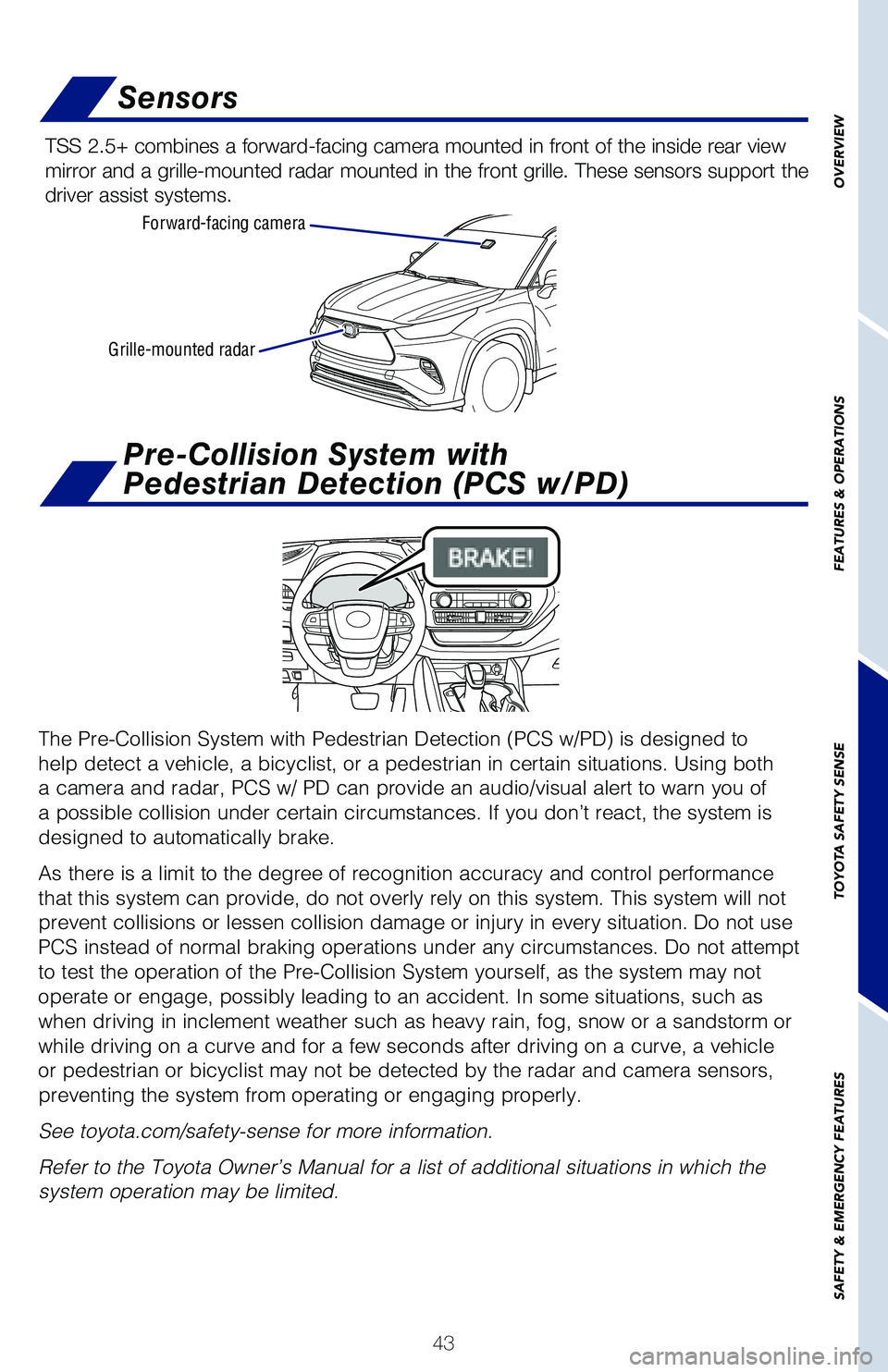

TSS 2.5+ combines a forward-facing camera mounted in front of the inside\� rear view
mirror and a grille-mounted radar mounted in the front grille. These sen\�sors support the
driver assist systems.
The Pre-Collision System with Pedestrian Detection (PCS w/PD) is desig\�ned to
help detect a vehicle, a bicyclist, or a pedestrian in certain situation\�s. Using both
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn \�you of
a possible collision under certain circumstances. If you don’t react,\� the system is
designed to automatically brake.
As there is a limit to the degree of recognition accuracy and control pe\�rformance
that this system can provide, do not overly rely on this system. This sy\�stem will not
prevent collisions or lessen collision damage or injury in every situati\�on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\� attempt
to test the operation of the Pre-Collision System yourself, as the syste\�m may not
operate or engage, possibly leading to an accident. In some situations, \�such as
when driving in inclement weather such as heavy rain, fog, snow or a san\�dstorm or
while driving on a curve and for a few seconds after driving on a curve,\� a vehicle
or pedestrian or bicyclist may not be detected by the radar and camera s\�ensors,
preventing the system from operating or engaging properly.
See toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\�s in which the
system operation may be limited.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 43130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 437/9/21 2:41 AM7/9/21 2:41 AM
Page 46 of 72
44
TOYOTA SAFETY SENSE™
PRE-COLLISION SYSTEM (CONTINUED)
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\�s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\�nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\�tional
braking force using Brake Assist. This system may prime the brakes and m\�ay apply
greater braking force in relation to how strongly the brake pedal is dep\�ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\�t the
possibility of a frontal collision with a preceding vehicle is extremely\� high, the
system may automatically apply the brakes, reducing speed in order to he\�lp the
driver reduce the impact and in certain cases avoid the collision.
Refer to the Toyota Owner’s Manual for additional information on PCS \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.

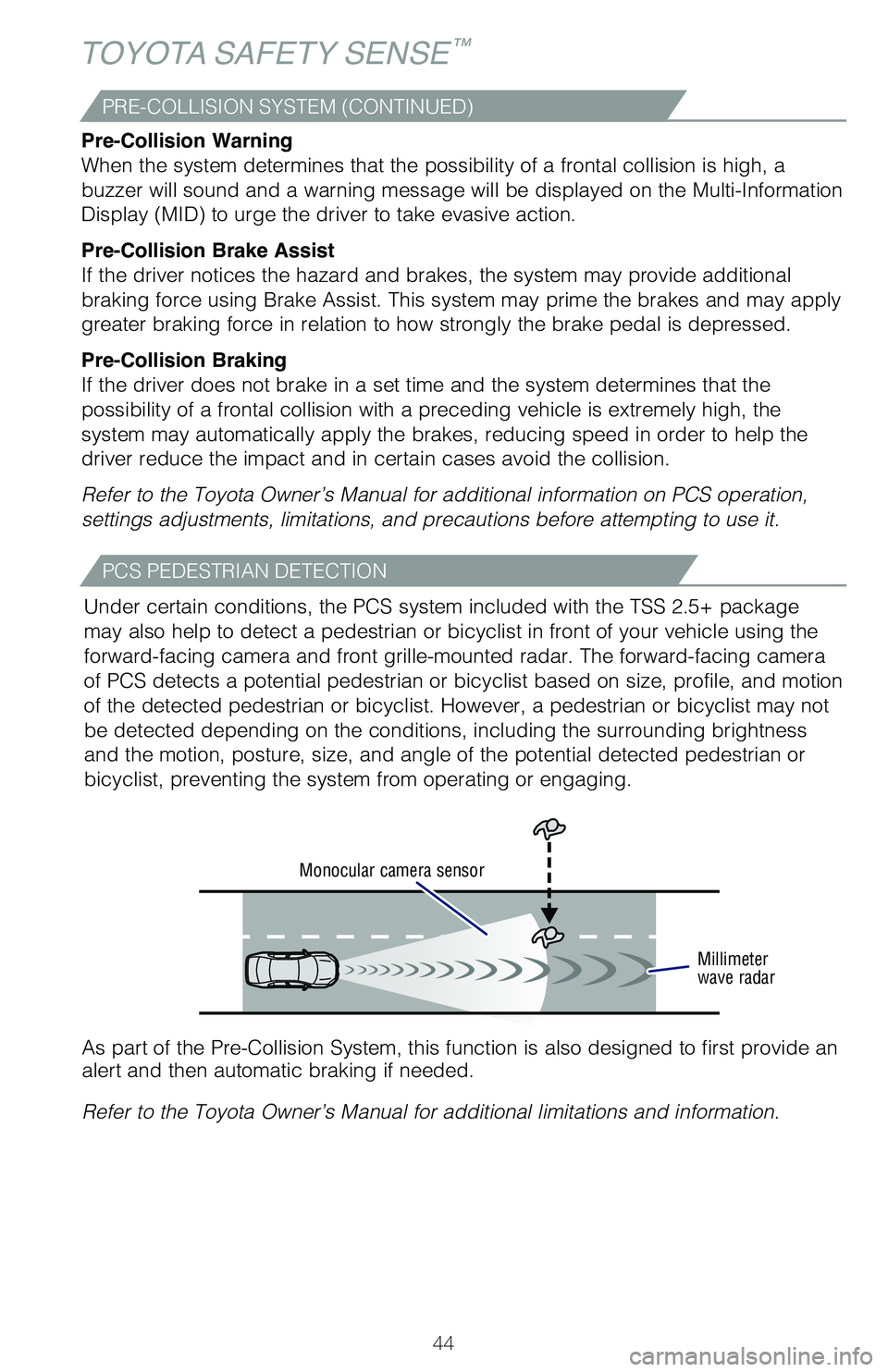

Monocular camera sensorMillimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\�irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\�ormation.Under certain conditions, the PCS system included with the TSS 2.5+ pack\�age
may also help to detect a pedestrian or bicyclist in front of your vehic\�le using the
forward-facing camera and front grille-mounted radar. The forward-facing\� camera
of PCS detects a potential pedestrian or bicyclist based on size, profil\�e, and motion
of the detected pedestrian or bicyclist. However, a pedestrian or bicycl\�ist may not
be detected depending on the conditions, including the surrounding brigh\�tness
and the motion, posture, size, and angle of the potential detected pedes\�trian or
bicyclist, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 44130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 447/9/21 2:41 AM7/9/21 2:41 AM
Page 47 of 72
45

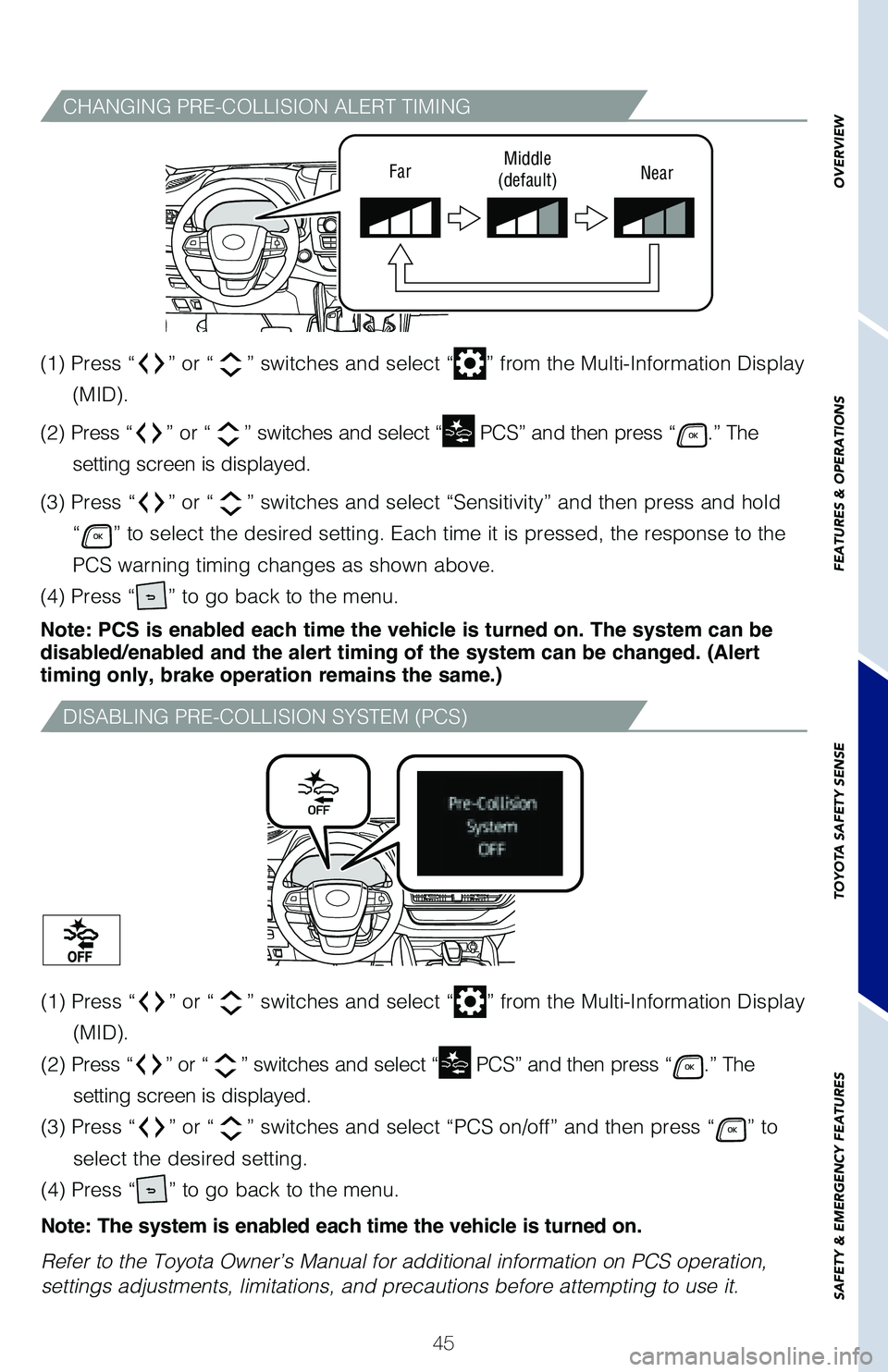

CHANGING PRE-COLLISION ALERT TIMING
DISABLING PRE-COLLISION SYSTEM (PCS)
FarMiddle
(default) NearOVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “ PCS” and then press “.” The
setting screen is displayed.
(3) Press “
” or “” switches and select “Sensitivity” and then press and hold
“
” to select the desired setting. Each time it is pressed, the respons\�e to the
PCS warning timing changes as shown above.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the vehicle is turned on. The system can be
disabled/enabled and the alert timing of the system can be changed. (Alert
timing only, brake operation remains the same.)
(1) Press “
” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “ PCS” and then press “.” The
setting screen is displayed.
(3) Press “
” or “” switches and select “PCS on/off” and then press “” to
select the desired setting.
(4) Press “
” to go back to the menu.
Note: The system is enabled each time the vehicle is turned on.
Refer to the Toyota Owner’s Manual for additional information on PCS \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 45130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 457/9/21 2:41 AM7/9/21 2:41 AM
Page 48 of 72
46
TOYOTA SAFETY SENSE™
TURNING THE LTA SYSTEM ON/OFF
Note: Operation of the LTA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the

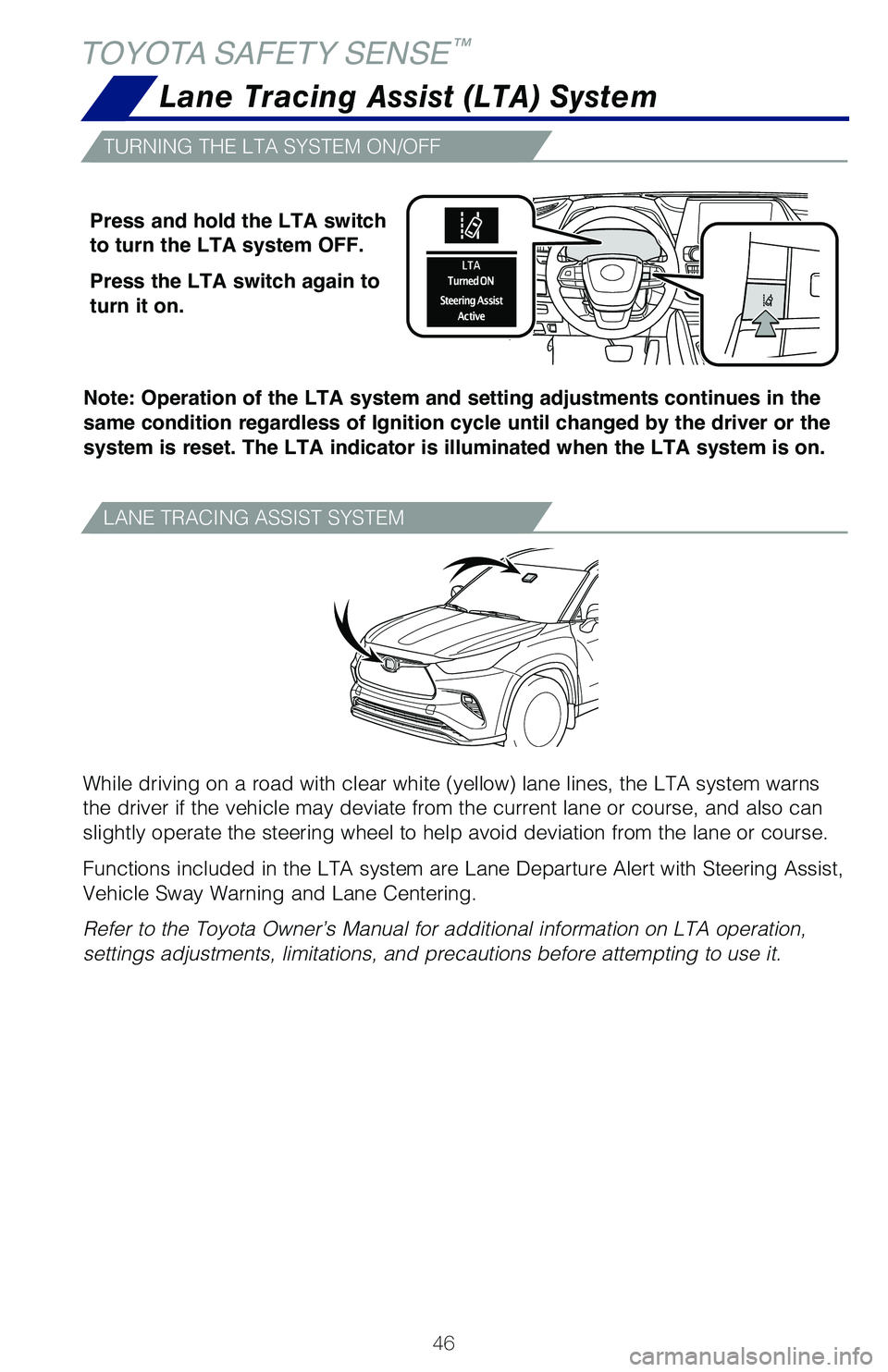

system is reset. The LTA indicator is illuminated when the LTA system is on.

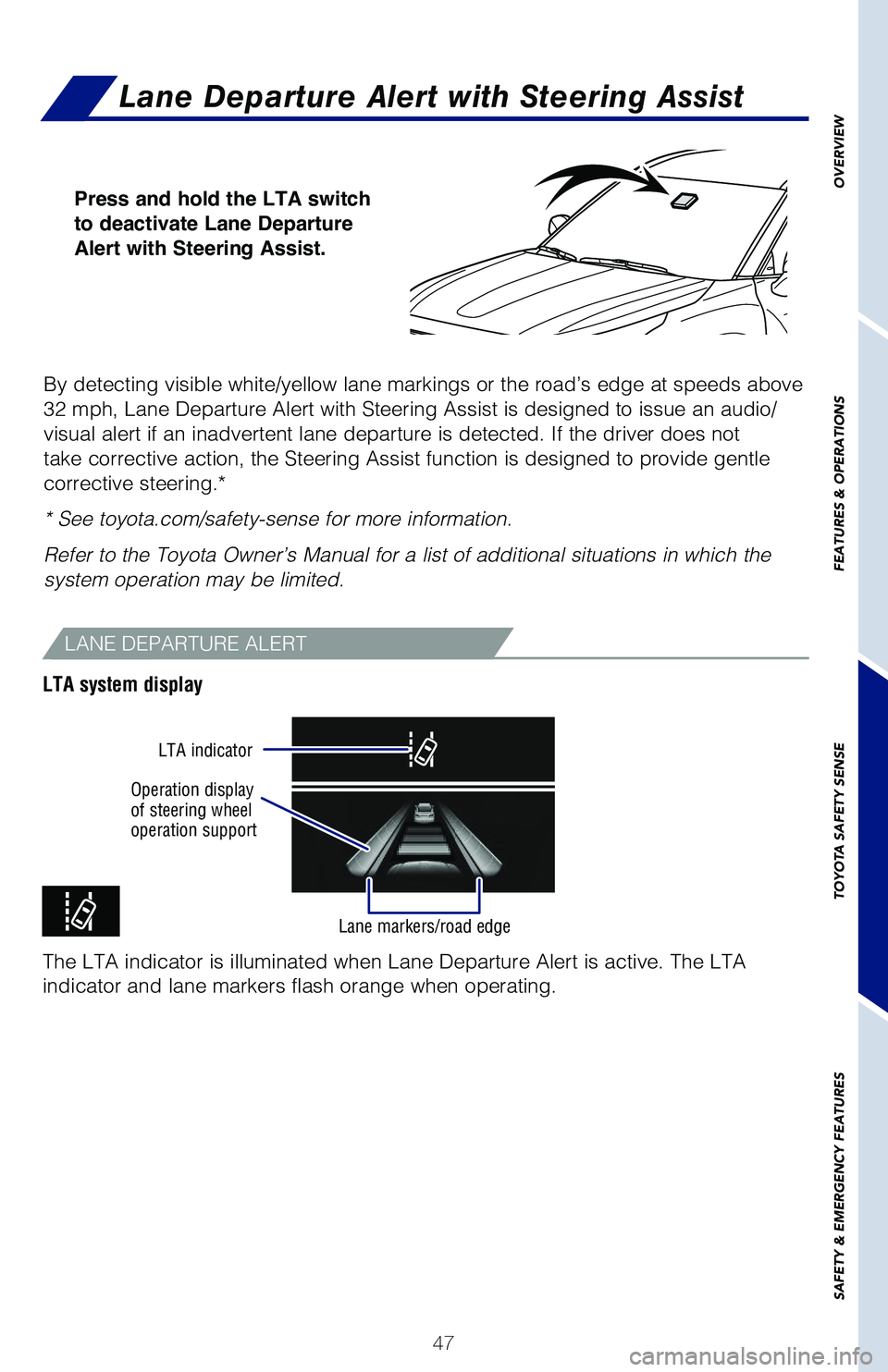

Lane Tracing Assist (LTA) System
Press and hold the LTA switch
to turn the LTA system OFF.
Press the LTA switch again to
turn it on.
While driving on a road with clear white (yellow) lane lines, the LTA \�system warns
the driver if the vehicle may deviate from the current lane or course, a\�nd also can
slightly operate the steering wheel to help avoid deviation from the lan\�e or course.
Functions included in the LTA system are Lane Departure Alert with Steer\�ing Assist,
Vehicle Sway Warning and Lane Centering.
Refer to the Toyota Owner’s Manual for additional information on LTA \�operation,
settings adjustments, limitations, and precautions before attempting to \�use it.
LANE TRACING ASSIST SYSTEM
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 46130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 467/9/21 2:41 AM7/9/21 2:41 AM
Page 49 of 72
47
LANE DEPARTURE ALERT
LTA system display
The LTA indicator is illuminated when Lane Departure Alert is active. Th\�e LTA
indicator and lane markers flash orange when operating.
Operation display
of steering wheel
operation support LTA indicator
Lane markers/road edge
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
By detecting visible white/yellow lane markings or the road’s edge at\� speeds above
32 mph, Lane Departure Alert with Steering Assist is designed to issue a\�n audio/
visual alert if an inadvertent lane departure is detected. If the driver\� does not
take corrective action, the Steering Assist function is designed to prov\�ide gentle
corrective steering.*
* See toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\�s in which the
system operation may be limited.
Lane Departure Alert with Steering Assist
Press and hold the LTA switch
to deactivate Lane Departure
Alert with Steering Assist.
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 47130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 477/9/21 2:41 AM7/9/21 2:41 AM
Page 50 of 72
48
TOYOTA SAFETY SENSE™
(2)
(1)

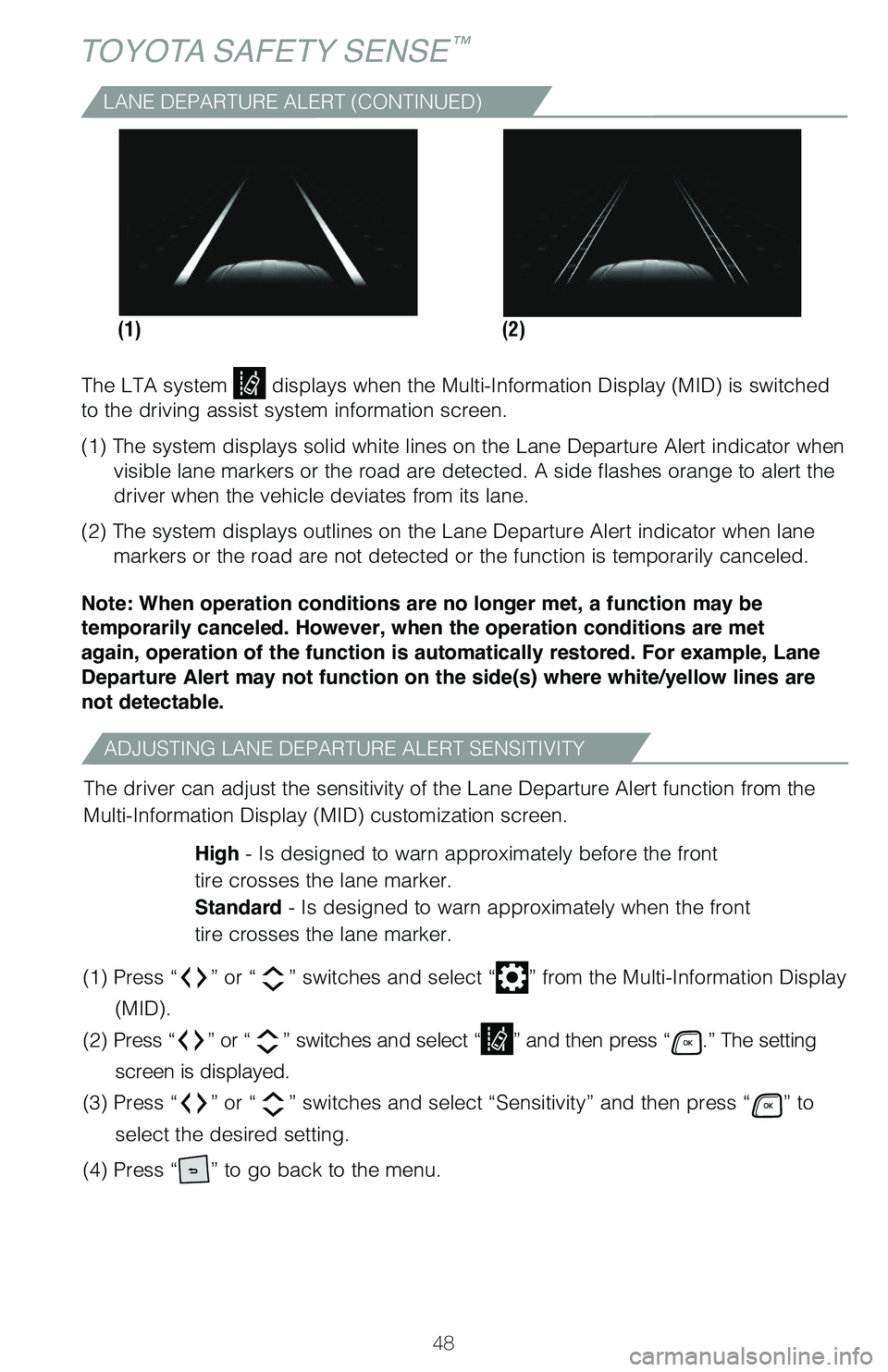

The LTA system displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays solid white lines on the Lane Departure Alert \�indicator when visible lane markers or the road are detected. A side flashes orange to \�alert the
driver when the vehicle deviates from its lane.
(2) The system displays outlines on the Lane Departure Alert indicator\� when lane markers or the road are not detected or the function is temporarily canc\�eled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met
again, operation of the function is automatically restored. For example, Lane
Departure Alert may not function on the side(s) where white/yellow lines are
not detectable.
ADJUSTING LANE DEPARTURE ALERT SENSITIVITY
The driver can adjust the sensitivity of the Lane Departure Alert functi\�on from the
Multi-Information Display (MID) customization screen. High - Is designed to warn approximately before the front
tire crosses the lane marker.
Standard - Is designed to warn approximately when the front
tire crosses the lane marker.
(1) Press “
” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “” and then press “.” The setting
screen is displayed.
(3) Press “
” or “” switches and select “Sensitivity” and then press “” to
select the desired setting.
(4) Press “
” to go back to the menu.
LANE DEPARTURE ALERT (CONTINUED)
130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 48130493_MY21_Highlander_HV_QRG_V6_ML_070821_PRINT_R1.indd 487/9/21 2:41 AM7/9/21 2:41 AM
