591 5-2. Steps to take in an emergency
When trouble arises
HILUX_EE (OM0K132E)

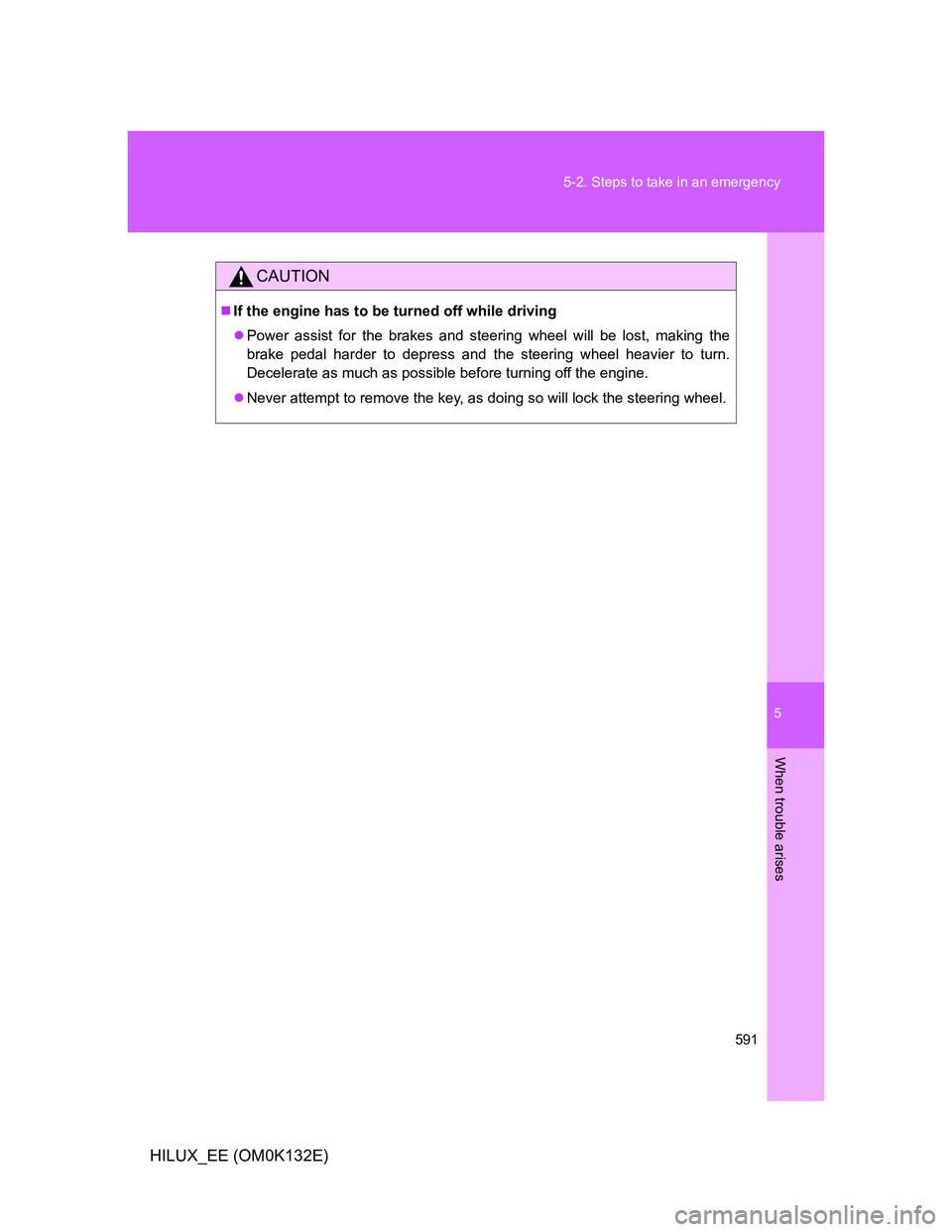

CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Never attempt to remove the key, as doing so will lock the steering wheel.

592 5-2. Steps to take in an emergency
HILUX_EE (OM0K132E)

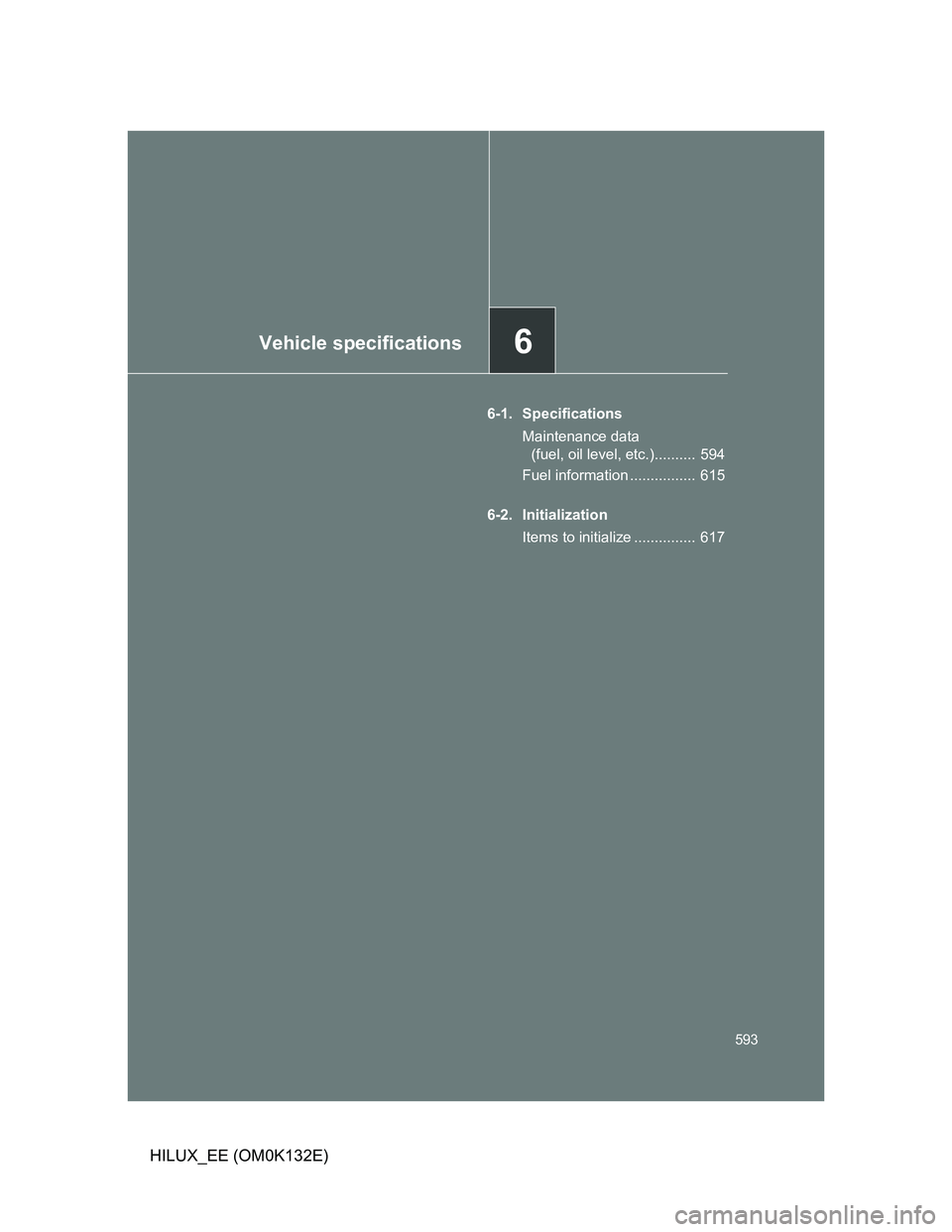

6Vehicle specifications
593
HILUX_EE (OM0K132E)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 594
Fuel information ................ 615
6-2. Initialization
Items to initialize ............... 617

594
HILUX_EE (OM0K132E)
6-1. Specifications

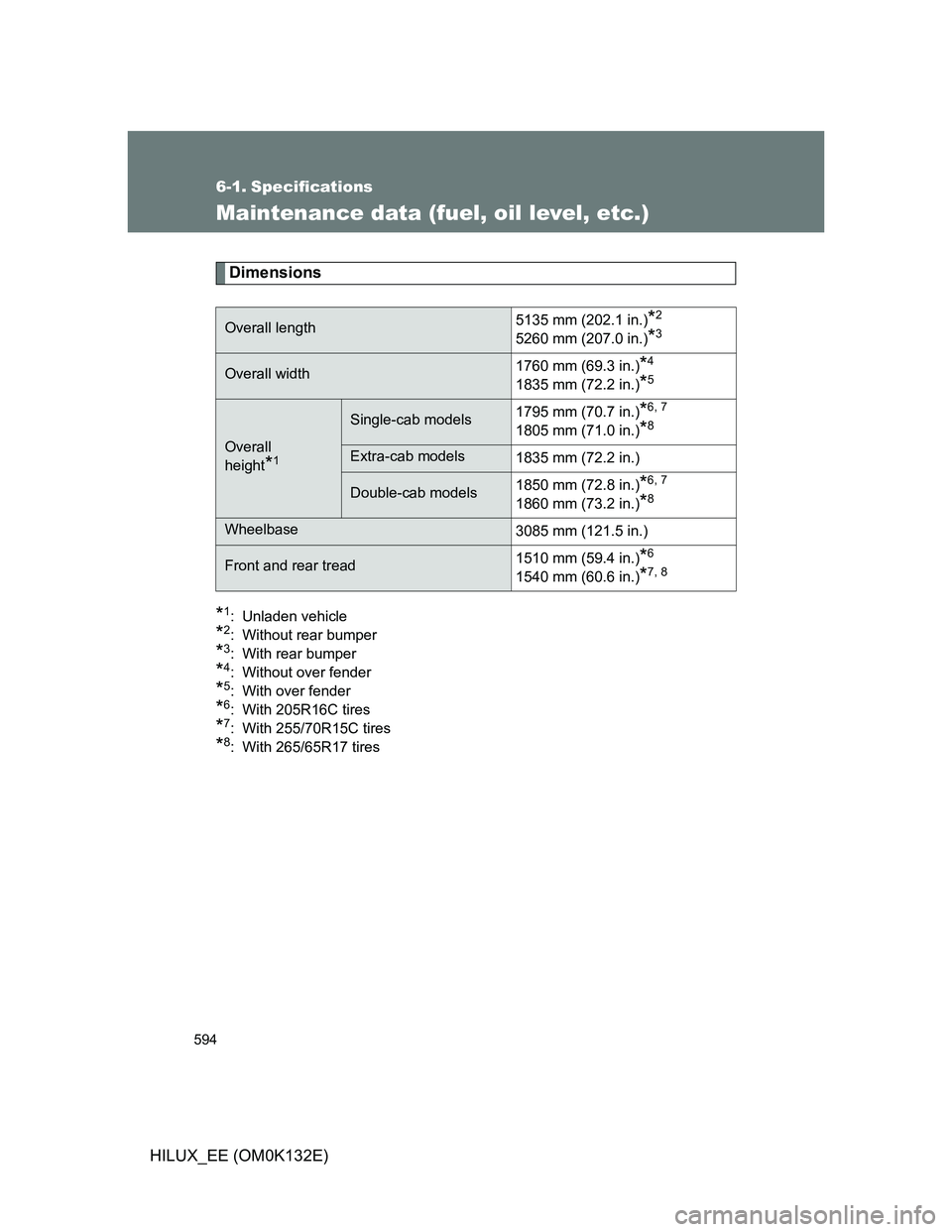

Maintenance data (fuel, oil level, etc.)
Dimensions
*1: Unladen vehicle
*2: Without rear bumper
*3: With rear bumper
*4: Without over fender
*5: With over fender
*6: With 205R16C tires
*7: With 255/70R15C tires
*8: With 265/65R17 tires
Overall length5135 mm (202.1 in.)*2
5260 mm (207.0 in.)*3
Overall width1760 mm (69.3 in.)*4
1835 mm (72.2 in.)*5
Overall
height
*1
Single-cab models1795 mm (70.7 in.)*6, 7
1805 mm (71.0 in.)*8
Extra-cab models
1835 mm (72.2 in.)
Double-cab models1850 mm (72.8 in.)*6, 7
1860 mm (73.2 in.)*8
Wheelbase
3085 mm (121.5 in.)
Front and rear tread1510 mm (59.4 in.)*6
1540 mm (60.6 in.)*7, 8

595 6-1. Specifications
6
Vehicle specifications
HILUX_EE (OM0K132E)

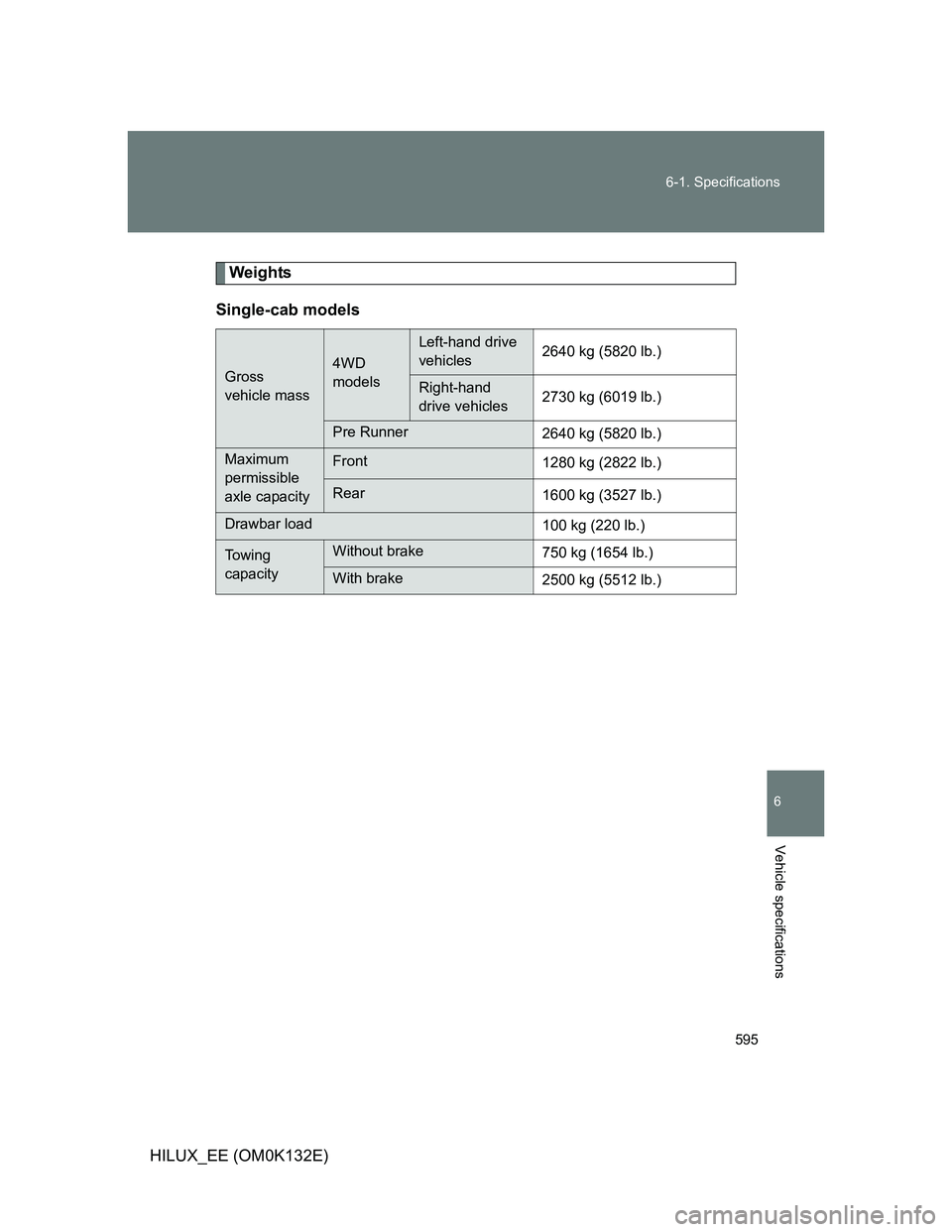

Weights
Single-cab models
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2640 kg (5820 lb.)
Right-hand
drive vehicles2730 kg (6019 lb.)
Pre Runner
2640 kg (5820 lb.)
Maximum
permissible
axle capacityFront
1280 kg (2822 lb.)
Rear
1600 kg (3527 lb.)
Drawbar load
100 kg (220 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2500 kg (5512 lb.)

596 6-1. Specifications

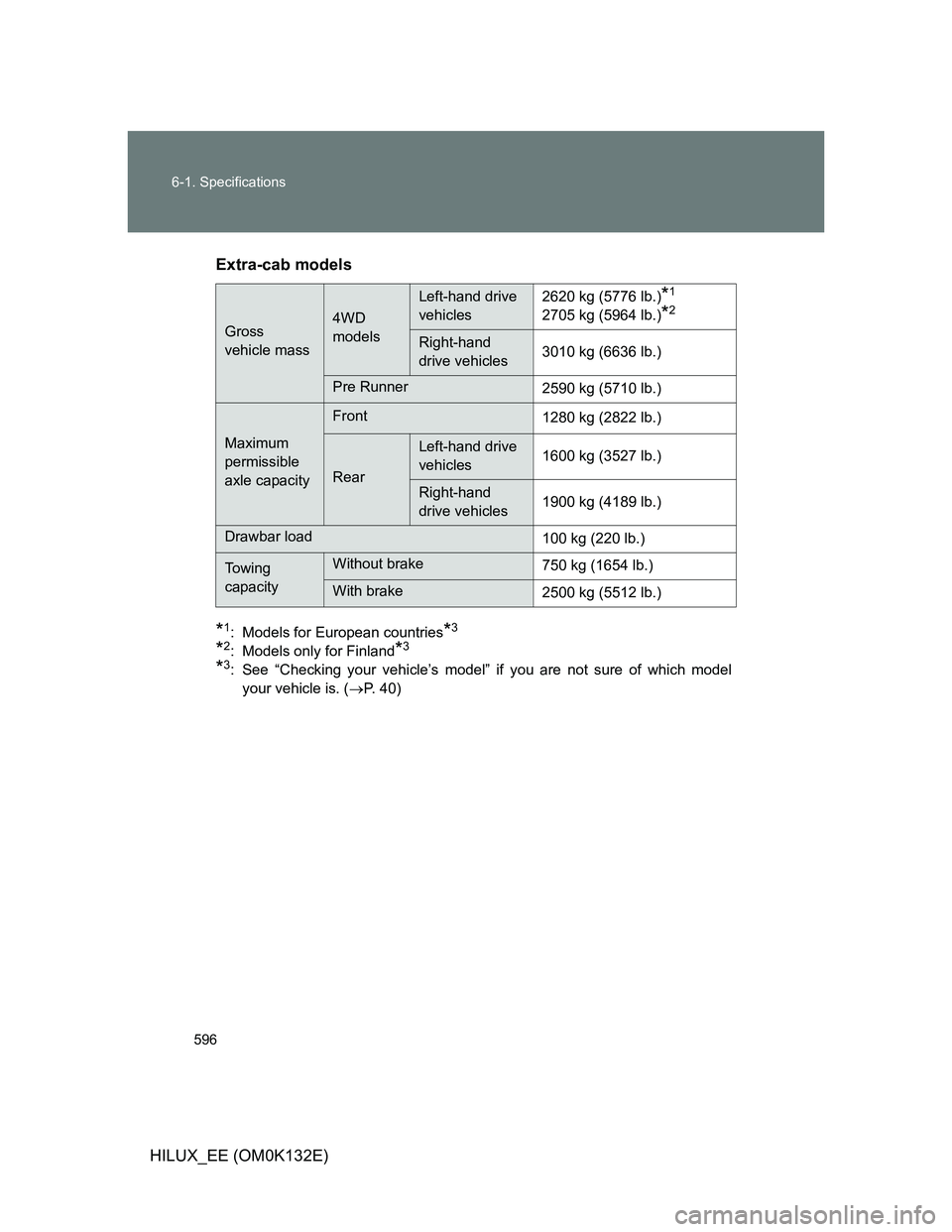

HILUX_EE (OM0K132E)Extra-cab models
*1: Models for European countries*3
*2: Models only for Finland*3
*3: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. (P. 40)
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2620 kg (5776 lb.)*1
2705 kg (5964 lb.)*2
Right-hand
drive vehicles3010 kg (6636 lb.)
Pre Runner
2590 kg (5710 lb.)
Maximum
permissible
axle capacity
Front
1280 kg (2822 lb.)
Rear
Left-hand drive
vehicles1600 kg (3527 lb.)
Right-hand
drive vehicles1900 kg (4189 lb.)
Drawbar load
100 kg (220 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2500 kg (5512 lb.)

597 6-1. Specifications
6
Vehicle specifications

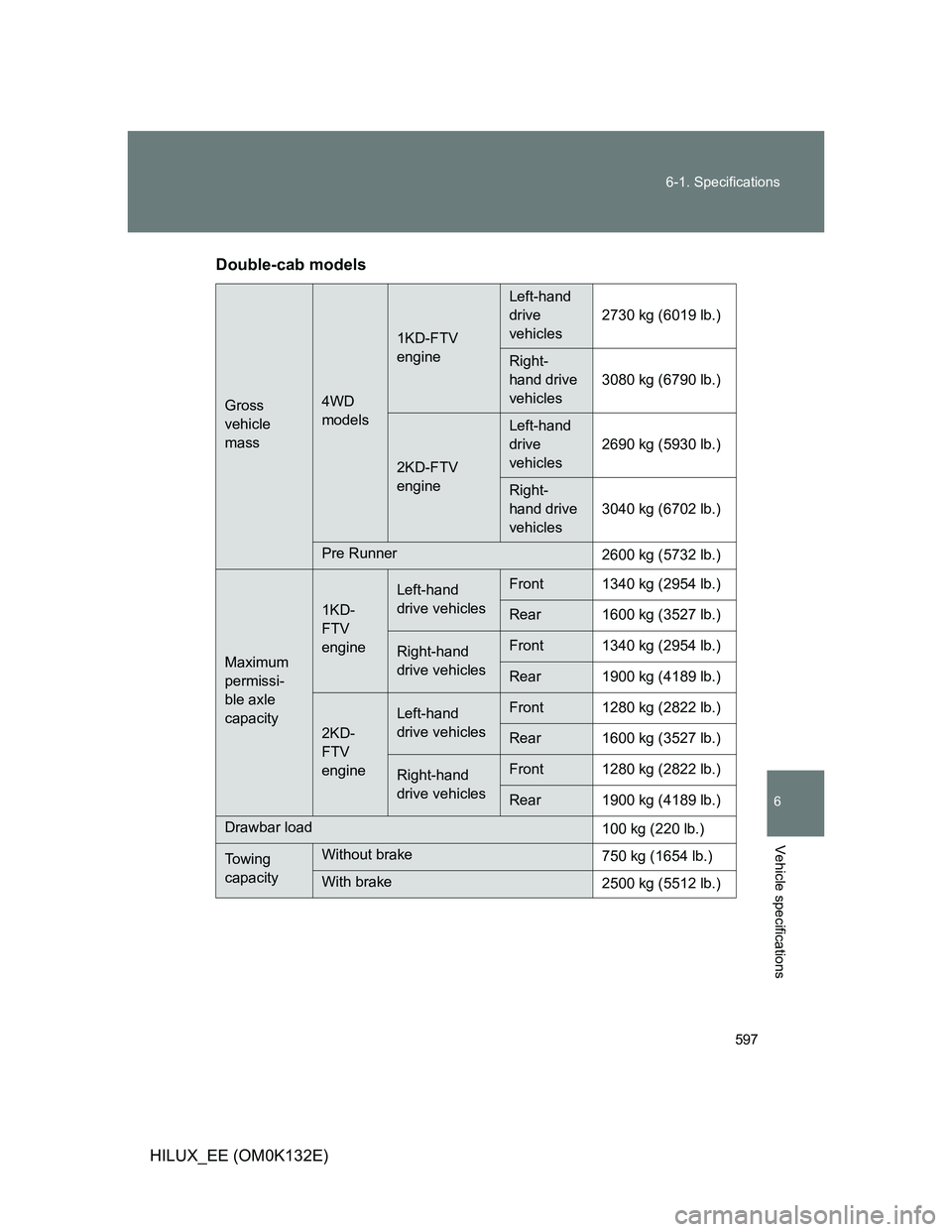

HILUX_EE (OM0K132E)Double-cab models
Gross
vehicle
mass4WD
models
1KD-FTV
engine
Left-hand
drive
vehicles2730 kg (6019 lb.)
Right-
hand drive
vehicles3080 kg (6790 lb.)
2KD-FTV
engine
Left-hand
drive
vehicles2690 kg (5930 lb.)
Right-
hand drive
vehicles3040 kg (6702 lb.)
Pre Runner
2600 kg (5732 lb.)
Maximum
permissi-
ble axle
capacity
1KD-
FTV
engine
Left-hand
drive vehiclesFront 1340 kg (2954 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive vehiclesFront 1340 kg (2954 lb.)
Rear 1900 kg (4189 lb.)
2KD-
FTV
engine
Left-hand
drive vehiclesFront 1280 kg (2822 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive vehiclesFront 1280 kg (2822 lb.)
Rear 1900 kg (4189 lb.)
Drawbar load
100 kg (220 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2500 kg (5512 lb.)

598 6-1. Specifications
HILUX_EE (OM0K132E)

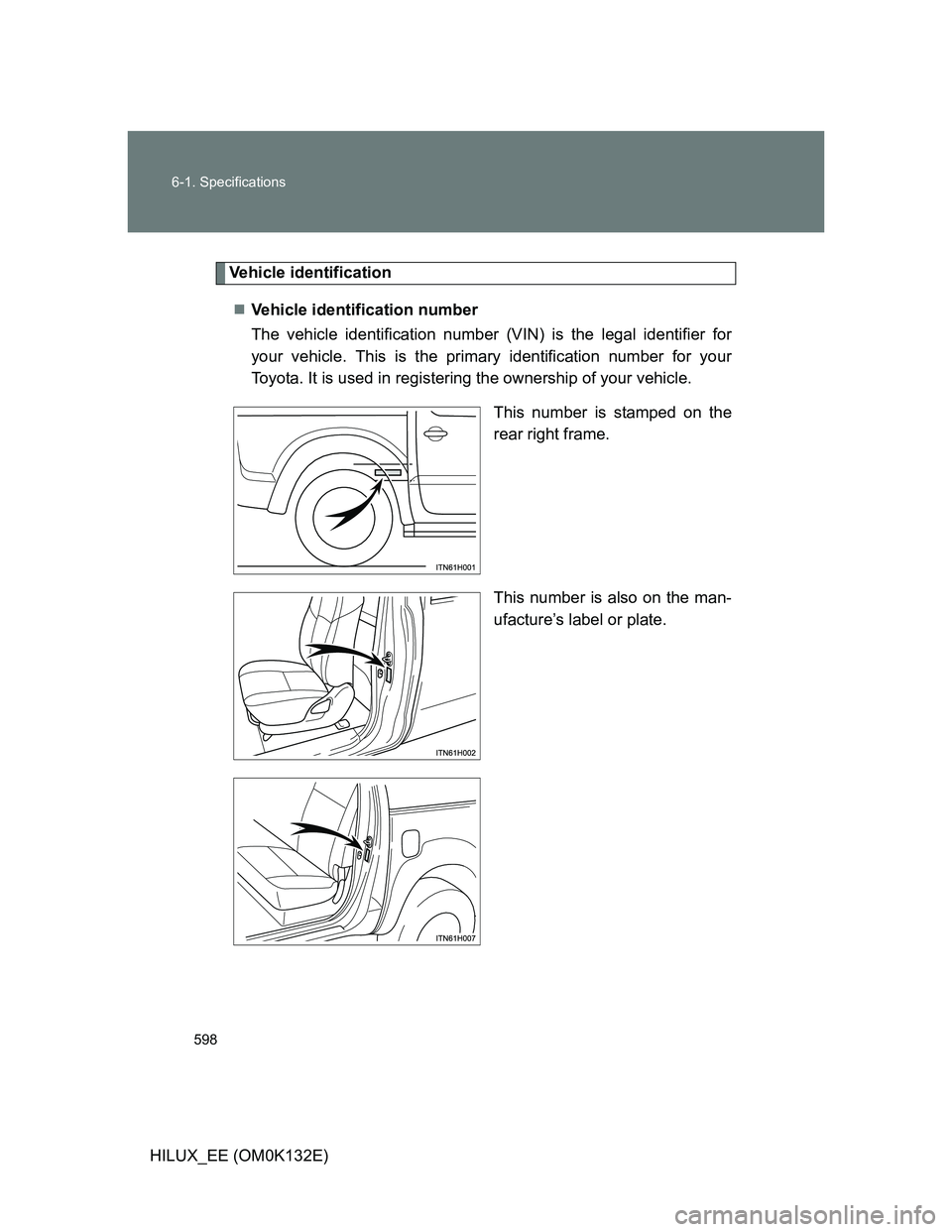

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
This number is also on the man-
ufacture’s label or plate.

599 6-1. Specifications
6
Vehicle specifications

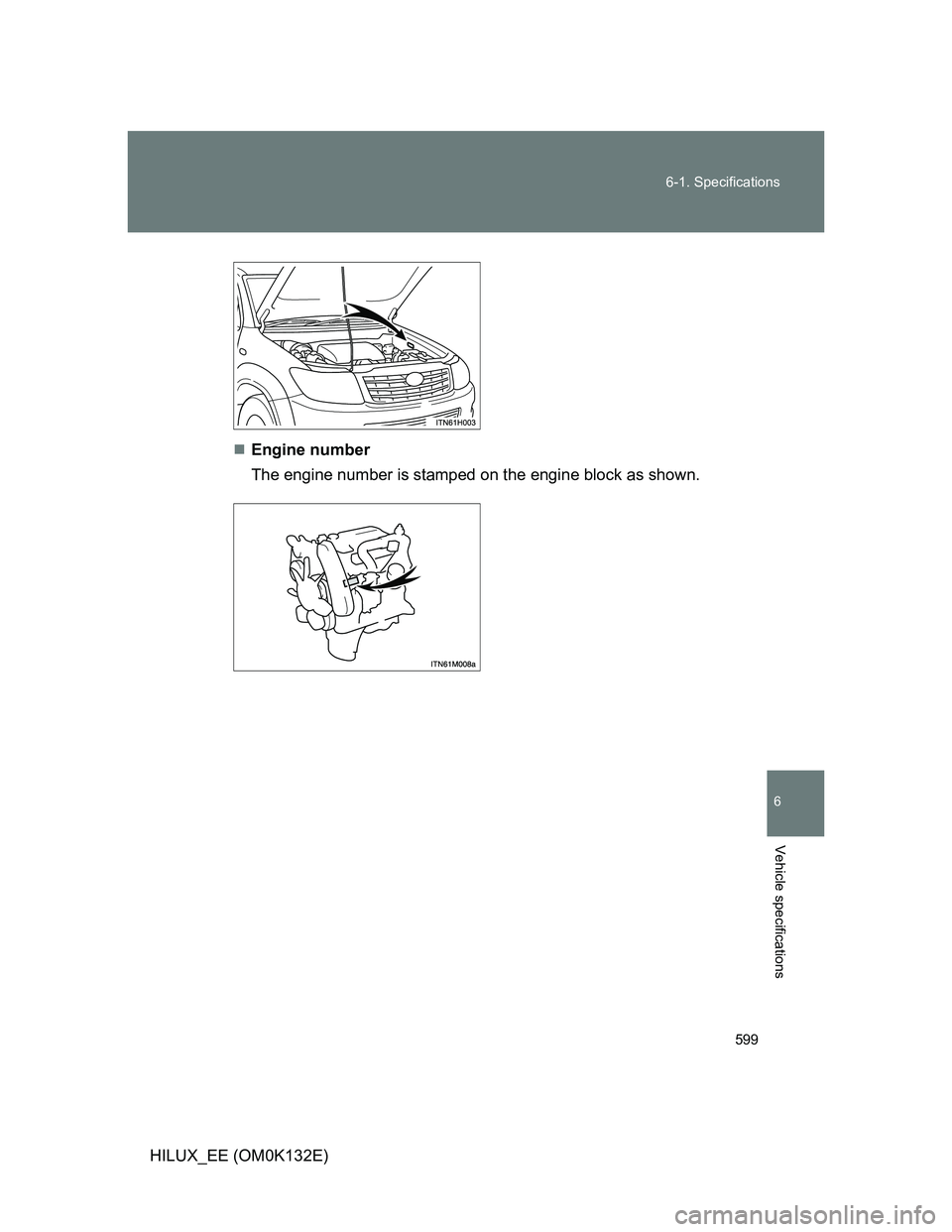

HILUX_EE (OM0K132E)Engine number
The engine number is stamped on the engine block as shown.

600 6-1. Specifications

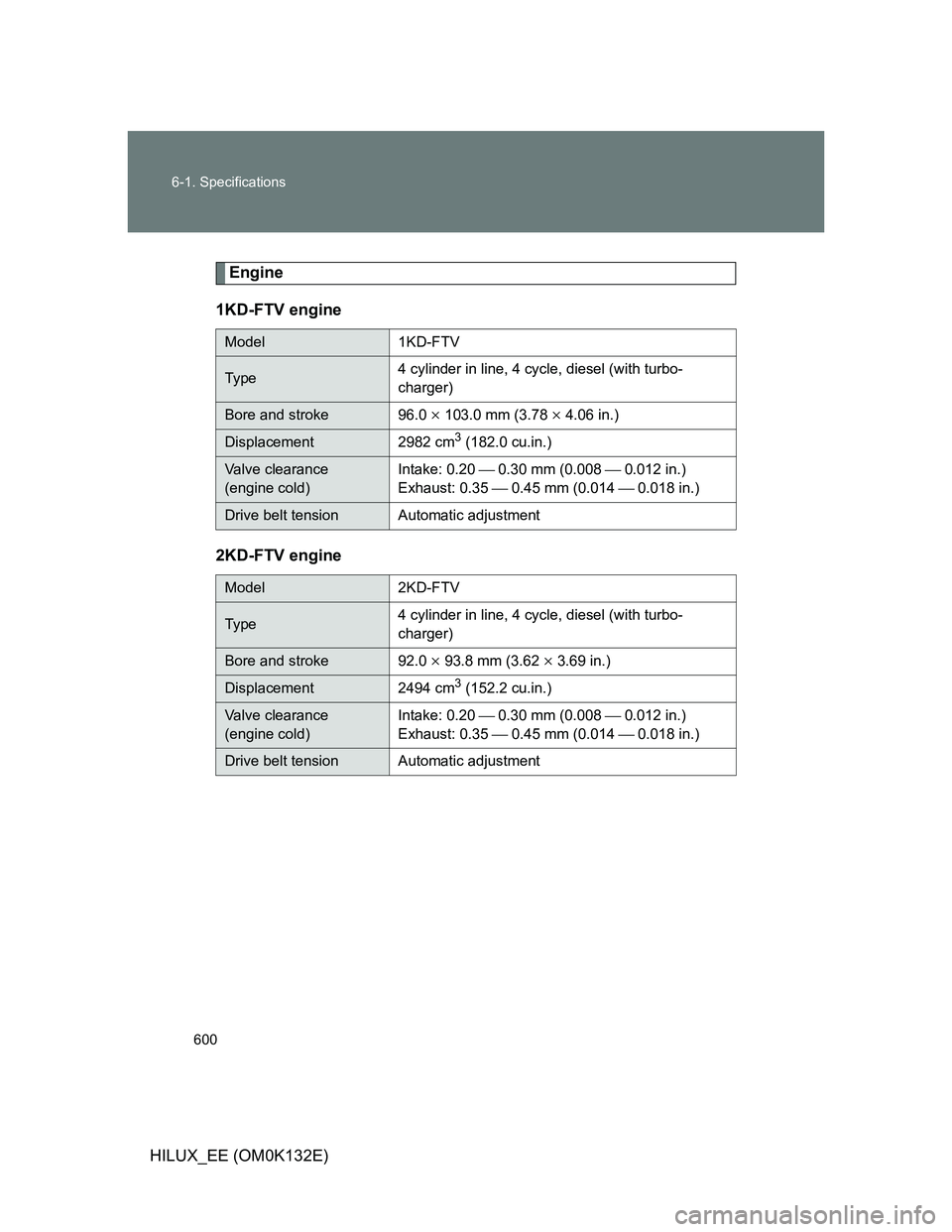

HILUX_EE (OM0K132E)
Engine
1KD-FTV engine
2KD-FTV engine
Model1KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel (with turbo-
charger)
Bore and stroke 96.0  103.0 mm (3.78  4.06 in.)
Displacement 2982 cm3 (182.0 cu.in.)
Valve clearance
(engine cold)Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment
Model2KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel (with turbo-
charger)
Bore and stroke 92.0  93.8 mm (3.62  3.69 in.)
Displacement 2494 cm3 (152.2 cu.in.)
Valve clearance
(engine cold)Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment
