TOYOTA HILUX 2012 Owners Manual (in English)

631 Alphabetical index
HILUX_EE (OM0K132E)

632
HILUX_EE (OM0K132E)

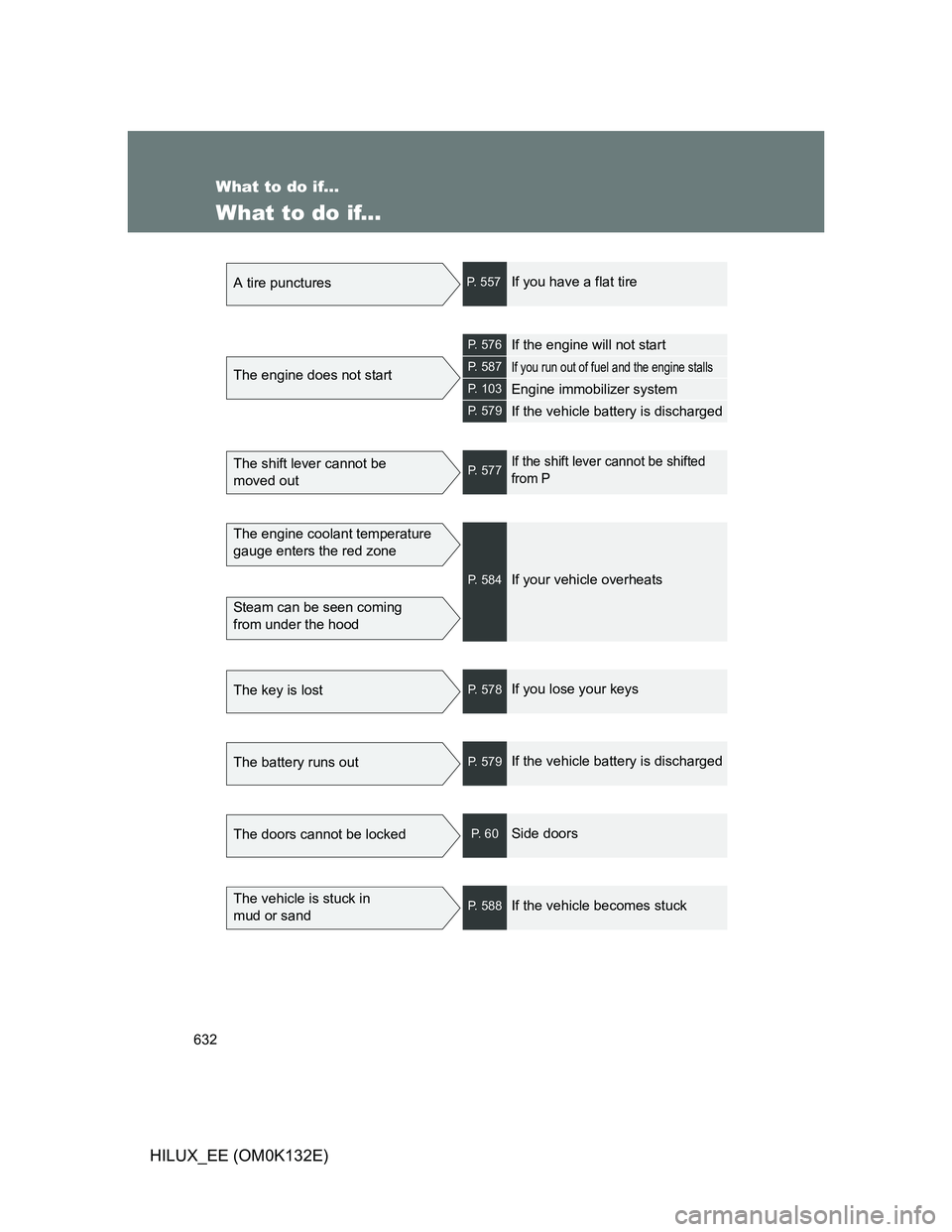

What to do if...
What to do if...
A tire puncturesP. 5 5 7If you have a flat tire
The engine does not start
P. 576If the engine will not start
P. 587If you run out of fuel and the engine stalls
P. 103Engine immobilizer system
P. 579If the vehicle battery is discharged
The shift lever cannot be
moved outP. 577If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 584If your vehicle overheats
The key is lostP. 578If you lose your keys
The battery runs outP. 579If the vehicle battery is discharged
The doors cannot be lockedP. 6 0Side doors
The vehicle is stuck in
mud or sandP. 588If the vehicle becomes stuck

633 What to do if...
HILUX_EE (OM0K132E)

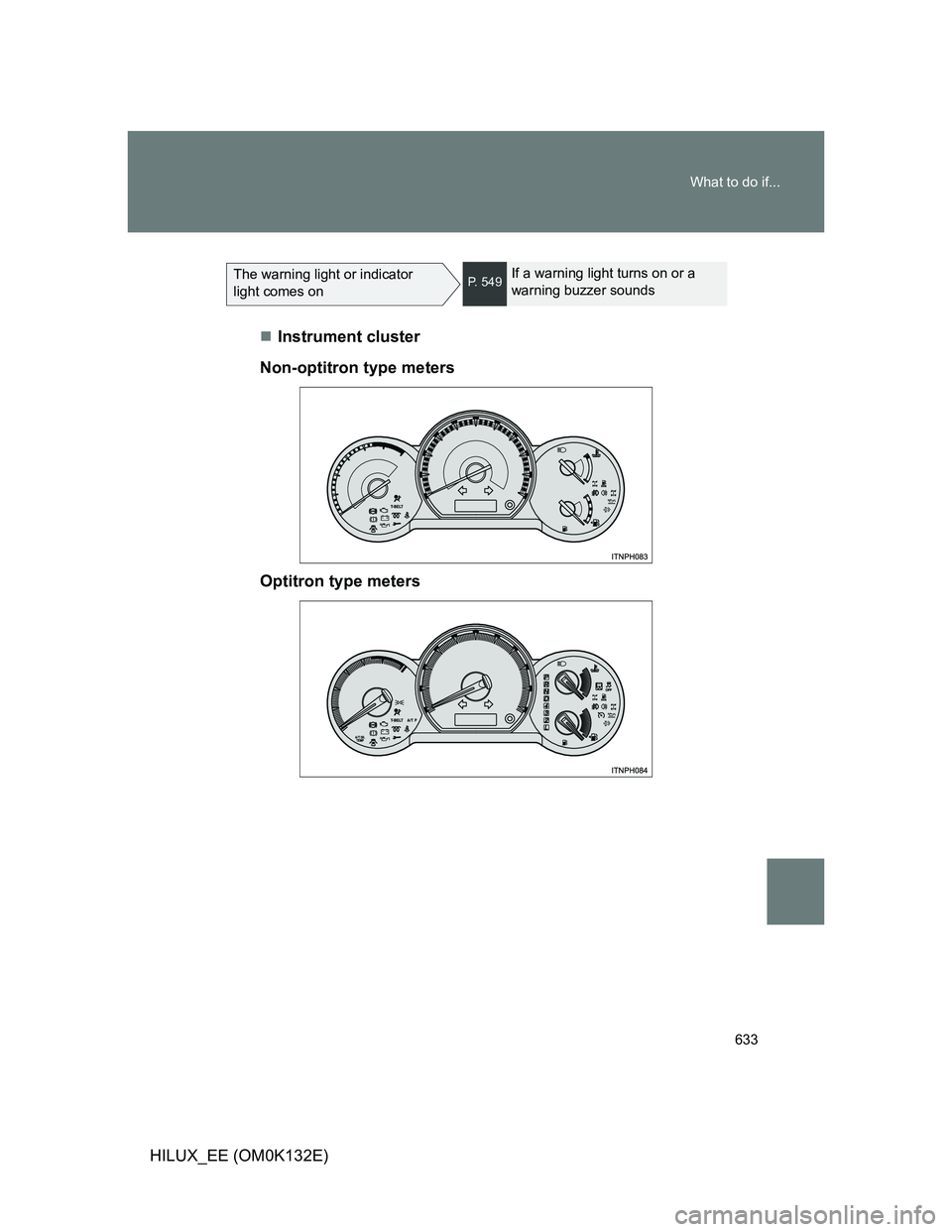

The warning light or indicator
light comes onP. 549If a warning light turns on or a
warning buzzer sounds
Instrument cluster
Non-optitron type meters
Optitron type meters

634 What to do if...
HILUX_EE (OM0K132E)

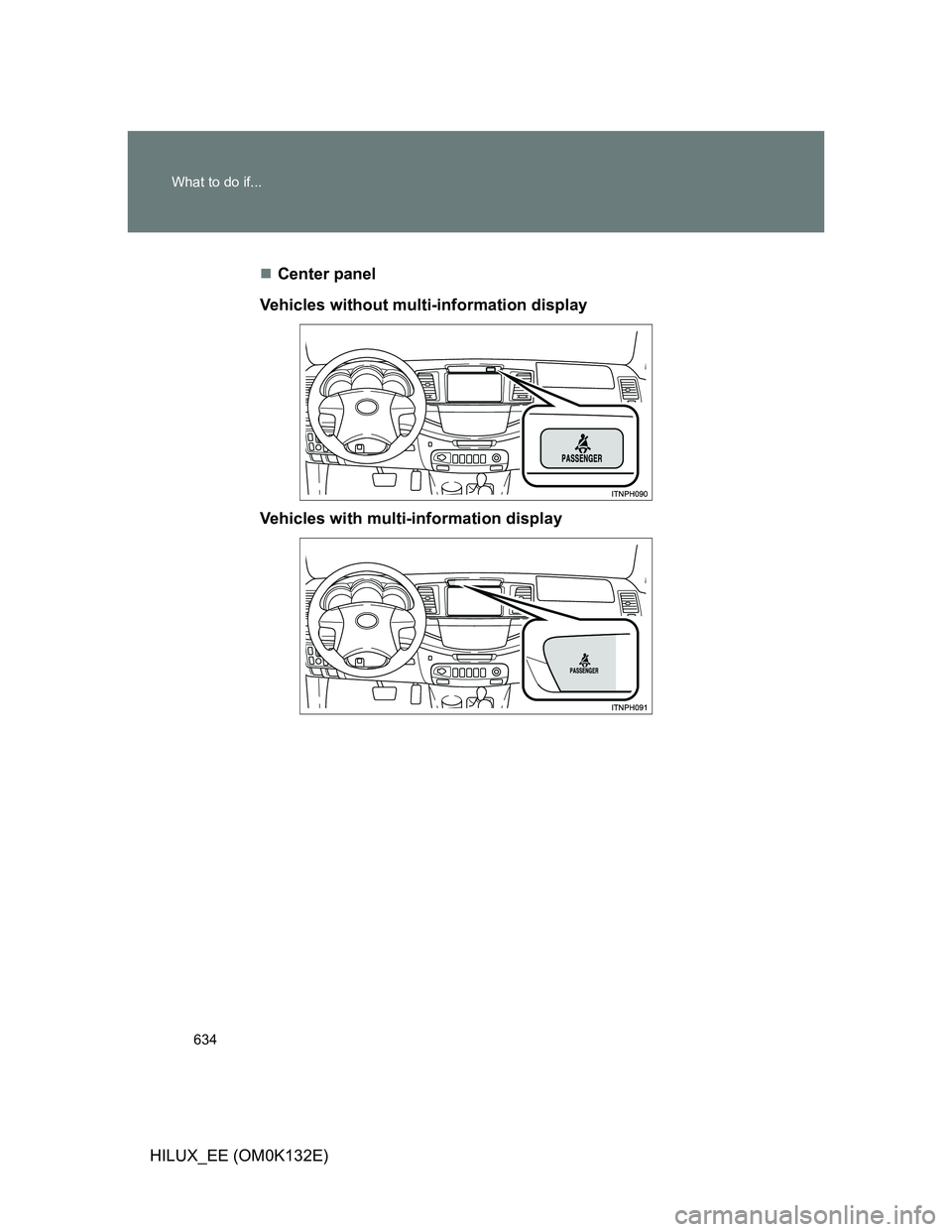

Center panel
Vehicles without multi-information display
Vehicles with multi-information display

635 What to do if...
HILUX_EE (OM0K132E)

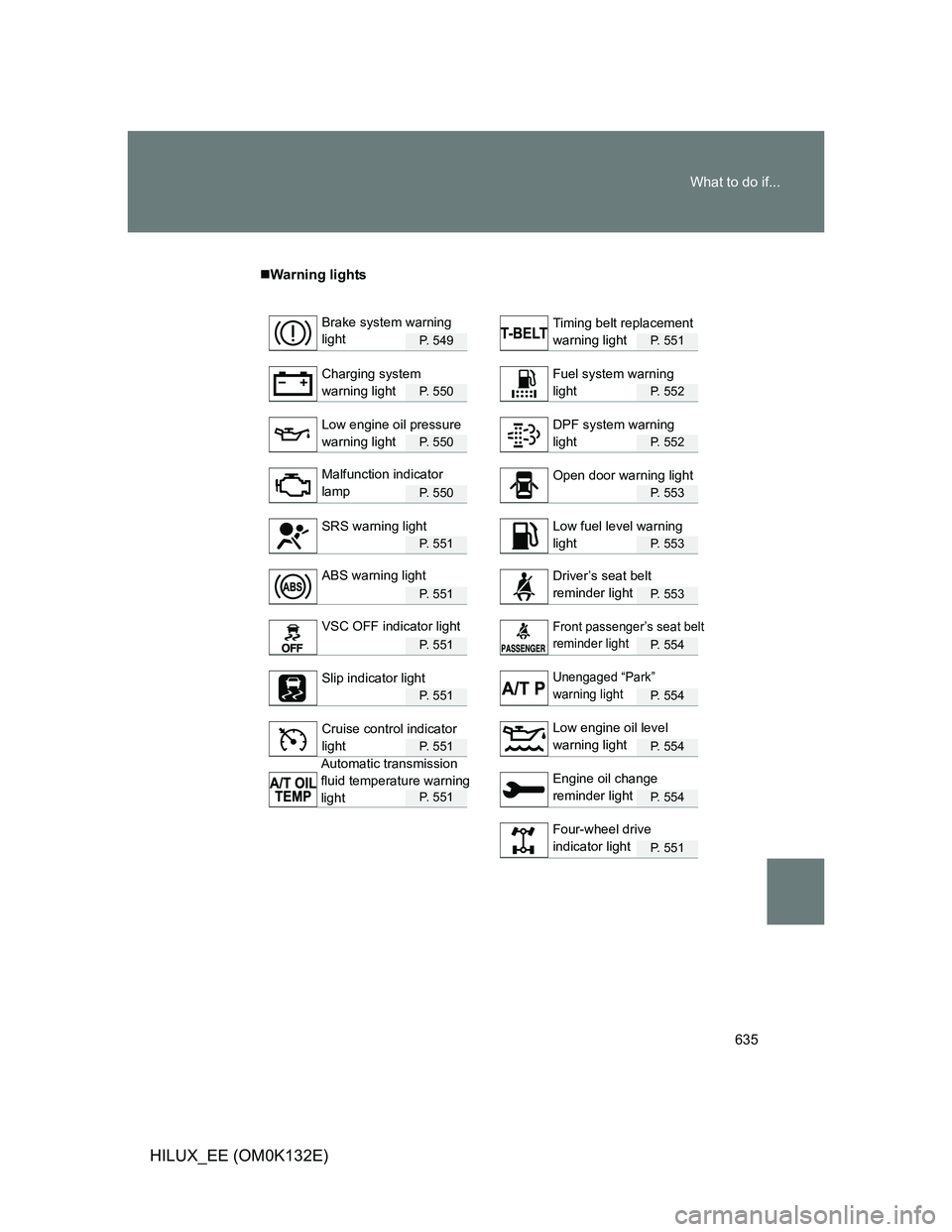

Warning lights
P. 5 4 9P. 551
P. 5 5 0P. 552
P. 5 5 0P. 552
P. 5 5 0P. 553
P. 5 5 1P. 553
P. 5 5 1P. 553
P. 5 5 1P. 554
P. 5 5 1P. 554
P. 5 5 1P. 554
P. 5 5 1P. 554
P. 551
Brake system warning
lightTiming belt replacement
warning light
Charging system
warning lightFuel system warning
light
Low engine oil pressure
warning lightDPF system warning
light
Malfunction indicator
lampOpen door warning light
SRS warning lightLow fuel level warning
light
ABS warning lightDriver’s seat belt
reminder light
VSC OFF indicator lightFront passenger’s seat belt
reminder light
Slip indicator lightUnengaged “Park”
warning light
Cruise control indicator
lightLow engine oil level
warning light
Engine oil change
reminder light
Four-wheel drive
indicator light
Automatic transmission
fluid temperature warning
light

636
HILUX_EE (OM0K132E)

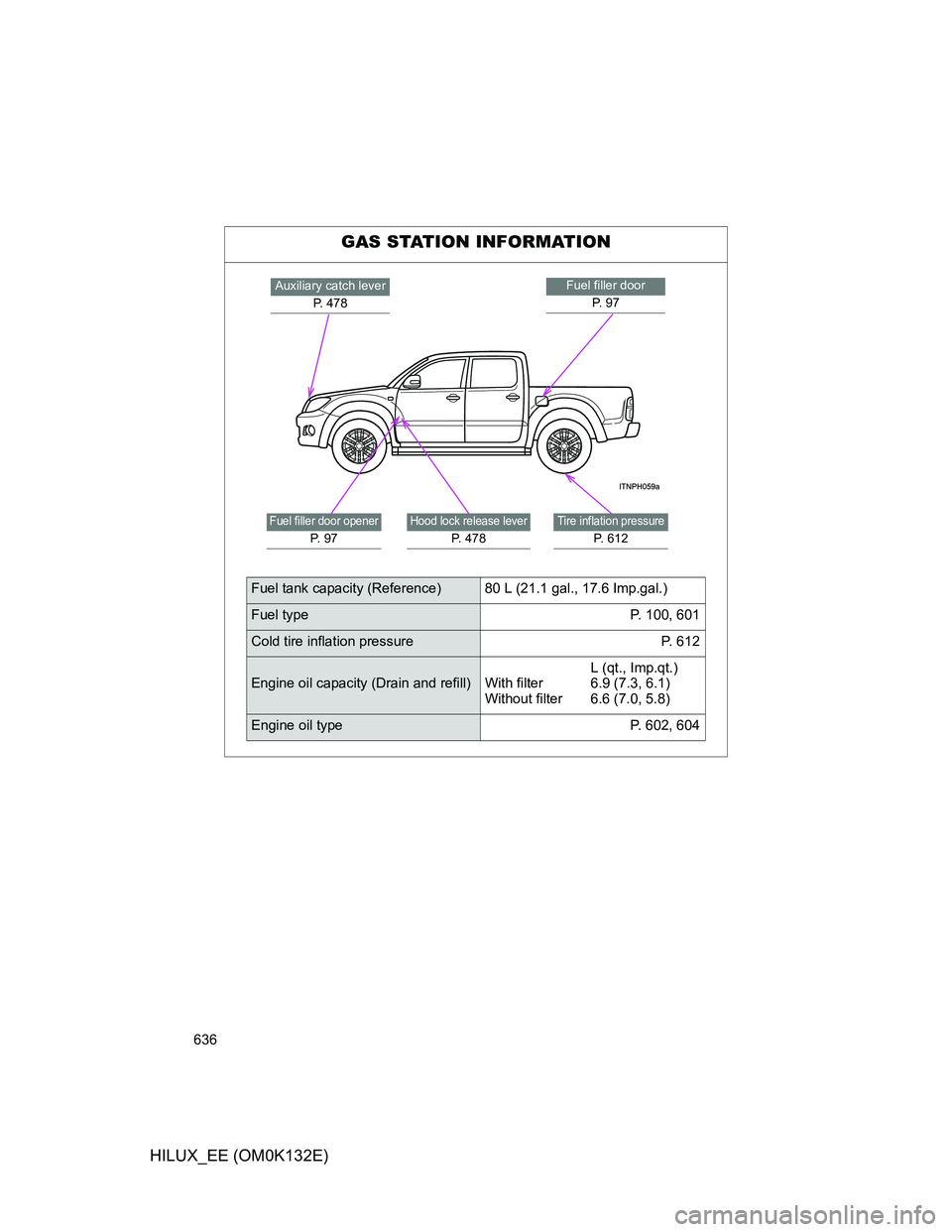

GAS STATION INFORMATION
Fuel filler door
P. 9 7Auxiliary catch lever
P. 478
Tire inflation pressure
P. 612
Fuel filler door opener
P. 9 7
Hood lock release lever
P. 478
Fuel tank capacity (Reference) 80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type P. 100, 601
Cold tire inflation pressure P. 612
Engine oil capacity (Drain and refill)L (qt., Imp.qt.)
With filter 6.9 (7.3, 6.1)
Without filter 6.6 (7.0, 5.8)
Engine oil type P. 602, 604
