TOYOTA HILUX 2013 Owners Manual (in English)

341 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

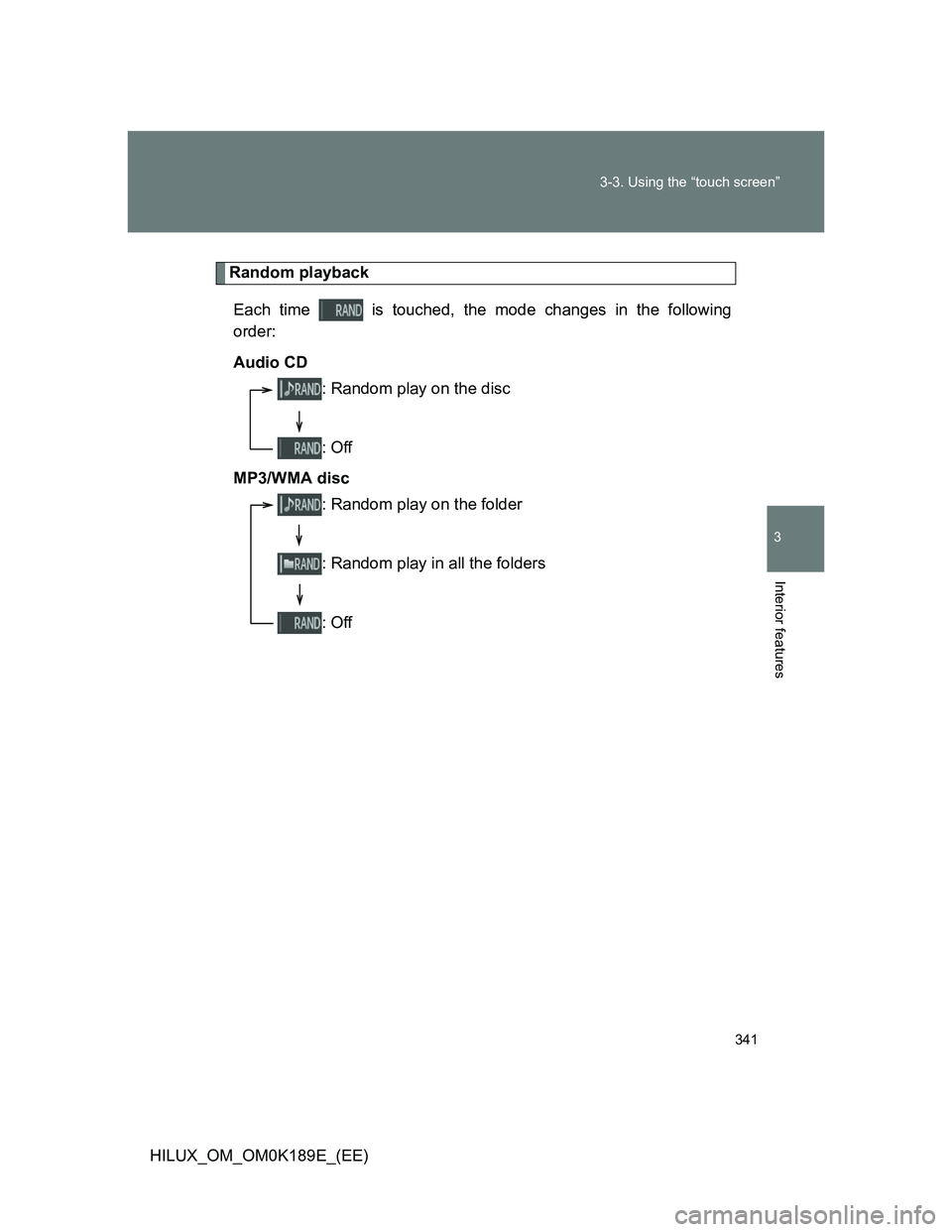

Random playback
Each time is touched, the mode changes in the following
order:
Audio CD
MP3/WMA disc
: Random play on the disc
: Off
: Random play on the folder
: Random play in all the folders
: Off

342 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)
Repeat play
Each time is touched, the mode changes in the following
order:
Audio CD
MP3/WMA disc
Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed.
: Track repeat
: Off
: File repeat
: Folder repeat
: Off

343 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

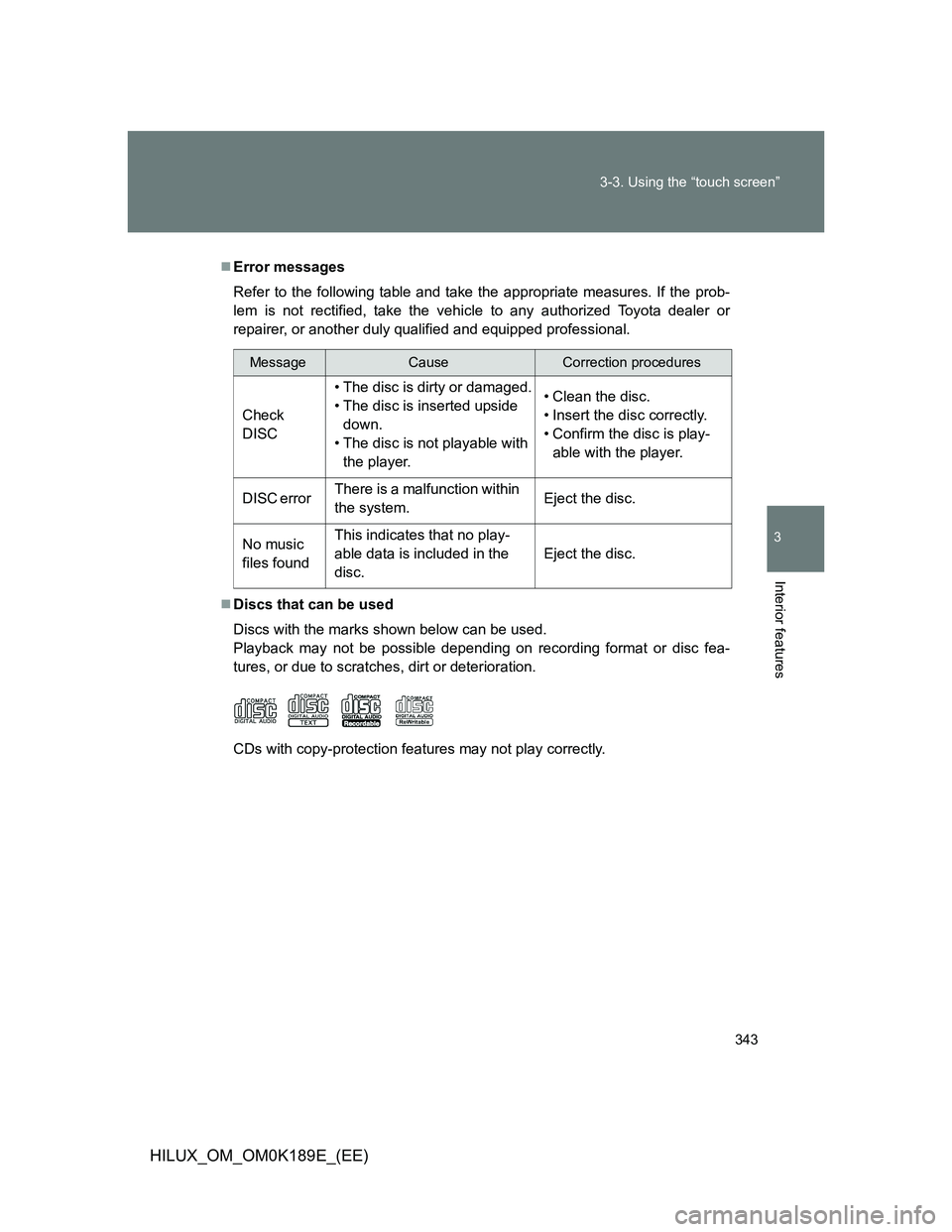

Error messages
Refer to the following table and take the appropriate measures. If the prob-
lem is not rectified, take the vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
MessageCauseCorrection procedures
Check
DISC• The disc is dirty or damaged.
• The disc is inserted upside
down.
• The disc is not playable with
the player.• Clean the disc.
• Insert the disc correctly.
• Confirm the disc is play-
able with the player.
DISC error There is a malfunction within
the system.Eject the disc.
No music
files foundThis indicates that no play-
able data is included in the
disc.Eject the disc.

344 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

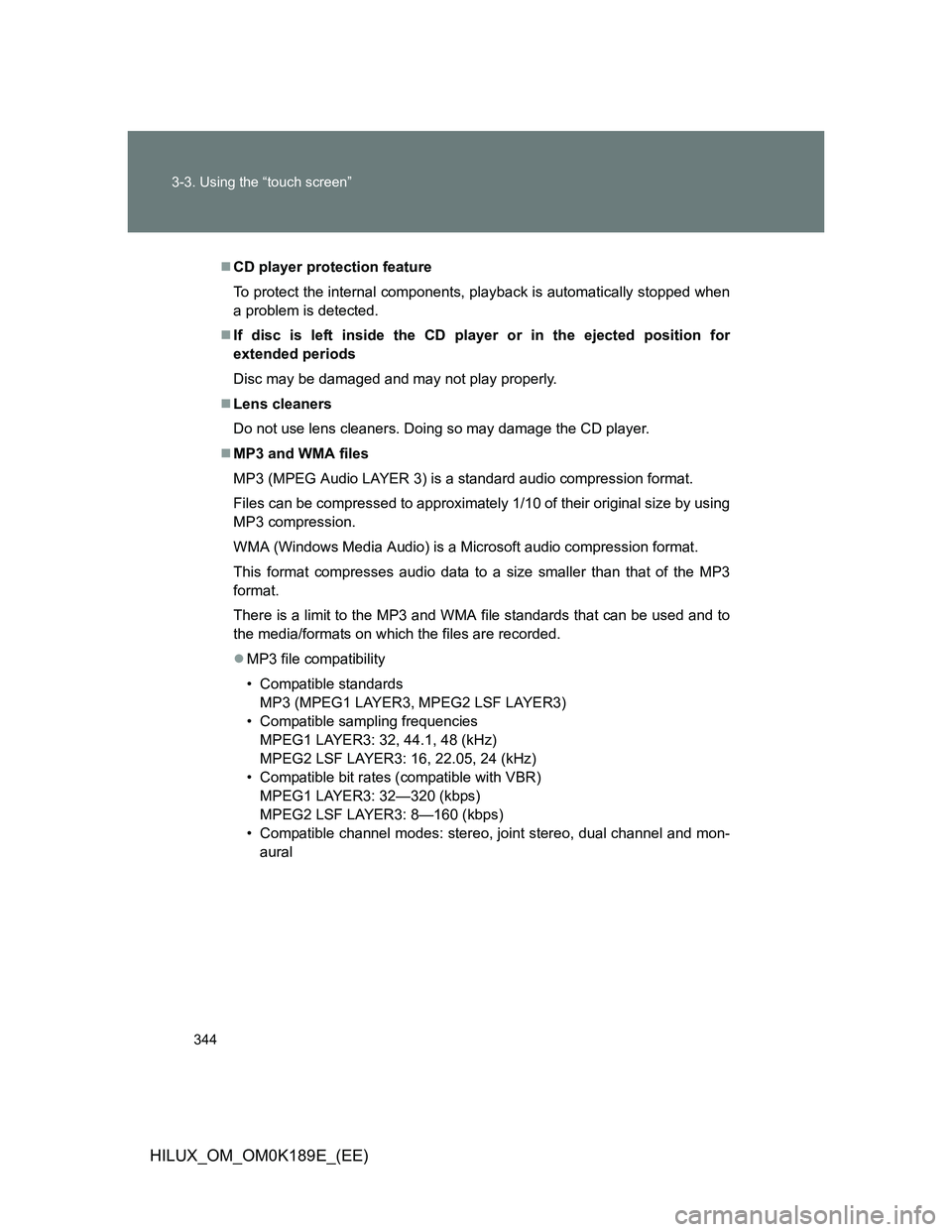

CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
If disc is left inside the CD player or in the ejected position for
extended periods
Disc may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards that can be used and to
the media/formats on which the files are recorded.
MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32—320 (kbps)
MPEG2 LSF LAYER3: 8—160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural

345 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)
WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48—192 (kbps)
Ver. 9: CBR 48—320 (kbps)
Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible if the CD-R or CD-RW is
not finalized. Playback may not be possible or the audio may jump if the
disc is scratched or marked with fingerprints.
Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
UDF (2.01 or lower)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255

346 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

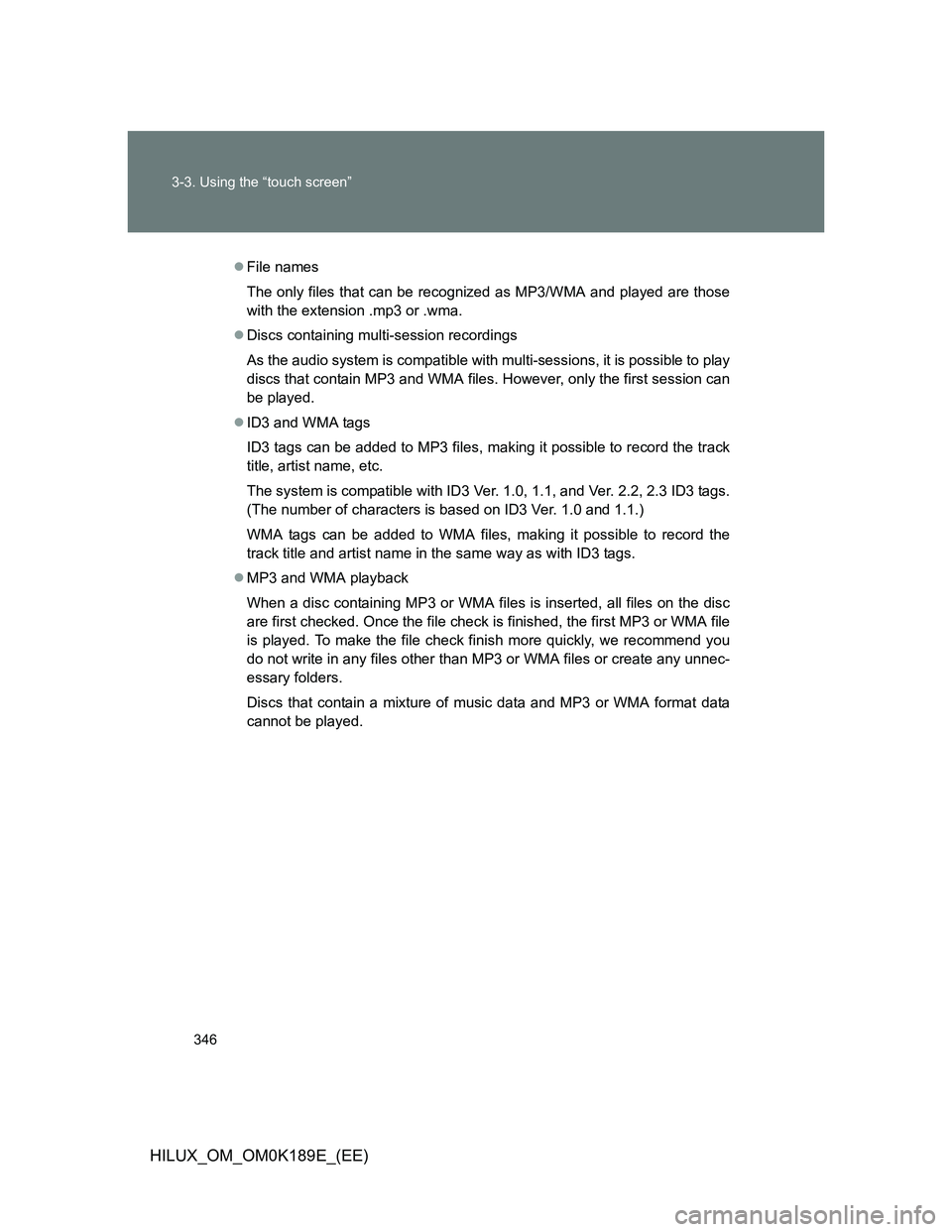

File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
Discs containing multi-session recordings
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec-
essary folders.
Discs that contain a mixture of music data and MP3 or WMA format data
cannot be played.

347 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

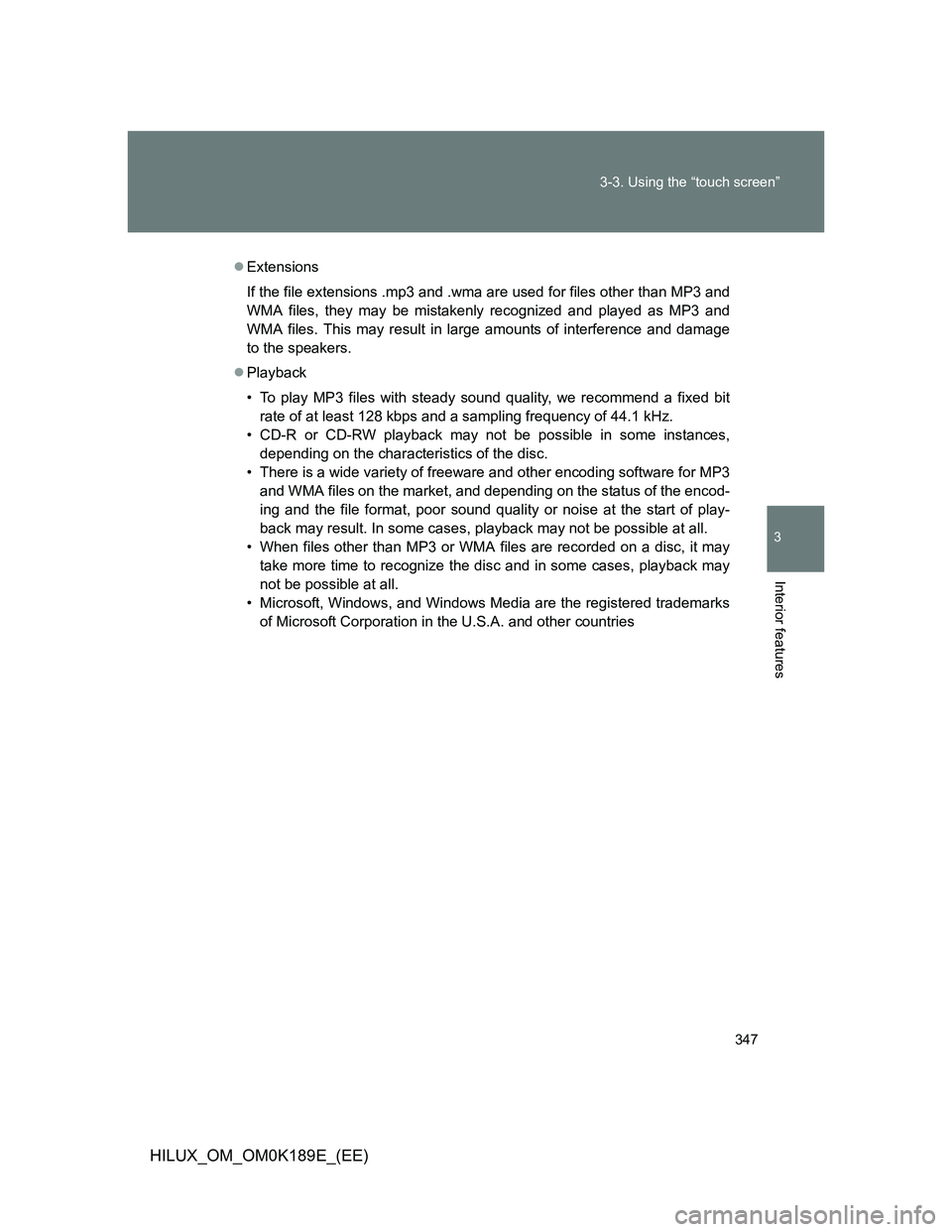

Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they may be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encod-
ing and the file format, poor sound quality or noise at the start of play-
back may result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S.A. and other countries

348 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

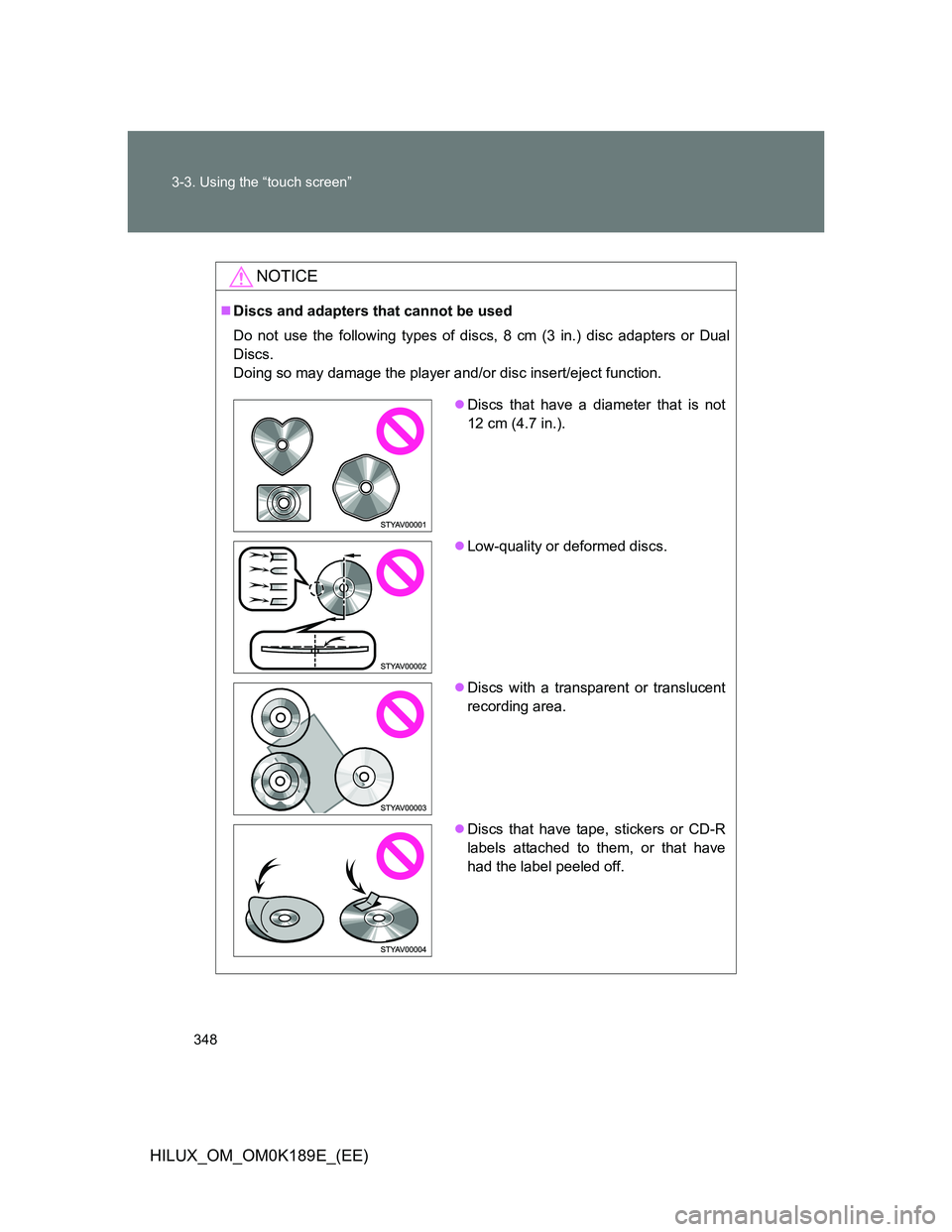

NOTICE
Discs and adapters that cannot be used
Do not use the following types of discs, 8 cm (3 in.) disc adapters or Dual
Discs.
Doing so may damage the player and/or disc insert/eject function.
Discs that have a diameter that is not
12 cm (4.7 in.).
Low-quality or deformed discs.
Discs with a transparent or translucent
recording area.
Discs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off.

349 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

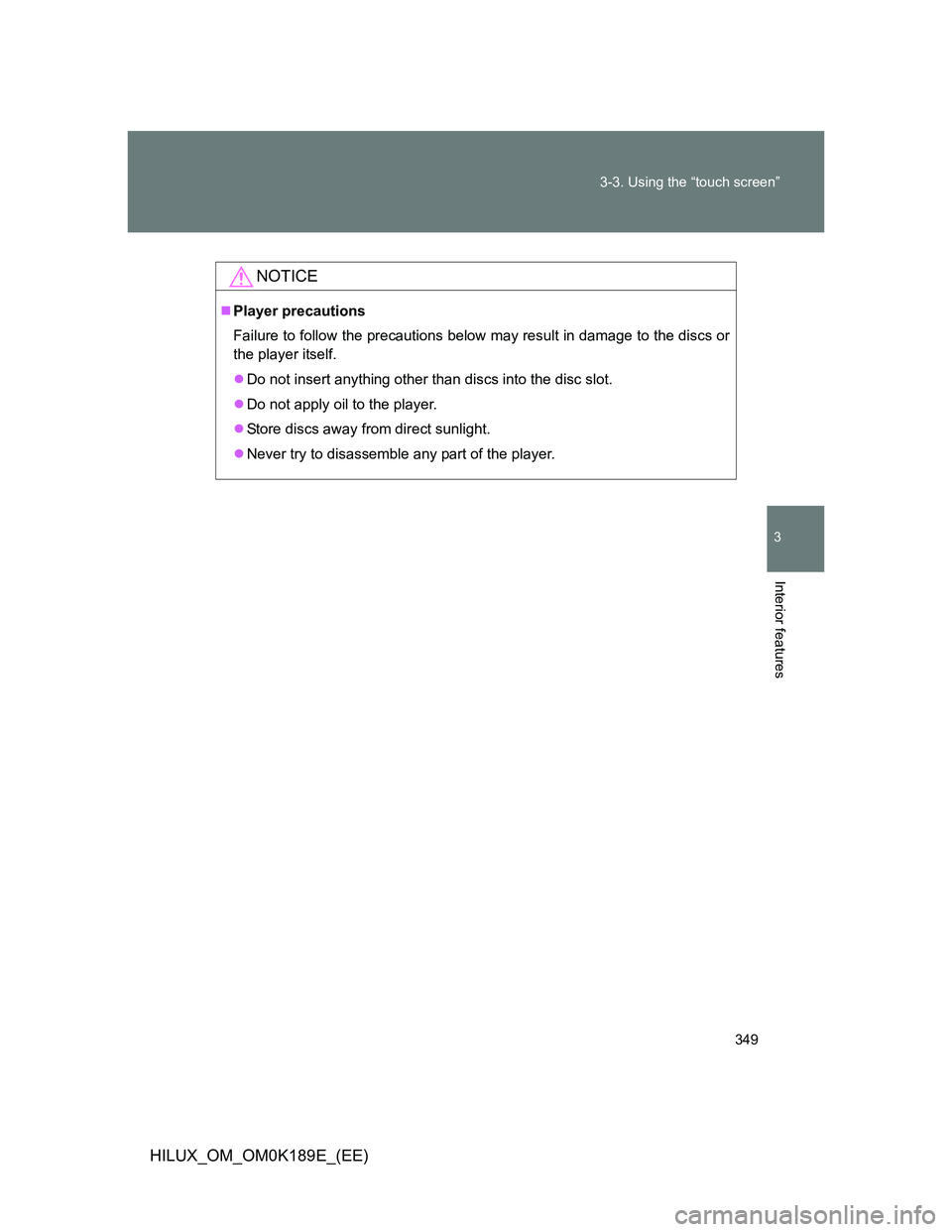

NOTICE
Player precautions
Failure to follow the precautions below may result in damage to the discs or
the player itself.
Do not insert anything other than discs into the disc slot.
Do not apply oil to the player.
Store discs away from direct sunlight.
Never try to disassemble any part of the player.

350
3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

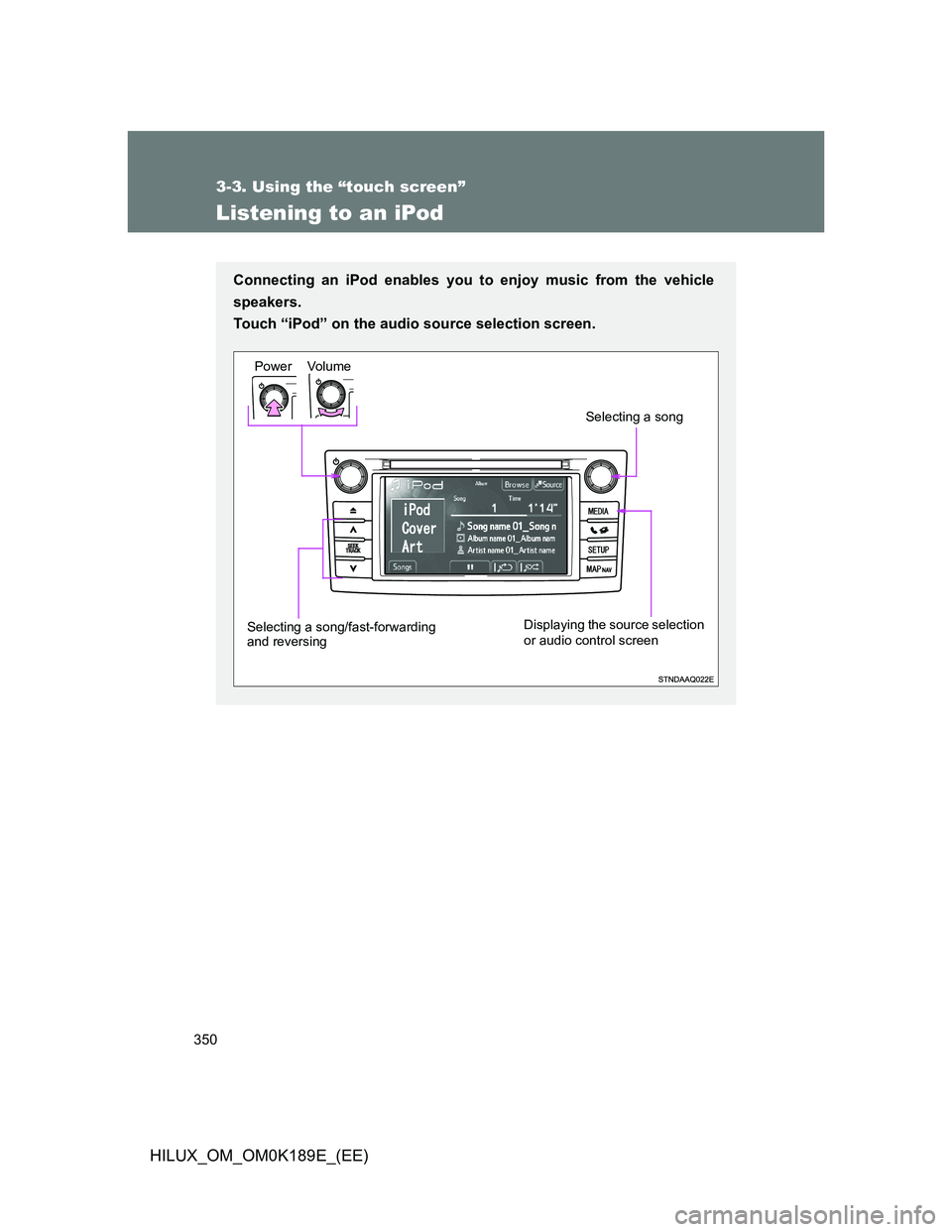

Listening to an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Touch “iPod” on the audio source selection screen.
Vo lu m e Power
Selecting a song/fast-forwarding
and reversingDisplaying the source selection
or audio control screen
Selecting a song
