TOYOTA HILUX 2013 Owners Manual (in English)

371 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

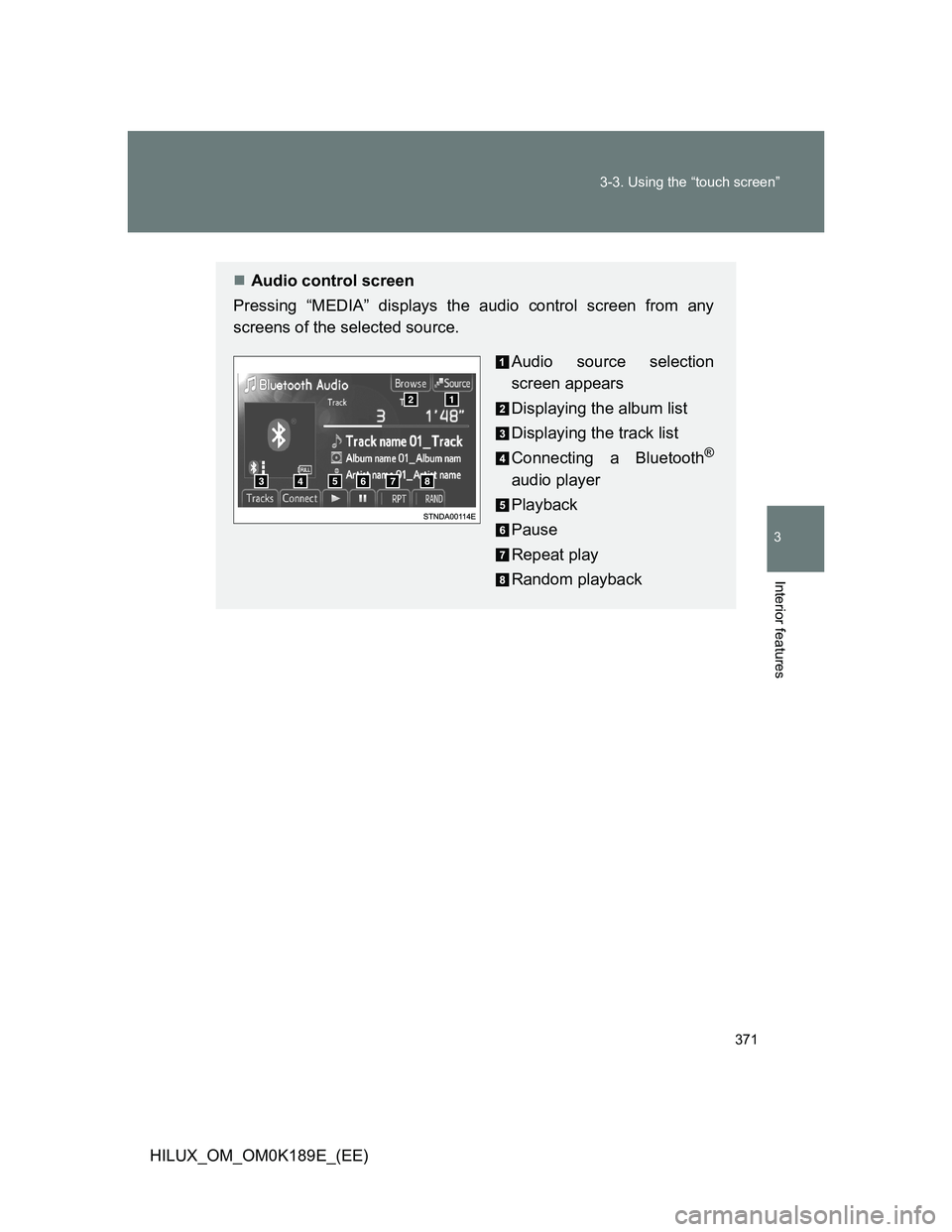

Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio source selection
screen appears
Displaying the album list
Displaying the track list
Connecting a Bluetooth
®
audio player
Playback
Pause
Repeat play
Random playback

372 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

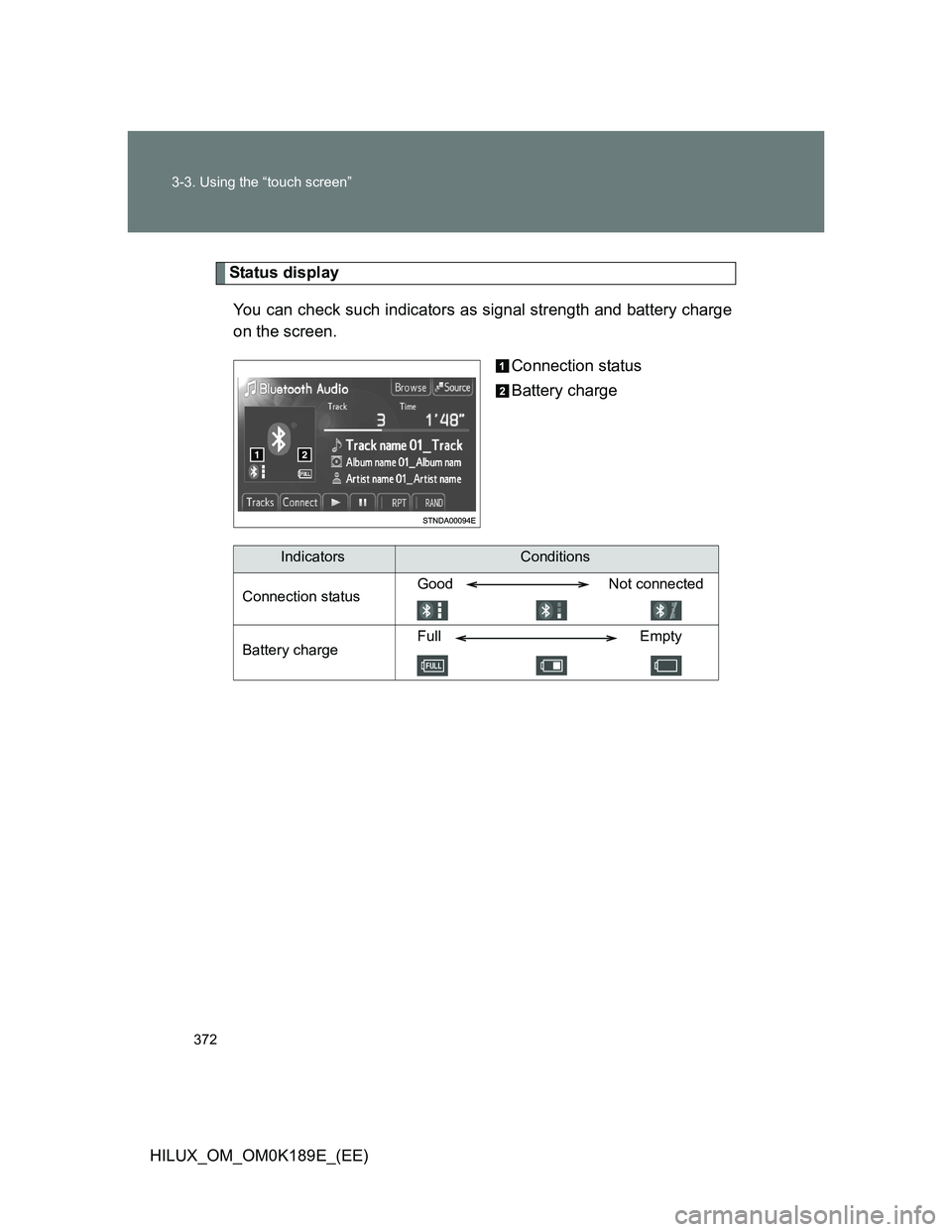

Status display
You can check such indicators as signal strength and battery charge
on the screen.
Connection status
Battery charge
IndicatorsConditions
Connection statusGood Not connected
Battery chargeFull Empty

373 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

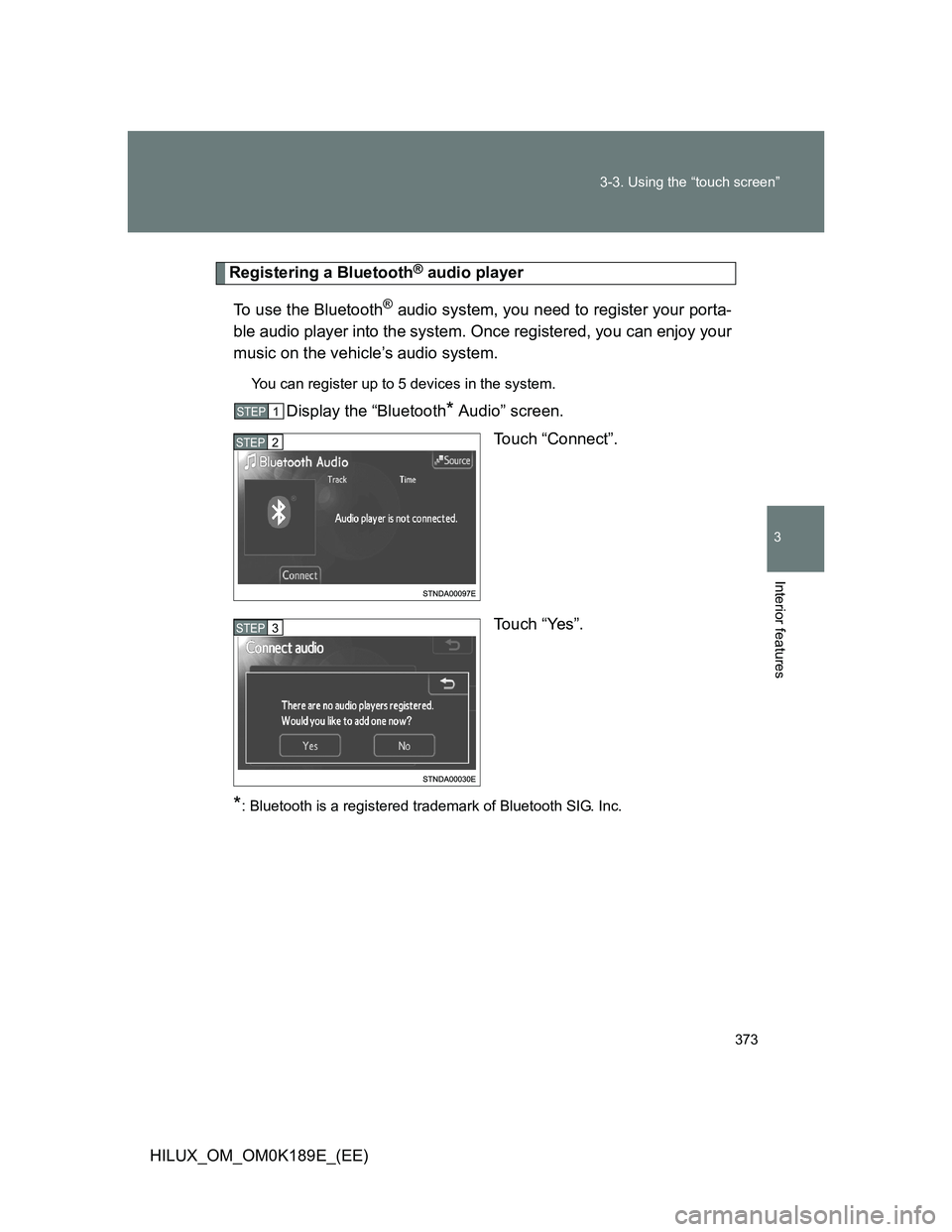

Registering a Bluetooth® audio player
To use the Bluetooth
® audio system, you need to register your porta-
ble audio player into the system. Once registered, you can enjoy your
music on the vehicle’s audio system.
You can register up to 5 devices in the system.
Display the “Bluetooth* Audio” screen.
Touch “Connect”.
Touch “Yes”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

374 3-3. Using the “touch screen”

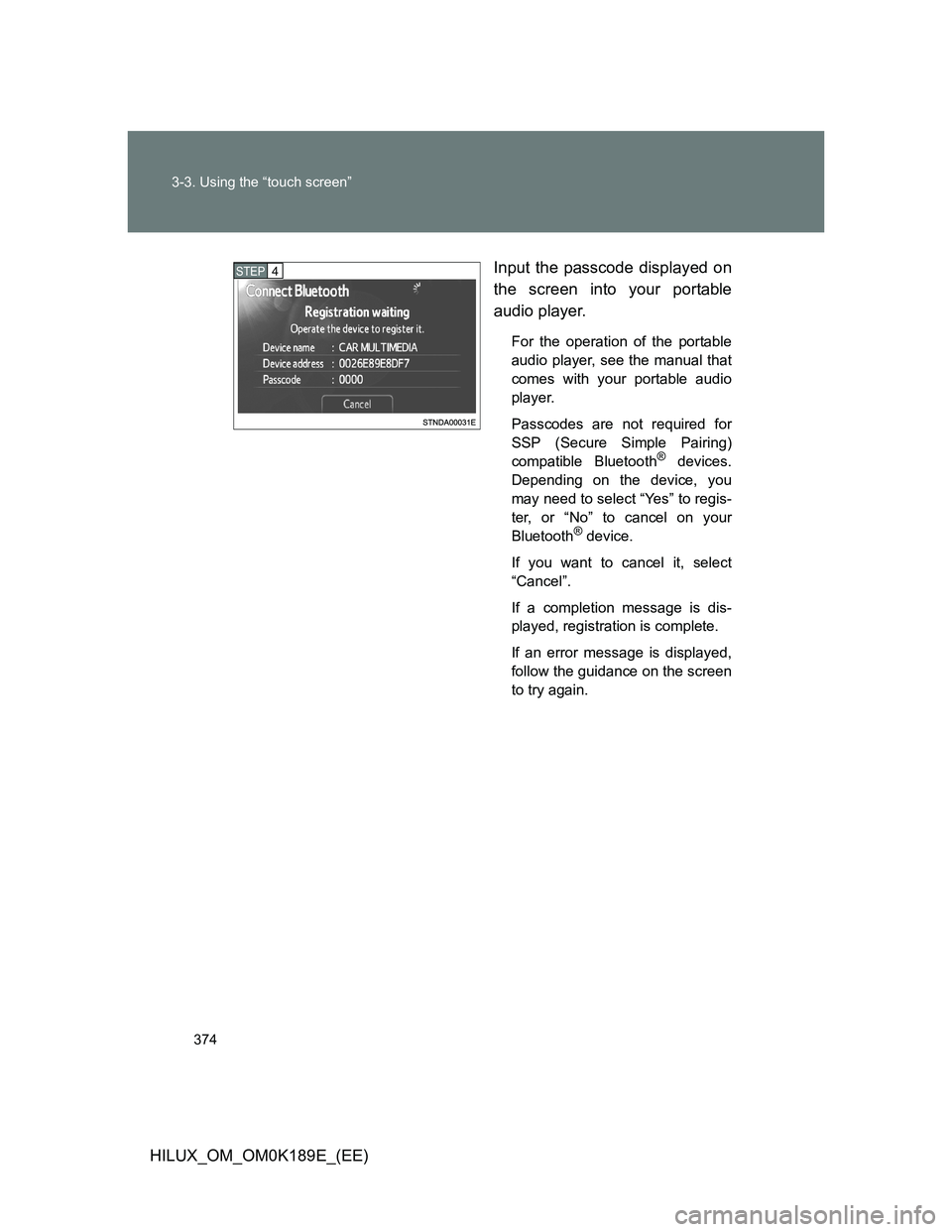

HILUX_OM_OM0K189E_(EE)Input the passcode displayed on
the screen into your portable
audio player.
For the operation of the portable
audio player, see the manual that
comes with your portable audio
player.
Passcodes are not required for
SSP (Secure Simple Pairing)
compatible Bluetooth
® devices.
Depending on the device, you
may need to select “Yes” to regis-
ter, or “No” to cancel on your
Bluetooth
® device.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
STEP4

375 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

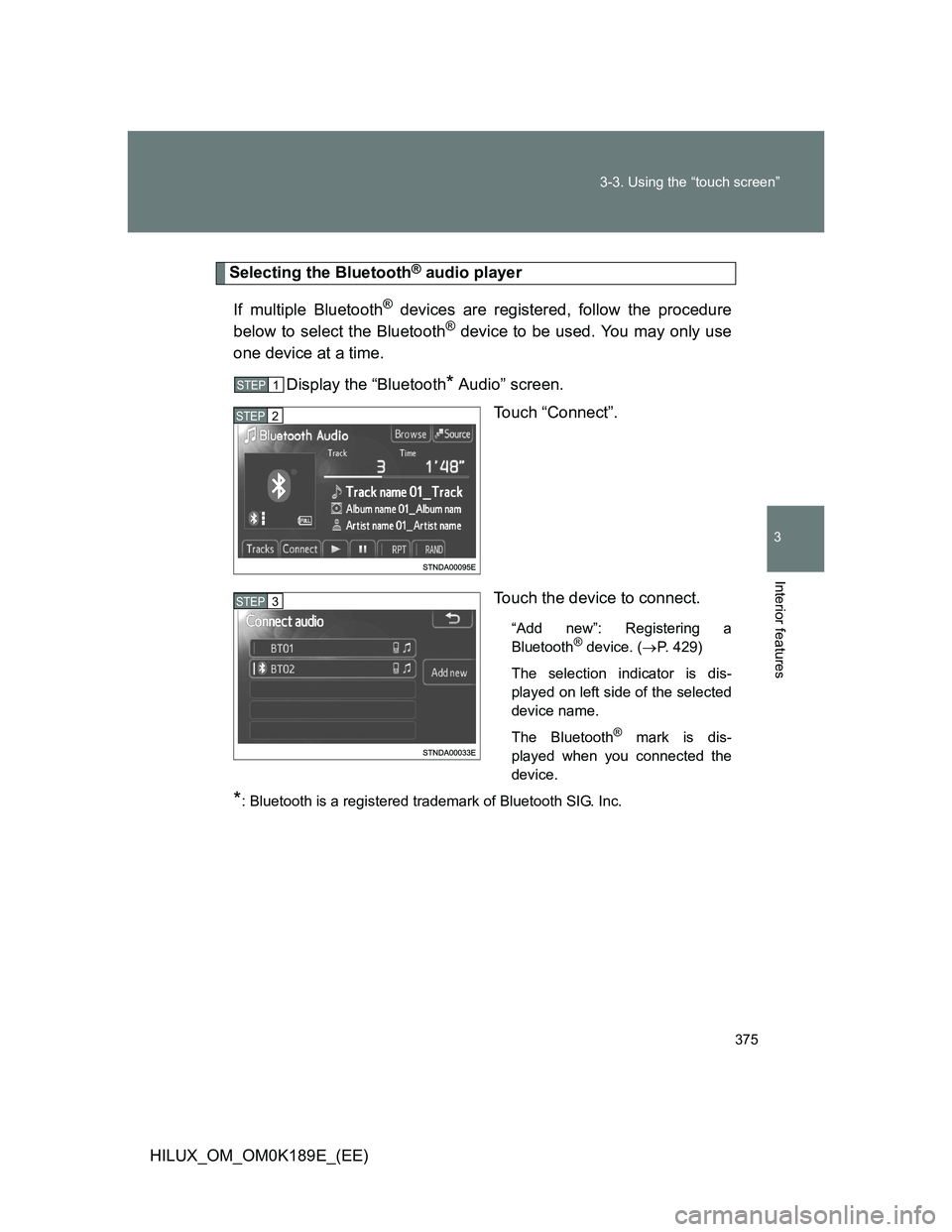

Selecting the Bluetooth® audio player
If multiple Bluetooth
® devices are registered, follow the procedure
below to select the Bluetooth® device to be used. You may only use
one device at a time.
Display the “Bluetooth
* Audio” screen.
Touch “Connect”.
Touch the device to connect.
“Add new”: Registering a
Bluetooth® device. (P. 429)
The selection indicator is dis-
played on left side of the selected
device name.
The Bluetooth
® mark is dis-
played when you connected the
device.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

376 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

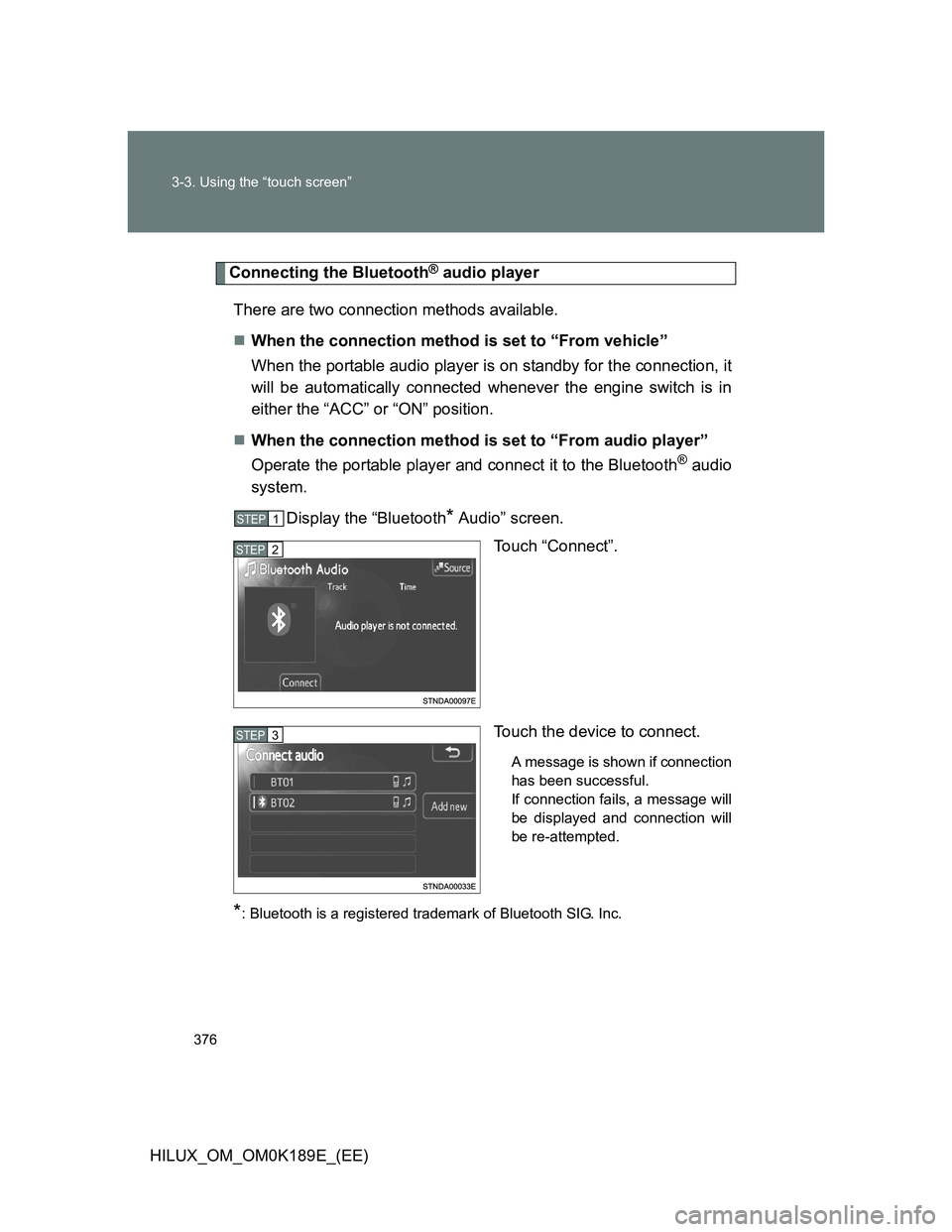

Connecting the Bluetooth® audio player
There are two connection methods available.
When the connection method is set to “From vehicle”
When the portable audio player is on standby for the connection, it
will be automatically connected whenever the engine switch is in
either the “ACC” or “ON” position.
When the connection method is set to “From audio player”
Operate the portable player and connect it to the Bluetooth
® audio
system.
Display the “Bluetooth
* Audio” screen.
Touch “Connect”.
Touch the device to connect.
A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

377 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

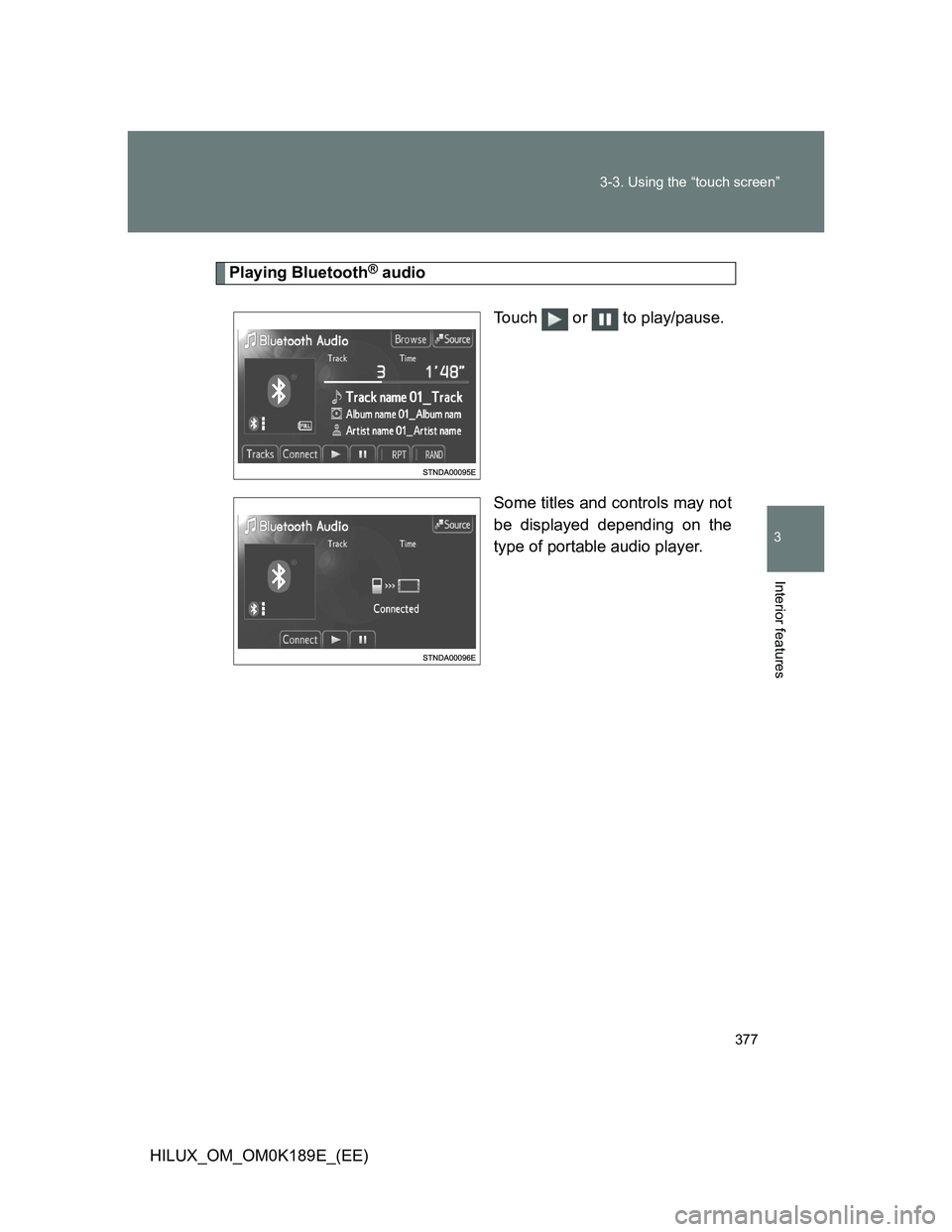

Playing Bluetooth® audio
Touch or to play/pause.
Some titles and controls may not
be displayed depending on the
type of portable audio player.

378 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)
Selecting a track
Selecting a track
Press “” or “” on “SEEK/TRACK” or turn to select the
desired track number.
To fast-forward or rewind, press and hold “” or “” on “SEEK/TRACK”
until you hear a beep.
Selecting a track from the list
Touch “Tracks” on the screen.
Touch the desired track.
STEP1
STEP2

379 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)
Selecting an album
Touch “Browse” on the screen.
Touch the desired album.
Touch the desired track.
STEP1
STEP2
STEP3

380 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)
Random playback
Each time is touched, the mode changes in the following
order:
Repeat play
Each time is touched, the mode changes in the following
order:
: Random play on the album
: Random play in all the album
: Off
: Track repeat
: Album repeat
: Off
