351 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

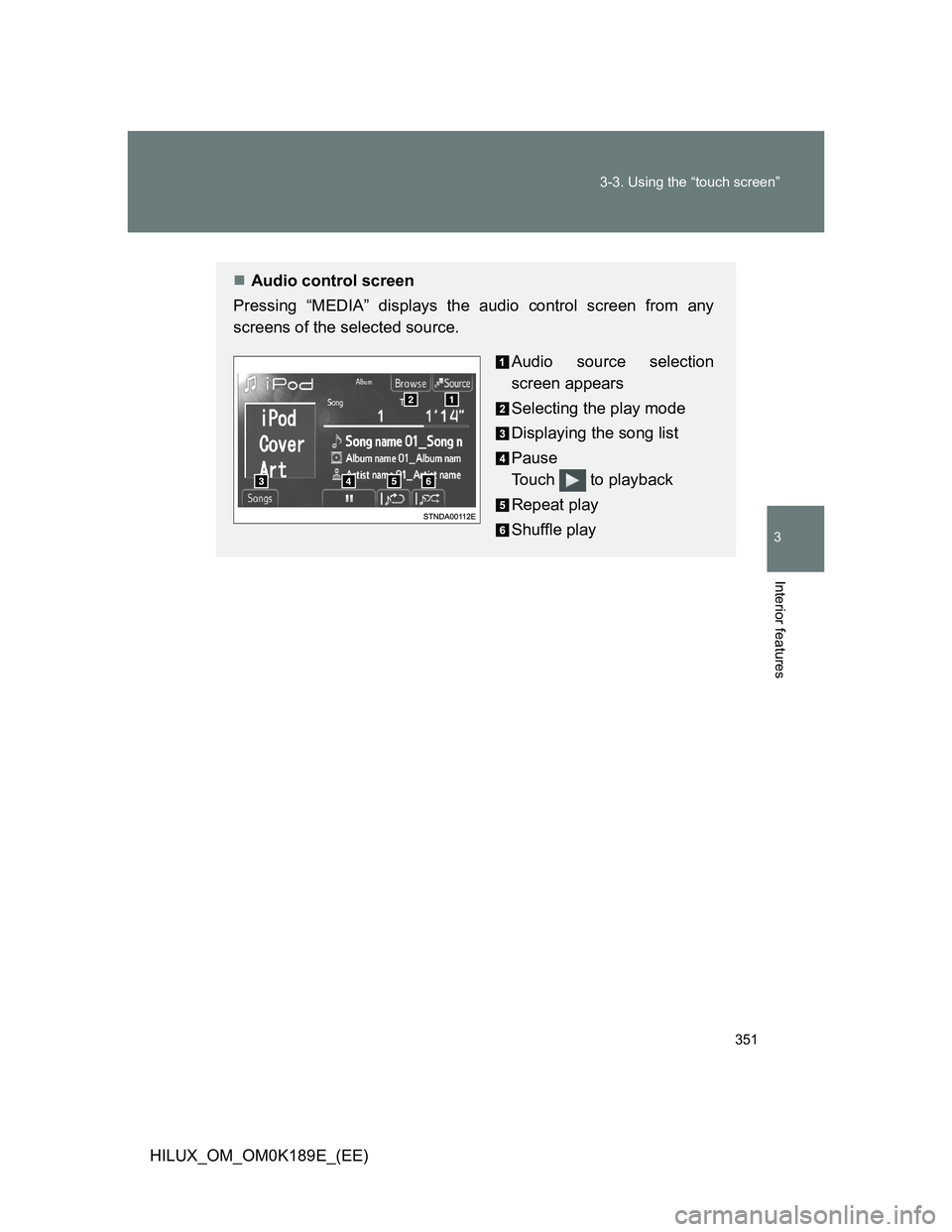

Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio source selection
screen appears
Selecting the play mode
Displaying the song list
Pause
Touch to playback
Repeat play
Shuffle play

352 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)
Connecting an iPod
Open the cover and connect the
iPod.
Turn on the power of the iPod if it
is not turned on.
Playing an iPod
Play/Pause
Touch or to Play/Pause.
Selecting a play mode
Touch “Browse” on the screen.
Select the desired play mode by
touching the “Playlists”, “Artists”,
“Albums”, “Songs”, “Podcasts”,
“Audio books”, “Genres” or
“Composers” tabs.
STEP1
STEP2

353 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)
Selecting, fast-forwarding and reversing songs
Selecting one song at a time
Press “” or “” on “SEEK/TRACK” or turn to select the
desired song.
To fast-forward or reverse, press and hold “” or “” on “SEEK/TRACK”
until you hear a beep.
Selecting a song from the list
Touch “Songs” on the screen.
Touch the desired song.
STEP1
STEP2

354 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

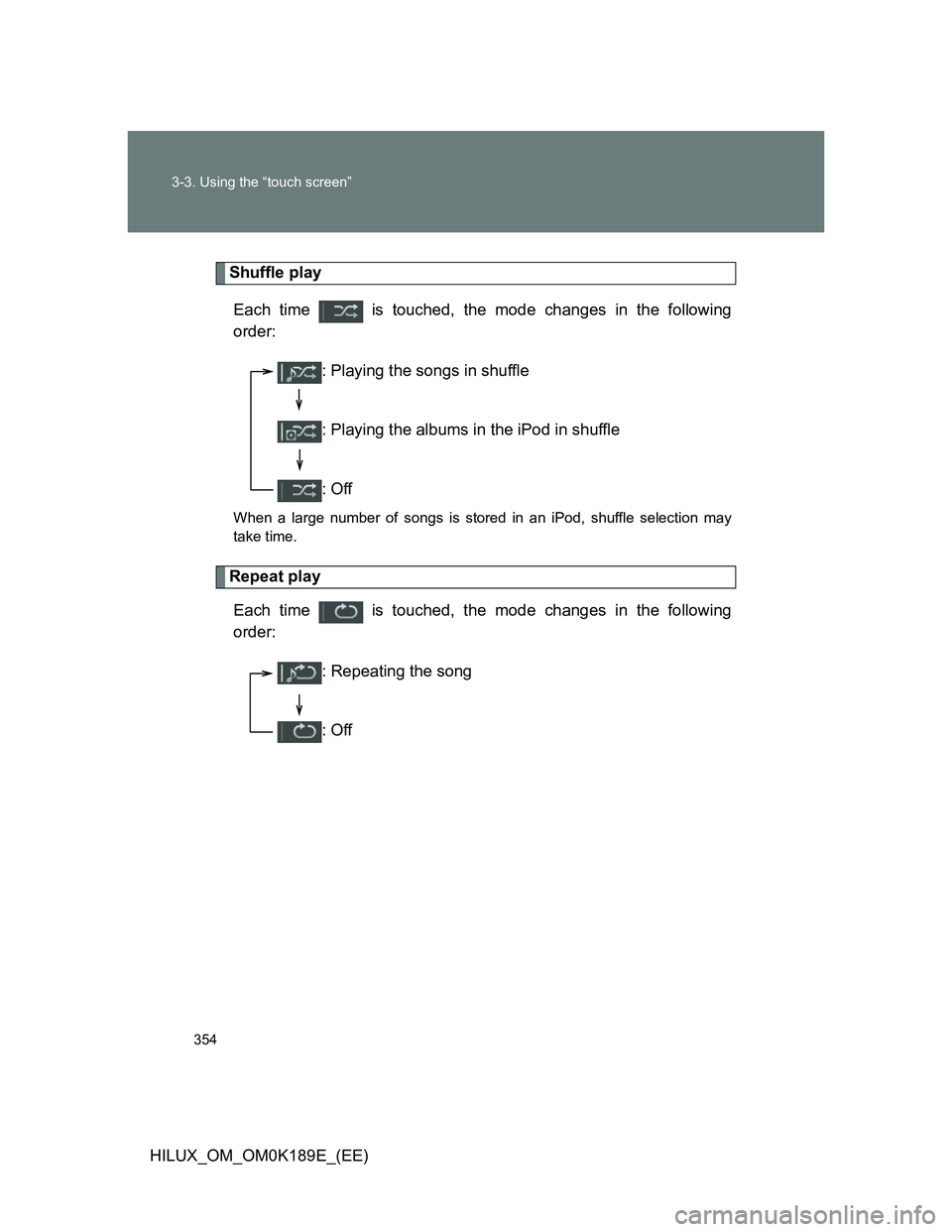

Shuffle play
Each time is touched, the mode changes in the following
order:
When a large number of songs is stored in an iPod, shuffle selection may
take time.
Repeat play
Each time is touched, the mode changes in the following
order:
: Playing the songs in shuffle
: Playing the albums in the iPod in shuffle
: Off
: Repeating the song
: Off

355 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

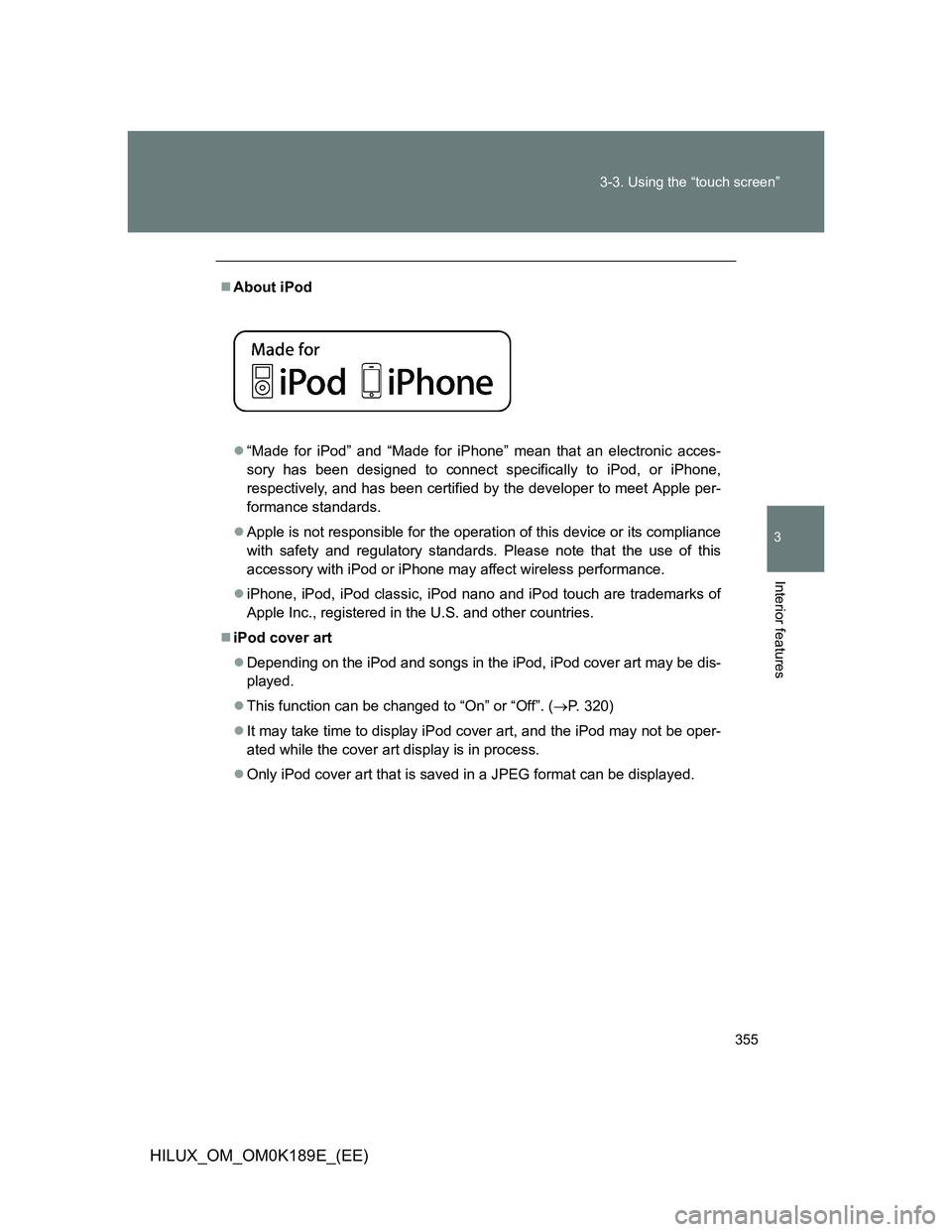

About iPod
“Made for iPod” and “Made for iPhone” mean that an electronic acces-
sory has been designed to connect specifically to iPod, or iPhone,
respectively, and has been certified by the developer to meet Apple per-
formance standards.
Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
iPod cover art
Depending on the iPod and songs in the iPod, iPod cover art may be dis-
played.
This function can be changed to “On” or “Off”. (P. 320)
It may take time to display iPod cover art, and the iPod may not be oper-
ated while the cover art display is in process.
Only iPod cover art that is saved in a JPEG format can be displayed.

356 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

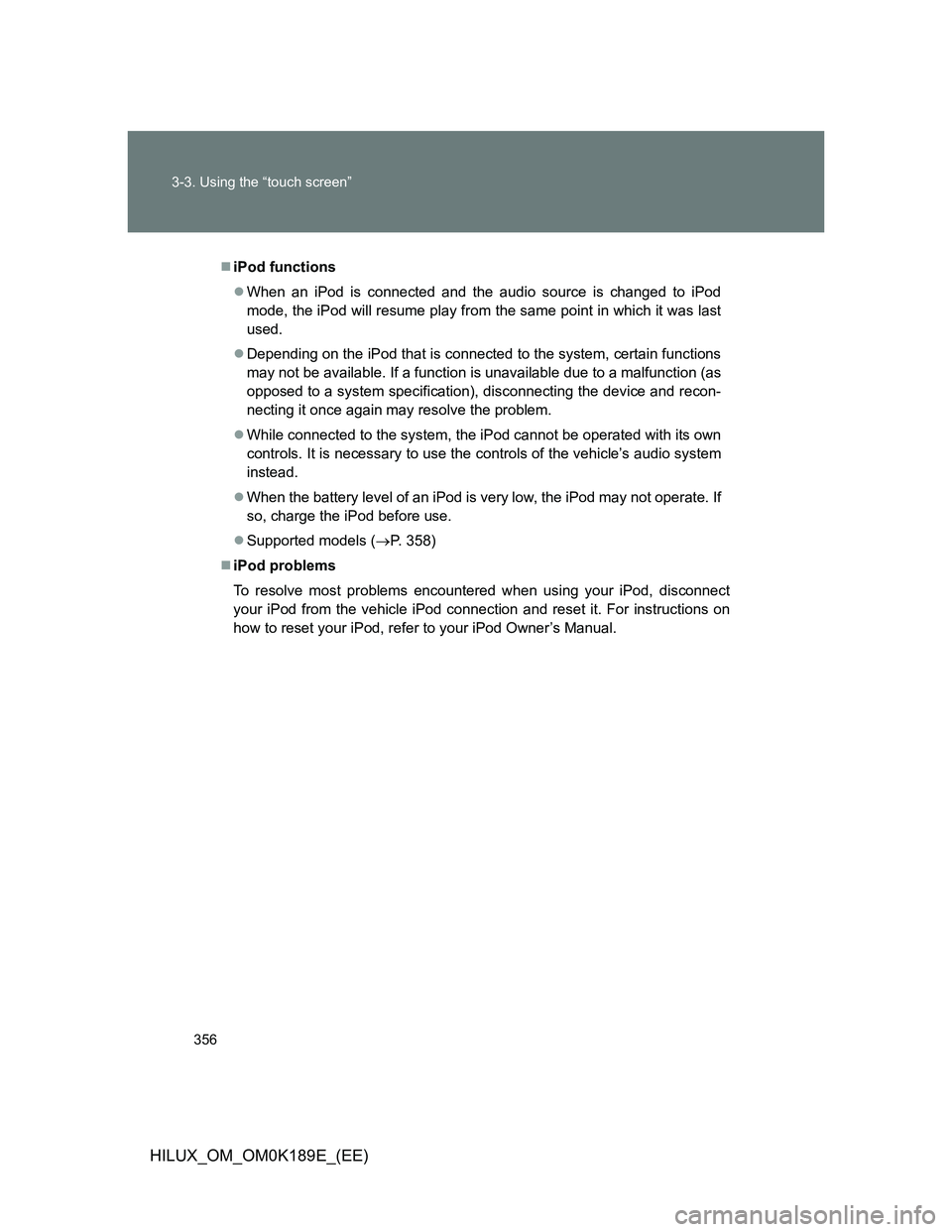

iPod functions
When an iPod is connected and the audio source is changed to iPod
mode, the iPod will resume play from the same point in which it was last
used.
Depending on the iPod that is connected to the system, certain functions
may not be available. If a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it once again may resolve the problem.
While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
When the battery level of an iPod is very low, the iPod may not operate. If
so, charge the iPod before use.
Supported models (P. 358)
iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it. For instructions on
how to reset your iPod, refer to your iPod Owner’s Manual.

357 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

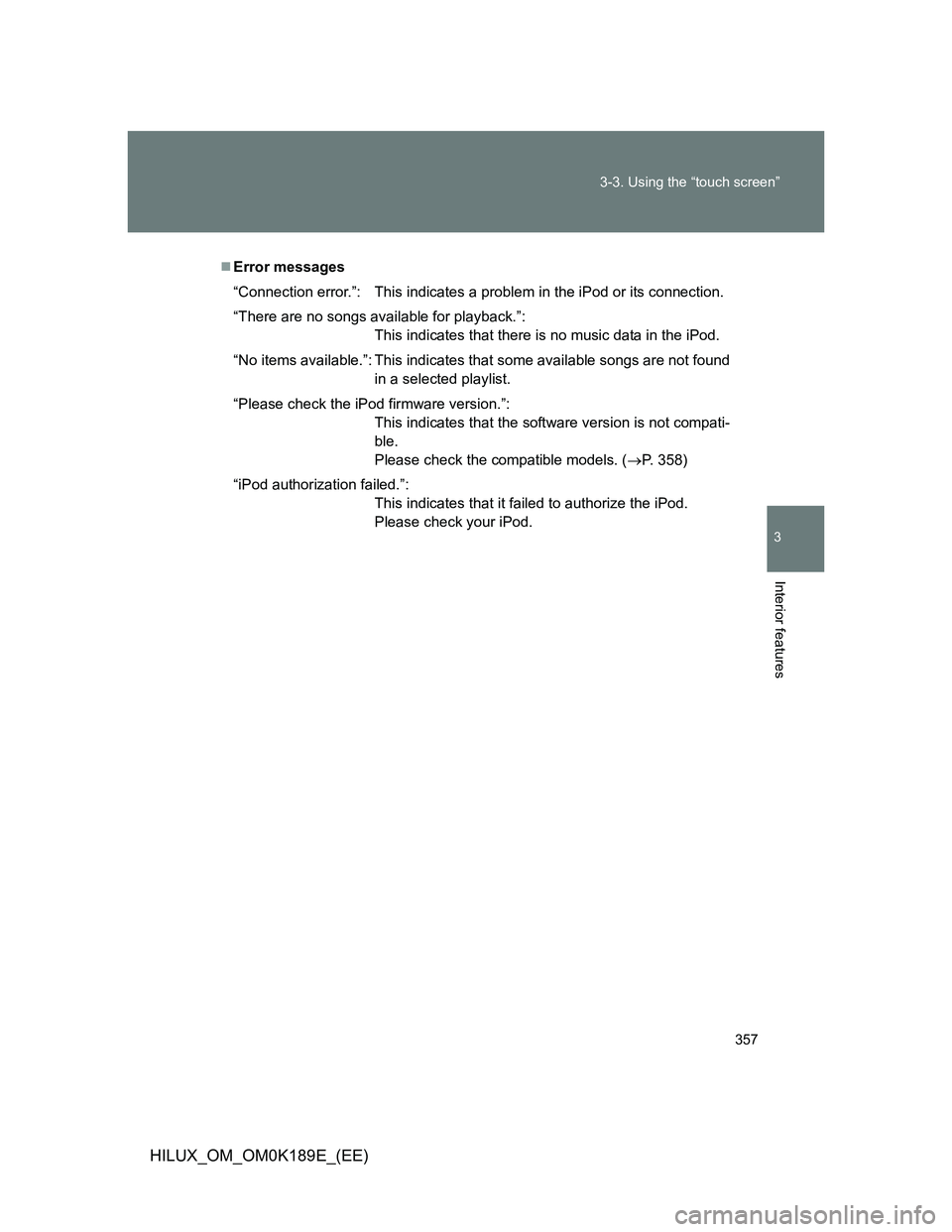

Error messages
“Connection error.”: This indicates a problem in the iPod or its connection.
“There are no songs available for playback.”:
This indicates that there is no music data in the iPod.
“No items available.”: This indicates that some available songs are not found
in a selected playlist.
“Please check the iPod firmware version.”:
This indicates that the software version is not compati-
ble.
Please check the compatible models. (P. 358)
“iPod authorization failed.”:
This indicates that it failed to authorize the iPod.
Please check your iPod.

358 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)
Compatible models
The following iPod
®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.

359 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)
CAUTION
While driving
Do not connect an iPod or operate the controls.
NOTICE
To prevent damage to the iPod or its terminal
Do not leave the iPod in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the iPod.
Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
Do not insert foreign objects into the port.

360
3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

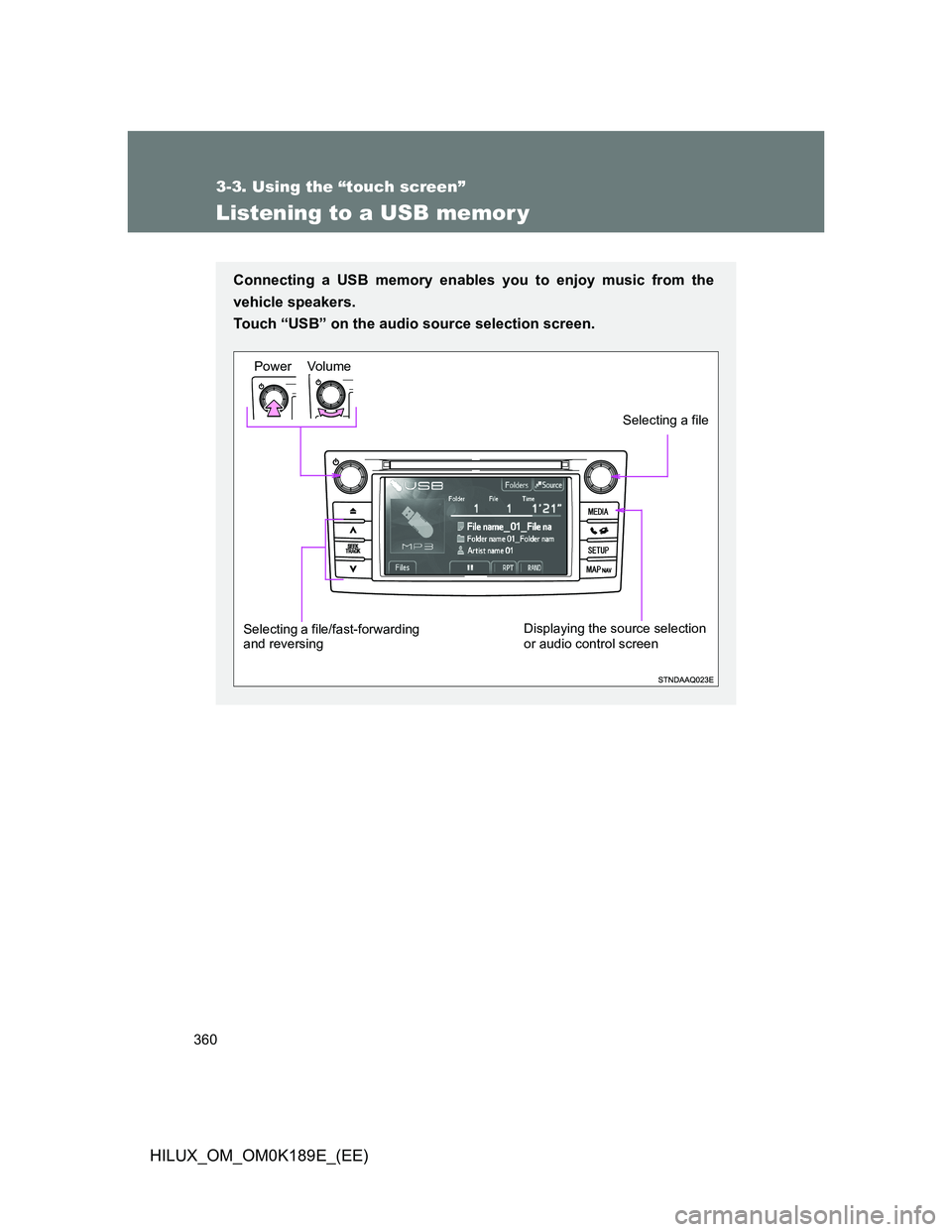

Listening to a USB memor y
Connecting a USB memory enables you to enjoy music from the
vehicle speakers.
Touch “USB” on the audio source selection screen.
Vo lu m e Power
Selecting a file/fast-forwarding
and reversingDisplaying the source selection
or audio control screen
Selecting a file
