331
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

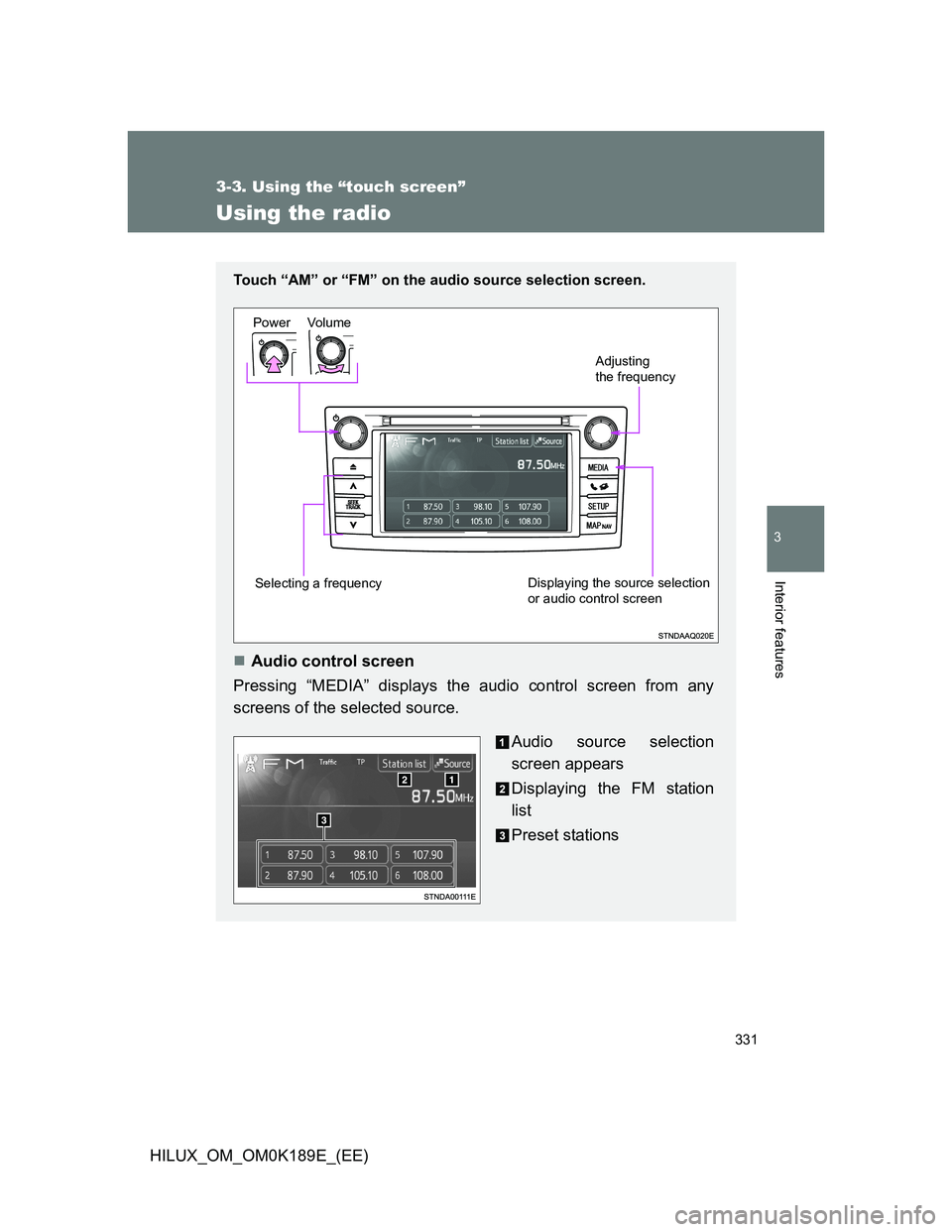

Using the radio
Touch “AM” or “FM” on the audio source selection screen.

Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio source selection
screen appears
Displaying the FM station
list
Preset stations
Vo lu m e
Selecting a frequencyDisplaying the source selection
or audio control screen Power
Adjusting
the frequency

332 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

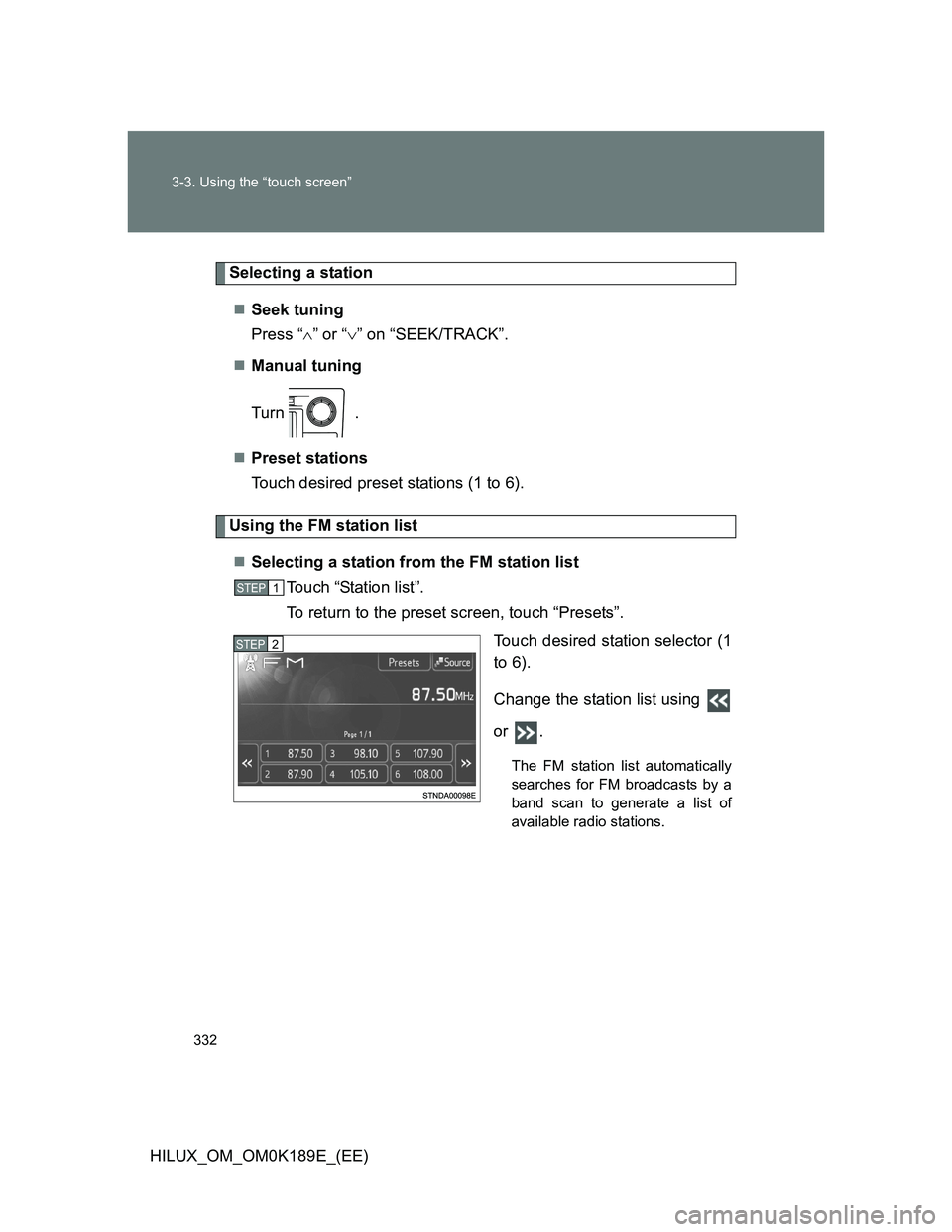

Selecting a station
Seek tuning
Press “” or “” on “SEEK/TRACK”.
Manual tuning
Turn .
Preset stations
Touch desired preset stations (1 to 6).
Using the FM station list
Selecting a station from the FM station list
Touch “Station list”.
To return to the preset screen, touch “Presets”.
Touch desired station selector (1
to 6).
Change the station list using
or .
The FM station list automatically
searches for FM broadcasts by a
band scan to generate a list of
available radio stations.
STEP1
STEP2

333 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

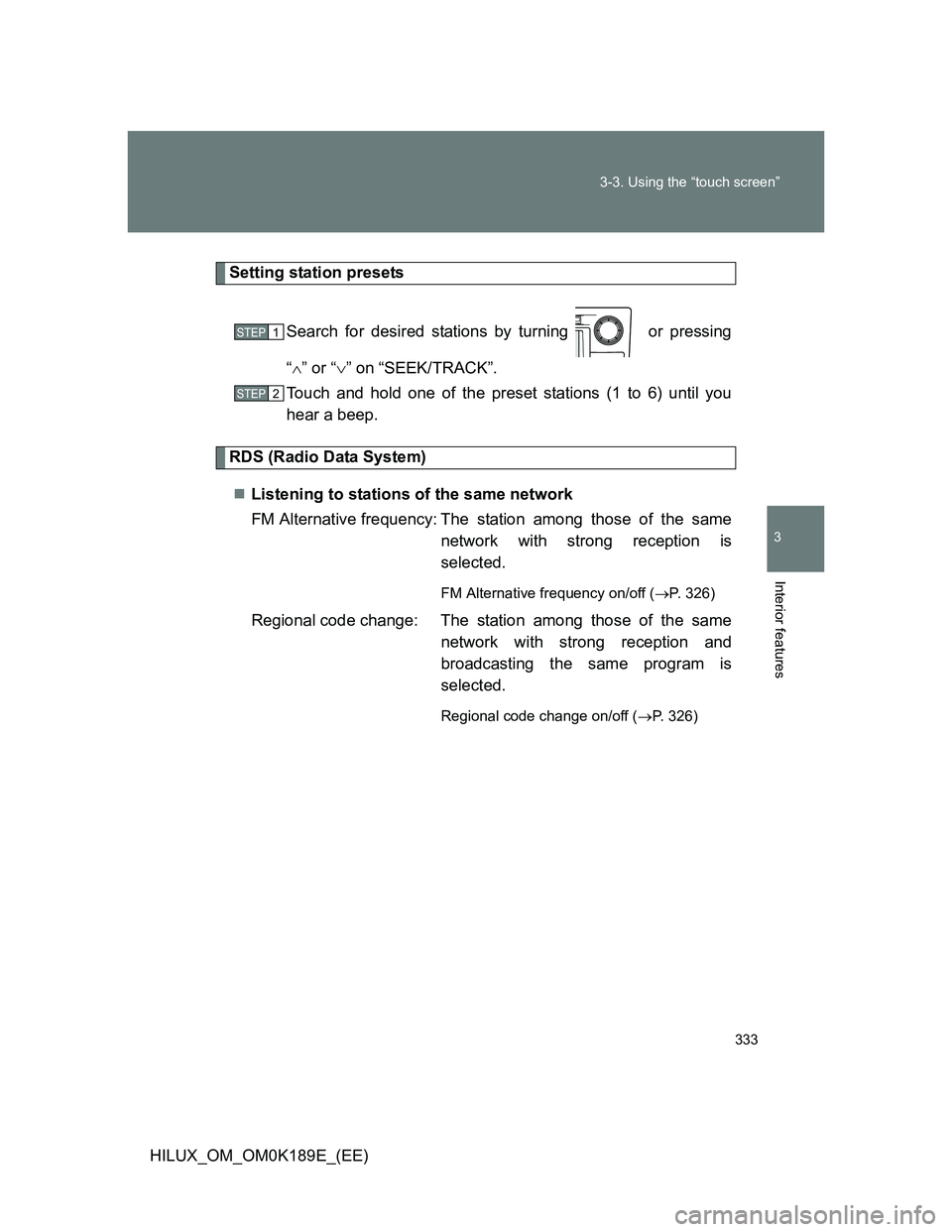

Setting station presets
Search for desired stations by turning or pressing
“” or “” on “SEEK/TRACK”.
Touch and hold one of the preset stations (1 to 6) until you
hear a beep.
RDS (Radio Data System)
Listening to stations of the same network
FM Alternative frequency: The station among those of the same
network with strong reception is
selected.
FM Alternative frequency on/off (P. 326)
Regional code change: The station among those of the same
network with strong reception and
broadcasting the same program is
selected.
Regional code change on/off (P. 326)
STEP1
STEP2

334 3-3. Using the “touch screen”

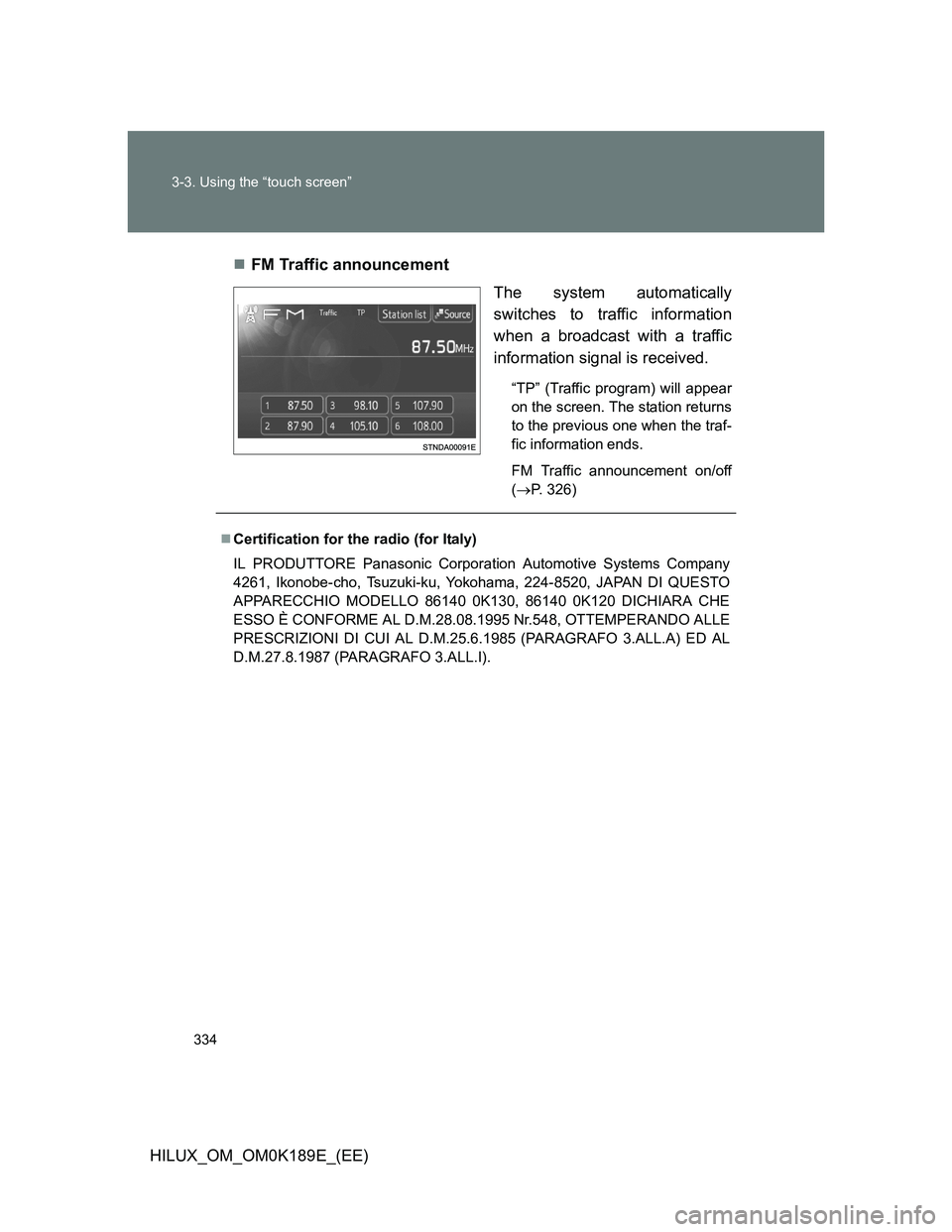

HILUX_OM_OM0K189E_(EE)FM Traffic announcement
The system automatically
switches to traffic information
when a broadcast with a traffic
information signal is received.
“TP” (Traffic program) will appear
on the screen. The station returns
to the previous one when the traf-
fic information ends.
FM Traffic announcement on/off
(P. 326)
Certification for the radio (for Italy)
IL PRODUTTORE Panasonic Corporation Automotive Systems Company
4261, Ikonobe-cho, Tsuzuki-ku, Yokohama, 224-8520, JAPAN DI QUESTO
APPARECCHIO MODELLO 86140 0K130, 86140 0K120 DICHIARA CHE
ESSO È CONFORME AL D.M.28.08.1995 Nr.548, OTTEMPERANDO ALLE
PRESCRIZIONI DI CUI AL D.M.25.6.1985 (PARAGRAFO 3.ALL.A) ED AL
D.M.27.8.1987 (PARAGRAFO 3.ALL.I).

335 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

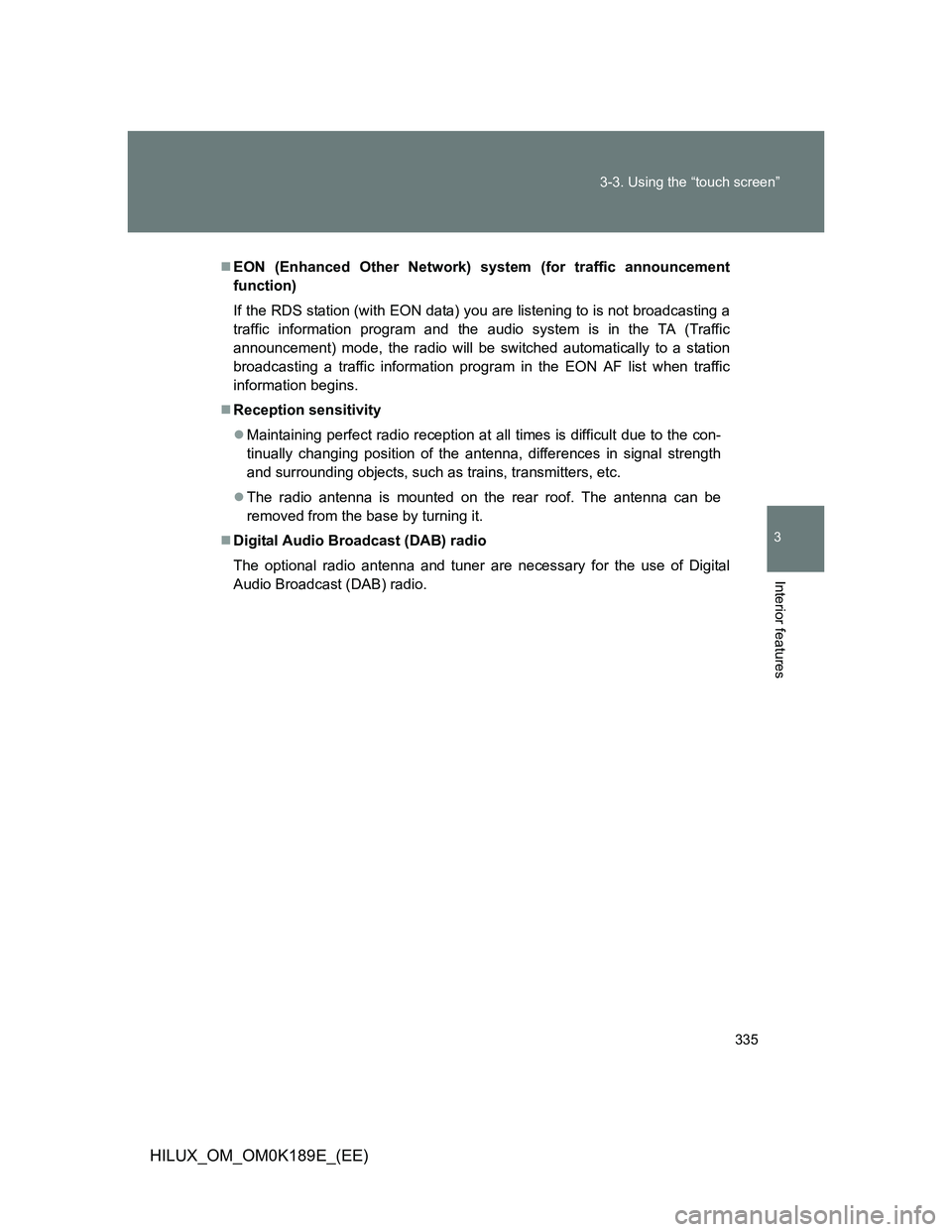

EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (Traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.

336
3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

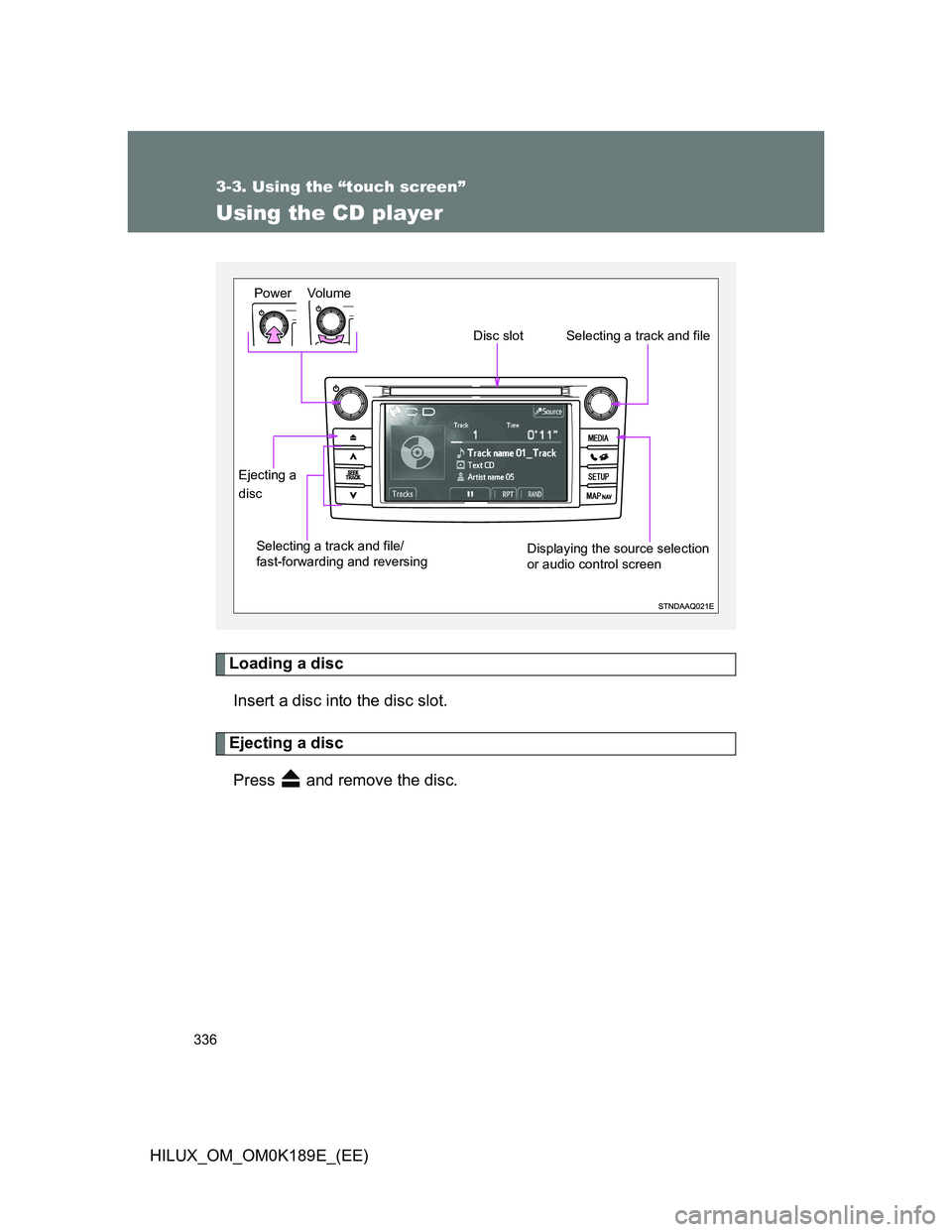

Using the CD player
Loading a disc
Insert a disc into the disc slot.
Ejecting a disc
Press and remove the disc.
Vo lu m e
Selecting a track and file/
fast-forwarding and reversingDisplaying the source selection
or audio control screen Power
Ejecting a
discSelecting a track and file Disc slot

337
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

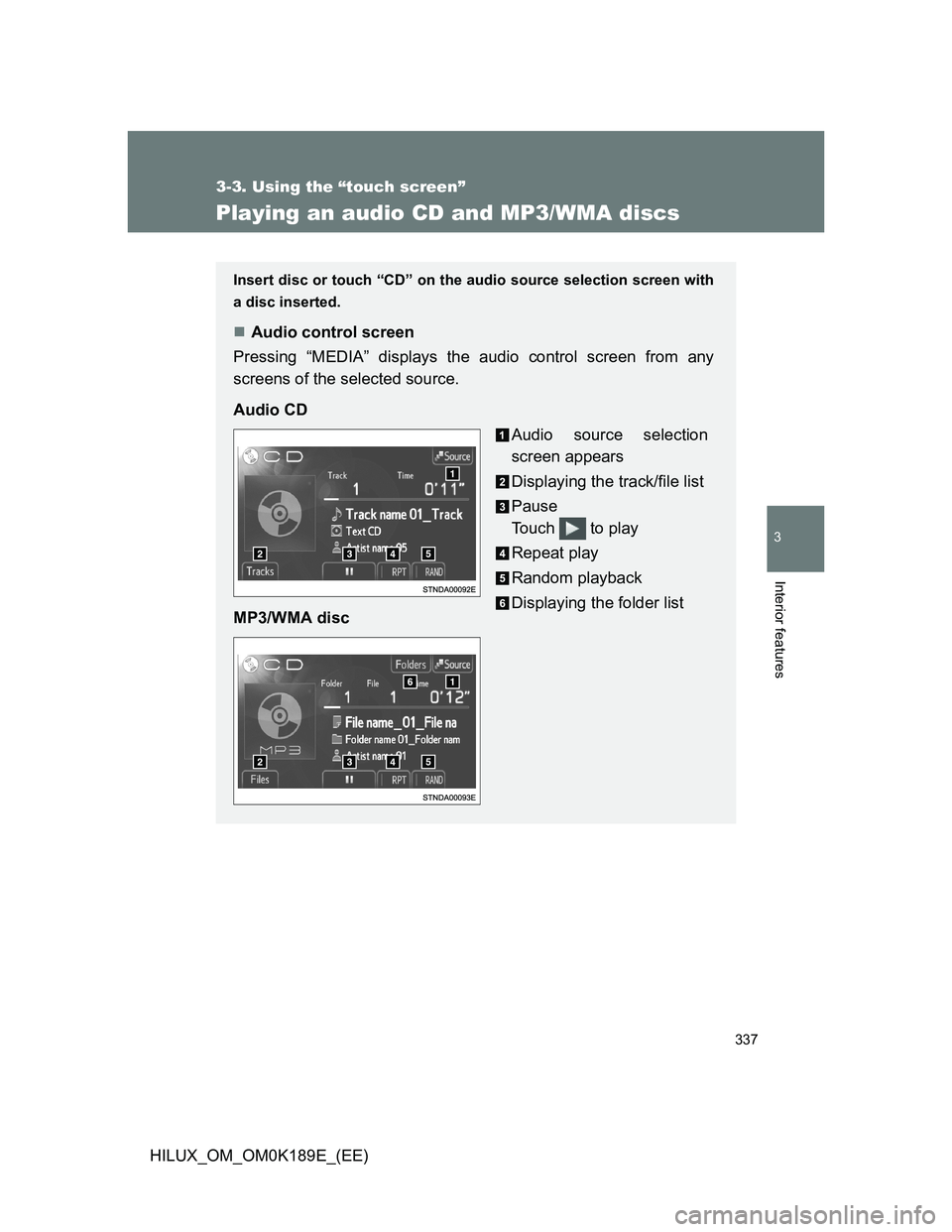

Playing an audio CD and MP3/WMA discs
Insert disc or touch “CD” on the audio source selection screen with
a disc inserted.
Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio CD
MP3/WMA discAudio source selection
screen appears
Displaying the track/file list
Pause
Touch to play
Repeat play
Random playback
Displaying the folder list

338 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

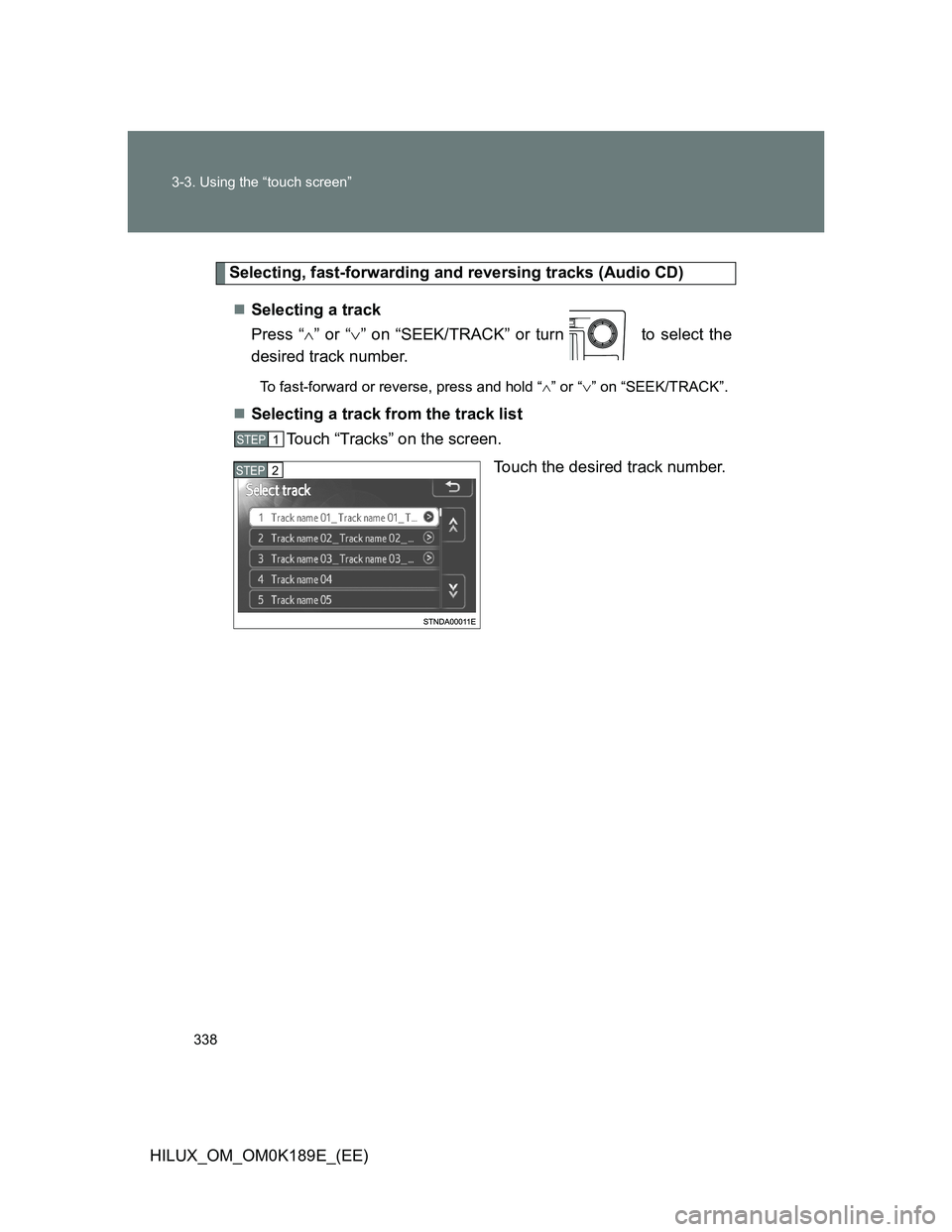

Selecting, fast-forwarding and reversing tracks (Audio CD)
Selecting a track
Press “” or “” on “SEEK/TRACK” or turn to select the
desired track number.
To fast-forward or reverse, press and hold “” or “” on “SEEK/TRACK”.
Selecting a track from the track list
Touch “Tracks” on the screen.
Touch the desired track number.
STEP1
STEP2

339 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

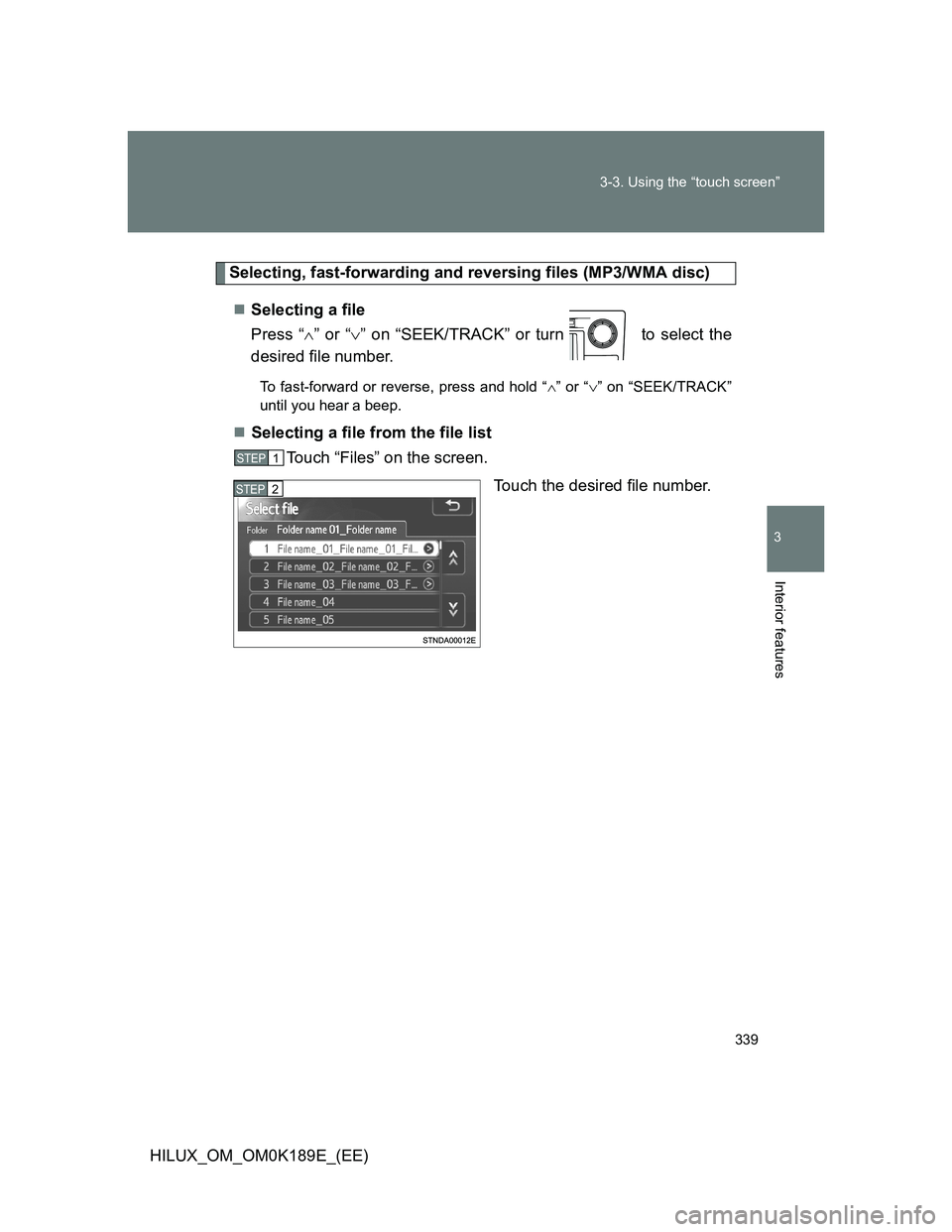

Selecting, fast-forwarding and reversing files (MP3/WMA disc)
Selecting a file
Press “” or “” on “SEEK/TRACK” or turn to select the
desired file number.
To fast-forward or reverse, press and hold “” or “” on “SEEK/TRACK”
until you hear a beep.
Selecting a file from the file list
Touch “Files” on the screen.
Touch the desired file number.
STEP1
STEP2

340 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

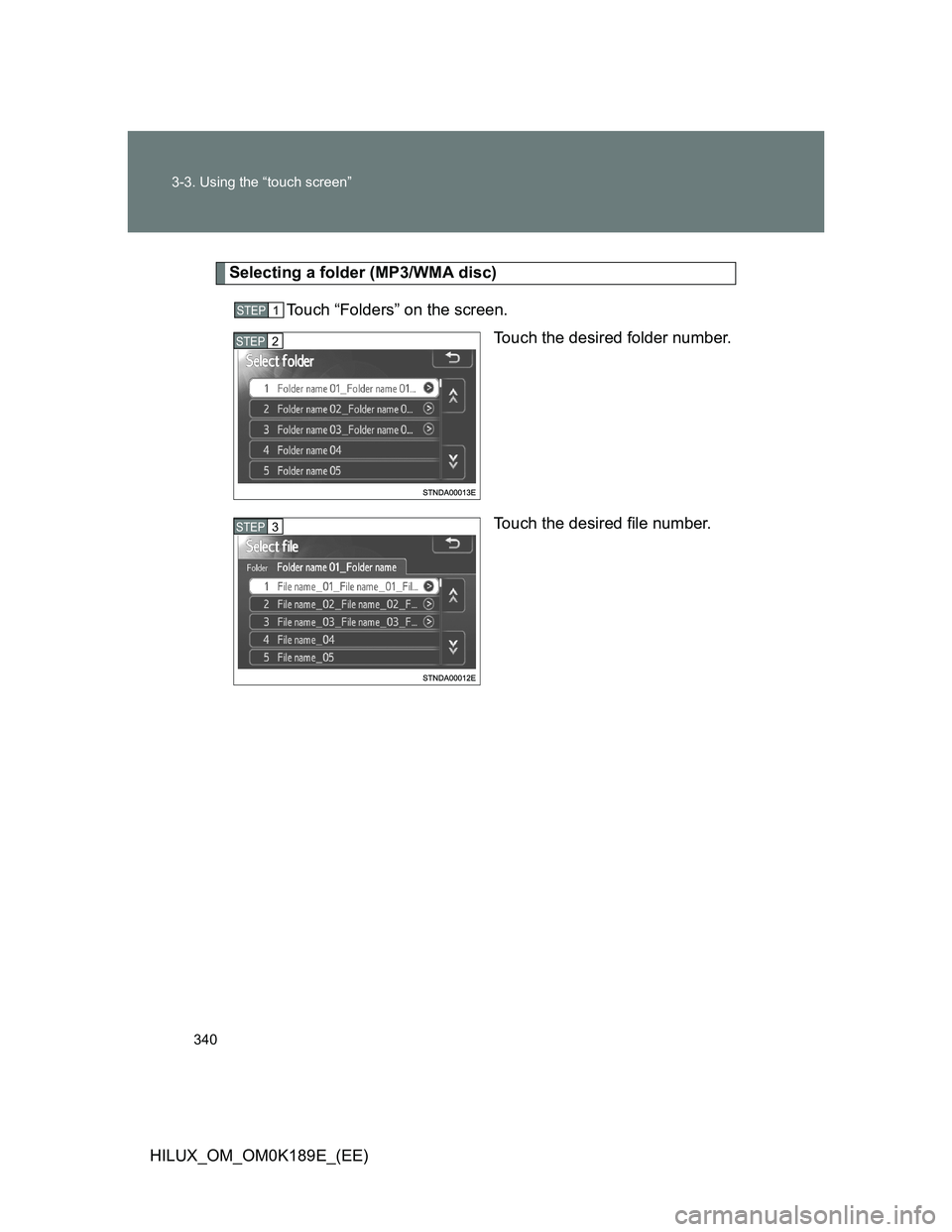

Selecting a folder (MP3/WMA disc)
Touch “Folders” on the screen.
Touch the desired folder number.
Touch the desired file number.
STEP1
STEP2
STEP3
