TOYOTA HILUX 2020 Owners Manual (in English)

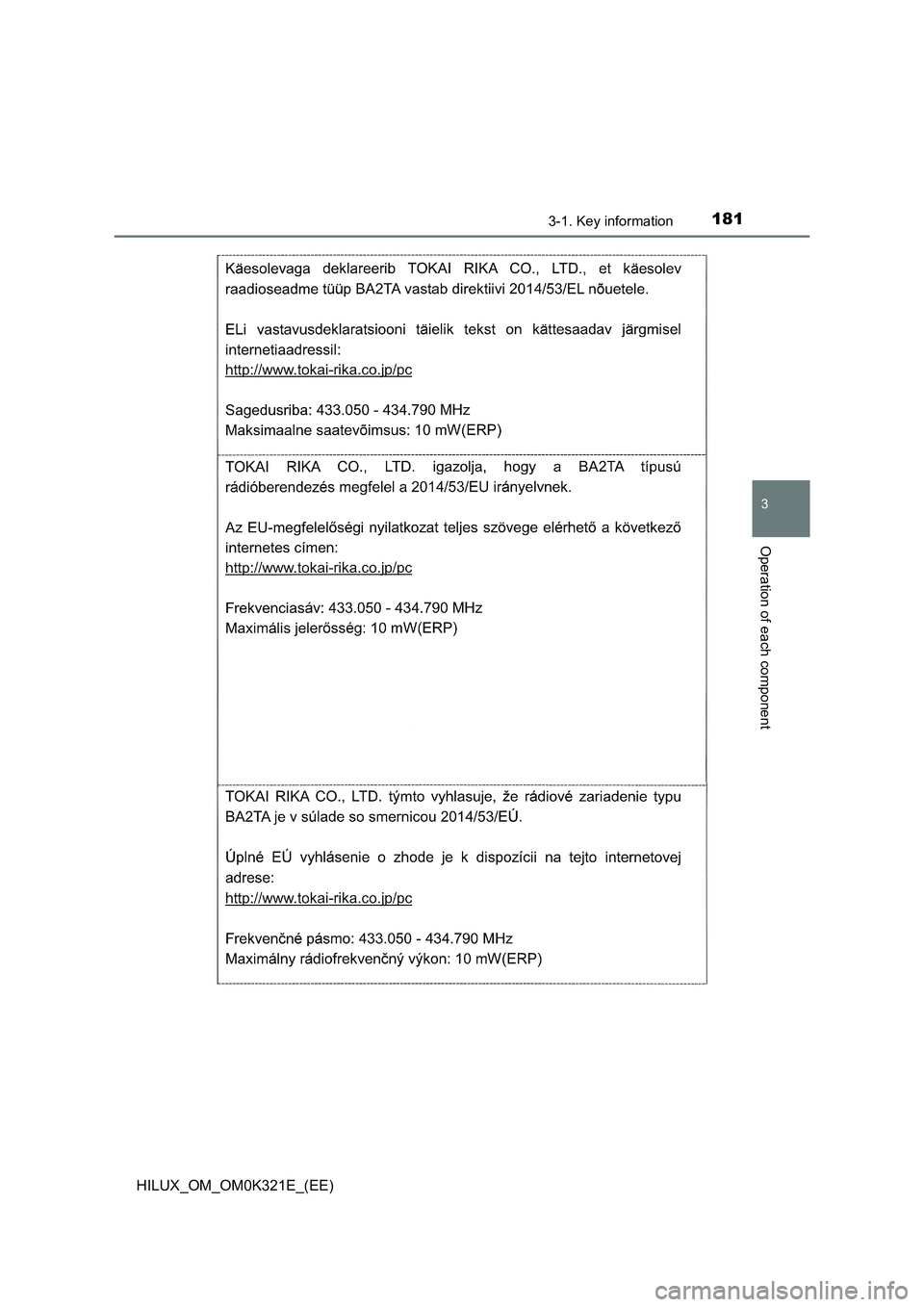

1813-1. Key information
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

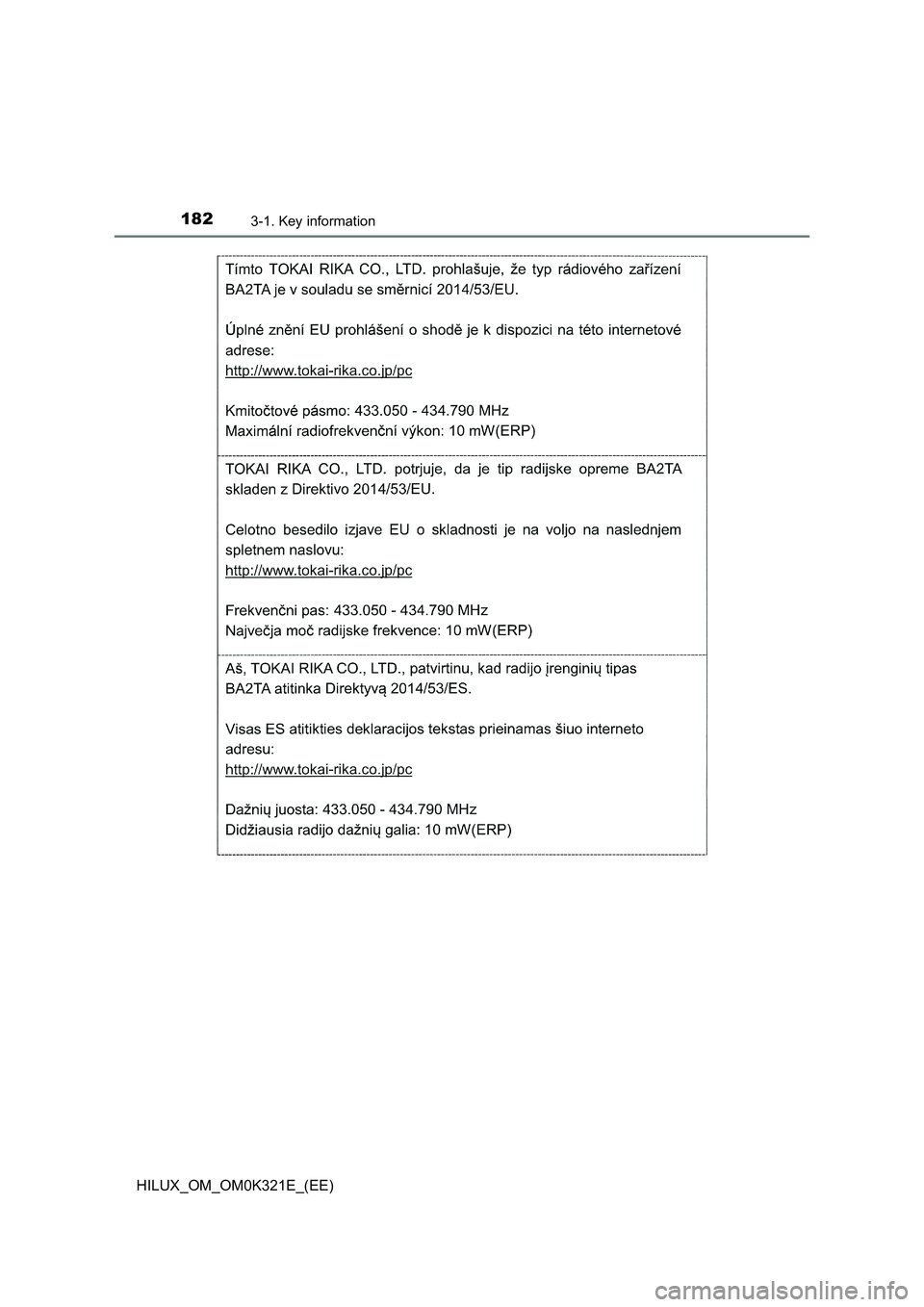

1823-1. Key information
HILUX_OM_OM0K321E_(EE)

1833-1. Key information
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

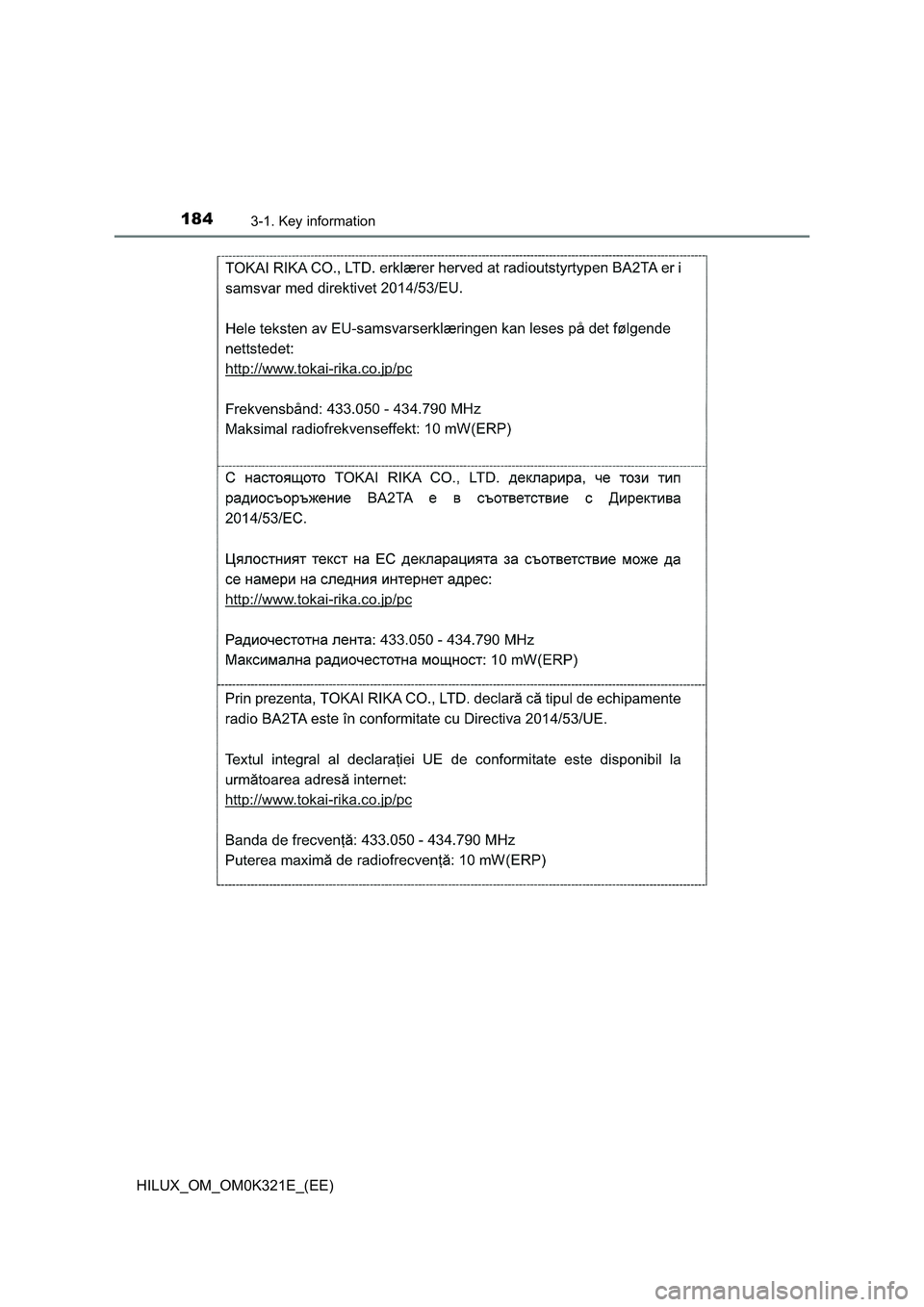

1843-1. Key information
HILUX_OM_OM0K321E_(EE)

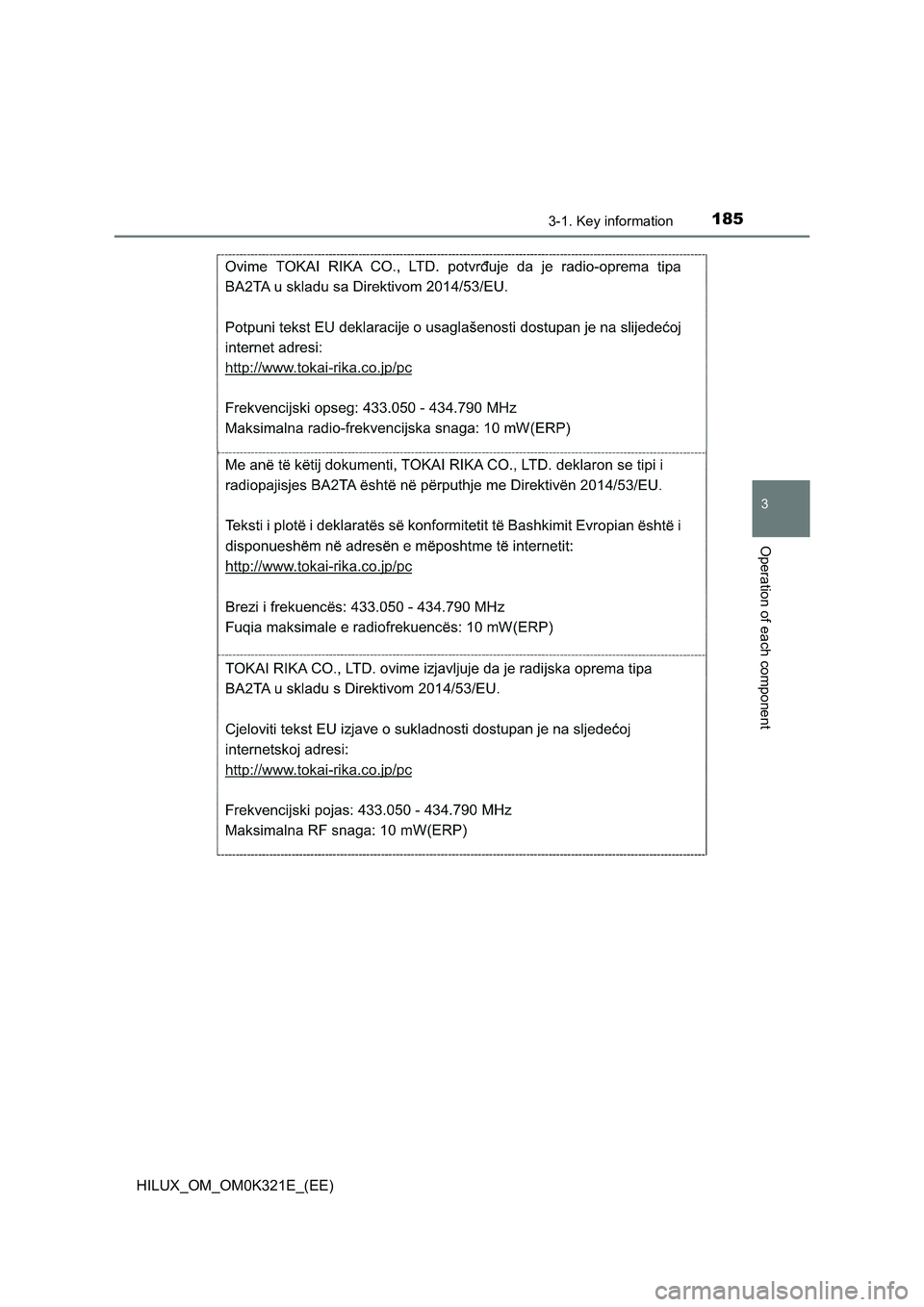

1853-1. Key information
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

1863-1. Key information
HILUX_OM_OM0K321E_(EE)
For vehicles sold in Serbia

1873-1. Key information
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

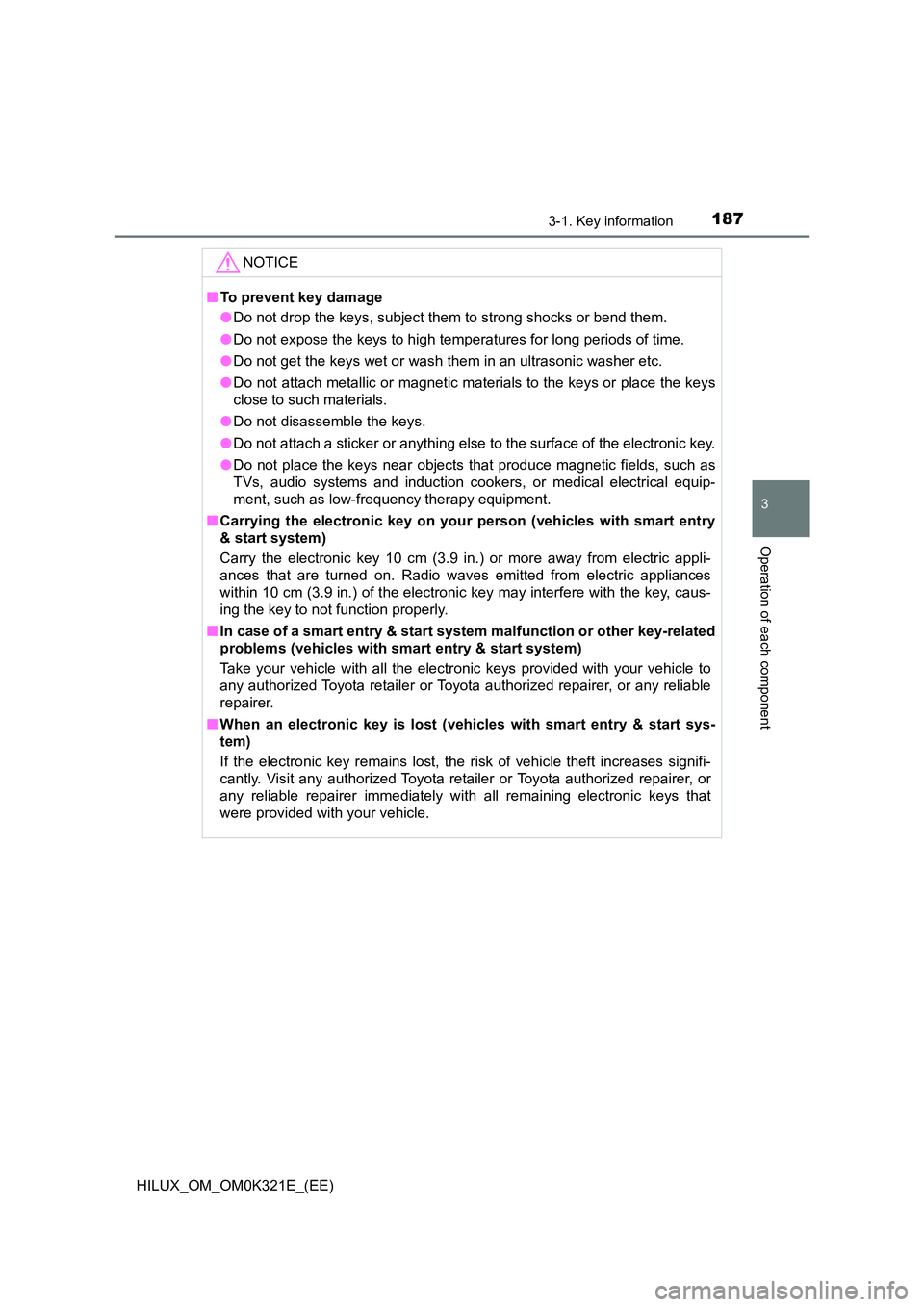

NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (vehicles with smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ When an electronic key is lost (vehicles with smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer imm ediately with all remaining electronic keys that
were provided with your vehicle.

1883-2. Opening, closing and locking the doors
HILUX_OM_OM0K321E_(EE)
Side doors
◆Smart entry & start system (if equipped)
While carrying the electronic
key, press the button to lock
and unlock.
After locking, check that the
door is securely locked.
◆Wireless remote control (if equipped)
Locks all the doors
Check that the door is securely locked.
Unlocks all the doors
The vehicle can be locked and unlocked using the entry func-
tion, wireless remote control, key or door lock switch.
Locking and unlocking the doors from outside
Vehicles without smart entry &
start system
Vehicles with smart entry &
start system
1
2

1893-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
◆Key
Vehicles without smart entry & start system
Vehicles without power door
lock system:
Locks the door
Unlocks the door
Vehicles with power door lock
system:
Locks all the doors
Unlocks all the doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 668)
■Operation signals
A buzzer (if equipped) sounds and the em ergency flashers flash to indicate
that the doors have been locked/unlocked using the smart entry & start sys-
tem or the wireless remote control. (Locked: once; Unlocked: twice)
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the smart entry & start system or the wireless remote control,
the security feature automatically locks the vehicle again.
■ Door lock buzzer (vehicles with wireless remote control and smart entry
& start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the entry function (vehicles with smart entry & start system) or the
wireless remote control (if equipped) does not operate properly
● Vehicles without smart entry & start system: Use the key to lock and unlock
the doors. ( P. 189)
● Vehicles with smart entry & start system: Use the mechanical key to lock
and unlock the doors. ( P. 668)
● Replace the battery with a new one if it is depleted. (P. 599)
1
2
1
2

1903-2. Opening, closing and locking the doors
HILUX_OM_OM0K321E_(EE)
■ Setting the alarm (if equipped)
Locking the doors will set the alarm system. ( P. 129)
■ If a symbol indicating one or more doors are open is shown on the multi-
information display (if equipped)
One or more of the doors is not fully closed. The system also indicates which
doors are not fully closed. If the vehicle reaches a speed of 5 km/h (3 mph),
master warning light flashes and a buzzer sounds to indicate that the door(s)
are not yet fully closed.
Make sure that all the doors are closed.
◆Door lock switch (if equipped)
Locks all the doors
Unlocks all the doors
◆Inside lock button
Locks the door
Unlocks the door
The driver’s door can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
Locking and unlocking the doors from inside
1
2
1
2
