TOYOTA HILUX 2020 (in English) Owner's Guide

31Pictorial index
HILUX_OM_OM0K321E_(EE)
Audio remote control switches*1, 2. . . . . . . . . . . . . . . . . . . P. 444
Talk switch*1, 2, 3
Meter control switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Vehicle-to-vehicle distance switch*1. . . . . . . . . . . . . . . . . . P. 375
LDA (Lane Departure Alert with Yaw Assist Function)
switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
“DISP” button*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Cruise control switch*1
Dynamic radar cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . P. 367
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 383
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 242
Telephone switches*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . P. 152, 486
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
*3: The switch can not be used depending on the type of
audio system or navigation system.
1
2
3
4
5
6
7
8
9

32Pictorial index
HILUX_OM_OM0K321E_(EE)
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 624
Front-wheel drive control switch*1 . . . . . . . . . . . . . . . . . . . P. 398
Power outlets*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Rear differential lock switch*1. . . . . . . . . . . . . . . . . . . . . . . P. 408
“DAC” (Downhill Assist Control system) switch*1 . . . . . . P. 430
VSC OFF switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Stop & Start cancel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 413
Seat heater switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
AUX port/USB port*1, 2
1
2
3
4
5
6
7
8
9

33Pictorial index
HILUX_OM_OM0K321E_(EE)
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 47
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Rear seats*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Console box*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 542
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Bottle holders*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
7
8
9
10

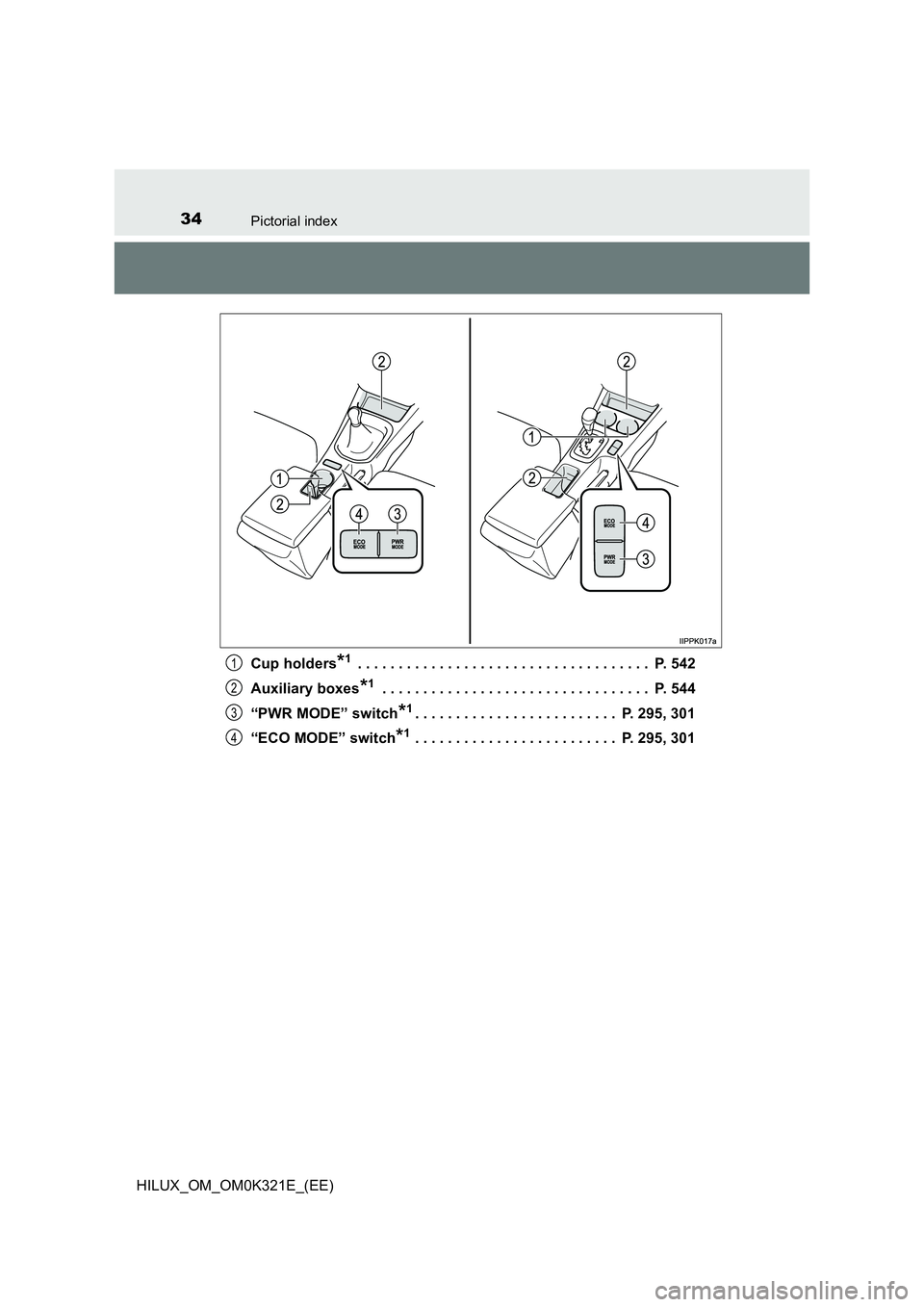

34Pictorial index
HILUX_OM_OM0K321E_(EE)
Cup holders*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 542
Auxiliary boxes*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
“PWR MODE” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . P. 295, 301
“ECO MODE” switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . P. 295, 301
1
2
3
4

35Pictorial index
HILUX_OM_OM0K321E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Vanity mirror*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 538
Interior lights*1, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 538
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 538
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
1
2
3
4
5
6
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 71)
*3: The illustration shows the front, but they are also equipped in the rear.

36Pictorial index
HILUX_OM_OM0K321E_(EE)

37
1For safety and security
HILUX_OM_OM0K321E_(EE)
1-1. For safe use
Before driving....................... 38
For safe driving .................... 40
Seat belts ............................. 42
SRS airbags......................... 47
Exhaust gas precautions ..... 58
1-2. Child safety
Front passenger occupant
classification system .......... 59
Airbag manual on-off
system ............................... 64
Riding with children.............. 66
Child restraint systems ........ 67
1-3. Emergency assistance
ERA-GLONASS/EVAK ...... 100
1-4. Theft deterrent system
Engine immobilizer
system ............................. 105
Alarm ................................. 129

381-1. For safe use
HILUX_OM_OM0K321E_(EE)

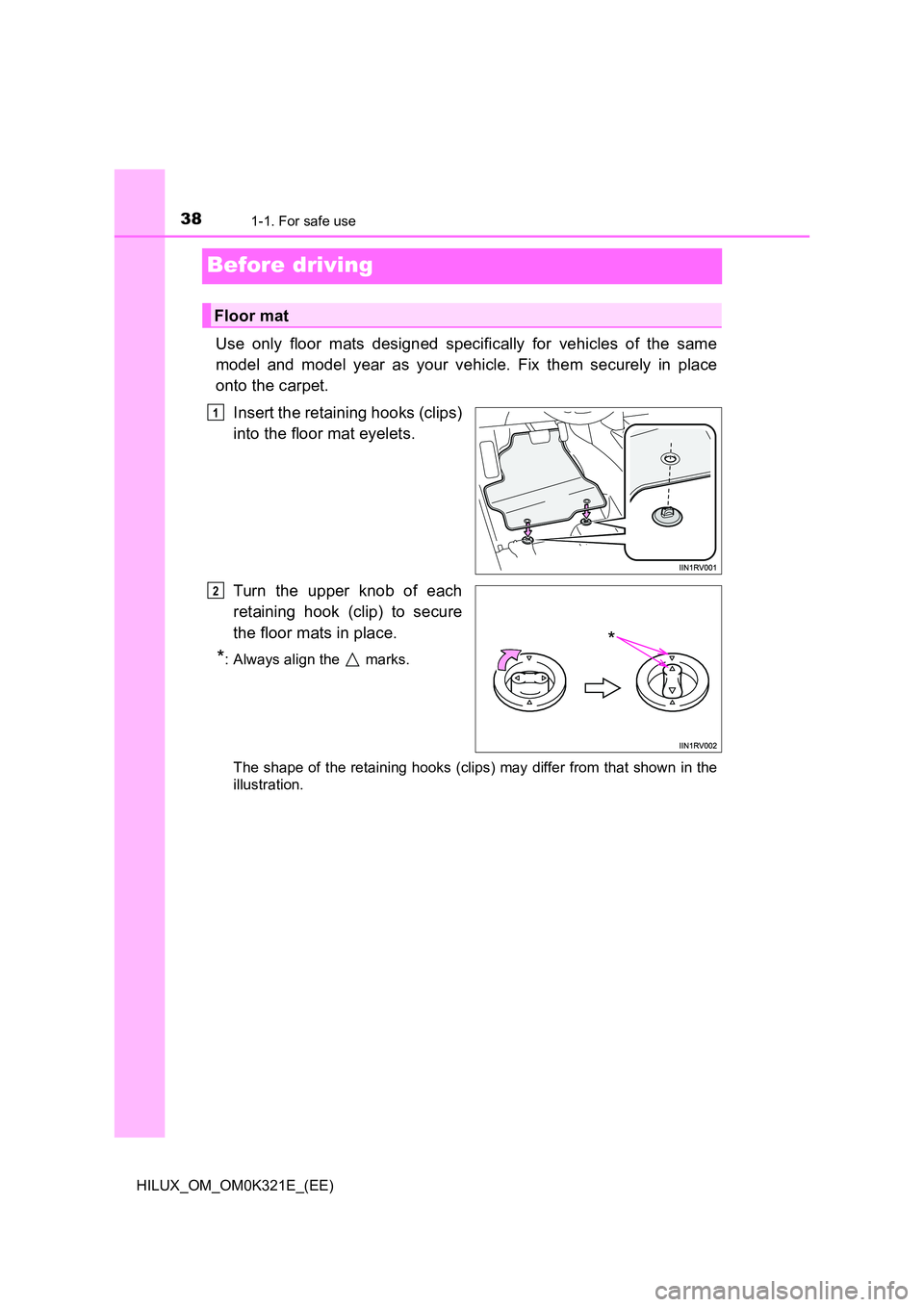

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

391-1. For safe use
1
HILUX_OM_OM0K321E_(EE)
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

401-1. For safe use
HILUX_OM_OM0K321E_(EE)
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 234)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 234)
Vehicles with adjustable type head restraint: Lock the head restraint
in place with the center of the head restraint closest to the top of
your ears. ( P. 239)
Wear the seat belt correctly. ( P. 4 2 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 4 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 7 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
