TOYOTA HILUX 2020 (in English) User Guide

11
HILUX_OM_OM0K321E_(EE)
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer before
you scrap your vehicle.
Scrapping of your Toyota
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impair ed your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

12
HILUX_OM_OM0K321E_(EE)
Check the model code to see what type of model your vehicle is.
Basic code
TGN16: Models with 2TR-FE engine
GUN16: Models with 1GD-FTV engine
GUN15: Models with 2GD-FTV engine
Driving system
2: 4WD models
3: Pre Runner (2WD models)
Cab type
B: Single-cab
C: Smart-cab
D: Double-cab
Made in
N: South Africa
T: Thailand
Checking your vehicle’s model
G U N 1 2 5 – D T T H W
3
1
42576
1
2
3
4

13
HILUX_OM_OM0K321E_(EE)

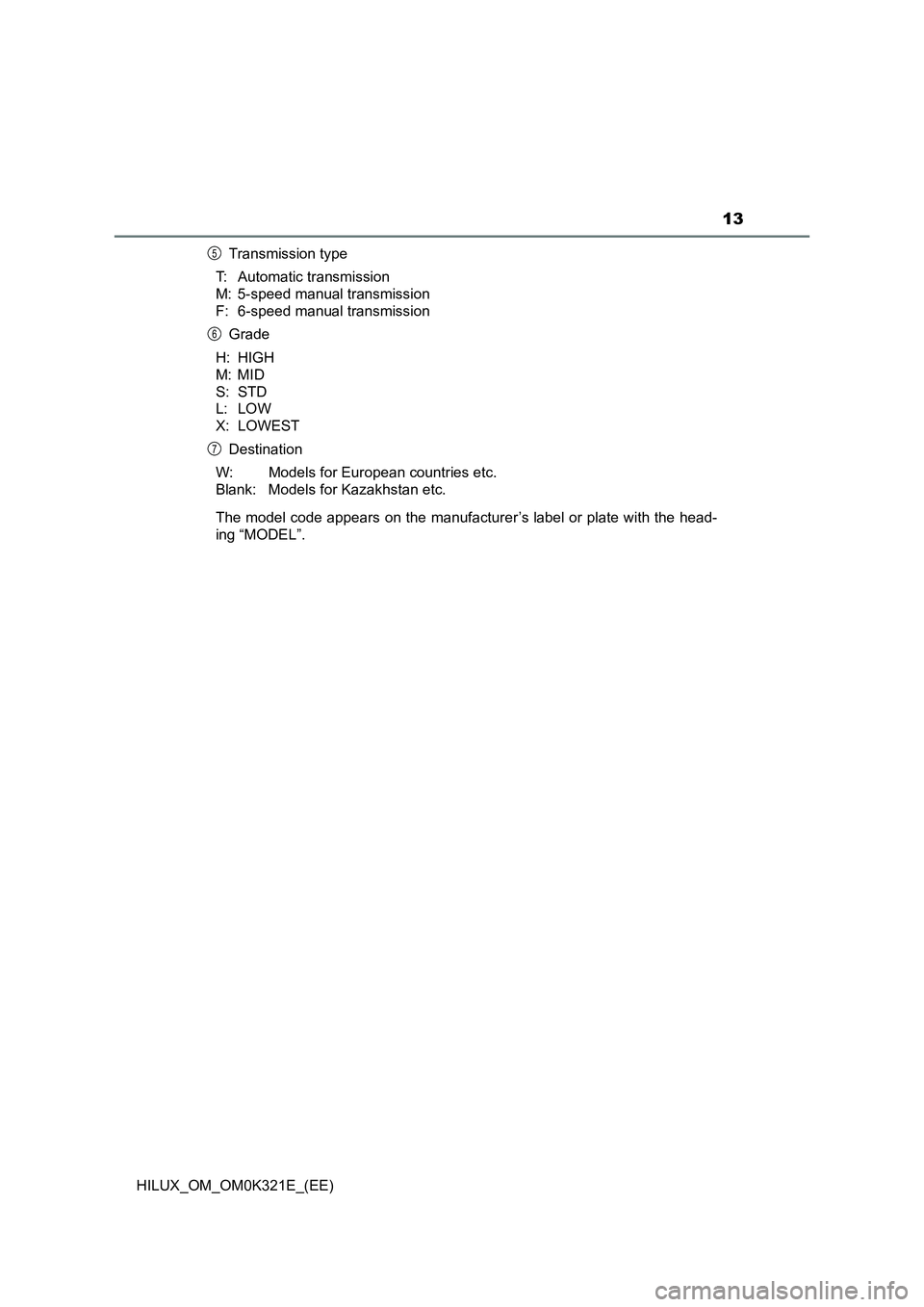

Transmission type
T: Automatic transmission
M: 5-speed manual transmission
F: 6-speed manual transmission
Grade
H: HIGH
M: MID
S: STD
L: LOW
X: LOWEST
Destination
W: Models for European countries etc.
Blank: Models for Kazakhstan etc.
The model code appears on the manufacturer’s label or plate with the head-
ing “MODEL”.
5
6
7

14
HILUX_OM_OM0K321E_(EE)

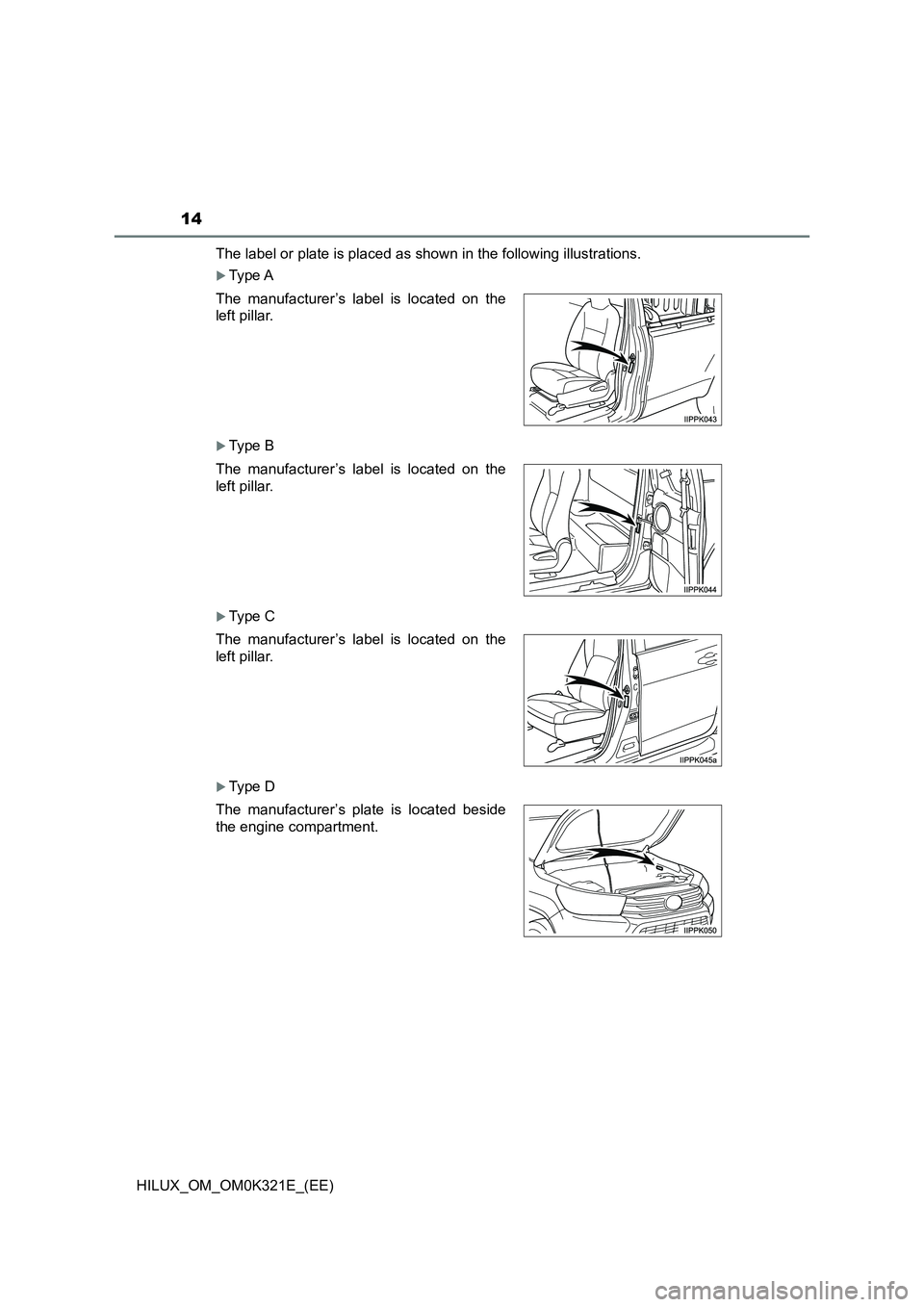

The label or plate is placed as shown in the following illustrations.
Type A
Type B
Type C
Type D
The manufacturer’s label is located on the
left pillar.
The manufacturer’s label is located on the
left pillar.
The manufacturer’s label is located on the
left pillar.
The manufacturer’s plate is located beside
the engine compartment.

15
HILUX_OM_OM0K321E_(EE)

16
HILUX_OM_OM0K321E_(EE)

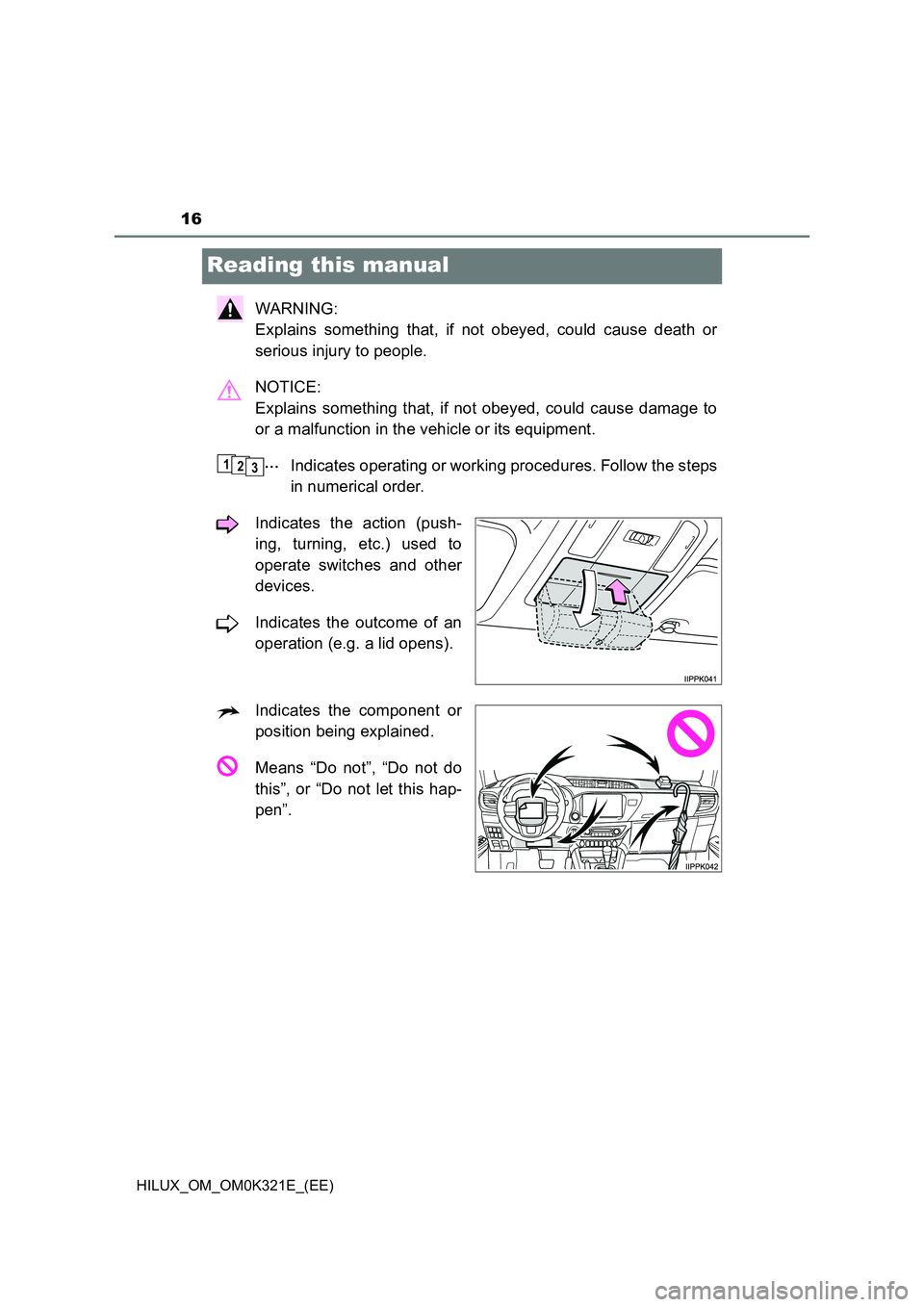

Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

17
HILUX_OM_OM0K321E_(EE)
How to search
■Searching by name
• Alphabetical index ...... P. 732
■Searching by installation
position
• Pictorial index ............... P. 18
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 728
■Searching by title
• Table of contents ............ P. 2

18Pictorial index
HILUX_OM_OM0K321E_(EE)
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. ( P. 607)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Access panels (smart-cab models only) . . . . . . . . . . . . . . . P. 194
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 248
Locking/unlocking by using the mechanical key*1 . . . . . . . . . P. 668
Warning lights*1/warning messages*1 . . . . . . . . . . . . . . P. 190, 638
Ta i l g a t e*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Defogging the mirrors*1 . . . . . . . . . . . . . . . . . . . . . . . . . P. 519, 528
1
2
3

19Pictorial index
HILUX_OM_OM0K321E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 438
To prevent freezing (windshield wiper de-icer)*1. . . . . . . . . . . P. 520
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 695
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 590
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 711
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 438
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 591
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 649
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 696
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 678
Camera*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Front position lights/daytime running lights*1. . . . . . . . . . P. 308
Front fog lights*1/rear fog light*1, 2. . . . . . . . . . . . . . . . . . . P. 315
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 430
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Back-up lights*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 293, 300
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 607, Watts: P. 714)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17

20Pictorial index
HILUX_OM_OM0K321E_(EE)
■Instrument panel (Left-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 282, 285
Starting the engine/changing the positions or modes . . . P. 282, 285
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 625
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 666
Warning messages*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 643
Shift lever (Automatic transmission) . . . . . . . . . . . . . . . . . . P. 293
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 298
Shift lever (Manual transmission) . . . . . . . . . . . . . . . . . . . . P. 300
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
1
2
