5707-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
Engine compartment
Gasoline engine
Engine coolant reservoir
( P. 576)
Engine oil level dipstick
( P. 573)
Engine oil filler cap ( P. 574)
Fuse box ( P. 602)
Battery ( P. 578)
Washer fluid tank ( P. 582)
Condenser ( P. 577)
Radiator ( P. 577)
1
2
3
4
5
6
7
8

5717-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care
Diesel engine (vehicles without water-cooled intercooler)
Battery (if equipped)
( P. 578)
Engine coolant reservoir
( P. 576)
Engine oil filler cap ( P. 574)
Engine oil level dipstick
( P. 573)
AdBlue™ tank cap
(if equipped) ( P. 585)
Fuel filter ( P. 583, 682)
Fuse box ( P. 602)
Battery ( P. 578)
Washer fluid tank ( P. 582)
Intercooler ( P. 577)
Radiator ( P. 577)
Condenser (if equipped)
( P. 577)
1
2
3
4
5
6
7
8
9
10
11
12

5727-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
Diesel engine (vehicles with water-cooled intercooler)
Engine coolant reservoir
( P. 576)
Engine oil filler cap ( P. 574)
Engine oil level dipstick
( P. 573)
AdBlue™ tank cap ( P. 585)
Fuel filter ( P. 583, 682)
Fuse box ( P. 602)
Battery ( P. 578)
Washer fluid tank ( P. 582)
Intercooler coolant reservoir
( P. 576)
Intercooler cooling radiator
( P. 577)
Radiator ( P. 577)
Condenser (if equipped)
( P. 577)
1
2
3
4
5
6
7
8
9
10
11
12

6027-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)

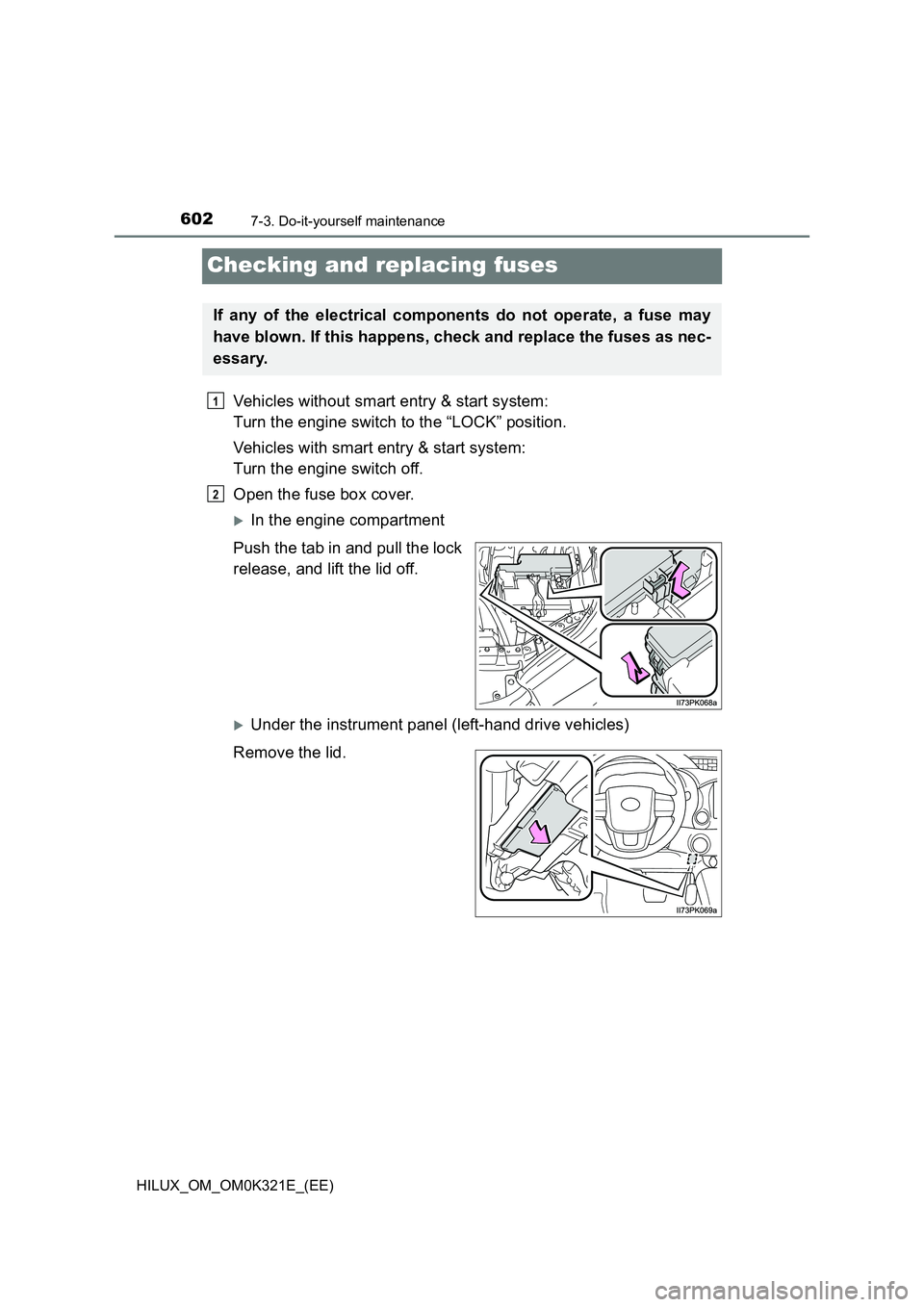

Checking and replacing fuses
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the engine switch off.
Open the fuse box cover.
In the engine compartment
Push the tab in and pull the lock
release, and lift the lid off.
Under the instrument panel (left-hand drive vehicles)
Remove the lid.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

6057-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care

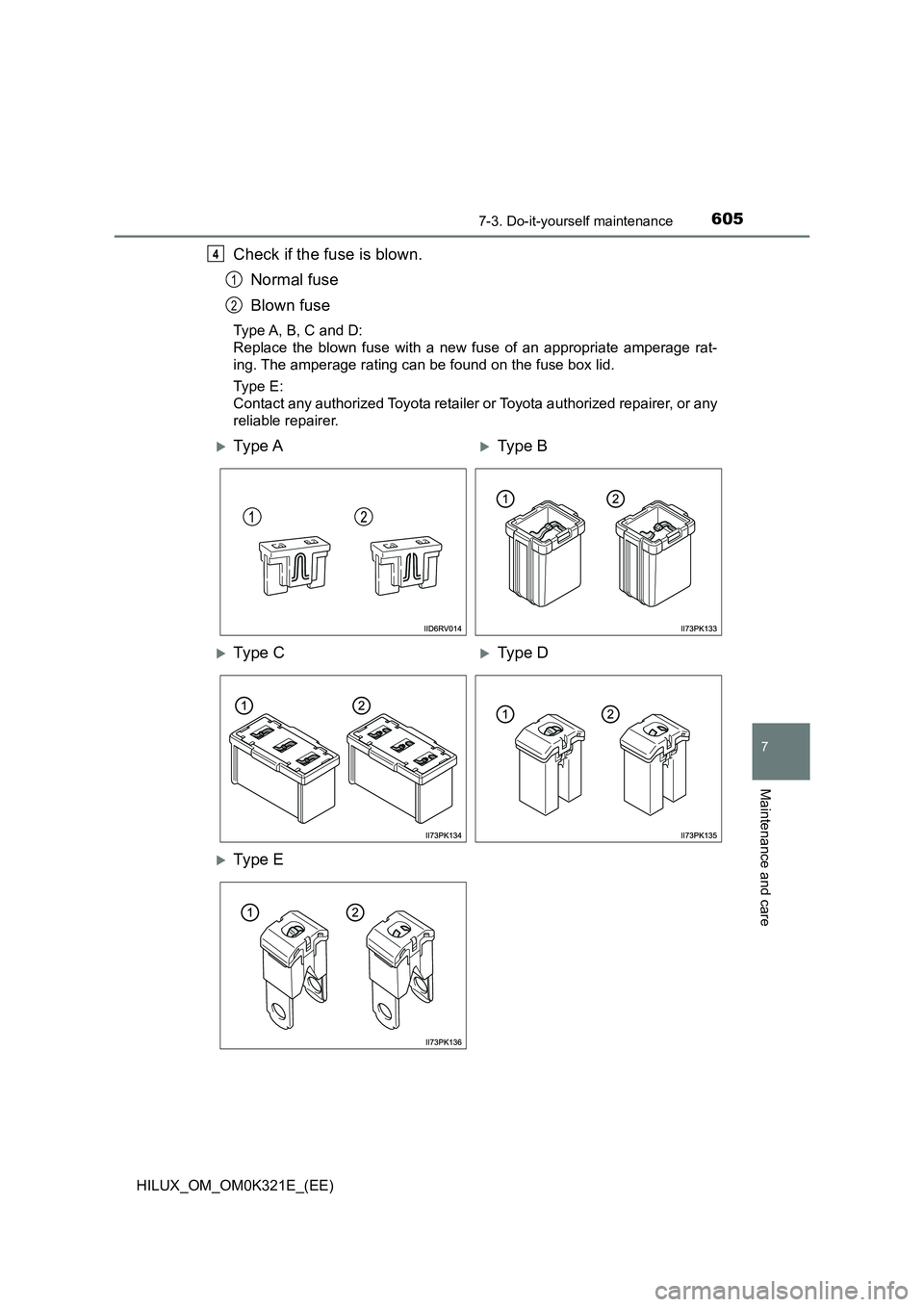

Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D
Ty pe E

6067-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)

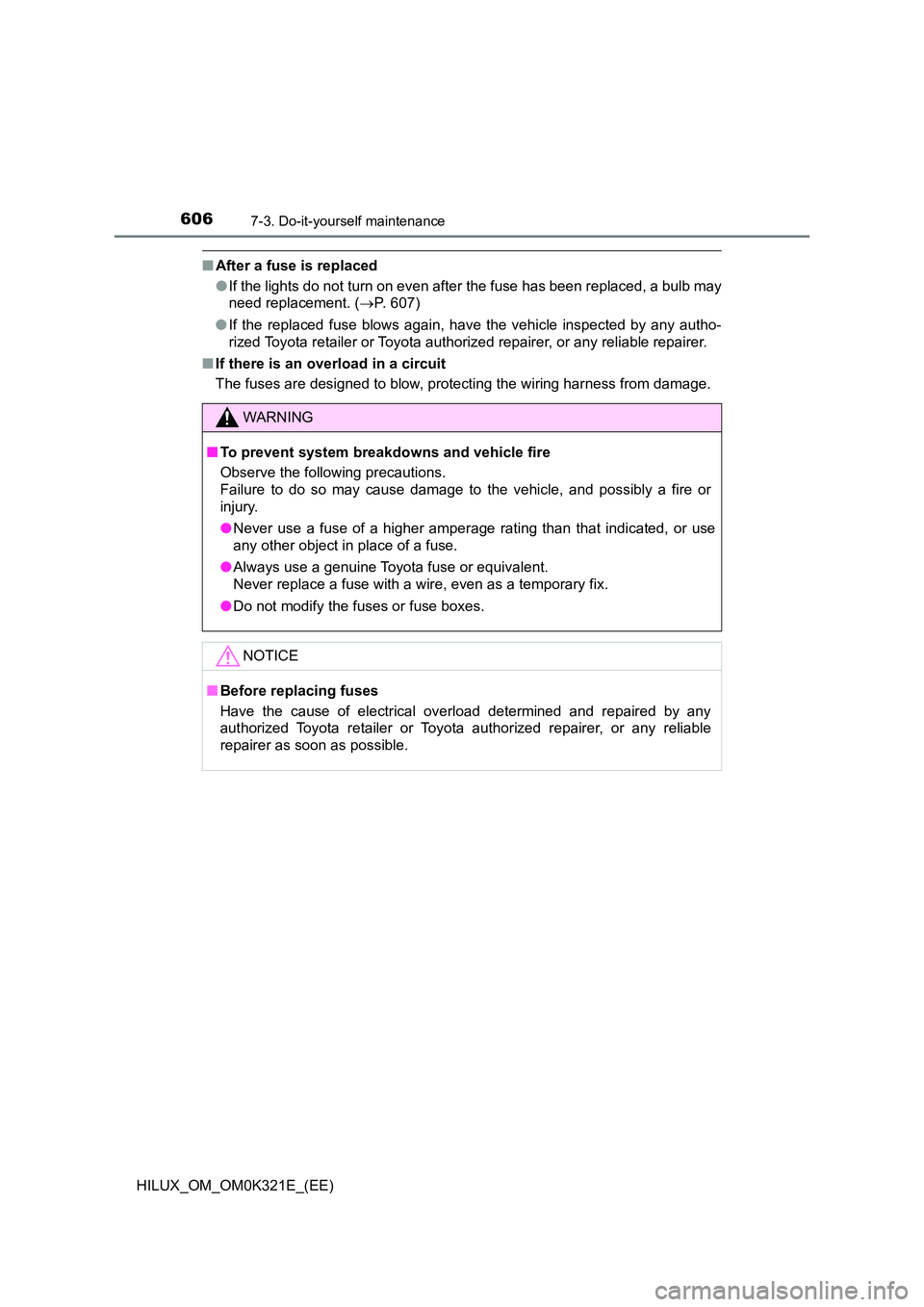

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 607)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
