TOYOTA HILUX 2021 Owners Manual (in English)

4095-6. Using Bluetooth® devices
5
Audio system
HILUX_OM_OM0K513E_(EE)

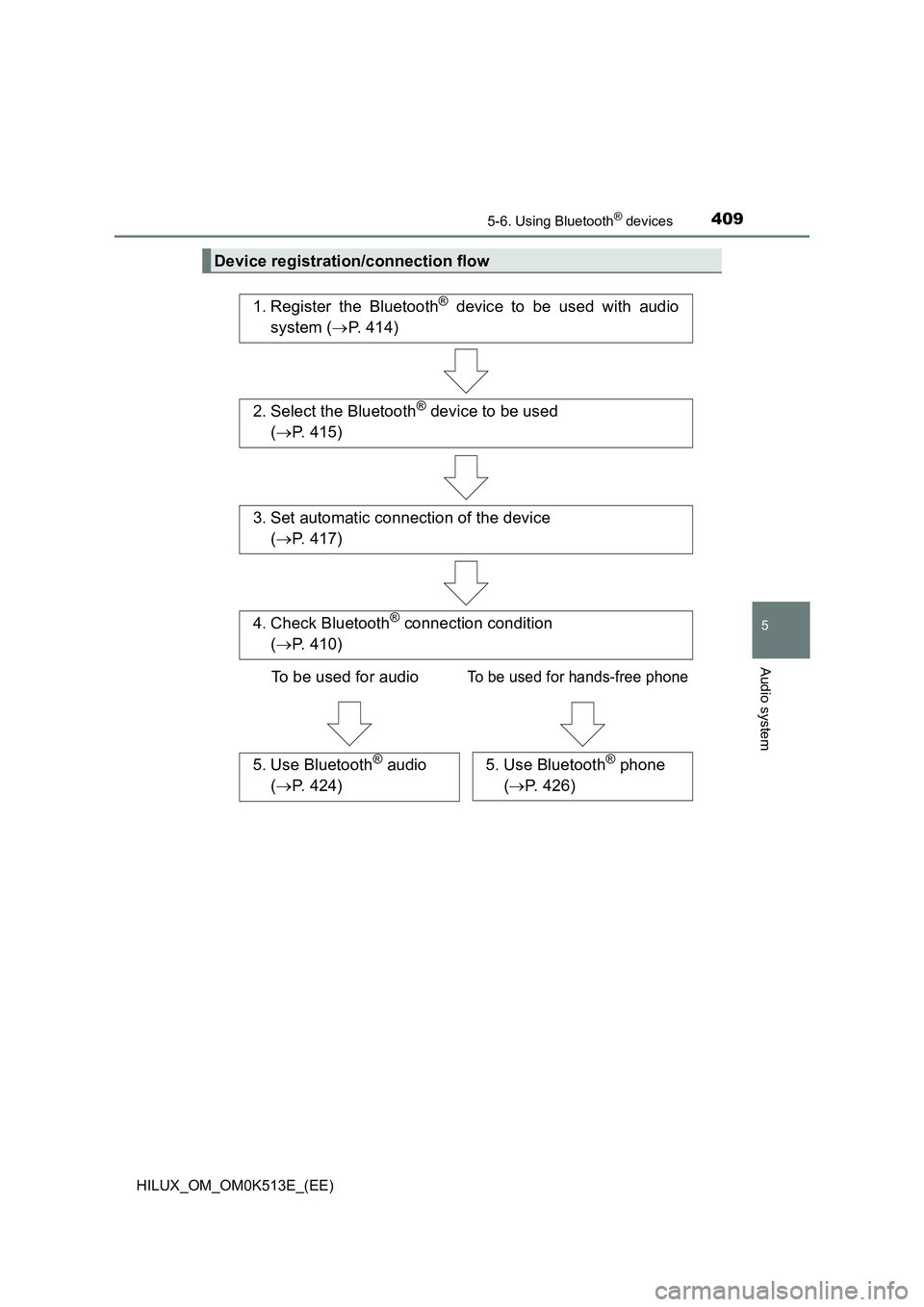

Device registration/connection flow
1. Register the Bluetooth® device to be used with audio
system ( P. 414)
2. Select the Bluetooth® device to be used
( P. 415)
5. Use Bluetooth® audio
( P. 424)
5. Use Bluetooth® phone
( P. 426)
3. Set automatic connection of the device
( P. 417)
4. Check Bluetooth® connection condition
( P. 410)
To be used for audioTo be used for hands-free phone

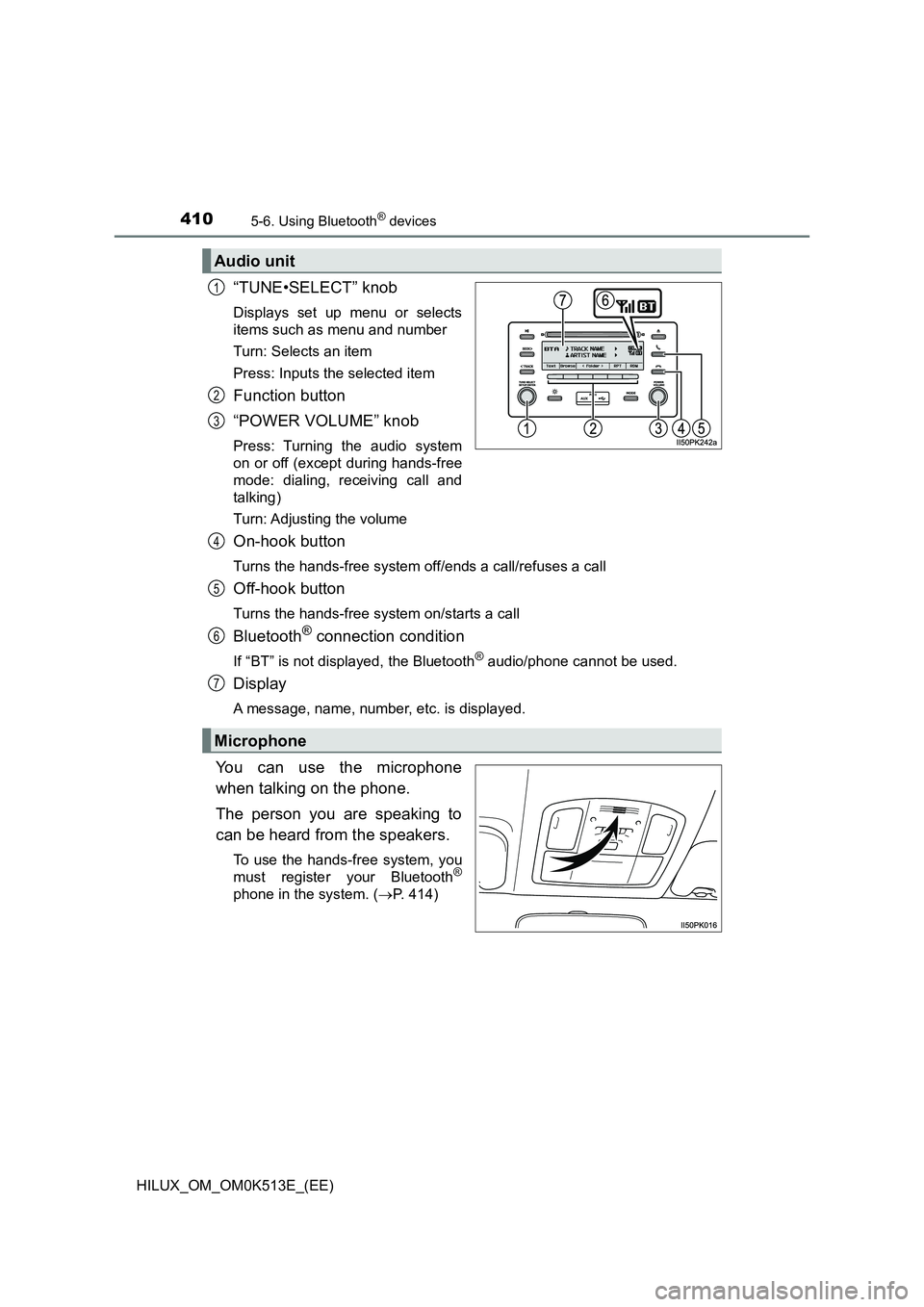

4105-6. Using Bluetooth® devices
HILUX_OM_OM0K513E_(EE)
“TUNE•SELECT” knob
Displays set up menu or selects
items such as menu and number
Turn: Selects an item
Press: Inputs the selected item
Function button
“POWER VOLUME” knob
Press: Turning the audio system
on or off (except during hands-free
mode: dialing, receiving call and
talking)
Turn: Adjusting the volume
On-hook button
Turns the hands-free system off/ends a call/refuses a call
Off-hook button
Turns the hands-free system on/starts a call
Bluetooth® connection condition
If “BT” is not displayed, the Bluetooth® audio/phone cannot be used.
Display
A message, name, number, etc. is displayed.
You can use the microphone
when talking on the phone.
The person you are speaking to
can be heard from the speakers.
To use the hands-free system, you
must register your Bluetooth®
phone in the system. ( P. 414)
Audio unit
1
2
3
Microphone
4
5
6
7

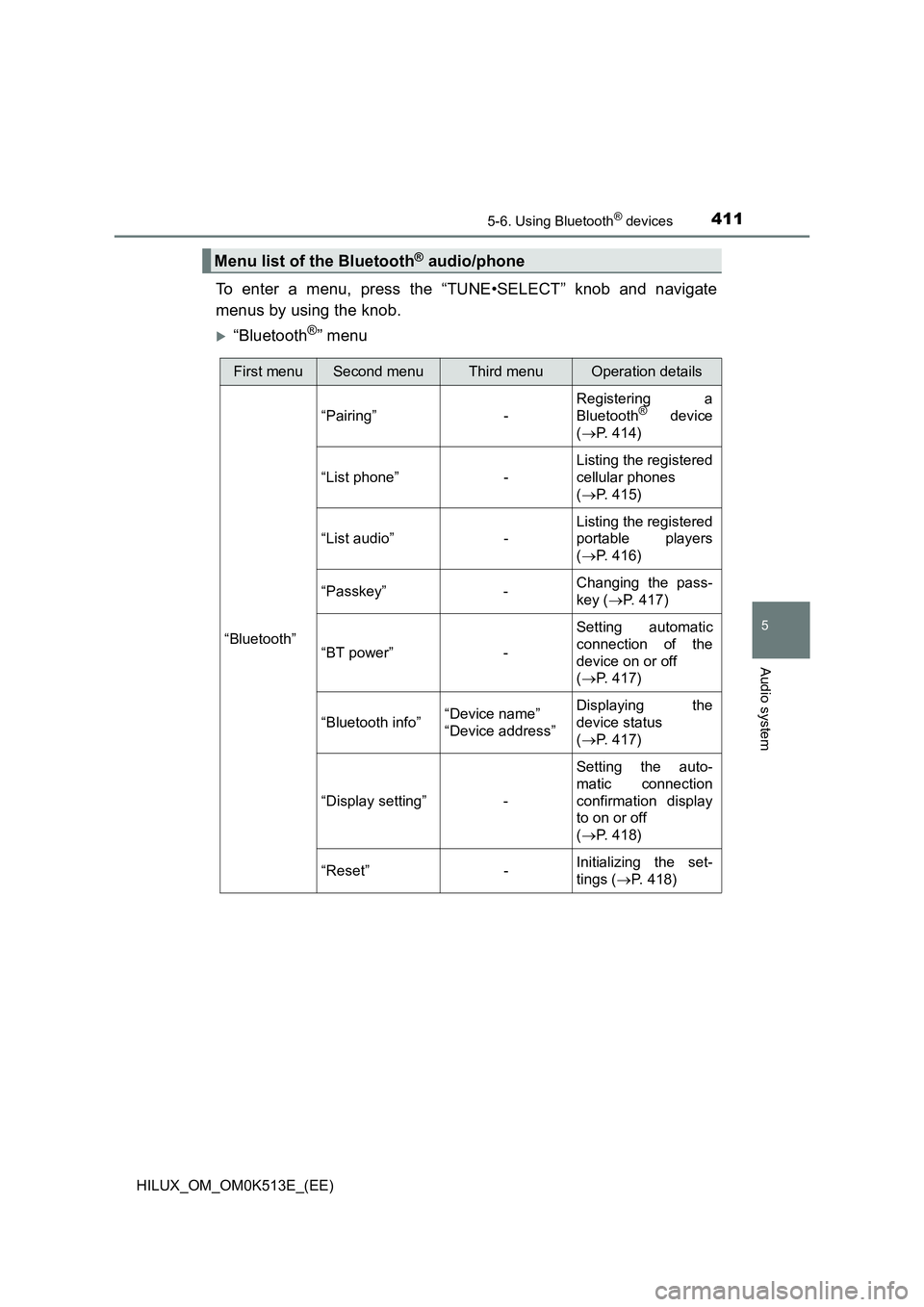

4115-6. Using Bluetooth® devices
5
Audio system
HILUX_OM_OM0K513E_(EE)
To enter a menu, press the “TUNE•SELECT” knob and navigate
menus by using the knob.
“Bluetooth®” menu
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth”
“Pairing”-
Registering a
Bluetooth® device
( P. 414)
“List phone”-
Listing the registered
cellular phones
( P. 415)
“List audio” -
Listing the registered
portable players
( P. 416)
“Passkey” -Changing the pass-
key ( P. 417)
“BT power” -
Setting automatic
connection of the
device on or off
( P. 417)
“Bluetooth info”“Device name”
“Device address”
Displaying the
device status
( P. 417)
“Display setting” -
Setting the auto-
matic connection
confirmation display
to on or off
( P. 418)
“Reset” -Initializing the set-
tings ( P. 418)

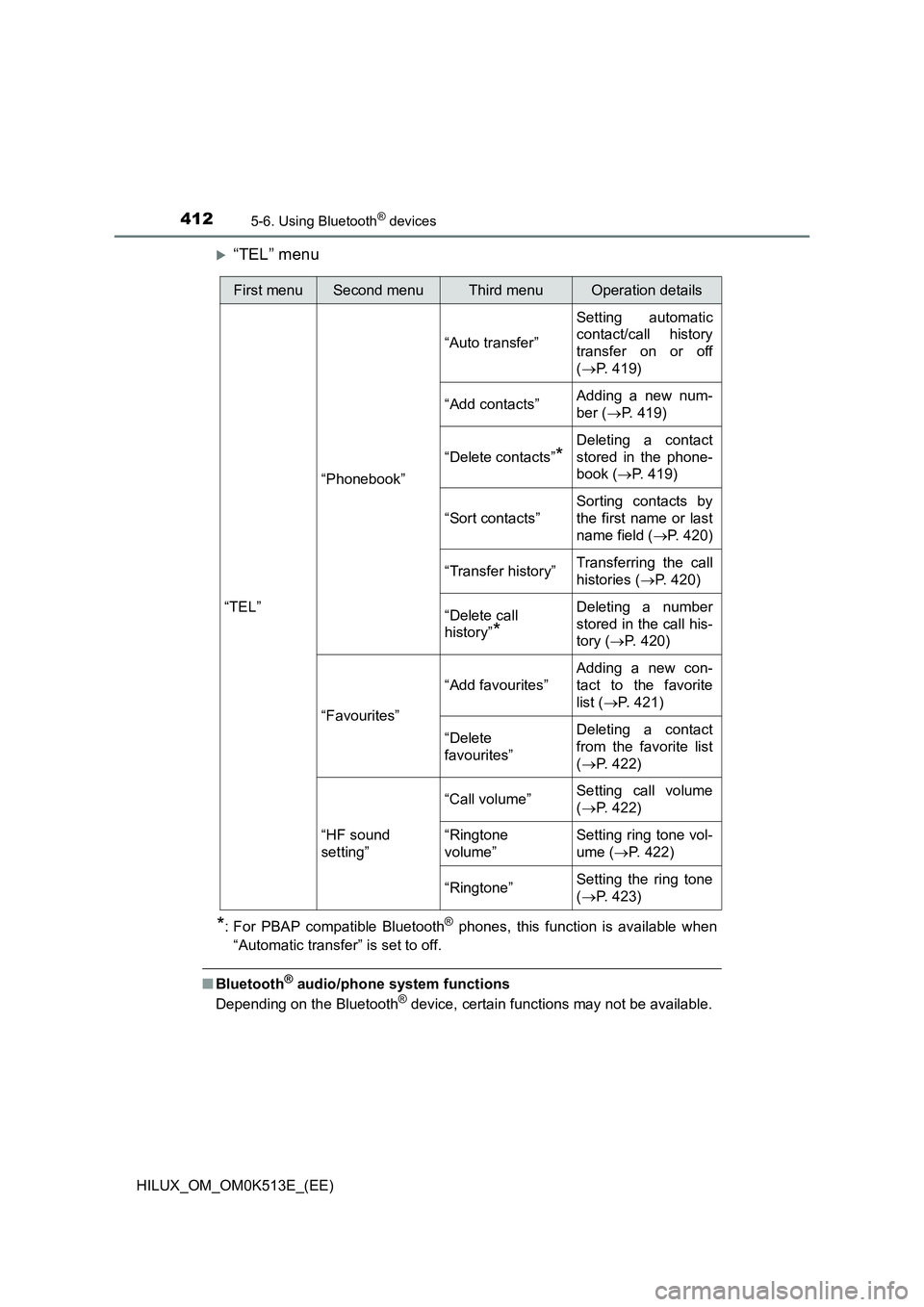

4125-6. Using Bluetooth® devices
HILUX_OM_OM0K513E_(EE)
“TEL” menu
*: For PBAP compatible Bluetooth® phones, this function is available when
“Automatic transfer” is set to off.
Q Bluetooth® audio/phone system functions
Depending on the Bluetooth® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
“TEL”
“Phonebook”
“Auto transfer”
Setting automatic
contact/call history
transfer on or off
( P. 419)
“Add contacts”Adding a new num-
ber ( P. 419)
“Delete contacts”*
Deleting a contact
stored in the phone-
book ( P. 419)
“Sort contacts”
Sorting contacts by
the first name or last
name field ( P. 420)
“Transfer history”Transferring the call
histories ( P. 420)
“Delete call
history”*
Deleting a number
stored in the call his-
tory ( P. 420)
“Favourites”
“Add favourites”
Adding a new con-
tact to the favorite
list ( P. 421)
“Delete
favourites”
Deleting a contact
from the favorite list
( P. 422)
“HF sound
setting”
“Call volume”Setting call volume
( P. 422)
“Ringtone
volume”
Setting ring tone vol-
ume ( P. 422)
“Ringtone”Setting the ring tone
( P. 423)

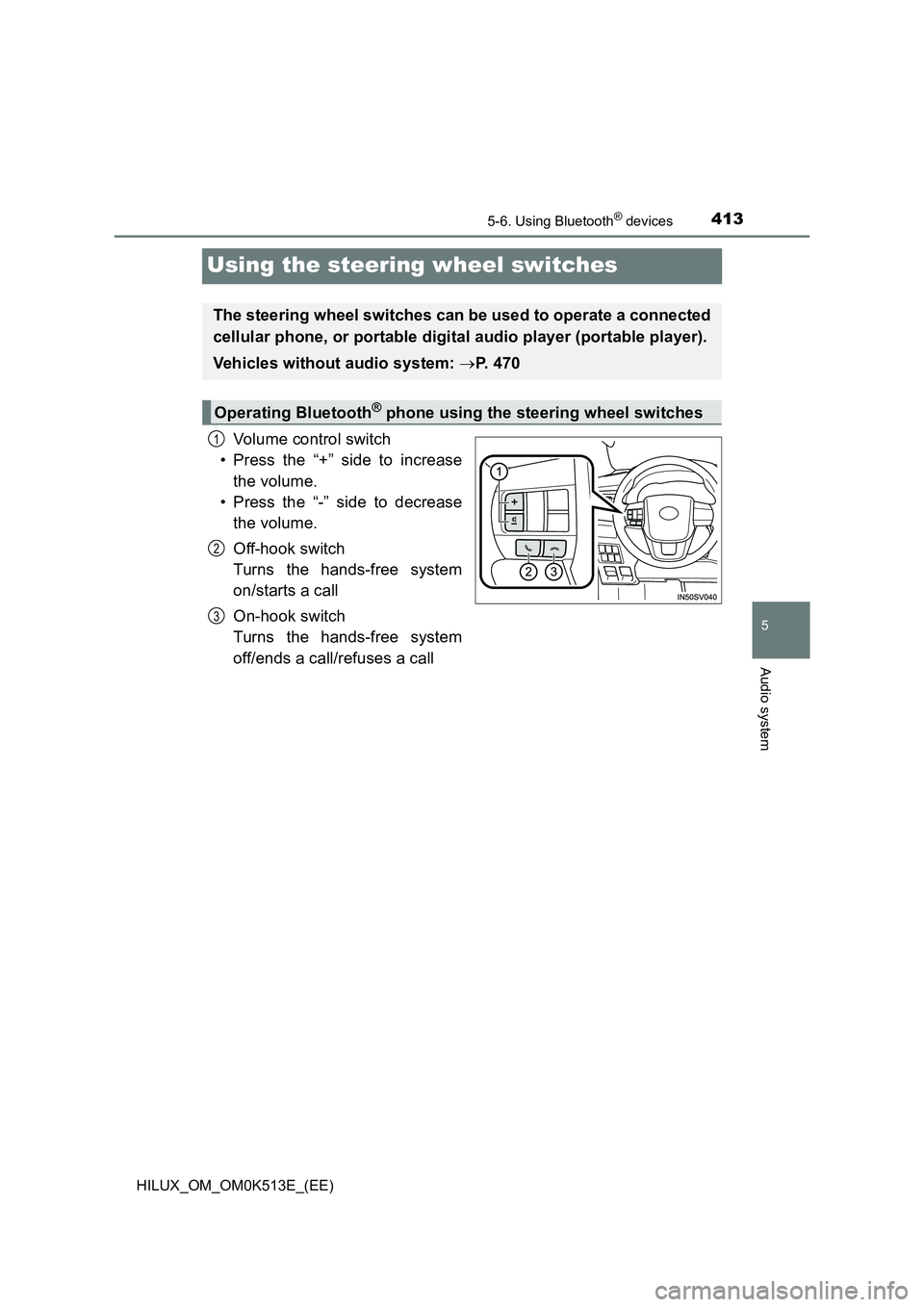

413
5
5-6. Using Bluetooth® devices
Audio system
HILUX_OM_OM0K513E_(EE)
Using the steering wheel switches
Volume control switch
• Press the “+” side to increase
the volume.
• Press the “-” side to decrease
the volume.
Off-hook switch
Turns the hands-free system
on/starts a call
On-hook switch
Turns the hands-free system
off/ends a call/refuses a call
The steering wheel switches can be used to operate a connected
cellular phone, or portable digital audio player (portable player).
Vehicles without audio system: P. 4 7 0
Operating Bluetooth® phone using the steering wheel switches
1
2
3

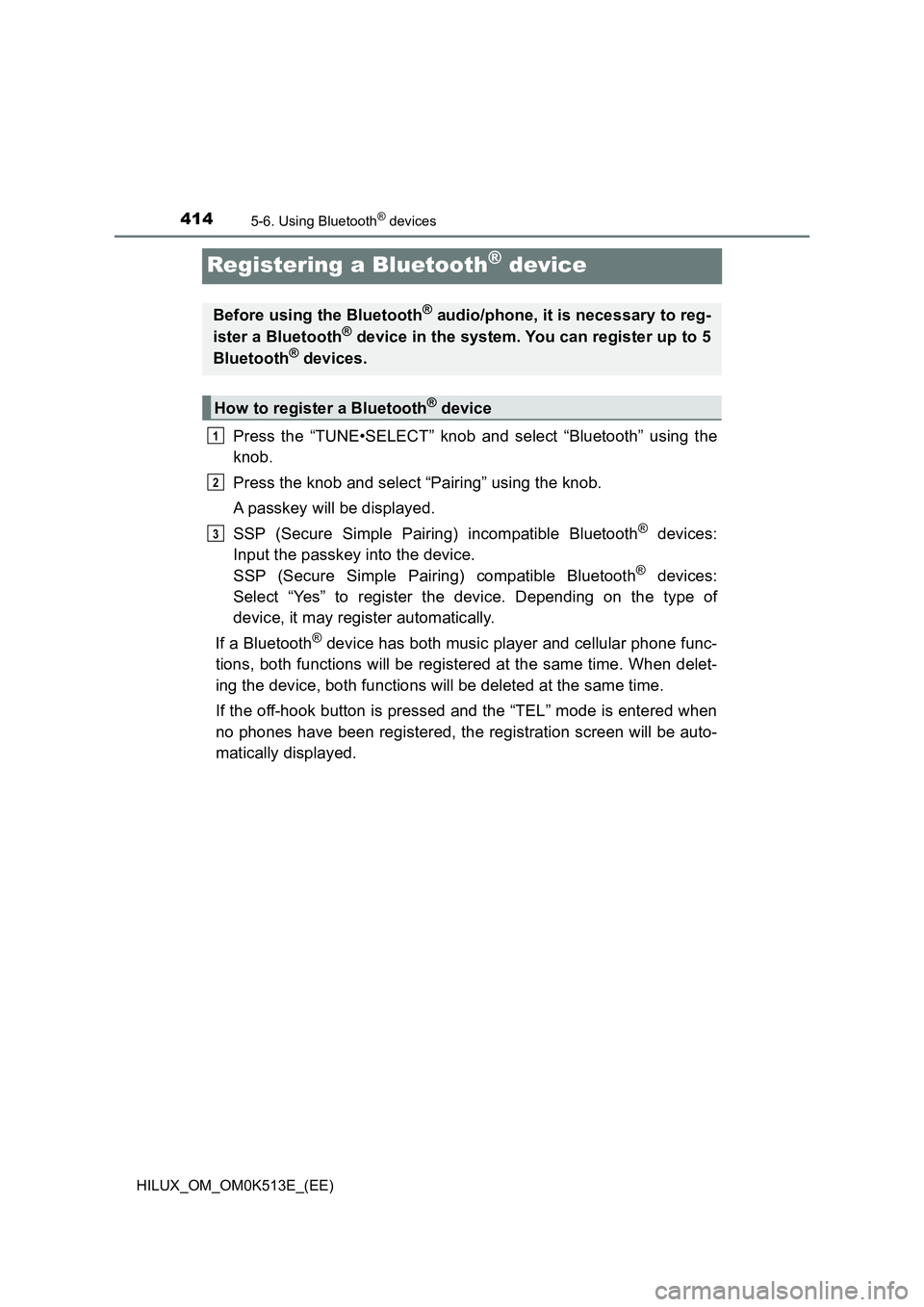

4145-6. Using Bluetooth® devices
HILUX_OM_OM0K513E_(EE)
Registering a Bluetooth® device
Press the “TUNE•SELECT” knob and select “Bluetooth” using the
knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook button is pressed and the “TEL” mode is entered when
no phones have been registered, the registration screen will be auto-
matically displayed.
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3

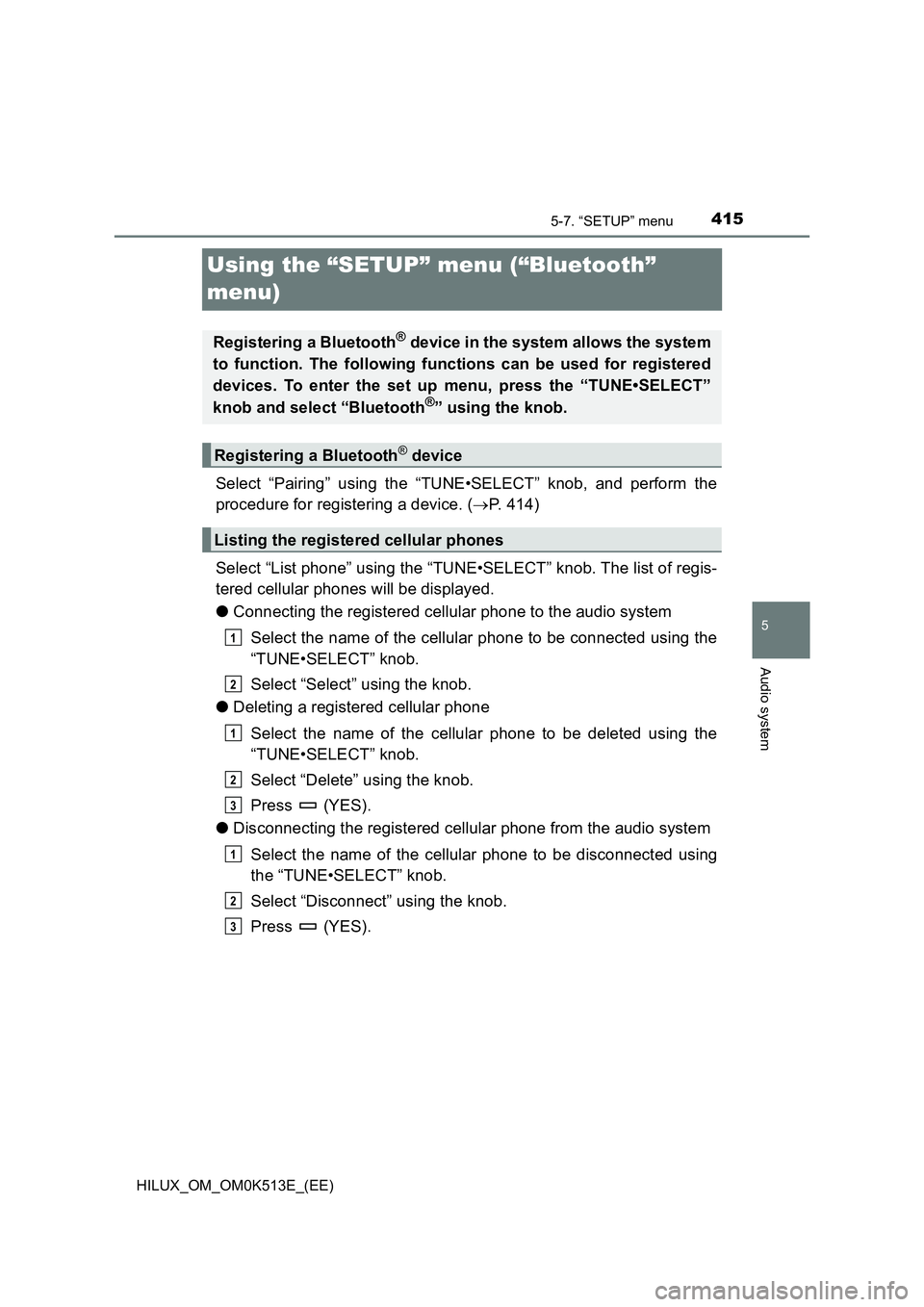

415
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K513E_(EE)
Using the “SETUP” menu (“Bluetooth”
menu)
Select “Pairing” using the “TUNE•SELECT” knob, and perform the
procedure for registering a device. ( P. 414)
Select “List phone” using the “TUNE•SELECT” knob. The list of regis-
tered cellular phones will be displayed.
O Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
O Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
O Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices. To enter the set up menu, press the “TUNE•SELECT”
knob and select “Bluetooth®” using the knob.
Registering a Bluetooth® device
Listing the registered cellular phones
1
2
1
2
3
1
2
3

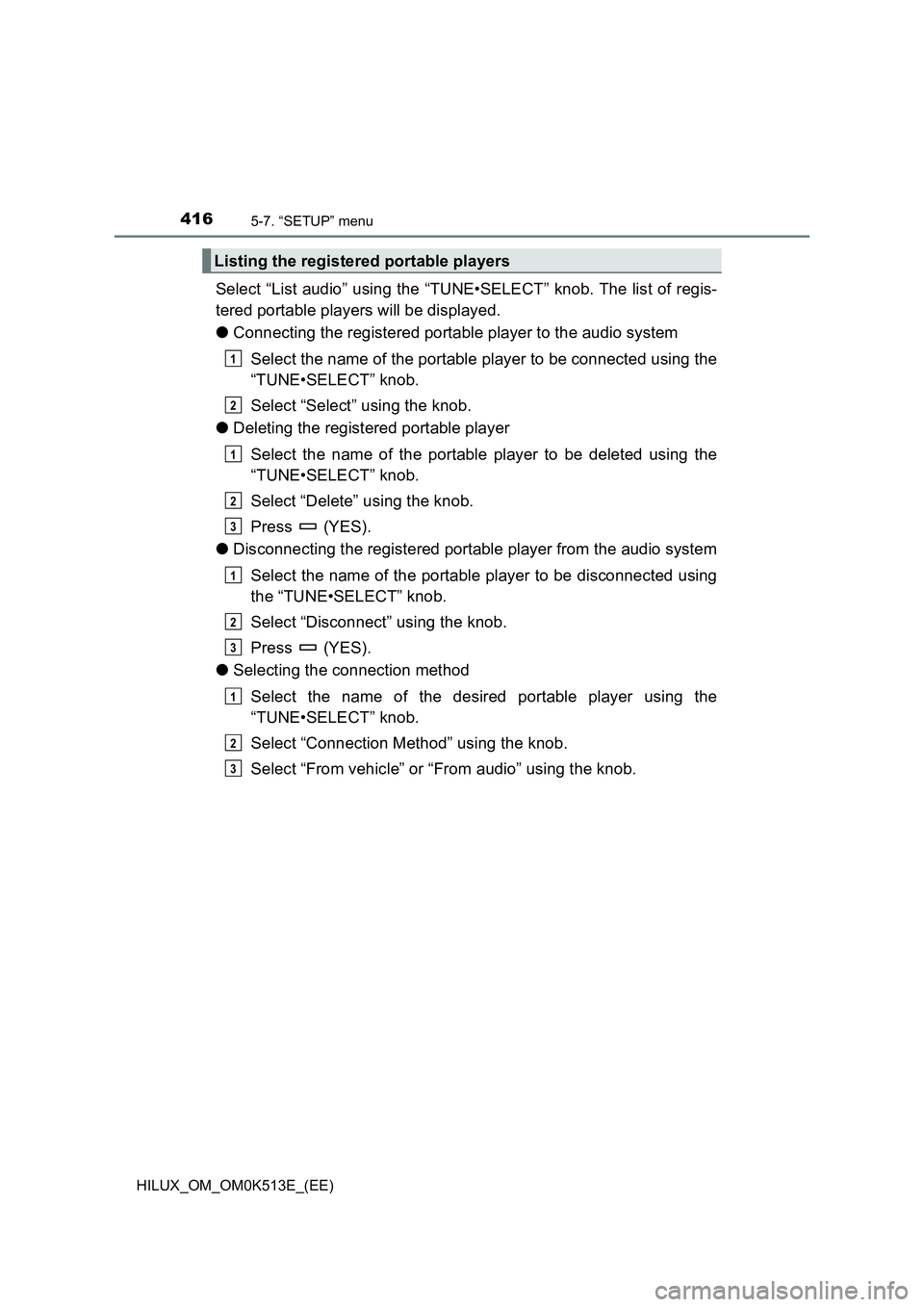

4165-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
Select “List audio” using the “TUNE•SELECT” knob. The list of regis-
tered portable players will be displayed.
O Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
O Deleting the registered portable player
Select the name of the portable player to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
O Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
O Selecting the connection method
Select the name of the desired portable player using the
“TUNE•SELECT” knob.
Select “Connection Method” using the knob.
Select “From vehicle” or “From audio” using the knob.
Listing the registered portable players
1
2
1
2
3
1
2
3
1
2
3

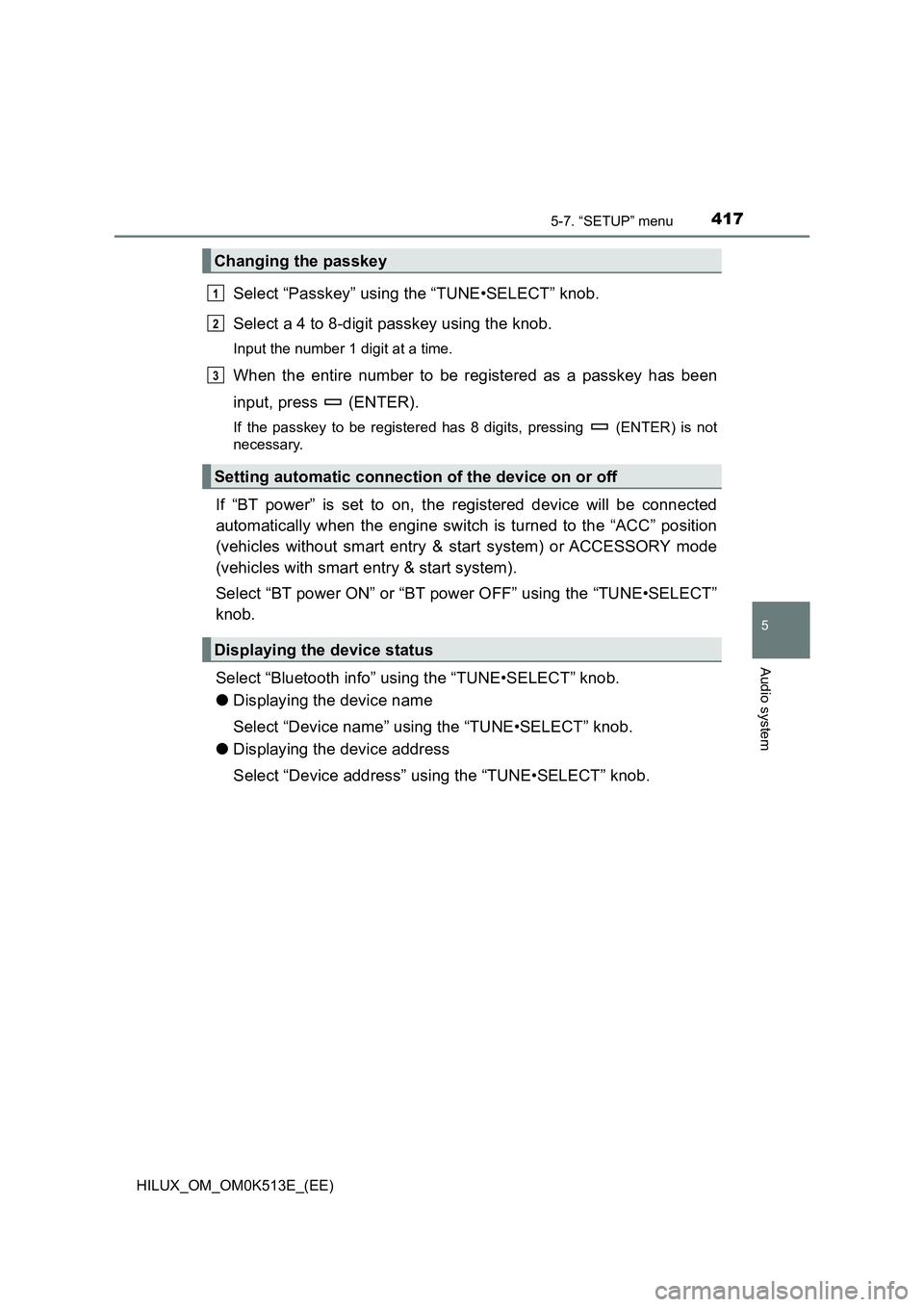

4175-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K513E_(EE)
Select “Passkey” using the “TUNE•SELECT” knob.
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press (ENTER).
If the passkey to be registered has 8 digits, pressing (ENTER) is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without smart entry & start system) or ACCESSORY mode
(vehicles with smart entry & start system).
Select “BT power ON” or “BT power OFF” using the “TUNE•SELECT”
knob.
Select “Bluetooth info” using the “TUNE•SELECT” knob.
O Displaying the device name
Select “Device name” using the “TUNE•SELECT” knob.
O Displaying the device address
Select “Device address” using the “TUNE•SELECT” knob.
Changing the passkey
Setting automatic connection of the device on or off
Displaying the device status
1
2
3

4185-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC”
position (vehicles without smart entry & start system) or ACCESSORY
mode (vehicles with smart entry & start system).
Select “Display setting ON” or “Display setting OFF” using the
“TUNE•SELECT” knob.
Select “Initialize” or “Reset” using the “TUNE•SELECT” knob.
O Initializing the HF sound settings
Select “HF sound setting” using the “TUNE•SELECT” knob and
press (YES).
For details about HF sound settings: P. 4 2 2
OInitializing the device information
Select “Car device info” using the “TUNE•SELECT” knob and press
(YES).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
O Initializing all settings
Select “All initialize” or “Reset all” using the “TUNE•SELECT” knob
and press (YES).
Setting the automatic connection confirmation display to on or off
Initialization
