TOYOTA HILUX 2021 Owners Manual (in English)

4596-3. Using the storage features
HILUX_OM_OM0K513E_(EE)
6
Interior features

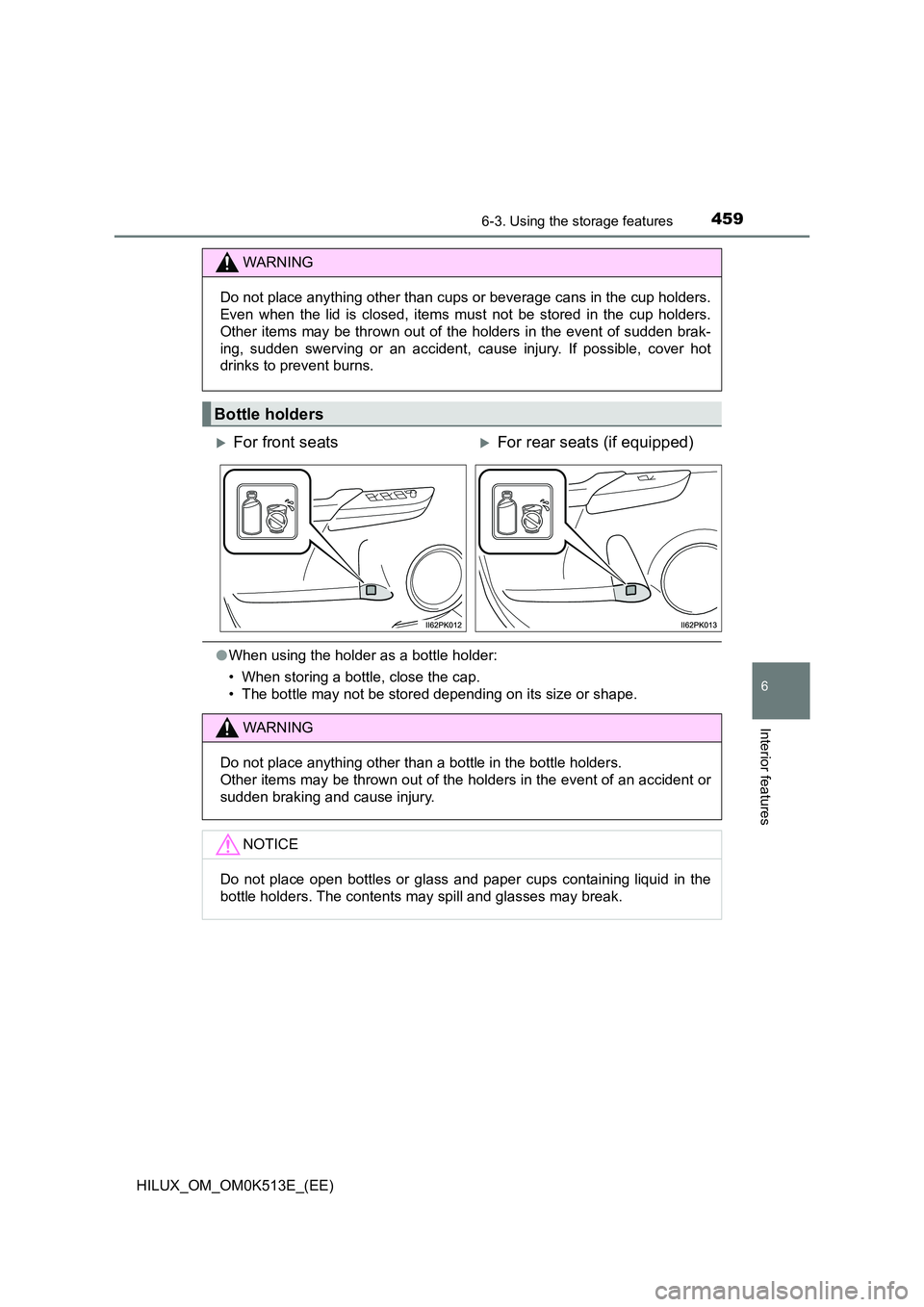

OWhen using the holder as a bottle holder:
• When storing a bottle, close the cap.
• The bottle may not be stored depending on its size or shape.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Even when the lid is closed, items must not be stored in the cup holders.
Other items may be thrown out of the holders in the event of sudden brak-
ing, sudden swerving or an accident, cause injury. If possible, cover hot
drinks to prevent burns.
Bottle holders
For front seatsFor rear seats (if equipped)
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Do not place open bottles or glass and paper cups containing liquid in the
bottle holders. The contents may spill and glasses may break.

460
HILUX_OM_OM0K513E_(EE)
6-3. Using the storage features

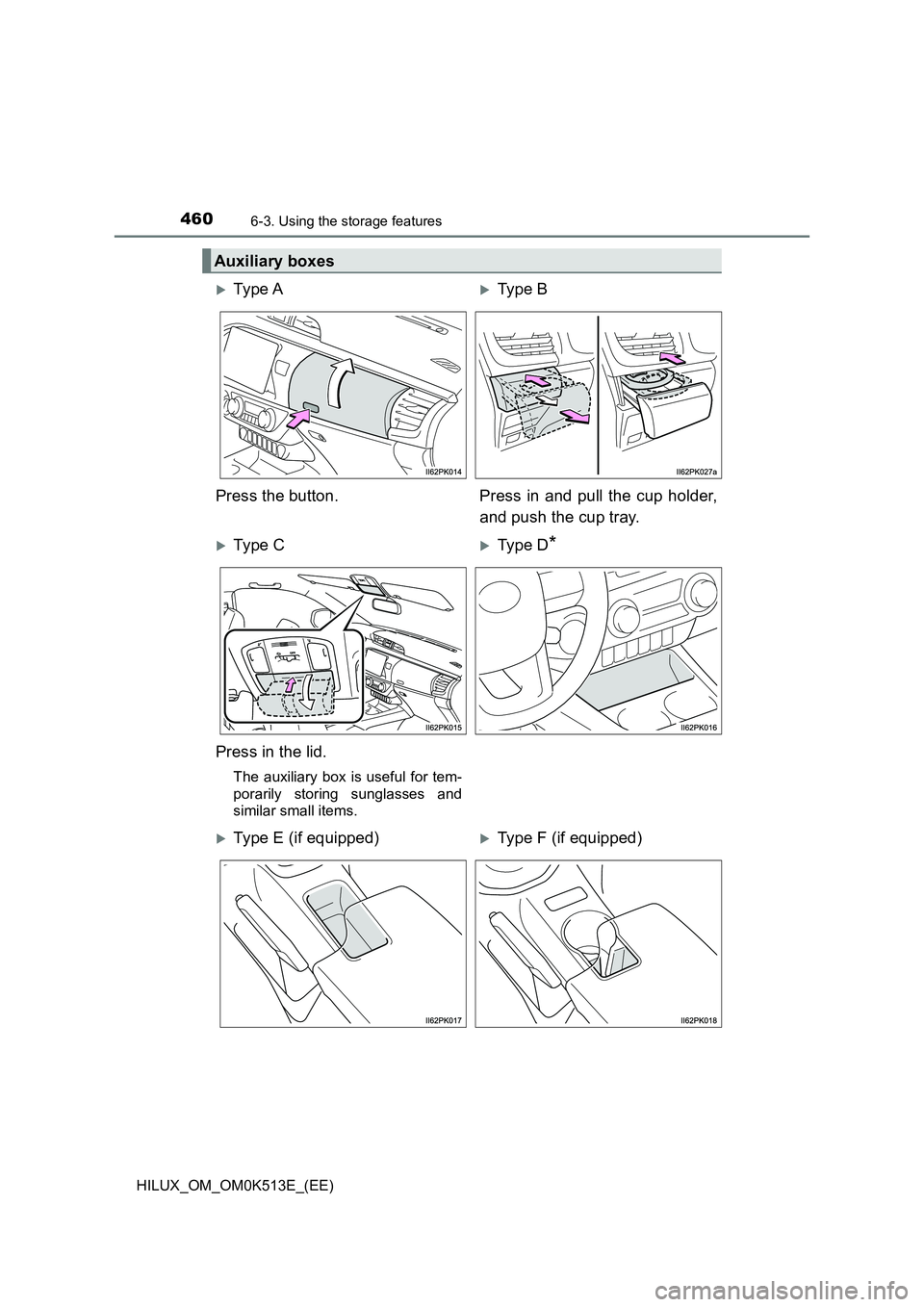

Auxiliary boxes
Ty pe AType B
Press the button. Press in and pull the cup holder,
and push the cup tray.
Ty pe CType D*
Press in the lid.
The auxiliary box is useful for tem-
porarily storing sunglasses and
similar small items.
Type E (if equipped)Type F (if equipped)

4616-3. Using the storage features
HILUX_OM_OM0K513E_(EE)
6
Interior features

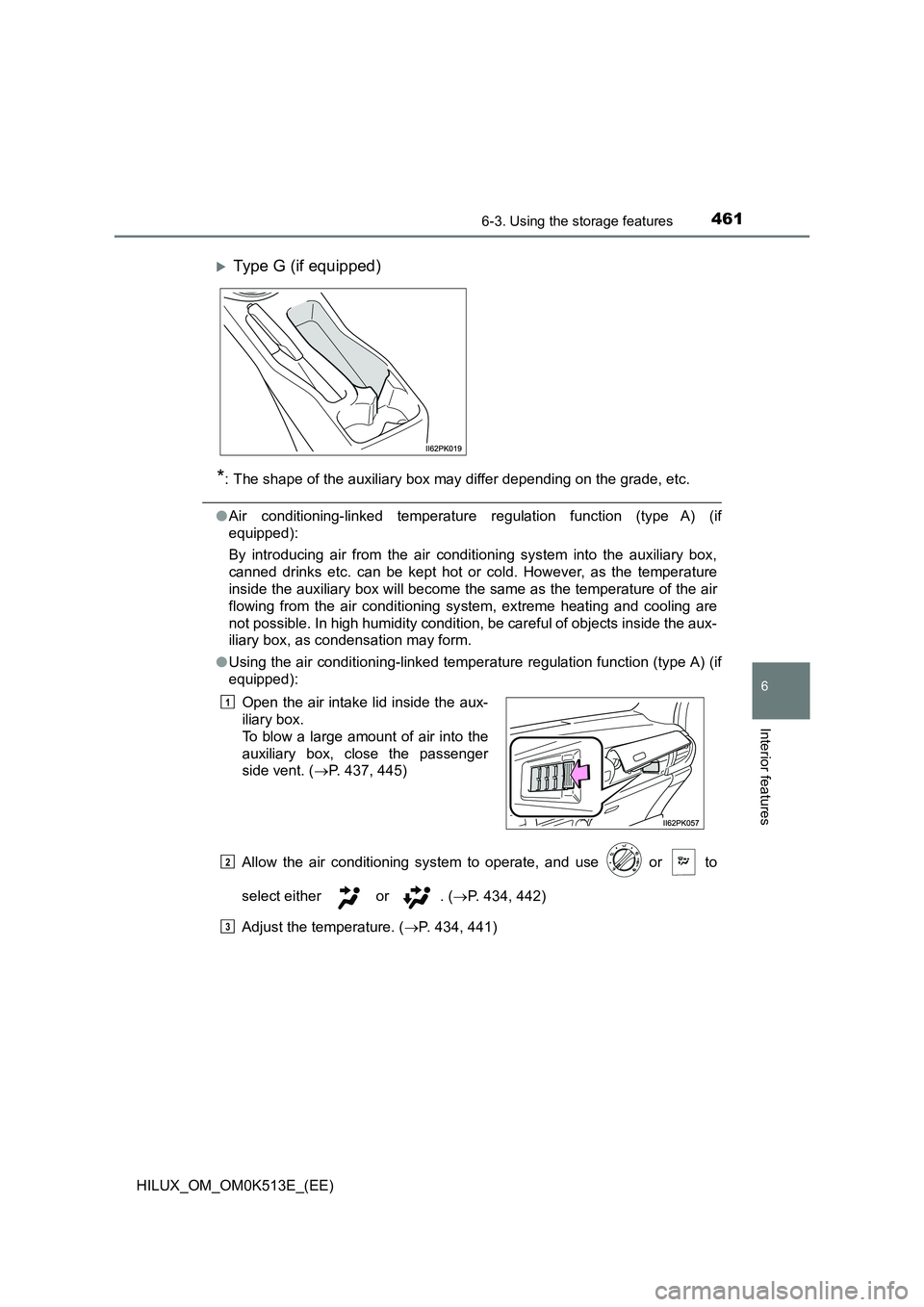

*: The shape of the auxiliary box may differ depending on the grade, etc.
OAir conditioning-linked temperature regulation function (type A) (if
equipped):
By introducing air from the air conditioning system into the auxiliary box,
canned drinks etc. can be kept hot or cold. However, as the temperature
inside the auxiliary box will become the same as the temperature of the air
flowing from the air conditioning sy stem, extreme heating and cooling are
not possible. In high humidity condition, be careful of objects inside the aux-
iliary box, as condensation may form.
O Using the air conditioning-linked temperature regulation function (type A) (if
equipped):
Allow the air conditioning system to operate, and use or to
select either or . ( P. 434, 442)
Adjust the temperature. ( P. 434, 441)
Type G (if equipped)
Open the air intake lid inside the aux-
iliary box.
To blow a large amount of air into the
auxiliary box, close the passenger
side vent. ( P. 437, 445)
1
2
3

462
HILUX_OM_OM0K513E_(EE)
6-3. Using the storage features

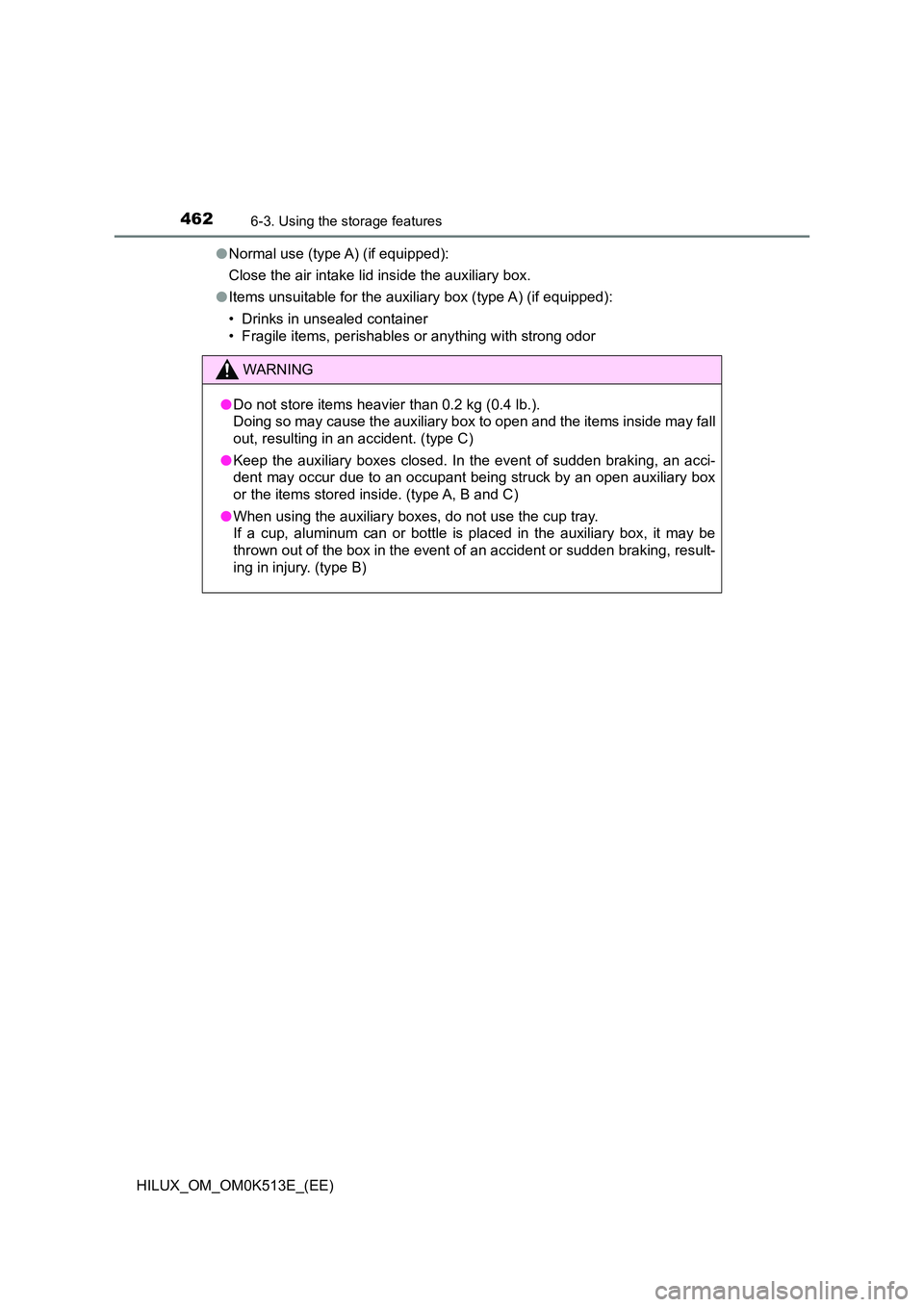

ONormal use (type A) (if equipped):
Close the air intake lid inside the auxiliary box.
O Items unsuitable for the auxiliary box (type A) (if equipped):
• Drinks in unsealed container
• Fragile items, perishables or anything with strong odor
WARNING
O Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident. (type C)
O Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box
or the items stored inside. (type A, B and C)
O When using the auxiliary boxes, do not use the cup tray.
If a cup, aluminum can or bottle is placed in the auxiliary box, it may be
thrown out of the box in the event of an accident or sudden braking, result-
ing in injury. (type B)

4636-3. Using the storage features
HILUX_OM_OM0K513E_(EE)
6
Interior features

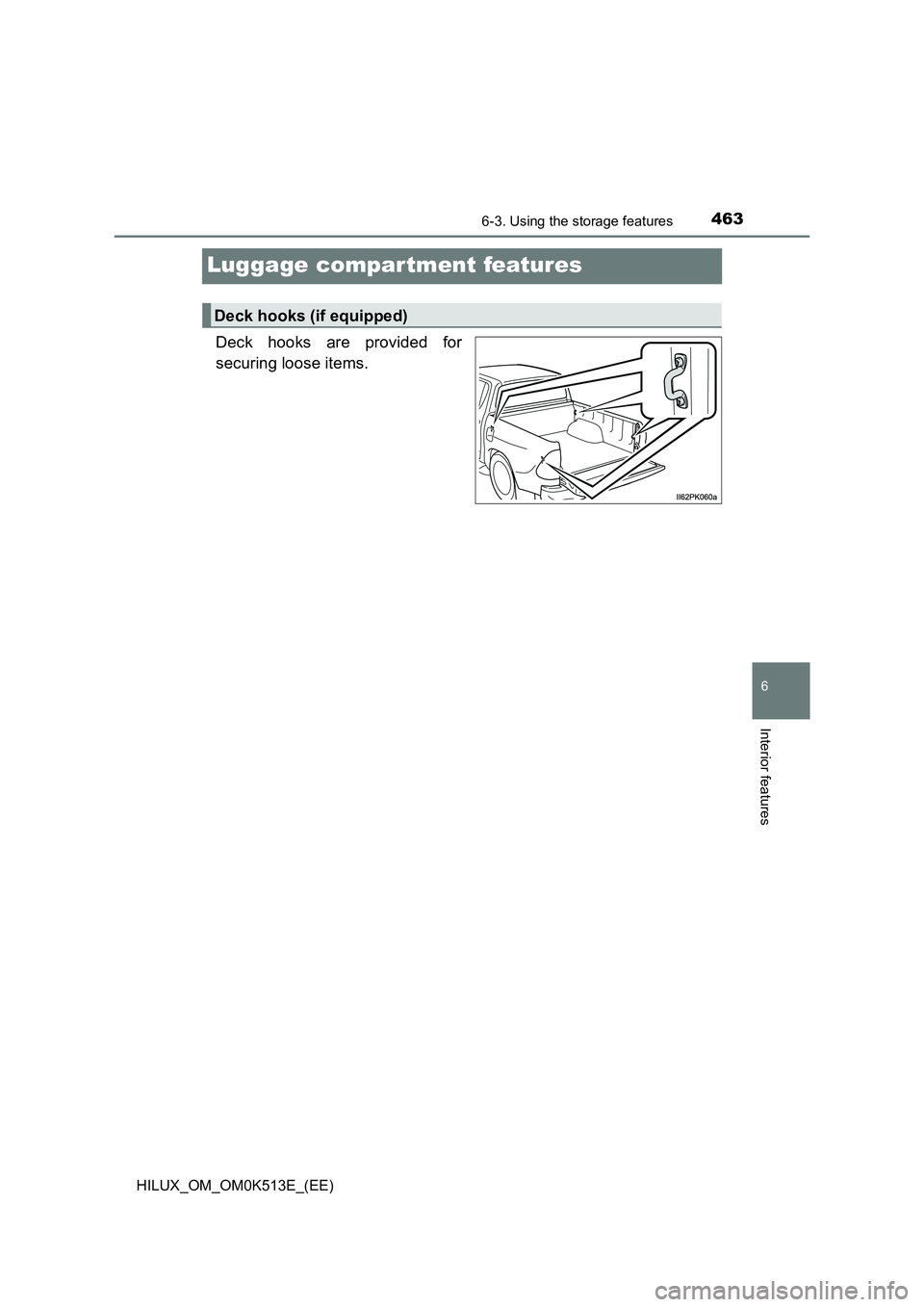

Luggage compartment features
Deck hooks are provided for
securing loose items.
Deck hooks (if equipped)

4646-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)

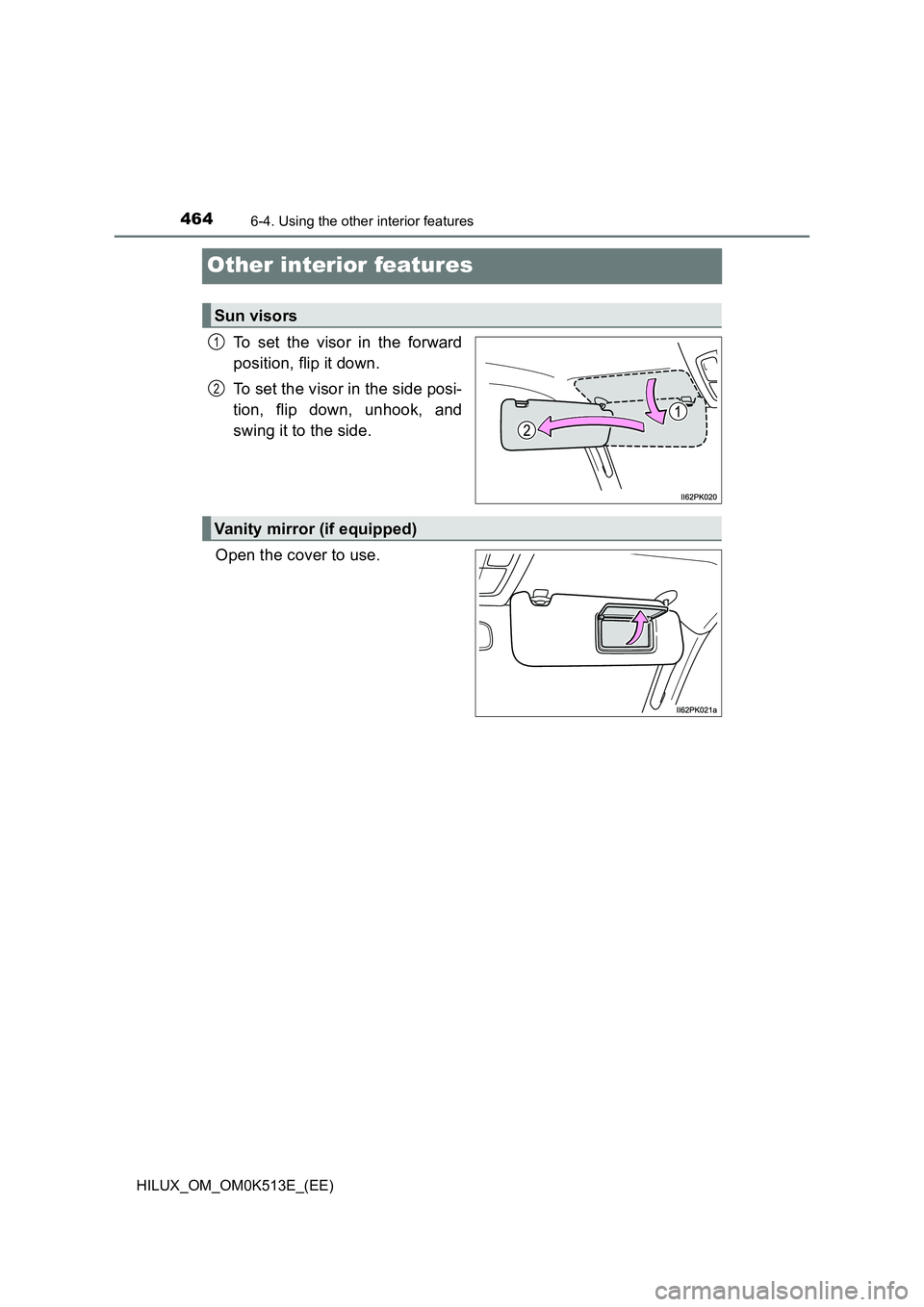

Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover to use.
Sun visors
1
2
Vanity mirror (if equipped)

4656-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)
6
Interior features

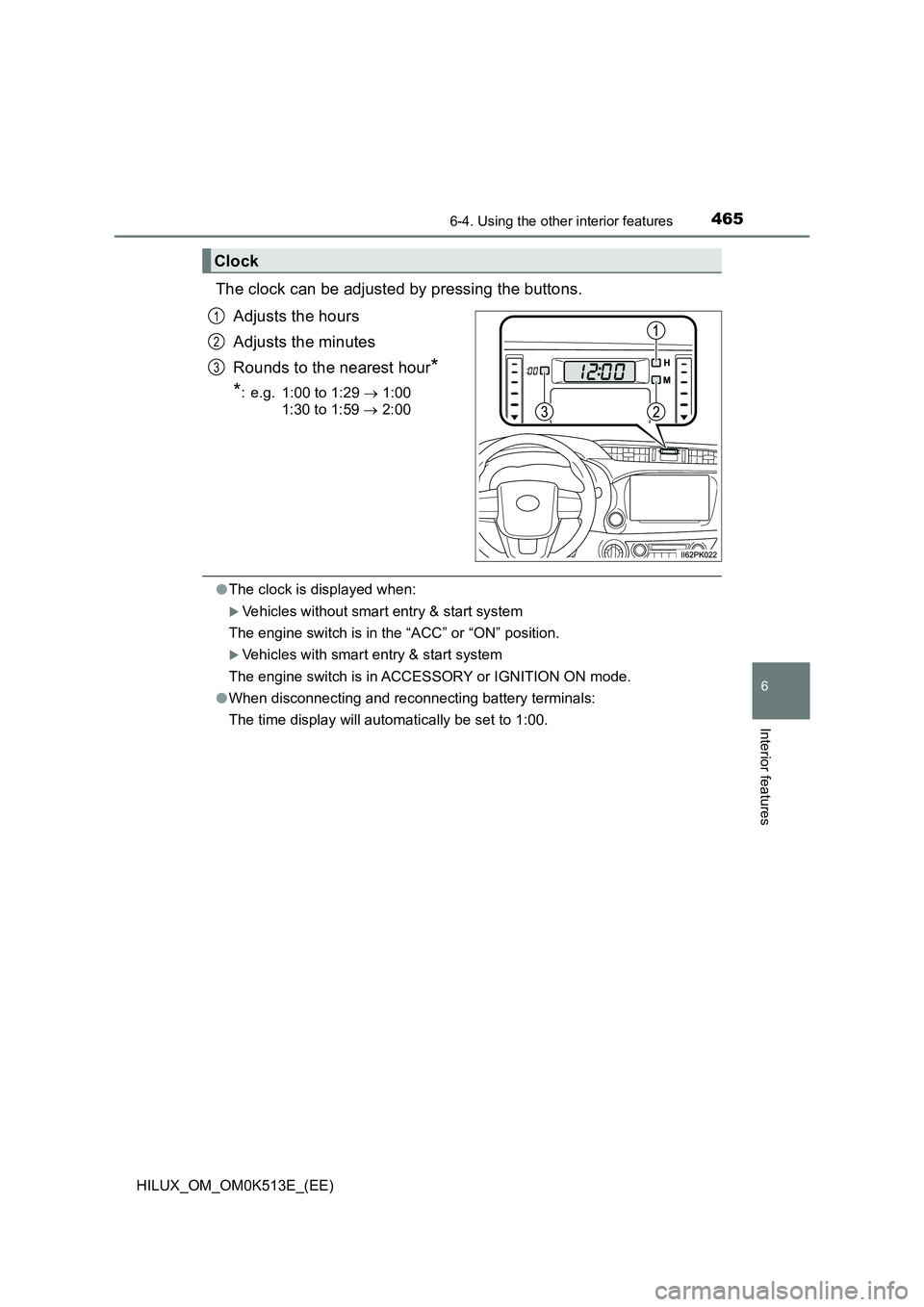

The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
OThe clock is displayed when:
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
O When disconnecting and reconnecting battery terminals:
The time display will automatically be set to 1:00.
Clock
1
2
3

4666-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)

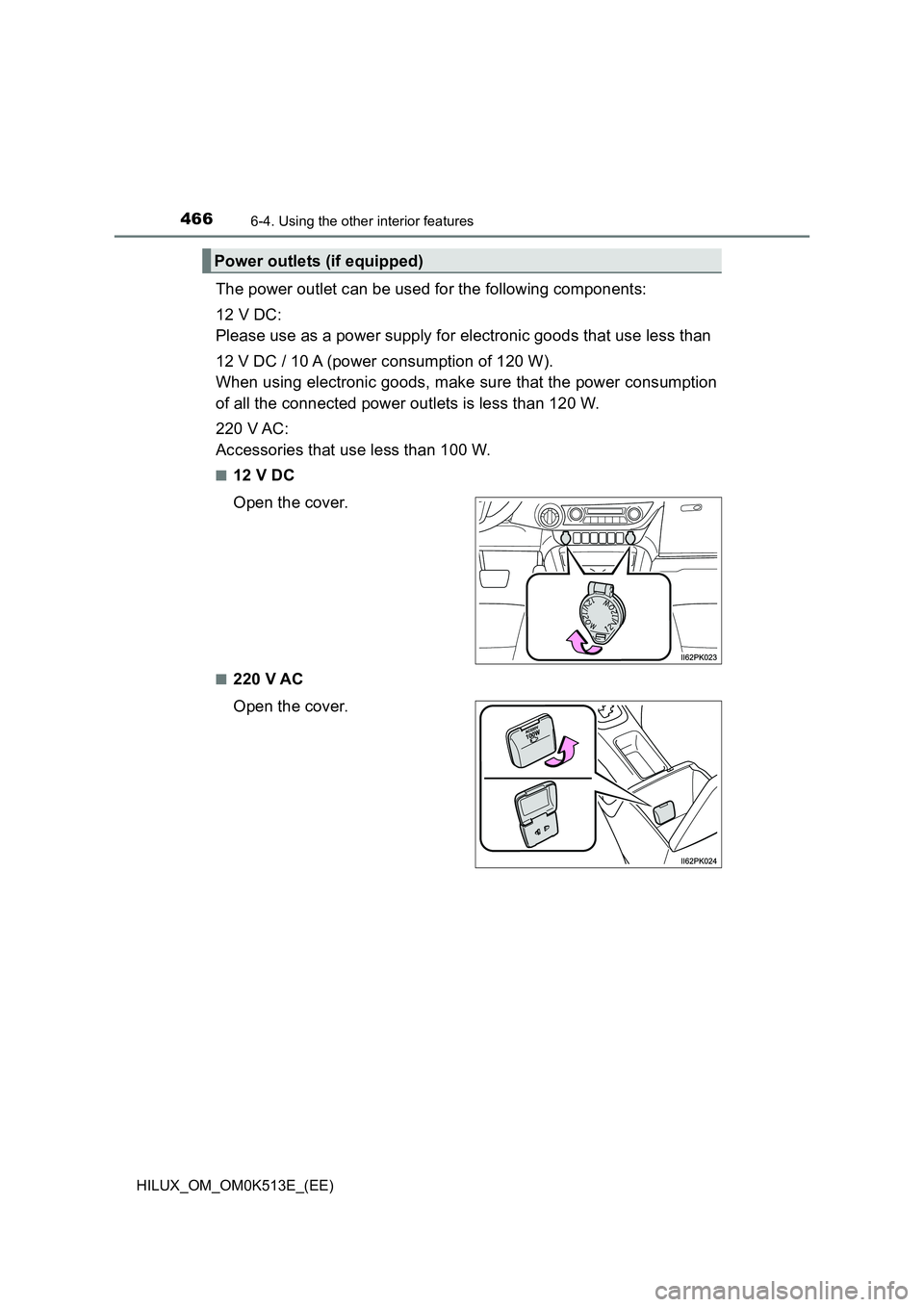

The power outlet can be used for the following components:
12 V DC:
Please use as a power supply for electronic goods that use less than
12 V DC / 10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption
of all the connected power outlets is less than 120 W.
220 V AC:
Accessories that use less than 100 W.
Q12 V DC
Open the cover.
Q220 V AC
Open the cover.
Power outlets (if equipped)

4676-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)
6
Interior features

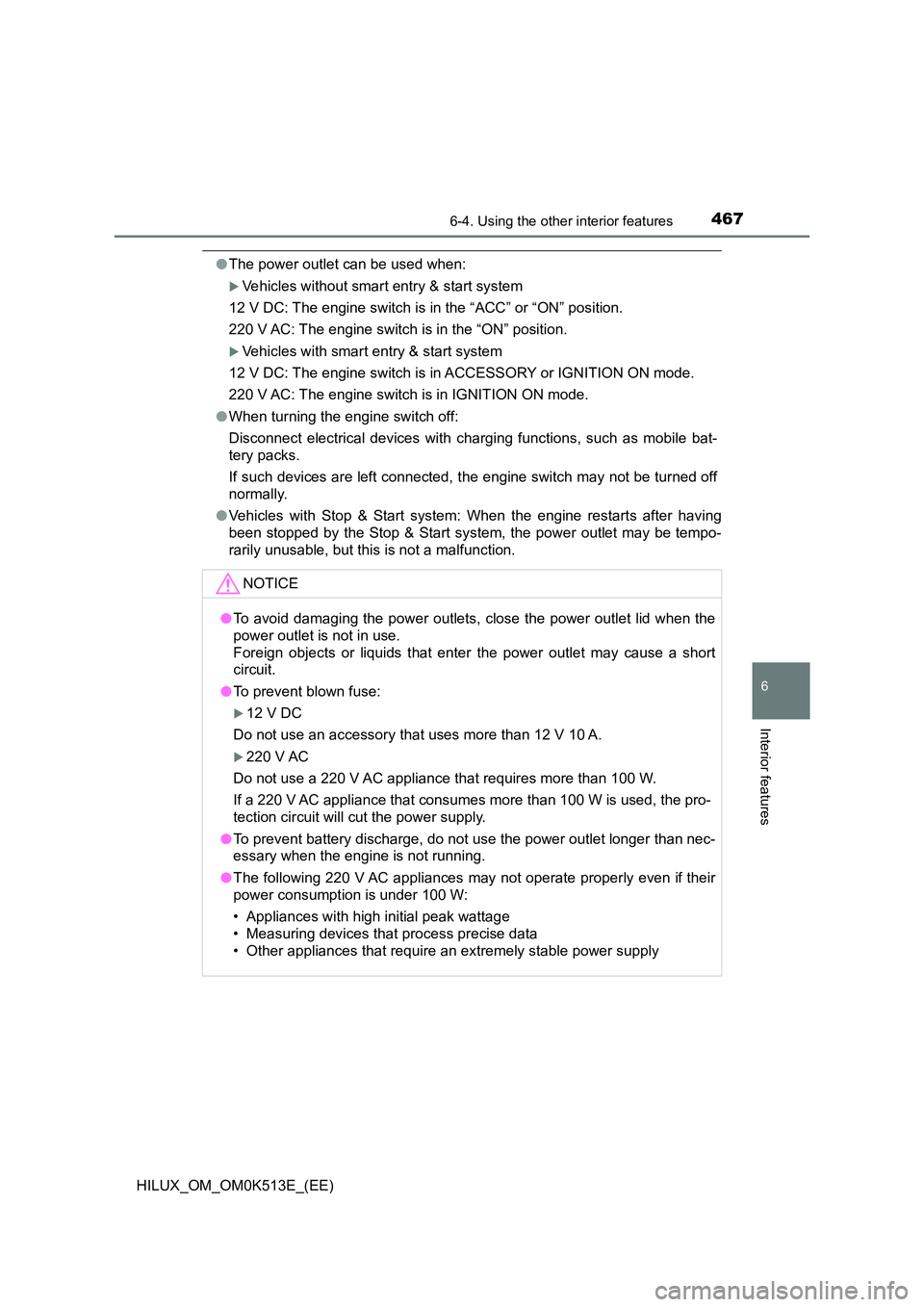

OThe power outlet can be used when:
Vehicles without smart entry & start system
12 V DC: The engine switch is in the “ACC” or “ON” position.
220 V AC: The engine switch is in the “ON” position.
Vehicles with smart entry & start system
12 V DC: The engine switch is in ACCESSORY or IGNITION ON mode.
220 V AC: The engine switch is in IGNITION ON mode.
O When turning the engine switch off:
Disconnect electrical devices with charging functions, such as mobile bat-
tery packs.
If such devices are left connected, the engine switch may not be turned off
normally.
O Vehicles with Stop & Start system: When the engine restarts after having
been stopped by the Stop & Start system, the power outlet may be tempo-
rarily unusable, but this is not a malfunction.
NOTICE
O To avoid damaging the power outlets, close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
O To prevent blown fuse:
12 V DC
Do not use an accessory that uses more than 12 V 10 A.
220 V AC
Do not use a 220 V AC appliance that requires more than 100 W.
If a 220 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
O To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is not running.
O The following 220 V AC appliances may not operate properly even if their
power consumption is under 100 W:
• Appliances with high initial peak wattage
• Measuring devices that process precise data
• Other appliances that require an extremely stable power supply

4686-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)

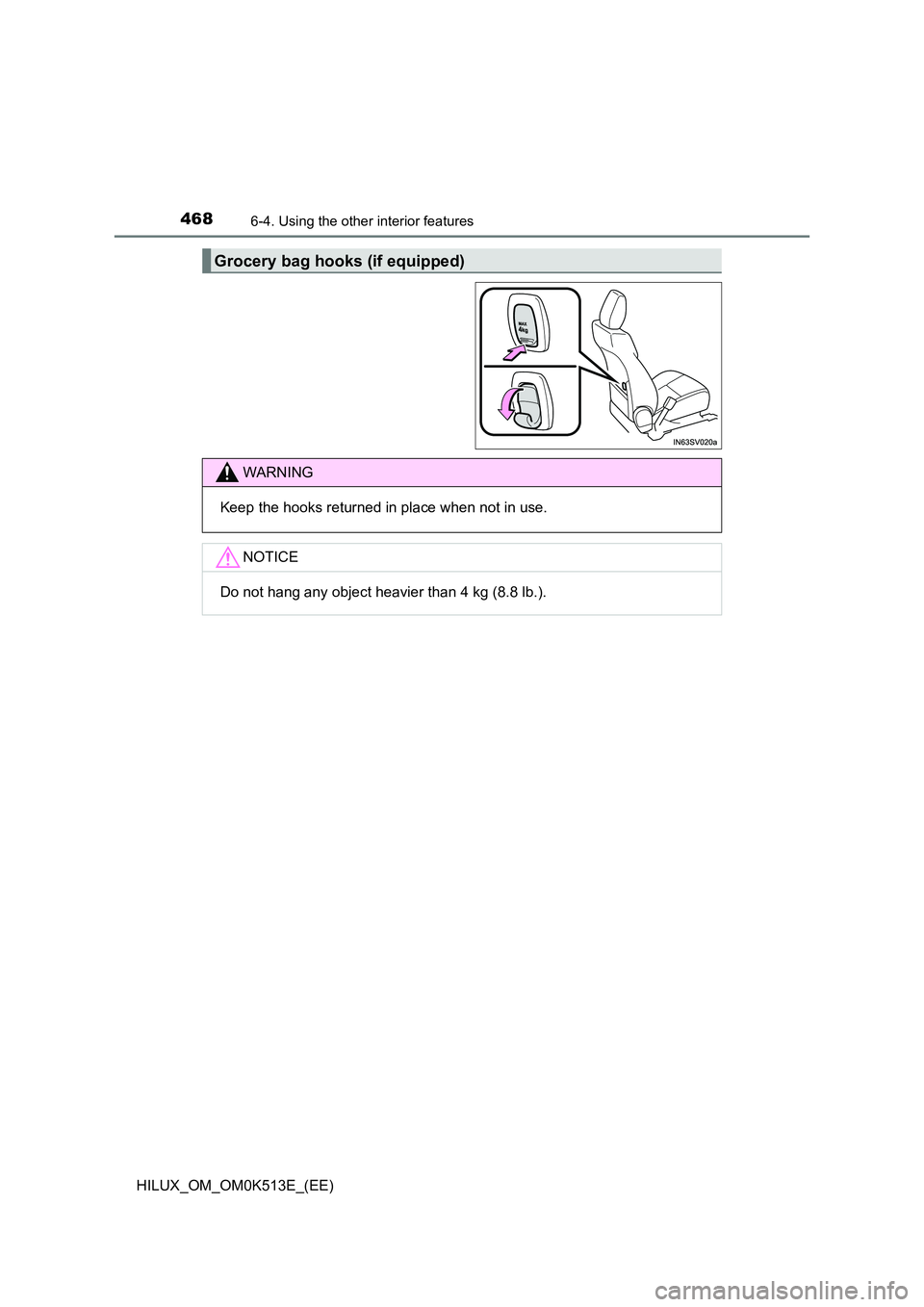

Grocery bag hooks (if equipped)
WARNING
Keep the hooks returned in place when not in use.
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.).
