ABS TOYOTA HILUX 2021 Owners Manual (in English)

115
1
1-4. Theft deterrent system
HILUX_OM_OM0K513E_(EE)
For safety and security
Engine immobilizer system
Vehicles without smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

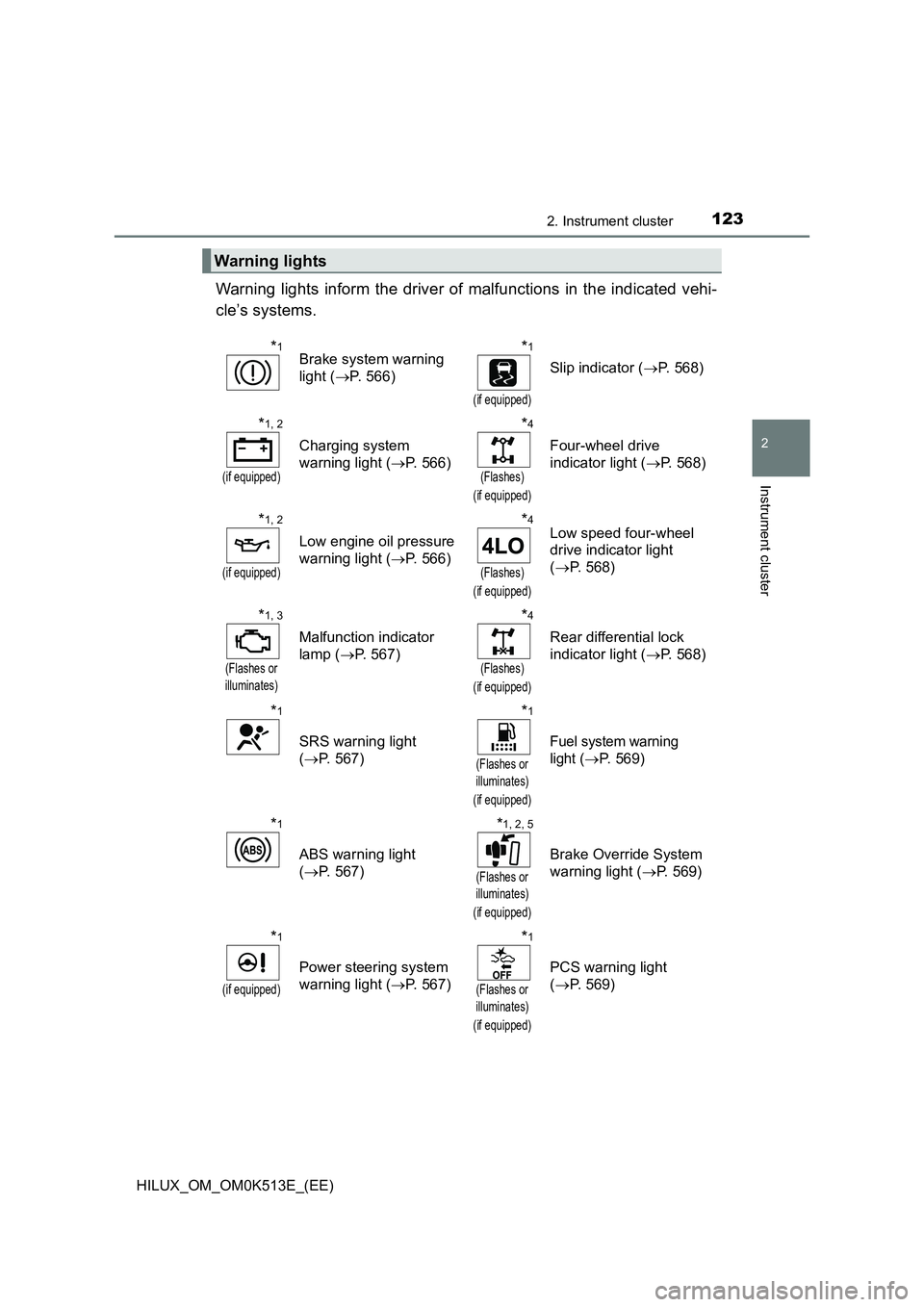

1232. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 566)
*1
(if equipped)
Slip indicator (P. 568)
*1, 2
(if equipped)
Charging system
warning light ( P. 566)
*4
(Flashes)
(if equipped)
Four-wheel drive
indicator light ( P. 568)
*1, 2
(if equipped)
Low engine oil pressure
warning light ( P. 566)
*4
(Flashes)
(if equipped)
Low speed four-wheel
drive indicator light
( P. 568)
*1, 3
(Flashes or
illuminates)
Malfunction indicator
lamp ( P. 567)
*4
(Flashes)
(if equipped)
Rear differential lock
indicator light ( P. 568)
*1
SRS warning light
( P. 567)
*1
(Flashes or
illuminates)
(if equipped)
Fuel system warning
light ( P. 569)
*1
ABS warning light
( P. 567)
*1, 2, 5
(Flashes or
illuminates)
(if equipped)
Brake Override System
warning light ( P. 569)
*1
(if equipped)
Power steering system
warning light ( P. 567)
*1
(Flashes or
illuminates)
(if equipped)
PCS warning light
( P. 569)

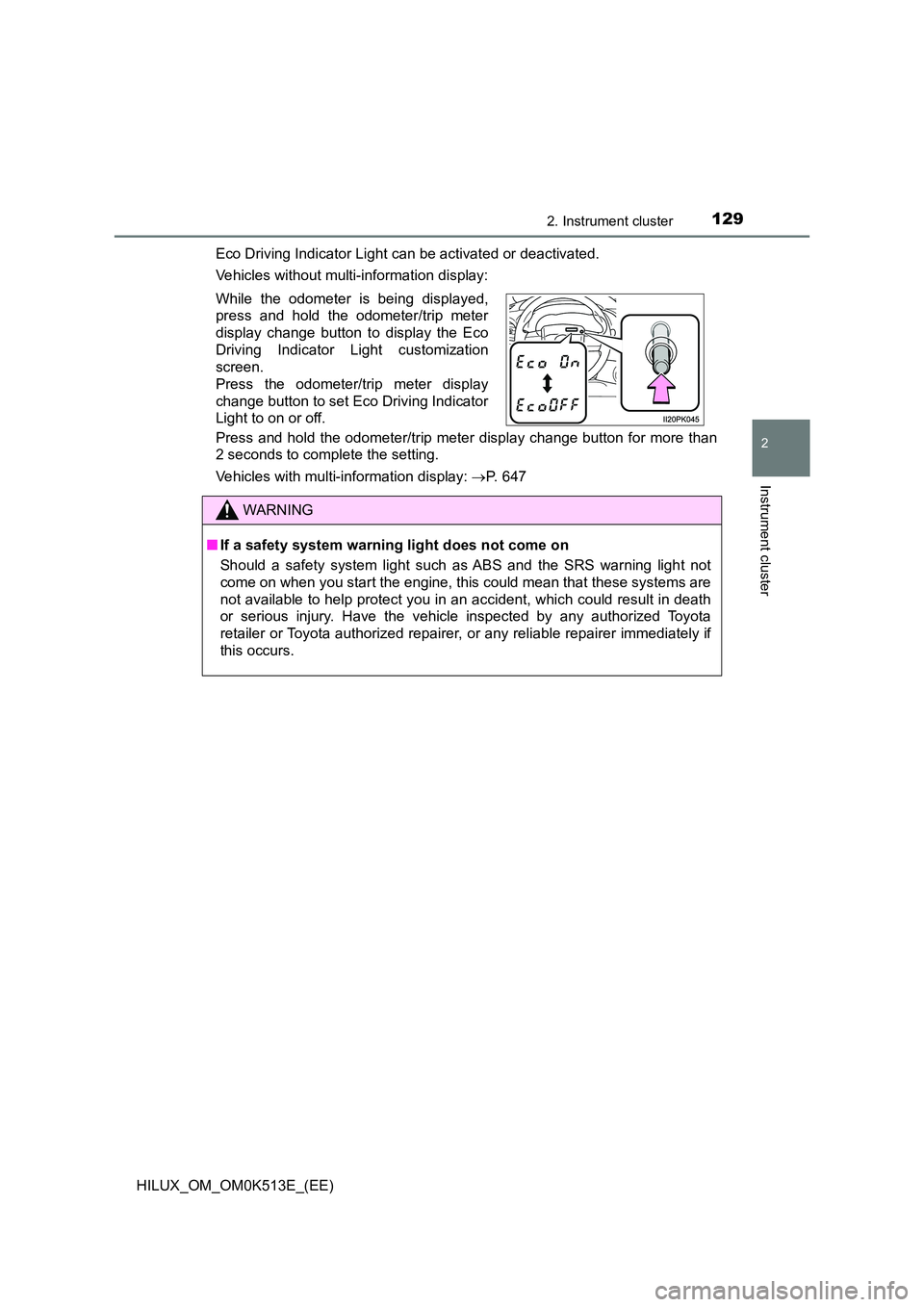

1292. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 647
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
Q If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

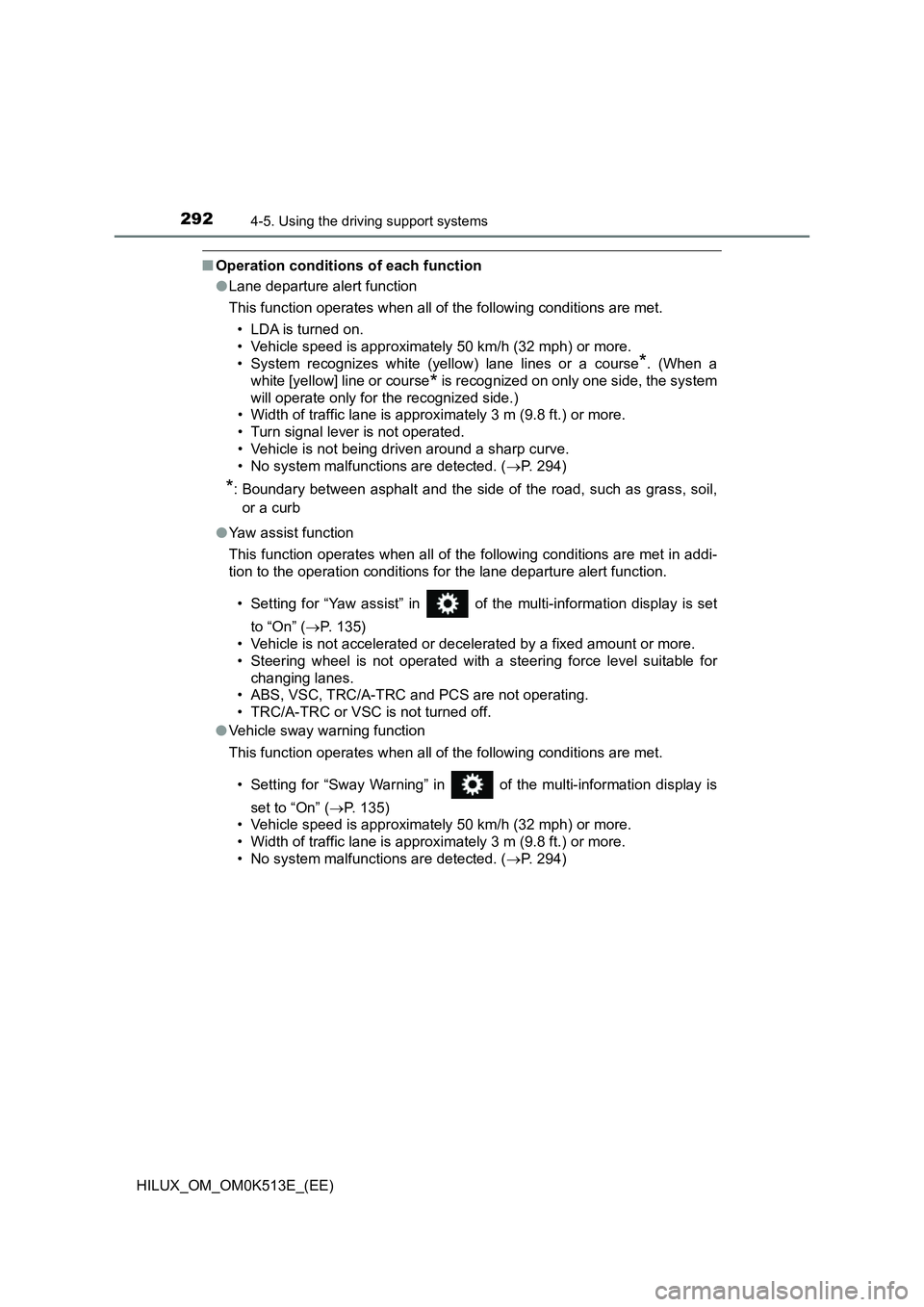

2924-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
QOperation conditions of each function
O Lane departure alert function
This function operates when all of the following conditions are met.
• LDA is turned on.
• Vehicle speed is approximately 50 km/h (32 mph) or more.
• System recognizes white (yellow) lane lines or a course*. (When a
white [yellow] line or course* is recognized on only one side, the system
will operate only for the recognized side.)
• Width of traffic lane is approximately 3 m (9.8 ft.) or more.
• Turn signal lever is not operated.
• Vehicle is not being driven around a sharp curve.
• No system malfunctions are detected. ( P. 294)
*: Boundary between asphalt and the side of the road, such as grass, soil,
or a curb
O Yaw assist function
This function operates when all of the following conditions are met in addi-
tion to the operation conditions fo r the lane departure alert function.
• Setting for “Yaw assist” in of the multi-information display is set
to “On” ( P. 135)
• Vehicle is not accelerated or decelerated by a fixed amount or more.
• Steering wheel is not operated with a steering force level suitable for
changing lanes.
• ABS, VSC, TRC/A-TRC and PCS are not operating.
• TRC/A-TRC or VSC is not turned off.
O Vehicle sway warning function
This function operates when all of the following conditions are met.
• Setting for “Sway Warning” in of the multi-information display is
set to “On” ( P. 1 3 5 )
• Vehicle speed is approximately 50 km/h (32 mph) or more.
• Width of traffic lane is approximately 3 m (9.8 ft.) or more.
• No system malfunctions are detected. ( P. 294)

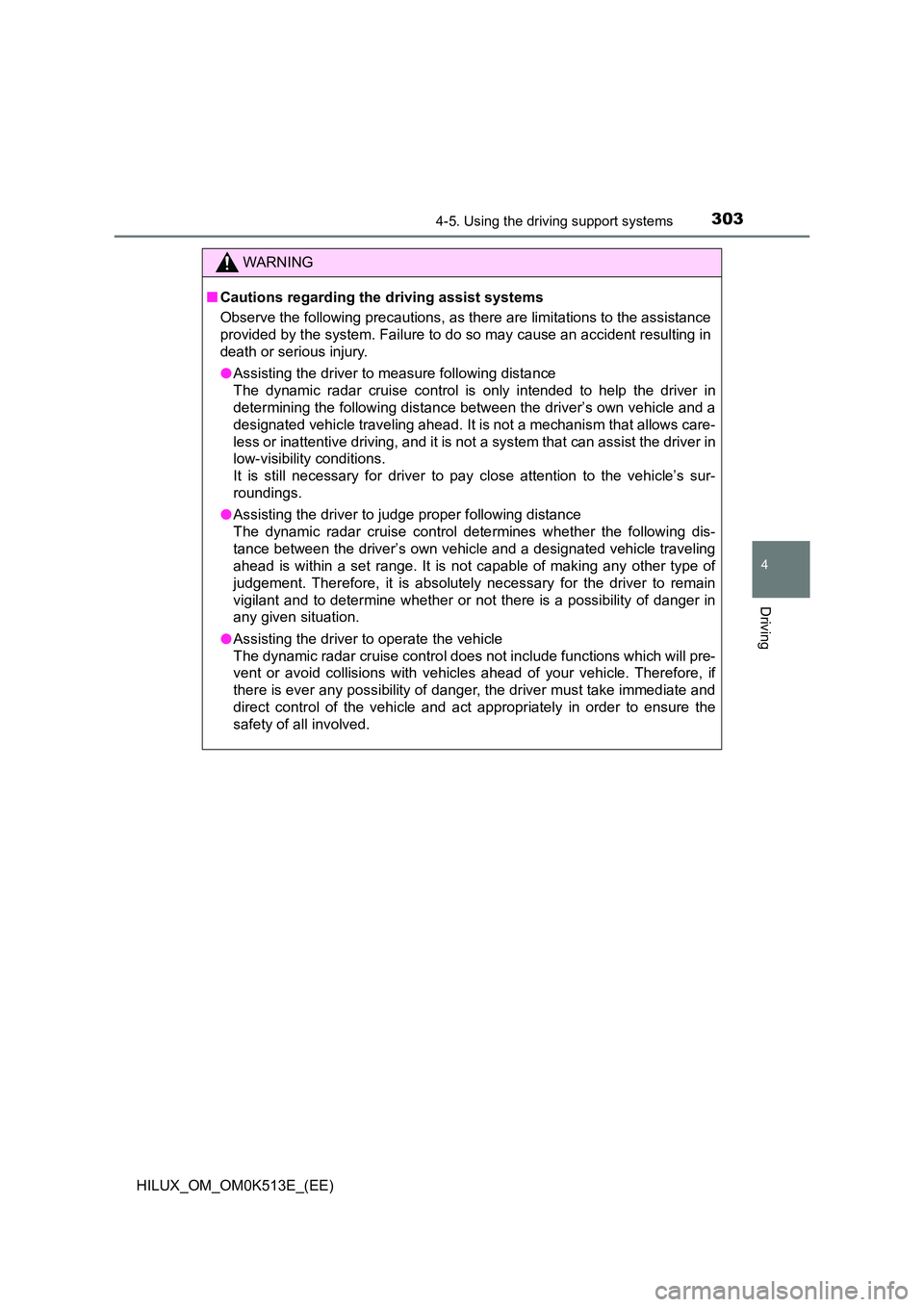

3034-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
WARNING
QCautions regarding the driving assist systems
Observe the following precautions, as there are limitations to the assistance
provided by the system. Failure to do so may cause an accident resulting in
death or serious injury.
O Assisting the driver to measure following distance
The dynamic radar cruise control is only intended to help the driver in
determining the following distance between the driver’s own vehicle and a
designated vehicle traveling ahead. It is not a mechanism that allows care-
less or inattentive driving, and it is not a system that can assist the driver in
low-visibility conditions.
It is still necessary for driver to pay close attention to the vehicle’s sur-
roundings.
O Assisting the driver to judge proper following distance
The dynamic radar cruise control det ermines whether the following dis-
tance between the driver’s own vehicle and a designated vehicle traveling
ahead is within a set range. It is not capable of making any other type of
judgement. Therefore, it is absolutely necessary for the driver to remain
vigilant and to determine whether or not there is a possibility of danger in
any given situation.
O Assisting the driver to operate the vehicle
The dynamic radar cruise control does not include functions which will pre-
vent or avoid collisions with vehicles ahead of your vehicle. Therefore, if
there is ever any possibility of danger, the driver must take immediate and
direct control of the vehicle and act appropriately in order to ensure the
safety of all involved.

3254-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
QToyota parking assist-sensor can be operated when
O The engine switch is in the “ON” position (vehicles without smart entry &
start system) or IGNITION ON mode (vehicles with smart entry & start sys-
tem).
O Front corner sensor:
• The shift lever is in other than P.
• The vehicle speed is approximately 10 km/h (6 mph) or less.
O Rear corner and rear center sensors:
The shift lever is in R.
Q Sensor detection information
O The sensor’s detection areas are limited to the areas around the vehicle’s
bumper.
O Depending on the shape of the object and other factors, the detection dis-
tance may shorten, or detection may be impossible.
O Detection may be impossible if the objects draw too close to the sensor.
O There will be a short delay between object detection and display. Even at
low speeds, there is a possibility that the object will come within the sensor’s
detection areas before the display is shown and the warning beep sounds.
O Thin posts or objects lower than the sensor may not be detected when
approached, even if they have been detected once.
O It might be difficult to hear the buzzer due to the volume of the audio system
or air flow noise of the air conditioning system.
Q Objects which the system may not properly detect
The shape of the object may prevent the sensor from detecting it. Pay partic-
ular attention to the following objects:
O Wires, fences, ropes, etc.
O Cotton, snow and other materials that absorb sound waves
O Sharply-angled objects
O Low objects
O Tall objects with upper sections projecting outwards in the direction of your
vehicle
O Moving objects such as people or animals
People may not be detected if they are wearing certain types of clothing.
Q Situations in which the system may not operate properly
Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect objects. Particular instances where this
may occur are listed below.
O There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this
problem.)

3444-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
QLocking the rear differential
The following systems do not operate w hen the rear differential is locked.
It is normal operation for the ABS warning light, VSC OFF indicator (if
equipped) and “TRC OFF” indicator (if equipped) to be on or for “TRC turned
off” to be displayed on the multi-information display (if equipped) at this time.
•ABS
• Brake assist (if equipped)
• VSC (if equipped)
• TRC/A-TRC (if equipped)
• Trailer Sway Control (if equipped)
• Hill-start assist control (if equipped)
• Downhill assist control (if equipped)
Q Unlocking the rear differential
If the rear differential lock indicator still flashes even after unlocking the rear
differential, check the safety of the surrounding area and slightly turn the
steering wheel in either direction while the vehicle is in motion.
Q Automatic system cancelation of the rear differential lock system
The rear differential lock is also unlocked in any of the following situations:
O The front-wheel drive control switch is turned to H2 or H4 (4WD models)
O The engine switch is turned to the “ACC” or “LOCK” position (vehicles with-
out smart entry & start system) or A CCESSORY or off (vehicles with smart
entry & start system)
Q After unlocking the rear differential
Check that the indicator goes off.
WARNING
Q To avoid an accident
Failure to observe the following precautions may result in an accident.
O Do not use the rear differential lock system except when wheel spinning
occurs in a ditch or on a slippery or rugged surface. Large steering effort
and careful cornering control will be required.
O Do not lock the rear differential until the wheels have stopped spinning.
Otherwise, the vehicle may move in an unexpected direction when the dif-
ferential lock is engaged, resulting in an accident. This may also lead to
possible damage to rear differential lock component parts.
O Do not drive over 8 km/h (5 mph) when the differential is locked.
O Do not keep driving with the rear differential lock switch on.

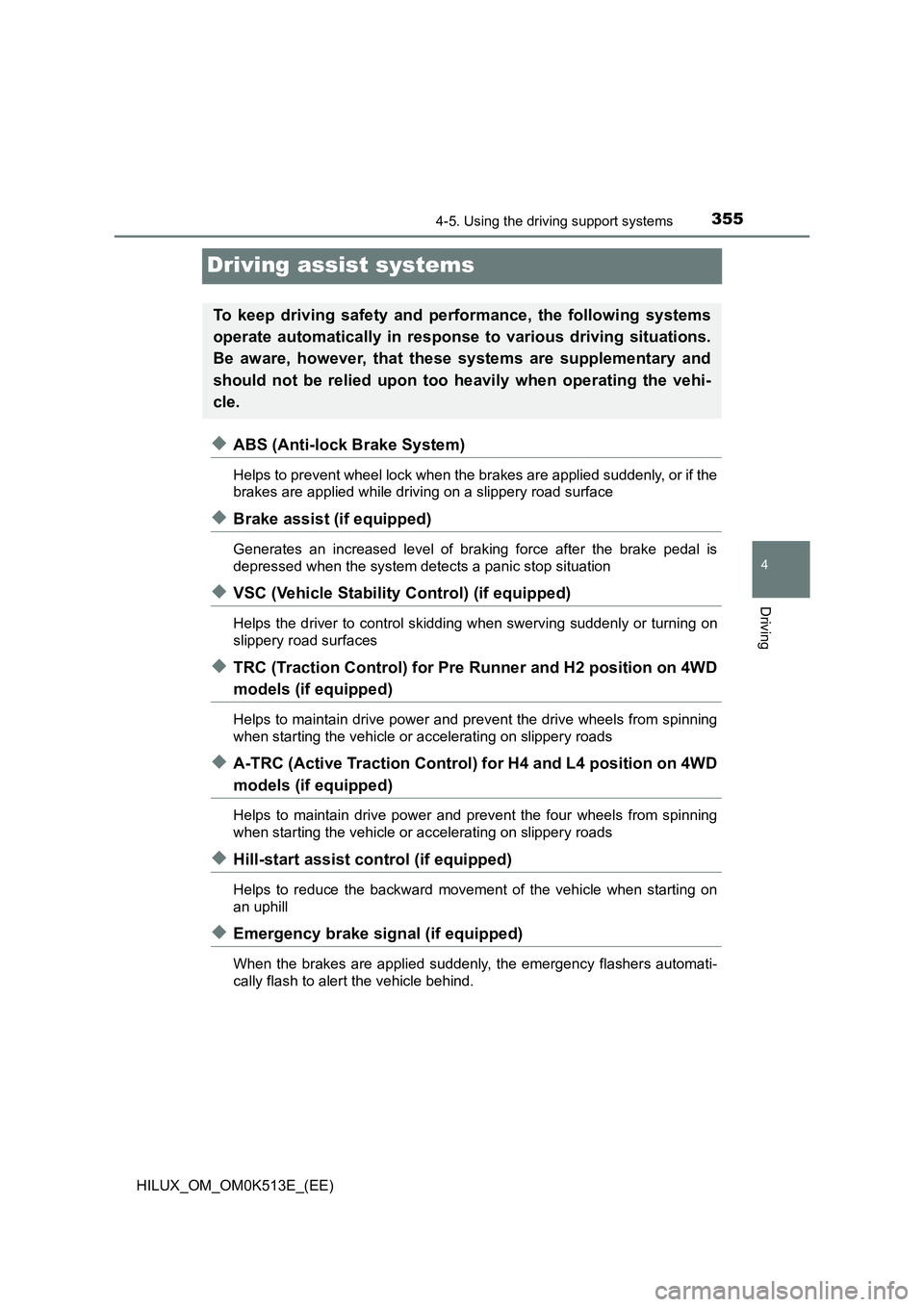

355
4
4-5. Using the driving support systems
Driving
HILUX_OM_OM0K513E_(EE)
Driving assist systems
XABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if the
brakes are applied while driving on a slippery road surface
XBrake assist (if equipped)
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation
XVSC (Vehicle Stability Control) (if equipped)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces
XTRC (Traction Control) for Pre Runner and H2 position on 4WD
models (if equipped)
Helps to maintain drive power and pr event the drive wheels from spinning
when starting the vehicle or accelerating on slippery roads
XA-TRC (Active Traction Control) for H4 and L4 position on 4WD
models (if equipped)
Helps to maintain drive power and prevent the four wheels from spinning
when starting the vehicle or accelerating on slippery roads
XHill-start assist control (if equipped)
Helps to reduce the backward movement of the vehicle when starting on
an uphill
XEmergency brake signal (if equipped)
When the brakes are applied suddenly, the emergency flashers automati-
cally flash to alert the vehicle behind.
To keep driving safety and performance, the following systems
operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehi-
cle.

3594-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
QTurning off TRC, A-TRC, VSC and Trailer Sway Control systems
Vehicles without multi-information display
To turn the TRC, A-TRC, VSC and Trailer Sway Control systems off, press
and hold for more than 3 seconds while the vehicle is stopped.
The “TRC OFF” indicator light and VSC OFF indicator light will come on.*
Press again to turn the system back on.
Vehicles with multi-information display
To turn the TRC, A-TRC, VSC and Trailer Sway Control systems off, press
and hold for more than 3 seconds while the vehicle is stopped.
The VSC OFF indicator light will come on and the “TRC turned off” will be
shown on the multi-information display.*
Press again to turn the system back on.
*: On vehicles with pre-collision system, pre-collision brake assist and pre-
collision braking will also be disabled. The PCS warning light will come on
and the message will be shown on the multi-information display. ( P. 283)
Q When “TRC OFF” indicator light comes on or the message is displayed
on the multi-information display sh owing that TRC/A-TRC has been dis-
abled even if has not been pressed
TRC, A-TRC and downhill assist control is temporary deactivated. If the indi-
cator light continues to remain on or the information continues to show, con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
Q Sounds and vibrations caused by the ABS, brake assist, VSC, Trailer
Sway Control, TRC, A-TRC and the hill-start assist control systems
O A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
O Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard also after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.

3614-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)

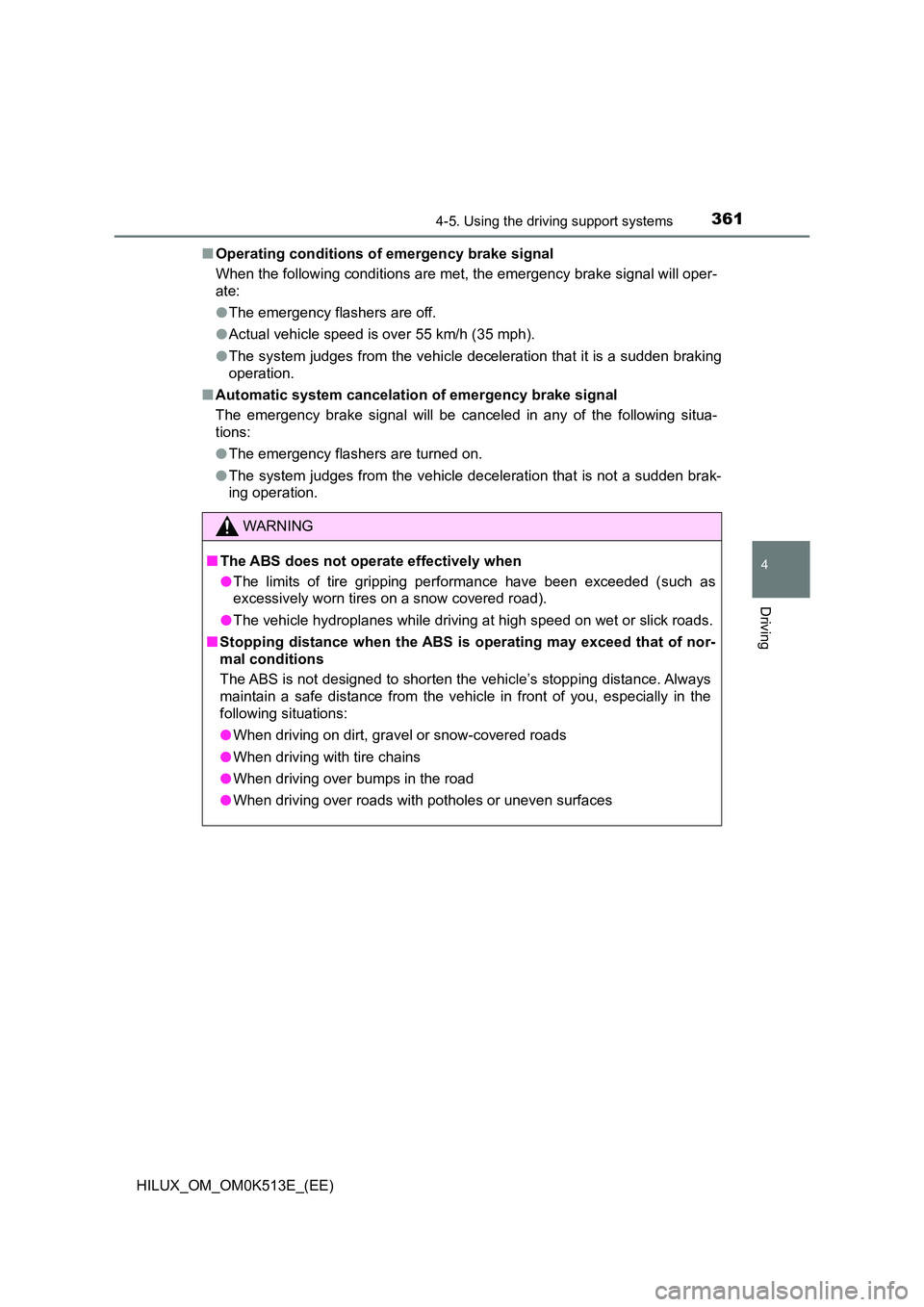

Q Operating conditions of emergency brake signal
When the following conditions are met, the emergency brake signal will oper-
ate:
O The emergency flashers are off.
O Actual vehicle speed is over 55 km/h (35 mph).
O The system judges from the vehicle deceleration that it is a sudden braking
operation.
Q Automatic system cancelation of emergency brake signal
The emergency brake signal will be canceled in any of the following situa-
tions:
O The emergency flashers are turned on.
O The system judges from the vehicle deceleration that is not a sudden brak-
ing operation.
WARNING
Q The ABS does not operate effectively when
O The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
O The vehicle hydroplanes while driving at high speed on wet or slick roads.
Q Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the
following situations:
O When driving on dirt, gravel or snow-covered roads
O When driving with tire chains
O When driving over bumps in the road
O When driving over roads with potholes or uneven surfaces
