HILUX_OM_OM0K513E_(EE)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
cluster
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of
each component
Opening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for driving
5Audio systemOperating the audio system
6Interior featuresUsage of the interior features, etc.
7Maintenance
and careCaring for your vehicle and maintenance procedures
8When trouble
arisesWhat to do in case of malfunction or emergency
9Vehicle
specificationsVehicle specifications, etc.
IndexSearch by symptom
Search alphabetically

5
1
9
8
6
5
4
3
2
HILUX_OM_OM0K513E_(EE)
7
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........472
Cleaning and protecting
the vehicle interior ...........476
7-2. Maintenance
Maintenance
requirements....................479
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................482
Hood ..................................484
Engine compartment..........486
Tires ...................................507
Tire inflation pressure ........510
Wheels ...............................512
Air conditioning filter ..........514
Wireless remote control/
electronic key battery.......516
Checking and
replacing fuses ................520
Light bulbs .........................525
8-1. Essential information
Emergency flashers ...........554
If your vehicle has to
be stopped in an
emergency .......................555
If the vehicle is
submerged or water on
the road is rising ..............557
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 559
If you think something is
wrong .............................. 564
Fuel pump shut off
system (gasoline engine
only) ................................ 565
If a warning light turns on
or a warning buzzer
sounds ............................ 566
If a warning message is
displayed ......................... 575
If you have a flat tire .......... 581
If the engine will not
start ................................. 598
If the electronic key does
not operate properly
(vehicles with smart
entry & start system) ....... 600
If the vehicle battery is
discharged ...................... 604
If your vehicle
overheats ........................ 610
If you run out of fuel
and the engine stalls
(diesel engine only) ......... 614
If the vehicle becomes
stuck................................ 615
7Maintenance and care
8When trouble arises

TABLE OF CONTENTS6
HILUX_OM_OM0K513E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)...........620
Fuel information .................643
9-2. Customization
Customizable features .......646
9-3. Initialization
Items to initialize ................654
What to do if...
(Troubleshooting) .....................656
Alphabetical index ......................660
9Vehicle specifications
Index
For vehicles with navigation system or multimedia system, refer to
the “Navigation and multimedia system Owner’s manual” or “Multi-
media Owner’s Manual” for information regarding the equipment
listed below.
• Navigation system
• Audio system
• Panoramic view monitor
• Rear view monitor system
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140
Brussels, Belgium www.toyota-europe.com

1021-3. Emergency assistance
HILUX_OM_OM0K513E_(EE)
WARNING
QFor your safety
O Please drive safely.
The function of this system is to assist you in making the Emergency Call
in case of accidents such as traffic accidents or sudden medical emergen-
cies, and it does not protect the driver or passengers in any way. Please
drive safely and fasten your seatbelts at all times for your safety.
O In case of an emergency, make lives the top priority.
O If you smell anything burning or other unusual smells, leave the vehicle
and evacuate to a safe area immediately.
O If the airbags deploy when the system is operating normally, the system
makes emergency call. The system also makes emergency call when the
vehicle is struck from the rear or rolls over, even if the airbags do not
deploy.
O For safety, do not make the Emergency Call while driving.
Making calls during driving may caus e mishandling of the steering wheel,
which may lead to unexpected accidents.
Stop the vehicle and confirm the safety of your surroundings before mak-
ing the Emergency Call.
O When changing fuses, please use the specified fuses. Using other fuses
may cause ignition or smoke in the circuit and lead to a fire.
O Using the system while there is smoke or an unusual smell may cause a
fire. Stop using the system immediately and consult any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
NOTICE
Q To prevent damage
Do not pour any liquids onto the “SOS” button panel, etc. and do not impact
it.
Q If the “SOS” button panel, speaker or microphone malfunctions during
an Emergency Call or manual maintenance check
It may not be possible to make Emergency Calls, confirm the system status,
or communicate with the eCall control center operator. If any of the above
equipment is damaged, please consult any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

1141-3. Emergency assistance
HILUX_OM_OM0K513E_(EE)
WARNING
QFor your safety
O Please drive safely.
The function of this system is to assist you in making the Emergency Call
in case of accidents such as traffic accidents or sudden medical emergen-
cies, and it does not protect the driver or passengers in any way. Please
drive safely and fasten your seatbelts at all times for your safety.
O In case of an emergency, make lives the top priority.
O If you smell anything burning or other unusual smells, leave the vehicle
and evacuate to a safe area immediately.
O Since the system detects shocks, the automatic reporting may not always
occur synchronized with the operation of the airbag system. (If the vehicle
is struck from behind, etc.)
O For safety, do not make the Emergency Call while driving.
Making calls during driving may caus e mishandling of the steering wheel,
which may lead to unexpected accidents.
Stop the vehicle and confirm the safety of your surroundings before mak-
ing the Emergency Call.
O When changing fuses, please use the specified fuses. Using other fuses
may cause ignition or smoke in the circuit and lead to a fire.
O Using the system while there is smoke or an unusual smell may cause a
fire. Stop using the system immediately and consult any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
NOTICE
Q To prevent damage
Do not pour any liquids onto the “SOS” button panel, etc. and do not impact
it.
Q If the “SOS” button panel, speaker or microphone malfunctions during
an Emergency Call or manual maintenance check
It may not be possible to make Emergency Calls, confirm the system status,
or communicate with the ERA-GLONASS/EVAK control center operator. If
any of the above equipment is damaged, please consult any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

1161-4. Theft deterrent system
HILUX_OM_OM0K513E_(EE)
Vehicles with smart entry & start system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
Q System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Q Conditions that may cause the system to malfunction
O If the grip portion of the key is in contact with a metallic object
O If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
NOTICE
Q To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

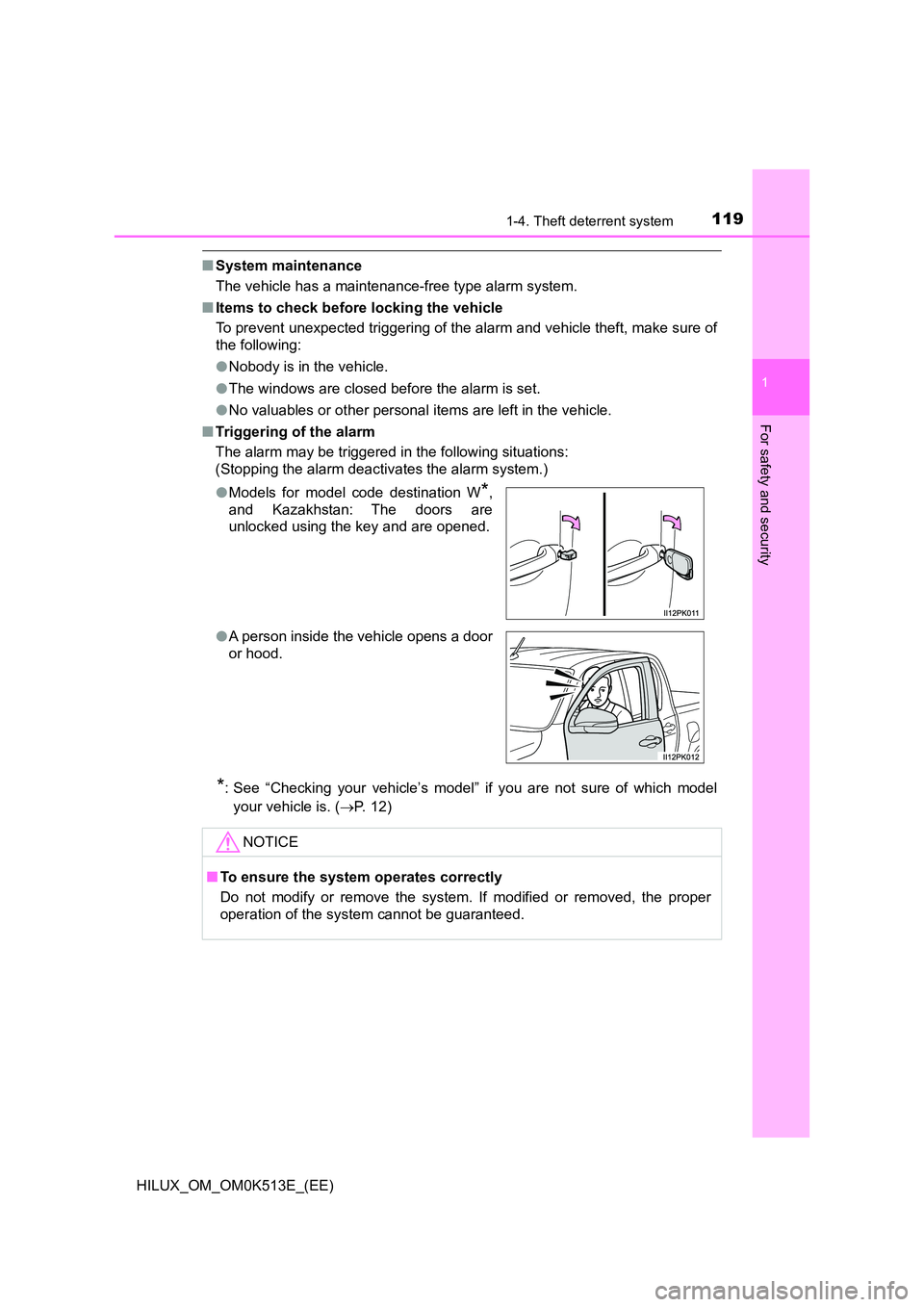

1191-4. Theft deterrent system
1
HILUX_OM_OM0K513E_(EE)
For safety and security
QSystem maintenance
The vehicle has a maintenance-free type alarm system.
Q Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
O Nobody is in the vehicle.
O The windows are closed before the alarm is set.
O No valuables or other personal items are left in the vehicle.
Q Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
O Models for model code destination W*,
and Kazakhstan: The doors are
unlocked using the key and are opened.
O A person inside the vehicle opens a door
or hood.
NOTICE
Q To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

2144-1. Before driving
HILUX_OM_OM0K513E_(EE)
QTire information
O Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi)
greater than the recommended value when towing. ( P. 639)
O Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
Q Tr a i l e r l i g h ts
Check that the turn signal lights and stoplights are operating correctly every
time you hitch up the trailer. Direct ly wiring up to your vehicle may damage
the electrical system and stop the lights from functioning correctly.
Q Break-in schedule
Toyota recommends that vehicles fitted with new power train components
should not be used for towing trailers for the first 800 km (500 miles).
Q Safety checks before towing
O Check that the maximum load limit for the towing hitch/bracket and hitch ball
is not exceeded. Bear in mind that the coupling weight of the trailer will add
to the load exerted on the vehicle. Also make sure that the total load exerted
on the vehicle is within the range of the weight limits. ( P. 212)
O Ensure that the trailer load is secure.
O Supplementary outside rear view mirrors should be added to the vehicle if
the traffic behind cannot be clearly seen with standard mirrors. Adjust the
extending arms of these mirrors on both sides of the vehicle so that they
always provide maximum visibility of the road behind.
Q Maintenance
O Maintenance must be performed more frequently when using the vehicle for
towing due to the greater weight burden placed on the vehicle compared to
normal driving.
O Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).

2184-1. Before driving
HILUX_OM_OM0K513E_(EE)
QTire information
O Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi)
greater than the recommended value when towing. ( P. 639)
O Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
Q Tr a i l e r l i g h ts
Check that the turn signal lights and stoplights are operating correctly every
time you hitch up the trailer. Direct ly wiring up to your vehicle may damage
the electrical system and stop the lights from functioning correctly.
Q Break-in schedule
Toyota recommends that vehicles fitted with new power train components
should not be used for towing trailers for the first 800 km (500 miles).
Q Safety checks before towing
O Check that the maximum load limit for the towing hitch/bracket and hitch ball
is not exceeded. Bear in mind that the coupling weight of the trailer will add
to the load exerted on the vehicle. Also make sure that the total load exerted
on the vehicle is within the range of the weight limits. ( P. 216)
O Ensure that the trailer load is secure.
O Supplementary outside rear view mirrors should be added to the vehicle if
the traffic behind cannot be clearly seen with standard mirrors. Adjust the
extending arms of these mirrors on both sides of the vehicle so that they
always provide maximum visibility of the road behind.
Q Maintenance
O Maintenance must be performed more frequently when using the vehicle for
towing due to the greater weight burden placed on the vehicle compared to
normal driving.
O Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).

471
7Maintenance and care
HILUX_OM_OM0K513E_(EE)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 472
Cleaning and protecting
the vehicle interior ........... 476
7-2. Maintenance
Maintenance
requirements.................... 479
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 482
Hood .................................. 484
Engine compartment.......... 486
Tires ................................... 507
Tire inflation pressure ........ 510
Wheels ............................... 512
Air conditioning filter .......... 514
Wireless remote control/
electronic key battery....... 516
Checking and
replacing fuses ................ 520
Light bulbs ......................... 525
