TOYOTA HILUX 2023 Owners Manual

5397-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
■Halogen front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
Removing the clip
Installing the clip
1
1
2
Ty pe AType B

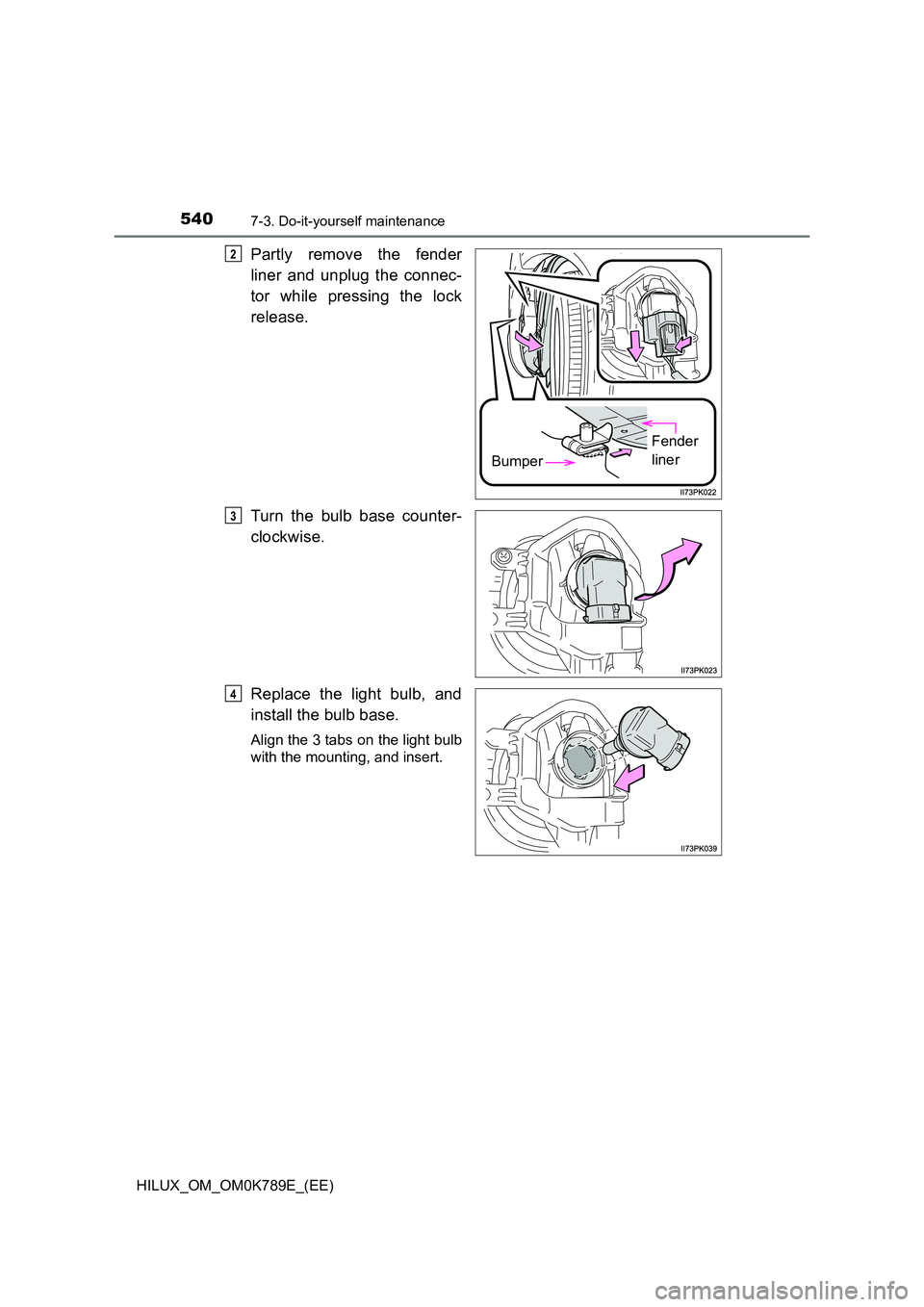

5407-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
Partly remove the fender
liner and unplug the connec-
tor while pressing the lock
release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Bumper
Fender
liner
2
3
4

5417-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
Turn and secure the bulb
base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, screws and clips, reverse the
removing procedure in steps and .
5
6
7
12

5427-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
■Stop/tail lights, rear turn signal lights, back-up lights and rear
fog light (if equipped) (without LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4

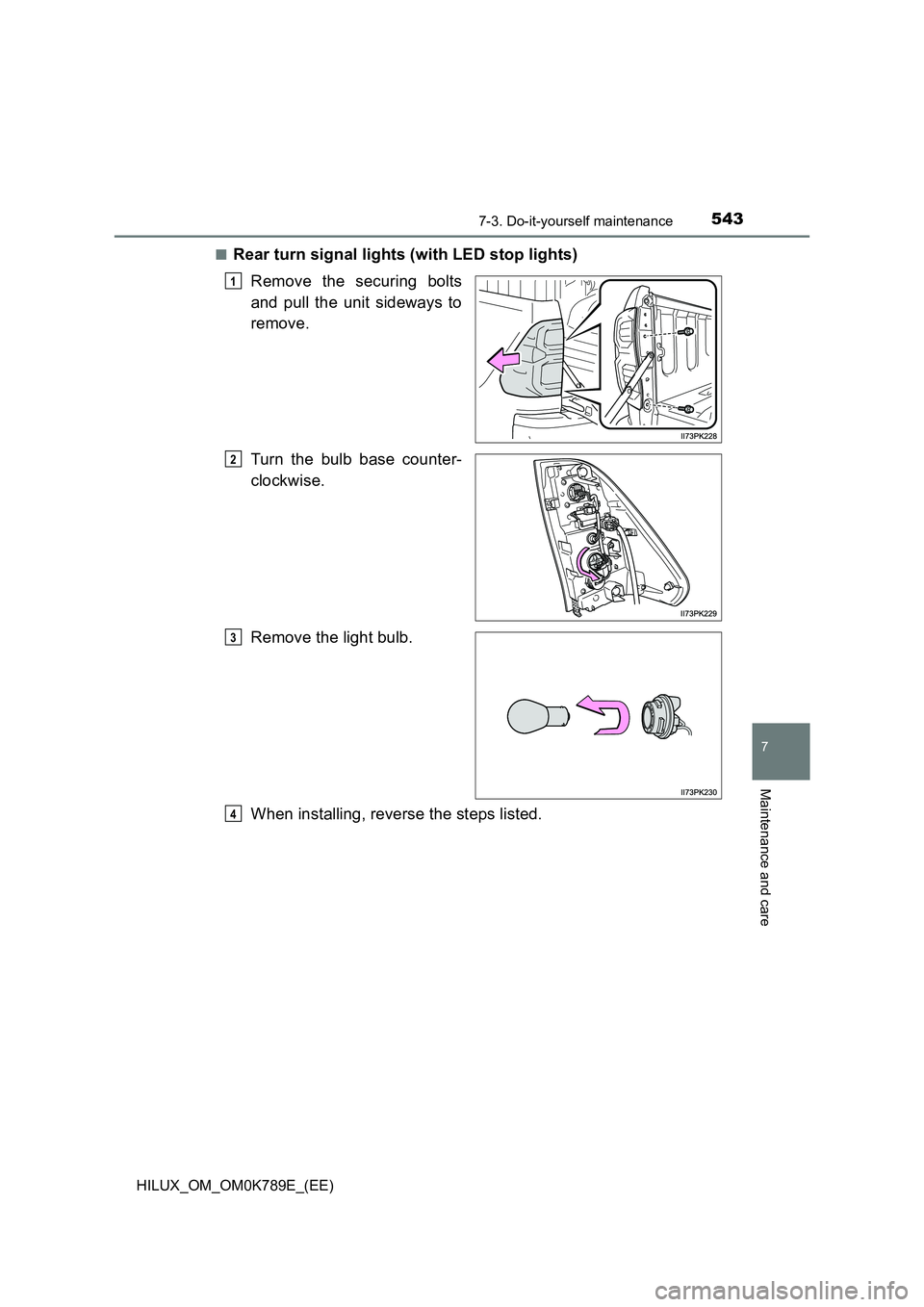

5437-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
■Rear turn signal lights (with LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

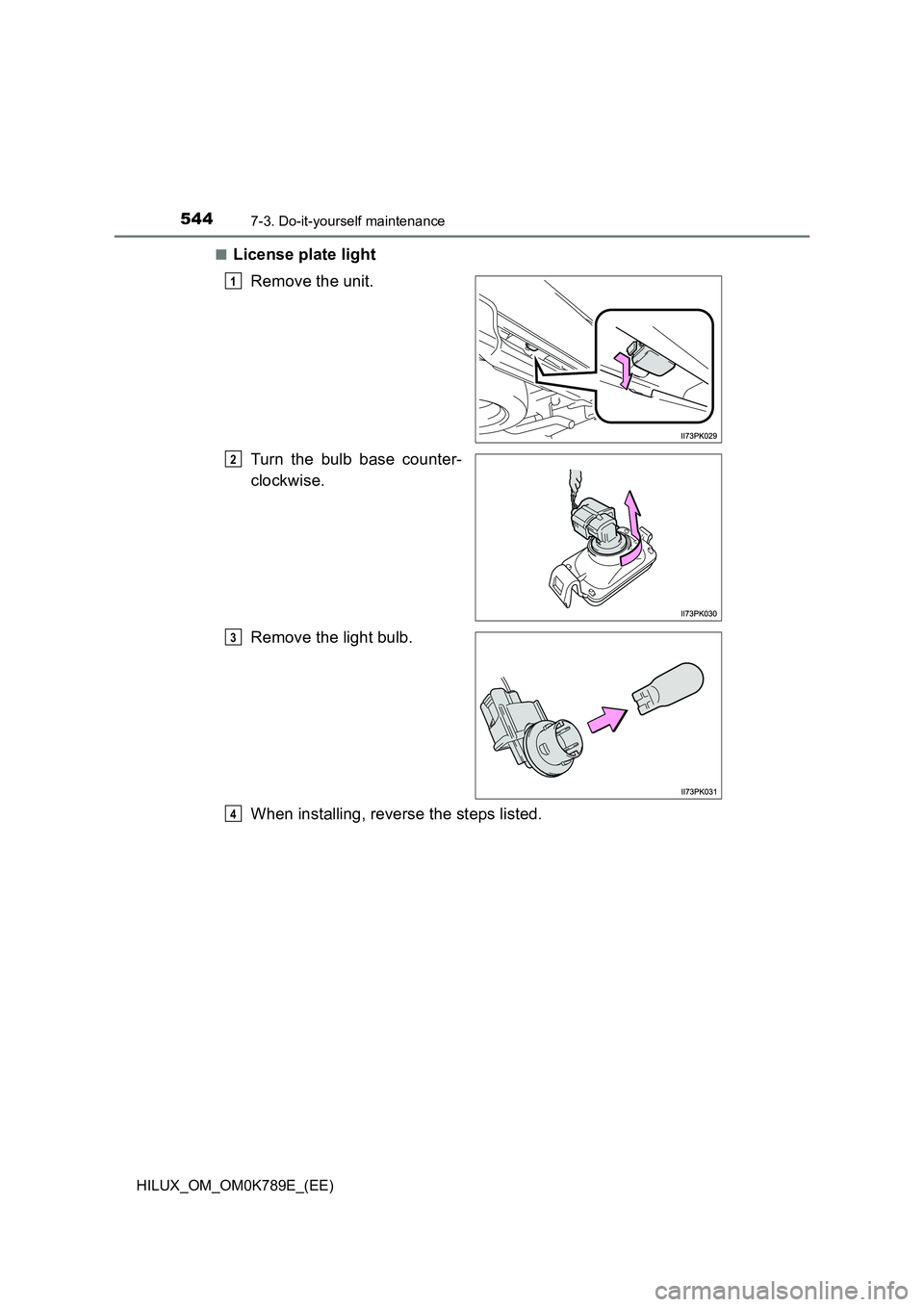

5447-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
■License plate light
Remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

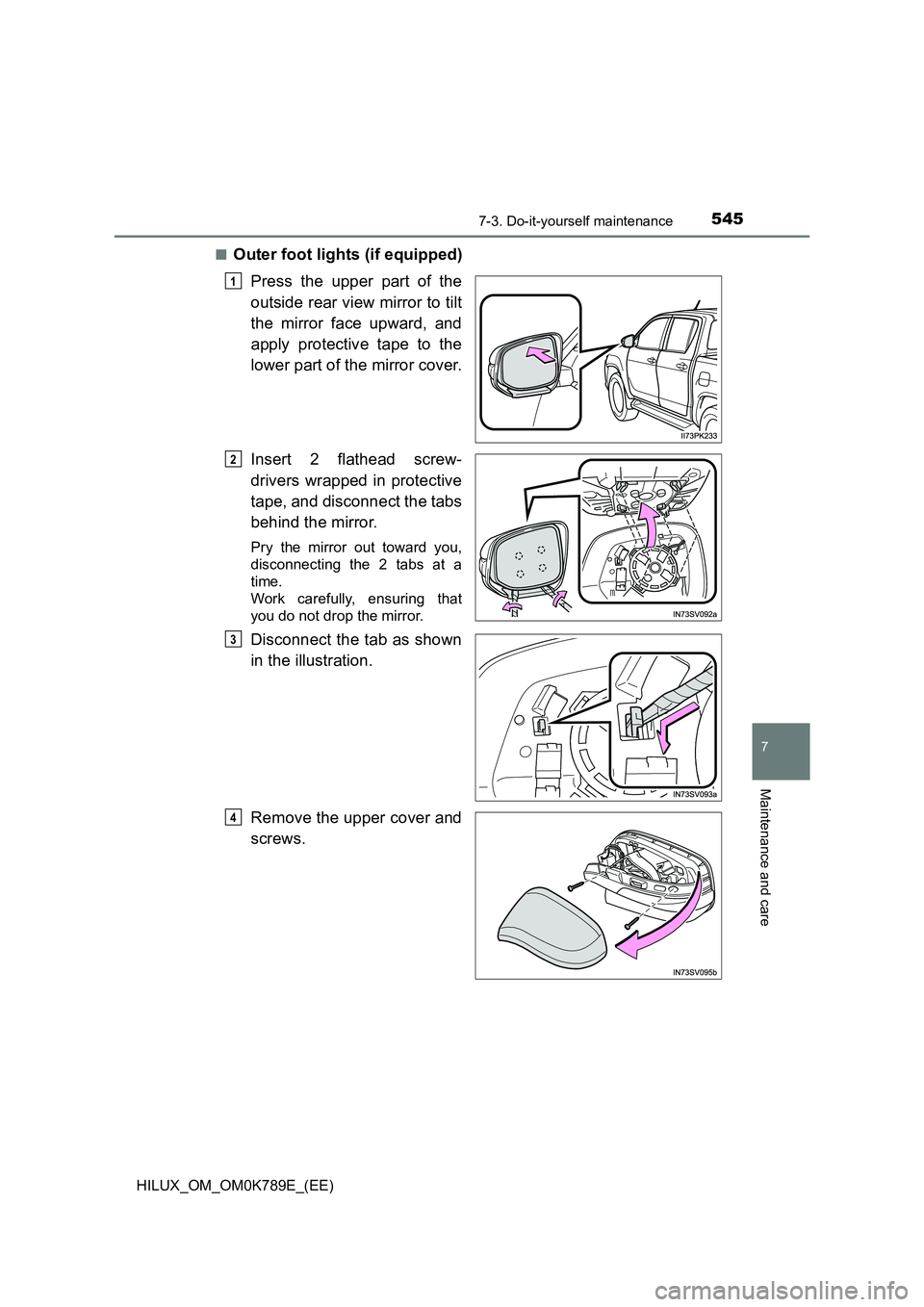

5457-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
■Outer foot lights (if equipped)
Press the upper part of the
outside rear view mirror to tilt
the mirror face upward, and
apply protective tape to the
lower part of the mirror cover.
Insert 2 flathead screw-
drivers wrapped in protective
tape, and disconnect the tabs
behind the mirror.
Pry the mirror out toward you,
disconnecting the 2 tabs at a
time.
Work carefully, ensuring that
you do not drop the mirror.
Disconnect the tab as shown
in the illustration.
Remove the upper cover and
screws.
1
2
3
4

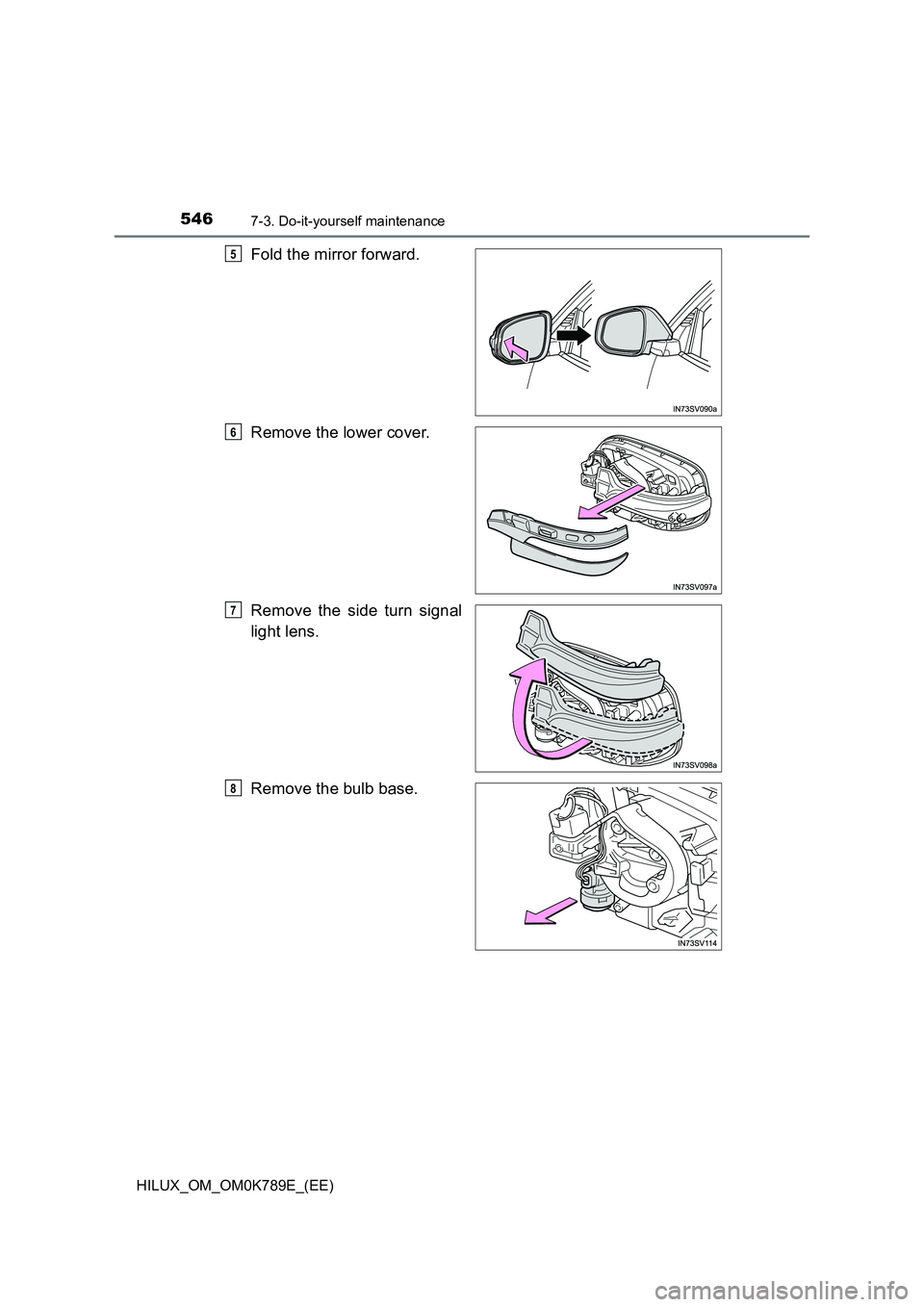

5467-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
Fold the mirror forward.
Remove the lower cover.
Remove the side turn signal
light lens.
Remove the bulb base.
5
6
7
8

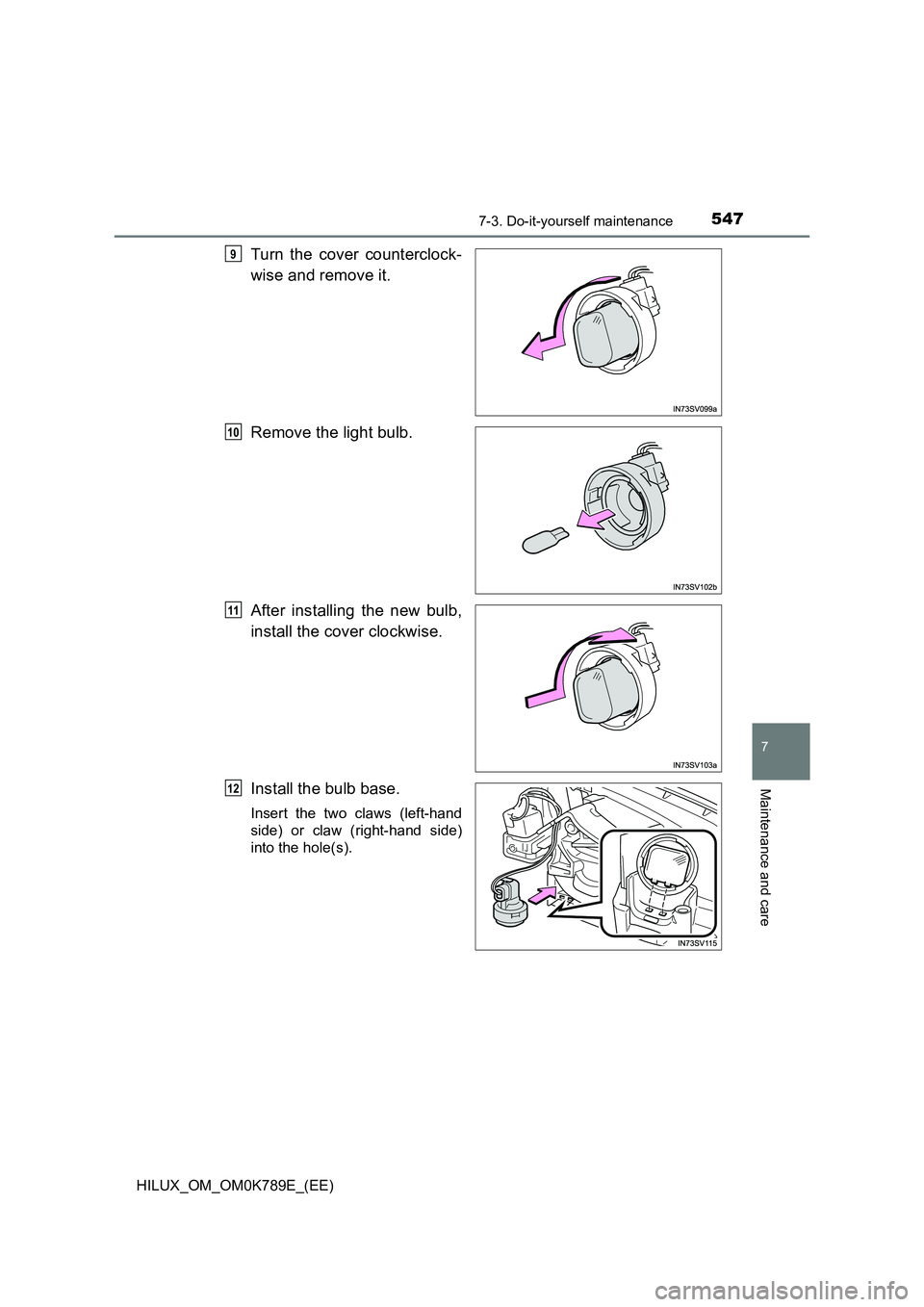

5477-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
Turn the cover counterclock-
wise and remove it.
Remove the light bulb.
After installing the new bulb,
install the cover clockwise.
Install the bulb base.
Insert the two claws (left-hand
side) or claw (right-hand side)
into the hole(s).
9
10
11
12

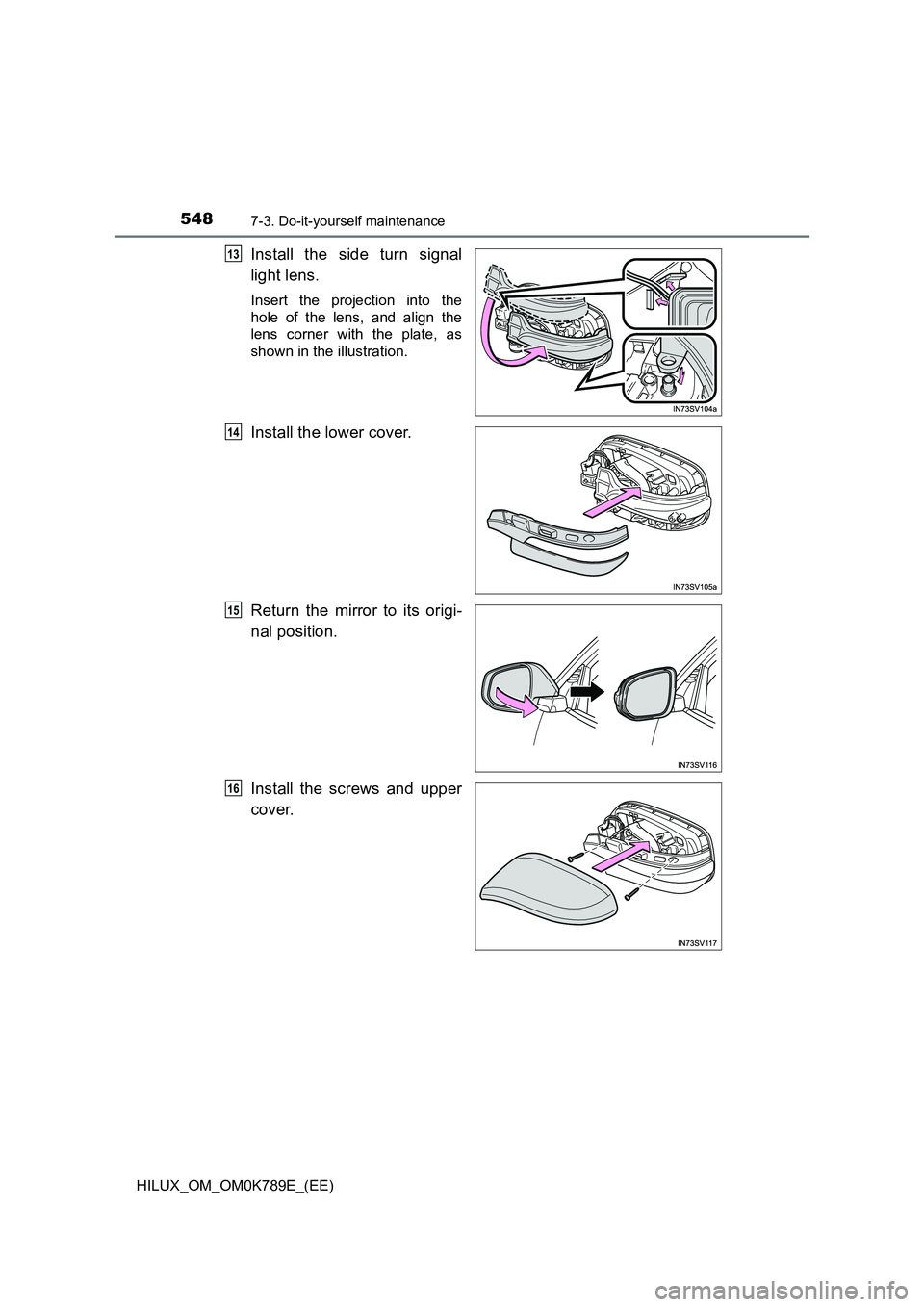

5487-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
Install the side turn signal
light lens.
Insert the projection into the
hole of the lens, and align the
lens corner with the plate, as
shown in the illustration.
Install the lower cover.
Return the mirror to its origi-
nal position.
Install the screws and upper
cover.
13
14
15
16
