fog light bulb TOYOTA HILUX 2023 Owners Manual

17Pictorial index
HILUX_OM_OM0K789E_(EE)
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 640
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 373
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Camera*1, 2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Front position lights/daytime running lights*1. . . . . . . . . . P. 247
Front fog lights*1/rear fog light*1, 3. . . . . . . . . . . . . . . . . . . P. 254
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Stop lights
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 363
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Back-up lights*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 230, 238
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 525, Watts: P. 643)
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17
18

5397-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care

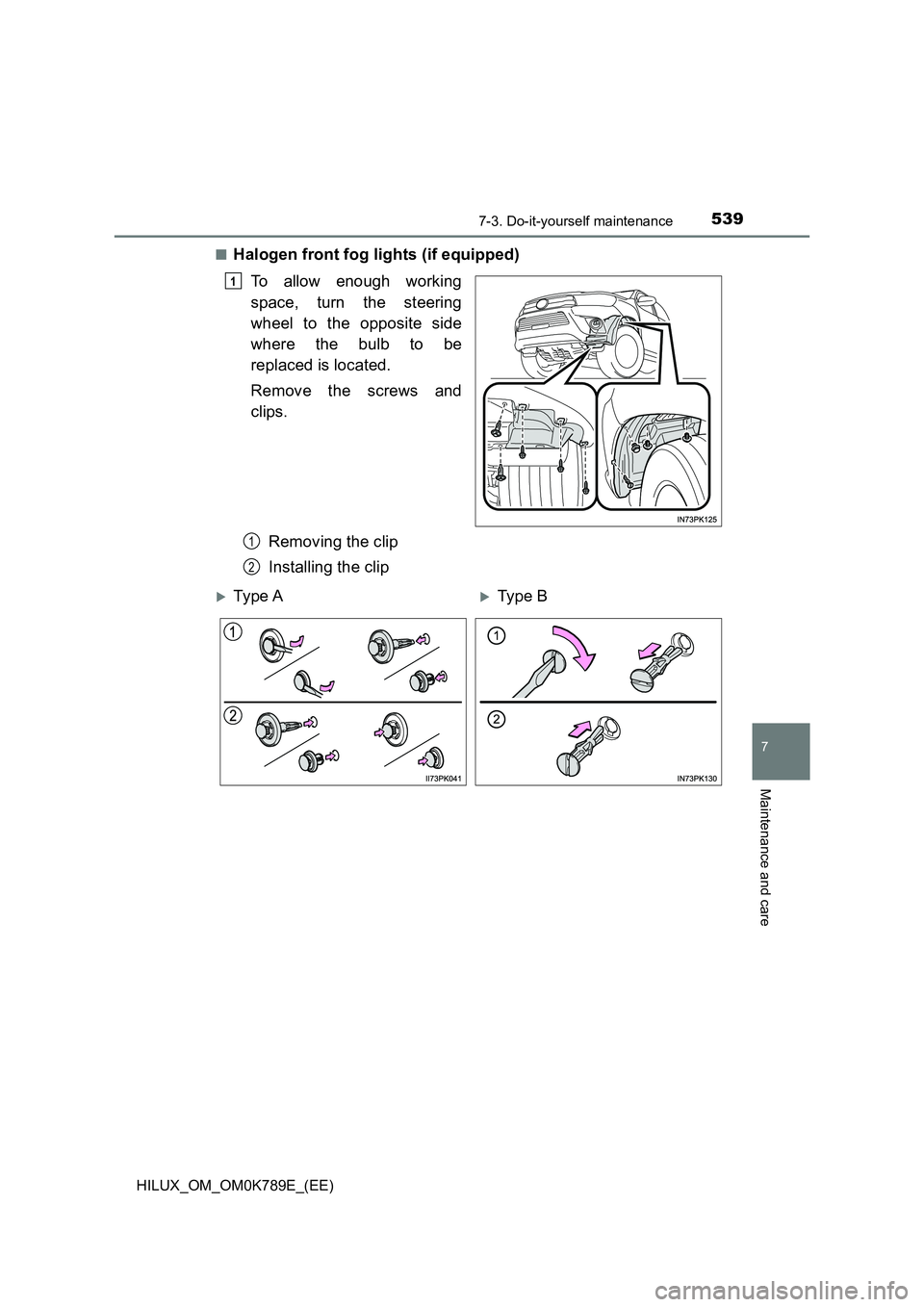

■Halogen front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
Removing the clip
Installing the clip
1
1
2
Ty pe AType B

5417-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care

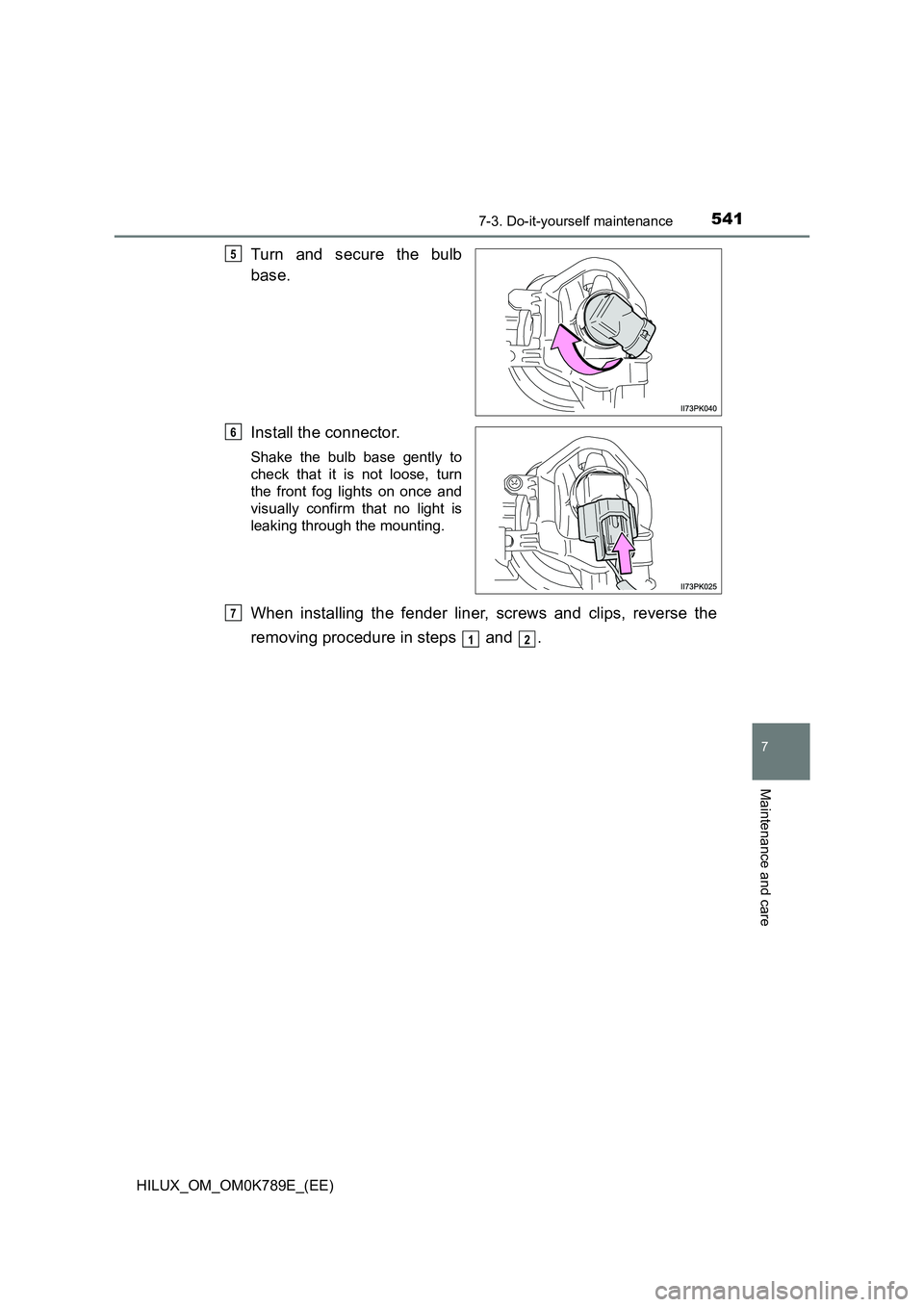

Turn and secure the bulb
base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, screws and clips, reverse the
removing procedure in steps and .
5
6
7
12

5427-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)

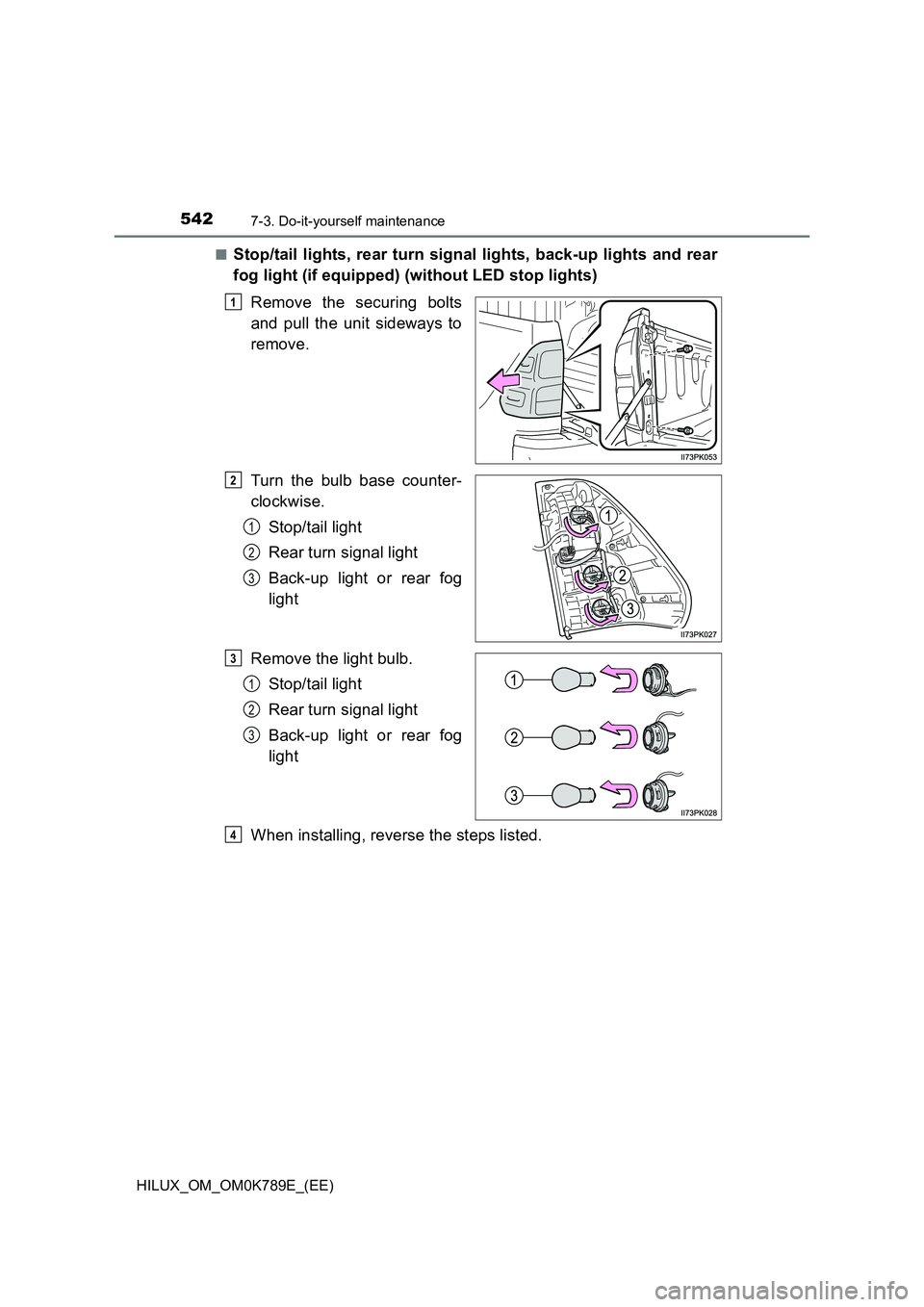

■Stop/tail lights, rear turn signal lights, back-up lights and rear
fog light (if equipped) (without LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4

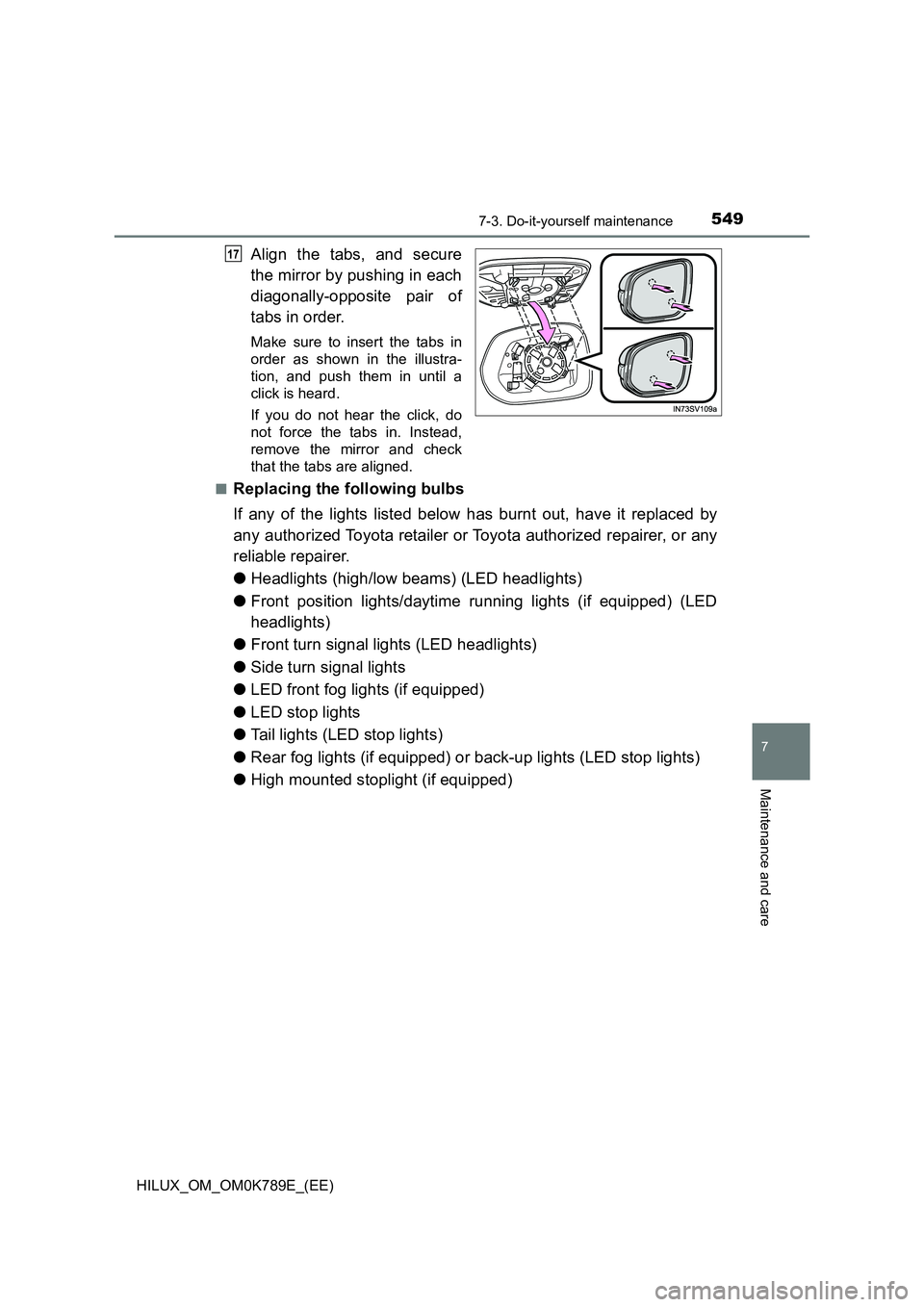

5497-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Headlights (high/low beams) (LED headlights)
● Front position lights/daytime running lights (if equipped) (LED
headlights)
● Front turn signal lights (LED headlights)
● Side turn signal lights
● LED front fog lights (if equipped)
● LED stop lights
● Tail lights (LED stop lights)
● Rear fog lights (if equipped) or back-up lights (LED stop lights)
● High mounted stoplight (if equipped)
17

5507-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)

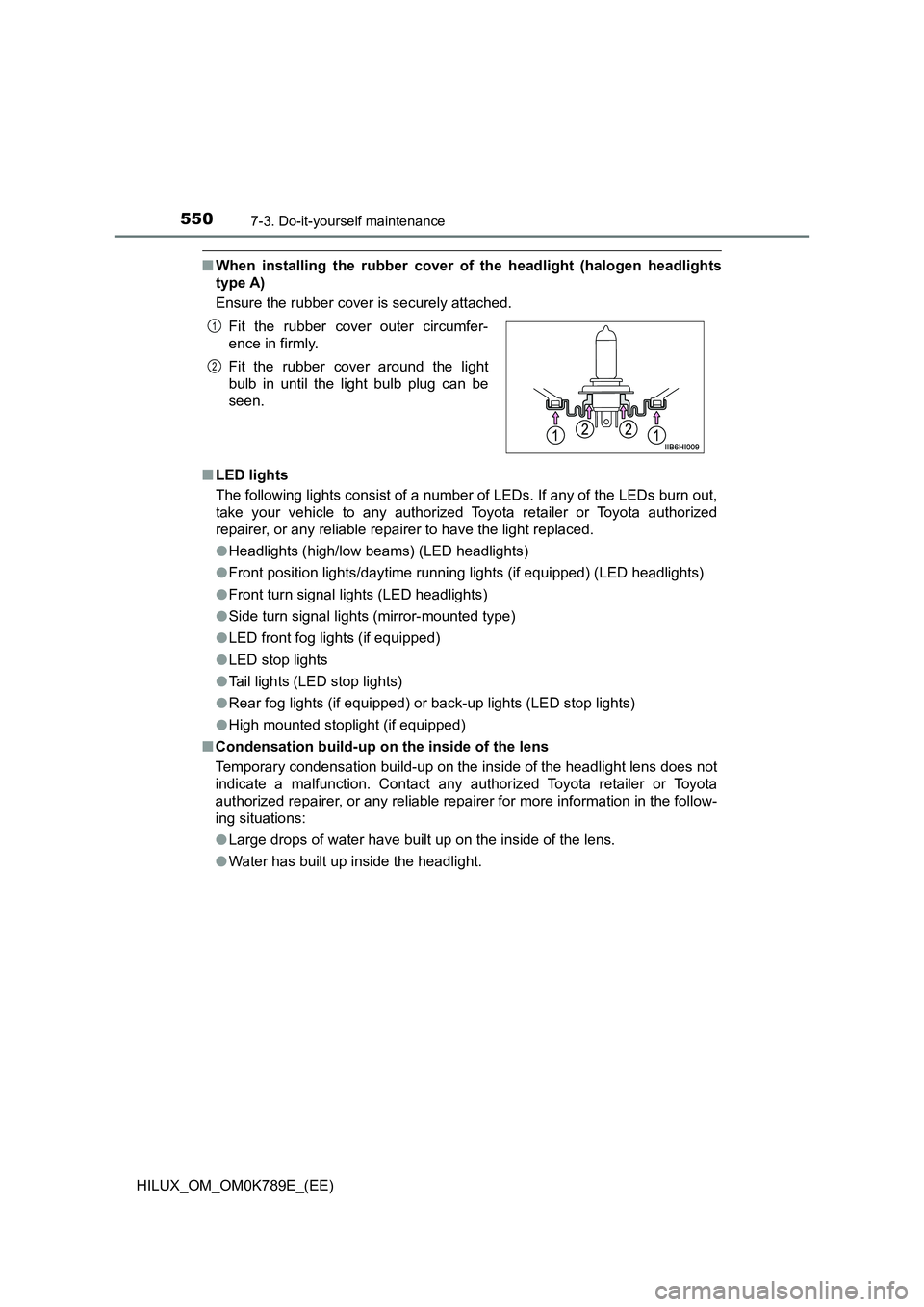

■When installing the rubber cover of the headlight (halogen headlights
type A)
Ensure the rubber cover is securely attached.
■ LED lights
The following lights consist of a number of LEDs. If any of the LEDs burn out,
take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer to have the light replaced.
● Headlights (high/low beams) (LED headlights)
● Front position lights/daytime running lights (if equipped) (LED headlights)
● Front turn signal lights (LED headlights)
● Side turn signal lights (mirror-mounted type)
● LED front fog lights (if equipped)
● LED stop lights
● Tail lights (LED stop lights)
● Rear fog lights (if equipped) or back-up lights (LED stop lights)
● High mounted stoplight (if equipped)
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the follow-
ing situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
Fit the rubber cover outer circumfer-
ence in firmly.
Fit the rubber cover around the light
bulb in until the light bulb plug can be
seen.
1
2

643
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
*: If equipped

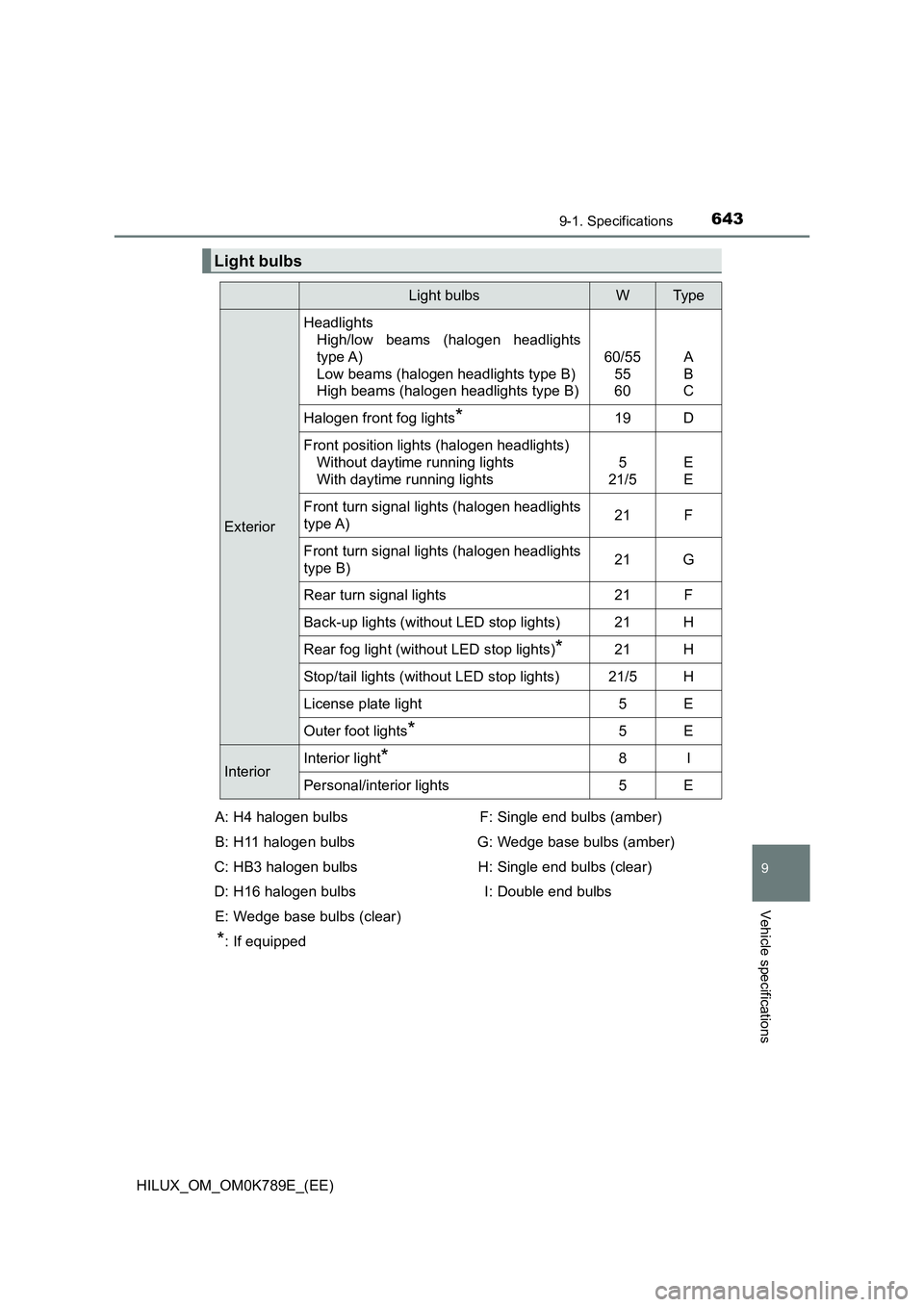

Light bulbs
Light bulbsWTyp e
Exterior
Headlights
High/low beams (halogen headlights
type A)
Low beams (halogen headlights type B)
High beams (halogen headlights type B)
60/55
55
60
A
B
C
Halogen front fog lights*19 D
Front position lights (halogen headlights)
Without daytime running lights
With daytime running lights
5
21/5
E
E
Front turn signal lights (halogen headlights
type A) 21 F
Front turn signal lights (halogen headlights
type B) 21 G
Rear turn signal lights 21 F
Back-up lights (without LED stop lights) 21 H
Rear fog light (without LED stop lights)*21 H
Stop/tail lights (without LED stop lights) 21/5 H
License plate light 5 E
Outer foot lights*5E
Interior Interior light*8I
Personal/interior lights 5 E
A: H4 halogen bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: H16 halogen bulbs
E: Wedge base bulbs (clear)
F: Single end bulbs (amber)
G: Wedge base bulbs (amber)
H: Single end bulbs (clear)
I: Double end bulbs

666Alphabetical index
HILUX_OM_OM0K789E_(EE)
Engine oil maintenance
data ......................................... 491
Engine switch
(ignition switch) ............. 219, 222
Auto power off function ......... 226
Changing the engine
switch modes...................... 225
Changing the engine
switch position .................... 220
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine ........ 219, 222
Engine switch light
(ignition switch light) ............ 453
ERA-GLONASS ........................ 108
EVAK ......................................... 108
Flat tire ...................................... 581
Floor mat .................................... 36
Fluid
Automatic transmission ......... 636
Brake..................................... 638
Clutch .................................... 638
Steering................................. 639
Transfer................................. 637
Washer.................................. 498
Fog lights
Replacing light
bulbs ................... 539, 542, 549
Switch ................................... 254
Wattage................................. 643
Four-wheel drive system
Front-wheel drive control
switch.................................. 330
Warning light ......................... 568
Front fog lights
Replacing light bulbs..... 539, 549
Switch ................................... 254
Wattage ................................ 643
Front passenger occupant
classification system .............. 57
Front position lights
Light switch ........................... 247
Replacing light
bulbs................... 533, 534, 549
Wattage ................................ 643
Front seats
Adjustment ............................ 168
Cleaning................................ 476
Correct driving posture ........... 38
Head restraints ..................... 173
Seat heaters ......................... 450
Front turn signal lights
Replacing light
bulbs................... 536, 537, 549
Turn signal lever ................... 245
Wattage ................................ 643
Fuel
Capacity ................................ 627
Fuel filter ............................... 499
Fuel gauge ............................ 129
Fuel pump shut off system.... 565
If you run out of fuel
and the engine stalls .......... 614
Information ............................ 644
Refueling............................... 260
Type ...................................... 627
Warning light ......................... 569
Fuel consumption
information ............................ 142
Fuel filler door.......................... 260
Refueling............................... 260
Fuel filter .......................... 499, 569
Fuel pump shut off system ..... 565
Fuses ........................................ 520
F

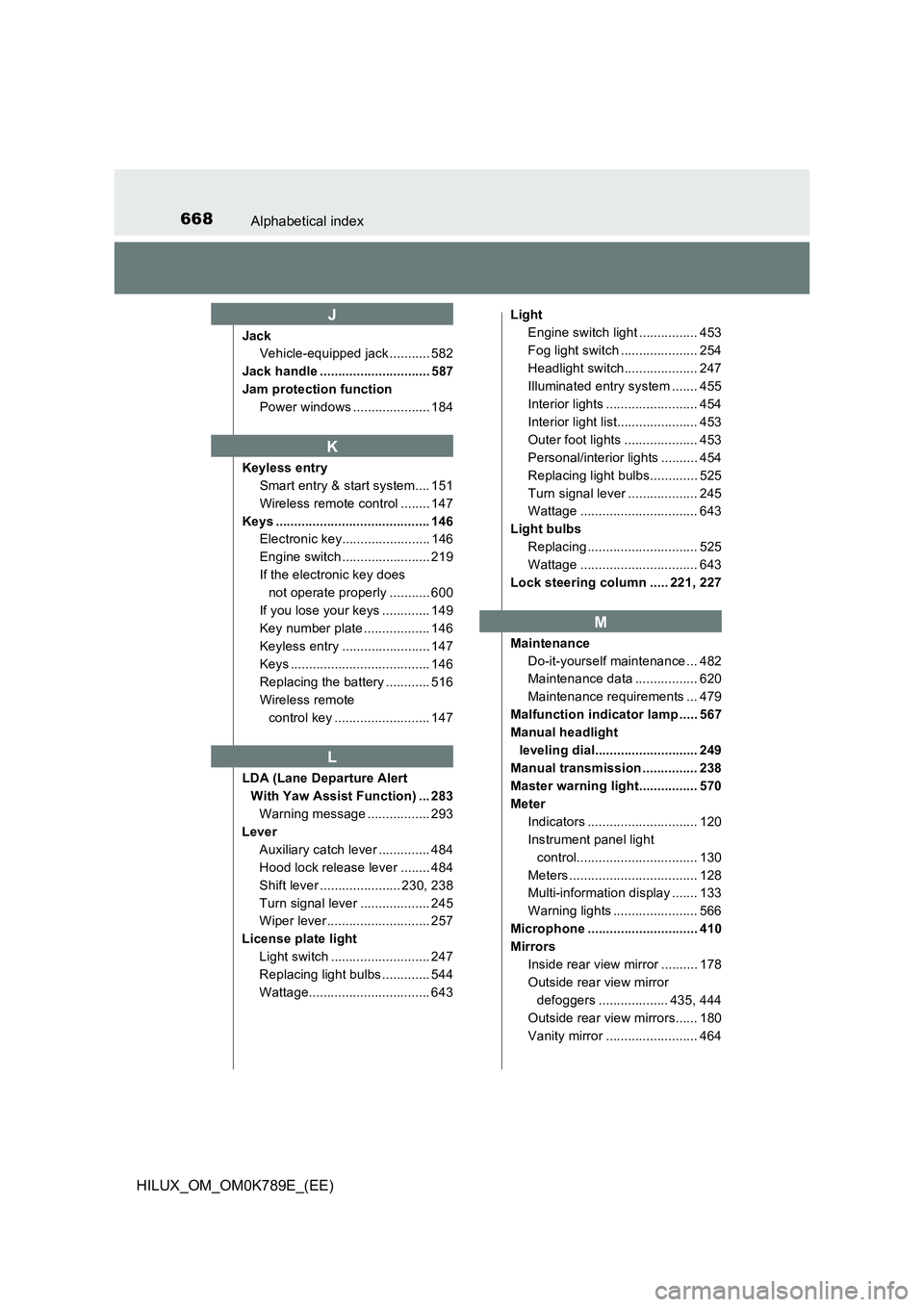

668Alphabetical index
HILUX_OM_OM0K789E_(EE)
Jack
Vehicle-equipped jack ........... 582
Jack handle .............................. 587
Jam protection function
Power windows ..................... 184
Keyless entry
Smart entry & start system.... 151
Wireless remote control ........ 147
Keys .......................................... 146
Electronic key........................ 146
Engine switch ........................ 219
If the electronic key does
not operate properly ........... 600
If you lose your keys ............. 149
Key number plate .................. 146
Keyless entry ........................ 147
Keys ...................................... 146
Replacing the battery ............ 516
Wireless remote
control key .......................... 147
LDA (Lane Departure Alert
With Yaw Assist Function) ... 283
Warning message ................. 293
Lever
Auxiliary catch lever .............. 484
Hood lock release lever ........ 484
Shift lever ...................... 230, 238
Turn signal lever ................... 245
Wiper lever ............................ 257
License plate light
Light switch ........................... 247
Replacing light bulbs ............. 544
Wattage................................. 643
Light
Engine switch light ................ 453
Fog light switch ..................... 254
Headlight switch.................... 247
Illuminated entry system ....... 455
Interior lights ......................... 454
Interior light list...................... 453
Outer foot lights .................... 453
Personal/interior lights .......... 454
Replacing light bulbs............. 525
Turn signal lever ................... 245
Wattage ................................ 643
Light bulbs
Replacing .............................. 525
Wattage ................................ 643
Lock steering column ..... 221, 227
Maintenance
Do-it-yourself maintenance ... 482
Maintenance data ................. 620
Maintenance requirements ... 479
Malfunction indicator lamp ..... 567
Manual headlight
leveling dial............................ 249
Manual transmission ............... 238
Master warning light................ 570
Meter
Indicators .............................. 120
Instrument panel light
control................................. 130
Meters ................................... 128
Multi-information display ....... 133
Warning lights ....................... 566
Microphone .............................. 410
Mirrors
Inside rear view mirror .......... 178
Outside rear view mirror
defoggers ................... 435, 444
Outside rear view mirrors...... 180
Vanity mirror ......................... 464
J
K
L
M

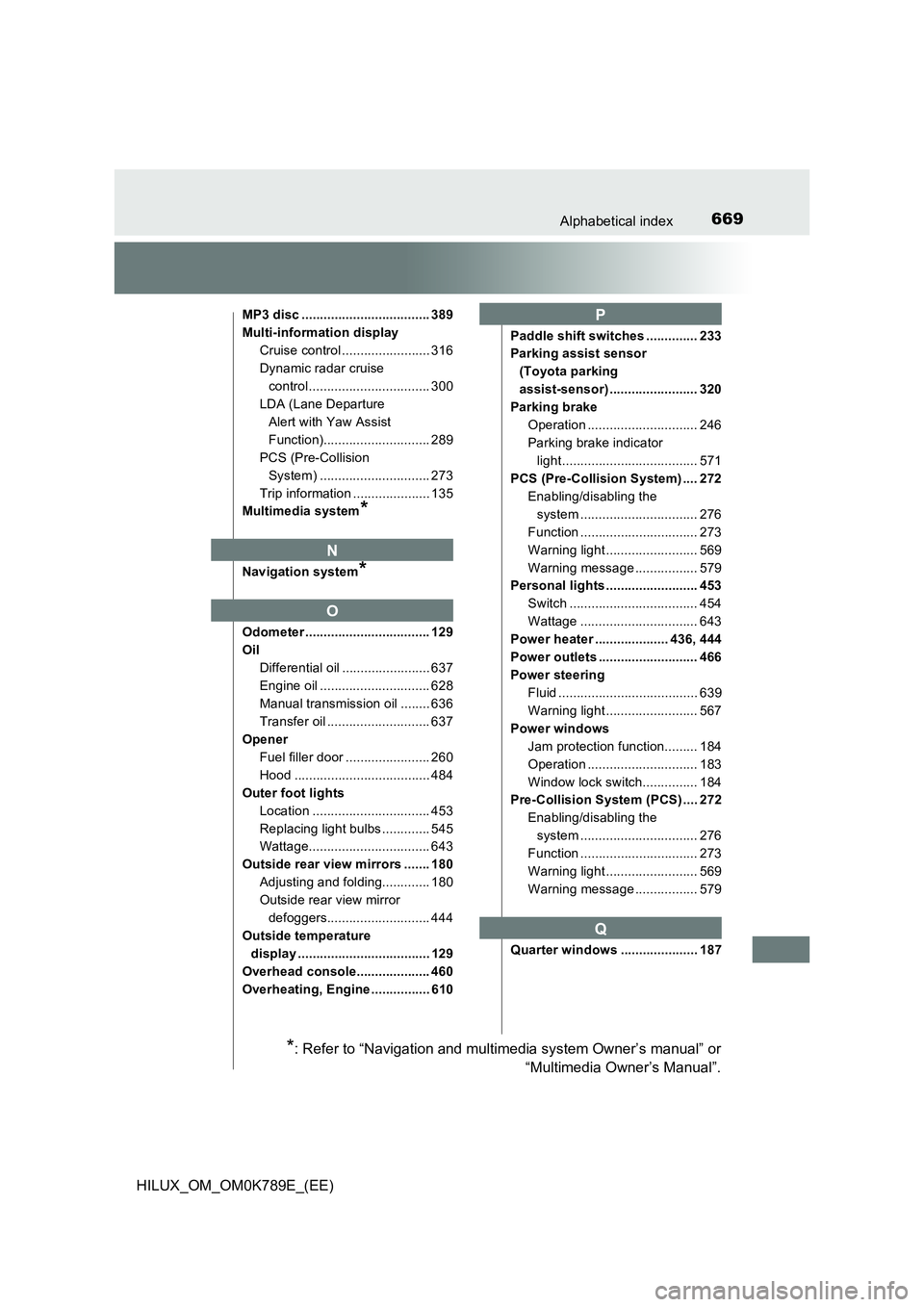

669Alphabetical index
HILUX_OM_OM0K789E_(EE)
MP3 disc ................................... 389
Multi-information display
Cruise control ........................ 316
Dynamic radar cruise
control................................. 300
LDA (Lane Departure
Alert with Yaw Assist
Function)............................. 289
PCS (Pre-Collision
System) .............................. 273
Trip information ..................... 135
Multimedia system*
Navigation system*
Odometer .................................. 129
Oil
Differential oil ........................ 637
Engine oil .............................. 628
Manual transmission oil ........ 636
Transfer oil ............................ 637
Opener
Fuel filler door ....................... 260
Hood ..................................... 484
Outer foot lights
Location ................................ 453
Replacing light bulbs ............. 545
Wattage................................. 643
Outside rear view mirrors ....... 180
Adjusting and folding............. 180
Outside rear view mirror
defoggers............................ 444
Outside temperature
display .................................... 129
Overhead console.................... 460
Overheating, Engine ................ 610
Paddle shift switches .............. 233
Parking assist sensor
(Toyota parking
assist-sensor) ........................ 320
Parking brake
Operation .............................. 246
Parking brake indicator
light..................................... 571
PCS (Pre-Collision System) .... 272
Enabling/disabling the
system ................................ 276
Function ................................ 273
Warning light ......................... 569
Warning message ................. 579
Personal lights ......................... 453
Switch ................................... 454
Wattage ................................ 643
Power heater .................... 436, 444
Power outlets ........................... 466
Power steering
Fluid ...................................... 639
Warning light ......................... 567
Power windows
Jam protection function......... 184
Operation .............................. 183
Window lock switch............... 184
Pre-Collision System (PCS) .... 272
Enabling/disabling the
system ................................ 276
Function ................................ 273
Warning light ......................... 569
Warning message ................. 579
Quarter windows ..................... 187
N
O
P
Q
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
