TOYOTA iA 2016 Owners Manual (in English)

iA_OM_OM99M17z_(U)
912-1. Keys
2
Before Driving
■Panic button
If you witness from a distance
someone attempting to break
into or damage your vehicle,
press and hold the panic button
to activate the vehicle’s alarm.
●Turning on the alarm
Pressing the panic button for 1 second or more will trigger the
alarm for about 2 minutes and 30 seconds, and the following will
occur: • The horn sounds intermittently.
• The hazard warning lights flash.
● Turning off the alarm
The alarm stops by pressing any button on the key.
■Smart Key
●The headlights turn on/off by operating the smart key. Refer to Leaving
Home Light System on P. 177.
● With theft deterrent system:
The hazard warning lights flash when the theft deterrent system is armed or
turned off.
Refer to Theft Deterrent System on P. 123.
■ Lock button
●The doors and the trunk lid can be locked by pressing the lock button while
any other door or the trunk lid is open. The hazard warning lights will not
flash.
When the lock button is pressed while any door is open and then the door
is closed, all the doors and the trunk lid are locked.
● Confirm that all doors and the trunk lid are locked visually or audibly by use
of the double click.
● Make sure all doors and the trunk lid are locked after pressing the button.
● With theft deterrent system:
When the doors are locked by pressing the lock button on the key while the
theft deterrent system is armed, the hazard warning lights will flash once to
indicate that the system is armed.

92
iA_OM_OM99M17z_(U)
2-1. Keys
■Unlock button
●The system can be set to unlock all doors by performing a single operation.
Refer to Customizable Features on P. 572.
Use the following procedure to change the setting.
Switch the ignition off and close all of the doors and the trunk lid.
Open the driver’s door
Within 30 seconds of opening the driver’s door, press and hold the
UNLOCK button on the key for 5 seconds or longer. The sound of the
doors locking/unlocking can be heard.
After this, the system switches the setting each time the UNLOCK button
is pressed (the sound of the doors locking/unlocking can be heard).
The setting change is completed by doing any one of the following:
• Switching the ignition to ACC or ON.
• Closing the driver’s door.
• Opening the trunk lid.
• Not operating the key for 10 seconds.
• Pressing any button except the UNLOCK button on the key.
• Pressing a request switch.
● Auto re-lock function:
After unlocking with the key, all doors and the trunk lid will automatically lock
if any of the following operations are not performed within about 60 sec-
onds. If your vehicle has a theft deterrent system, the hazard warning lights
will flash for confirmation.
The time required for the doors to lock automatically can be changed.
Refer to Customizable Features on P. 572.
• A door or the trunk lid is opened.
• The ignition is switched to any position other than off.
● With theft deterrent system:
When the doors are unlocked by pressing the unlock button on the key while
the theft deterrent system is turned off, the hazard warning lights will flash
twice to indicate that the system is turned off.
■ Panic button
The panic button will work whether any door or the trunk lid is open or closed.
1
2
3
4

iA_OM_OM99M17z_(U)
932-1. Keys
2
Before Driving
The system operates only when the driver is in the vehicle or within
operational range while the key is being carried.
■Starting the Engine Operational range
●Starting the engine may be possible even if the key is outside of the vehicle
and extremely close to a door and window, however, always start the engine
from the driver’s seat.
If the vehicle is started and the key is not in the vehicle, the vehicle will not
restart after it is shut off and the ignition is switched to off.
● The trunk is out of the assured operational range, however, if the key (smart
key) is operable the engine will start.
● The engine may not start if the key is placed in the following areas:
• Around the dashboard
• In the storage compartments such as the glove compartment
• On the rear parcel shelf
If a key is left in the vehicle, the functions of the key left in the vehicle
are temporarily suspended to prevent theft of the vehicle.
To restore the functions, press the unlock button on the functions-sus-
pended key in the vehicle.
Operational Range
Interior antenna
Key Suspend Function

94
iA_OM_OM99M17z_(U)
2-2. Door and Locks
Door Locks
When the ignition is switched to ACC or ON, the vehicle lock-out pre-
vention feature prevents you from lo cking yourself out of the vehicle.
All doors and the trunk lid will autom atically unlock if they are locked
using the power door locks with any door or the trunk lid open.
The vehicle lock-out prevention feature does not operate while the
ignition is switched off.
When any door is opened from the outside while the key is inside the
vehicle, the closed doors are lock ed. All the doors are automatically
unlocked by closing the open door.
The horn sound is heard twice to notify the driver that the key has
been left in the vehicle.
■ Door unlock (control) system with collision detection
This system automatically unlocks the doors in the event the vehicle is
involved in an accident to allow passengers to get out of the vehicle immedi-
ately and prevent being trapped inside. While the ignition is switched ON and
in the event the vehicle receives an impact strong enough to inflate the air
bags, all the doors are automatically unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors may not unlock depending on how an impact is applied, the force
of the impact, and other conditions of the accident.
If door-related systems or the battery is malfunctioning, the doors will not
unlock.

iA_OM_OM99M17z_(U)
952-2. Door and Locks
2
Before Driving
WARNING
■Always take all children and pets with you or leave a responsible per-
son with them
Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle can become high enough to cause
brain damage or even death.
■ Do not leave the key in your vehicl e with children and keep them in a
place where your children will not find or play with them
Leaving children in a vehicle with the key is dangerous. This could result in
someone being badly injured or even killed.
■ Keep all doors locked when driving
Unlocked doors in a moving vehicle are dangerous. Passengers can fall ou\
t
if a door is accidentally opened and can more easily be thrown out in an
accident.
■ Always close all the windows, lock the doors and take the key with you
when leaving your vehicle unattended
Leaving your vehicle unlocked is dangerous as children could lock them-
selves in a hot vehicle, which could result in death. Also, a vehicle left
unlocked becomes an easy target for thieves and intruders.
■ After closing the doors, always verify that they are securely closed
Doors not securely closed are dangerous, if the vehicle is driven with a door
not securely closed, the door could open unexpectedly resulting in an acci-
dent.
■ Always confirm the safety around th e vehicle before opening a door
Suddenly opening a door is dangerous.
A passing vehicle or a pedestrian could be hit and cause an accident.
■ When opening or closing a door
Always confirm the conditions around the vehicle before opening/closing
the doors and use caution during strong winds or when parked on an
incline. Not being aware of the conditions around the vehicle is dangerous
because fingers could get caught in the door or a passing pedestrian could
be hit, resulting in an unexpected accident or injury.

96
iA_OM_OM99M17z_(U)
2-2. Door and Locks
All doors and the trunk lid lock automatically when the driver’s door is
locked using the key.
All doors and the trunk lid unlock when the driver’s door is unlocked
and the key is held in the unlock position for one second or longer.
Turn the key toward the front to
lock, toward the back to unlock.
Lock
Unlock
Holding the key in the unlocked
position in the driver’s door lock for
about a second unlocks all doors
and the trunk lid. To unlock only the
driver’s door, insert the key into the
driver’s door lock and turn the key
briefly to the unlock position and
then immediately return it to the
center position.
All doors and the trunk lid can be locked/unlocked by operating the
keyless entry system smart key, refer to Keyless Entry System
(  P. 88).
Locking, Unlocking with Key
1
2
Locking, Unlocking with Smart Key

iA_OM_OM99M17z_(U)
972-2. Door and Locks
2
Before Driving
All doors and the trunk lid lock automatically when the lock side is
pressed. They all unlock when the unlock side is pressed.
Driver’s door Lock
Unlock
Front passenger’s door Lock
Unlock
To lock all the doors/trunk lid from an open front door, press the lock
side of the door lock switch and then close the door.
When locking the doors this way, be careful not to leave the key inside the
vehicle.
Locking, Unlocking with Door-Lock Switch
1
2
1
2

98
iA_OM_OM99M17z_(U)
2-2. Door and Locks
●When the vehicle speed exceeds 12 mph (20 km/h), all doors and
the trunk lid lock automatically.
● When the ignition is switched off, all doors and the trunk lid unlock
automatically.
These functions can also be disabl ed so that they do not operate.
■Auto lock/unlock function setting change using door-lock
switch
The doors and the trunk lid can be set to lock or unlock automati-
cally by selecting any one of the f unctions from the following table
and using the driver’s door-lock switch on the interior door panel.

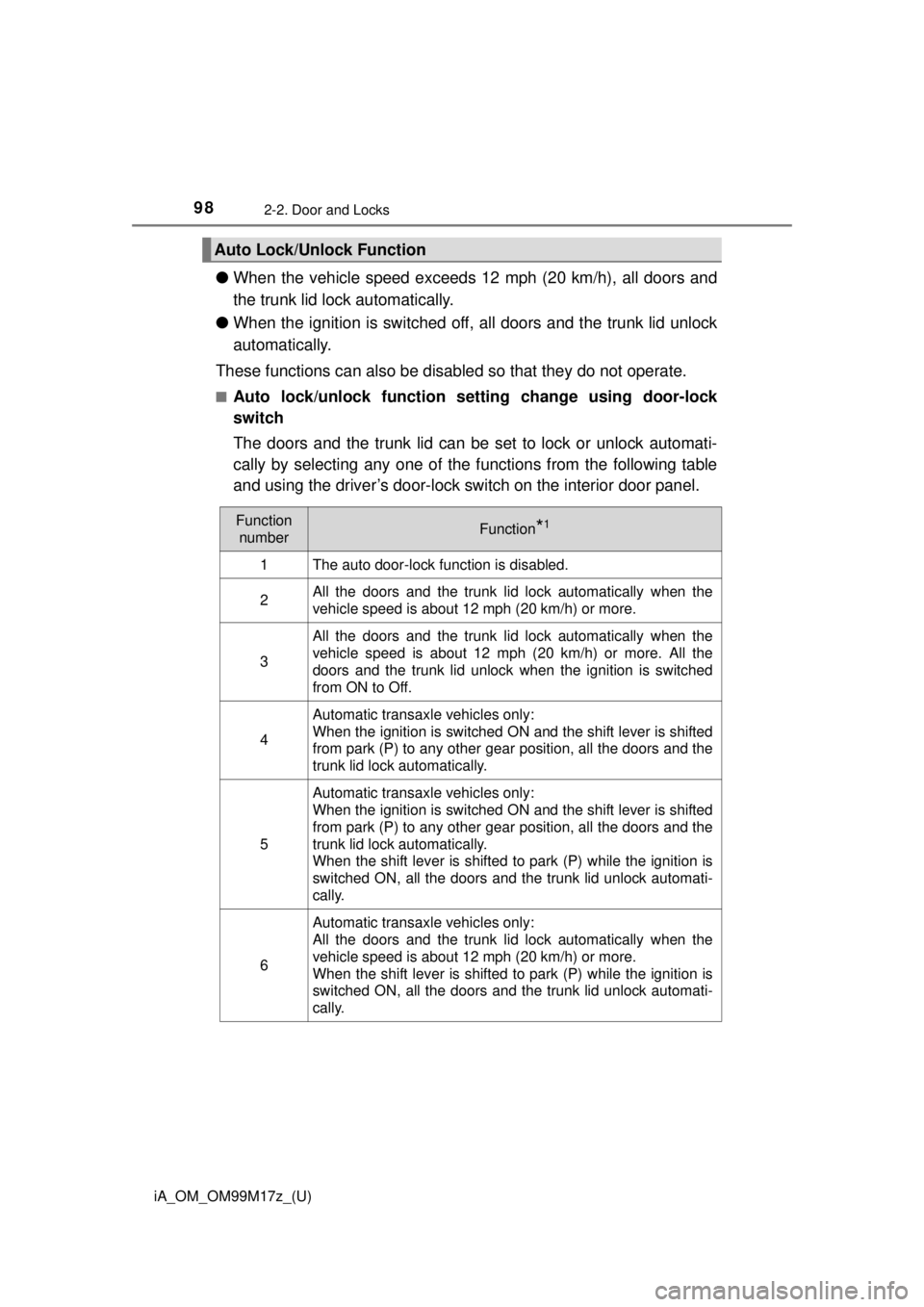

Auto Lock/Unlock Function
Function numberFunction*1
1The auto door-lock function is disabled.
2All the doors and the trunk lid lock automatically when the
vehicle speed is about 12 mph (20 km/h) or more.
3
All the doors and the trunk lid lock automatically when the
vehicle speed is about 12 mph (20 km/h) or more. All the
doors and the trunk lid unlock when the ignition is switched
from ON to Off.
4
Automatic transaxle vehicles only:
When the ignition is switched ON and the shift lever is shifted
from park (P) to any other gear position, all the doors and the
trunk lid lock automatically.
5
Automatic transaxle vehicles only:
When the ignition is switched ON and the shift lever is shifted
from park (P) to any other gear position, all the doors and the
trunk lid lock automatically.
When the shift lever is shifted to park (P) while the ignition is
switched ON, all the doors and the trunk lid unlock automati-
cally.
6
Automatic transaxle vehicles only:
All the doors and the trunk lid lock automatically when the
vehicle speed is about 12 mph (20 km/h) or more.
When the shift lever is shifted to park (P) while the ignition is
switched ON, all the doors and the trunk lid unlock automati-
cally.

iA_OM_OM99M17z_(U)
992-2. Door and Locks
2
Before Driving
*1: Other settings for the auto door lock function are available at your Sciondealer. For details consult your Scion dealer. Refer to Customizable Fea-
tures on P. 572.

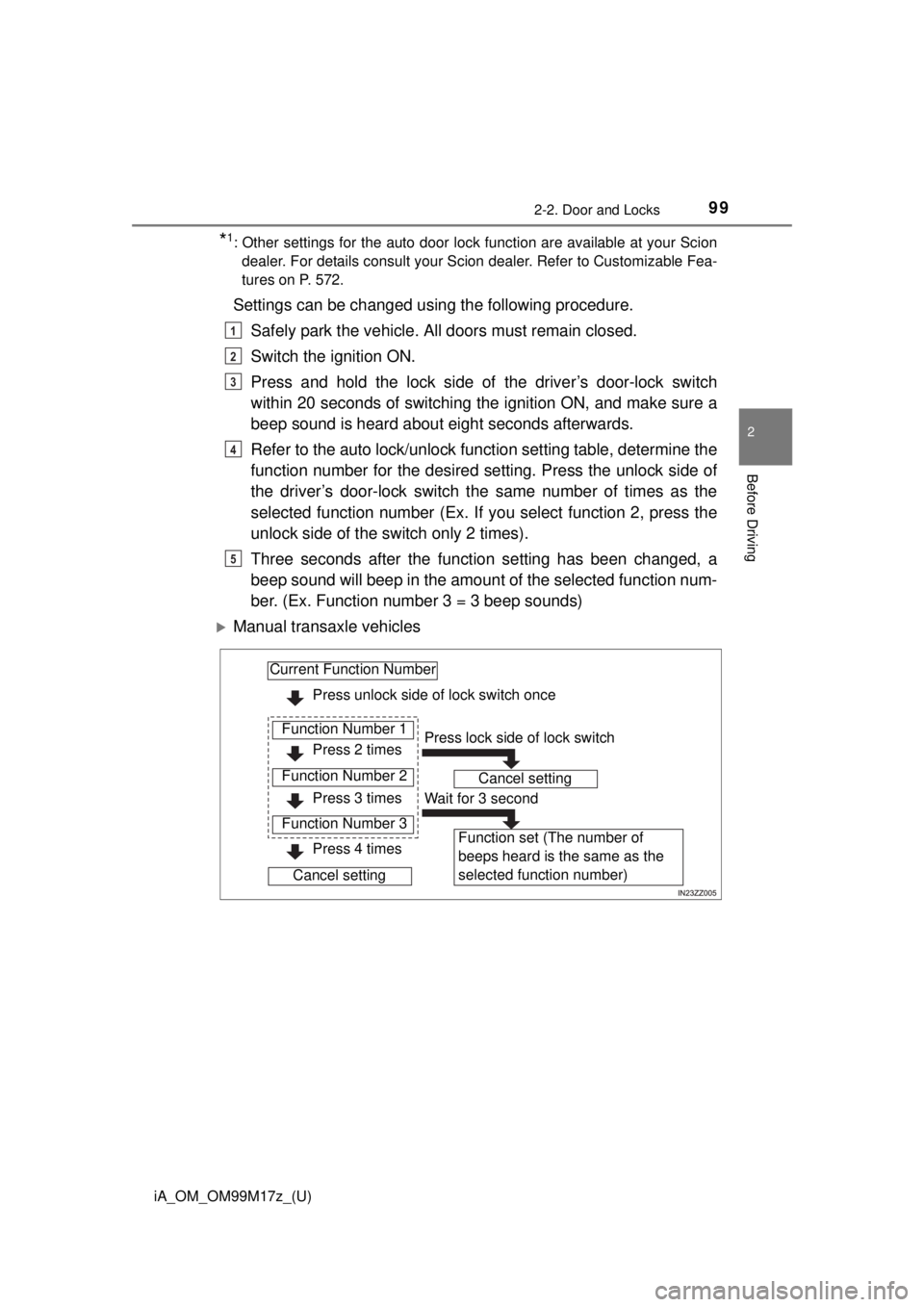

Settings can be changed using the following procedure.
Safely park the vehicle. A ll doors must remain closed.
Switch the ignition ON.
Press and hold the lock side of the driver’s door-lock switch
within 20 seconds of switching t he ignition ON, and make sure a
beep sound is heard about eight seconds afterwards.
Refer to the auto lock/ unlock function setting table, determine the
function number for the desired setting. Press the unlock side of
the driver’s door-lock switch th e same number of times as the
selected function number (Ex. If you select function 2, press the
unlock side of the switch only 2 times).
Three seconds after the function setting has been changed, a
beep sound will beep in the amount of the selected function num-
ber. (Ex. Function number 3 = 3 beep sounds)
Manual transaxle vehicles
1
2
3
4
5
Current Function Number
Press unlock side of lock switch once
Function Number 1
Function Number 2
Function Number 3 Press 2 times
Press 3 times
Press 4 times
Cancel setting Press lock side of lock switch
Cancel setting
Wait for 3 second
Function set (The number of
beeps heard is the same as the
selected function number)

100
iA_OM_OM99M17z_(U)
2-2. Door and Locks
Automatic transaxle vehicles
●Function number 3 is the factory setting for your vehicle.
● There are only a total of three auto lock/unlock settings available for manual
transaxle vehicles, and six for automatic transaxle vehicles. Be sure to
press the unlock side of the driver’s door-lock switch the correct number of
times according to the selected function number. If the switch is mistakenly
pressed four times on a manual transaxle vehicle or seven times on an
automatic transaxle, the procedure will be cancelled. If this occurs, start the
procedure from the beginning.
● The doors cannot be locked or unlocked while the setting function is being
performed.
● The procedure can be cancelled by pressing the lock side of the driver’s
door-lock switch.
Current Function Number
Press unlock side of lock switch once
Function Number 1
Function Number 2
Function Number 3 Press 2 times
Press 3 times
Cancel setting Press lock side of lock switch
Cancel setting
Wait for 3 second
Function set (The number of
beeps heard is the same as the
selected function number)
Press 4 times
Function Number 4
Press 5 times
Function Number 5
Press 6 times
Function Number 6
Press 7 times
WARNING
■Do not pull the inner handle on a front door
Pulling the inner handle on a front door while the vehicle is moving is dan-
gerous. Passengers can fall out of the vehicle if the door opens accidentally,
which could result in death or serious injury.
