5-3. Owner Maintenance
5
Maintenance and Care
Light Bulbs
■FrontHeadlights (Low/High beam)/
Daytime running lights
Front side-marker lights
Overhead lights/Map lights
Front turn signal lights/Park-
ing lights
Fog lights (if equipped)
■Rear
Trunk light
License plate lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights/Rear
side-marker lights
1
2
3
4
5
1
2
3
4
5

4525-3. Owner Maintenance
iA_OM_OM99M17z_(U)■

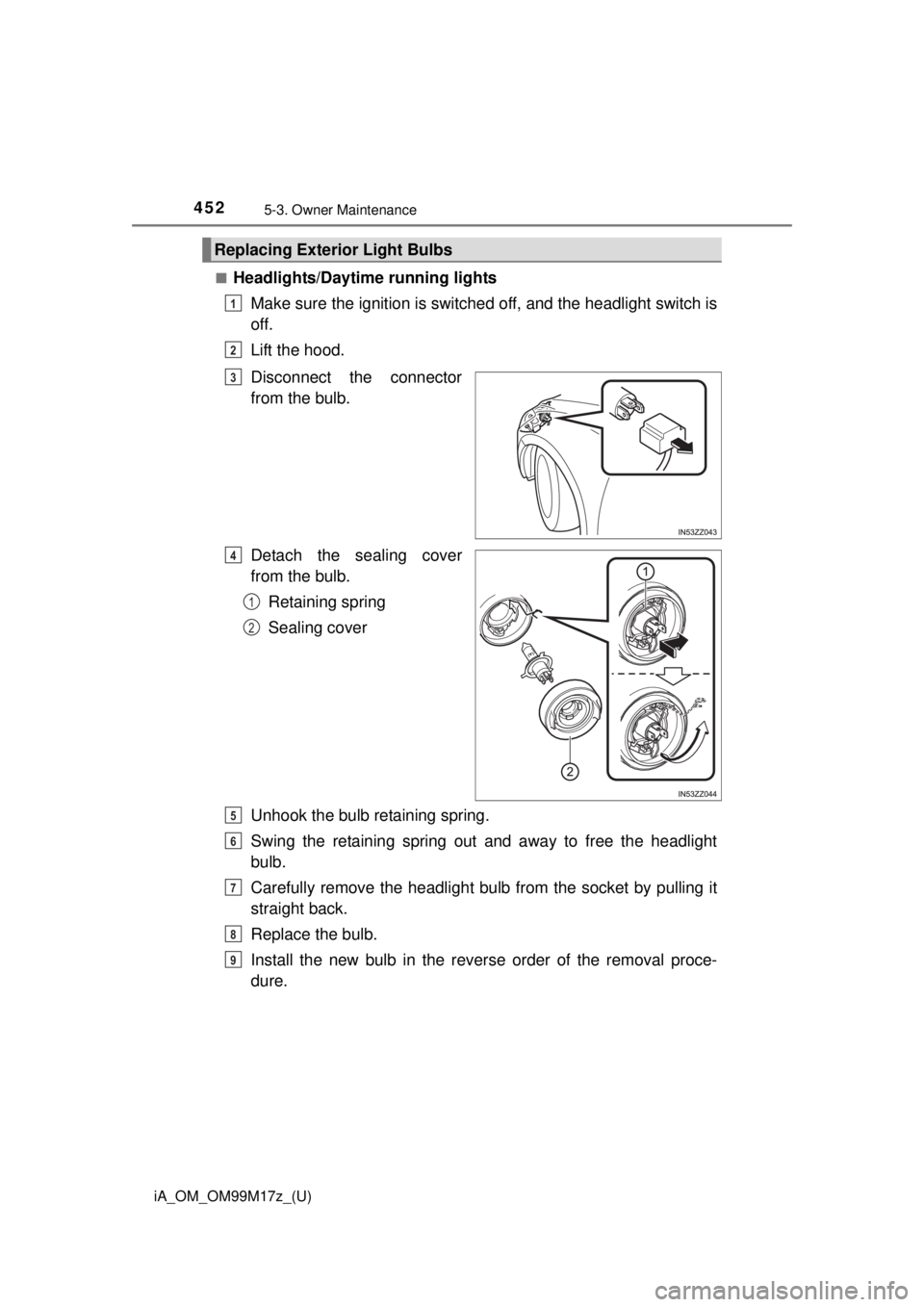

Headlights/Daytime running lights
Make sure the ignition is switched off, and the headlight switch is
off.
Lift the hood.
Disconnect the connector
from the bulb.
Detach the sealing cover
from the bulb.Retaining spring
Sealing cover
Unhook the bulb retaining spring.
Swing the retaining spring out and away to free the headlight
bulb.
Carefully remove the headlight bulb from the socket by pulling it
straight back.
Replace the bulb.
Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Exterior Light Bulbs
1
2
3
4
1
2
5
6
7
8
9

iA_OM_OM99M17z_(U)
4535-3. Owner Maintenance
5
Maintenance and Care

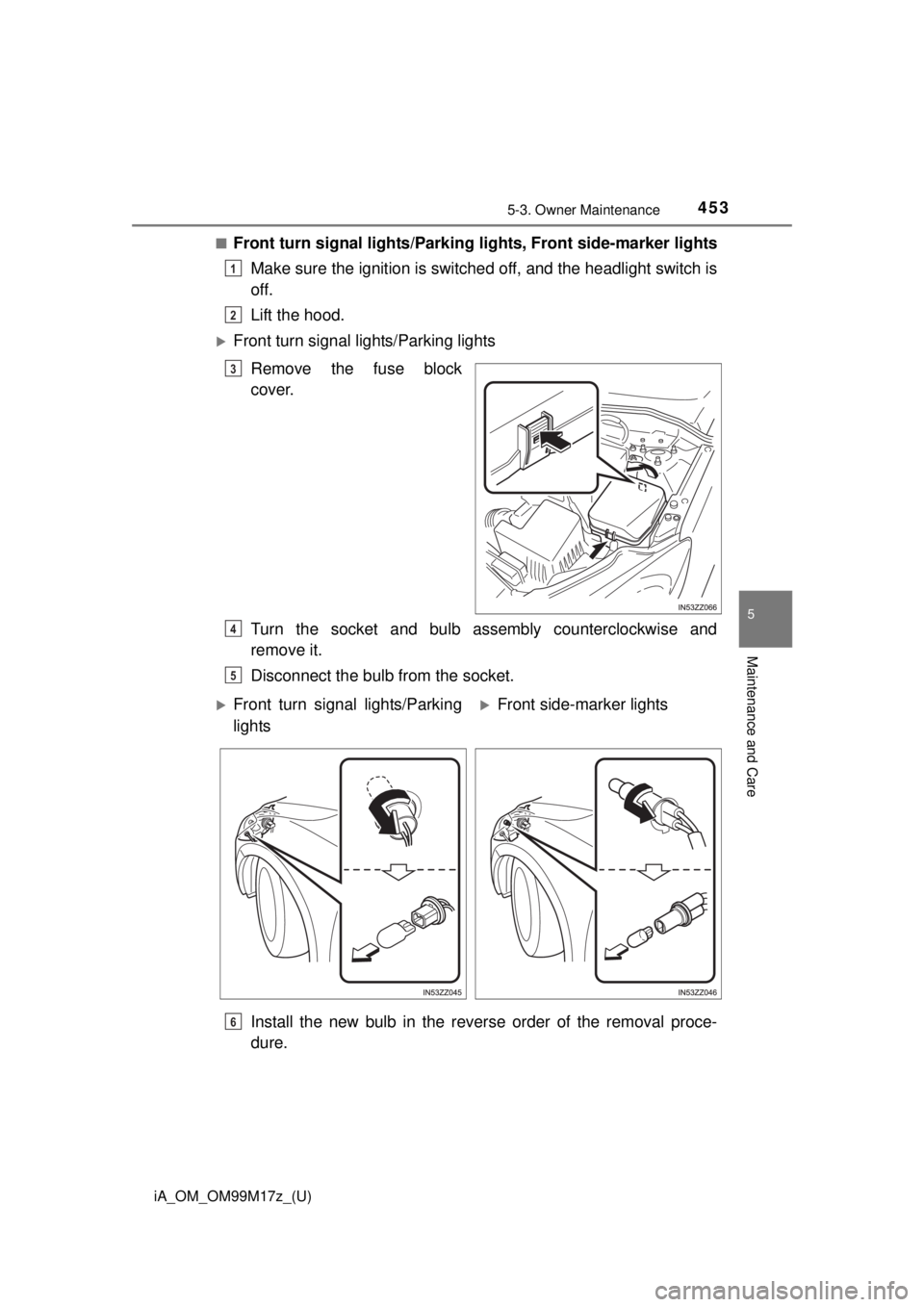

■Front turn signal lights/Parking lights, Front side-marker lights
Make sure the ignition is switched off, and the headlight switch is
off.
Lift the hood.
Front turn signal lights/Parking lights
Remove the fuse block
cover.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
Install the new bulb in the reverse order of the removal proce-
dure.
1
2
3
4
5
Front turn signal lights/Parking
lightsFront side-marker lights
6

4545-3. Owner Maintenance
iA_OM_OM99M17z_(U)■

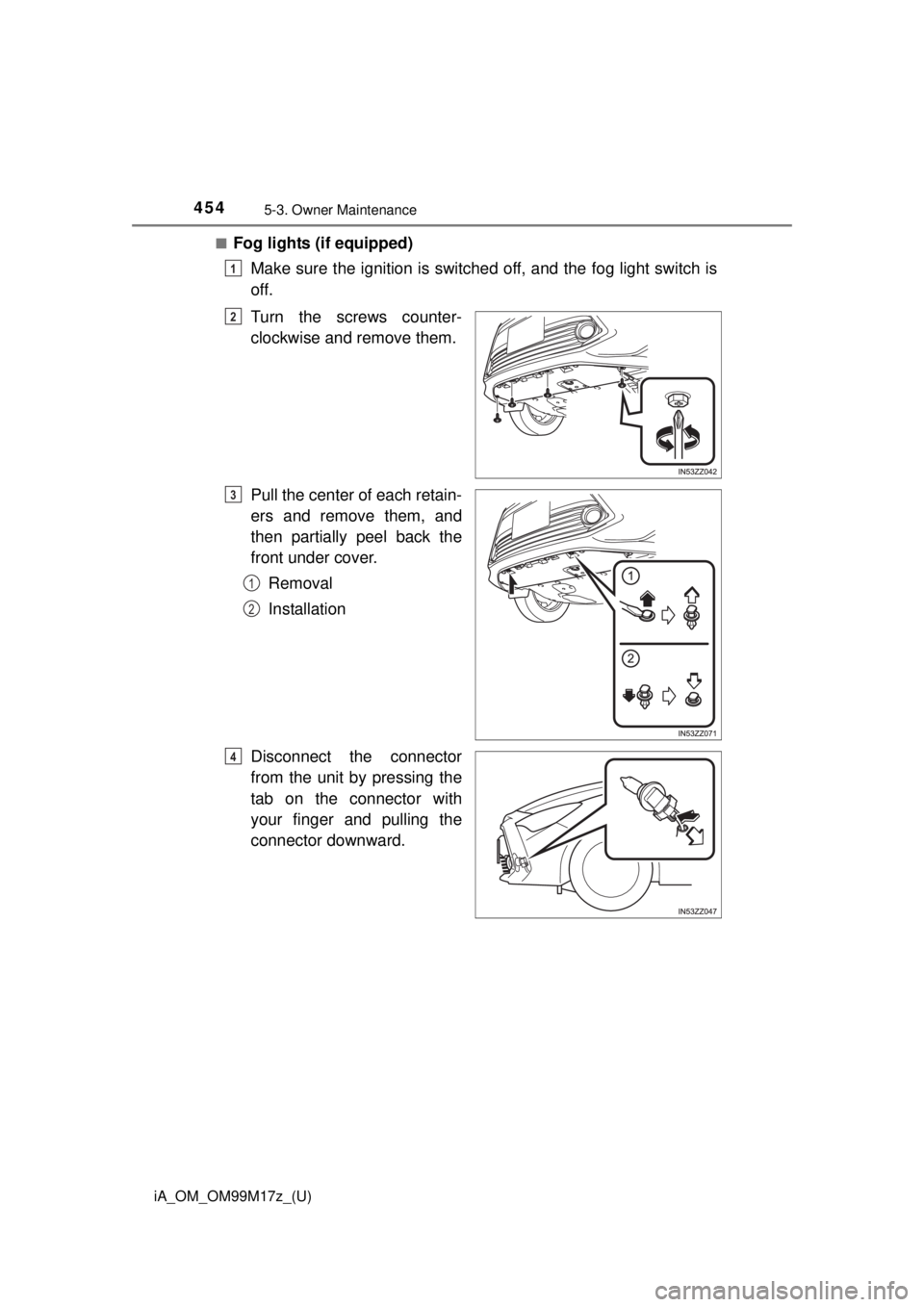

Fog lights (if equipped)
Make sure the ignition is switched off, and the fog light switch is
off.
Turn the screws counter-
clockwise and remove them.
Pull the center of each retain-
ers and remove them, and
then partially peel back the
front under cover.Removal
Installation
Disconnect the connector
from the unit by pressing the
tab on the connector with
your finger and pulling the
connector downward.
1
2
3
1
2
4

iA_OM_OM99M17z_(U)
4555-3. Owner Maintenance
5
Maintenance and Care
Turn the socket and bulb
assembly to remove it. Care-
fully remove the bulb from its
socket in the reflector by
gently pulling it straight back-
ward out of the socket.
Install the new bulb in the reverse order of the removal proce-
dure.

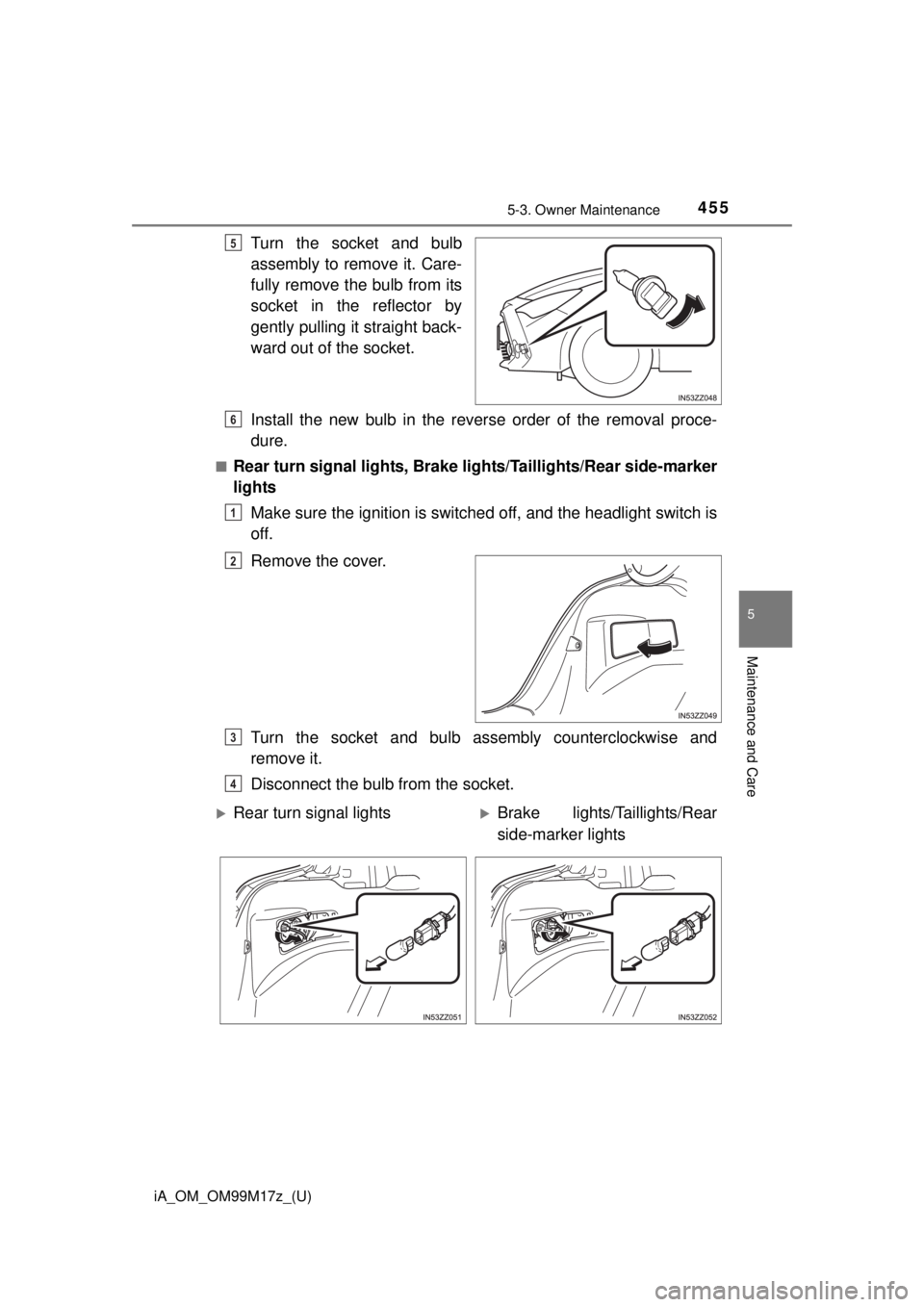

■Rear turn signal lights, Brake lights/Taillights/Rear side-marker
lightsMake sure the ignition is switched off, and the headlight switch is
off.
Remove the cover.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
5
6
1
2
3
4
Rear turn signal lightsBrake lights/Taillights/Rear
side-marker lights

4565-3. Owner Maintenance
iA_OM_OM99M17z_(U)
Install the new bulb in the reverse order of the removal proce-
dure.
Verify that the cover is securely installed.
Insert the cover tabs and install the cover.

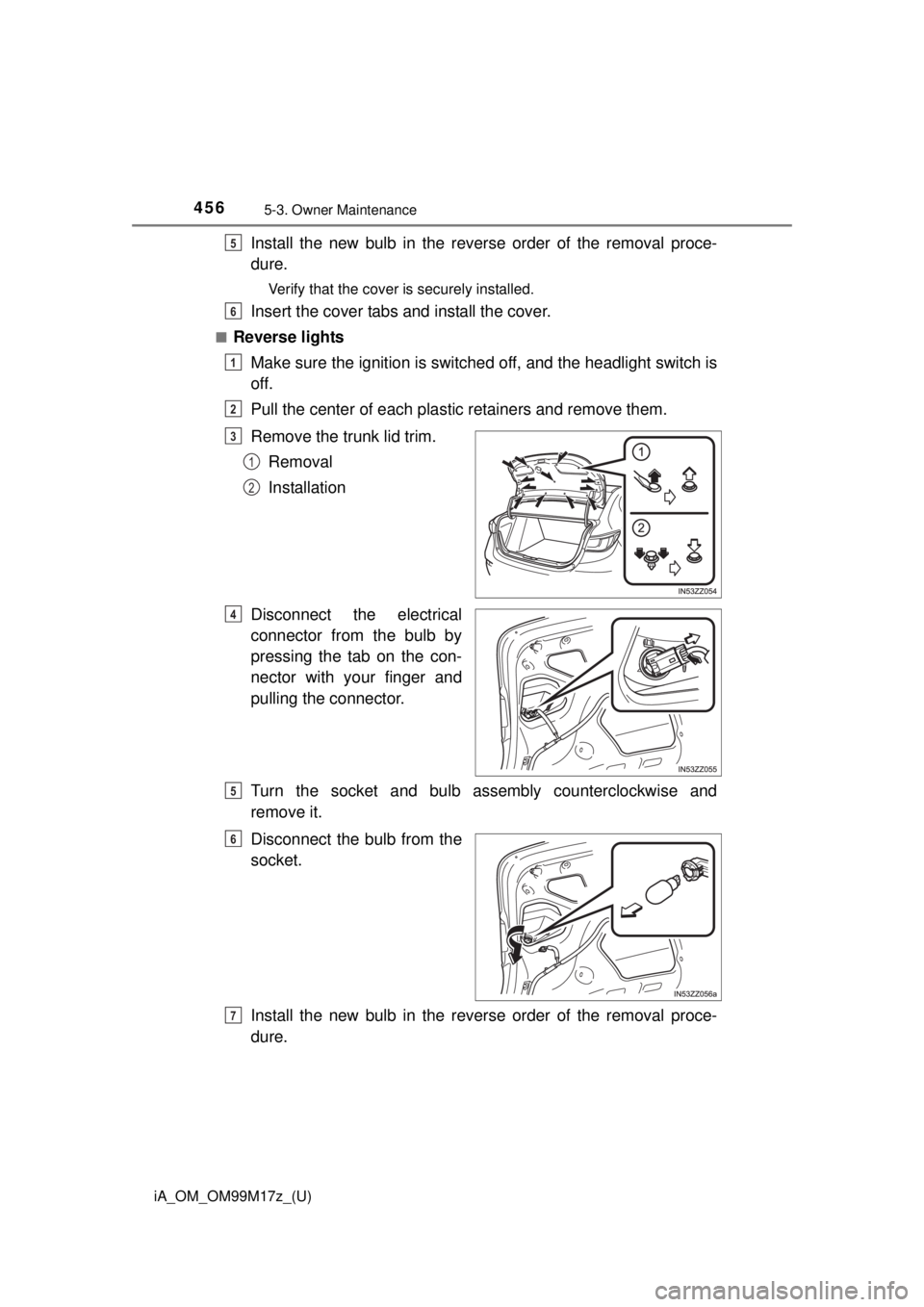

■Reverse lightsMake sure the ignition is switched off, and the headlight switch is
off.
Pull the center of each plastic retainers and remove them.
Remove the trunk lid trim.Removal
Installation
Disconnect the electrical
connector from the bulb by
pressing the tab on the con-
nector with your finger and
pulling the connector.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
5
6
1
2
3
1
2
4
5
6
7

iA_OM_OM99M17z_(U)
4575-3. Owner Maintenance
5
Maintenance and Care

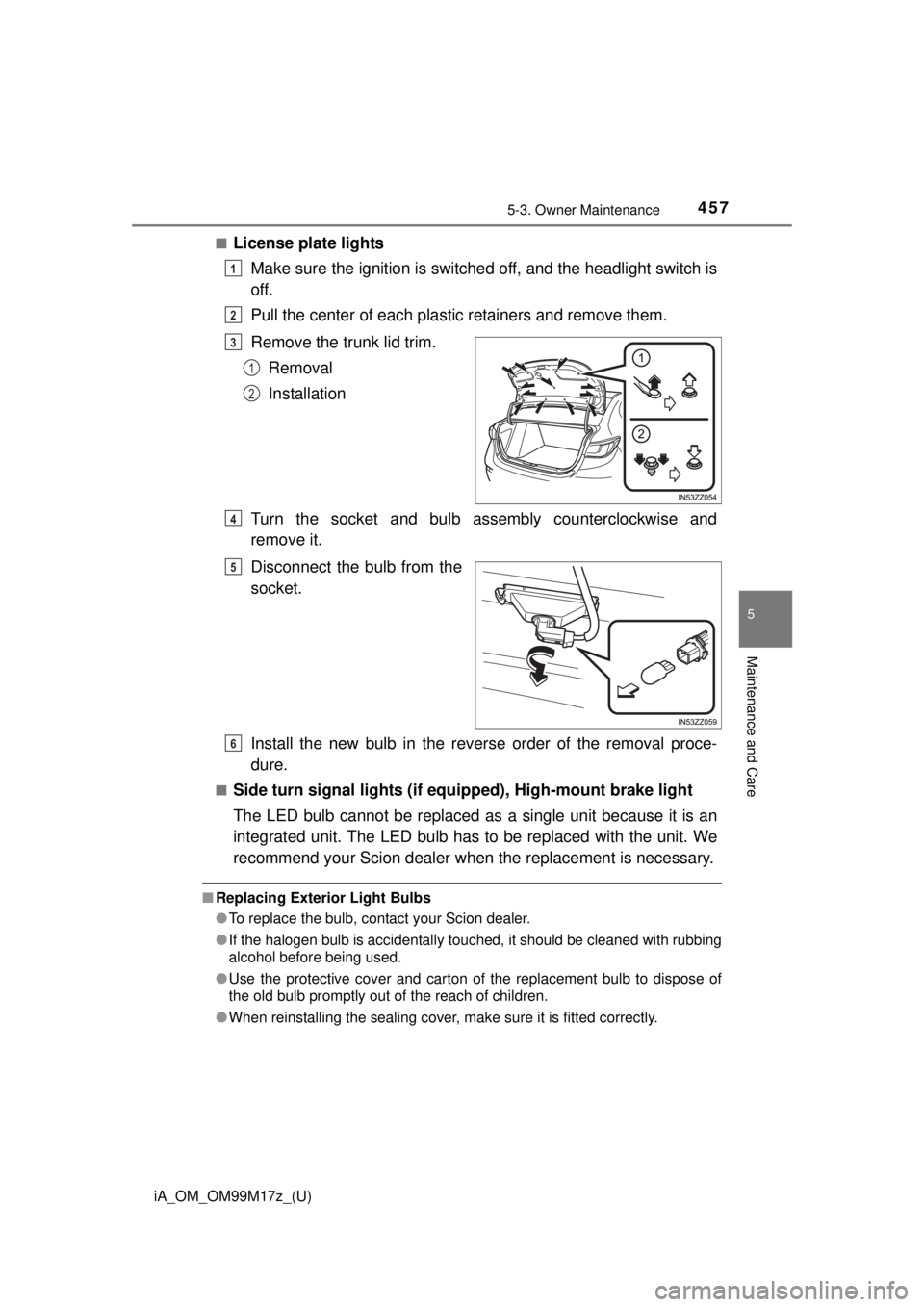

■License plate lightsMake sure the ignition is switched off, and the headlight switch is
off.
Pull the center of each plastic retainers and remove them.
Remove the trunk lid trim.Removal
Installation
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
■Side turn signal lights (if e quipped), High-mount brake light
The LED bulb cannot be replaced as a single unit because it is an
integrated unit. The LED bulb has to be replaced with the unit. We
recommend your Scion dealer when the replacement is necessary.
■Replacing Exterior Light Bulbs
●To replace the bulb, contact your Scion dealer.
● If the halogen bulb is accidentally touched, it should be cleaned with rubbing
alcohol before being used.
● Use the protective cover and carton of the replacement bulb to dispose of
the old bulb promptly out of the reach of children.
● When reinstalling the sealing cover, make sure it is fitted correctly.
1
2
3
1
2
4
5
6

4585-3. Owner Maintenance
iA_OM_OM99M17z_(U)■

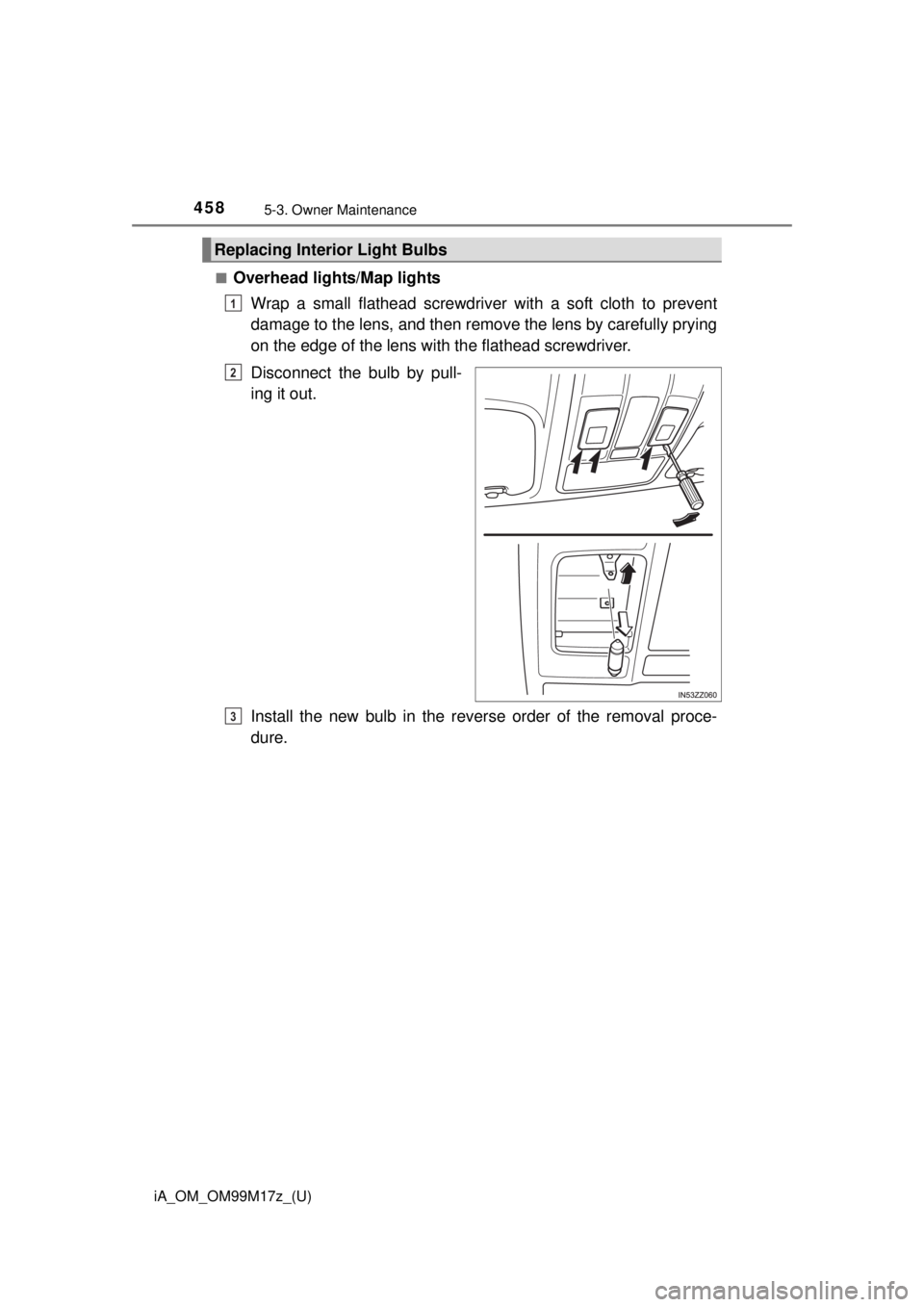

Overhead lights/Map lights
Wrap a small flathead screwdriver with a soft cloth to prevent
damage to the lens, and then remove the lens by carefully prying
on the edge of the lens with the flathead screwdriver.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Interior Light Bulbs
1
2
3

iA_OM_OM99M17z_(U)
4595-3. Owner Maintenance
5
Maintenance and Care

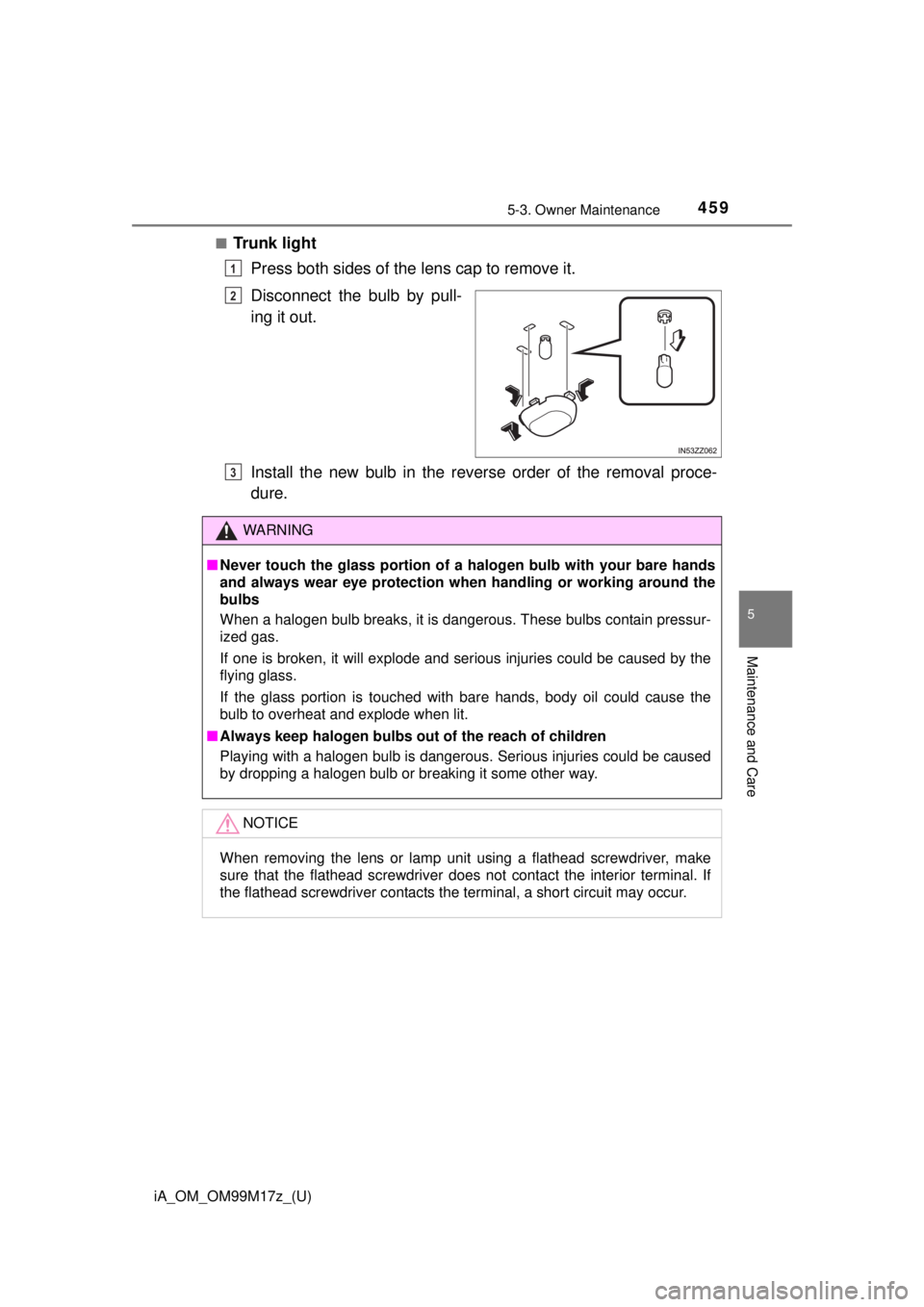

■Trunk lightPress both sides of the lens cap to remove it.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
1
2
WARNING
■ Never touch the glass portion of a ha logen bulb with your bare hands
and always wear eye protection when handling or working around the
bulbs
When a halogen bulb breaks, it is dangerous. These bulbs contain pressur-
ized gas.
If one is broken, it will explode and serious injuries could be caused by the
flying glass.
If the glass portion is touched with bare hands, body oil could cause the
bulb to overheat and explode when lit.
■ Always keep halogen bulbs out of the reach of children
Playing with a halogen bulb is dangerous. Serious injuries could be caused
by dropping a halogen bulb or breaking it some other way.
NOTICE
When removing the lens or lamp unit using a flathead screwdriver, make
sure that the flathead screwdriver does not contact the interior terminal. If
the flathead screwdriver contacts the terminal, a short circuit may occur.
3

460
iA_OM_OM99M17z_(U)
5-3. Owner Maintenance

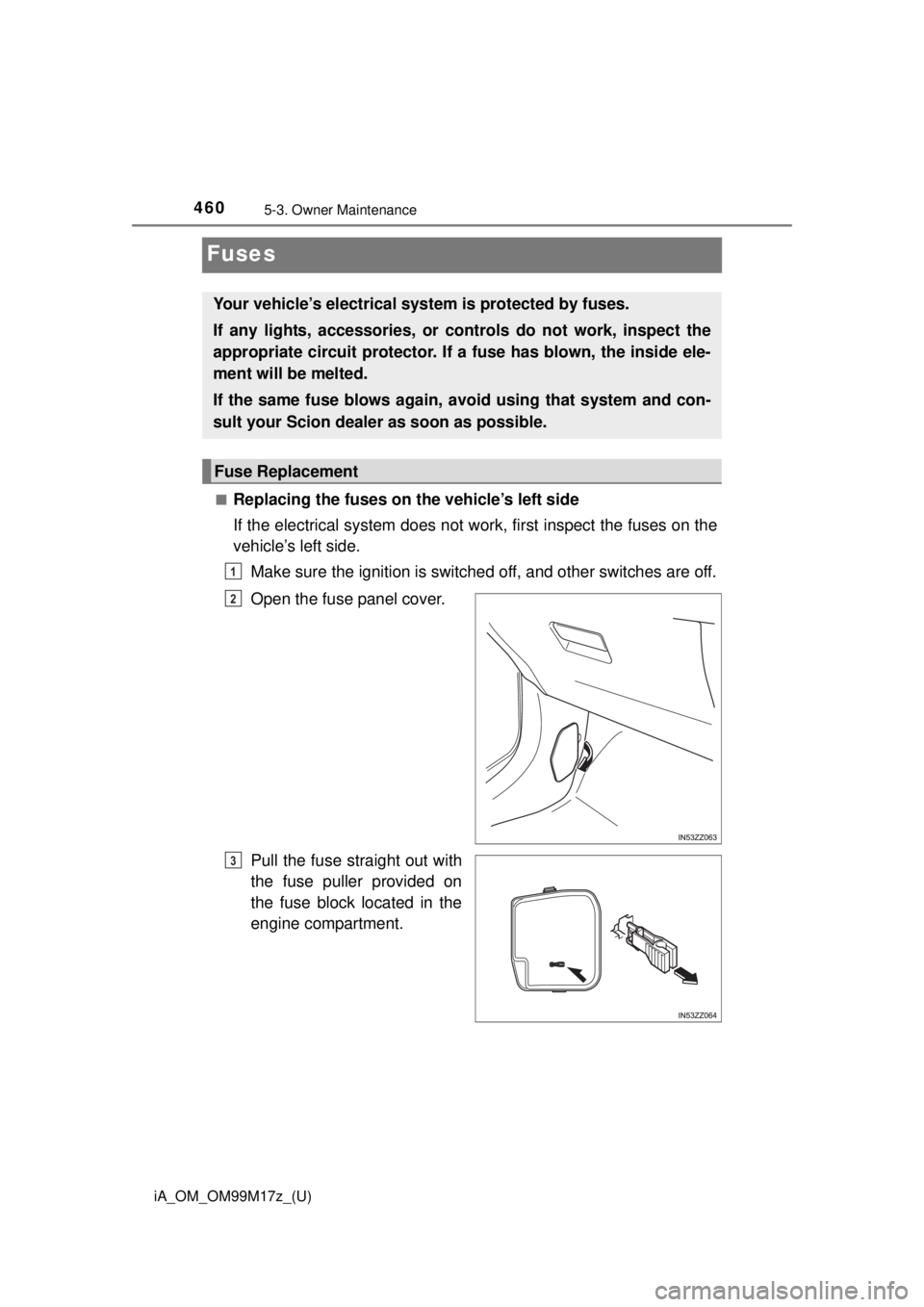

Fuses
■Replacing the fuses on the vehicle’s left side
If the electrical system does not work, first inspect the fuses on the
vehicle’s left side.
Make sure the ignition is switched off, and other switches are off.
Open the fuse panel cover.
Pull the fuse straight out with
the fuse puller provided on
the fuse block located in the
engine compartment.
Your vehicle’s electrical system is protected by fuses.
If any lights, accessories, or controls do not work, inspect the
appropriate circuit protector. If a fuse has blown, the inside ele-
ment will be melted.
If the same fuse blows again, avoid using that system and con-
sult your Scion dealer as soon as possible.
Fuse Replacement
1
2
3
