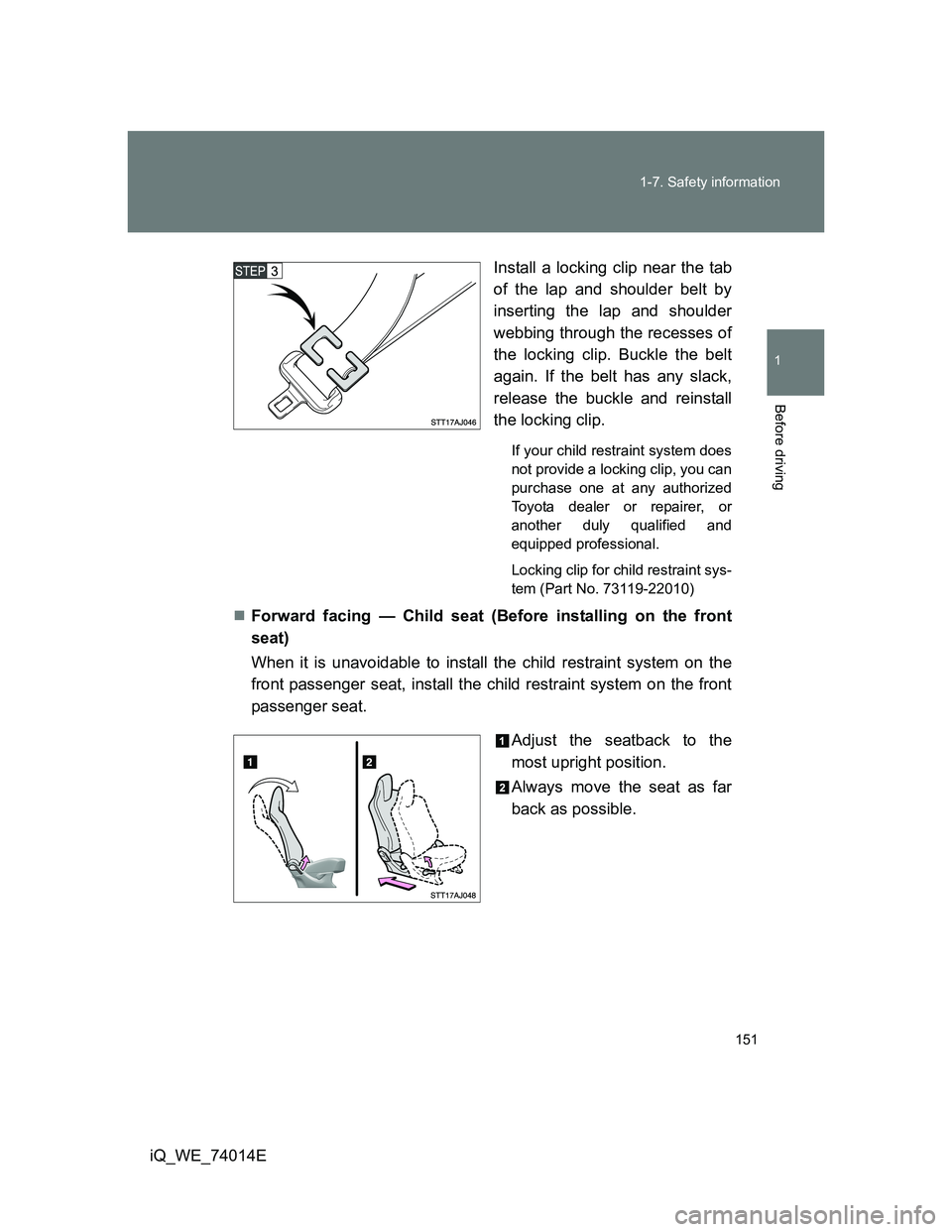

151 1-7. Safety information
1
Before driving
iQ_WE_74014EInstall a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.
If your child restraint system does
not provide a locking clip, you can
purchase one at any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Locking clip for child restraint sys-
tem (Part No. 73119-22010)
Forward facing — Child seat (Before installing on the front
seat)
When it is unavoidable to install the child restraint system on the
front passenger seat, install the child restraint system on the front
passenger seat.
Adjust the seatback to the
most upright position.
Always move the seat as far
back as possible.

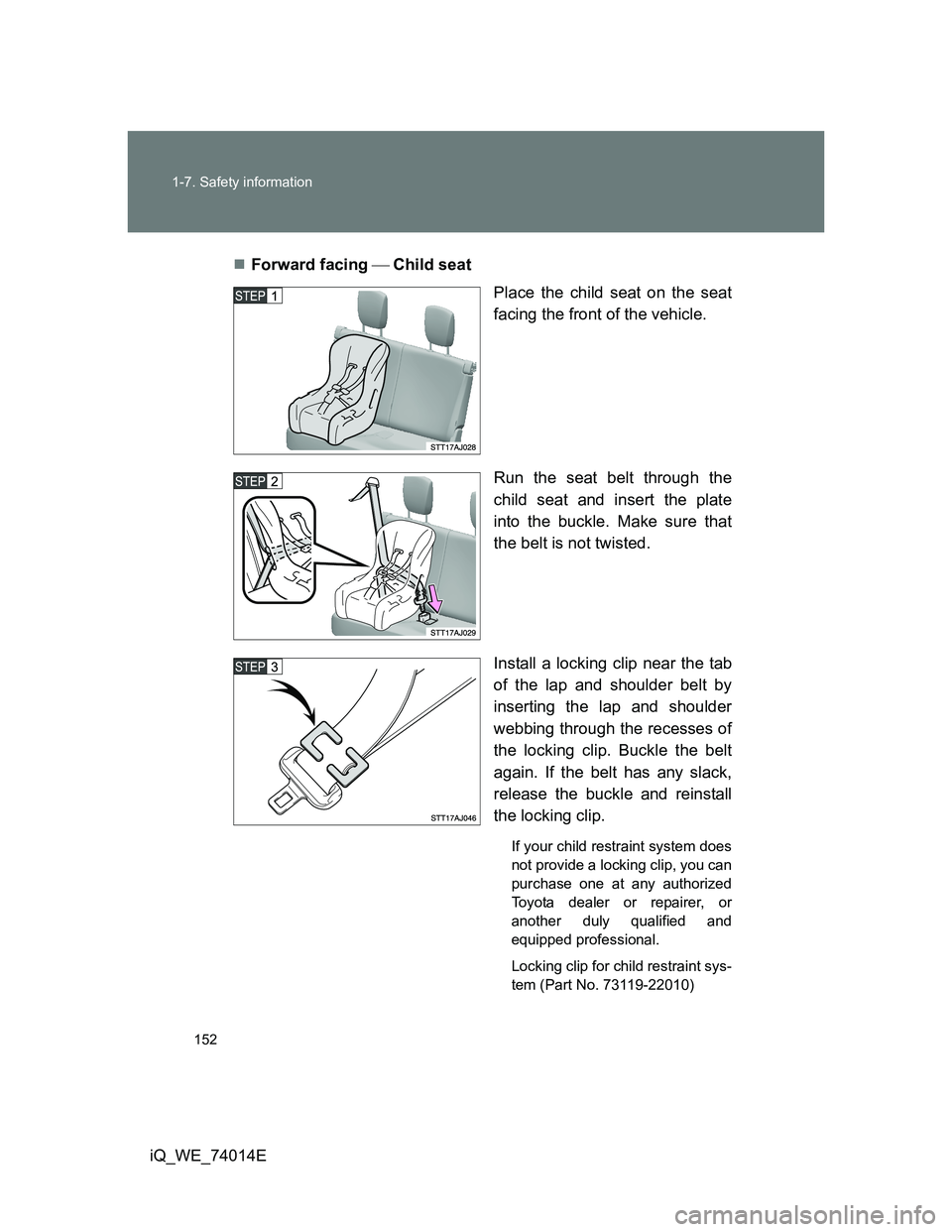

152 1-7. Safety information
iQ_WE_74014EForward facing Child seat
Place the child seat on the seat
facing the front of the vehicle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.
If your child restraint system does
not provide a locking clip, you can
purchase one at any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Locking clip for child restraint sys-
tem (Part No. 73119-22010)

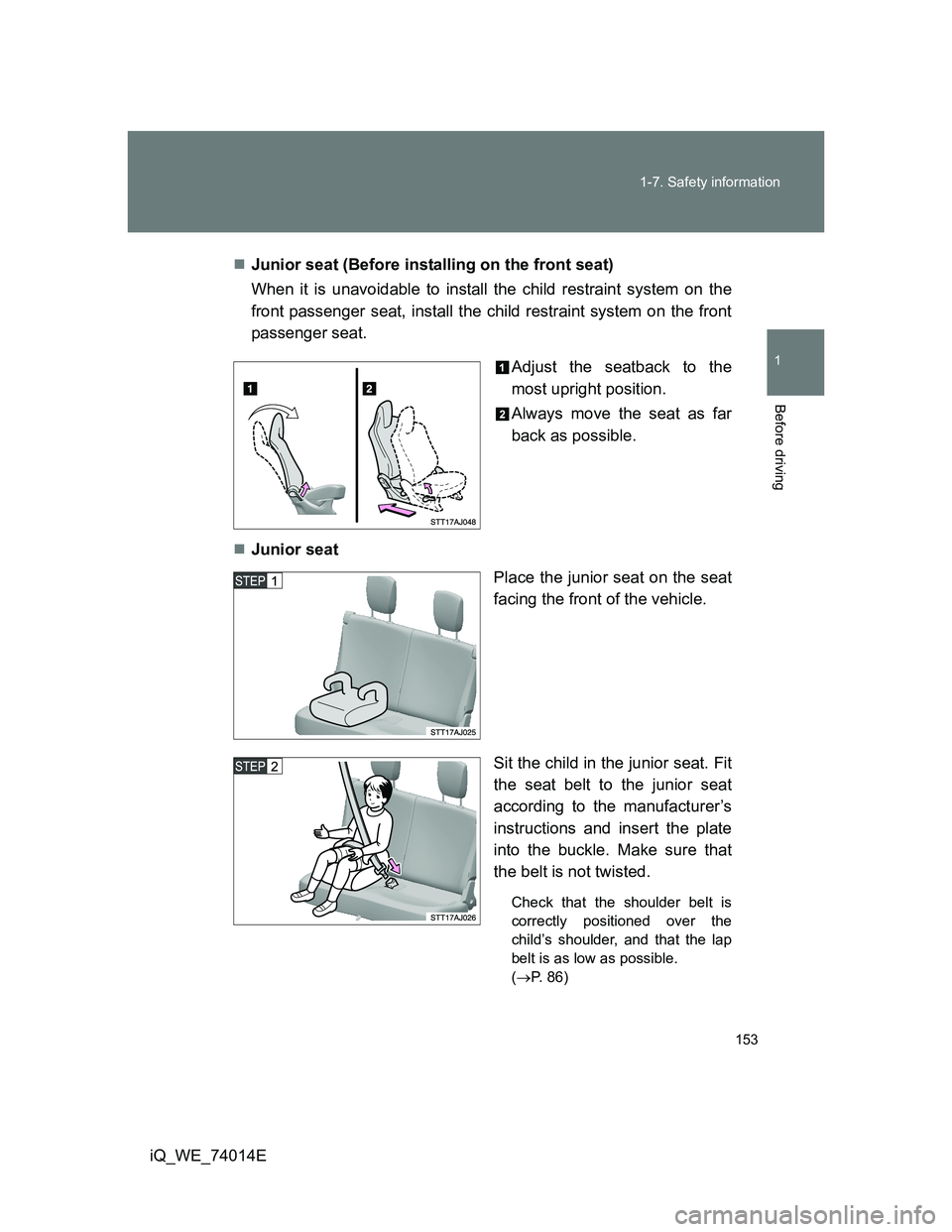

153 1-7. Safety information
1
Before driving
iQ_WE_74014EJunior seat (Before installing on the front seat)
When it is unavoidable to install the child restraint system on the
front passenger seat, install the child restraint system on the front
passenger seat.
Adjust the seatback to the
most upright position.
Always move the seat as far
back as possible.
Junior seat
Place the junior seat on the seat
facing the front of the vehicle.
Sit the child in the junior seat. Fit
the seat belt to the junior seat
according to the manufacturer’s
instructions and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
(P. 86)

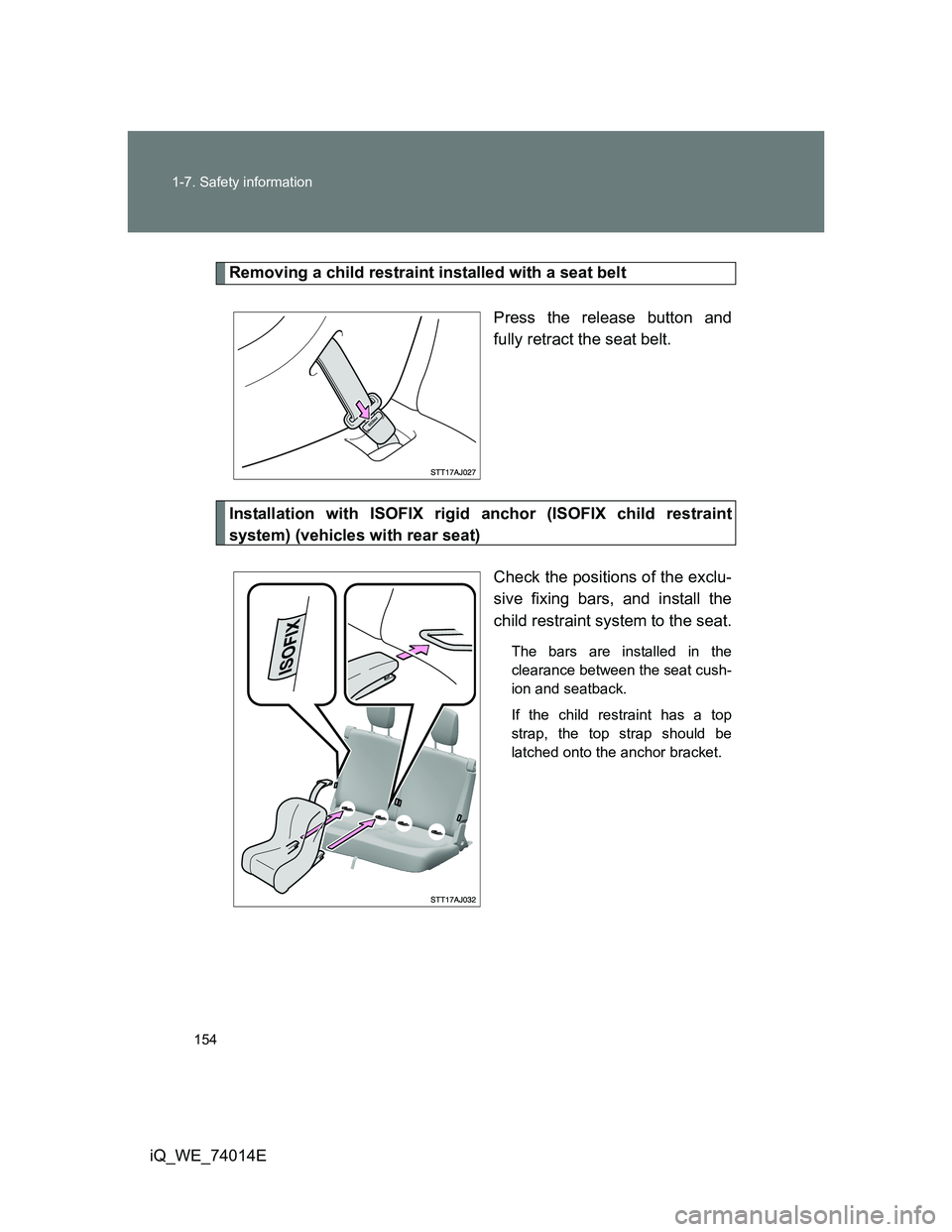

154 1-7. Safety information
iQ_WE_74014E
Removing a child restraint installed with a seat belt
Press the release button and
fully retract the seat belt.
Installation with ISOFIX rigid anchor (ISOFIX child restraint
system) (vehicles with rear seat)
Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the
clearance between the seat cush-
ion and seatback.
If the child restraint has a top
strap, the top strap should be
latched onto the anchor bracket.

155 1-7. Safety information
1
Before driving
iQ_WE_74014E

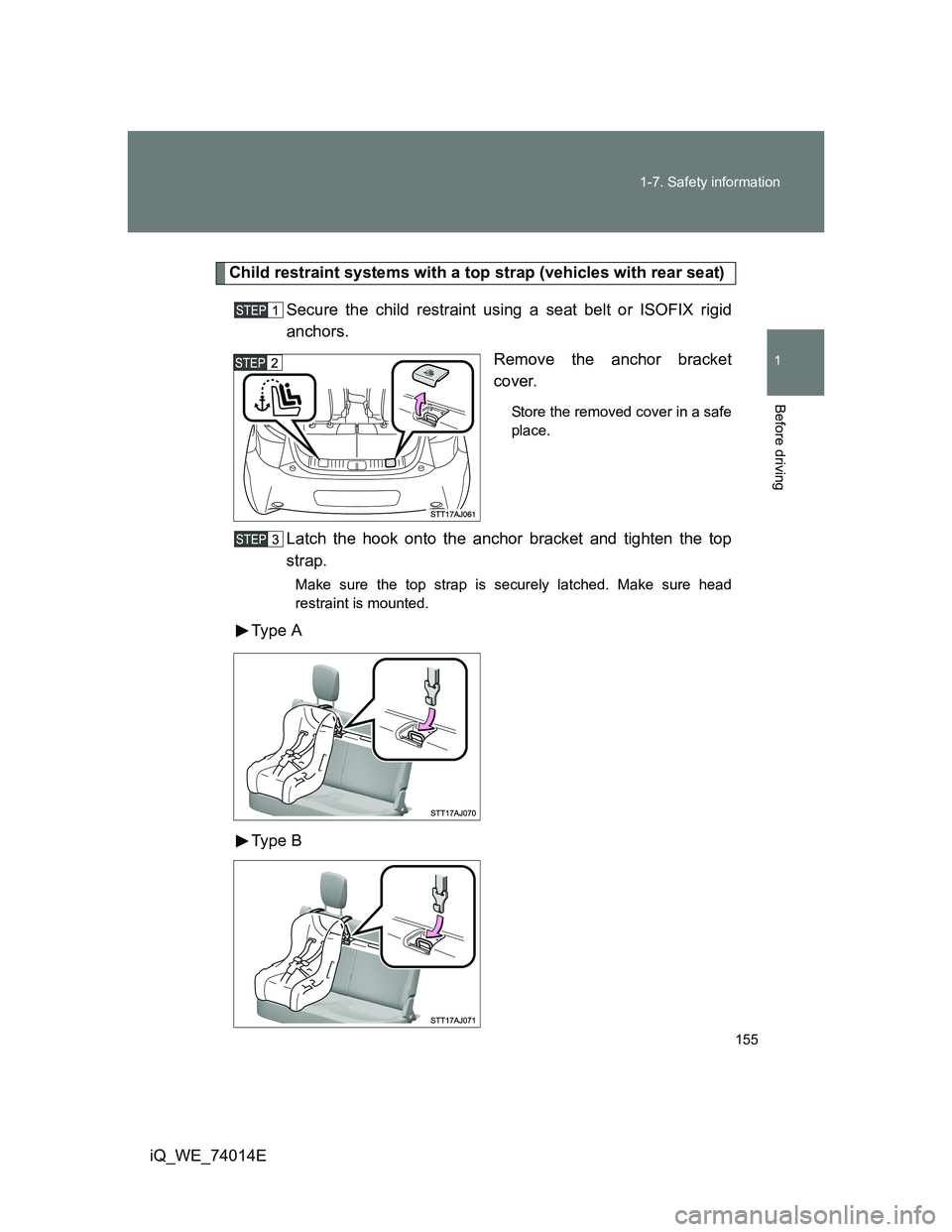

Child restraint systems with a top strap (vehicles with rear seat)
Secure the child restraint using a seat belt or ISOFIX rigid
anchors.
Remove the anchor bracket
cover.
Store the removed cover in a safe
place.
Latch the hook onto the anchor bracket and tighten the top
strap.
Make sure the top strap is securely latched. Make sure head
restraint is mounted.
Type A
Type B

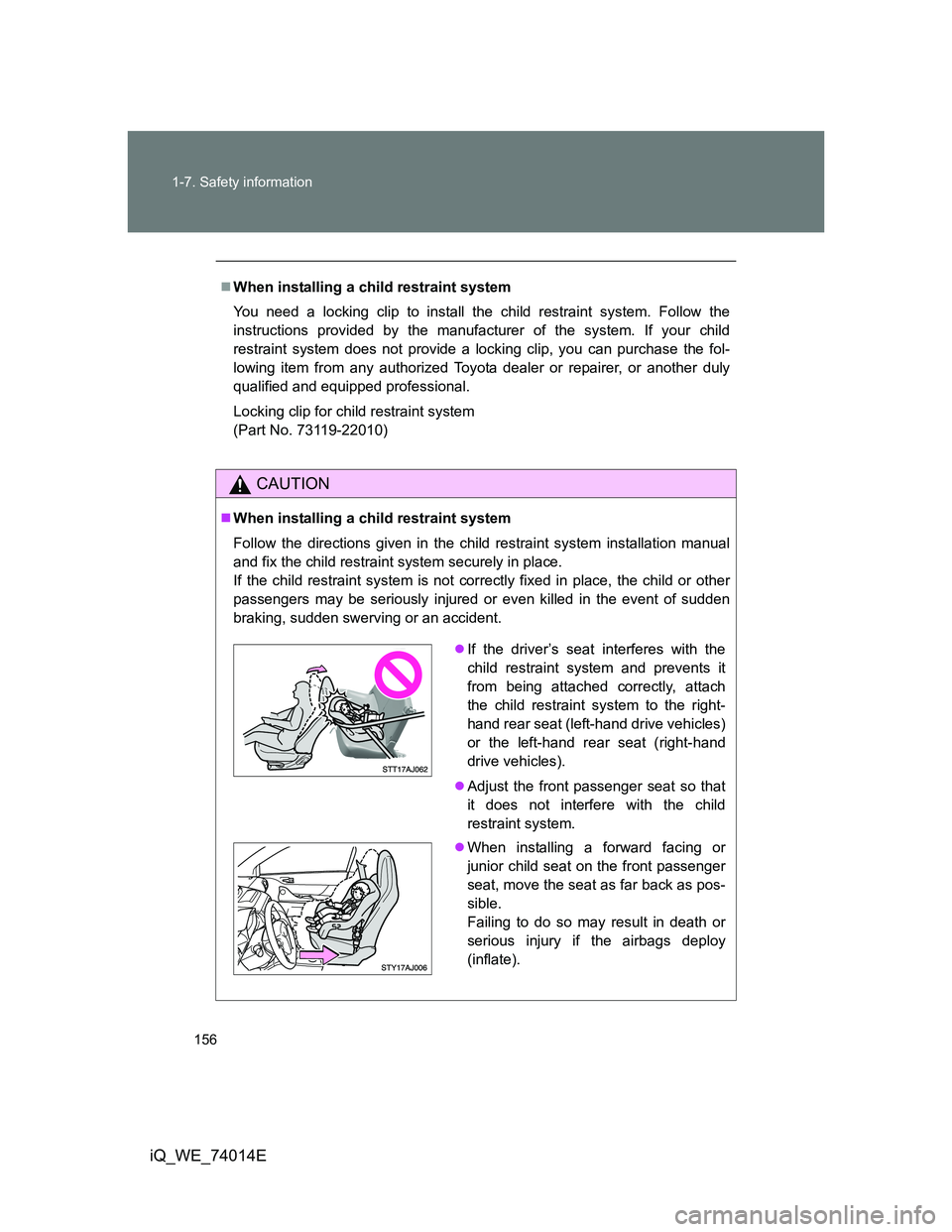

156 1-7. Safety information
iQ_WE_74014E
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
When installing a forward facing or
junior child seat on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

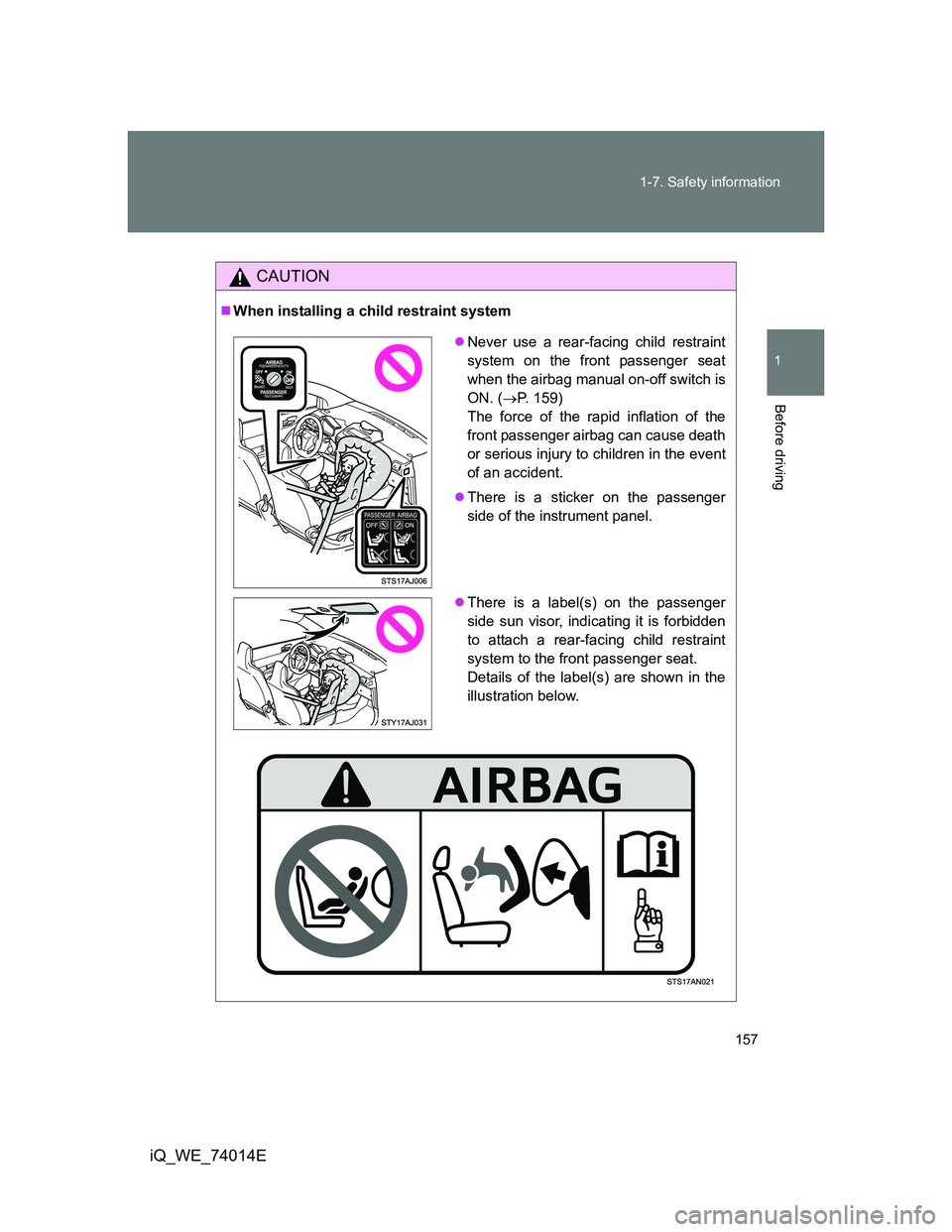

157 1-7. Safety information
1
Before driving
iQ_WE_74014E
CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
ON. (P. 159)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a sticker on the passenger
side of the instrument panel.
There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

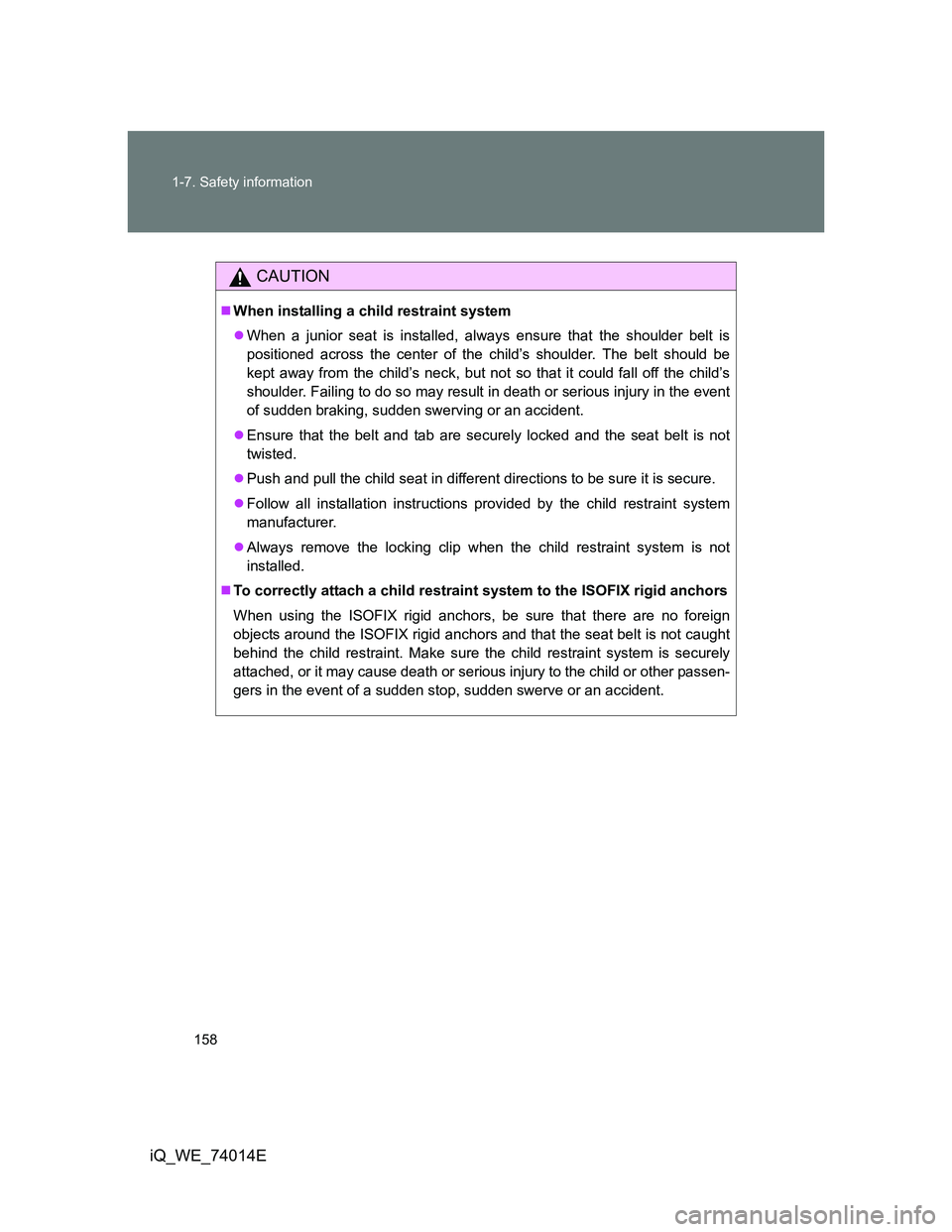

158 1-7. Safety information
iQ_WE_74014E
CAUTION
When installing a child restraint system
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
Push and pull the child seat in different directions to be sure it is secure.
Follow all installation instructions provided by the child restraint system
manufacturer.
Always remove the locking clip when the child restraint system is not
installed.
To correctly attach a child restraint system to the ISOFIX rigid anchors
When using the ISOFIX rigid anchors, be sure that there are no foreign
objects around the ISOFIX rigid anchors and that the seat belt is not caught
behind the child restraint. Make sure the child restraint system is securely
attached, or it may cause death or serious injury to the child or other passen-
gers in the event of a sudden stop, sudden swerve or an accident.

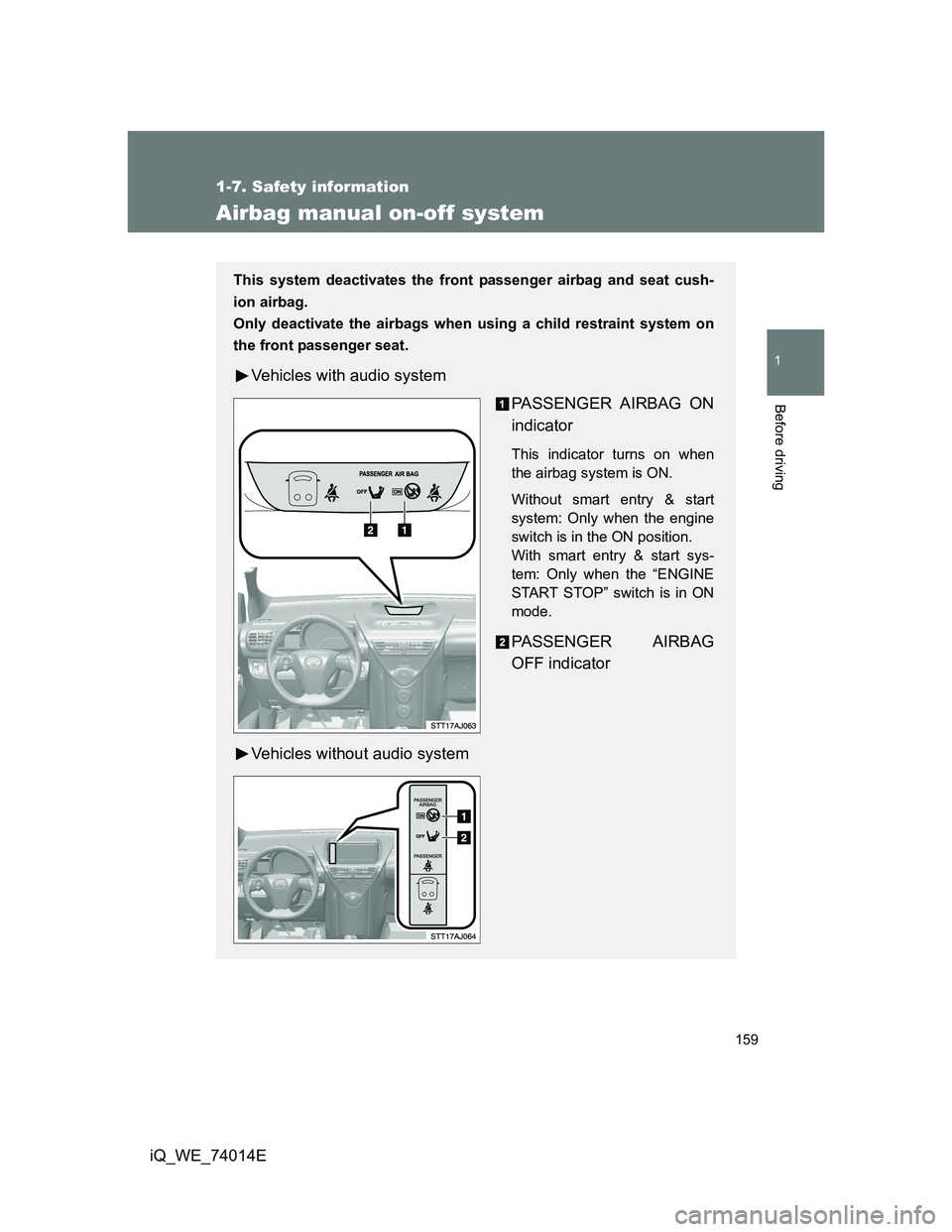

159
1
1-7. Safety information
Before driving
iQ_WE_74014E
Airbag manual on-off system
This system deactivates the front passenger airbag and seat cush-
ion airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Vehicles with audio system
PASSENGER AIRBAG ON
indicator
This indicator turns on when
the airbag system is ON.
Without smart entry & start
system: Only when the engine
switch is in the ON position.
With smart entry & start sys-
tem: Only when the “ENGINE
START STOP” switch is in ON
mode.
PASSENGER AIRBAG
OFF indicator
Vehicles without audio system

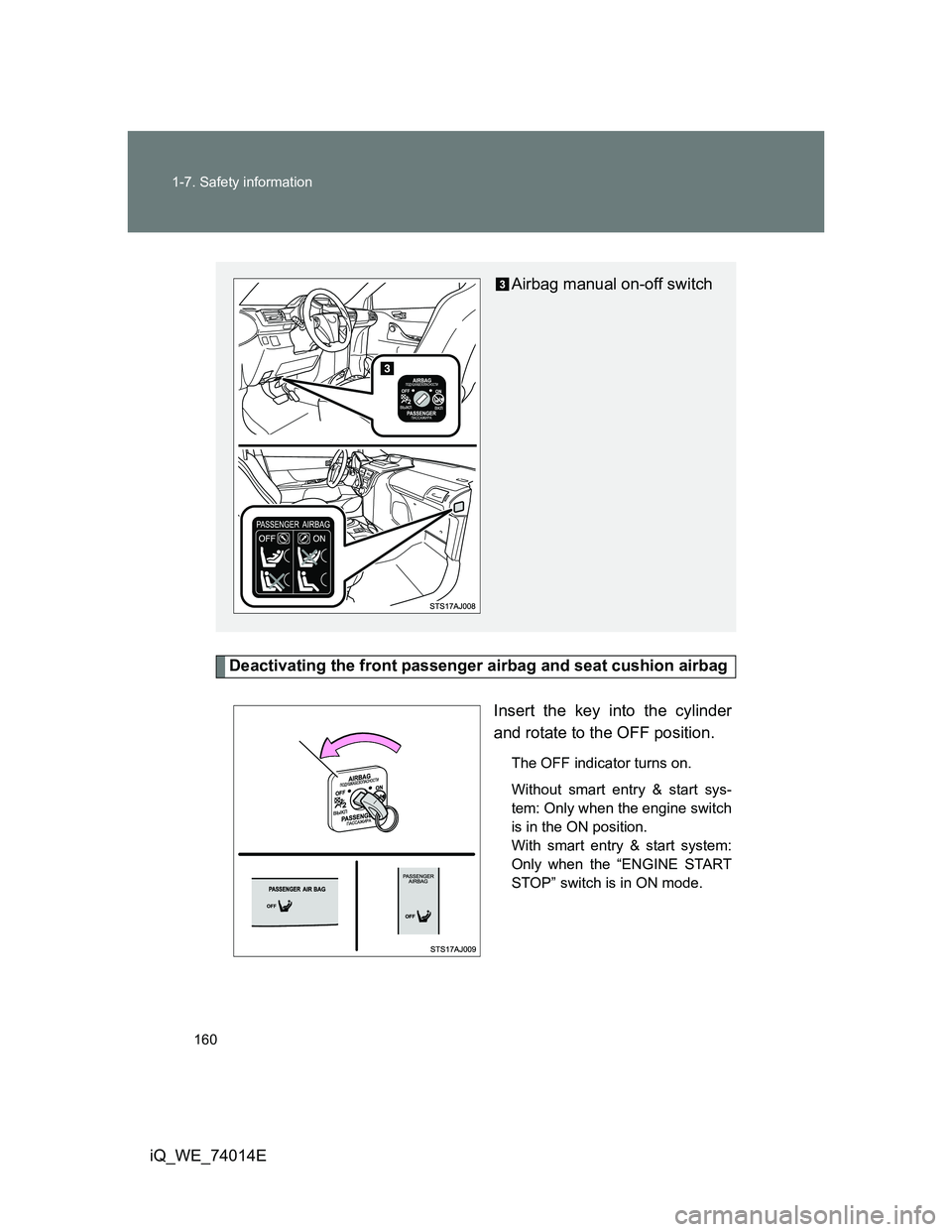

160 1-7. Safety information
iQ_WE_74014E
Deactivating the front passenger airbag and seat cushion airbag
Insert the key into the cylinder
and rotate to the OFF position.
The OFF indicator turns on.
Without smart entry & start sys-
tem: Only when the engine switch
is in the ON position.
With smart entry & start system:
Only when the “ENGINE START
STOP” switch is in ON mode.
Airbag manual on-off switch
