TOYOTA iQ EV 2013 Accessories, Audio & Navigation (in English)

NAVIGATION
SYSTEM
QUICK
REFERENCE
GUIDE
iQ EV2 013
GET INFORMED.
ROLL.
© 2 0 13 Scion, a marque of Toyota Motor Sales, U. S . A . , Inc.
Printed in U. S. A . 1 / 13
12-TCS -06431
EMAIL
w w w.scion.com
´ Contact
-
CH AT
w w w.scion.com
´ Have a Question?
´ Contact
-
PHONE
1.866.70.SCION
-
MAIL
SCION
19 0 01 S. We s ter n A v e.
D102, P. O . Box 2 74 2
Torrance, CA 9 0 5 0 9-2 74 2
USA
-
WEB
w w w.scion.com
-
00505-NAV13-IQEV

1

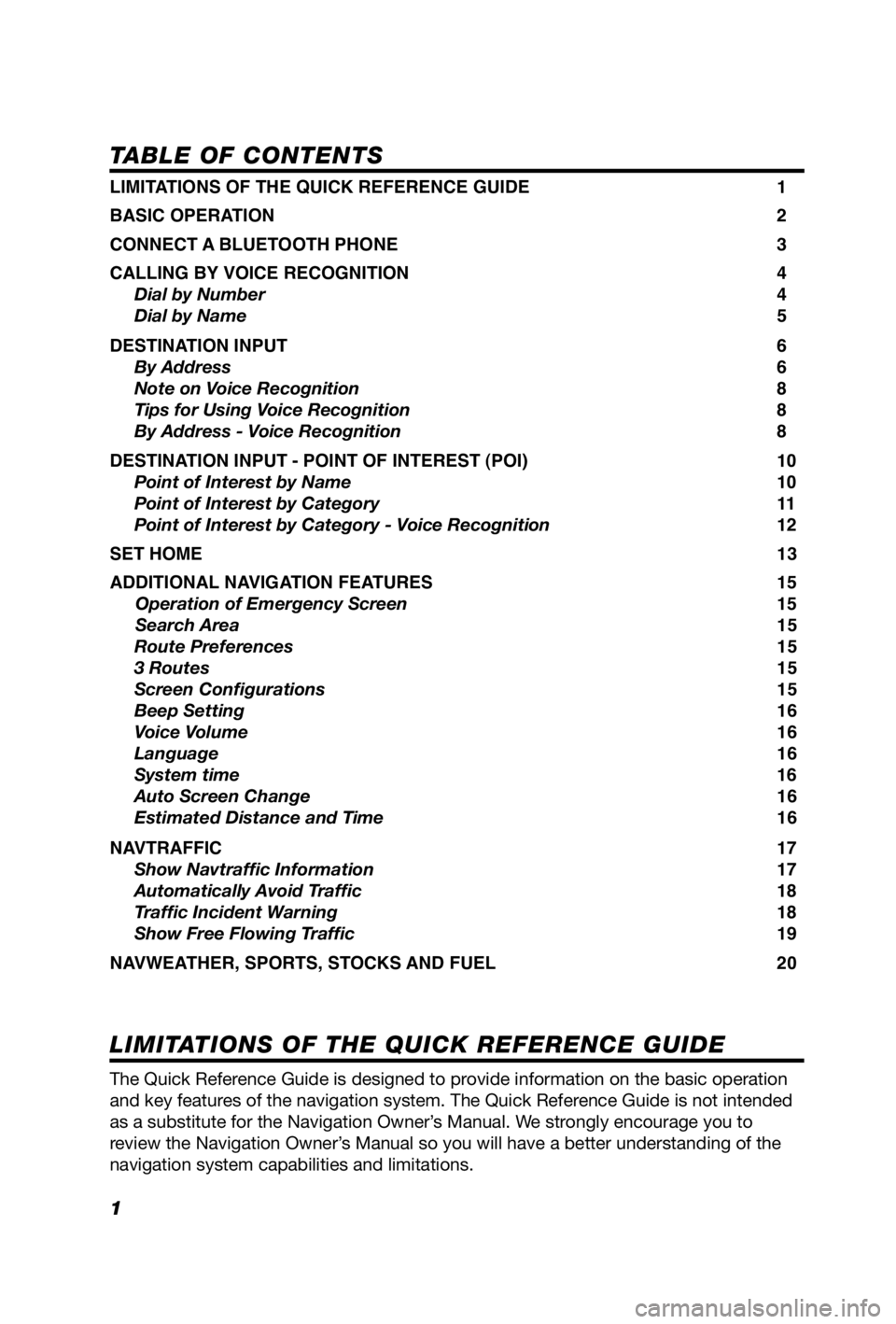

TABLE OF CONTENTS
LIMITATIONS OF THE QUICK REFERENCE GUIDE 1
BASIC OPERATION 2
CONNECT A BLUETOOTH PHONE 3
CALLING BY VOICE RECOGNITION 4
Dial by Number 4
Dial by Name 5
DESTINATION INPUT 6
By Address 6
Note on Voice Recognition 8
Tips for Using Voice Recognition 8
By Address - Voice Recognition 8
DESTINATION INPUT - POINT OF INTEREST (POI) 10
Point of Interest by Name 10
Point of Interest by Category 11
Point of Interest by Category - Voice Recognition 12
SET HOME 13
ADDITIONAL NAVIGATION FEATURES 15
Operation of Emergency Screen 15
Search Area 15
Route Preferences 15
3 Routes 15
Screen Confi gurations 15
Beep Setting 16
Voice Volume 16
Language 16
System time 16
Auto Screen Change 16
Estimated Distance and Time 16
NAVTRAFFIC 17
Show Navtraffi c Information 17
Automatically Avoid Traffi c 18
Traffi c Incident Warning 18
Show Free Flowing Traffi c 19
NAVWEATHER, SPORTS, STOCKS AND FUEL 20
The Quick Reference Guide is designed to provide information on the basic operation
and key features of the navigation system. The Quick Reference Guide is not intended
as a substitute for the Navigation Owner’s Manual. We strongly encourage you to
review the Navigation Owner’s Manual so you will have a better understanding of the
navigation system capabilities and limitations.
LIMITATIONS OF THE QUICK REFERENCE GUIDE

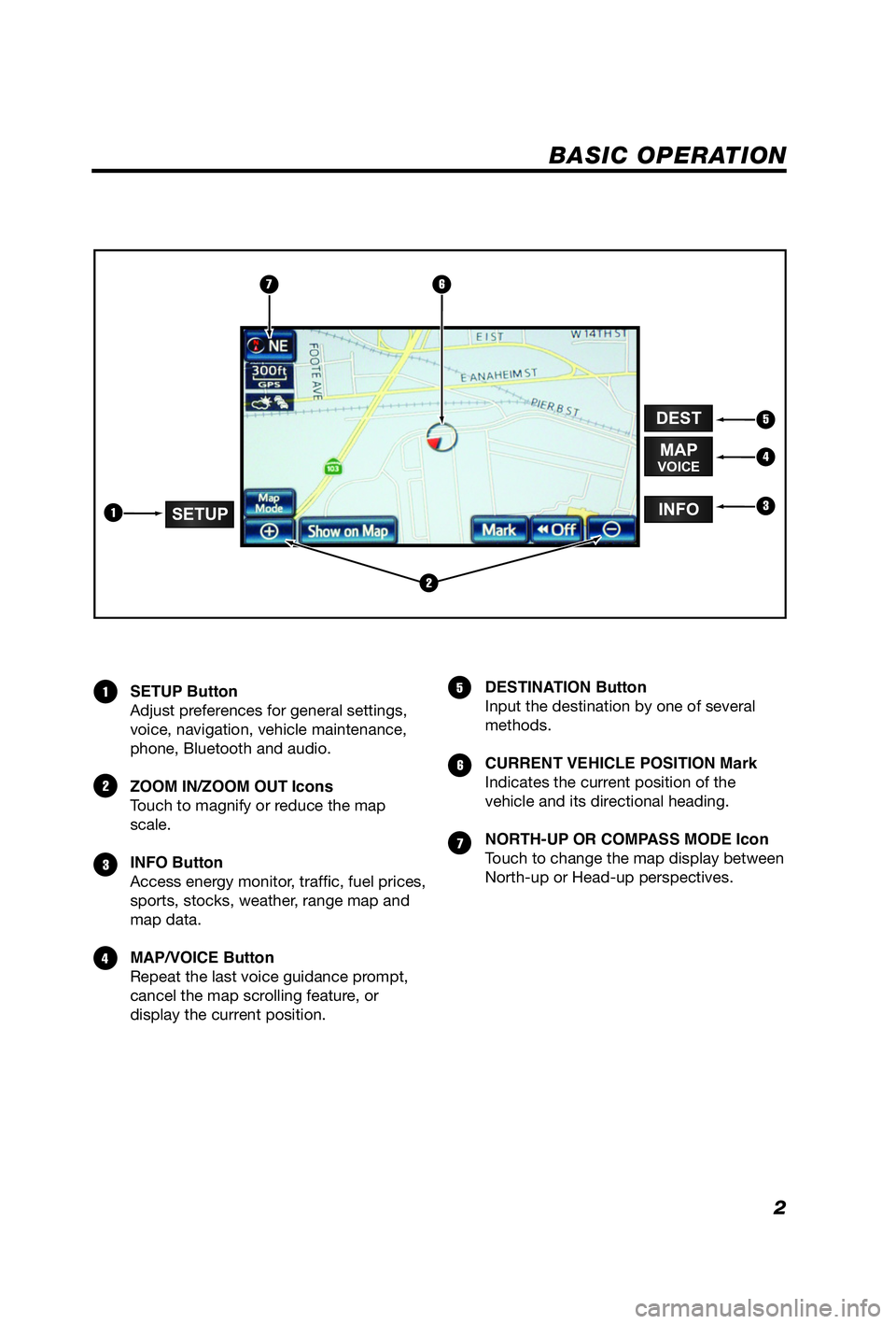

2
BASIC OPERATION
SETUP Button
Adjust preferences for general settings,
voice, navigation, vehicle maintenance,
phone, Bluetooth and audio.
ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the map
scale.
INFO Button
Access energy monitor, traf c, fuel prices,
sports, stocks, weather, range map and
map data.

MAP/VOICE Button
Repeat the last voice guidance prompt,
cancel the map scrolling feature, or
display the current position. DESTINATION Button
Input the destination by one of several
methods.
CURRENT VEHICLE POSITION Mark
Indicates the current position of the
vehicle and its directional heading.
NORTH-UP OR COMPASS MODE Icon
Touch to change the map display between
North-up or Head-up perspectives.£
Ó
Î
{
x
È
Ç
2
5
6
4
13
7
DEST
INFOSETUP
MAPVOICE

3

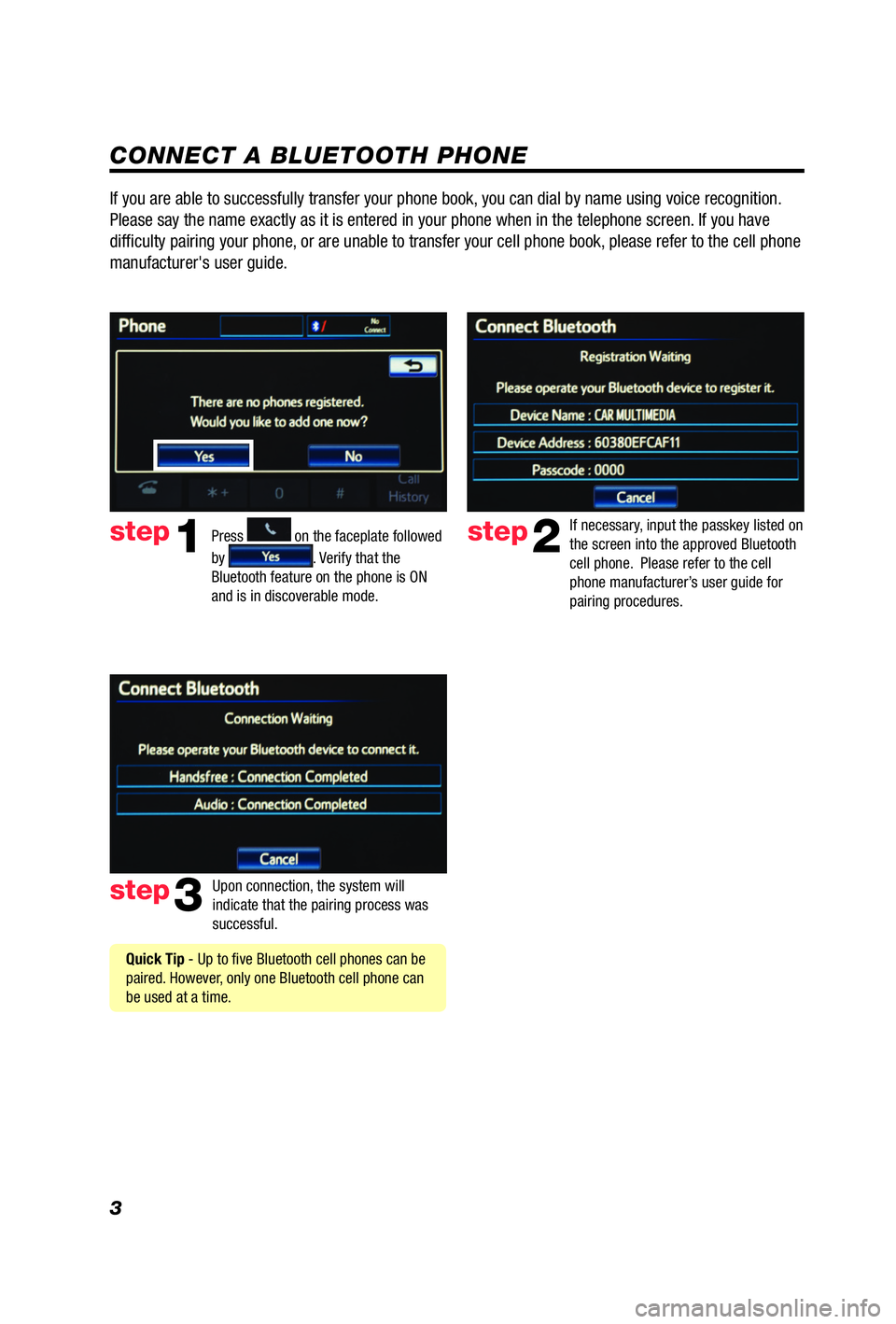

CONNECT A BLUETOOTH PHONE
Press on the faceplate followed
by
. Verify that the
Bluetooth feature on the phone is ON
and is in discoverable mode.
step2
step3
step1
If necessary, input the passkey listed on
the screen into the approved Bluetooth
cell phone. Please refer to the cell
phone manufacturer’s user guide for
pairing procedures.
Upon connection, the system will
indicate that the pairing process was
successful.
Quick Tip - Up to ve Bluetooth cell phones can be
paired. However, only one Bluetooth cell phone can
be used at a time.
If you are able to successfully transfer your phone book, you can dial by name using voice recognition.
Please say the name exactly as it is entered in your phone when in the t\
elephone screen. If you have
dif culty pairing your phone, or are unable to transfer your cell phone book, please refer to the cell phone
manufacturer's user guide.

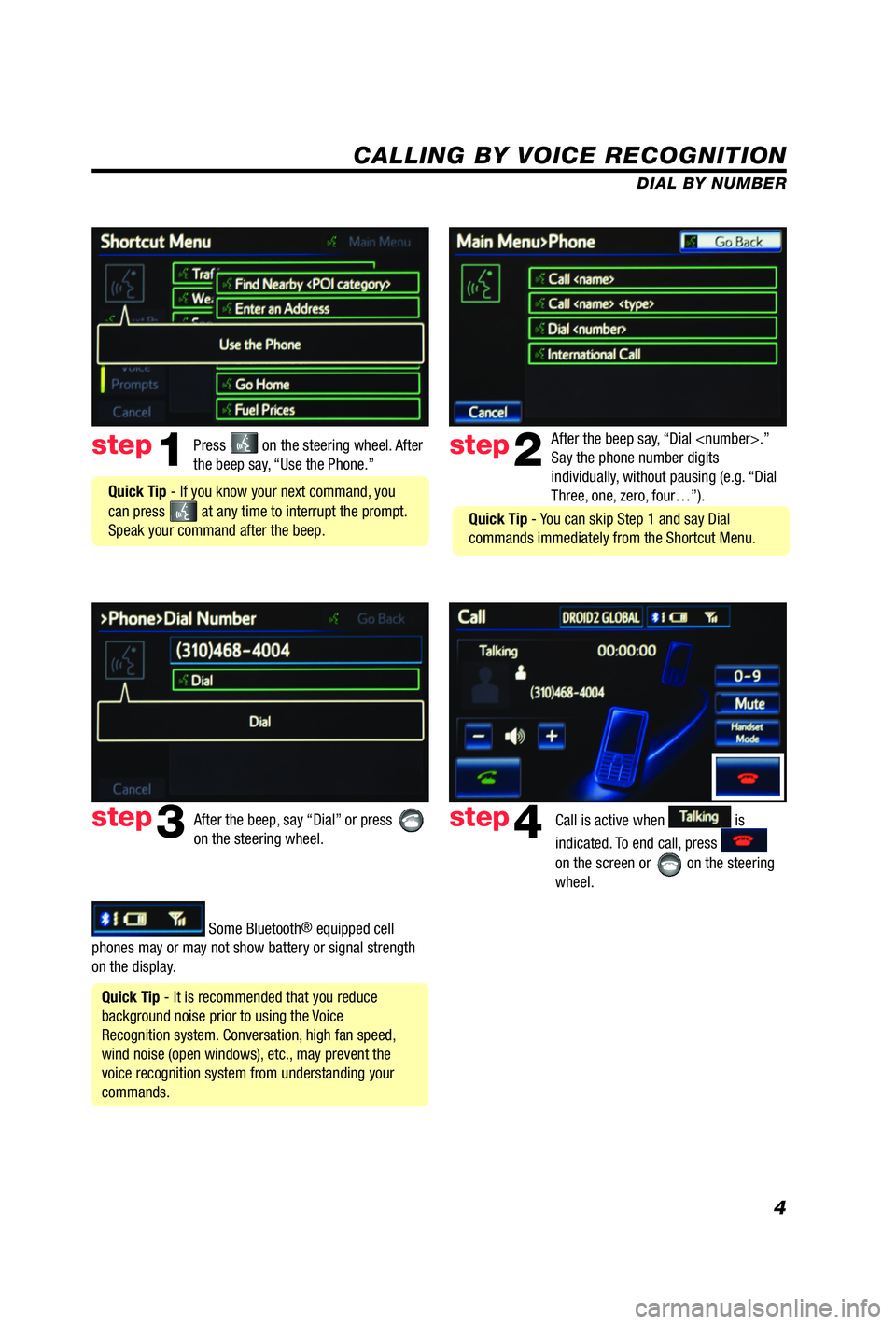

4
CALLING BY VOICE RECOGNITION
After the beep say, “Dial .”
Say the phone number digits
individually, without pausing (e.g. “Dial
Three, one, zero, four…”).step2
step3
Press on the steering wheel. After
the beep say, “Use the Phone.”step1
After the beep, say “Dial” or press
on the steering wheel. Call is active when is
indicated. To end call, press

on the screen or
on the steering
wheel.
step4
Quick Tip - It is recommended that you reduce
background noise prior to using the Voice
Recognition system. Conversation, high fan speed,
wind noise (open windows), etc., may prevent the
voice recognition system from understanding your
commands.
Quick Tip - If you know your next command, you
can press
at any time to interrupt the prompt.
Speak your command after the beep.
Some Bluetooth® equipped cell
phones may or may not show battery or signal strength
on the display. DIAL BY NUMBER
Quick Tip - You can skip Step 1 and say Dial
commands immediately from the Shortcut Menu.

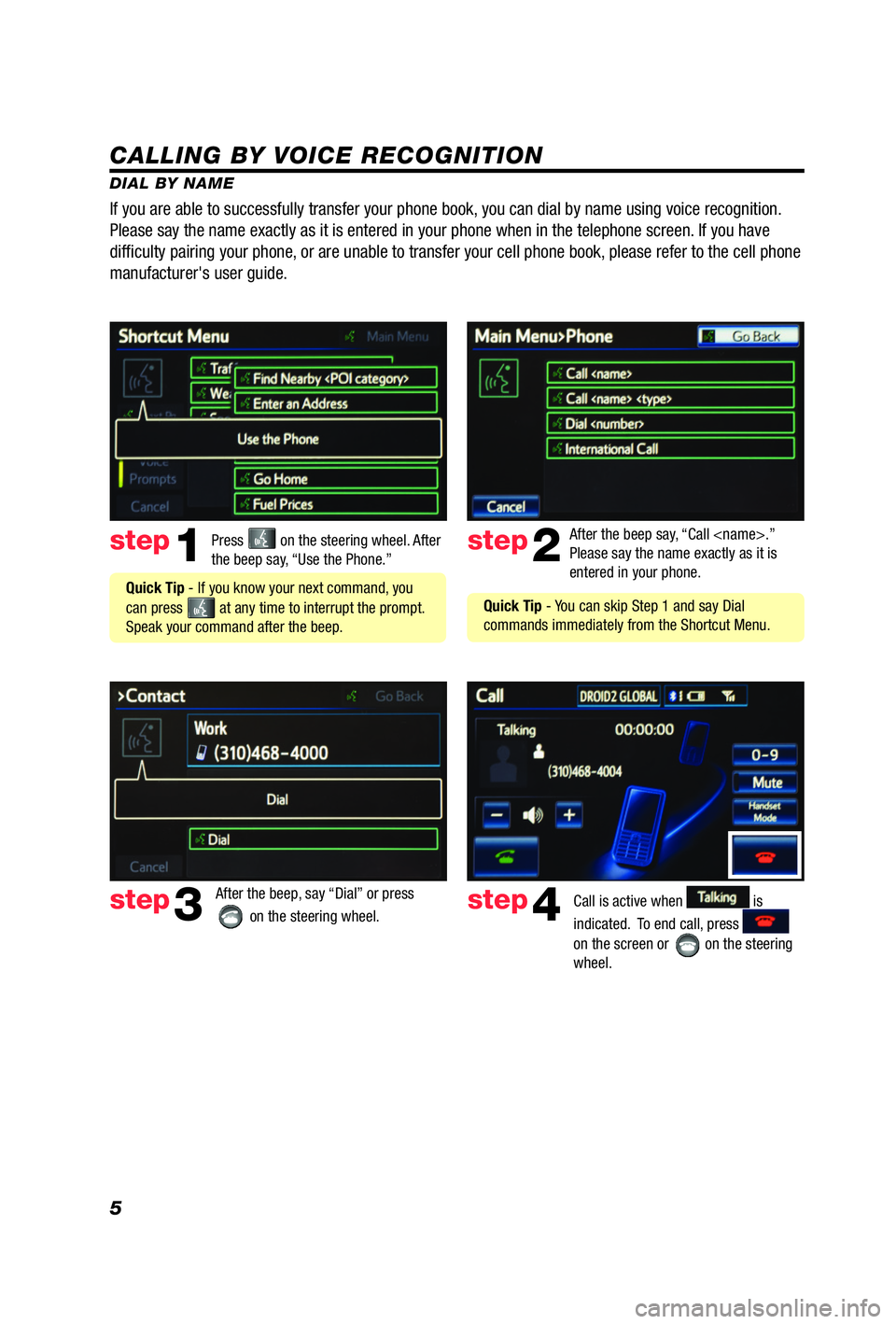

5
CALLING BY VOICE RECOGNITION
DIAL BY NAMEPress
on the steering wheel. After
the beep say, “Use the Phone.”step1
Quick Tip - If you know your next command, you
can press
at any time to interrupt the prompt.
Speak your command after the beep. After the beep say, “Call .”
Please say the name exactly as it is
entered in your phone.
step2
step3
After the beep, say “Dial” or press
on the steering wheel. step4Call is active when is
indicated. To end call, press

on the screen or
on the steering
wheel.
If you are able to successfully transfer your phone book, you can dial by name using voice recognition.
Please say the name exactly as it is entered in your phone when in the t\
elephone screen. If you have
dif culty pairing your phone, or are unable to transfer your cell phone book, please refer to the cell phone
manufacturer's user guide.
Quick Tip - You can skip Step 1 and say Dial
commands immediately from the Shortcut Menu.

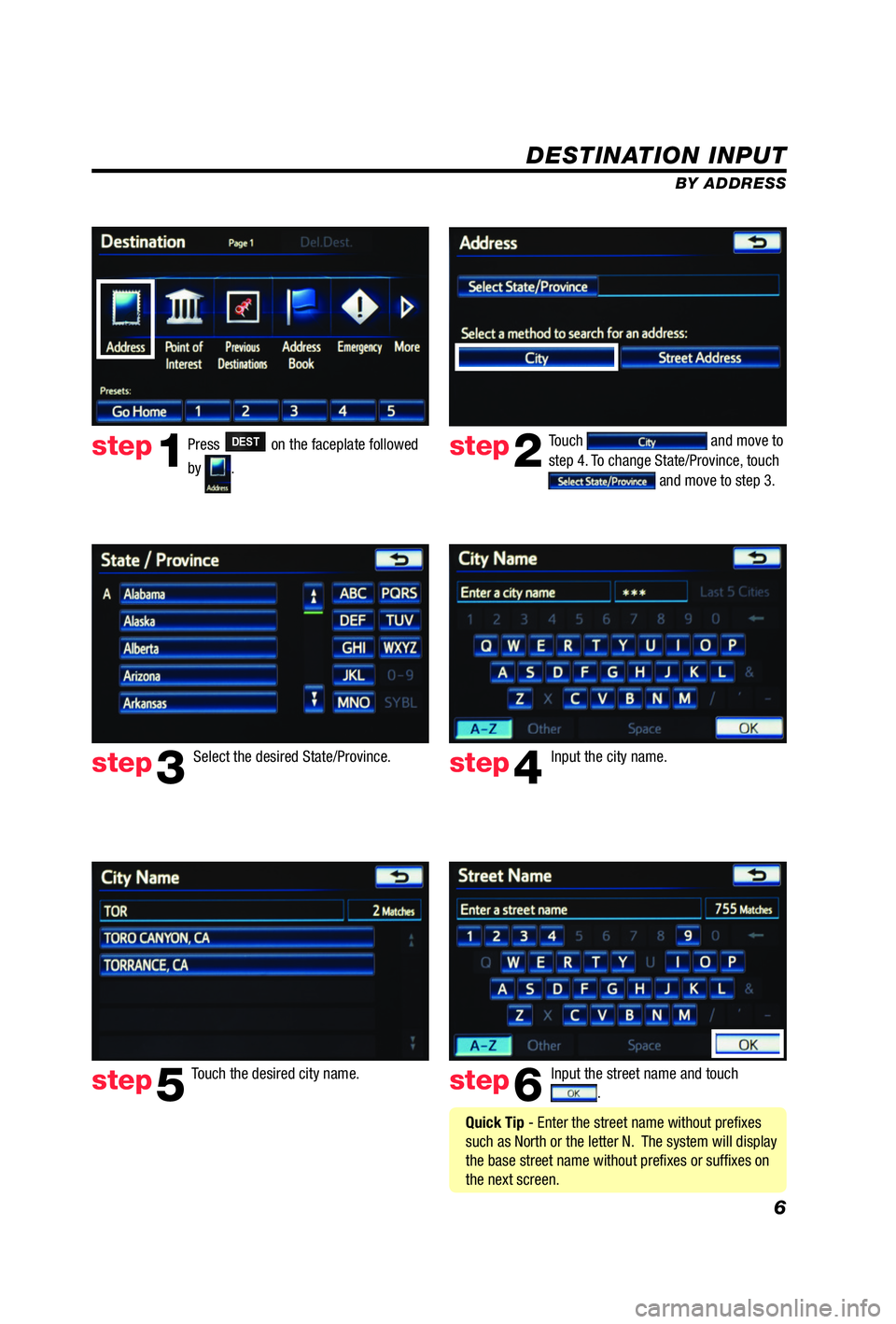

6
DESTINATION INPUT
BY ADDRESS
Press
DEST on the faceplate followed
by
. Touch
and move to
step 4. To change State/Province, touch
and move to step 3.
Input the city name.
Touch the desired city name. Input the street name and touch
.
Select the desired State/Province.
step1step2
step3step4
step5step6
Quick Tip - Enter the street name without pre xes
such as North or the letter N. The system will display
the base street name without pre xes or suf xes on
the next screen.

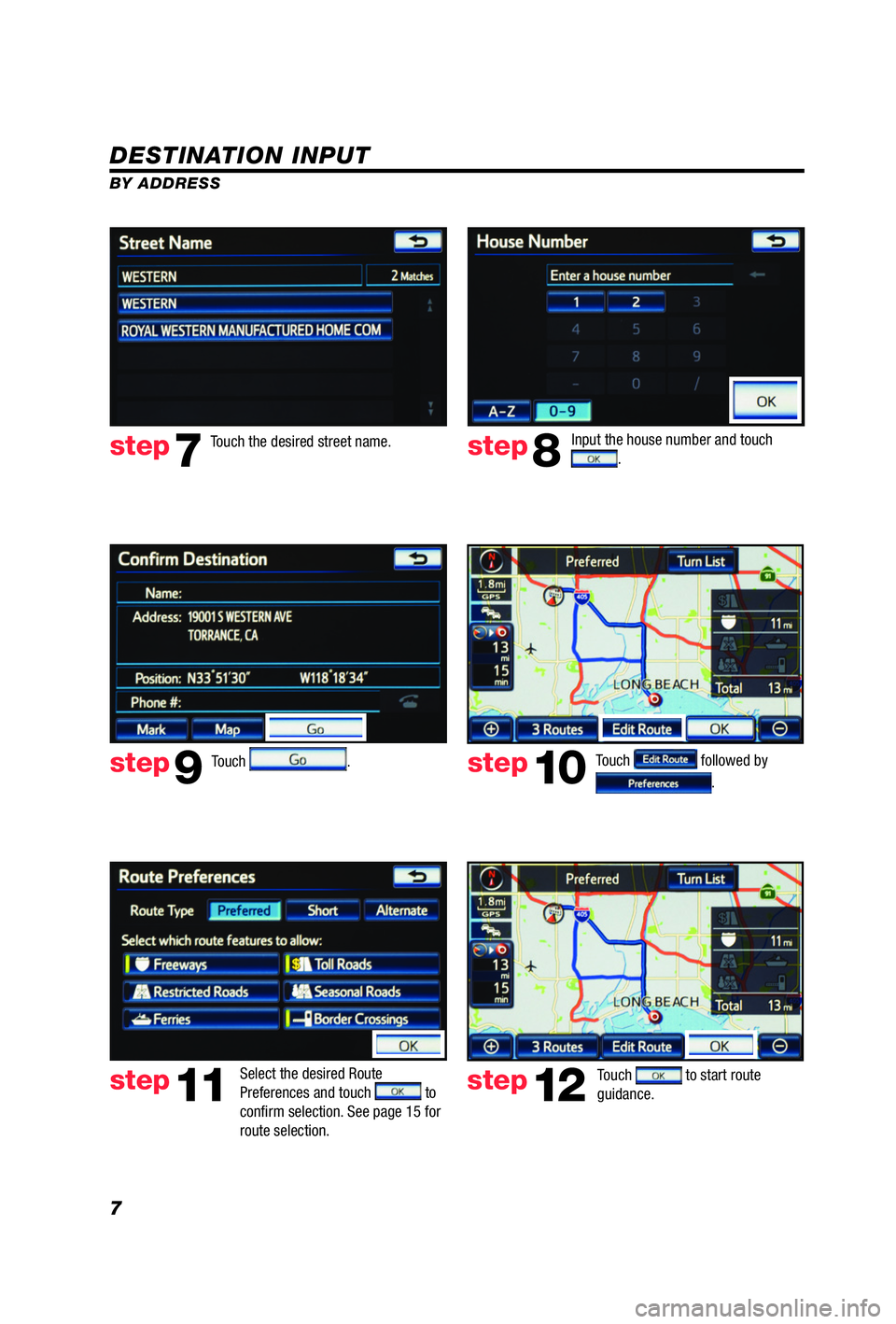

7
DESTINATION INPUT
BY ADDRESSTouch
. Input the house number and touch
.
Touch the desired street name.
Touch
followed by
.
step7step8
step9step10
Select the desired Route
Preferences and touch to
con rm selection. See page 15 for
route selection.
step11
Touch to start route
guidance. step12

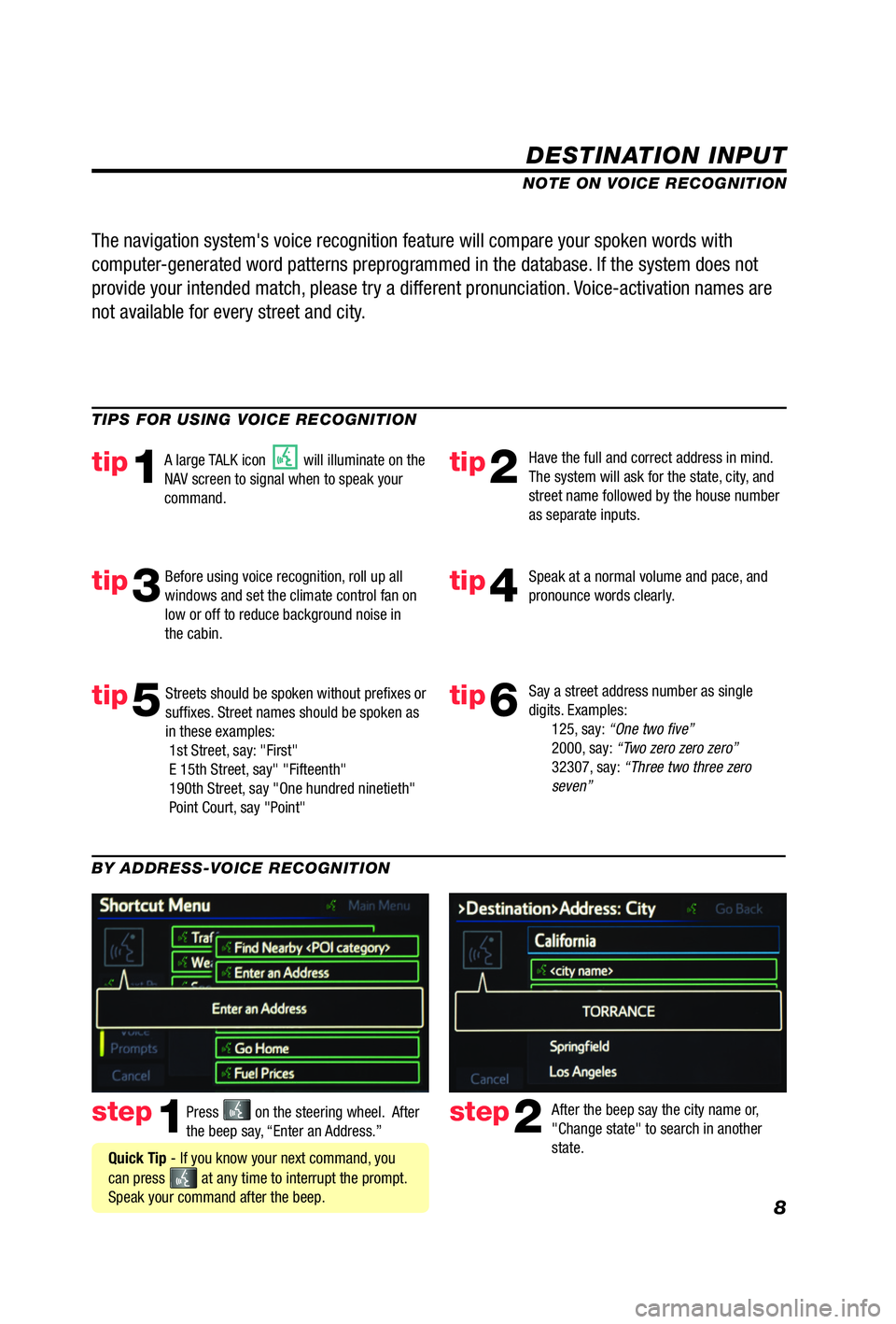

8
DESTINATION INPUT
step1step2Press on the steering wheel. After
the beep say, “Enter an Address.” After the beep say the city name or,
"Change state" to search in another
state.
TIPS FOR USING VOICE RECOGNITION
NOTE ON VOICE RECOGNITION
Say a street address number as single
digits. Examples:
125, say: “One two ve”
2000, say: “Two zero zero zero”
32307, say: “Three two three zero
seven”
tip1tip2
tip3tip4
tip5
Have the full and correct address in mind.
The system will ask for the state, city, and
street name followed by the house number
as separate inputs.
Before using voice recognition, roll up all
windows and set the climate control fan on
low or off to reduce background noise in
the cabin. Speak at a normal volume and pace, and
pronounce words clearly.
Streets should be spoken without pre xes or
suf xes. Street names should be spoken as
in these examples:
1st Street, say: "First"
E 15th Street, say" "Fifteenth"
190th Street, say "One hundred ninetieth"
Point Court, say "Point"
A large TALK icon will illuminate on the
NAV screen to signal when to speak your
command.
The navigation system's voice recognition feature will compare your spoken words with
computer-generated word patterns preprogrammed in the database. If the system does not
provide your intended match, please try a different pronunciation. Voice-activation names are
not available for every street and city.
BY ADDRESS-VOICE RECOGNITION
Quick Tip - If you know your next command, you
can press
at any time to interrupt the prompt.
Speak your command after the beep.
tip6

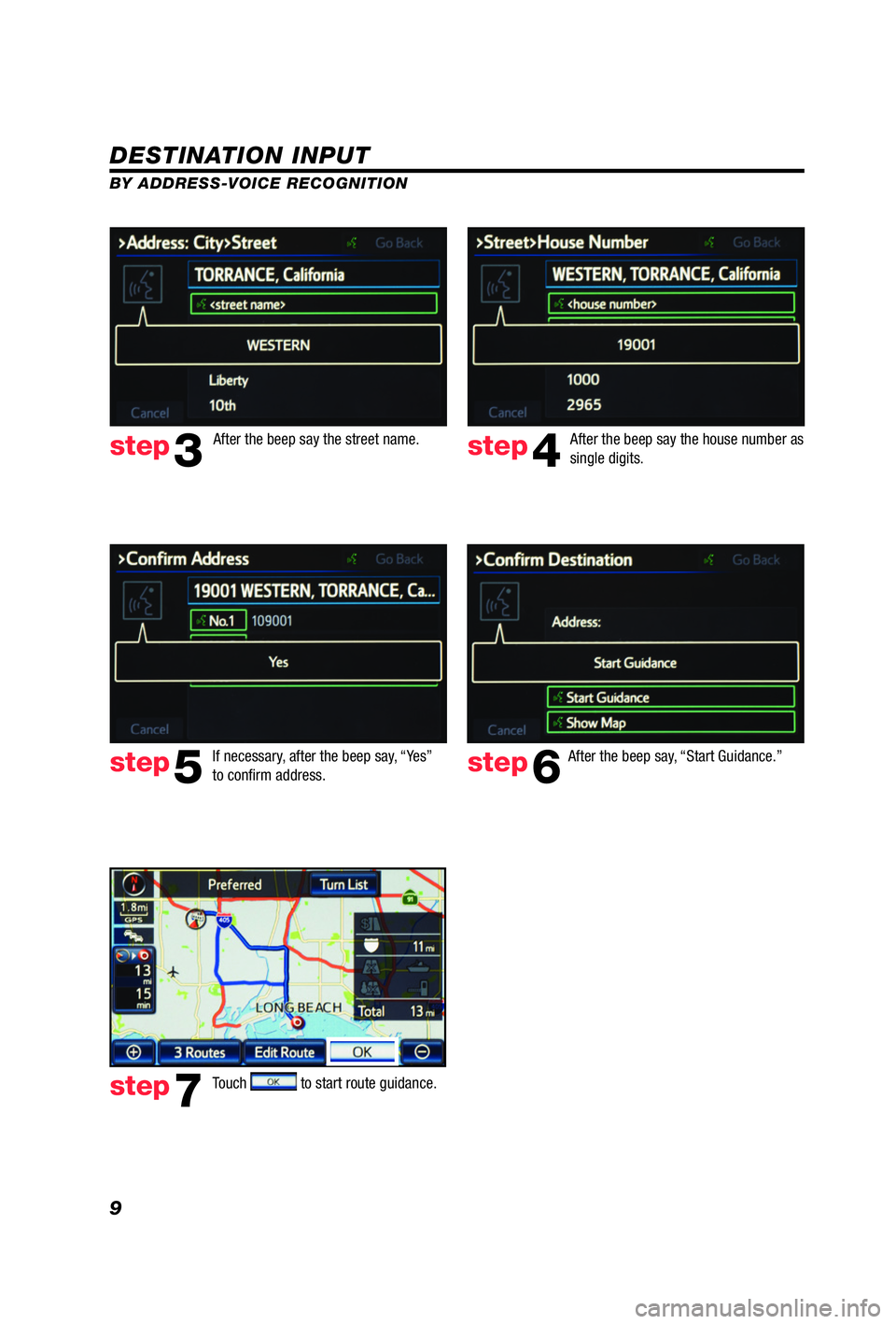

9
DESTINATION INPUT
BY ADDRESS-VOICE RECOGNITION
step3step4
step5step6
step7
After the beep say, “Start Guidance.”
Touch
to start route guidance.
After the beep say the street name.
After the beep say the house number as
single digits.
If necessary, after the beep say, “Yes”
to con rm address.
