VEHICLE
C HARGING
AND
OP ER AT I ONS
QUICK
R EFERENCE
GUIDE
iQ EV2 013
GET INFORMED.
RO LL.
© 2 0 13 Scion, a marque of Toyota M otor Sales, U.S.A ., Inc.
P rinted in U.S.A. 1/13
12 - TCS -05917
EMAIL
w w w.scion.com
Contact
-
C H AT
w w w.scion.com
Have a Question?
Contact
-
PH ONE
1.866.70.S CION
-
MAIL
SC ION
19 0 01 S. We s ter n A v e.
D102, P.O. Box 2 74 2
Torrance, CA 9 0 5 0 9-2 74 2
USA
-
WEB
w w w.scion.com
-
00505-QRG 13 -IQEV
12-TCS-05917_QRG_Scion_iQEV_3_0F_lm.indd 11/14/13 7:17 PM
Page 2 of 36

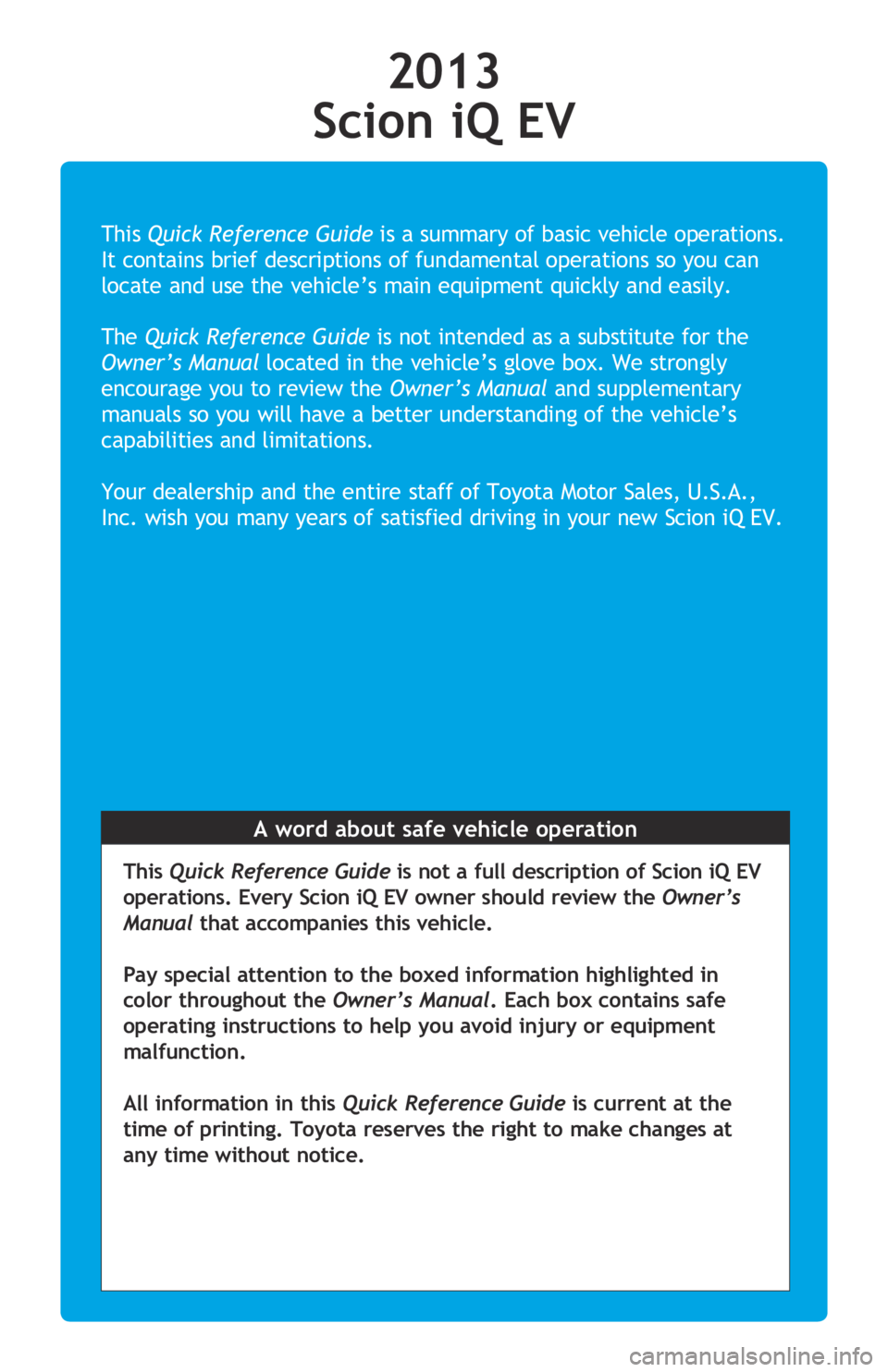

This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion iQ EV.
A word about safe vehicle operation
This Quick Reference Guide is not a full description of Scion iQ EV
operations. Every Scion iQ EV owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Scion iQ EV
INDEX
1 Visit your Toyota or Scion dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
OVERVIEW
Charge port 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel
2-3Keyless entry1,2 6
Motor maintenance 8
Smart Key system1,2 7
Charging 11-17
Charging equipment 10
Electric Vehicle System 9
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 9
Remote Climate Control 18
ELECTRIC VEHICLE SYSTEM
2013Scion-iQ-EV.indd 21/14/13 6:39 PM
Page 3 of 36
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Scion iQ EV
INDEX
1 Visit your Toyota or Scion dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
OVERVIEWFEATURES/OPERATIONS
Air Conditioning/Heating 26Audio 27
AUX port/USB port 28
Bottle holders 29
Cup holders 29
Hill-start Assist Control (HAC) 29
HWD (Heated Windshield Defroster) 26
Light control-Instrument panel 25
Lights & turn signals 23
Multi-Information Display 24
Parking brake 21
Power outlet 28
Seat adjustments-Front 22
Seat-Folding down rear seat 22
Seat heaters 25
Steering wheel switches 27
Tilt steering wheel 25
Transmission 21
Windows 24
Windshield wipers & washers 23
Door locks 30
Emergency tire puncture repair kit 31
Floor mat installation 33
Seat belts 30
Star Safety System
TM 32-33
Tire Pressure Monitoring
(warning) System
Charge port 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel
2-3Keyless entry1,2 6
Motor maintenance 8
Smart Key system1,2 7
Charging 11-17
Charging equipment 10
Electric Vehicle System 9
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 9
Remote Climate Control 18
19 20
31
ELECTRIC VEHICLE SYSTEM
SAFETY AND EMERGENCY FEATURES
2013Scion-iQ-EV.indd 11/14/13 6:40 PM
Page 4 of 36
2
OVERVIEW

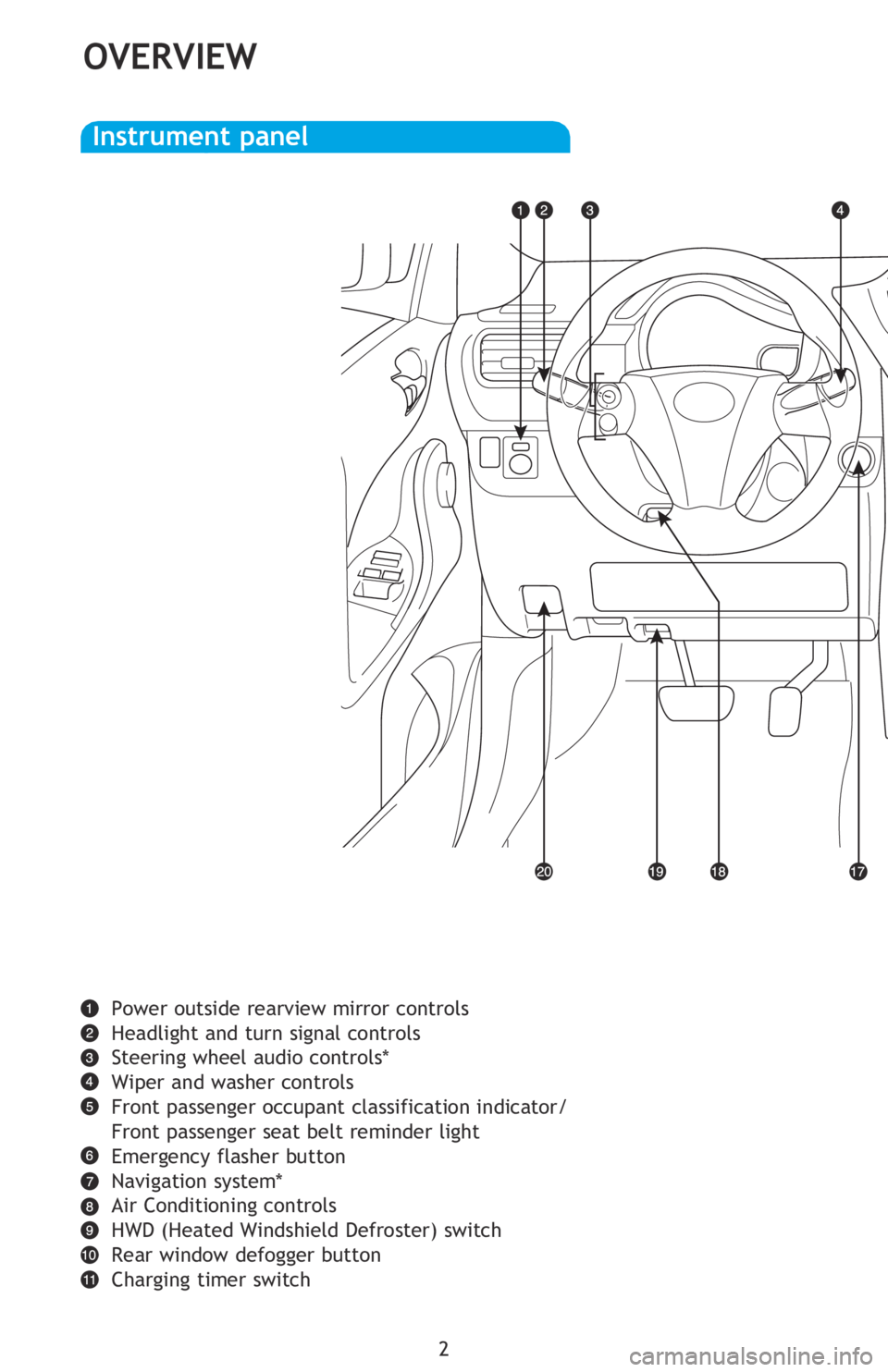

Instrument panel

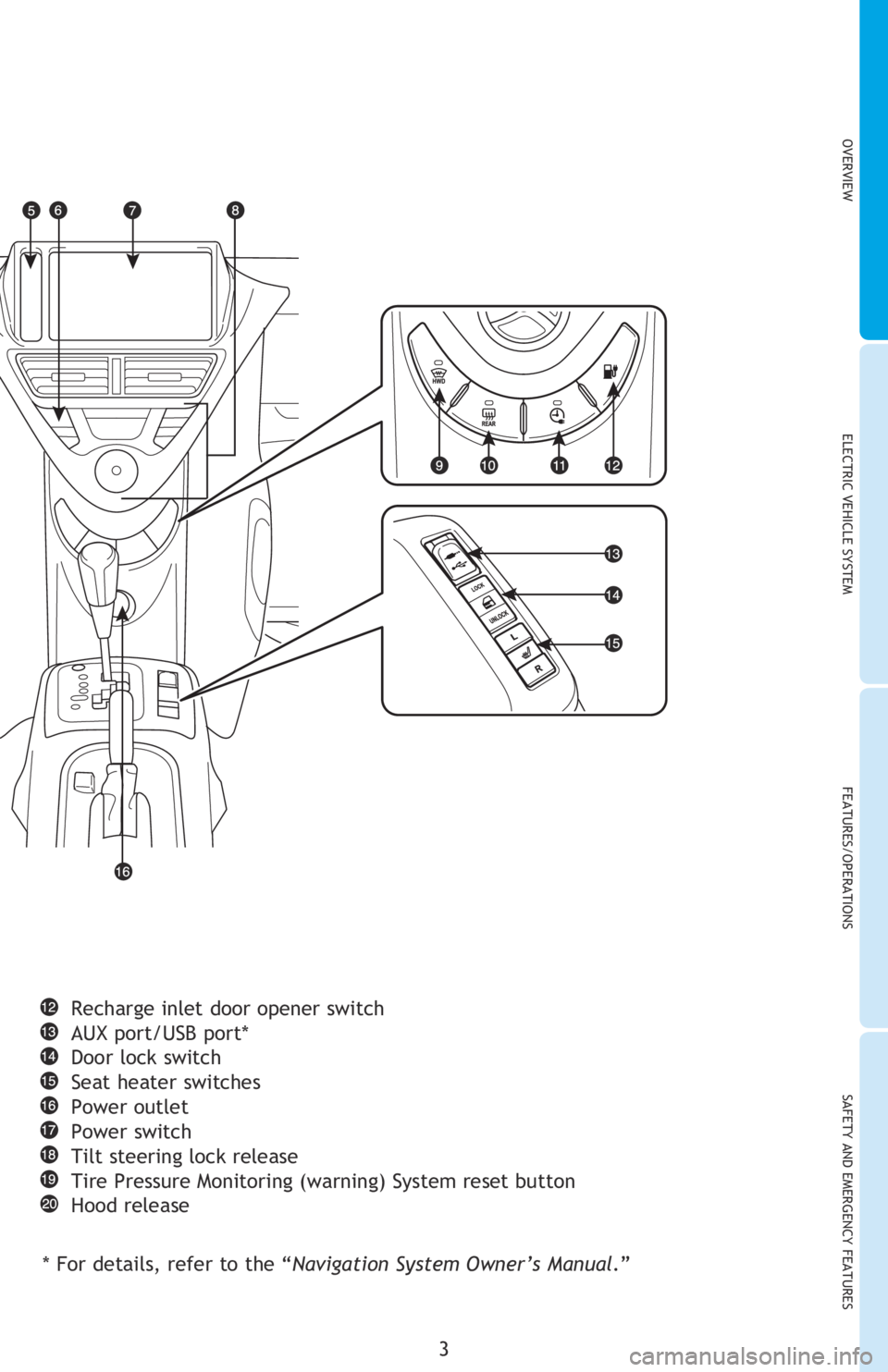

Power outside rearview mirror controls
Headlight and turn signal controls
Steering wheel audio controls*
Wiper and washer controls
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Emergency flasher button
Navigation system*
Air Conditioning controls
HWD (Heated Windshield Defroster) switch
Rear window defogger button
Charging timer switchRecharge inlet door opener switch
AUX port/USB port*
Door lock switch
Seat heater switches
Power outlet
Power switch
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset button
Hood release
* For details, refer to the “Navigation System Owner’s Manual.”
2013Scion-iQ-EV.indd 21/14/13 6:42 PM
Page 5 of 36
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Power outside rearview mirror controls
Headlight and turn signal controls
Steering wheel audio controls*
Wiper and washer controls
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Emergency flasher button
Navigation system*
Air Conditioning controls
HWD (Heated Windshield Defroster) switch
Rear window defogger button
Charging timer switchRecharge inlet door opener switch
AUX port/USB port*
Door lock switch
Seat heater switches
Power outlet
Power switch
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset button
Hood release
* For details, refer to the “Navigation System Owner’s Manual.”
2013Scion-iQ-EV.indd 31/14/13 6:42 PM
Page 6 of 36
4
OVERVIEW

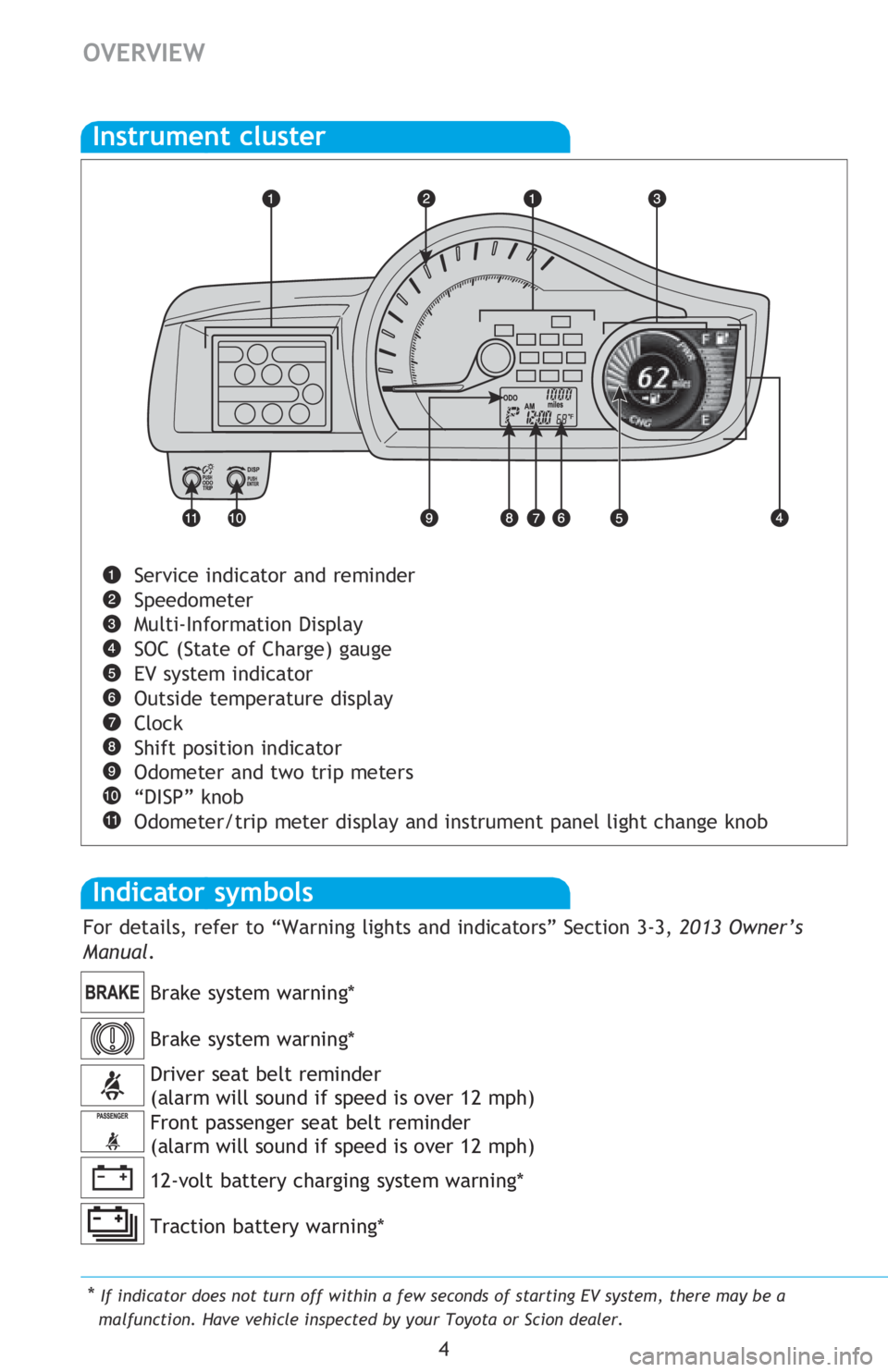

Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning*
Brake system warning *
12-volt battery charging system warning*
Traction battery warning*
Indicator symbols
Instrument cluster
Service indicator and reminder
Speedometer
Multi-Information Display
SOC (State of Charge) gauge
EV system indicator
Outside temperature display
Clock
Shift position indicator
Odometer and two trip meters
“DISP” knob
Odometer/trip meter display and instrument panel light change knob
* If indicator does not turn off within a few seconds of starting EV system, there may be a
malfunction. Have vehicle inspected by your Toyota or Scion dealer.
For details, refer to “Warning lights and indicators” Section 3-3, 2013 Owner’s
Manual .
2013Scion-iQ-EV.indd 41/14/13 6:48 PM
Page 7 of 36
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
OVERVIEW

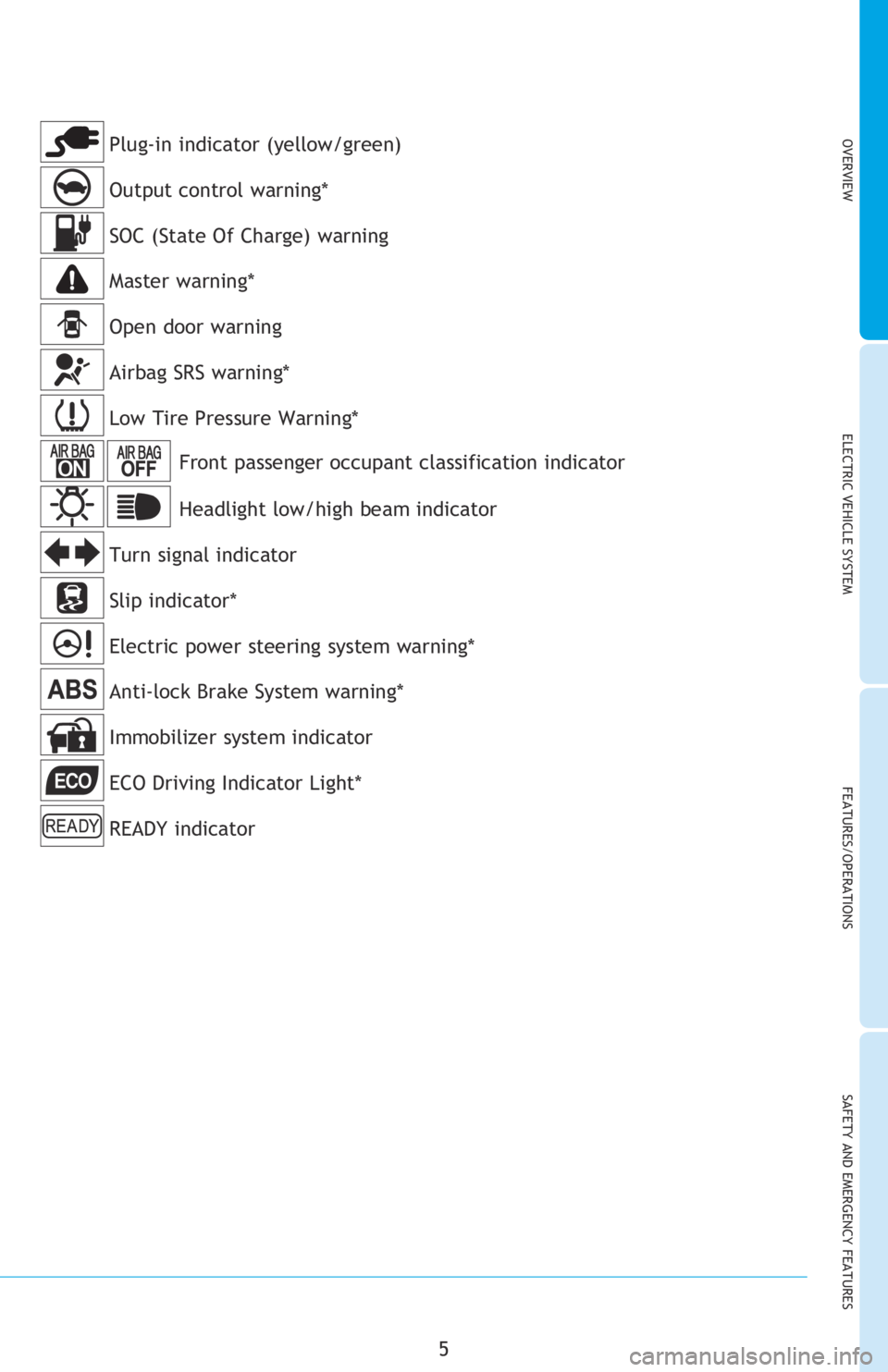

Anti-lock Brake System warning*
Open door warning
Low Tire Pressure Warning*
Turn signal indicatorHeadlight low/high beam indicator
Electric power steering system warning* Slip indicator* Airbag SRS warning*Service indicator and reminder
Speedometer
Multi-Information Display
SOC (State of Charge) gauge
EV system indicator
Outside temperature display
Clock
Shift position indicator
Odometer and two trip meters
“DISP” knob
Odometer/trip meter display and instrument panel light change knob
*
If indicator does not turn off within a few seconds of starting EV system, there may be a
malfunction. Have vehicle inspected by your Toyota or Scion dealer.
Front passenger occupant classification indicator
For details, refer to “Warning lights and indicators” Section 3-3, 2013 Owner’s
Manual .
ECO Driving Indicator Light*
READY indicator Immobilizer system indicator
Plug-in indicator (yellow/green)
Output control warning*
Master warning *
SOC (State Of Charge) warning
2013Scion-iQ-EV.indd 51/14/13 6:48 PM
Page 8 of 36
6
OVERVIEW

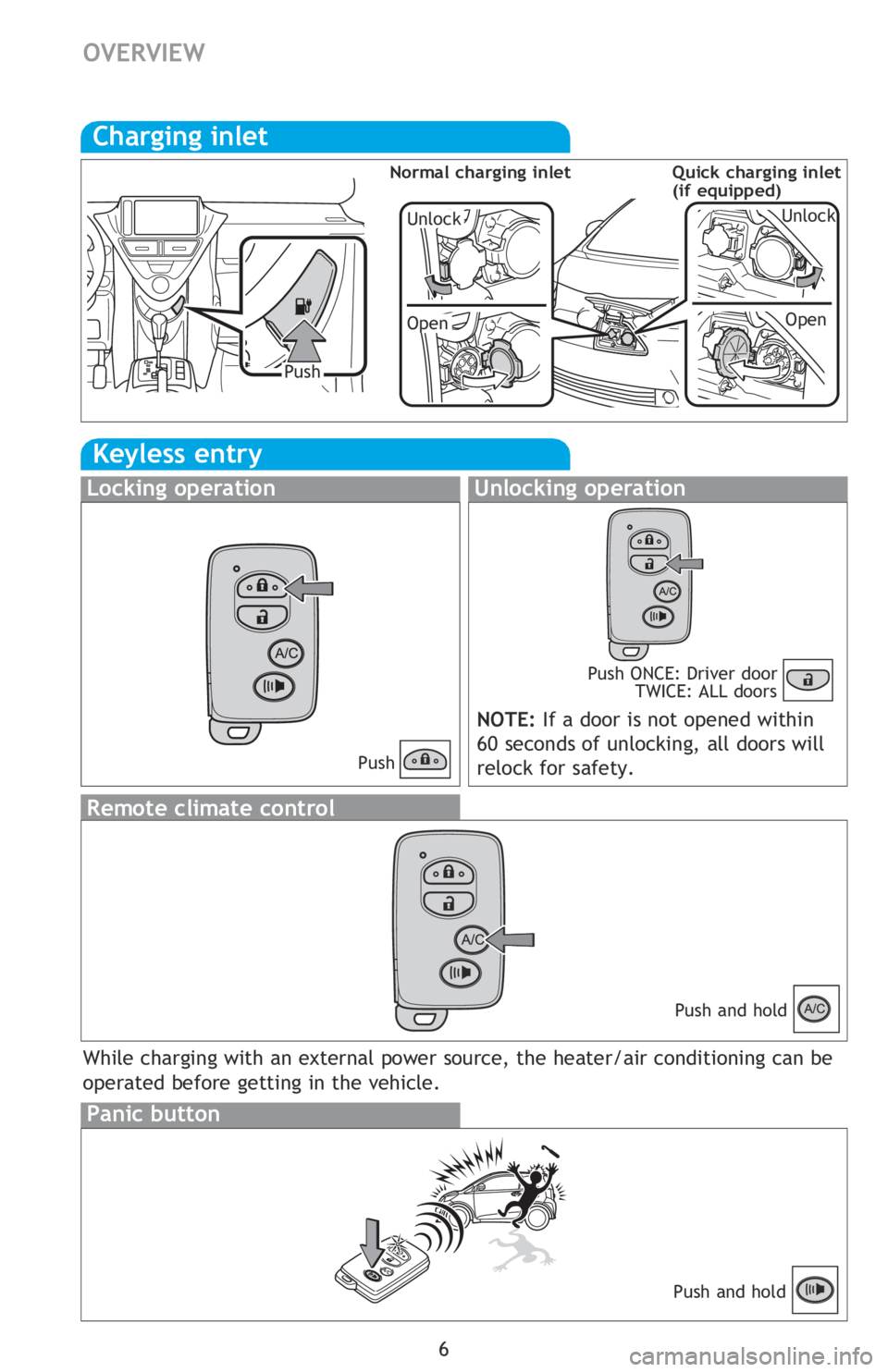

Keyless entry
Locking operationUnlocking operation
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
PushPush ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Charging inlet
UnlockUnlock
Open
Open
Smart Key system
Start function
NOTE: Shift position must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle or pushing the unlock button o\
n the back
door opener will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting EV System)
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operation
Carry remote to lock
Carry remote
to lock/unlock
Push
Remote climate control
While charging with an external power source, the heater/air conditioning can be
operated before getting in the vehicle.
Push and hold
Normal charging inlet Quick charging inlet
(if equipped)
2013Scion-iQ-EV.indd 61/14/13 6:48 PM
Page 9 of 36
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

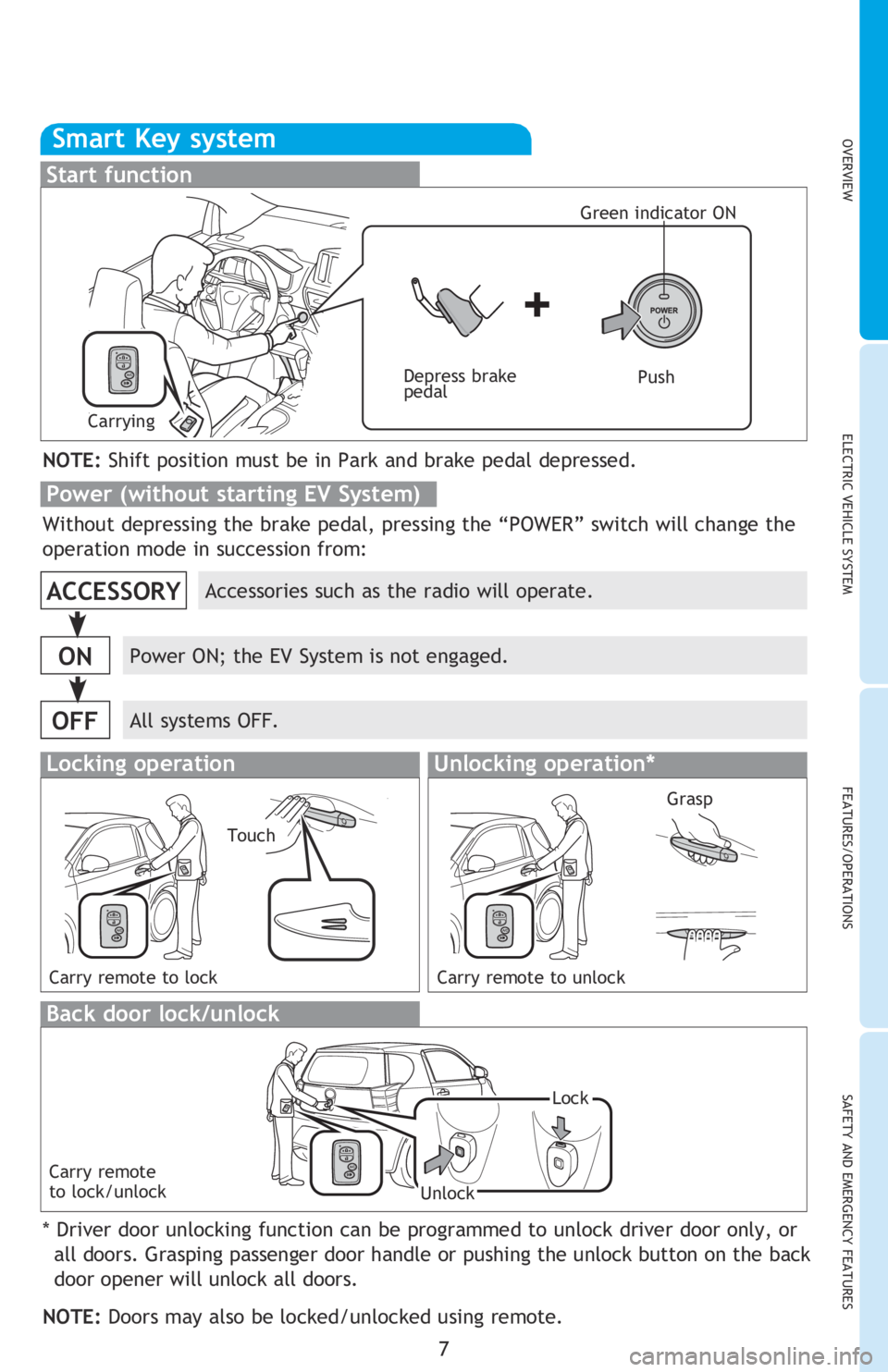

Unlocking operation
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Unlock
Open
Smart Key system
Start function
NOTE: Shift position must be in Park and brake pedal depressed.
Push
Depress brake
pedal
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle or pushing the unlock button o\
n the back
door opener will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting EV System)
Accessories such as the radio will operate.
Power ON; the EV System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operationUnlocking operation*
Carry remote to lock Carry remote to unlock
Grasp
Lock
Unlock
Carry remote
to lock/unlock
Green indicator ON
Touch
While charging with an external power source, the heater/air conditioning can be
operated before getting in the vehicle.
Quick charging inlet
(if equipped)
2013Scion-iQ-EV.indd 71/14/13 6:48 PM
Page 10 of 36
8

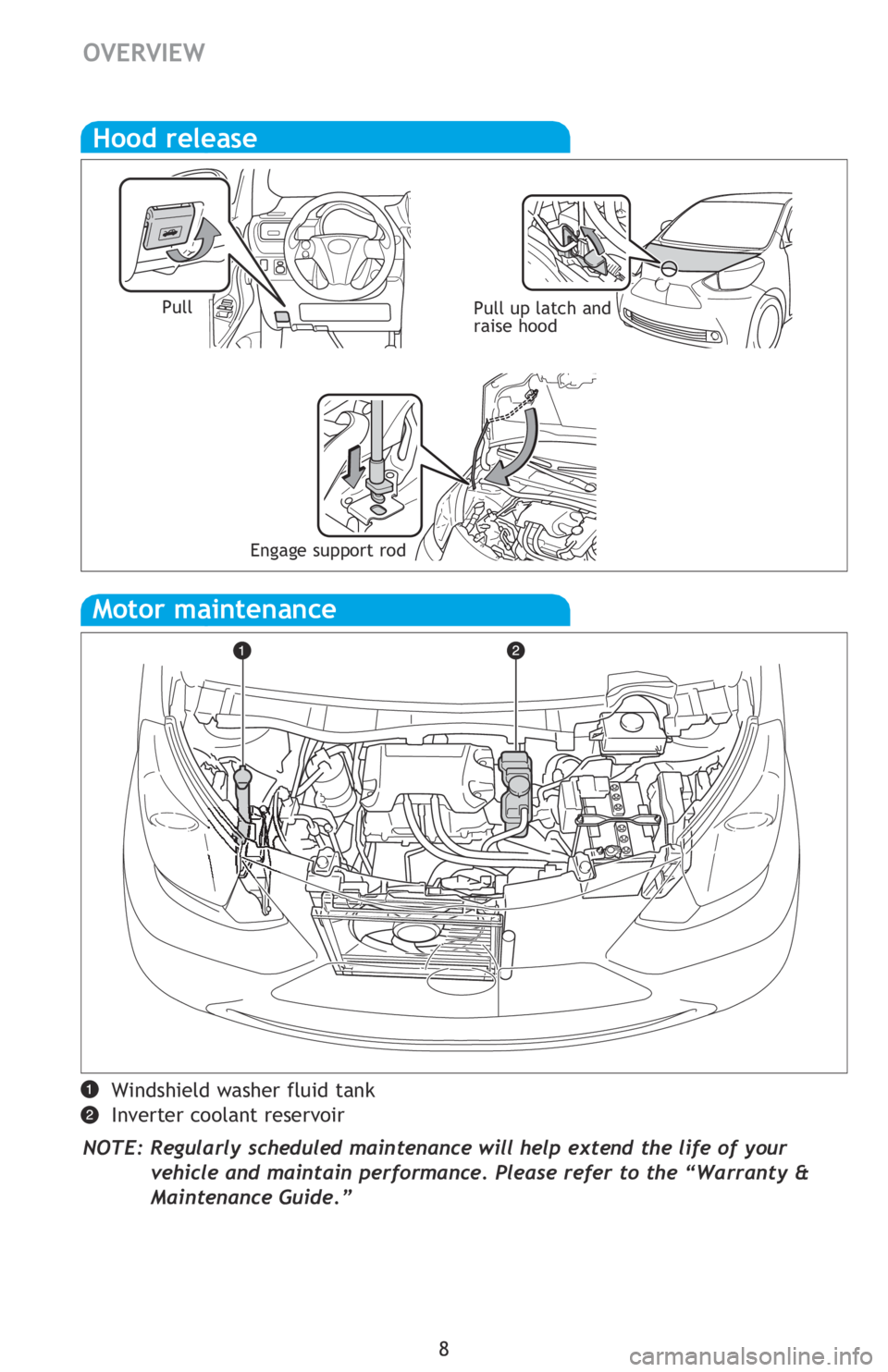

Hood release
PullPull up latch and
raise hood
Windshield washer fluid tank
Inverter coolant reservoir
NOTE: Regularly scheduled maintenance will help extend the life of your vehicle and maintain performance. Please refer to the “Warranty &
Maintenance Guide.”
Motor maintenance
Engage support rod
OVERVIEWELECTRIC VEHICLE SYSTEM
Starting the EV System
The Scion iQ EV uses electricity in a rechargeable traction battery to power the
electric motor. The driving range is extended by using regenerative braking to
store electricity in the traction battery. This technology is clean and has a low
impact on the environment by not emitting exhaust such as CO
2 or NOX during
operation.
Tips for reducing battery consumption
-Keep the EV System indicator needle within the ECO or Charge area.
-Drive in D position.
-When possible, avoid driving on steep inclines.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of Air Conditioning and heating; the seat heater may also be used to
supplement heating.
-Maintain recommended tire pressure and avoid carrying unnecessary luggage.
-Utilize the Remote Climate Control to warm or cool cabin before driving.
Electric Vehicle System
Range Map screen
The estimated driving range based on the amount of remaining battery charge can
be displayed as a reference.
Refer to the Navigation System Owner’s Manual for more details.
2013Scion-iQ-EV.indd 81/14/13 6:48 PM
