TOYOTA iQ EV 2013 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2013, Model line: iQ EV, Model: TOYOTA iQ EV 2013Pages: 36, PDF Size: 2.62 MB
Page 1 of 36
1EV systemCharge methods, how to charge and driving tips,
etc.
2Operation of
each componentOpening and closing the doors, how to start the EV
system and how to use wipers, etc.
3Navigation
systemDisplaying range map screen.
4What to do if...Explaining what to do when you cannot charge,
the electric key does not work, and so forth.
The quick guide is not intended as a substitute for your
“Owner’s Manual”. We strongly encourage you to review the
“Owner’s Manual” and supplementary manuals so you will have a bet-
ter understanding of your vehicle’s capabilities and limitations.
Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of equipment.
Page 2 of 36
2

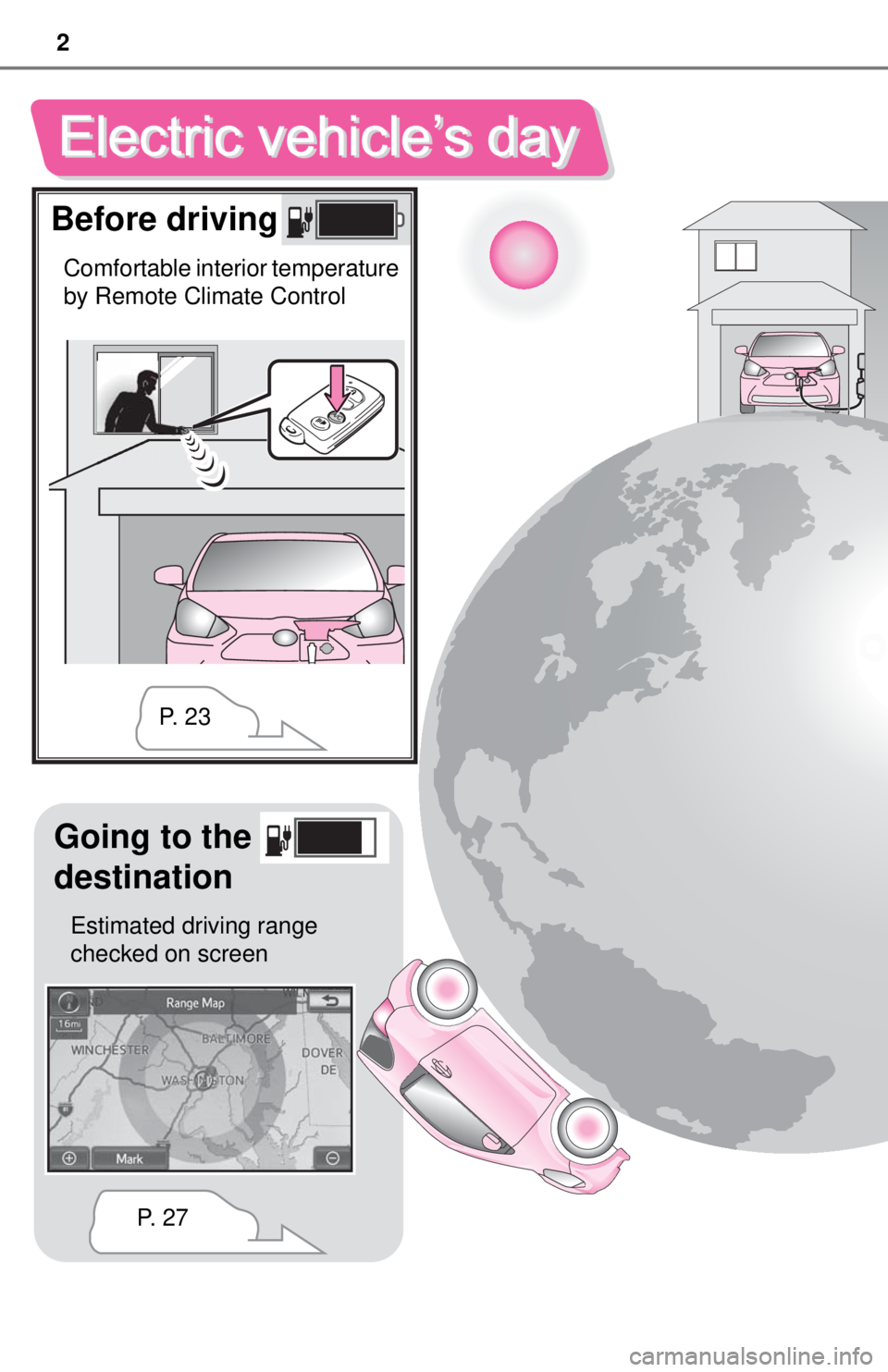

Before driving
Comfortable interior temperature
by Remote Climate Control
Going to the
destination
Estimated driving range
checked on screen
P. 2 7P. 2 3

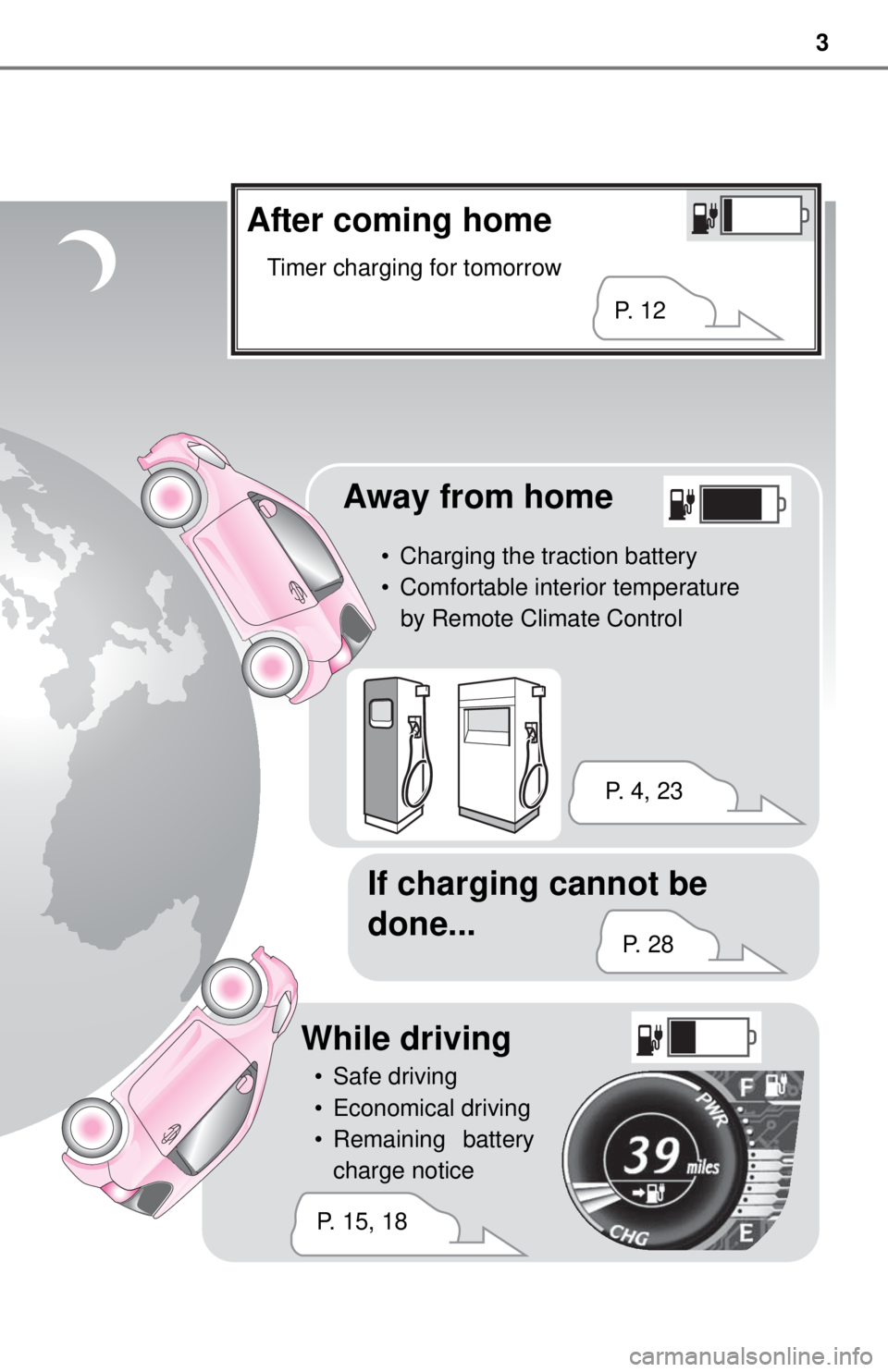

Page 3 of 36
3
After coming home
Timer charging for tomorrow
Away from home
• Charging the traction battery
• Comfortable interior temperature
by Remote Climate Control
If charging cannot be
done...
P. 1 2
P. 4 , 2 3
P. 2 8
While driving
• Safe driving
• Economical driving
• Remaining battery
charge notice
P. 15, 18
Page 4 of 36
41. EV system

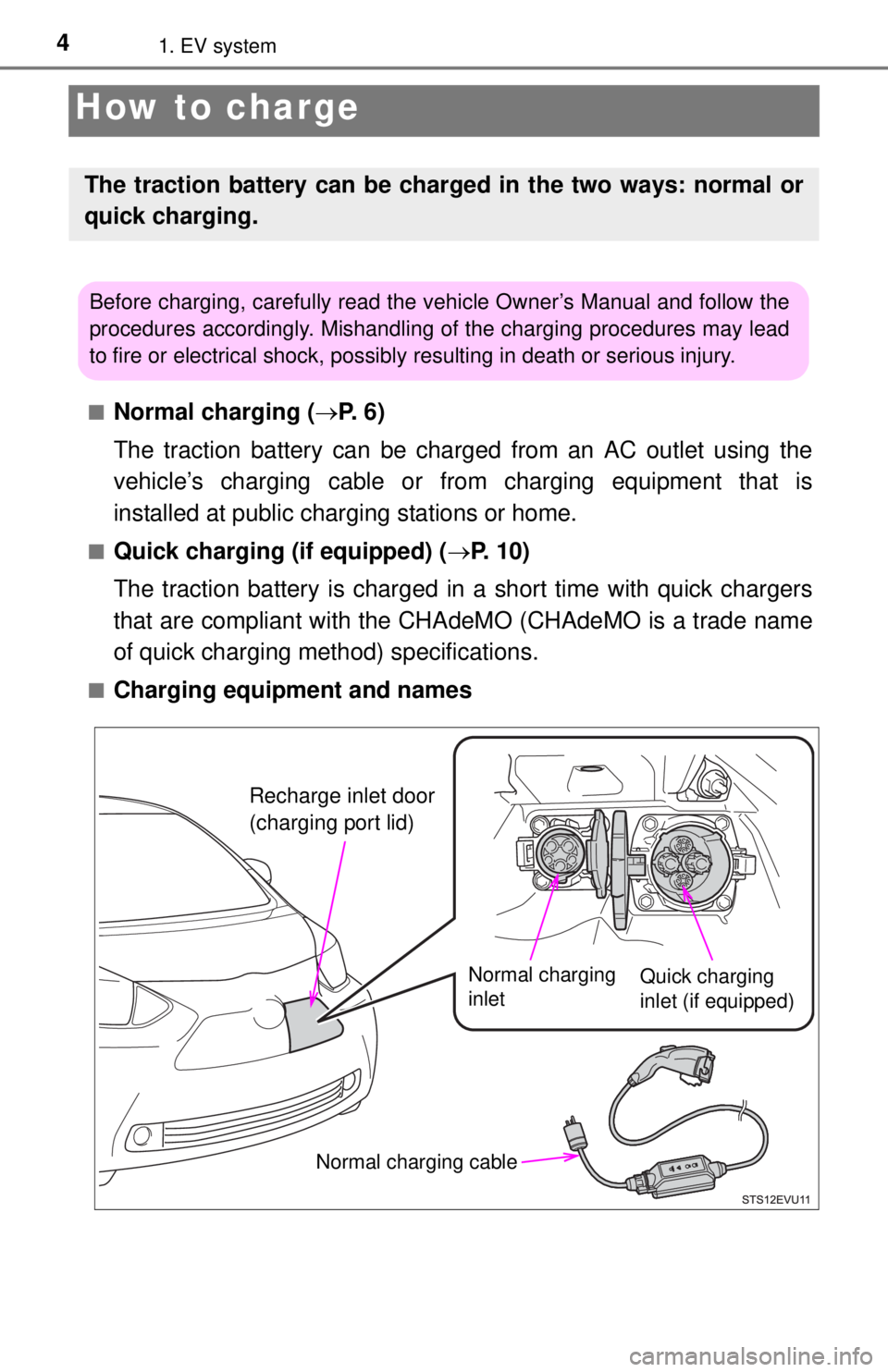

How to charge
■Normal charging (P. 6 )
The traction battery can be charged from an AC outlet using the
vehicle’s charging cable or from charging equipment that is
installed at public charging stations or home.
■Quick charging (if equipped) (P. 10)
The traction battery is charged in a short time with quick chargers
that are compliant with the CHAdeMO (CHAdeMO is a trade name
of quick charging method) specifications.
■Charging equipment and names
The traction battery can be charged in the two ways: normal or
quick charging.
Before charging, carefully read the vehicle Owner’s Manual and follow the
procedures accordingly. Mishandling of the charging procedures may lead
to fire or electrical shock, possibly resulting in death or serious injury.
Normal charging
inlet
Recharge inlet door
(charging port lid)
Quick charging
inlet (if equipped)
Normal charging cable
Page 5 of 36
51. EV system
1
EV system

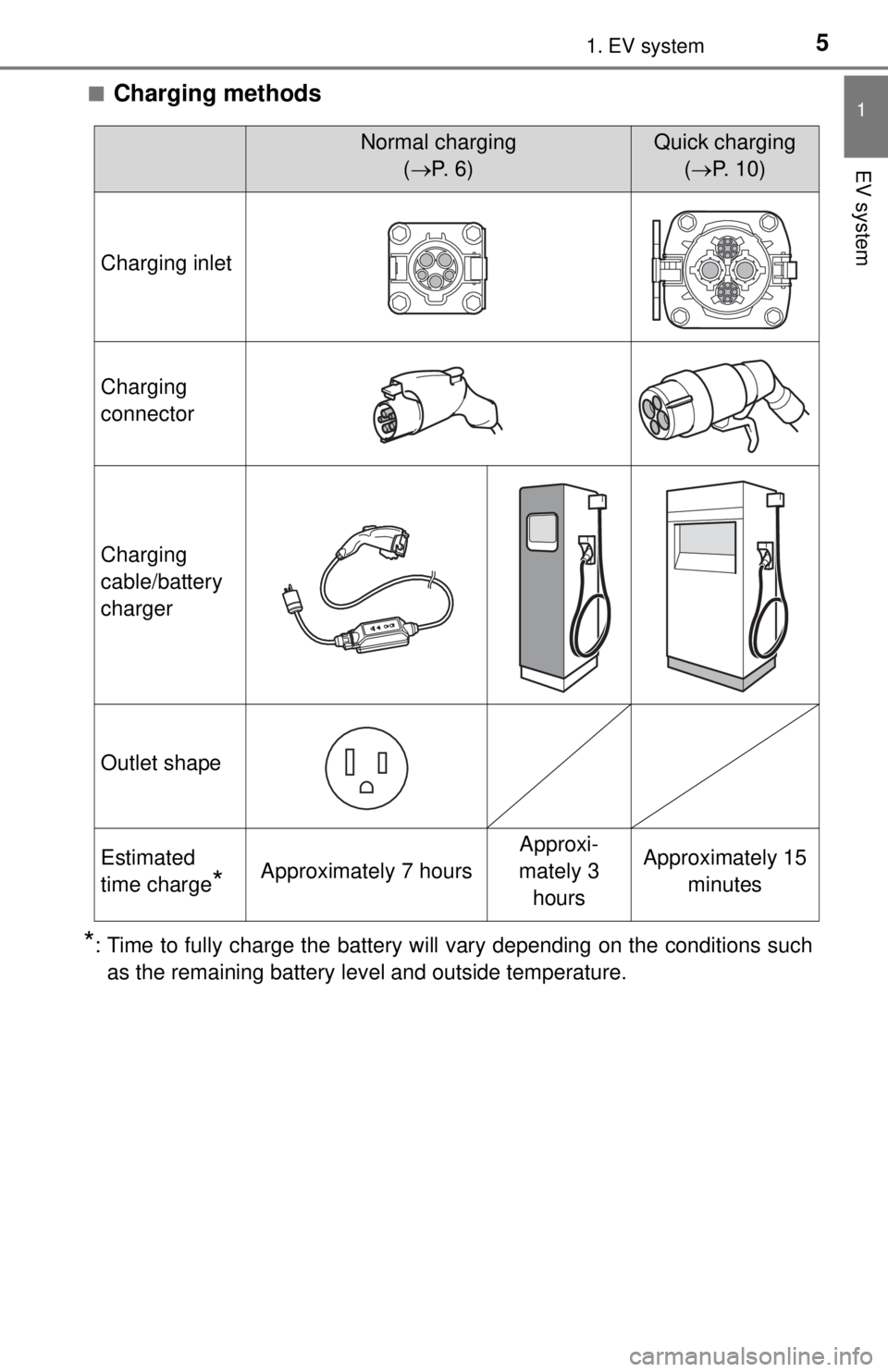

■Charging methods
*: Time to fully charge the battery will vary depending on the conditions such
as the remaining battery level and outside temperature.
Normal charging
(P. 6 )Quick charging
(P. 10)
Charging inlet
Charging
connector
Charging
cable/battery
charger
Outlet shape
Estimated
time charge
*Approximately 7 hours
Approxi-
mately 3
hoursApproximately 15
minutes
Page 6 of 36

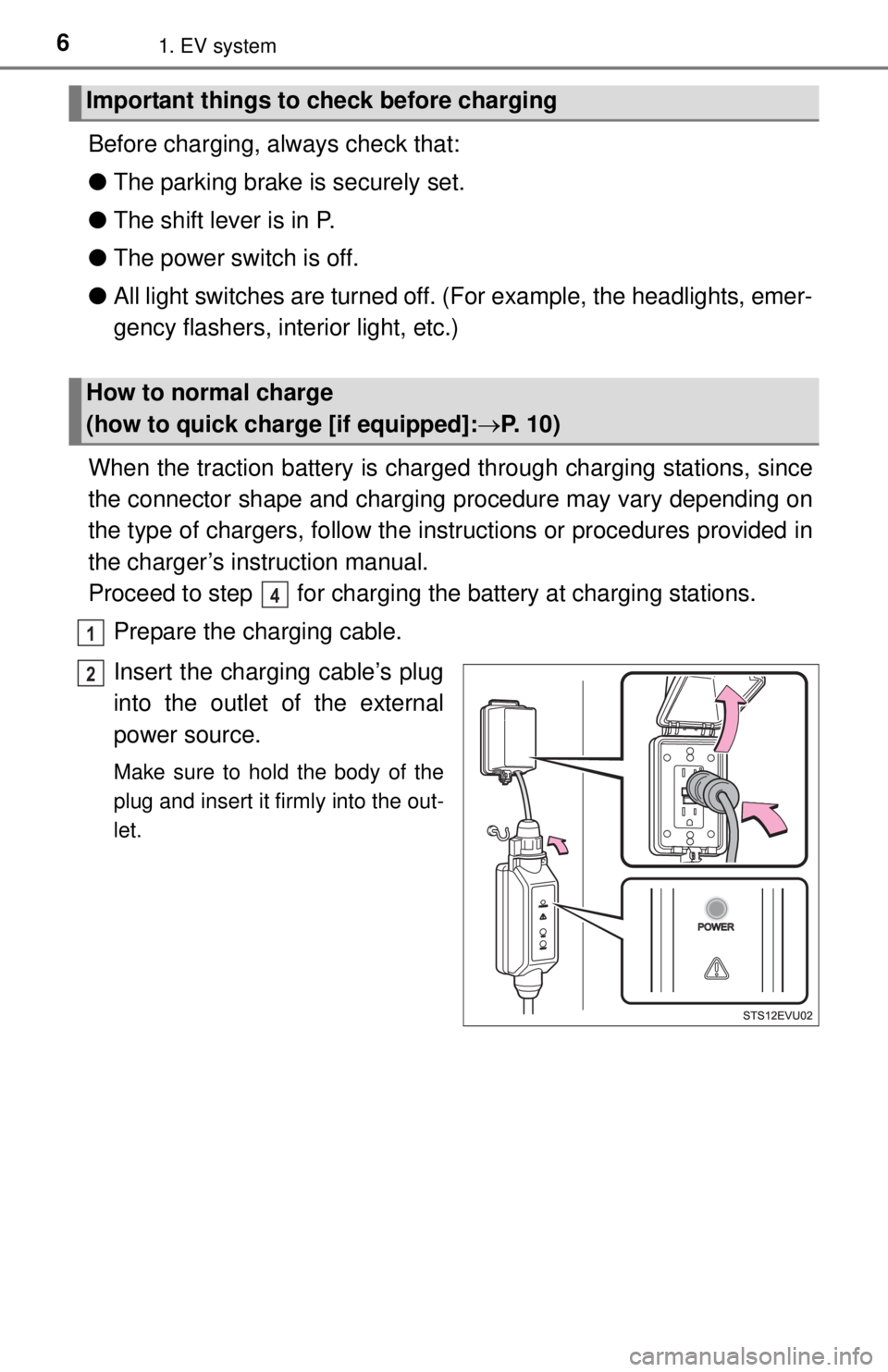

61. EV system
Before charging, always check that:
●The parking brake is securely set.
●The shift lever is in P.
●The power switch is off.
●All light switches are turned off. (For example, the headlights, emer-
gency flashers, interior light, etc.)
When the traction battery is charged through charging stations, since
the connector shape and charging procedure may vary depending on
the type of chargers, follow the instructions or procedures provided in
the charger’s instruction manual.
Proceed to step for charging the battery at charging stations.
Prepare the charging cable.
Insert the charging cable’s plug
into the outlet of the external
power source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Important things to check before charging
How to normal charge
(how to quick charge [if equipped]:P. 1 0 )
4
1
2
Page 7 of 36
71. EV system
1
EV system
Press the test button on the
CCID (Charging Circuit Inter-
rupting Device) to check that
the electrical leakage detection
function operates properly.
If the error warning indicator illumi-
nates when the test button is
pressed, the function is operating
correctly.
After the test has been completed,
press the reset button to turn off
the error warning indicator. Charg-
ing cannot be carried out while the
error warning indicator is illumi-
nated.
If the error warning indicator does
not come on even if the test button
is pressed, it is likely that the func-
tion is not operating correctly. Stop
charging immediately and contact
your Scion dealer.
Press the recharge inlet door
opener switch to open the
recharge inlet door.
The recharge inlet door will not
open when the “READY” indicator
is on or the power switch is in ON
mode.
Open the normal charging inlet
cap.
3
4
5
Page 8 of 36

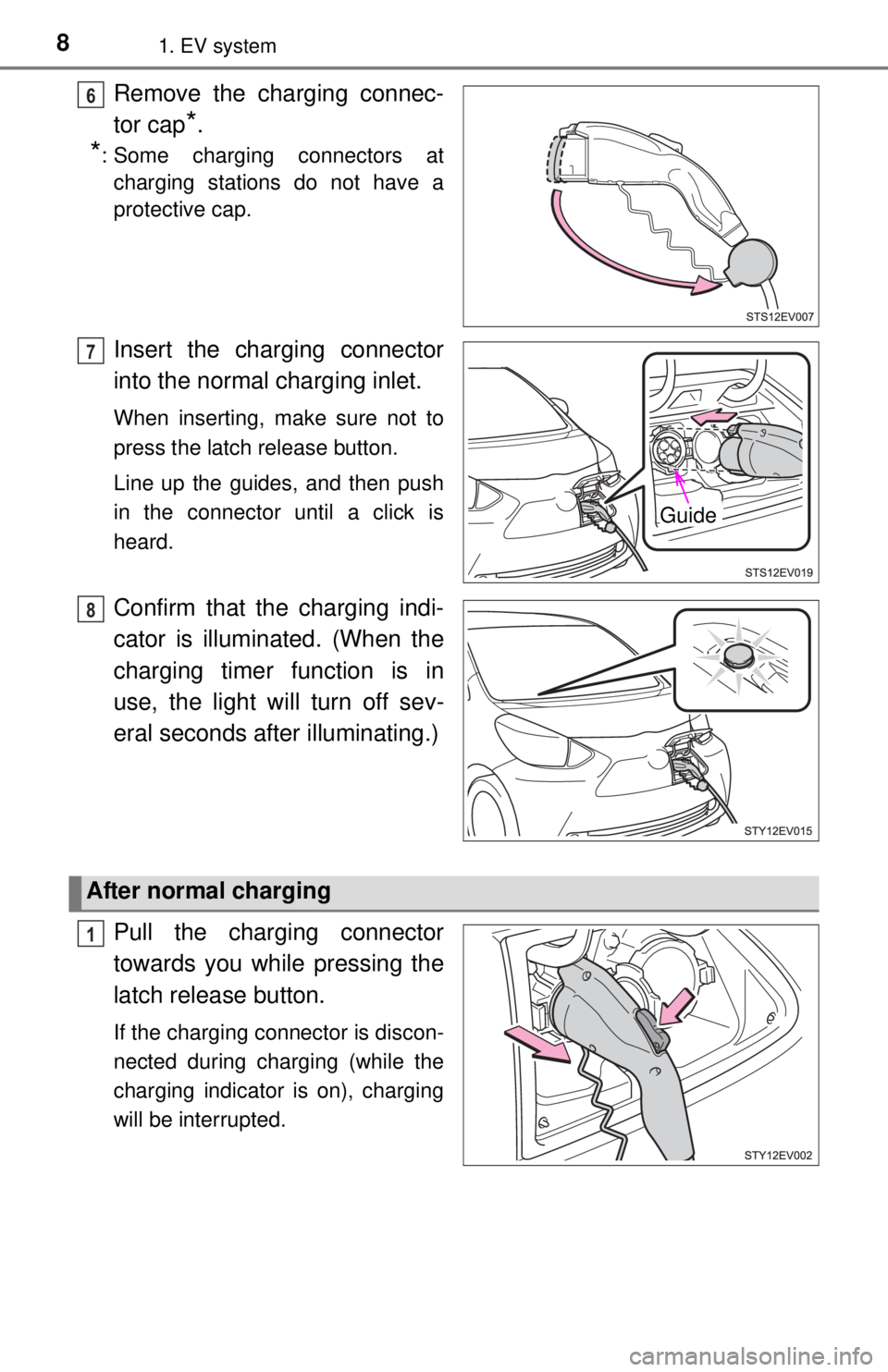

81. EV system
Remove the charging connec-
tor cap
*.
*: Some charging connectors at
charging stations do not have a
protective cap.
Insert the charging connector
into the normal charging inlet.
When inserting, make sure not to
press the latch release button.
Line up the guides, and then push
in the connector until a click is
heard.
Confirm that the charging indi-
cator is illuminated. (When the
charging timer function is in
use, the light will turn off sev-
eral seconds after illuminating.)
Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is discon-
nected during charging (while the
charging indicator is on), charging
will be interrupted.
6
Guide
7
8
After normal charging
1
Page 9 of 36

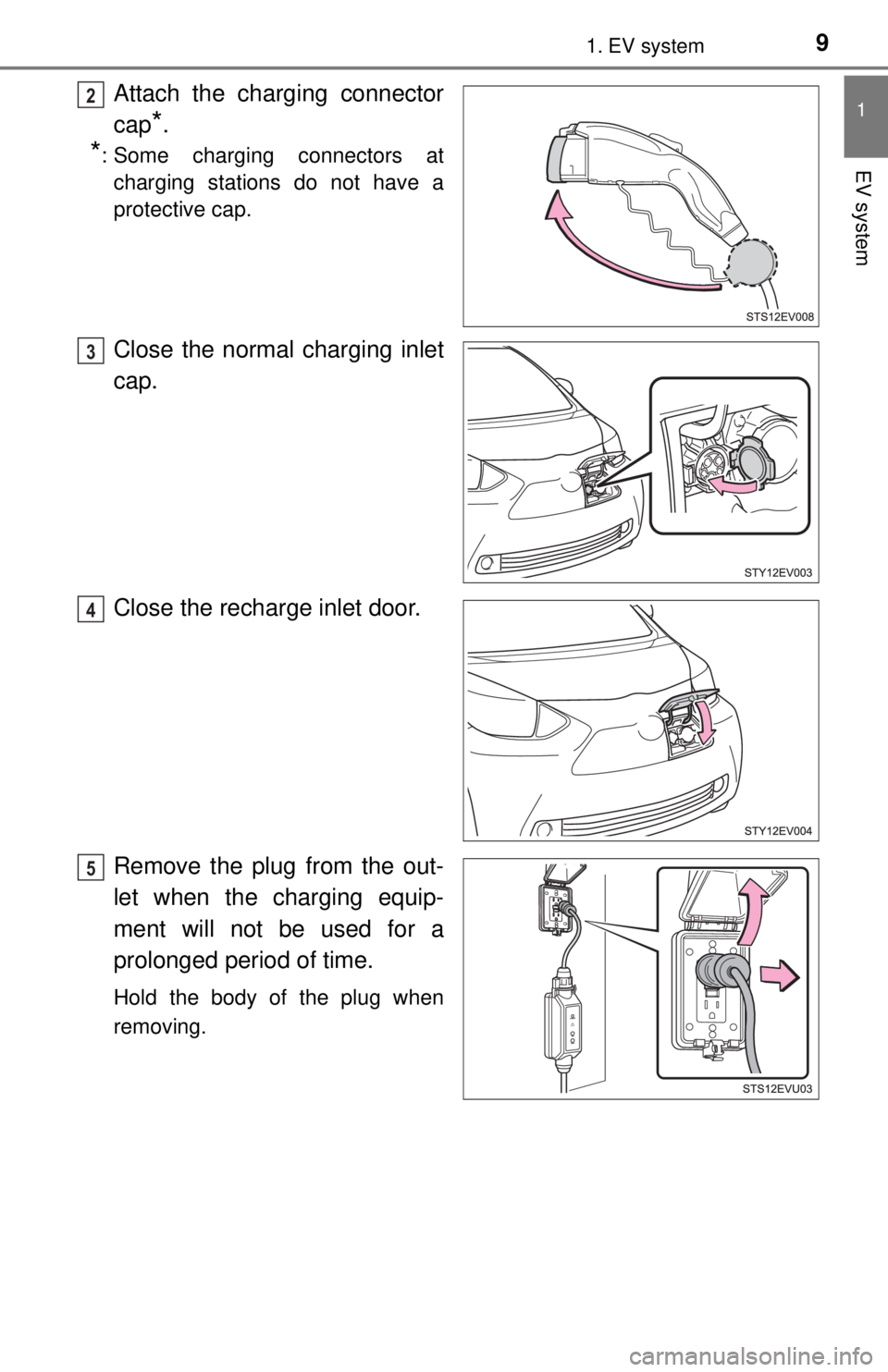

91. EV system
1
EV system
Attach the charging connector
cap
*.
*: Some charging connectors at
charging stations do not have a
protective cap.
Close the normal charging inlet
cap.
Close the recharge inlet door.
Remove the plug from the out-
let when the charging equip-
ment will not be used for a
prolonged period of time.
Hold the body of the plug when
removing.
2
3
4
5
Page 10 of 36

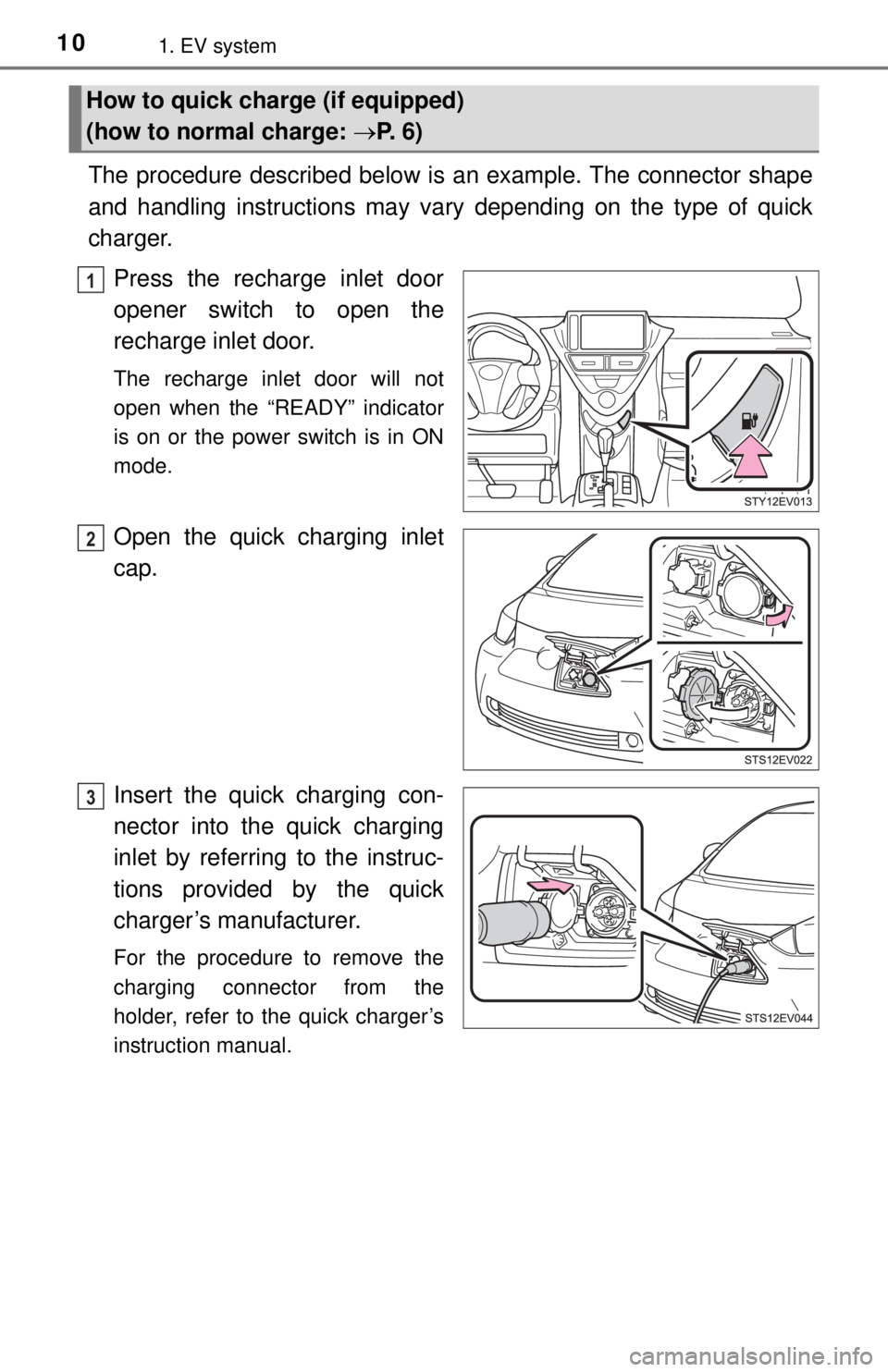

101. EV system
The procedure described below is an example. The connector shape
and handling instructions may vary depending on the type of quick
charger.
Press the recharge inlet door
opener switch to open the
recharge inlet door.
The recharge inlet door will not
open when the “READY” indicator
is on or the power switch is in ON
mode.
Open the quick charging inlet
cap.
Insert the quick charging con-
nector into the quick charging
inlet by referring to the instruc-
tions provided by the quick
charger’s manufacturer.
For the procedure to remove the
charging connector from the
holder, refer to the quick charger’s
instruction manual.
How to quick charge (if equipped)
(how to normal charge: P. 6 )
1
2
3
