CD player TOYOTA iQ EV 2013 Accessories, Audio & Navigation (in English)

81
4
1
2
3
4

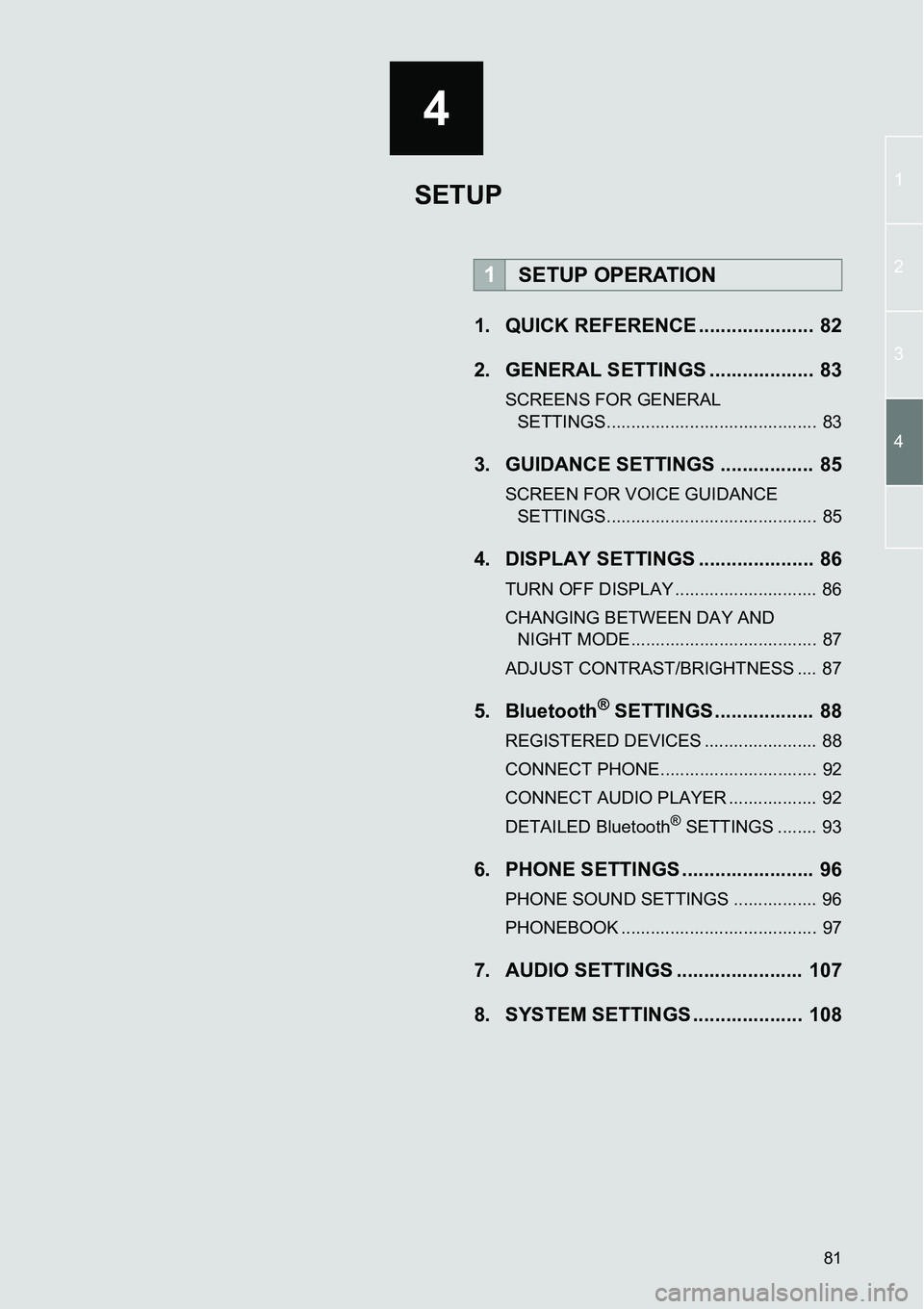

1. QUICK REFERENCE ..................... 82
2. GENERAL SETTINGS ................... 83
SCREENS FOR GENERAL
SETTINGS........................................... 83
3. GUIDANCE SETTINGS ................. 85
SCREEN FOR VOICE GUIDANCE
SETTINGS........................................... 85
4. DISPLAY SETTINGS ..................... 86
TURN OFF DISPLAY ............................. 86
CHANGING BETWEEN DAY AND
NIGHT MODE...................................... 87
ADJUST CONTRAST/BRIGHTNESS .... 87
5. Bluetooth® SETTINGS .................. 88
REGISTERED DEVICES ....................... 88
CONNECT PHONE................................ 92
CONNECT AUDIO PLAYER .................. 92
DETAILED Bluetooth
® SETTINGS ........ 93
6. PHONE SETTINGS ........................ 96
PHONE SOUND SETTINGS ................. 96
PHONEBOOK ........................................ 97
7. AUDIO SETTINGS ....................... 107
8. SYSTEM SETTINGS .................... 108
1SETUP OPERATION
SETUP

91
1. SETUP OPERATION
4
SETUP

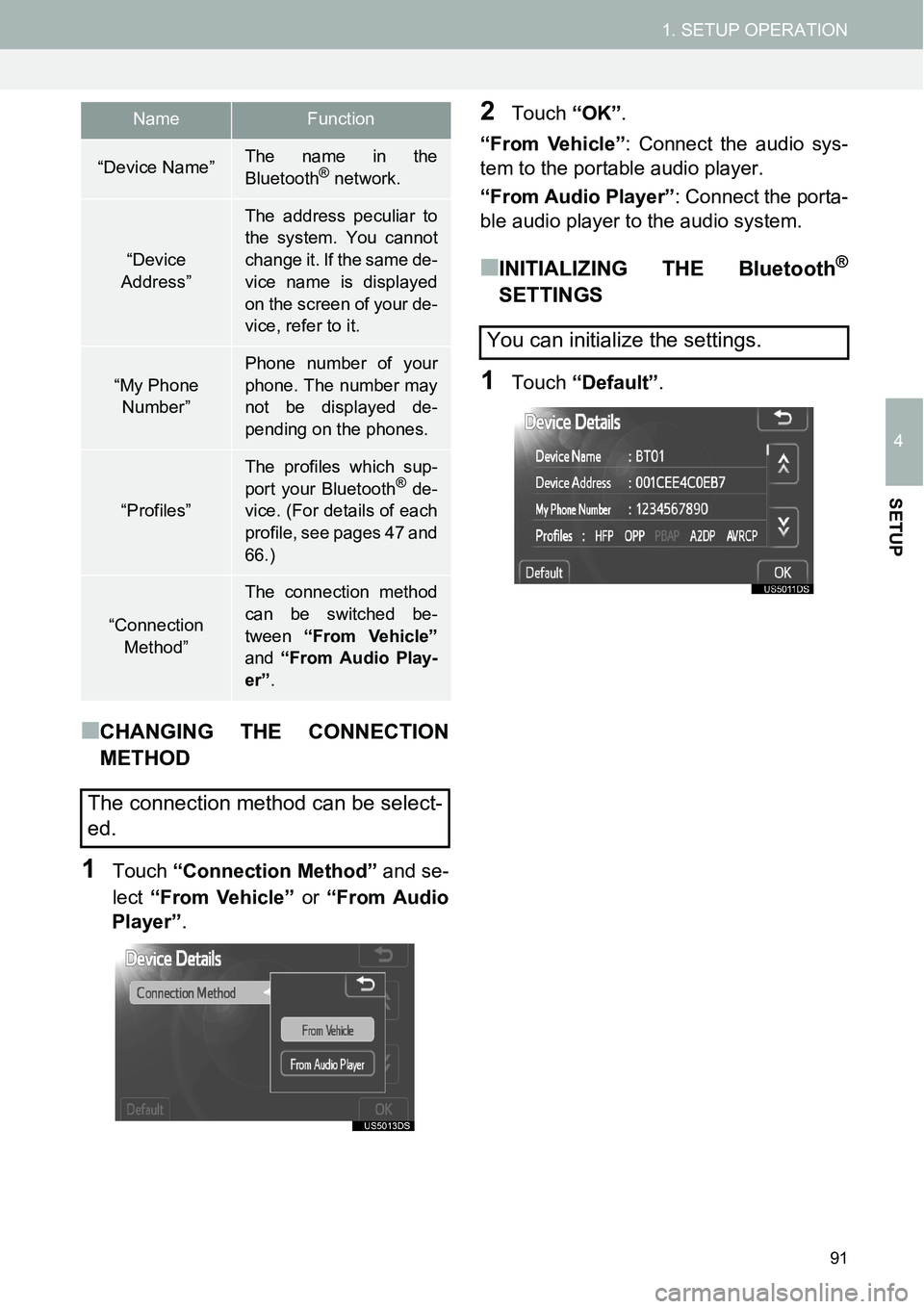

■CHANGING THE CONNECTION
METHOD
1Touch “Connection Method” and se-
lect “From Vehicle” or “From Audio
Player”.
2Touch “OK”.
“From Vehicle”: Connect the audio sys-
tem to the portable audio player.
“From Audio Player”: Connect the porta-
ble audio player to the audio system.
■INITIALIZING THE Bluetooth®
SETTINGS
1Touch “Default”.
NameFunction
“Device Name”The name in the
Bluetooth® network.
“Device
Address”
The address peculiar to
the system. You cannot
change it. If the same de-
vice name is displayed
on the screen of your de-
vice, refer to it.
“My Phone
Number”Phone number of your
phone. The number may
not be displayed de-
pending on the phones.
“Profiles”
The profiles which sup-
port your Bluetooth® de-
vice. (For details of each
profile, see pages 47 and
66.)
“Connection
Method”
The connection method
can be switched be-
tween “From Vehicle”
and “From Audio Play-
er”.
The connection method can be select-
ed.
You can initialize the settings.

92
1. SETUP OPERATION

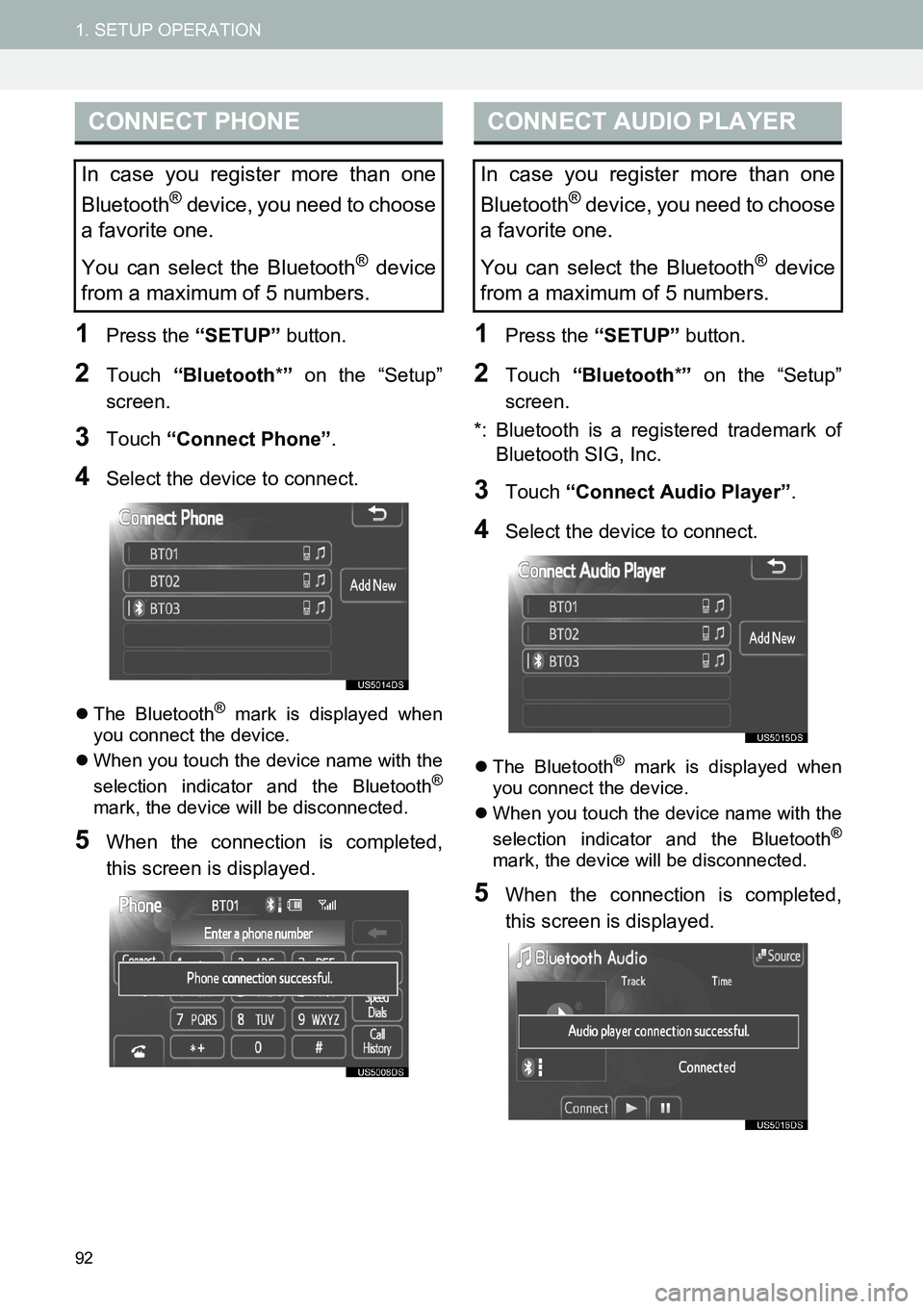

1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
3Touch “Connect Phone”.
4Select the device to connect.
zThe Bluetooth® mark is displayed when
you connect the device.
zWhen you touch the device name with the
selection indicator and the Bluetooth
®
mark, the device will be disconnected.
5When the connection is completed,
this screen is displayed.
1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
3Touch “Connect Audio Player”.
4Select the device to connect.
zThe Bluetooth® mark is displayed when
you connect the device.
zWhen you touch the device name with the
selection indicator and the Bluetooth
®
mark, the device will be disconnected.
5When the connection is completed,
this screen is displayed.
CONNECT PHONE
In case you register more than one
Bluetooth
® device, you need to choose
a favorite one.
You can select the Bluetooth
® device
from a maximum of 5 numbers.
CONNECT AUDIO PLAYER
In case you register more than one
Bluetooth
® device, you need to choose
a favorite one.
You can select the Bluetooth
® device
from a maximum of 5 numbers.

93
1. SETUP OPERATION
4
SETUP

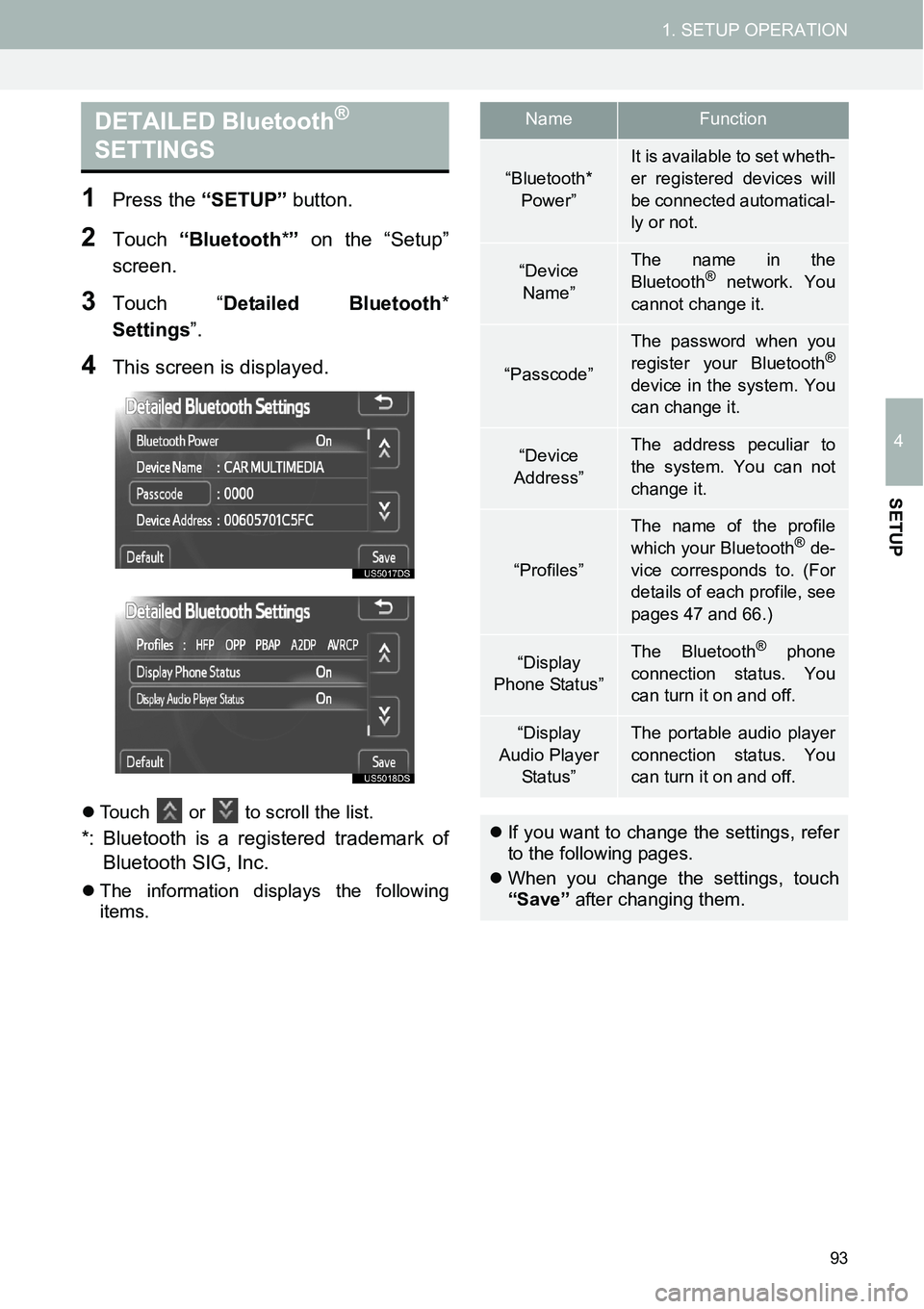

1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
3Touch “Detailed Bluetooth*
Settings”.
4This screen is displayed.
zTouch or to scroll the list.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
zThe information displays the following
items.
DETAILED Bluetooth®
SETTINGSNameFunction
“Bluetooth*
Power”It is available to set wheth-
er registered devices will
be connected automatical-
ly or not.
“Device
Name”The name in the
Bluetooth® network. You
cannot change it.
“Passcode”
The password when you
register your Bluetooth®
device in the system. You
can change it.
“Device
Address”The address peculiar to
the system. You can not
change it.
“Profiles”
The name of the profile
which your Bluetooth® de-
vice corresponds to. (For
details of each profile, see
pages 47 and 66.)
“Display
Phone Status”The Bluetooth® phone
connection status. You
can turn it on and off.
“Display
Audio Player
Status”The portable audio player
connection status. You
can turn it on and off.
zIf you want to change the settings, refer
to the following pages.
zWhen you change the settings, touch
“Save” after changing them.

95
1. SETUP OPERATION
4
SETUP

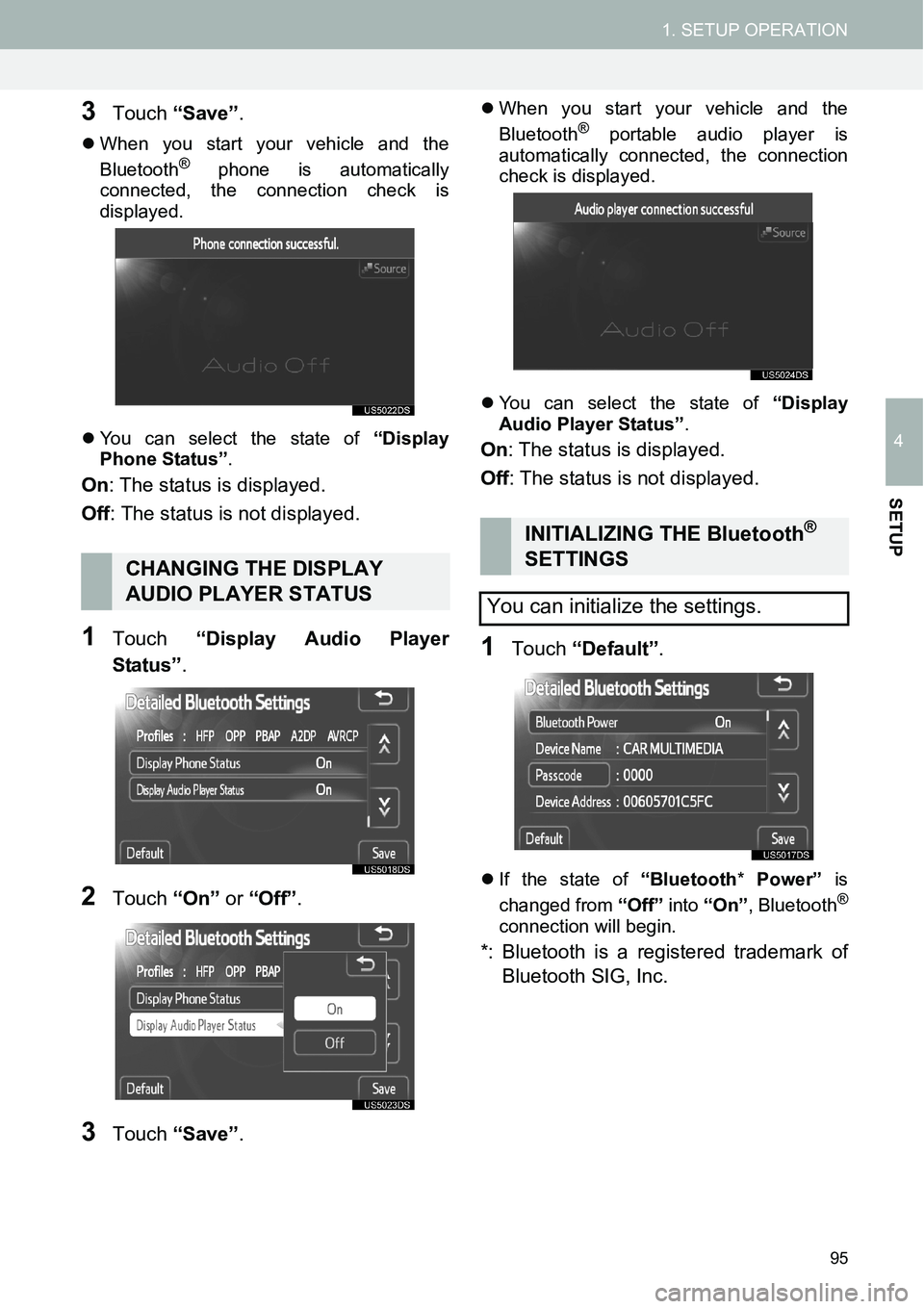

3Touch “Save”.
zWhen you start your vehicle and the
Bluetooth® phone is automatically
connected, the connection check is
displayed.
zYou can select the state of “Display
Phone Status”.
On: The status is displayed.
Off: The status is not displayed.
1Touch “Display Audio Player
Status”.
2Touch “On” or “Off”.
3Touch “Save”.
zWhen you start your vehicle and the
Bluetooth® portable audio player is
automatically connected, the connection
check is displayed.
zYou can select the state of “Display
Audio Player Status”.
On: The status is displayed.
Off: The status is not displayed.
1Touch “Default”.
zIf the state of “Bluetooth* Power” is
changed from “Off” into “On”, Bluetooth®
connection will begin.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
CHANGING THE DISPLAY
AUDIO PLAYER STATUS
INITIALIZING THE Bluetooth®
SETTINGS
You can initialize the settings.

110

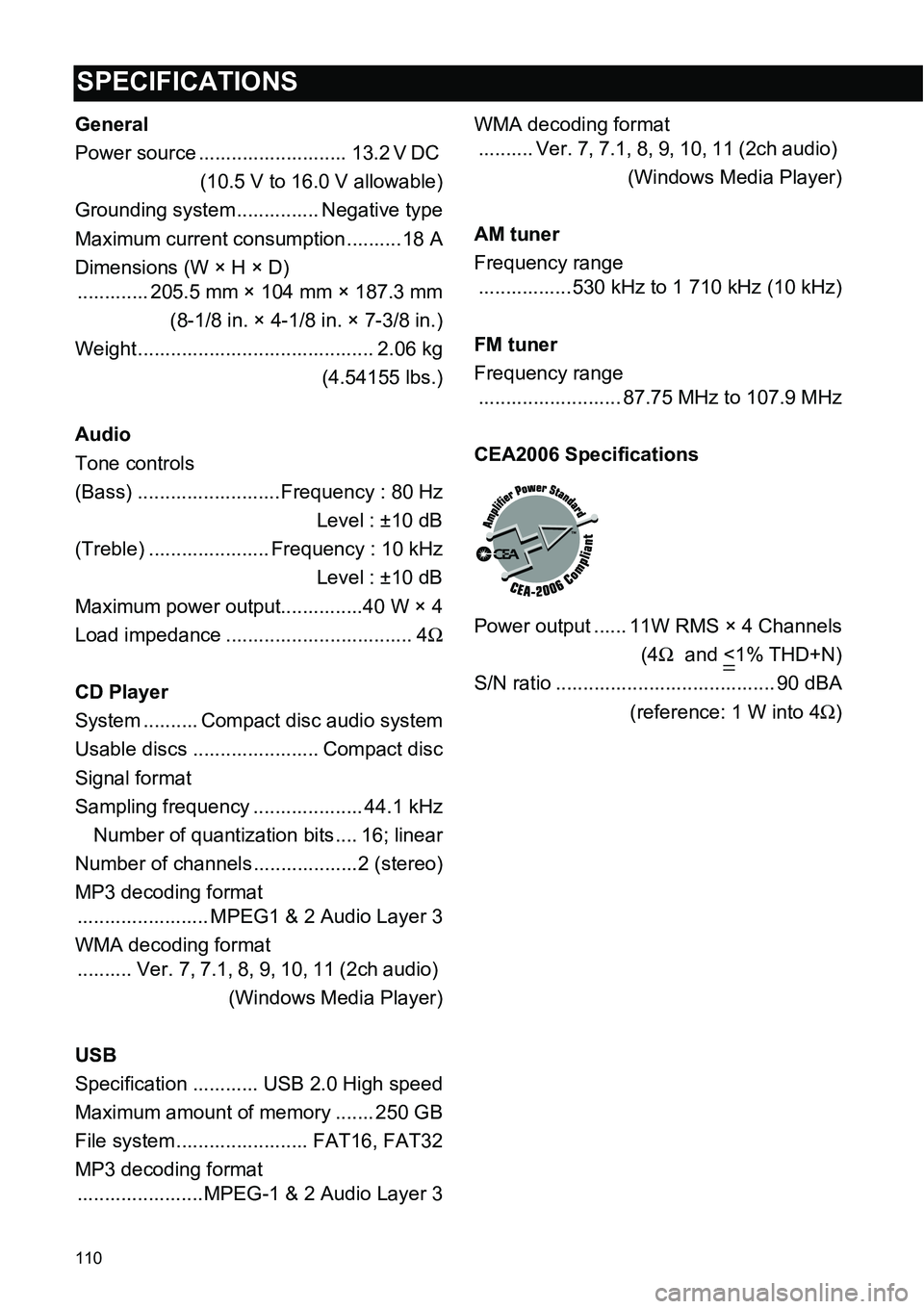

General
Power source ........................... 13.2 V DC
(10.5 V to 16.0 V allowable)
Grounding system ............... Negative type
Maximum current consumption ..........18 A
Dimensions (W × H × D)
............. 205.5 mm × 104 mm × 187.3 mm
(8-1/8 in. × 4-1/8 in. × 7-3/8 in.)
Weight ........................................... 2.06 kg
(4.54155 lbs.)
Audio
Tone controls
(Bass) ..........................Frequency : 80 Hz
Level : ±10 dB
(Treble) ...................... Frequency : 10 kHz
Level : ±10 dB
Maximum power output...............40 W × 4
Load impedance .................................. 4Ω
CD Player
System .......... Compact disc audio system
Usable discs ....................... Compact disc
Signal format
Sampling frequency .................... 44.1 kHz
Number of quantization bits .... 16; linear
Number of channels ...................2 (stereo)
MP3 decoding format
........................ MPEG1 & 2 Audio Layer 3
WMA decoding format
.......... Ver. 7, 7.1, 8, 9, 10, 11 (2ch audio)
(Windows Media Player)
USB
Specification ............ USB 2.0 High speed
Maximum amount of memory ....... 250 GB
File system ........................ FAT16, FAT32
MP3 decoding format
.......................MPEG-1 & 2 Audio Layer 3WMA decoding format
.......... Ver. 7, 7.1, 8, 9, 10, 11 (2ch audio)
(Windows Media Player)
AM tuner
Frequency range
.................530 kHz to 1 710 kHz (10 kHz)
FM tuner
Frequency range
.......................... 87.75 MHz to 107.9 MHz
CEA2006 Specifications
Power output ...... 11W RMS × 4 Channels
(4Ω and <
1% THD+N)
S/N ratio ........................................ 90 dBA
(reference: 1 W into 4Ω)
SPECIFICATIONS

111

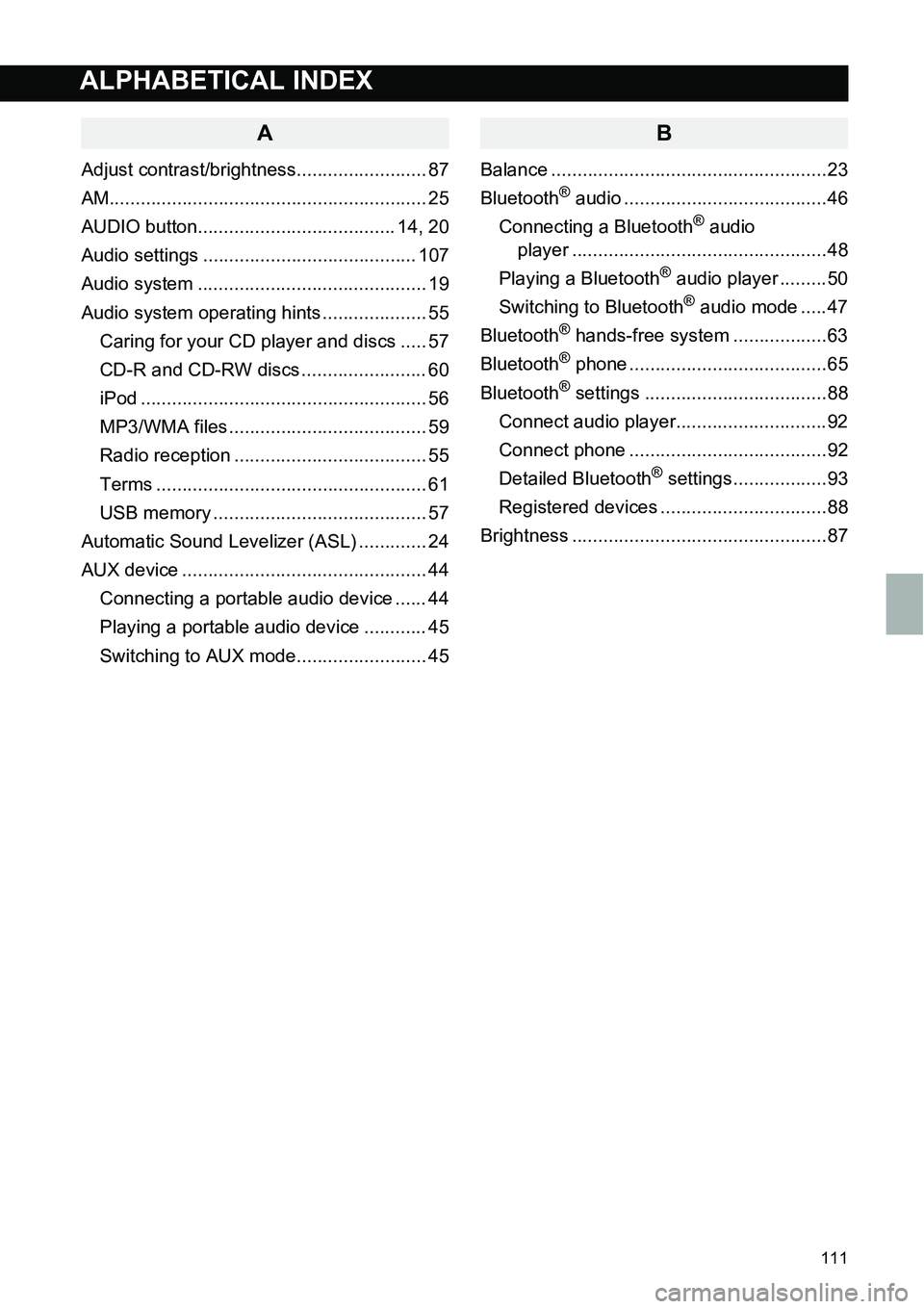

ALPHABETICAL INDEX
A
Adjust contrast/brightness......................... 87
AM............................................................. 25
AUDIO button...................................... 14, 20
Audio settings ......................................... 107
Audio system ............................................ 19
Audio system operating hints .................... 55
Caring for your CD player and discs ..... 57
CD-R and CD-RW discs ........................ 60
iPod ....................................................... 56
MP3/WMA files ...................................... 59
Radio reception ..................................... 55
Terms .................................................... 61
USB memory ......................................... 57
Automatic Sound Levelizer (ASL) ............. 24
AUX device ............................................... 44
Connecting a portable audio device ...... 44
Playing a portable audio device ............ 45
Switching to AUX mode......................... 45
B
Balance .....................................................23
Bluetooth® audio .......................................46
Connecting a Bluetooth® audio
player .................................................48
Playing a Bluetooth
® audio player .........50
Switching to Bluetooth® audio mode .....47
Bluetooth® hands-free system ..................63
Bluetooth® phone ......................................65
Bluetooth® settings ...................................88
Connect audio player.............................92
Connect phone ......................................92
Detailed Bluetooth
® settings..................93
Registered devices ................................88
Brightness .................................................87
ALPHABETICAL INDEX

112

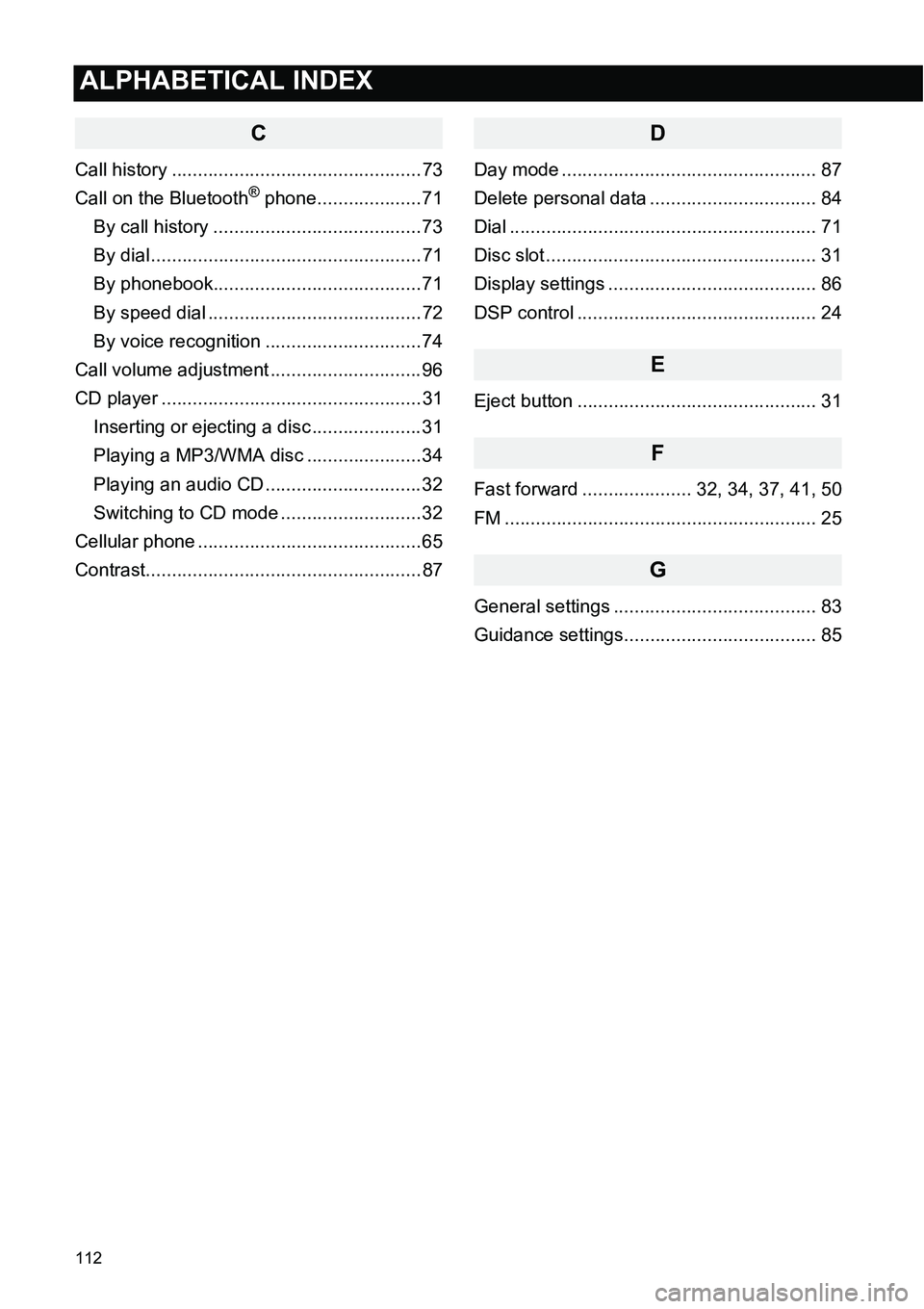

ALPHABETICAL INDEX
ALPHABETICAL INDEX
C
Call history ................................................ 73
Call on the Bluetooth® phone.................... 71
By call history ........................................ 73
By dial .................................................... 71
By phonebook........................................ 71
By speed dial ......................................... 72
By voice recognition .............................. 74
Call volume adjustment ............................. 96
CD player .................................................. 31
Inserting or ejecting a disc ..................... 31
Playing a MP3/WMA disc ...................... 34
Playing an audio CD .............................. 32
Switching to CD mode ........................... 32
Cellular phone ........................................... 65
Contrast..................................................... 87
D
Day mode ................................................. 87
Delete personal data ................................ 84
Dial ........................................................... 71
Disc slot .................................................... 31
Display settings ........................................ 86
DSP control .............................................. 24
E
Eject button .............................................. 31
F
Fast forward ..................... 32, 34, 37, 41, 50
FM ............................................................ 25
G
General settings ....................................... 83
Guidance settings..................................... 85
