OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

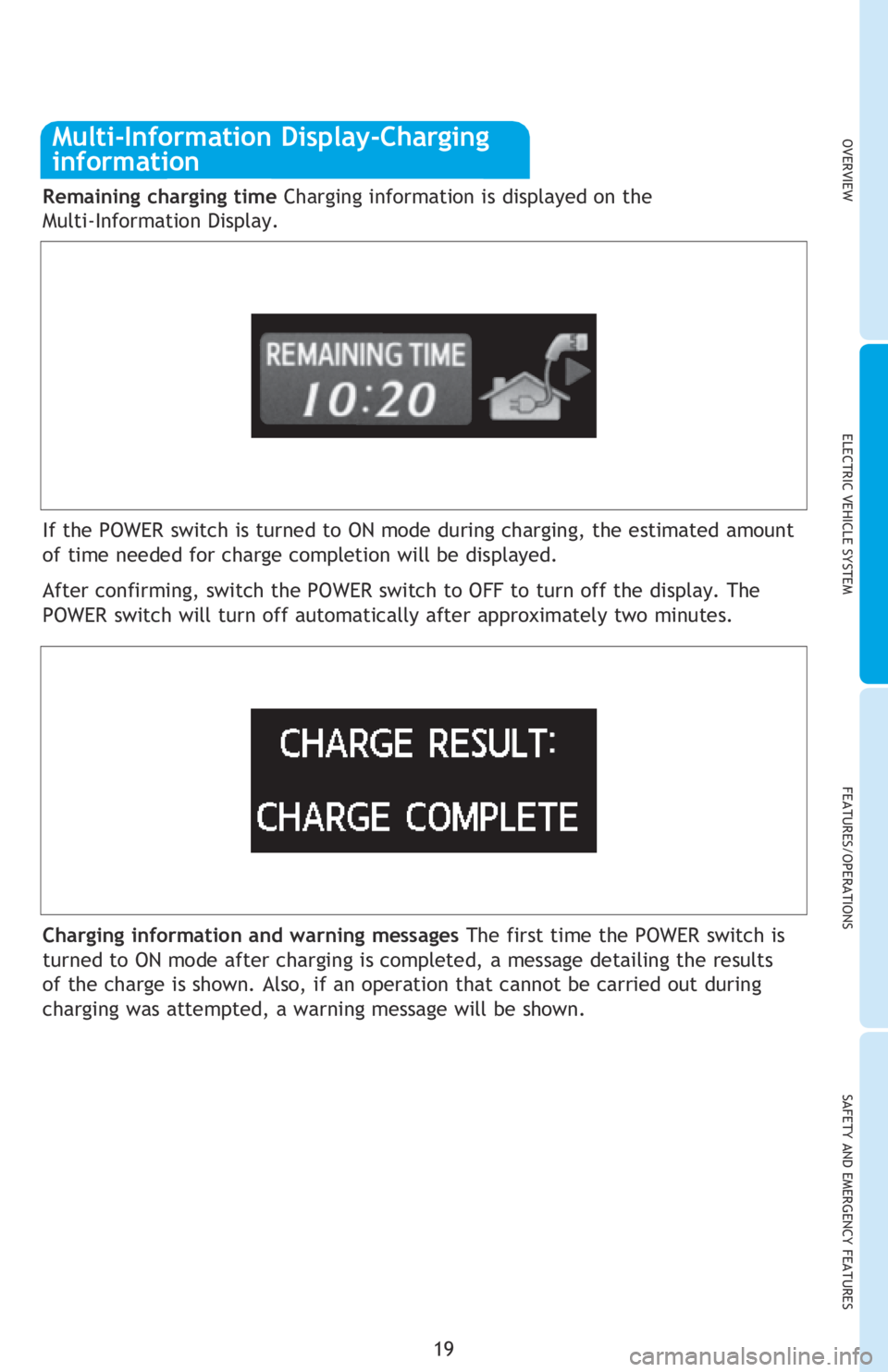

Remaining charging time Charging information is displayed on the
Multi-Information Display.
If the POWER switch is turned to ON mode during charging, the estimated amount
of time needed for charge completion will be displayed.
After confirming, switch the POWER switch to OFF to turn off the display. The
POWER switch will turn off automatically after approximately two minutes.
Multi-Information Display-Charging
information
Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results
of the charge is shown. Also, if an operation that cannot be carried out during
charging was attempted, a warning message will be shown.
While charging with an external power source, the heater or Air Conditioning
can be operated before getting in the vehicle. If the Air Conditioning system is
remotely activated while charging, charging will stop but resume when the Air
Conditioning system goes off.
The Remote Climate Control will operate in accordance with the temperature
settings of the Air Conditioning system, so be sure to check the settings before
leaving the vehicle.
- Press and hold the “
” button.
- The system will shut off if a door is opened. The system can be stopped by
pressing the “
” button twice.
2013Scion-iQ-EV.indd 191/14/13 6:49 PM

20
* The power switch must be in the “ON” mode and the brake pedal depressed to
shift from Park.
Downshifting increases power going uphill, or provides regenerative braking
downhill. For best power economy during normal driving conditions, always drive
with the shift lever in the “D” position.
FEATURES/OPERATIONS
Transmission
Parking brake
ELECTRIC VEHICLE SYSTEM
In the unlikely event that the electrical leakage detection function is not
operating properly, contact your Toyota or Scion dealer as soon as possible.

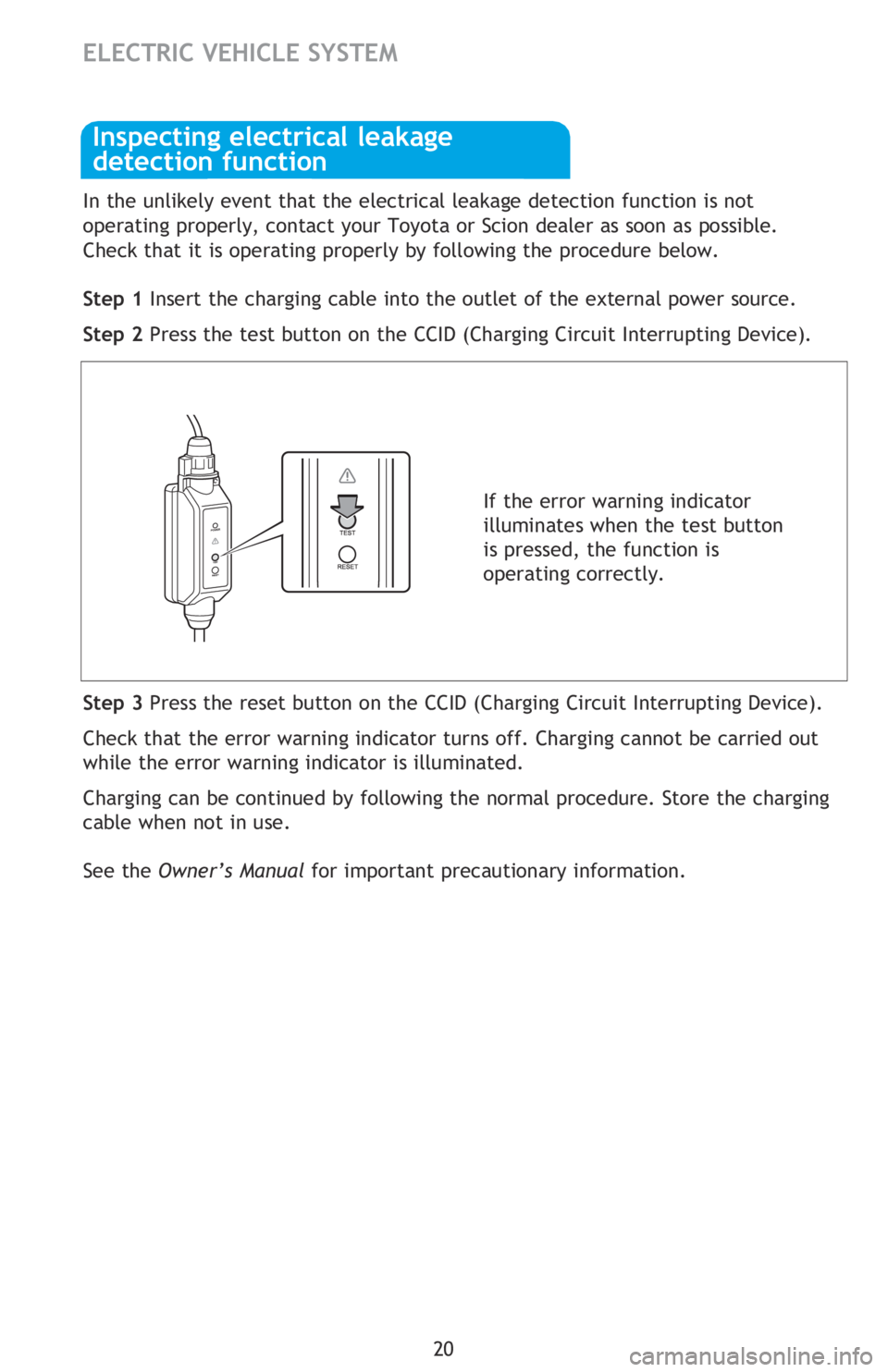

Check that it is operating properly by following the procedure below.
Step 1 Insert the charging cable into the outlet of the external power source.
Step 2 Press the test button on the CCID (Charging Circuit Interrupting Device).
If the error warning indicator
illuminates when the test button
is pressed, the function is
operating correctly.
Step 3 Press the reset button on the CCID (Charging Circuit Interrupting Device).
Check that the error warning indicator turns off. Charging cannot be carried out
while the error warning indicator is illuminated.
Charging can be continued by following the normal procedure. Store the charging
cable when not in use.
See the Owner’s Manual for important precautionary information.
Inspecting electrical leakage
detection function
2013Scion-iQ-EV.indd 201/14/13 6:49 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
* The power switch must be in the “ON” mode and the brake pedal depressed to
shift from Park.
Downshifting increases power going uphill, or provides regenerative braking
downhill. For best power economy during normal driving conditions, always drive
with the shift lever in the “D” position.
FEATURES/OPERATIONS

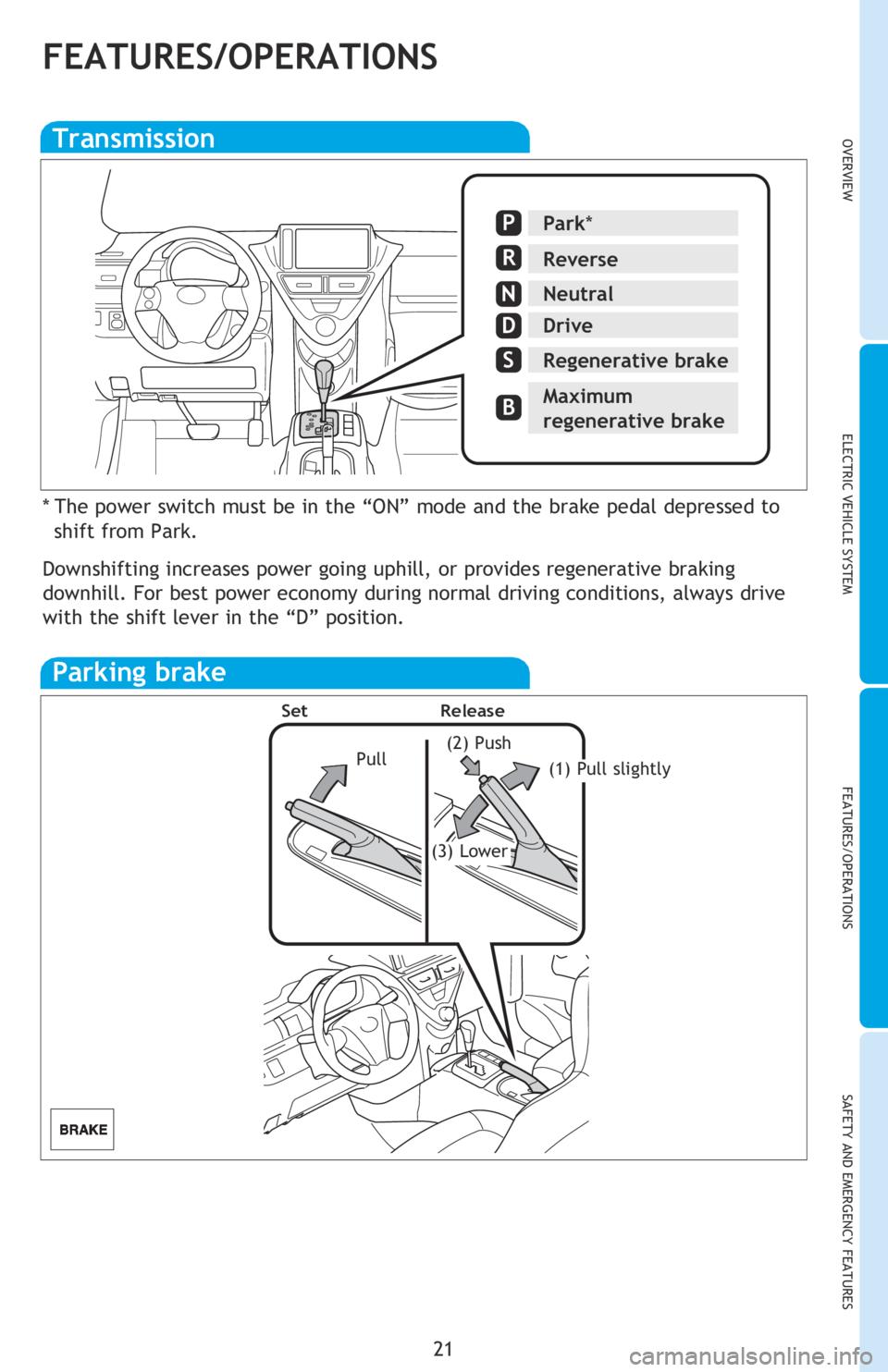

Transmission
Parking brake
Pull(2) Push
(1) Pull slightly
(3) Lower
Park*
Reverse
Neutral
Drive
P
R
N
D
N
SRegenerative brake
Maximum
regenerative brakeB
Release
Set
In the unlikely event that the electrical leakage detection function is not
operating properly, contact your Toyota or Scion dealer as soon as possible.
Check that it is operating properly by following the procedure below.
Step 1 Insert the charging cable into the outlet of the external power source.
Step 2 Press the test button on the CCID (Charging Circuit Interrupting Device).
Step 3 Press the reset button on the CCID (Charging Circuit Interrupting Device).
Check that the error warning indicator turns off. Charging cannot be carried out
while the error warning indicator is illuminated.
Charging can be continued by following the normal procedure. Store the charging
cable when not in use.
See the Owner’s Manual for important precautionary information.
2013Scion-iQ-EV.indd 211/14/13 6:49 PM

Windshield wipers & washers
Front
Rear
Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
22
FEATURES/OPERATIONS

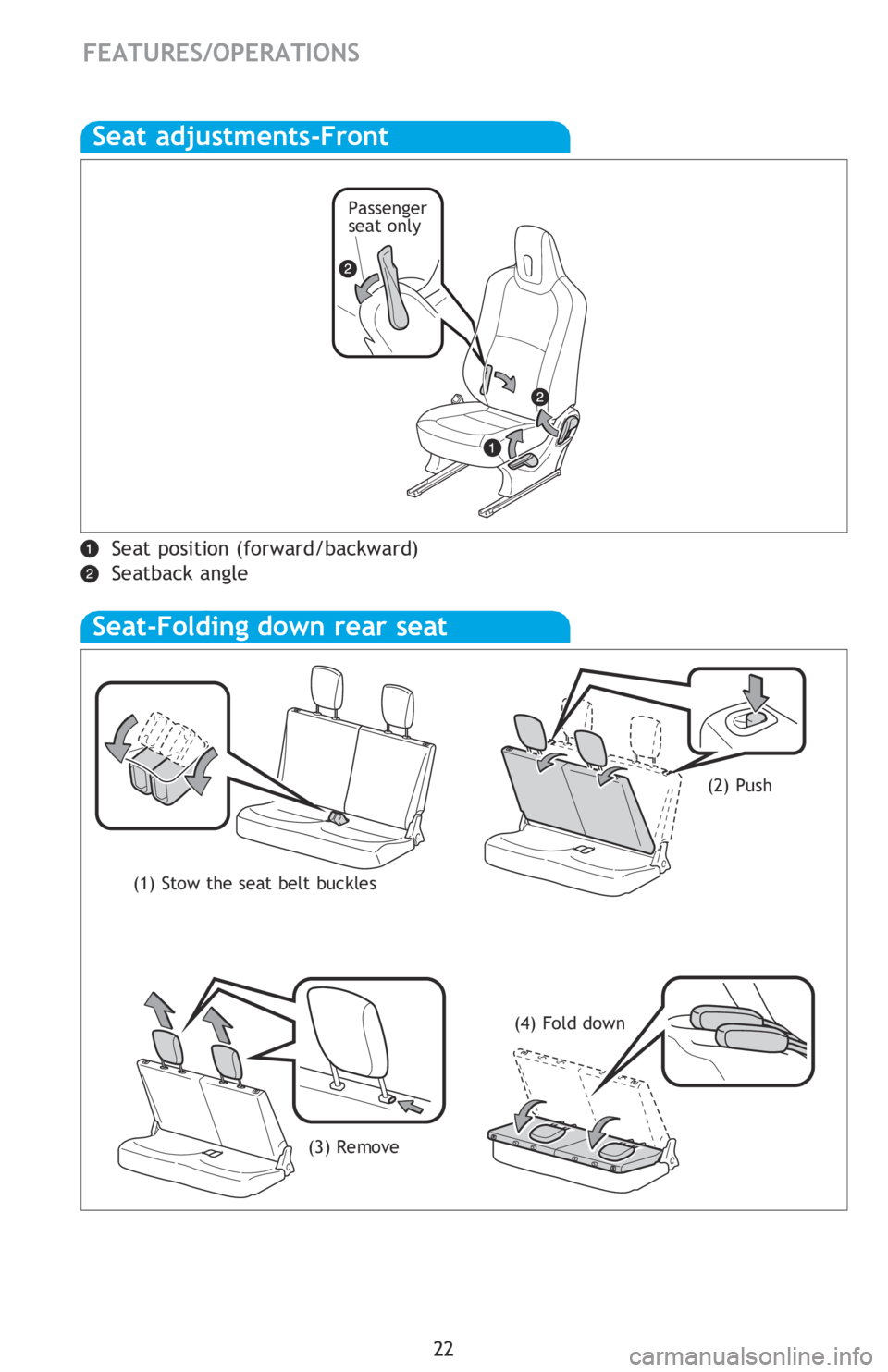

Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Seat-Folding down rear seat
(2) Push
Passenger
seat only
(1) Stow the seat belt buckles(3) Remove (4) Fold down
2013Scion-iQ-EV.indd 221/14/13 6:49 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Windshield wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe Single wipe
Front
Rear
Wash and wipe
Wipe
Wash

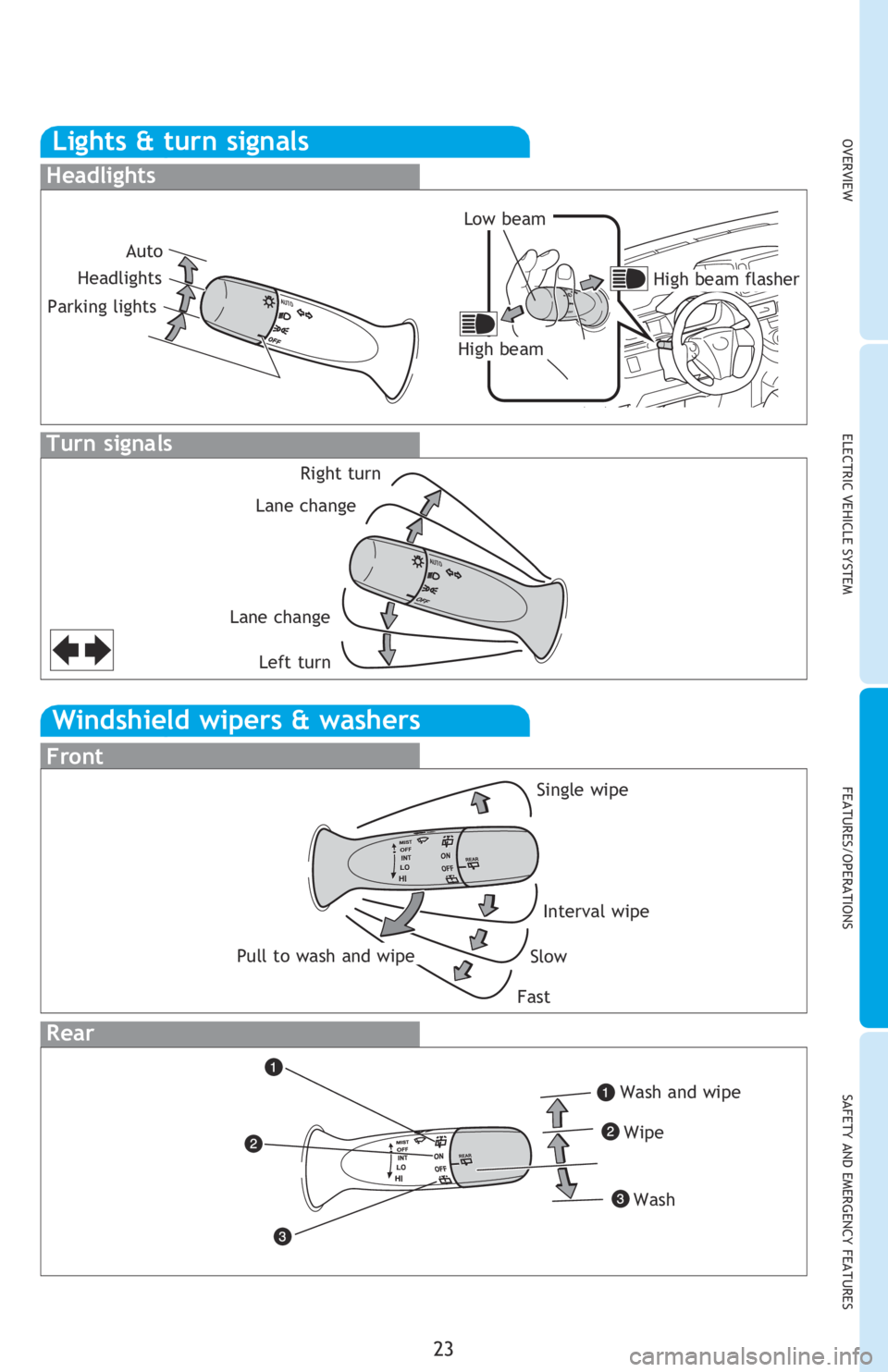

Lights & turn signals
Turn signals
Headlights
Auto
Headlights
Right turn
Lane change
Lane change Left turnHigh beam flasher
High beam
Parking lights
Low beam
Seat position (forward/backward)
Seatback angle
2013Scion-iQ-EV.indd 231/14/13 6:49 PM

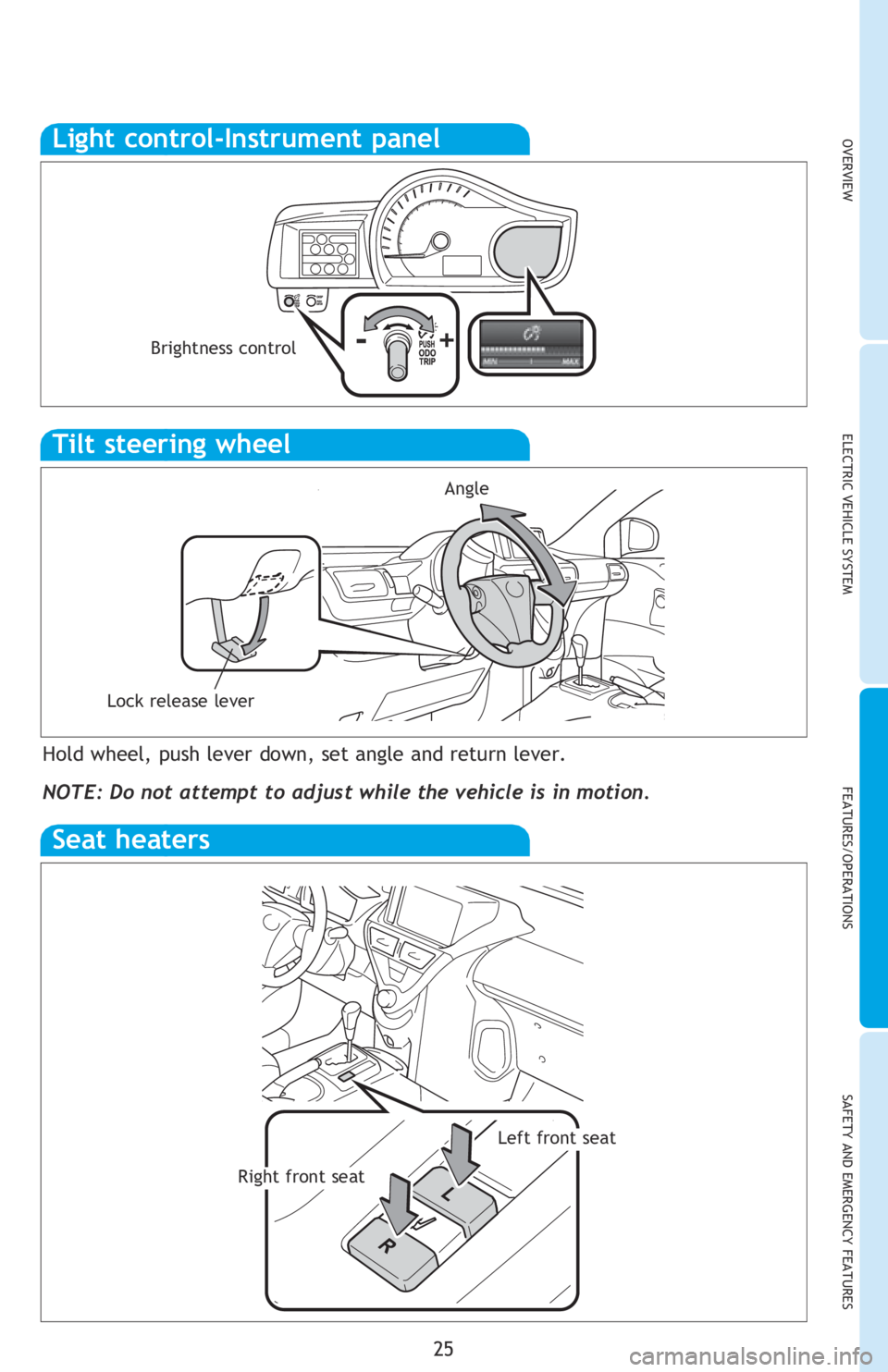

Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Seat heaters
Light control-Instrument panel
24
FEATURES/OPERATIONS
Windows
Automatic operation Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly push the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
UpDown
Driver side
Window lock switch
Multi-Information Display

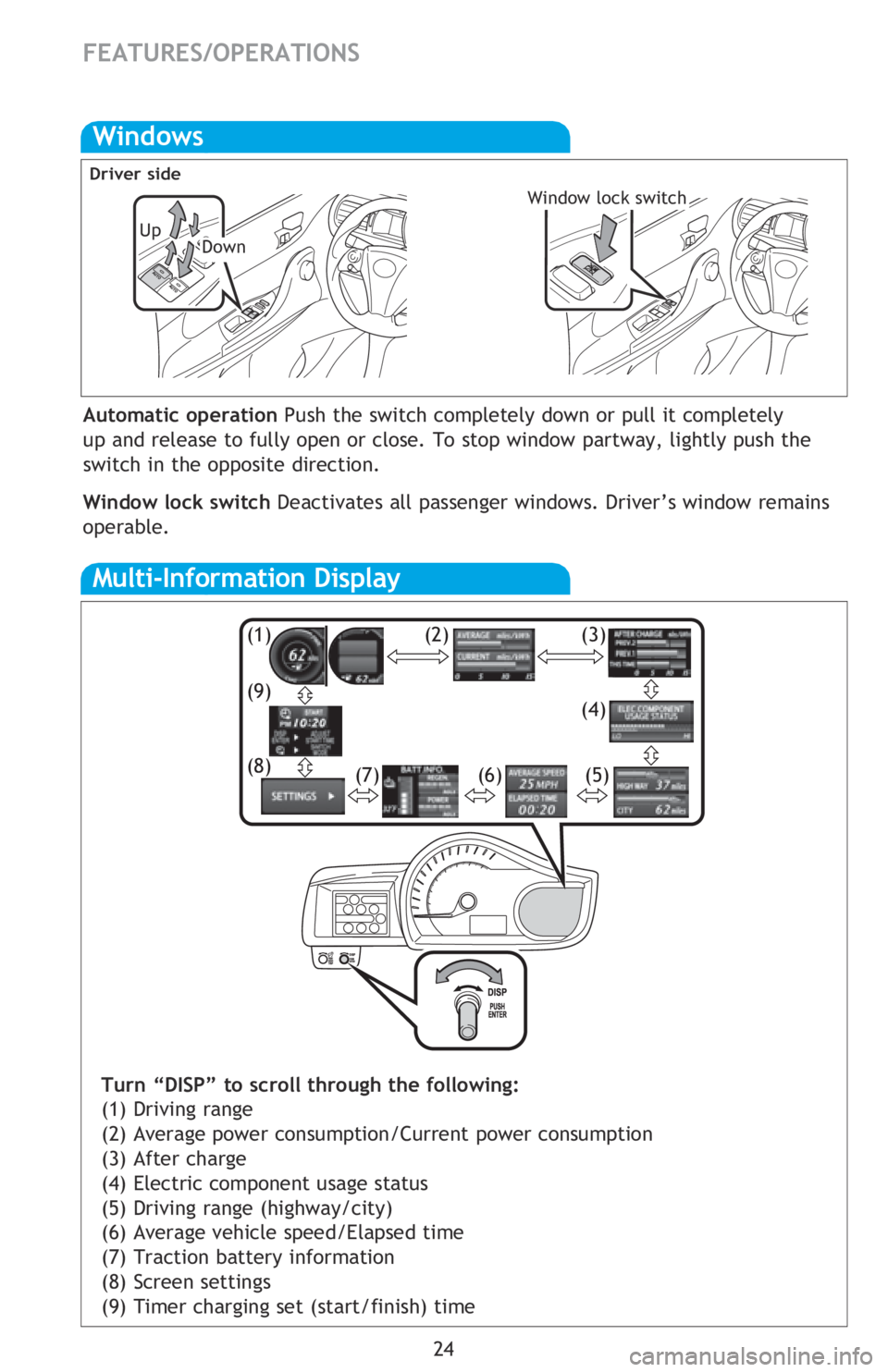

Turn “DISP” to scroll through the following:
(1) Driving range
(2) Average power consumption/Current power consumption
(3) After charge
(4) Electric component usage status
(5) Driving range (highway/city)
(6) Average vehicle speed/Elapsed time
(7) Traction battery information
(8) Screen settings
(9) Timer charging set (start/finish) time
(1)
(5)
(3)
(7) (2)
(6) (4)
(8) (9)
2013Scion-iQ-EV.indd 241/14/13 6:49 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Angle
Lock release lever
Seat heaters
Left front seat
Right front seat
Light control-Instrument panel
Brightness control-+
Automatic operation Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly push the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Turn “DISP” to scroll through the following:
(1) Driving range
(2) Average power consumption/Current power consumption
(3) After charge
(4) Electric component usage status
(5) Driving range (highway/city)
(6) Average vehicle speed/Elapsed time
(7) Traction battery information
(8) Screen settings
(9) Timer charging set (start/finish) time
2013Scion-iQ-EV.indd 251/14/13 6:49 PM

Audio
Turn to tune stations or
select channel, track or
chapter
Seek station or
channel, or select
track, file or chapter
Display radio control
screen
Display media control
screen
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Steering wheel switches
“ ”
Use to search within the selected audio medium (radio, CD, iPod ®
, etc.).
“MODE PWR”
Push to turn audio ON and select an audio mode. Push and hold to mute/
unmute or pause/resume the current operation.
Refer to the “Navigation System Owner’s Manual” for more details.>
26
Air Conditioning/Heating

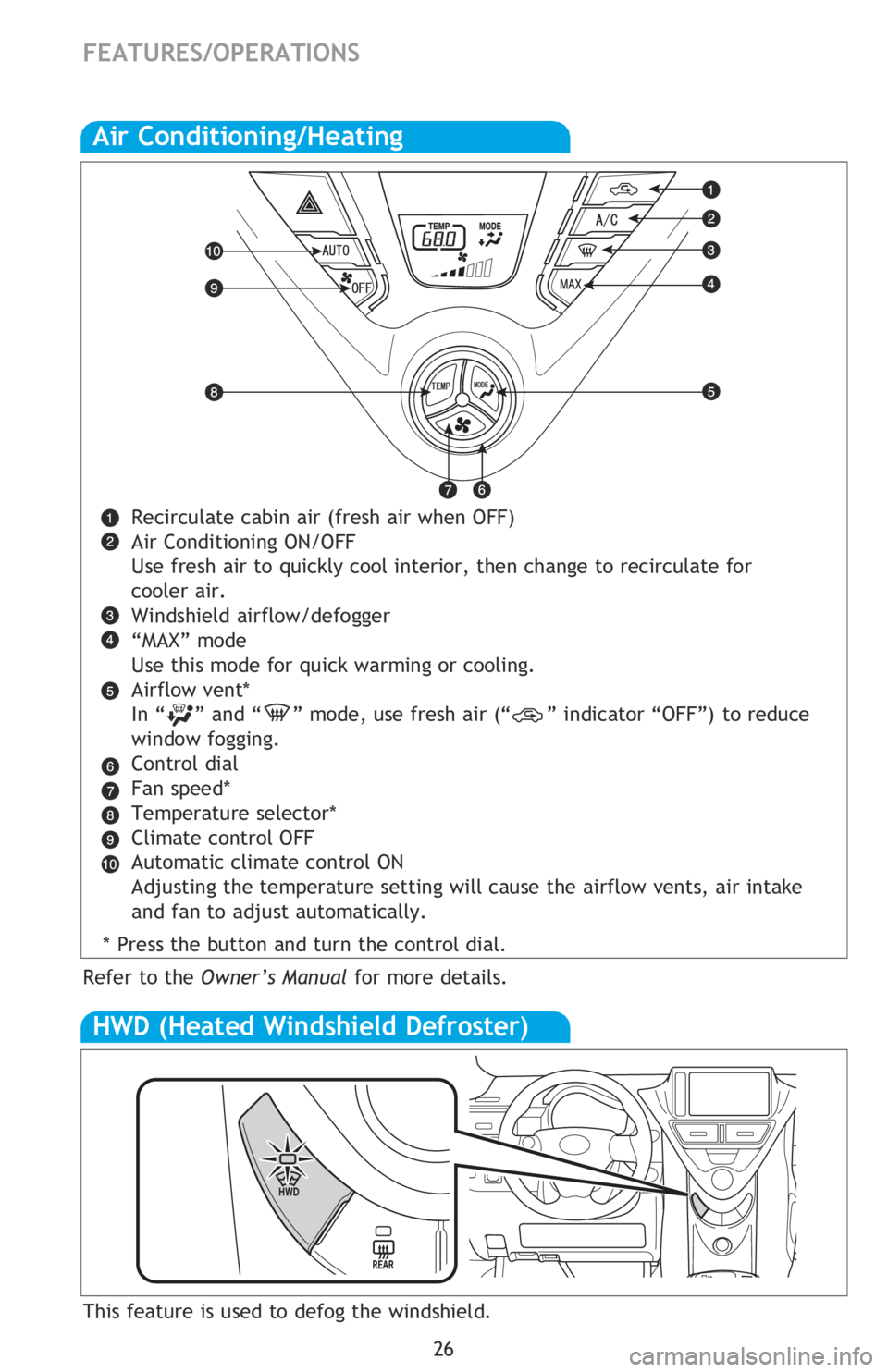

Recirculate cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Windshield airflow/defogger
“MAX” mode
Use this mode for quick warming or cooling.
Airflow vent*
In “
” and “” mode, use fresh air (“” indicator “OFF”) to reduce
window fogging.
Control dial
Fan speed*
Temperature selector*
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
* Press the button and turn the control dial.
Refer to the Owner’s Manual for more details.
FEATURES/OPERATIONS
HWD (Heated Windshield Defroster)
This feature is used to defog the windshield.
2013Scion-iQ-EV.indd 261/14/13 6:50 PM

27
OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESAudio
Turn to tune stations or
select channel, track or
chapter
Eject disc
Turn
ON/OFFSeek station or
channel, or select
track, file or chapter
Display “Setup” screen
Display radio control
screen
Display media control
screen
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
Steering wheel switches
“ ”
Use to search within the selected audio medium (radio, CD, iPod ®
, etc.).
“MODE PWR”
Push to turn audio ON and select an audio mode. Push and hold to mute/
unmute or pause/resume the current operation.
Refer to the “Navigation System Owner’s Manual” for more details.>>
Volume control
Recirculate cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Windshield airflow/defogger
“MAX” mode
Use this mode for quick warming or cooling.
Airflow vent*
In “
” and “” mode, use fresh air (“” indicator “OFF”) to reduce
window fogging.
Control dial
Fan speed*
Temperature selector*
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
* Press the button and turn the control dial.
Refer to the Owner’s Manual for more details.
This feature is used to defog the windshield.
2013Scion-iQ-EV.indd 271/14/13 6:50 PM

28
Bottle holders
Cup holder
Front
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
FEATURES/OPERATIONS
Power outlet
Designed for car accessories. Power switch must be in the “ACCESSORY” or “ON”
mode to be used.

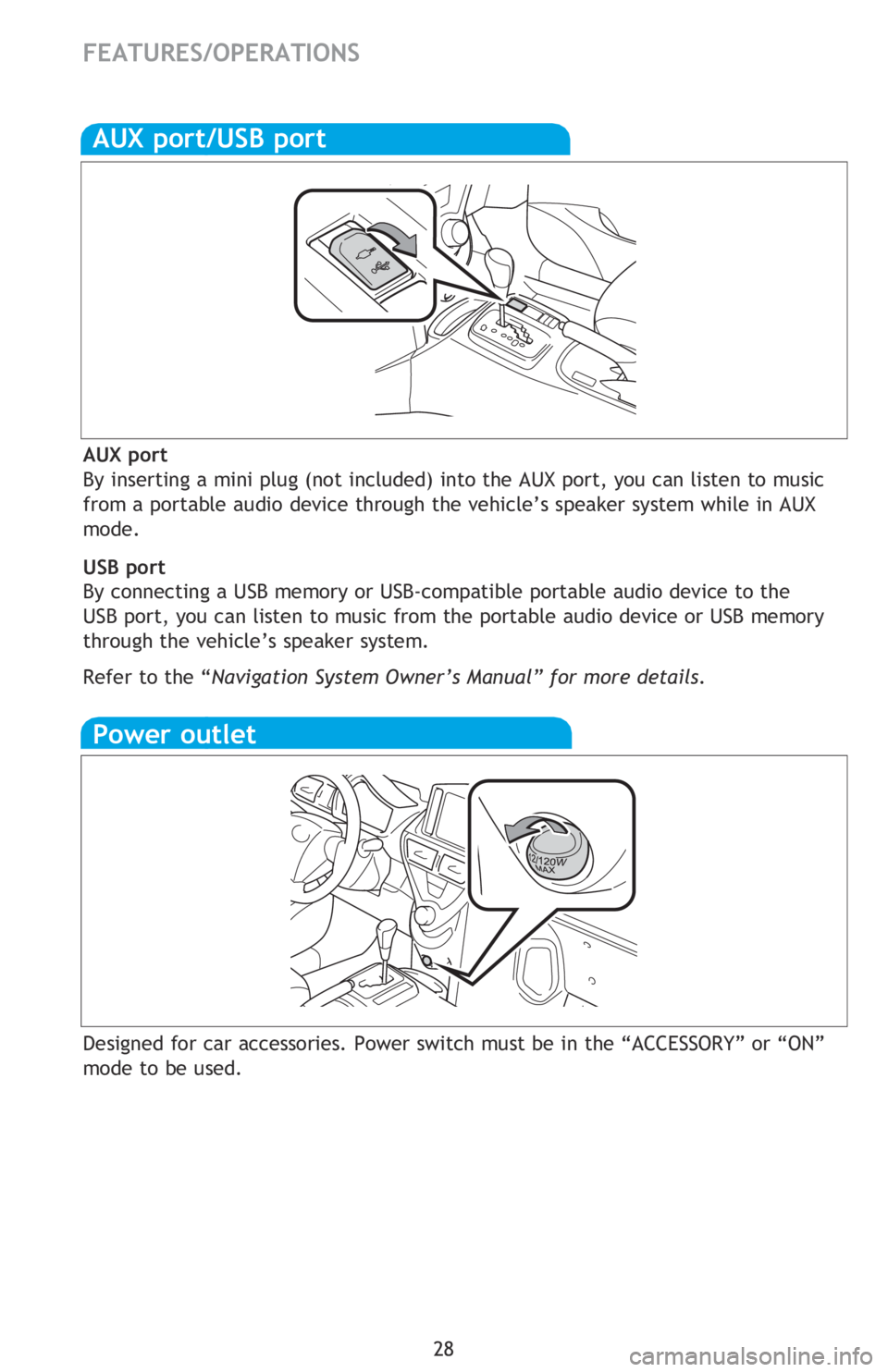

AUX port/USB port
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
Refer to the “Navigation System Owner’s Manual” for more details.
2013Scion-iQ-EV.indd 281/14/13 6:50 PM
