INTRODUCTION TERMS
IN−39
1996 LAND CRUISER (RM451U)
HO2S
Heated Oxygen SensorHeated Oxygen Sensor (HO2S)
IACIdle Air ControlIdle Speed Control (ISC)
IATIntake Air TemperatureIntake or Inlet Air T
emperature
ICMIgnition Control Module−
IFIIndirect Fuel InjectionIndirect Injection (IDL)
IFSInertia Fuel−Shutoff−
ISCIdle Speed Control−
KSKnock SensorKnock Sensor
MAFMass Air FlowAir Flow Meter
MAPManifold Absolute PressureManifold Pressure
Intake V acuum
MCMixture Control
Electric Bleed Air Control Valve (EBCV)
Mixture Control Valve (MCV)
Electric Air Control Valve (EACV)
MDPManifold Dif ferential Pressure−
MFIMultiport Fuel InjectionElectronic Fuel Injection (EFI)
MILMalfunction Indicator LampCheck Engine Lamp
MSTManifold Surface T emperature−
MVZManifold Vacuum Zone−
NVRAMNon−Volatile Random Access Memory−
O2SOxygen SensorOxygen Sensor, O2 Sensor (O2S)
OBDOn−Board DiagnosticOn− Board Diagnostic System (OBD)
OCOxidation Catalytic ConverterOxidation Catalyst Convert (OC), CCo
OPOpen LoopOpen Loop
PAIRPulsed Secondary Air InjectionAir Suction (AS)
PCMPowertrain Control Module−
PNPPark/Neutral Position−
PROMProgrammable Read Only Memory−
PSPPower Steering Pressure−
PTOXPeriodic Trap OxidizerDiesel Particulate Filter (DPF)
Diesel Particulate Trap (DPT)
RAMRandom Access MemoryRandom Access Memory (RAM)
RMRelay Module−
ROMRead Only MemoryRead Only Memory (ROM)
RPMEngine SpeedEngine Speed
SCSuperchargerSupercharger
SCBSupercharger BypassE−ABV
SFISequential Multiport Fuel InjectionElectronic Fuel Injection (EFI), Sequential Injection
SPLSmoke Puff Limiter−
SRIService Reminder Indicator−
SRTSystem Readiness Test−
STScan Tool−
TBThrottle BodyThrottle Body
TBIThrottle Body Fuel InjectionSingle Point Injection
Central Fuel Injection (Ci)
TCTurbochargerTurbocharger
TCCTorque Converter ClutchTorque Converter
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 42 of 1399
IN−40
−
INTRODUCTION TERMS
1996 LAND CRUISER (RM451U)
TCM
Transmission Control ModuleTransmission ECU, ECT ECU
TPThrottle PositionThrottle Position
TRTransmission Range−
TVVThermal Vacuum V
alveBimetallic Vacuum Switching Valve (BVSV)
Thermostatic Vacuum Switching Valve (TVSV)
TWCThree−Way Catalytic Converter
Three−Way Catalytic (TWC)
Manifold Converter
CC
RO
TWC+OCThree−Way + Oxidation Catalytic ConverterCCR + CCo
VA FVolume Air FlowAir Flow Meter
VRVoltage RegulatorVoltage Regulator
VSSVehicle Speed SensorVehicle Speed Sensor
WOTWide Open ThrottleFull Throttle
WU−OCWarm Up Oxidation Catalytic Converter−
WU−TWCWarm Up Three−Way Catalytic Converter−
3GRThird Gear−
4GRFourth Gear−
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 43 of 1399
AC2810
AC2QA−01
AC2811
N11084
Wrong Okay
LO HI LOHI
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
AC−1
1328
Author: Date:
1996 LAND CRUISER (RM451U)

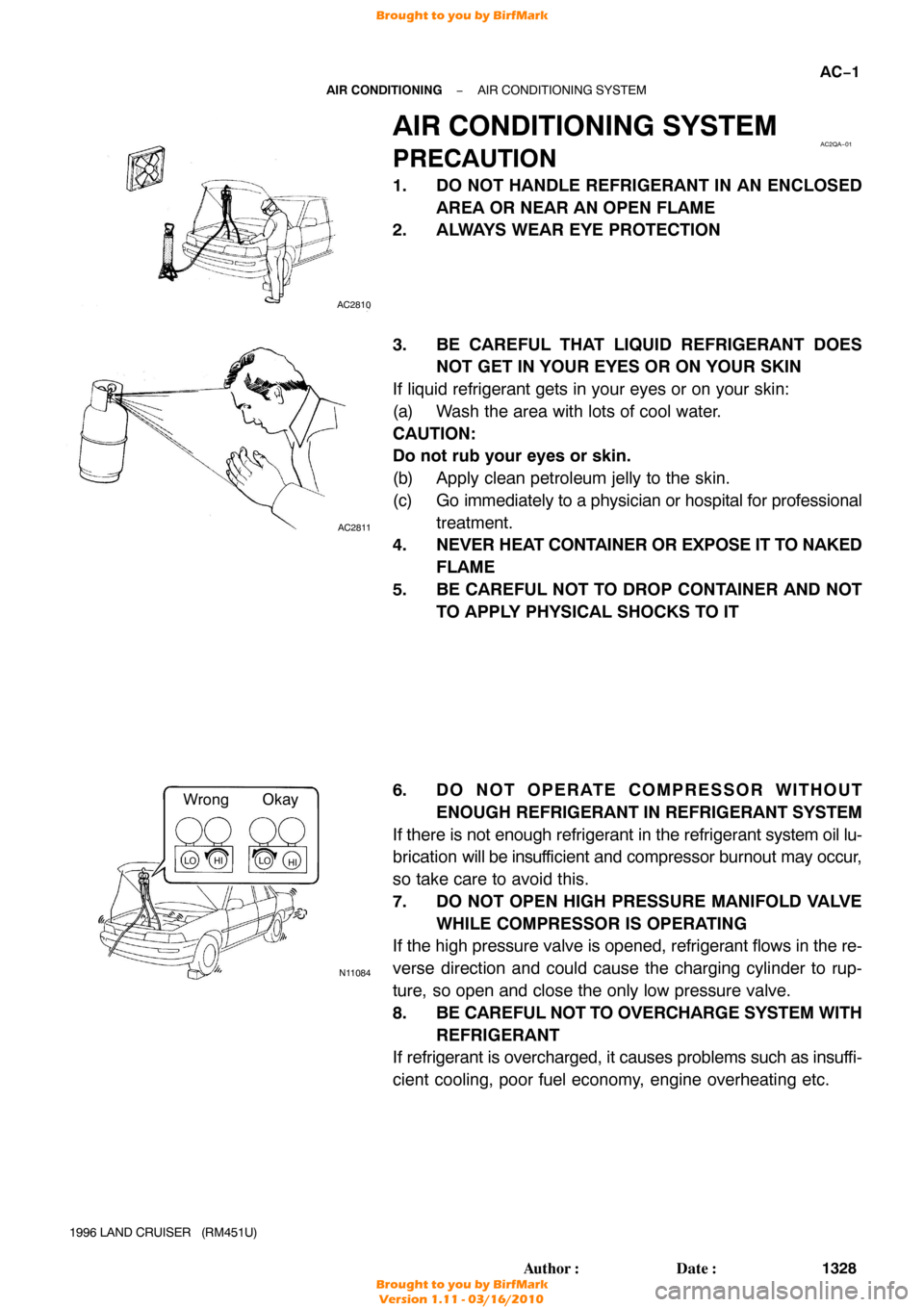

AIR CONDITIONING SYSTEM
PRECAUTION
1. DO NOT HANDLE REFRIGERANT IN AN ENCLOSED
AREA OR NEAR AN OPEN FLAME
2. ALWAYS WEAR EYE PROTECTION
3. BE CAREFUL THAT LIQUID REFRIGERANT DOES NOT GET IN YOUR EYES OR ON YOUR SKIN
If liquid refrigerant gets in your eyes or on your skin:
(a) Wash the area with lots of cool water.
CAUTION:
Do not rub your eyes or skin.
(b) Apply clean petroleum jelly to the skin.
(c) Go immediately to a physician or hospital for professional treatment.
4. NEVER HEAT CONTAINER OR EXPOSE IT TO NAKED
FLAME
5. BE CAREFUL NOT TO DROP CONTAINER AND NOT TO APPLY PHYSICAL SHOCKS TO IT
6. DO NOT OPERATE COMPRESSOR WITHOUT ENOUGH REFRIGERANT IN REFRIGERANT SYSTEM
If there is not enough refrigerant in the refrigerant system oil lu-
brication will be insuf ficient and compressor burnout may occur,
so take care to avoid this.
7. DO NOT OPEN HIGH PRESSURE MANIFOLD VALVE WHILE COMPRESSOR IS OPERATING
If the high pressure valve is opened, r efrigerant flows in the re-
verse direction and could cause the charging cylinder to rup-
ture, so open and close the only low pressure valve.
8. BE CAREFUL NOT TO OVERCHARGE SYSTEM WITH
REFRIGERANT
If refrigerant is overcharged, it causes problems such as insuffi-
cient cooling, poor fuel economy, engine overheating etc.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 44 of 1399
AC−2
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
1329
Author: Date:
1996 LAND CRUISER (RM451U)
9. SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
The LAND CRUISER is equipped with an SRS (Spplemental
Restraint System)such as the driver airbag and passenger air
bag. Failure to carry out service operations in the correct se-
quence could cause the SRS to unexpectedly deployed during
servicing, possibly leading to a serious accident. Further, if a
mistake is made in servicing the SRS, it is possible the SRS may
fail to operate when required. Before servicing (including re-
moval or installation of parts, inspection or replacement), be
sure to read the following item carefully, then follow the correct
procedure described in the repair manual.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 45 of 1399
AC2QC−03
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
AC−3
1996 LAND CRUISER (RM451U)
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem.The numbers i\
ndicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
No blower operation
4. HTR Fuse
5. Heater main relay
6. Blower motor
7. Blower resistor
8. Blower speed control switch
9. Wire harness−
AC−64
AC−52
AC−57
AC−69 −
No air temperature control
1. Engine coolant volume
2. A/C control assembly
3. Water valve−
AC−69
AC−49
No compressor operation
1. Refrigerant volume
2. A.C Fuse
3. Magnetic clutch
4. Compressor
5. Pressure switch
6. Heater main relay
7. Blower speed control switch
8. A/C switch
9. A/C amplifier
10.Thermistor
11. Wire harnessAC−5 −
AC−33
AC−33
AC−61
AC−64
AC−69
AC−69
AC−74
AC−60 −
Compressor operates intermitently
1. Refrigerant volume
2. Pressure switch
3. A/C amplifier
4. Thermistor
5. Wire harnessAC−5
AC−61
AC−74
AC−60 −
No cool air comes out
1. Refrigerant volume
2. Refrigerant pressure
3. Drive belt
4. Magnetic clutch
5. Compressor
6. Pressure switch
7. Thermistor
8. A/C switch
9. A/C amplifier
10.A/C control assembly
11. Wire harnessAC−5
AC−5
AC−15
AC−33
AC−33
AC−61
AC−60
AC−69
AC−74
AC−69 −
Cool air comes out only at high engine rpm
1. Refrigerant volume
2. Drive bel
3. Magnetic clutch
4. Compressor
5. Condenser
6. Receiver
7. Expansion valve
8. Evaporator
9. Thermistor
10.A/C amplifier
11. Wire harnessAC−5
AC−15
AC−33
AC−33
AC−42
AC−39
AC−47
AC−45
AC−60
AC−74 −
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 46 of 1399
AC−4
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
1996 LAND CRUISER (RM451U)
Insuf
ficient cooling
1. Refrigerant volume
2. Drive belt
3. Magnetic clutch
4. Compressor
5. Condenser
6. Receiver
7. Expansion valve
8. Evaporator
9. Refrigerant line
10.Pressure switch
11. A/C amplifier
12.A/C control assemblyAC−5
AC−15
AC−33
AC−33
AC−42
AC−39
AC−47
AC−45
AC−20
AC−61
AC−74
AC−69
No engine idle up when A/C switch ON
1. A/C amplifier
2. ECM
3. Wire harnessAC−74 −
−
No warm air comes out
1. Engine coolant volume
2. A/C control assembly
3. Water valve
4. Heater radiator−
AC−69
AC−49
AC−46
A/C indicator does not light up when mode lever at DEF. position
1. Defroster mode switch
2. A/C switch
3. Wire harnessAC−69
AC−69 −
Rear heater:
SymptomSuspect AreaSee page
No blower operation
1. RR HTR Fuse
2. Rear heater relay
3. Rear heater switch
4. Rear blower motor
5. Rear blower resistor−
AC−65
AC−77
AC−55
AC−58
No warm air come out1. Engine coolant volume
2. Rear heater radiator−
AC−46
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 47 of 1399
N14063
AC2QD−01
I01386
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
AC−5
1996 LAND CRUISER (RM451U)

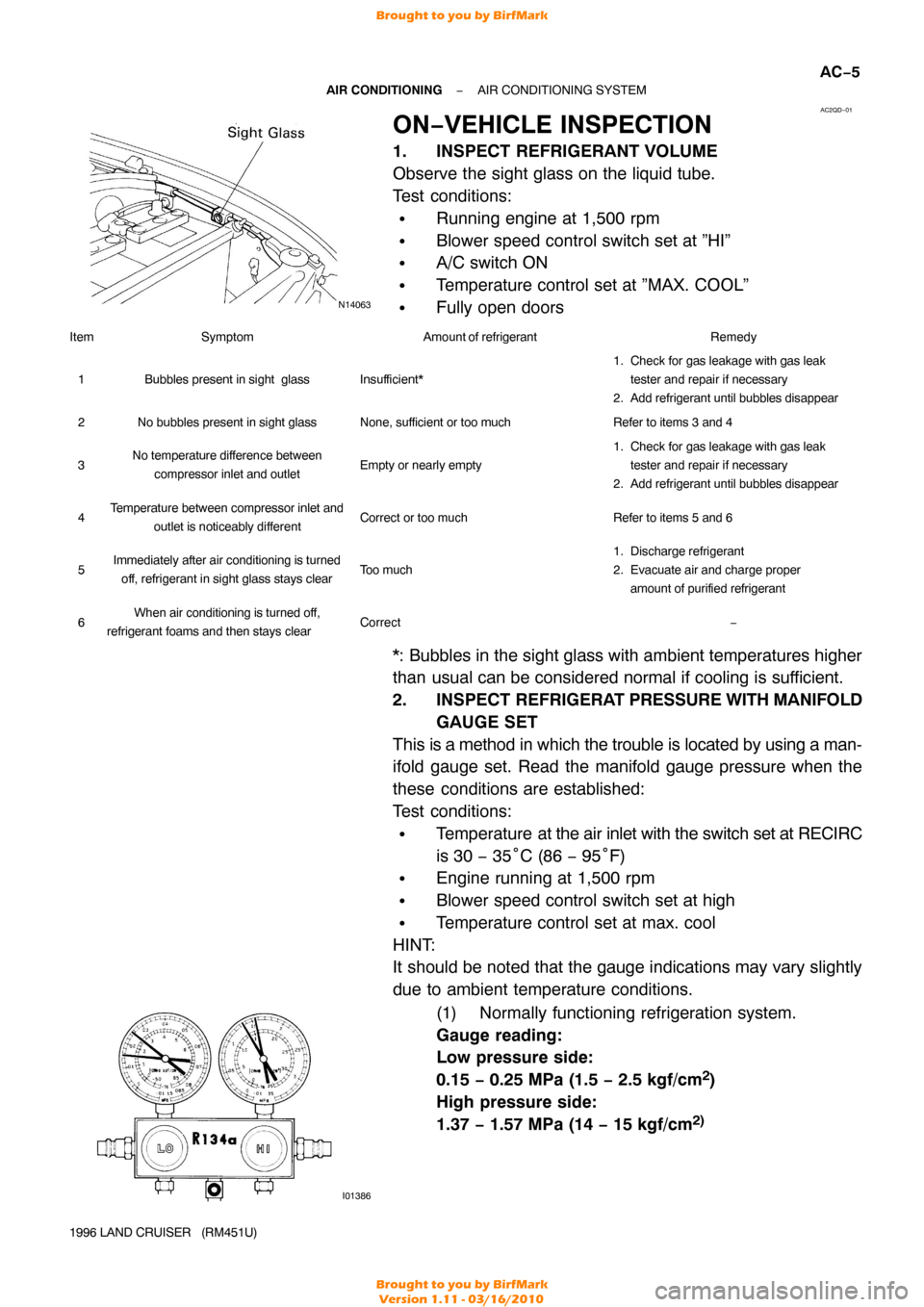

ON−VEHICLE INSPECTION
1. INSPECT REFRIGERANT VOLUME
Observe the sight glass on the liquid tube.
Test conditions:
Running engine at 1,500 rpm
Blower speed control switch set at ”HI”
A/C switch ON
Temperature control set at ”MAX. COOL”
Fully open doors
ItemSymptomAmount of refrigerantRemedy
1Bubbles present in sight glassInsufficient*
1. Check for gas leakage with gas leak
tester and repair if necessary
2. Add refrigerant until bubbles disappear
2No bubbles present in sight glassNone, sufficient or too muchRefer to items 3 and 4
3No temperature difference between compressor inlet and outletEmpty or nearly empty
1. Check for gas leakage with gas leaktester and repair if necessary
2. Add refrigerant until bubbles disappear
4Temperature between compressor inlet and outlet is noticeably differentCorrect or too muchRefer to items 5 and 6
5Immediately after air conditioning is turnedoff, refrigerant in sight glass stays clearToo much
1. Discharge refrigerant
2. Evacuate air and charge proper amount of purified refrigerant
6When air conditioning is turned off,
refrigerant foams and then stays clearCorrect−
*: Bubbles in the sight glass with ambient temperatures higher
than usual can be considered normal if cooling is sufficient.
2. INSPECT REFRIGERAT PRESSURE WITH MANIFOLD
GAUGE SET
This is a method in which the trouble is located by using a man-
ifold gauge set. Read the manifold gauge pressure when the
these conditions are established:
Test conditions:
Temperature at the air inlet with the switch set at RECIRC
is 30 − 35° C (86 − 95° F)
Engine running at 1,500 rpm
Blower speed control switch set at high
Temperature control set at max. cool
HINT:
It should be noted that the gauge indications may vary slightly
due to ambient temperature conditions.
(1) Normally functioning refrigeration system.
Gauge reading:
Low pressure side:
0.15 − 0.25 MPa (1.5 − 2.5 kgf/cm
2)
High pressure side:
1.37 − 1.57 MPa (14 − 15 kgf/cm
2)
SightGlass
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 48 of 1399
I01387
Condition : Periodically cools and then fails to cool
I01388
Condition: Insufficient cooling
AC−6
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
1996 LAND CRUISER (RM451U)

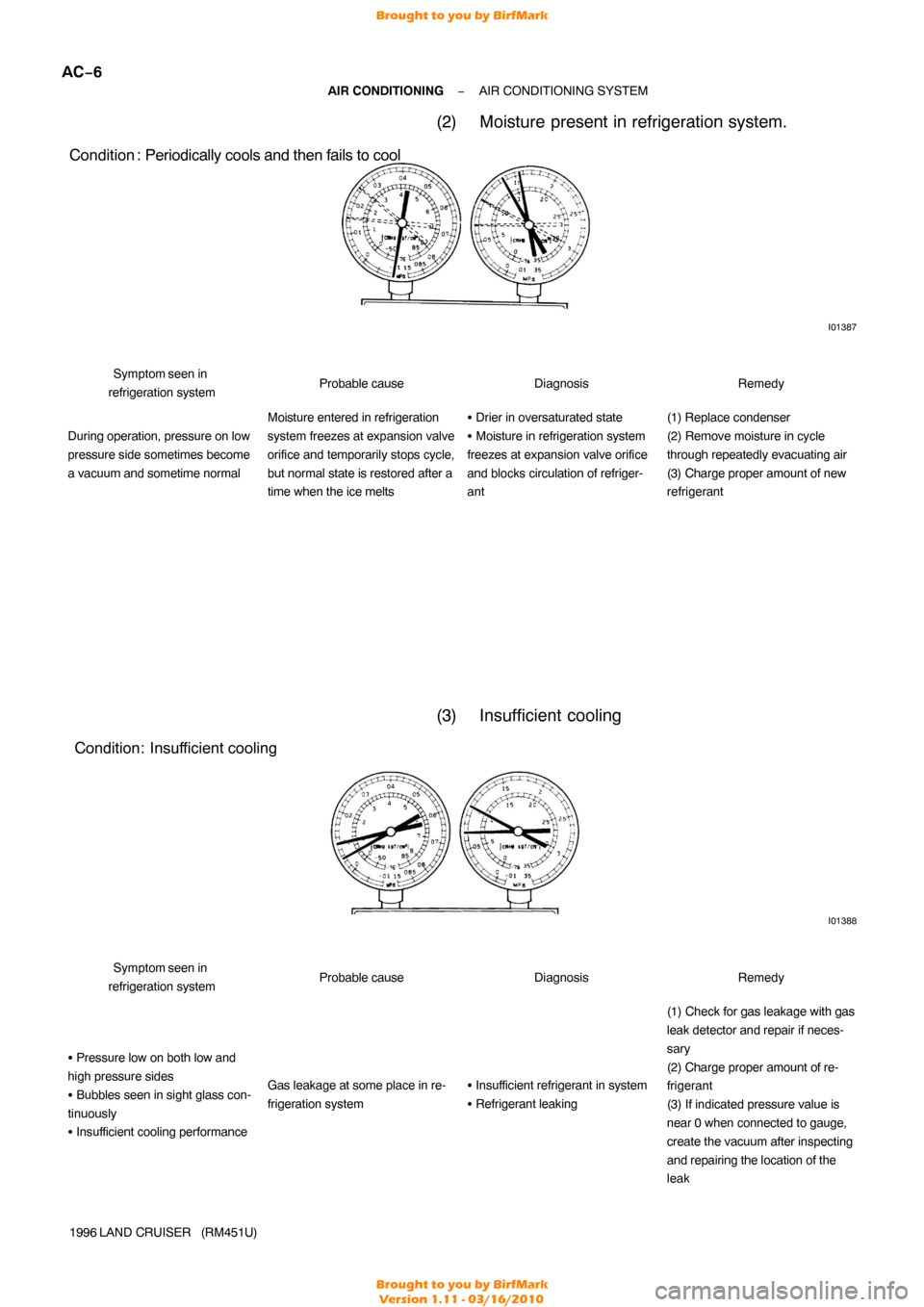

(2) Moisture present in refrigeration system.
Symptom seen in
refrigeration systemProbable causeDiagnosisRemedy
During operation, pressure on low
pressure side sometimes become
a vacuum and sometime normal
Moisture entered in refrigeration
system freezes at expansion valve
orifice and temporarily stops cycle,
but normal state is restored after a
time when the ice melts Drier in oversaturated state
Moisture in refrigeration system
freezes at expansion valve orifice
and blocks circulation of refriger-
ant(1) Replace condenser
(2) Remove moisture in cycle
through repeatedly evacuating air
(3) Charge proper amount of new
refrigerant
(3) Insufficient cooling
Symptom seen in
refrigeration systemProbable causeDiagnosisRemedy
Pressure low on both low and
high pressure sides
Bubbles seen in sight glass con-
tinuously
Insufficient cooling performance
Gas leakage at some place in re-
frigeration system Insufficient refrigerant in system
Refrigerant leaking
(1) Check for gas leakage with gas
leak detector and repair if neces-
sary
(2) Charge proper amount of re-
frigerant
(3) If indicated pressure value is
near 0 when connected to gauge,
create the vacuum after inspecting
and repairing the location of the
leak
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 49 of 1399
I01389
Condition: Insufficient cooling
I01449
Condition: Does not cool (Cools from time to time in some cases)
−

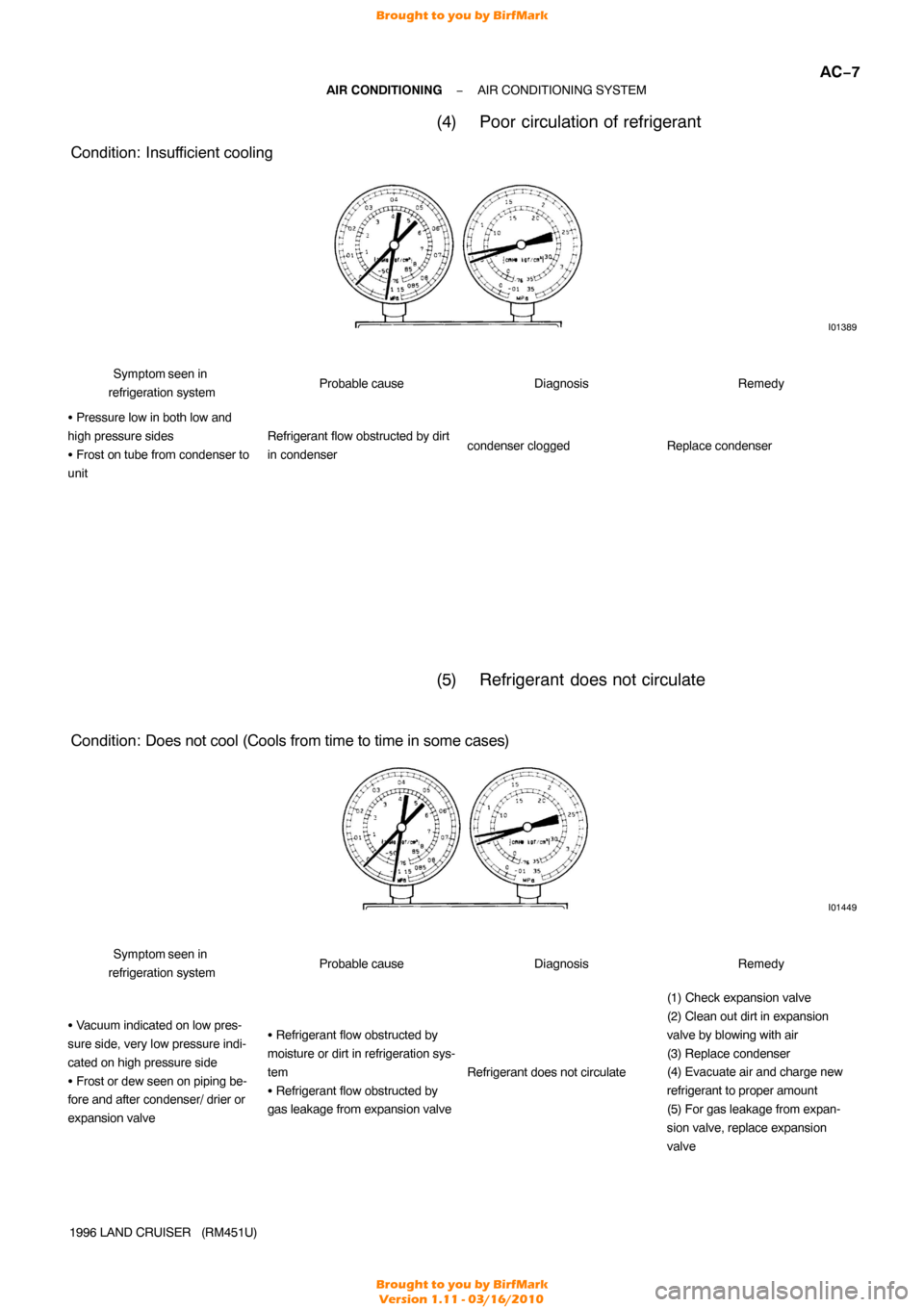

AIR CONDITIONING AIR CONDITIONING SYSTEM
AC−7
1996 LAND CRUISER (RM451U)
(4) Poor circulation of refrigerant
Symptom seen in
refrigeration systemProbable causeDiagnosisRemedy
Pressure low in both low and
high pressure sides
Frost on tube from condenser to
unit
Refrigerant flow obstructed by dirt
in condensercondenser cloggedReplace condenser
(5) Refrigerant does not circulate
Symptom seen in
refrigeration systemProbable causeDiagnosisRemedy
Vacuum indicated on low pres-
sure side, very low pressure indi-
cated on high pressure side
Frost or dew seen on piping be-
fore and after condenser/ drier or
expansion valve Refrigerant flow obstructed by
moisture or dirt in refrigeration sys-
tem
Refrigerant flow obstructed by
gas leakage from expansion valve
Refrigerant does not circulate
(1) Check expansion valve
(2) Clean out dirt in expansion
valve by blowing with air
(3) Replace condenser
(4) Evacuate air and charge new
refrigerant to proper amount
(5) For gas leakage from expan-
sion valve, replace expansion
valve
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 50 of 1399
I01390
Condition: Insufficient cooling
I01392
Condition: Insufficient coolingNOTE : These gauge indica-
tions are shown when the
refrigeration system has
been opened and the refrig-
erant charged without vacu-
um purging.

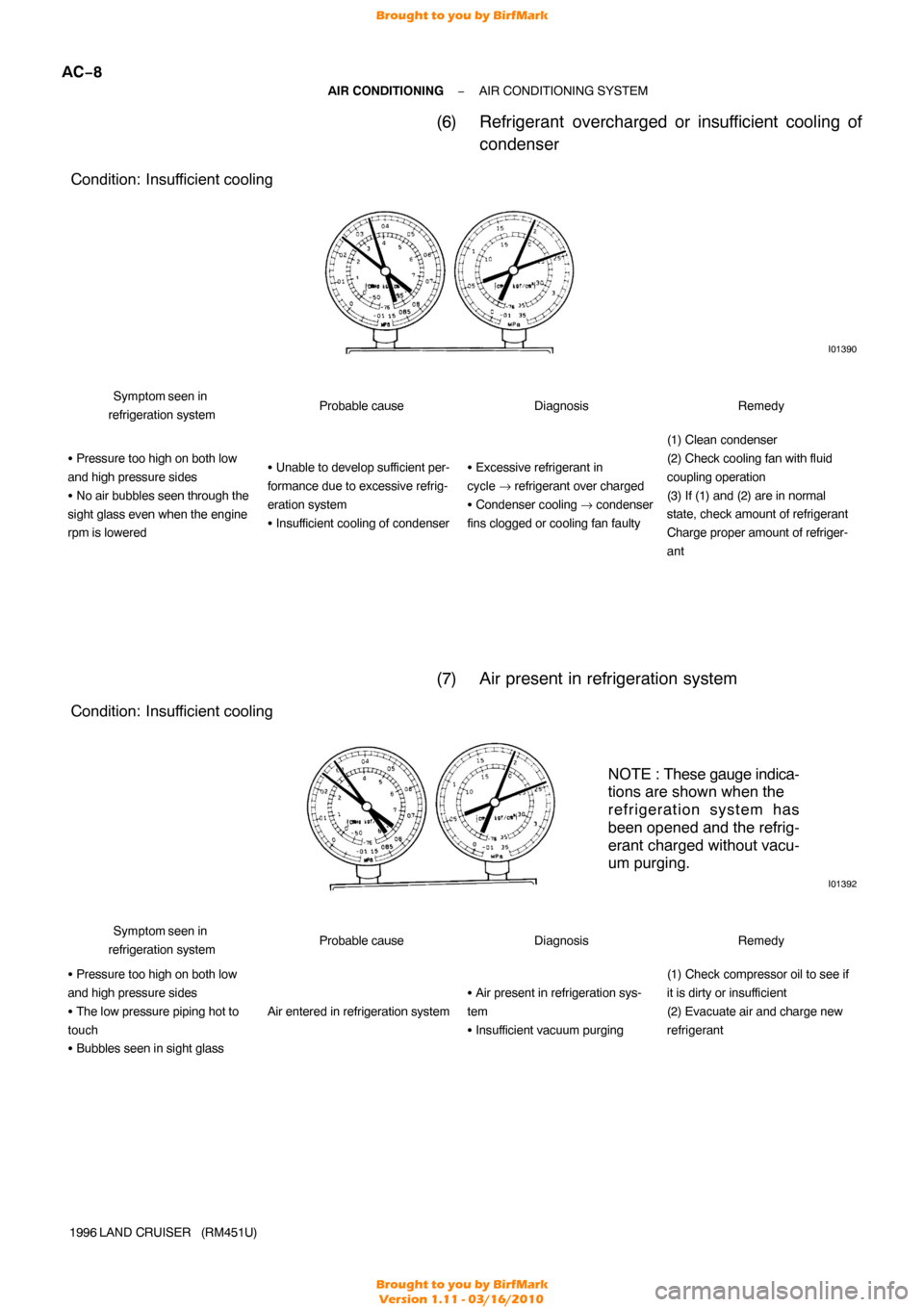

AC−8
−
AIR CONDITIONING AIR CONDITIONING SYSTEM
1996 LAND CRUISER (RM451U)
(6) Refrigerant overcharged or insufficient cooling of
condenser
Symptom seen in
refrigeration systemProbable causeDiagnosisRemedy
Pressure too high on both low
and high pressure sides
No air bubbles seen through the
sight glass even when the engine
rpm is lowered Unable to develop sufficient per-
formance due to excessive refrig-
eration system
Insufficient cooling of condenser Excessive refrigerant in
cycle → refrigerant over charged
Condenser cooling → condenser
fins clogged or cooling fan faulty
(1) Clean condenser
(2) Check cooling fan with fluid
coupling operation
(3) If (1) and (2) are in normal
state, check amount of refrigerant
Charge proper amount of refriger-
ant
(7) Air present in refrigeration system
Symptom seen in
refrigeration systemProbable causeDiagnosisRemedy
Pressure too high on both low
and high pressure sides
The low pressure piping hot to
touch
Bubbles seen in sight glass
Air entered in refrigeration system
Air present in refrigeration sys-
tem
Insufficient vacuum purging
(1) Check compressor oil to see if
it is dirty or insuf ficient
(2) Evacuate air and charge new
refrigerant
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
