INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN−29
1996 LAND CRUISER (RM451U)

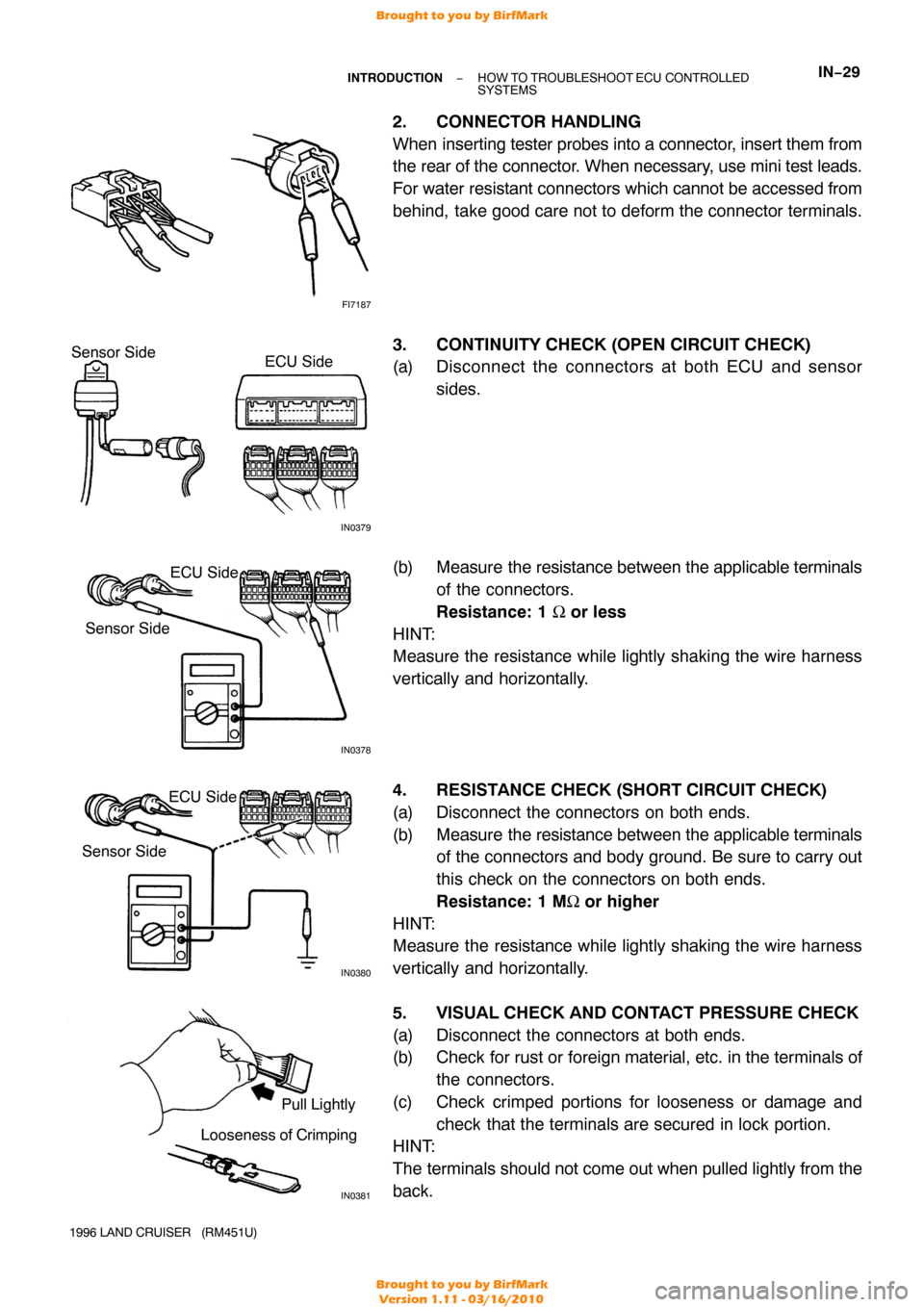

2. CONNECTOR HANDLING
When inserting tester probes into a connector, insert them from
the rear of the connector. When necessary, use mini test leads.
For water resistant connectors which cannot be accessed from
behind, take good care not to deform the connector terminals.
3. CONTINUITY CHECK (OPEN CIRCUIT CHECK)
(a) Disconnect the connectors at both ECU and sensor
sides.
(b) Measure the resistance between the applicable terminals of the connectors.
Resistance: 1 Ω or less
HINT:
Measure the resistance while lightly shaking the wire harness
vertically and horizontally.
4. RESISTANCE CHECK (SHORT CIRCUIT CHECK)
(a) Disconnect the connectors on both ends.
(b) Measure the resistance between the applicable terminals of the connectors and body ground. Be sure to carry out
this check on the connectors on both ends.
Resistance: 1 MΩ or higher
HINT:
Measure the resistance while lightly shaking the wire harness
vertically and horizontally.
5. VISUAL CHECK AND CONTACT PRESSURE CHECK
(a) Disconnect the connectors at both ends.
(b) Check for rust or foreign material, etc. in the terminals of the connectors.
(c) Check crimped portions for looseness or damage and check that the terminals are secured in lock portion.
HINT:
The terminals should not come out when pulled lightly from the
back.
c:::::J
o0
c::=J
o0
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 32 of 1399
Z17004
Fig. 1
OPENECU
2
Sensor
22 2 1
111 AB
C
Z17005
Fig. 2
ECU
Sensor 21 A
B
C
1
1
22
B04722
Fig. 3
ECU
Sensor
21 A
C 1
1
221
2
1 B1
B2
IN−30−
INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
1996 LAND CRUISER (RM451U)
(d) Prepare a test male terminal and insert it in the female ter-
minal, then pull it out.
NOTICE:
When testing a gold −plated female terminal, always use a
gold −plated male terminal.
HINT:
When the test terminal is pulled out more easily than others,
there may be poor contact in that section.

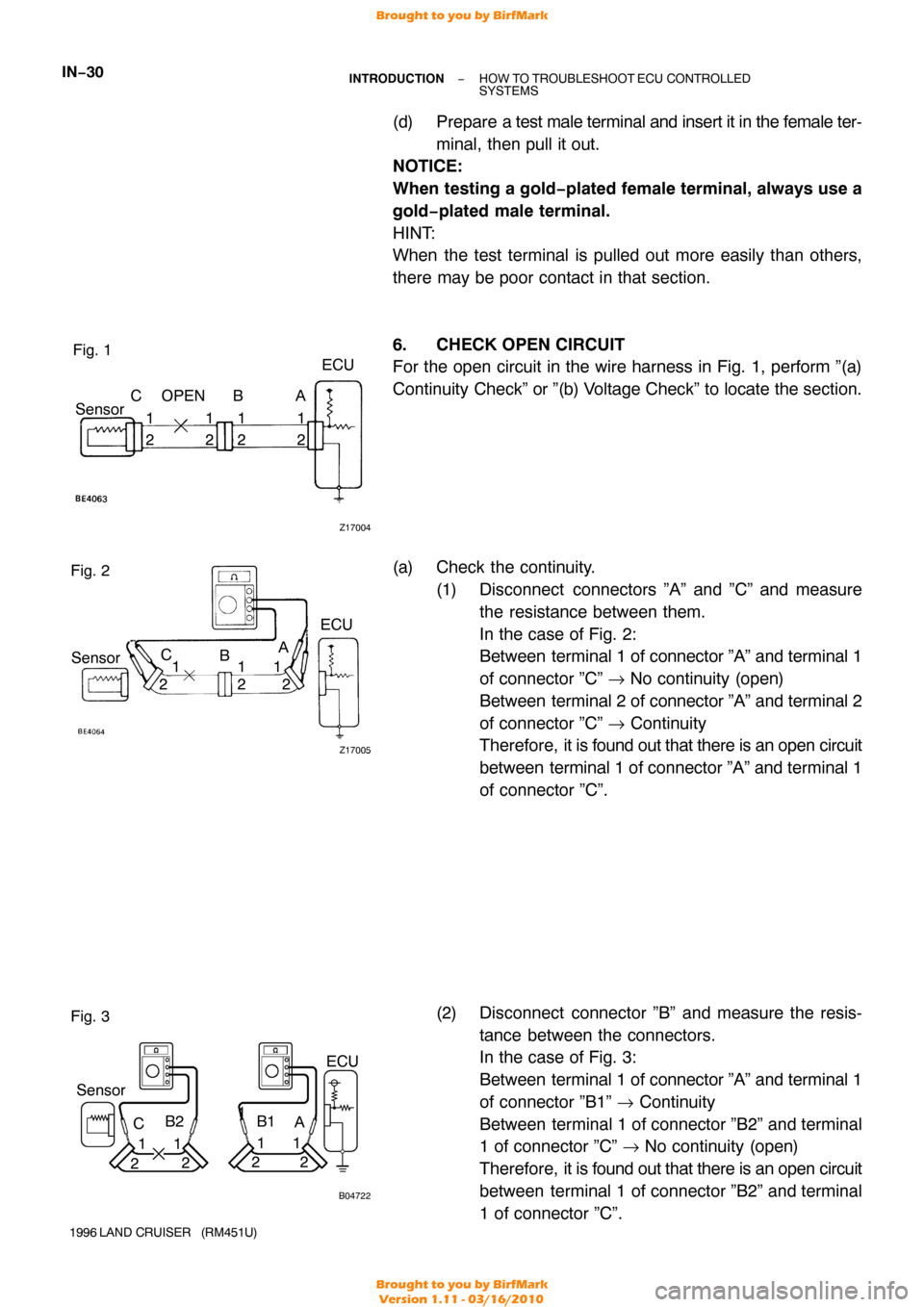

6. CHECK OPEN CIRCUIT
For the open circuit in the wire harness in Fig. 1, perform ”(a)
Continuity Check” or ”(b) Voltage Check” to locate the section.
(a) Check the continuity. (1) Disconnect connectors ”A” and ”C” and measurethe resistance between them.
In the case of Fig. 2:
Between terminal 1 of connector ”A” and terminal 1
of connector ”C” → No continuity (open)
Between terminal 2 of connector ”A” and terminal 2
of connector ”C” → Continuity
Therefore, it is found out that there is an open circuit
between terminal 1 of connector ”A” and terminal 1
of connector ”C”.
(2) Disconnect connector ”B” and measure the resis- tance between the connectors.
In the case of Fig. 3:
Between terminal 1 of connector ”A” and terminal 1
of connector ”B1” → Continuity
Between terminal 1 of connector ”B2” and terminal
1 of connector ”C” → No continuity (open)
Therefore, it is found out that there is an open circuit
between terminal 1 of connector ”B2” and terminal
1 of connector ”C”.
BE4063
DO
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 33 of 1399
Z17007
Fig. 4Sensor 21 A
C
1
1
22B5V
5V
5V
0V
Z17008
Fig. 5
2
1 A
C
1
1
2 2
BSHORT
Z17009
Fig. 6
21 A
C
1
1
22
BSensor ECU
−
INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN−31
1996 LAND CRUISER (RM451U)

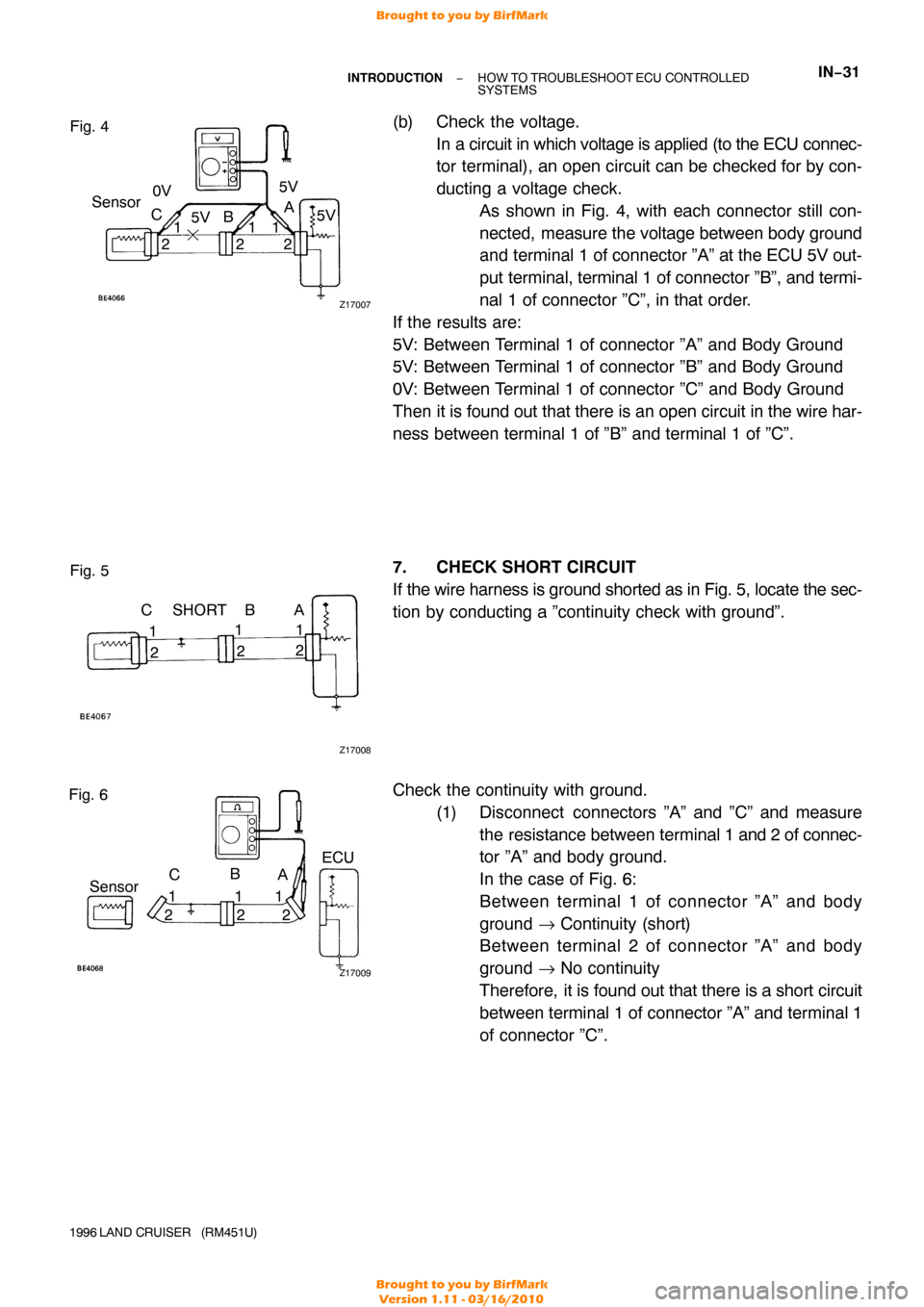

(b) Check the voltage.
In a circuit in which voltage is applied (to the ECU connec-
tor terminal), an open circuit can be checked for by con-
ducting a voltage check.As shown in Fig. 4, with each connector still con-
nected, measure the voltage between body ground
and terminal 1 of connector ”A” at the ECU 5V out-
put terminal, terminal 1 of connector ”B”, and termi-
nal 1 of connector ”C”, in that order.
If the results are:
5V: Between Terminal 1 of connector ”A” and Body Ground
5V: Between Terminal 1 of connector ”B” and Body Ground
0V: Between Terminal 1 of connector ”C” and Body Ground
Then it is found out that there is an open circuit in the wire har-
ness between terminal 1 of ”B” and terminal 1 of ”C”.
7. CHECK SHORT CIRCUIT
If the wire harness is ground shorted as in Fig. 5, locate the sec-
tion by conducting a ”continuity check with ground”.
Check the continuity with ground. (1) Disconnect connectors ”A” and ”C” and measurethe resistance between terminal 1 and 2 of connec-
tor ”A” and body ground.
In the case of Fig. 6:
Between terminal 1 of connector ”A” and body
ground → Continuity (short)
Between terminal 2 of connector ”A” and body
ground → No continuity
Therefore, it is found out that there is a short circuit
between terminal 1 of connector ”A” and terminal 1
of connector ”C”.
BE4066
BE4067
BE4068
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
Page 34 of 1399
Z17808
Fig. 7Sensor 21 A
B1
C
1
1
221 2
B2
ECU
IN0383
Example
Ground
IN0384
Ground
Ground
ECU Side
W/H Side
IN−32
−
INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
1996 LAND CRUISER (RM451U)

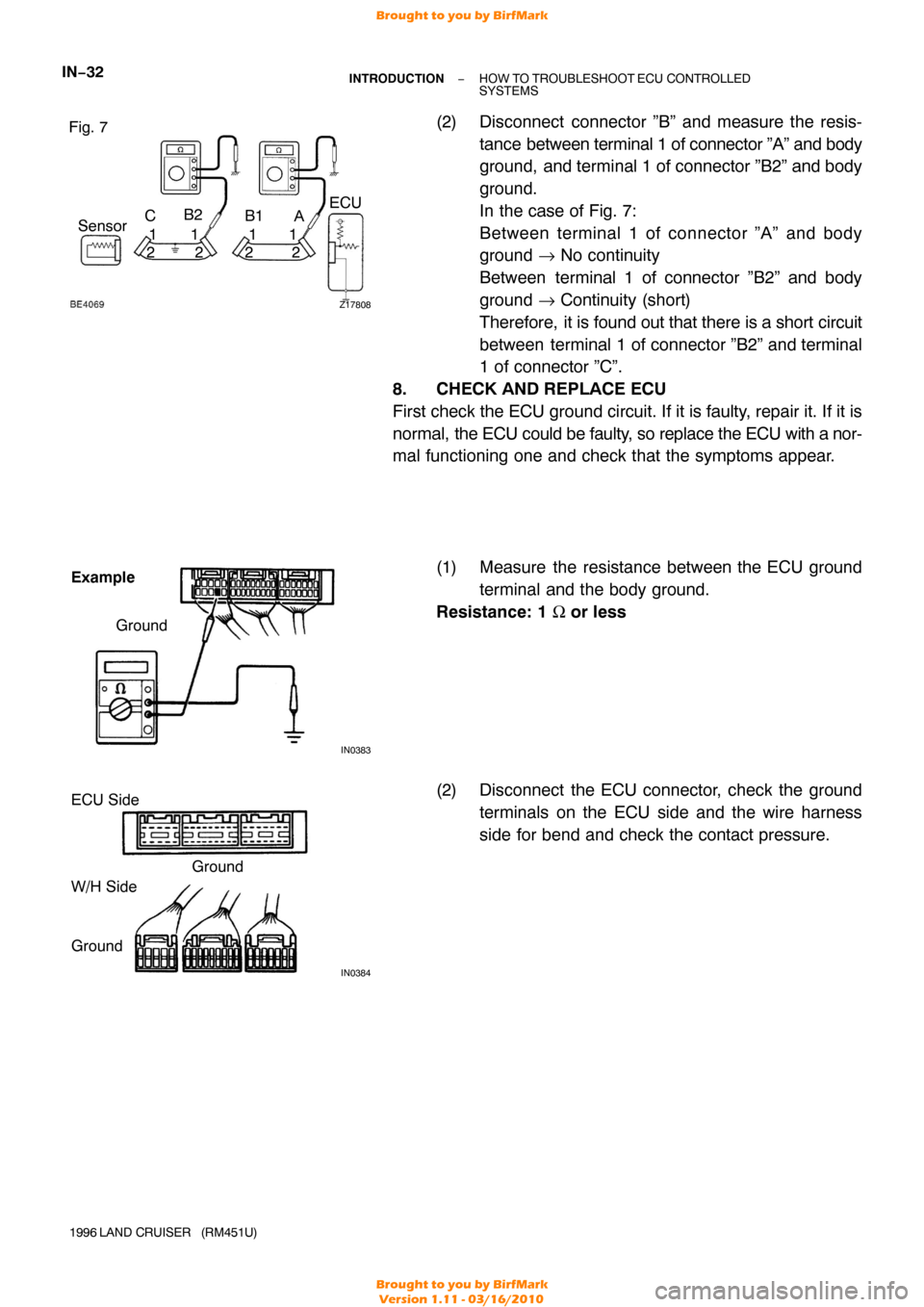

(2) Disconnect connector ”B” and measure the resis-
tance between terminal 1 of connector ”A” and body
ground, and terminal 1 of connector ”B2” and body
ground.
In the case of Fig. 7:
Between terminal 1 of connector ”A” and body
ground → No continuity
Between terminal 1 of connector ”B2” and body
ground → Continuity (short)
Therefore, it is found out that there is a short circuit
between terminal 1 of connector ”B2” and terminal
1 of connector ”C”.
8. CHECK AND REPLACE ECU
First check the ECU ground circuit. If it is faulty, repair it. If it is
normal, the ECU could be faulty, so replace the ECU with a nor-
mal functioning one and check that the symptoms appear.
(1) Measure the resistance between the ECU groundterminal and the body ground.
Resistance: 1 Ω or less
(2) Disconnect the ECU connector, check the ground terminals on the ECU side and the wire harness
side for bend and check the contact pressure.
o
D~~~D~~~
