TOYOTA LAND CRUISER 1996 J80 Workshop Manual IN00U−36
N17080
Filler Cap
Float
Reservoir Grommet
Clip
Slotted Spring Pin
: Specified torque
  Non− reusable  partCylinder
Piston
Push Rod
Washer
Snap Ring
Boot

 Gasket
Lock Nut
Clevis Pin
Cl

Page 3 of 1399

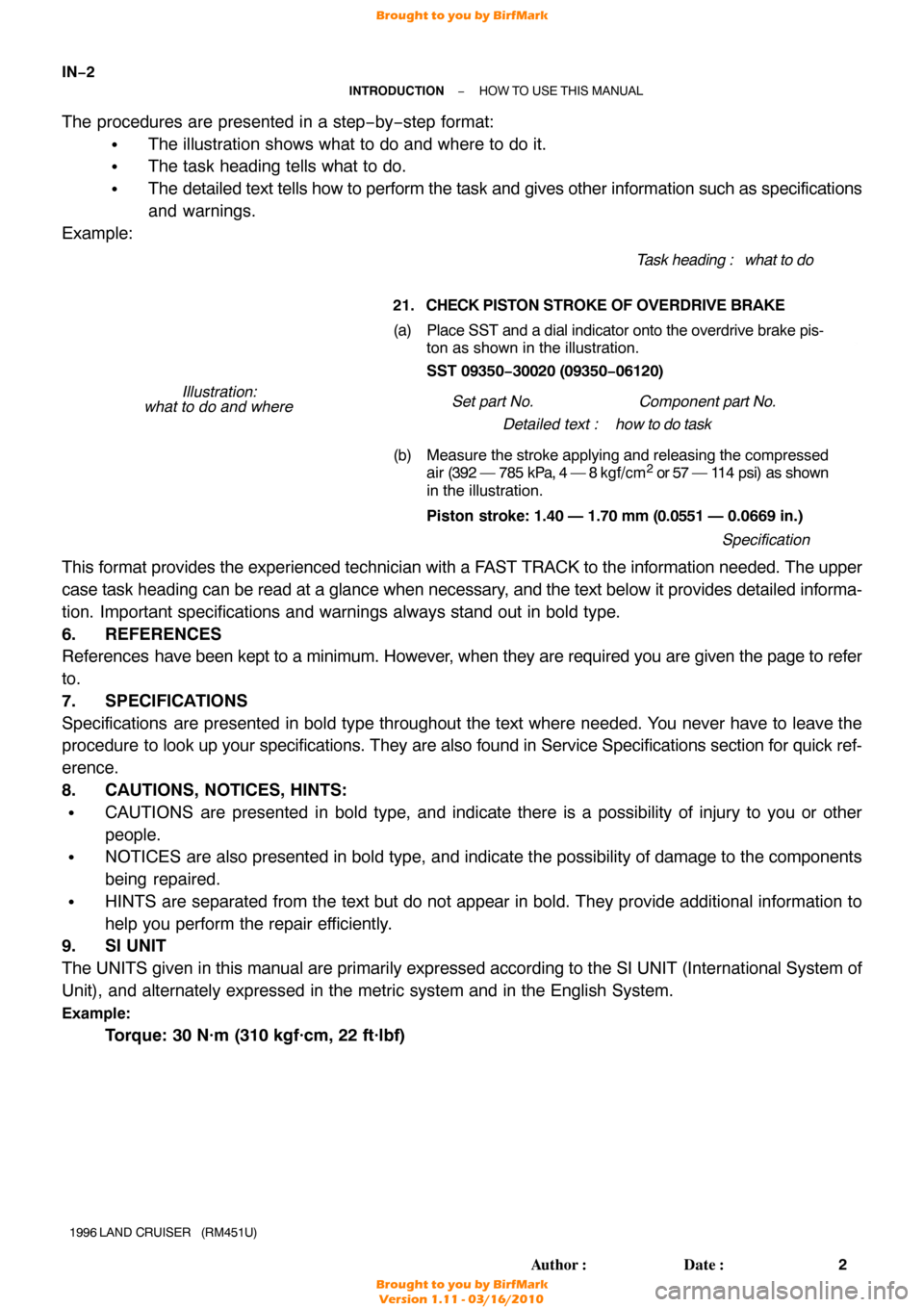

TOYOTA LAND CRUISER 1996 J80 Workshop Manual Illustration:
what to do and where 21.   CHECK
PISTON STROKE OF OVERDRIVE BRAKE
(a)
Task heading : what to do
SST 09350− 30020 (09350 −06120)
Set part No. Component part No.
Detailed text : how t

Page 4 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual Illustration:
what to do and where 21.   CHECK
PISTON STROKE OF OVERDRIVE BRAKE
(a)
Task heading : what to do
SST 09350− 30020 (09350 −06120)
Set part No. Component part No.
Detailed text : how t

Page 5 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual IN04P−14
Z04707
AB
P03780
−

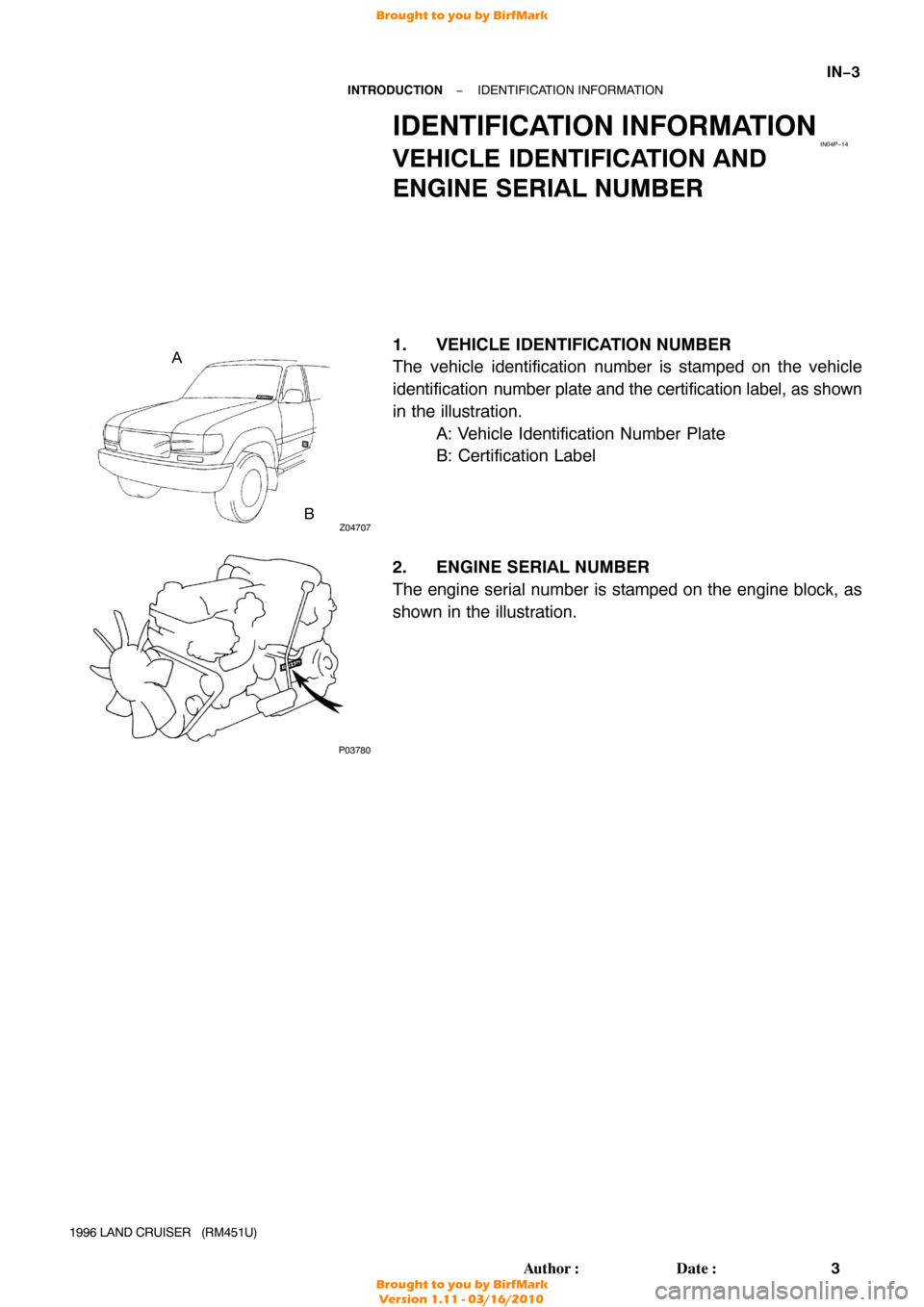

INTRODUCTION IDENTIFICATION INFORMATION
IN−3
3
Author: Date:
1996 LAND CRUISER   (RM451U)
IDENTIFICATION INFORMATION
VEHICLE IDENTIFICATION AND
ENGINE SERIAL NUMBER

Page 6 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual IN0CO−12
FI1066
Z11554
Seal Lock Adhesive
IN−4
−
INTRODUCTION REPAIR INSTRUCTIONS
4
Author: Date:
1996 LAND CRUISER   (RM451U)

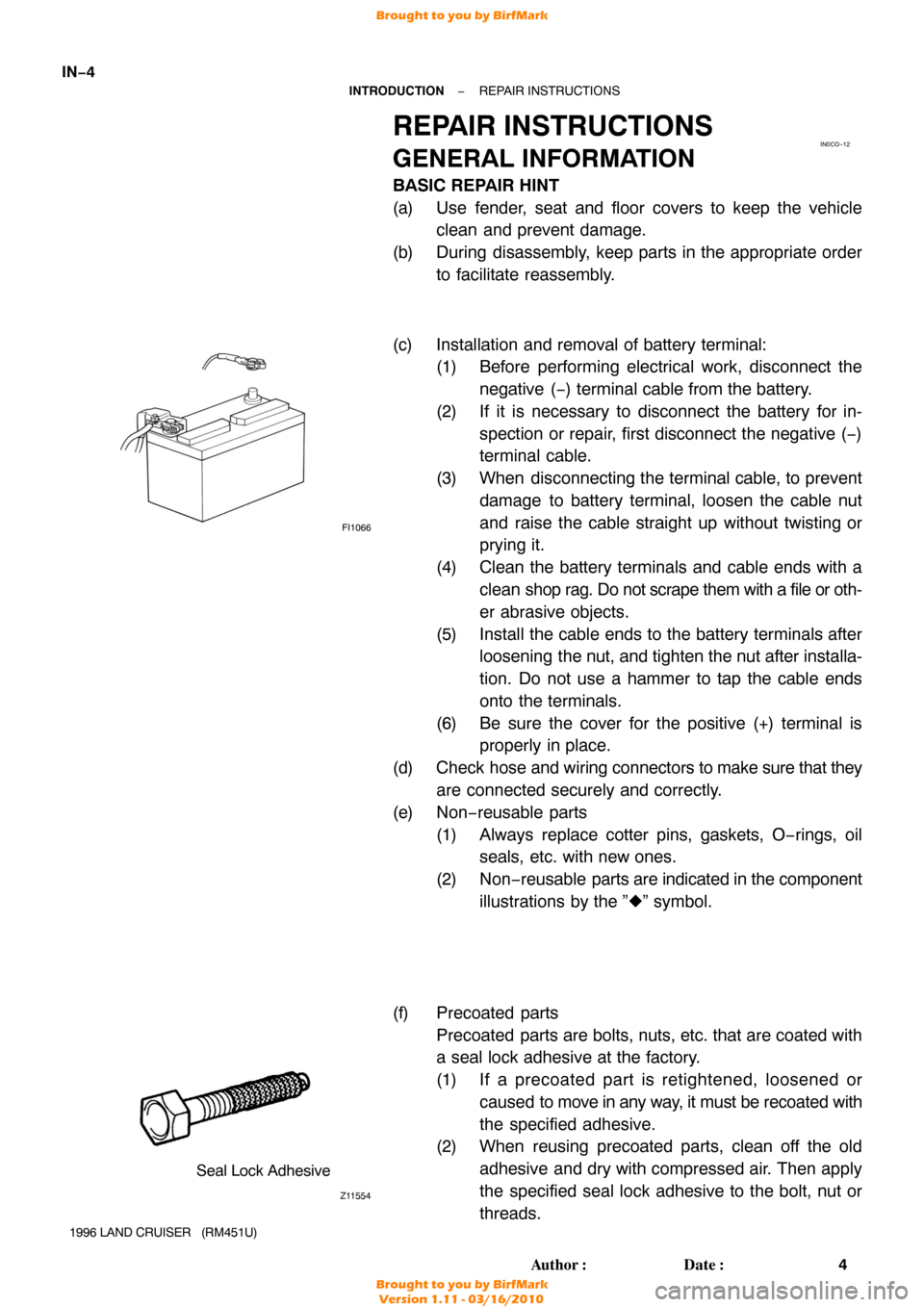

REPAIR INSTRUCTIONS
GENERAL INFORMATION
BASIC REPAIR HINT
(a) Use

Page 7 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual BE1367

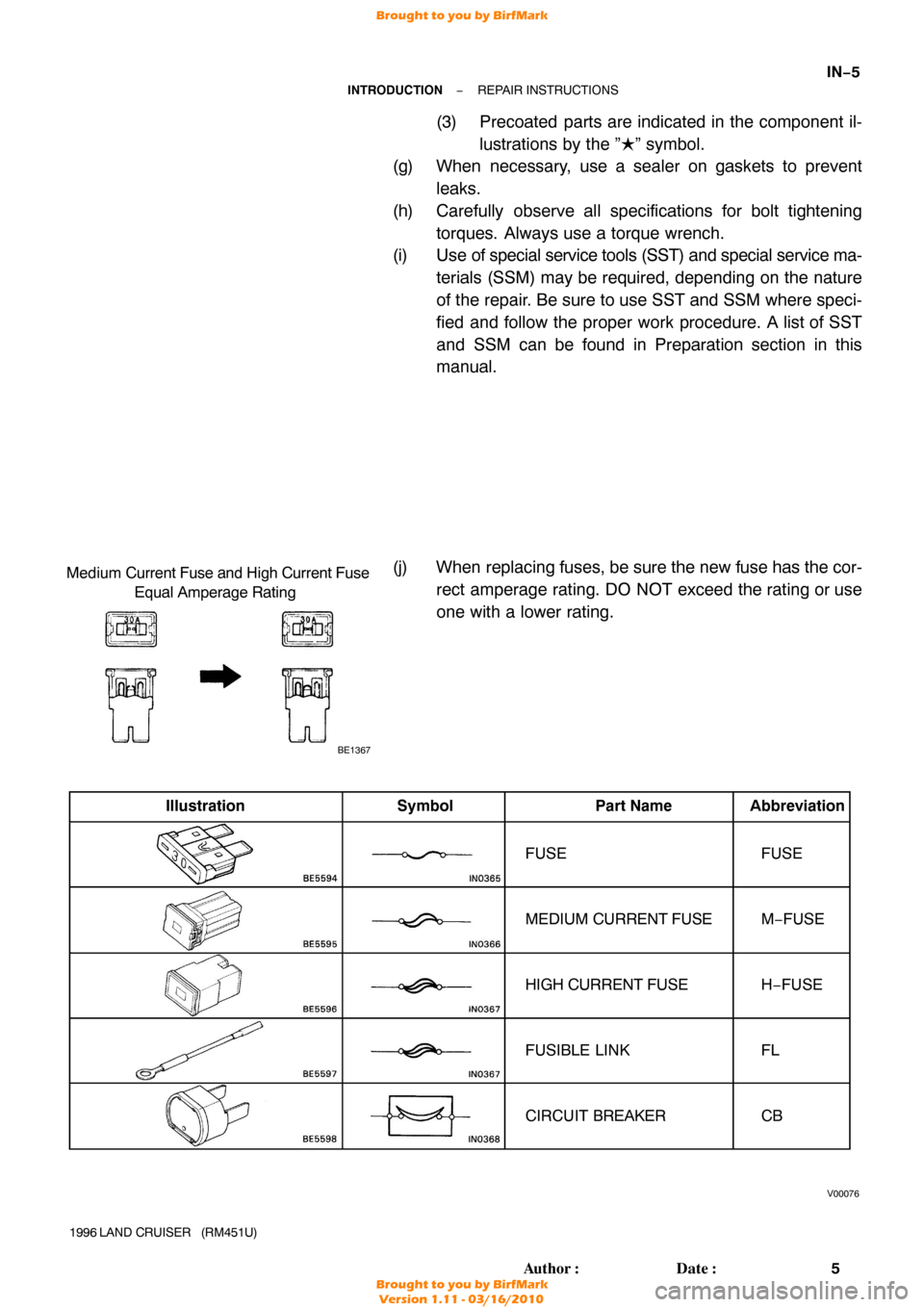

Medium Current Fuse and High Current Fuse
Equal Amperage Rating
V00076
Abbreviation
Part Name
Symbol
Illustration
FUSE
MEDIUM CURRENT  FUSE
HIGH CURRENT FUSE
FUSIBLE LINK
CIRCUIT  BREAKER FUSE

Page 8 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual IN0253
WRONGCORRECT
IN0252
WRONGCORRECT
IN−6
−
INTRODUCTION REPAIR INSTRUCTIONS
6
Author: Date:
1996 LAND  CRUISER   (RM451U)

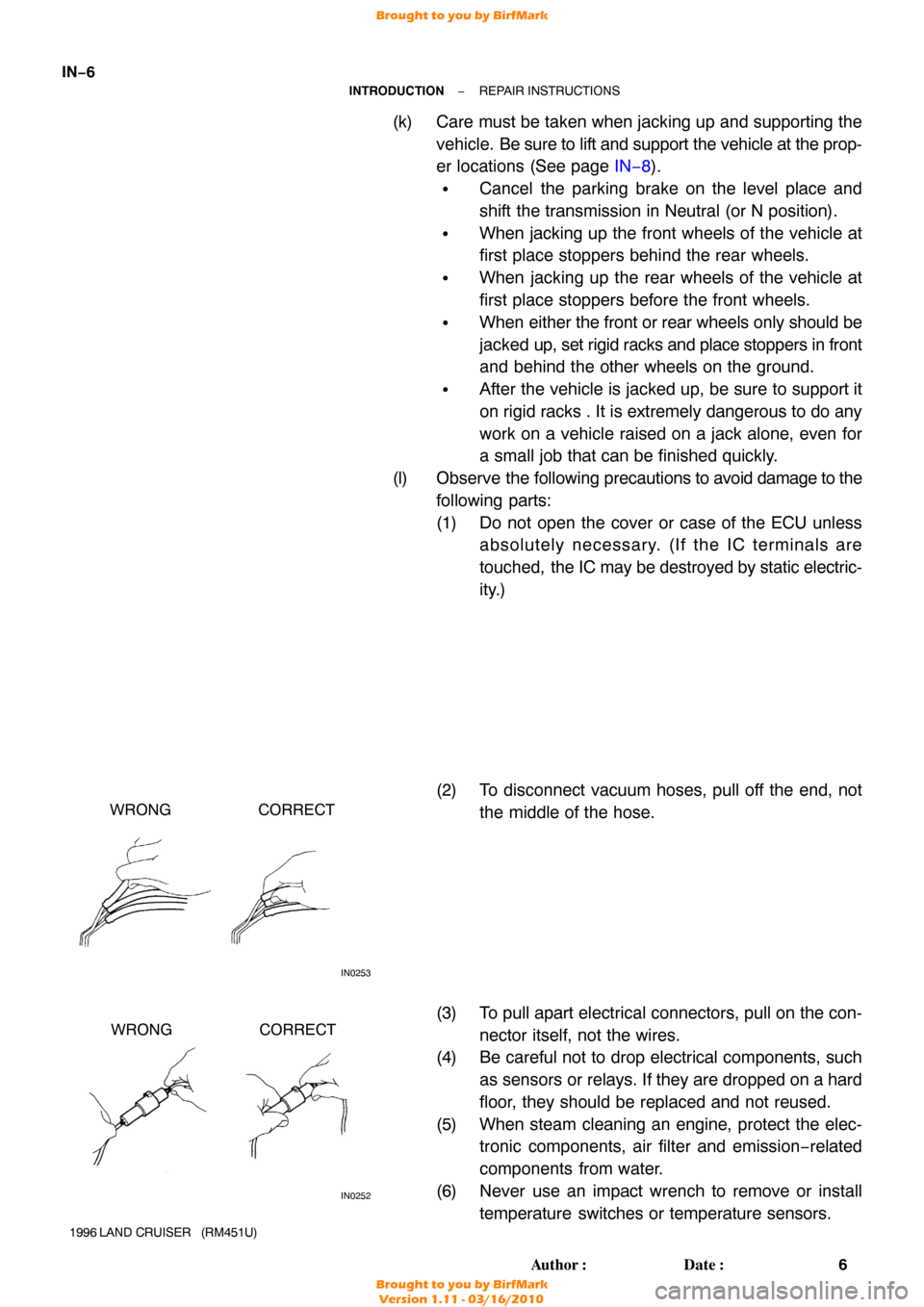

(k) Care must be taken when jacking up and supporting the
vehicle. B

Page 9 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual IN0002
Example
−
INTRODUCTION REPAIR INSTRUCTIONS
IN−7
7
Author: Date:
1996 LAND  CRUISER   (RM451U)
(7) When checking continuity at  the wire connector, in-
sert the tester probe carefully to p

Page 10 of 1399

TOYOTA LAND CRUISER 1996 J80 Workshop Manual IN0H2−01
Z00796

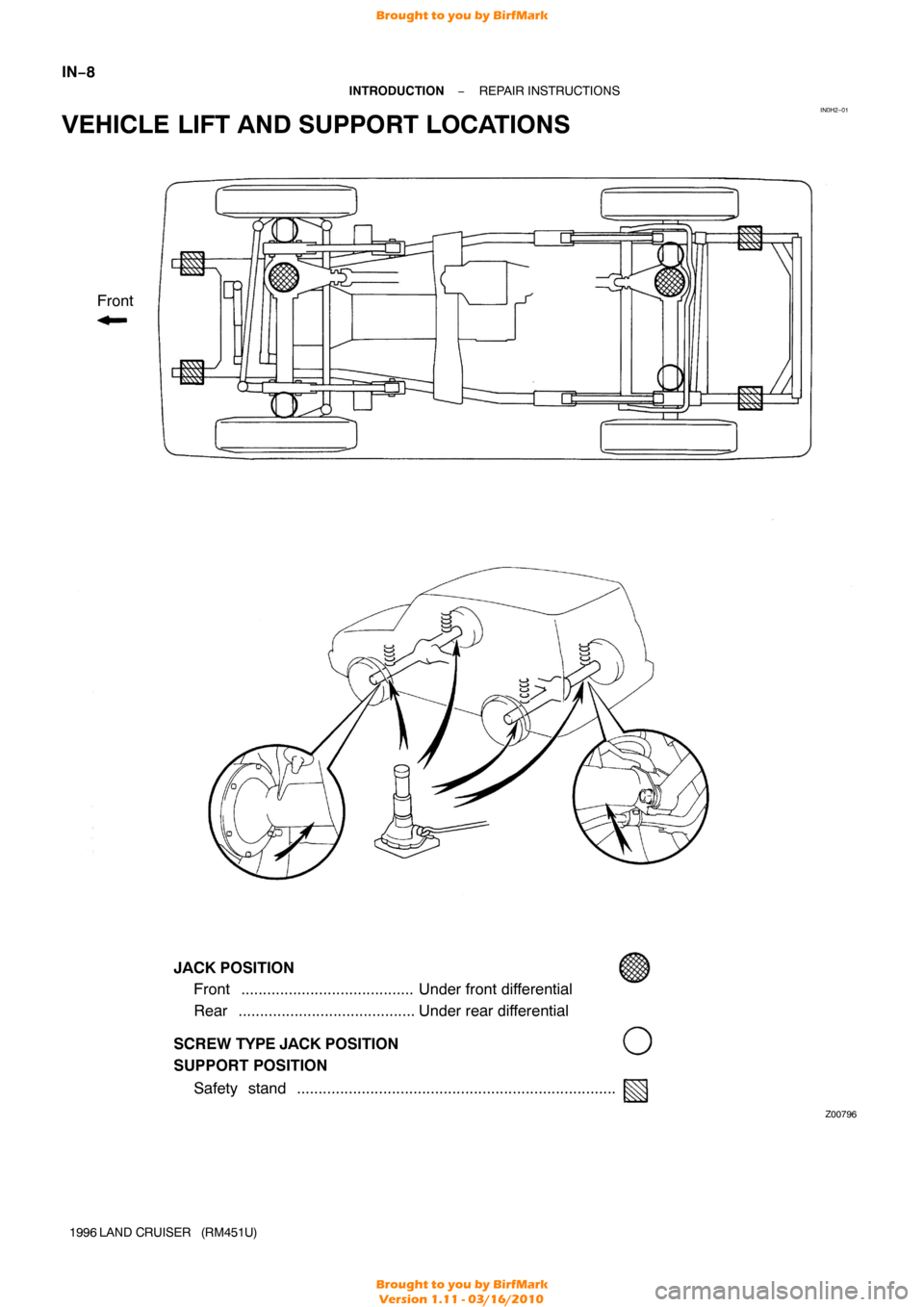

SUPPORT POSITIONRear  ......................................... Under rear differential
Safety stand ...........................................................\
...............
JACK
