TOYOTA LAND CRUISER 1998 Factory Repair Manual

BODY PANEL REPLACEMENTRE-59

mm in.
600
23.62
INSTALLATION
Cut Location
600 mm
1. Cut the new parts at the location as shown
above.
2. Plug weld the overlapping portion of the new
parts.
HINT: Be sure the portion to be welded are align and
not loose.
3. Coat the overlapping opening portion from the
both sides with body sealer.
BODY PANEL REPLACEMENTRE-60

BODY PANEL REPLACEMENTRE-61

REAR FLOOR SIDE REAR CENTER MEMBER
(ASSY)
REMOVAL (With the body lower back panel, rear floor pan
removed.)
BODY PANEL REPLACEMENTRE-62

INSTALLATION
BODY PANEL REPLACEMENTRE-63

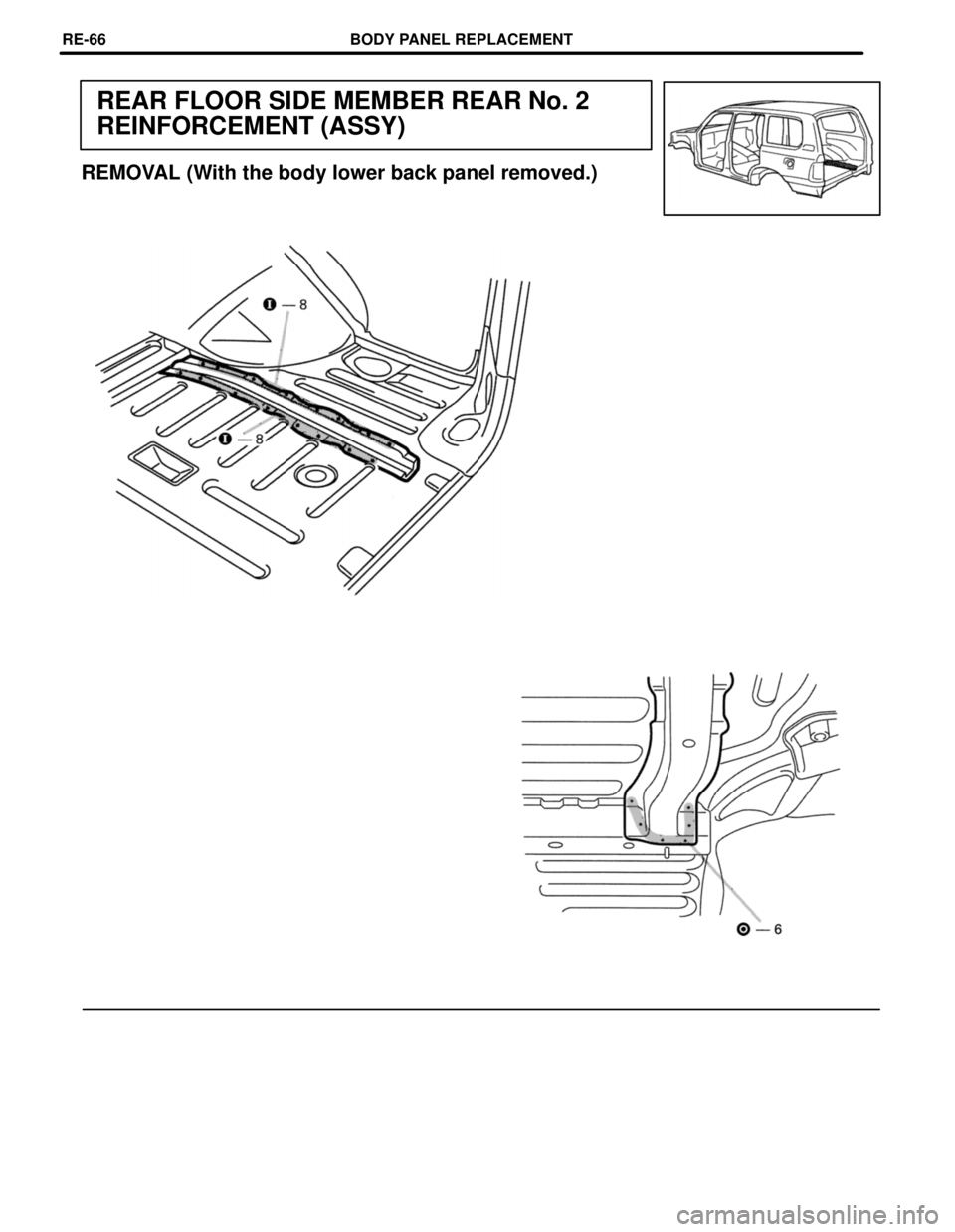

REAR FLOOR No. 3 CROSSMEMBER (ASSY)
REMOVAL (With the rear floor pan removed.)
BODY PANEL REPLACEMENTRE-64

INSTALLATION
BODY PANEL REPLACEMENTRE-65

REAR FLOOR SIDE MEMBER REAR No. 2
REINFORCEMENT (ASSY)
REMOVAL (With the body lower back panel removed.)
BODY PANEL REPLACEMENTRE-66

INSTALLATION
BODY PANEL REPLACEMENTRE-67

REAR FLOOR SIDE PANEL (ASSY): Right Side
REMOVAL (With the back door opening reinforcement
removed.)
BODY PANEL REPLACEMENTRE-52
