TOYOTA LAND CRUISER 1998 Factory Repair Manual

(Three-Dimensional Distance)
mm (in.)
Hole dia.
8 (0.31) nut
14 (0.55) nut Name
Stopper lubber installation nut
Hook installation nut Symbol
D, d
E, e Hole dia.
14 (0.55) nut
8 (0.31) nut
16y16 (0.63
y0.63)
Name
Hook installation nut
Under cover installation nut
Frame side rail standard hole Symbol
A, a
B, b
C, c

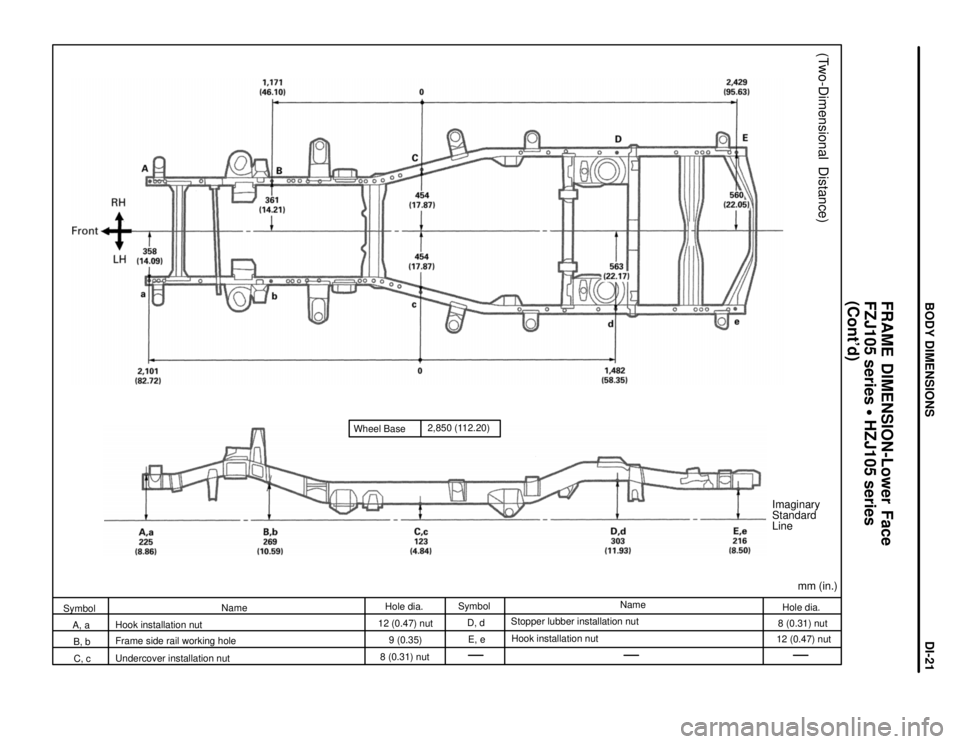

FRAME DIMENSION-Lower Face
UZJ100 series
w HDJ100,101 series w FZJ100 series
BODY DIMENSIONSDI-16

Imaginary
Standard
Line
mm (in.)
(Two-Dimensional Distance)
Hole dia.
8 (0.31) nut
14 (0.55) nut Name
Stopper lubber installation nut
Hook installation nut Symbol
D, d
E, e Hole dia.
14 (0.55) nut
8 (0.31) nut
16y16 (0.63
y0.63)
Name
Hook installation nut
Undercover installation nut
Frame side rail standard hole Symbol
A, a
B, b
C, c

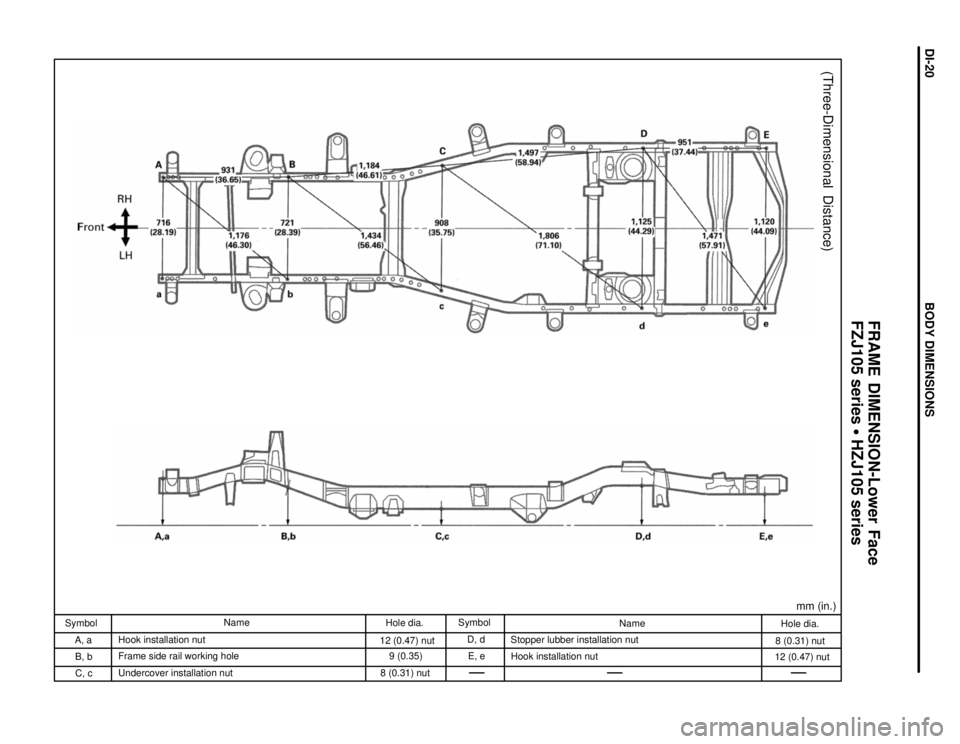

FRAME DIMENSION-Lower Face
UZJ100 series
w HDJ100, 101 series w FZJ100
series (Cont'd)
BODY DIMENSIONSDI-17

mm (in.)
(Three-Dimensional Distance)
Hole dia.
14 (0.55)
9 (0.35) Name
Frame side rail standard hole
Frame side rail working hole Symbol
C, c
D, d Hole dia.
12 (0.47) nut
10 (0.39) Name
Winch installation nut
Insulator installation hole Symbol
A, a
B, b
FRAME DIMENSION-Upper Face
FZJ105 series
w HZJ105 series
BODY DIMENSIONSDI-18

Wheel Base2,850 (112. 20)
mm (in.) Imaginary
Standard
Line
(Two-Dimensional Distance)
Hole dia.
14 (0.55)
9 (0.35) Name
Frame side rail standard hole
Frame side rail working hole Symbol
C, c
D, d Hole dia.
12 (0.47) nut
10 (0.39) Name
Winch installation nut
Insulator installation hole Symbol
A, a
B, b
FRAME DIMENSION-Upper Face
FZJ105 series
w HZJ105 series
(Cont'd)
BODY DIMENSIONSDI-19

(Three-Dimensional Distance)
mm (in.)
Hole dia.
8 (0.31) nut
12 (0.47) nut Name
Stopper lubber installation nut
Hook installation nut Symbol
D, d
E, e Hole dia.
12 (0.47) nut
9 (0.35)
8 (0.31) nut Name
Hook installation nut
Frame side rail working hole
Undercover installation nut Symbol
A, a
B, b
C, c

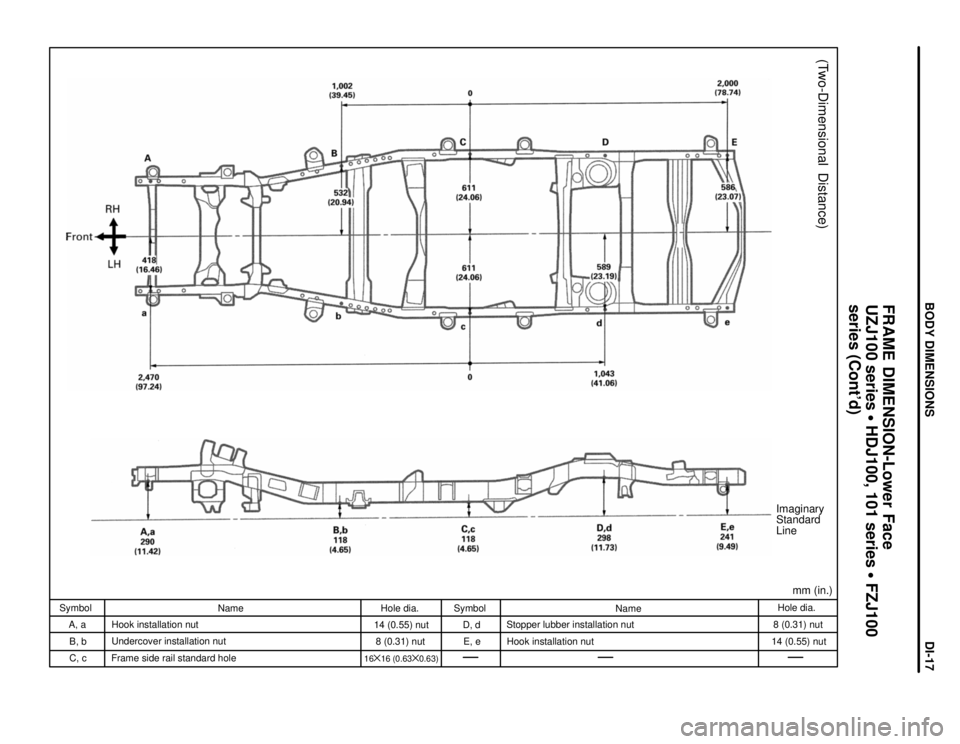

FRAME DIMENSION-Lower Face
FZJ105 series
w HZJ105 series
BODY DIMENSIONSDI-20

Wheel Base2,850 (112.20)
Imaginary
Standard
Line
(Two-Dimensional Distance)
mm (in.)
Hole dia.
8 (0.31) nut
12 (0.47) nut Name
Stopper lubber installation nut
Hook installation nut Symbol
D, d
E, e Hole dia.
12 (0.47) nut
9 (0.35)
8 (0.31) nut Name
Hook installation nut
Frame side rail working hole
Undercover installation nut Symbol
A, a
B, b
C, c
FRAME DIMENSION-Lower Face
FZJ105 series
w HZJ105 series
(Cont'd)
BODY DIMENSIONSDI-21

*1
401(15.79)
*3*2
959 (37.76)
503 (19.80)
(Three-Dimensional Distance)
mm (in.)
Hole dia.
14.5 (0.571)
30 (1.18)
14.5 (0.571)
14.5 (0.571)
70 (2.76) Name
Lower control link installation hole
Body mounting hole
Upper control link installation hole
Lateral control rod installation hole
Body mounting hole Symbol
G, g
H, h
I, i
K, k Hole dia.
24 (0.94)
20 (0.79)
29.5 (1.161)
48 (1.89)
60 (2.36)
30 (1.18) Name
Body mounting hole
Suspension lower arm installation hole
Shock absorber installation hole
Suspension lower arm installation hole
Body mounting hole
Body mounting hole Symbol
A, a
B, b
C, c
D, d
E, e
F, f

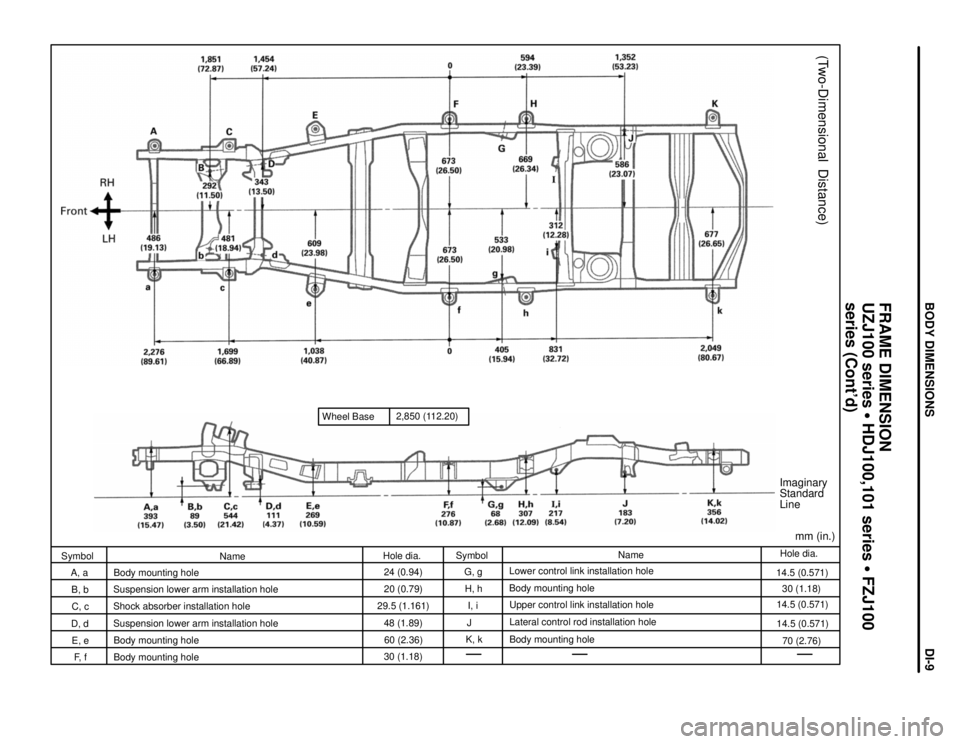

FRAME DIMENSION
UZJ100 series
w HDJ100, 101 series w FZJ100 series
BODY DIMENSIONSDI-8

Wheel Base2,850 (112.20)
Imaginary
Standard
Line
mm (in.)
(Two-Dimensional Distance)
Hole dia.
14.5 (0.571)
30 (1.18)
14.5 (0.571)
14.5 (0.571)
70 (2.76) Name
Lower control link installation hole
Body mounting hole
Upper control link installation hole
Lateral control rod installation hole
Body mounting hole Symbol
G, g
H, h
I, i
J
K, k Hole dia.
24 (0.94)
20 (0.79)
29.5 (1.161)
48 (1.89)
60 (2.36)
30 (1.18) Name
Body mounting hole
Suspension lower arm installation hole
Shock absorber installation hole
Suspension lower arm installation hole
Body mounting hole
Body mounting hole Symbol
A, a
B, b
C, c
D, d
E, e
F, f
FRAME DIMENSION
UZJ100 series
w HDJ100,101 series w FZJ100
series (Cont'd)
BODY DIMENSIONSDI-9

GENERAL INFORMATION
1. BASIC DIMENSIONS
(a) There are two types of dimensions in the diagram.
(Three-dimensional distance)

Straight-line distance between the centers of two
measuring points.
(Two-dimensional distance)

Horizontal distance in forward/rearward between
the centers of two measuring points.

The height from an imaginary standard line.
(b) In cases in which only one dimension is given, left
and right are symmetrical.
(c) The dimensions in the following drawing indicate
actual distance. Therefore, please use the dimen-
sions as a reference.
2. MEASURING
(a) Basically, all measurements are to be done with a
tracking gauge. For portions where it is not possible
to use a tracking gauge, a tape measure should be
used.
(b) Use only a tracking gauge that has no looseness in
the body, measuring plate, or pointers.
HINT:
1. The height of the left and right pointers must be equal.
2. Always calibrate the tracking gauge before measuring or
after adjusting the pointer height.
3. Take care not to drop the tracking gauge or otherwise
shock it.
4. Confirm that the pointers are securely in the holes.
(c) When using a tape measure, avoid twists and
bends in the tape.
(d) When tracking a diagonal measurement from the
front spring support inner hole to the suspension
member upper rear installation hole, measure
along the front spring support panel surface.
Center-to-center
straight-line
distance Three-dimensional
distance
Front Spring Support Inner Hole
Tape Measure
Along Body
Surface
Front Suspension Member Rear Side
Upper Installation HoleMaster Gauge PointerPointer LoosenessBody LoosenessPlate Looseness Two-dimensional
distanceCenter-to-center
Horizontal distance in
forward/rearward
Vertical distance
in lower surface Vertical distance
in center
Imaginary Standard Line
WrongCorrect
Pointer
BODY DIMENSIONSDI-2

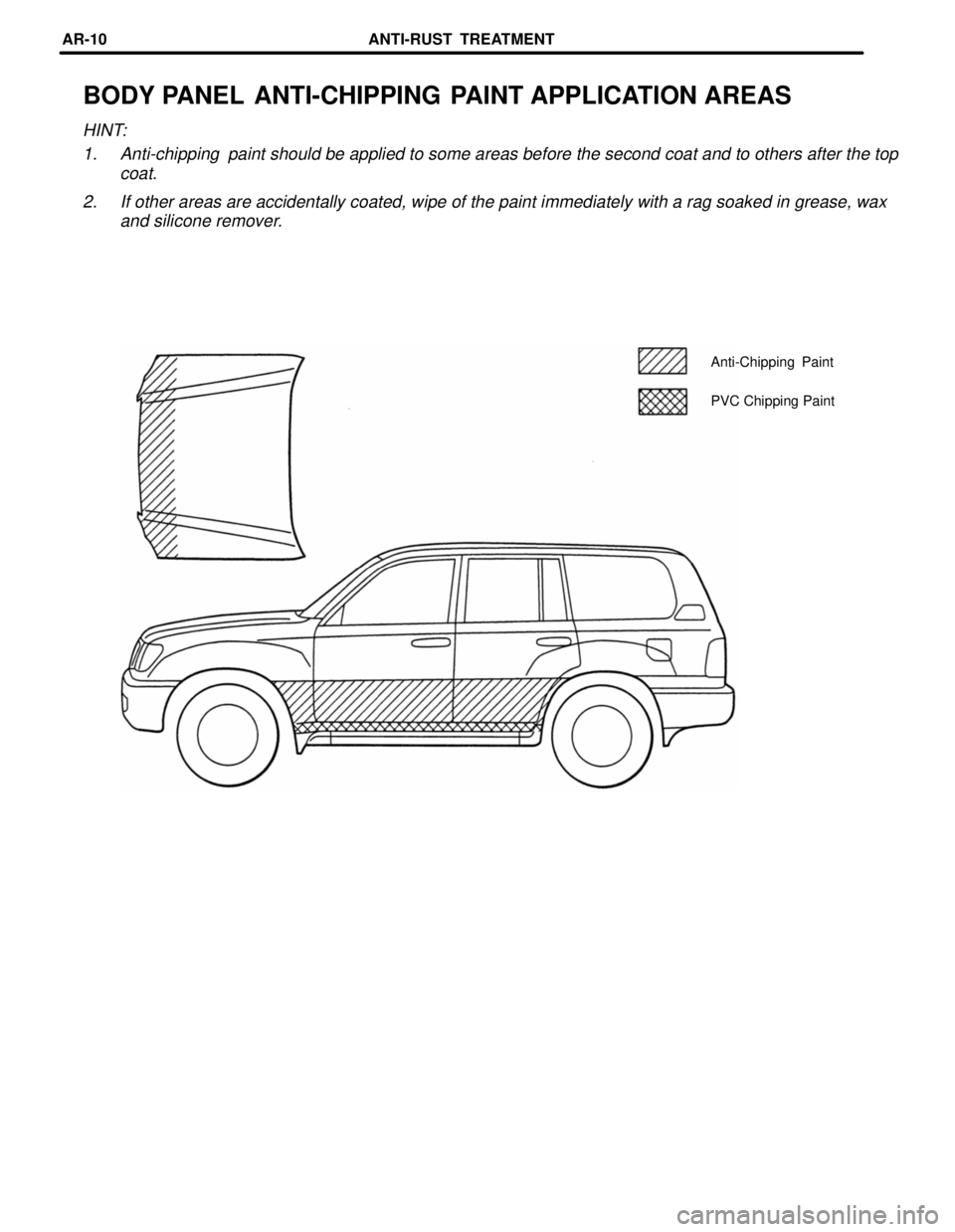

BODY PANEL ANTI-CHIPPING PAINT APPLICATION AREAS
HINT:
1. Anti-chipping paint should be applied to some areas before the second coat and to others after the top
coat.
2. If other areas are accidentally coated, wipe of the paint immediately with a rag soaked in grease, wax
and silicone remover.
Anti-Chipping Paint
PVC Chipping Paint
ANTI-RUST TREATMENTAR-10
