Air flow selectionSee ºLower ventº on page 46.

41


The automatic air conditioning auto-
matically maintains the set tempera-
ture.
This air conditioning features automatic
fan speed and air flow control which auto-
matically selects the most suitable fan
speed and air flow to control the tempera-
ture. The ignition key must be in the ºONº
position.
CLIMATE: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis- charged, do not leave the air condition-
ing on longer than necessary when the
engine is not running.
SETTING OPERATION - automatic con-
trol
UNC501
1. Push the ºAUTOº button.
Air flow quantity, switching of the diffusers,
on-of f of the air conditioning, and switching
of the air intake between RECIRCULATED
AIR and OUTSIDE AIR are automatically ad-
justed. The operation status is shown by
each indicator.
When one of the manual control buttons is
depressed while operating in automatic
mode, the mode relevant to the depressed
button is set. Other conditions continue to be
adjusted automatically. Push
the ºOFFº button to turn the air condi-
tioning off.
It is recommended that you close the lower
vent. For details about this, see page 46.
(a) Climate control

42
UNC502

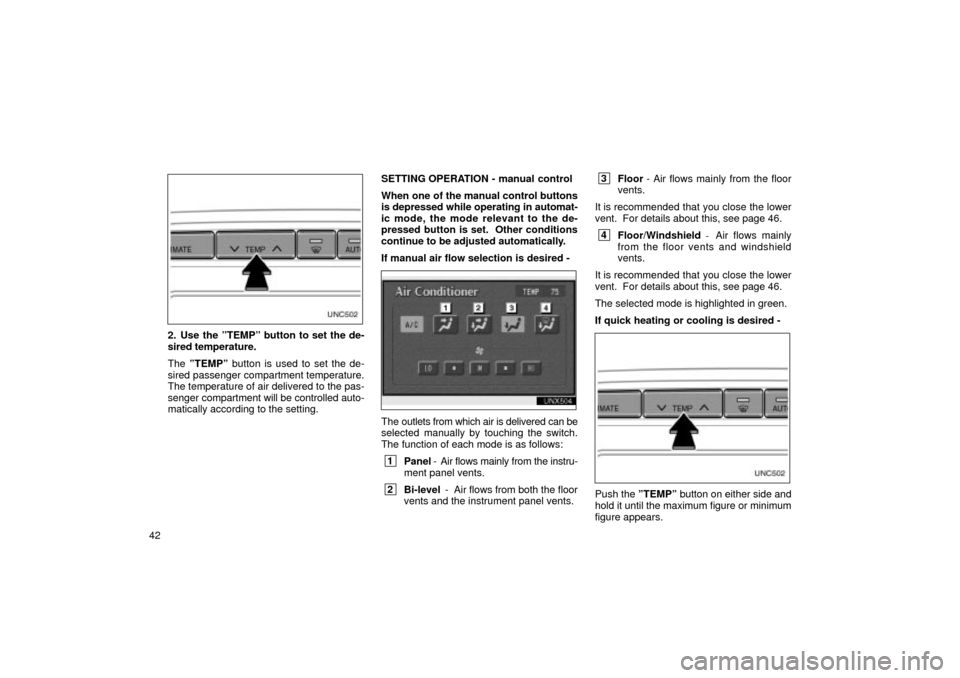

2. Use the ºTEMPº button to set the de-
sired temperature.
The ºTEMPº button is used to set the de-
sired passenger compartment temperature.
The temperature of air delivered to the pas-
senger compartment will be controlled auto-
matically according to the setting. SETTING OPERATION - manual control
When one of the manual control buttons
is depressed while operating in automat-
ic mode, the mode relevant to the de-
pressed button is set. Other conditions
continue to be adjusted automatically.
If manual air flow selection is desired -UNX504UNX504
The outlets from which air is delivered can be
selected manually by touching the switch.

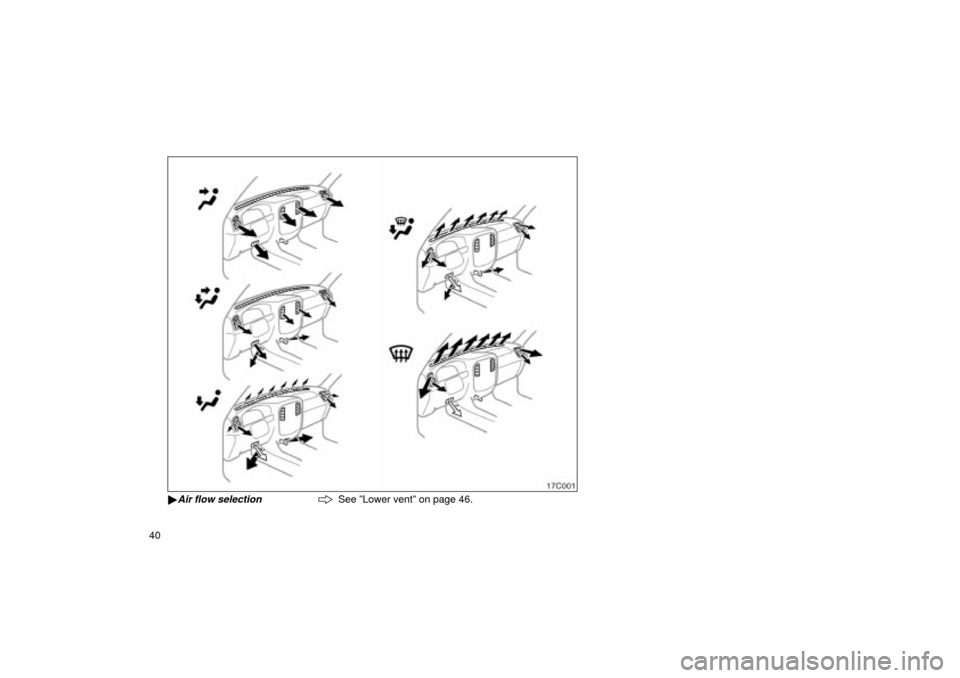

The function of each mode is as follows:
1
Panel - Air flows mainly from the instru-
ment panel vents.
2 Bi-level - Air flows from both the floor
vents and the instrument panel vents.
3 Floor - Air flows mainly from the floor
vents.
It is recommended that you close the lower
vent. For details about this, see page 46.
4 Floor/Windshield - Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the lower
vent. For details about this, see page 46.
The selected mode is highlighted in green.
If quick heating or cooling is desired -
UNC502
Push the ºTEMPº button on either side and
hold it until the maximum figure or minimum
figure appears.

43
If manual fan speed control is desired -

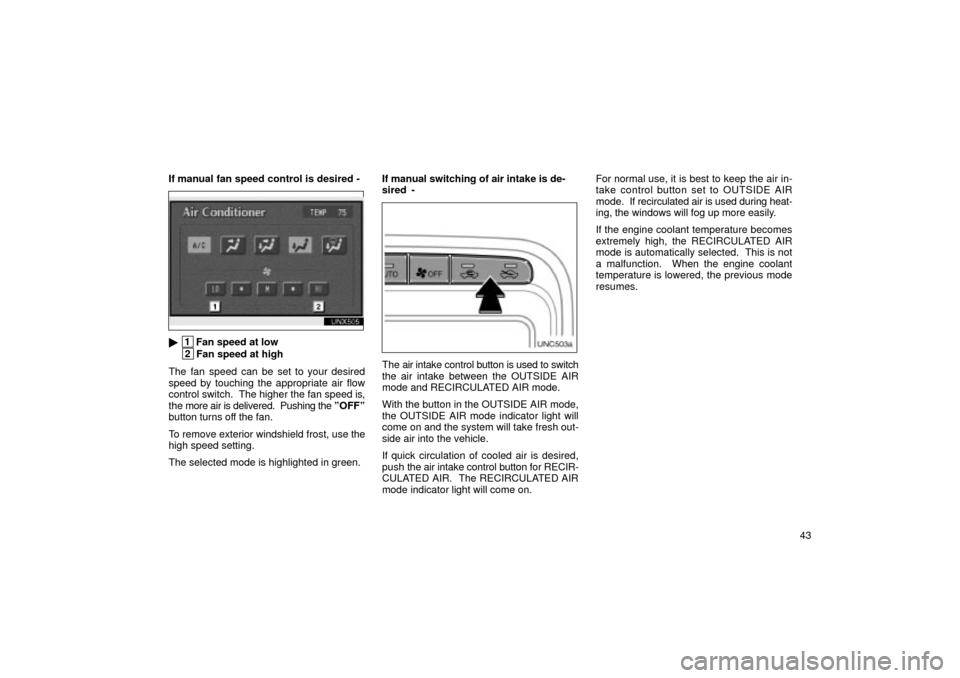

UNX505

1
Fan speed at low
2Fan speed at high
The fan speed can be set to your desired
speed by touching the appropriate air flow
control switch. The higher the fan speed is,
the more air is delivered. Pushing the ºOFFº
button turns off the fan.
To remove exterior windshield frost, use the
high speed setting.
The selected mode is highlighted in green. If manual switching of air intake is de-
sired -
UNC503
The air intake control button is used to switch
the air intake between the OUTSIDE AIR
mode and RECIRCULATED AIR mode.
With the button in the OUTSIDE AIR mode,
the OUTSIDE AIR mode indicator light will
come on and the system will take fresh out-
side air into the vehicle.
If quick circulation of cooled air is desired,
push the air int
ake control button for RECIR-
CULATED AIR. The RECIRCULATED AIR
mode indicator light will come on. For normal use, it is best to keep the air in-
take control button set to OUTSIDE AIR
mode. If recirculated air is used during heat-
ing, the windows will fog up more easily.
If the engine coolant temperature becomes
extremely high, the RECIRCULATED AIR
mode is automatically selected. This is not
a malfunction. When the engine coolant
temperature is lowered, the previous mode
resumes.

44In the following cases, the RECIRCULATED
mode may change to the OUTSIDE AIR
mode automatically to prevent interior fog.

When the outside temperature becomes
lower than 4 C (39F).
 When the air conditioning compressor
malfunctions.
 When the air conditioning cooler refriger-
ant decreases. If manual on-off of the air conditioning is
desired -
Push the ºA/Cº
button to turn the air condi-
tioning on and push it again to turn the air
conditioning off.
If the outside temperature is lowered down to
around 0 C (32F), the air conditioning will
turn off automatically.
If the system is used for ventilation, heating
in dry weather or removing frost or exterior
fog on the windshield, turn the air condition-
ing off once it is no longer required. This will
improve fuel economy. The air conditioning
can be used for year-round automatic tem-
perature control including cooling and dehu-
midifying operation.
If the air conditioning compressor does not
operate, the indicator of the ºA/Cº button will
blink. If the indicator of the ºA/Cº button
blinks even when the ºA/Cº button is pushed
again, have the compressor checked by
your nearest Toyota dealer.
UNC504
To remove interior fog on the windshield-
Push the ºFRONT WINDSHIELDº button.
To remove frost or exterior fog on the
windshield-
1. Push the upper side of the temperature control button until maximum figure ap-
pears on the temperature display.
2. Push the ºFRONT WINDSHIELDº but- ton.
(b) Windshield defogging and
defrosting

45
3. Push
the ºHIº of the air flow control switch
to obtain a maximum air flow.
4. Leave the air conditioning on-off button off.
For further information for removing frost and
fog, see ºLower ventº on page 46.
When the ºFRONT WINDSHIELDº button is
pushed while operating in automatic mode,
the air conditioning is set to operate and the
OUTSIDE AIR mode is set.
Push the ºA/Cº button for dehumidified heat-
ing or cooling. This setting clears the front
view more quickly.
If you push the ºFRONT WINDSHIELDº but-
ton once again while in the FRONT WIND-
SHIELD mode, the mode then returns to the
last mode used.
CAUTION
Do not use the ºFRONT WINDSHIELDº
button during cooled air operation in
extremely humid weather. The differ-
ence between the temperature of the
outside air and that of the windshield
could cause the outer surface of the
windshield to fog up blocking your vi-
sion.
(c) Rear air conditioning switch
UNC505
To turn on the rear air conditioning when
you sit on the front seat, push this switch.
The rear air conditioning operates in the
automatic mode. To adjust the air flow
and setting temperature, follow the steps
in accordance with ºRear air conditioning
controlsº in the Owner's Manual.

46
I17070

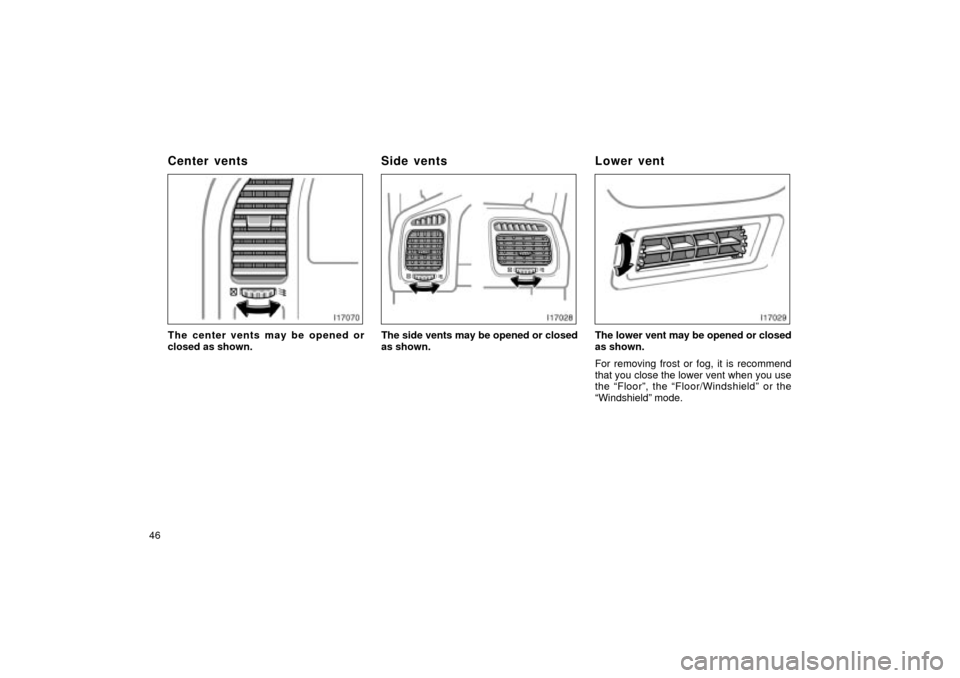

The center vents may be opened or
closed as shown.
I17028
The side vents may be opened or closed
as shown.
I17029
The lower vent may be opened or closed
as shown.
For removing frost or fog, it is recommend
that you close the lower vent when you use
the Floorº, the Floor/Windshieldº or the
Windshieldº mode.
Center ventsSide vents Lower vent

47

SECTION VI
1
AUDIO SYSTEM
Audio system2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .

UNC003
2
Audio System

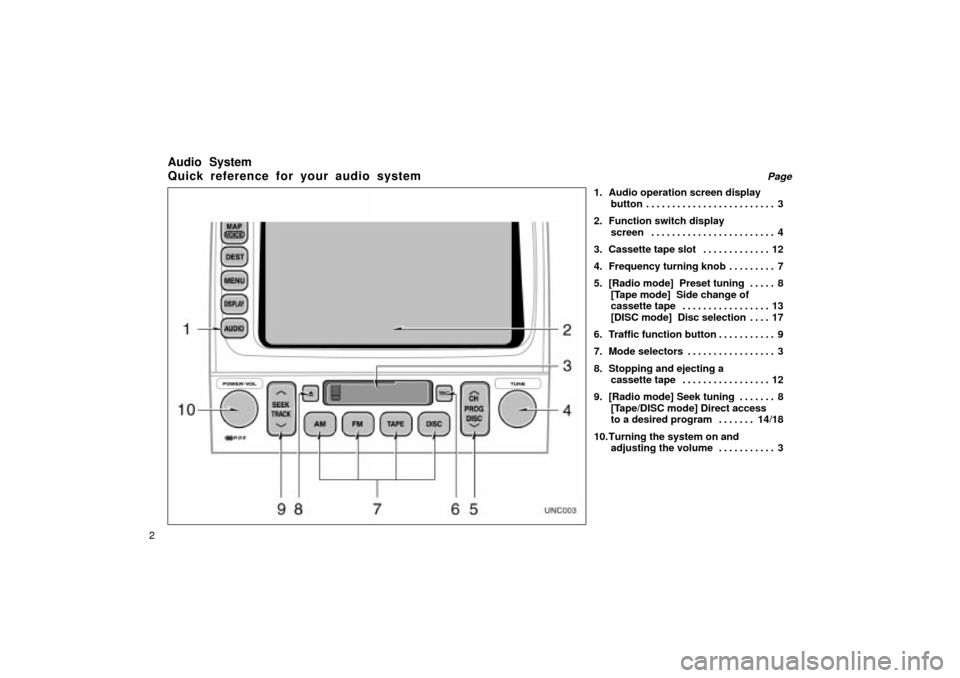

Quick reference for your audio system
