TOYOTA LAND CRUISER 2003 J100 Navigation Manual

23
2003 Land Cruiser 100 Navigation (OM60A00U)
Touch the “Detour” switch of “Re-
stricted road” to search for a route other
than restricted road.
Touching the
“Allow” switch on each item
allows to use it.
The switches you select are highlighted in
green. After choosing conditions, touch the
“OK” switch.
1UE038

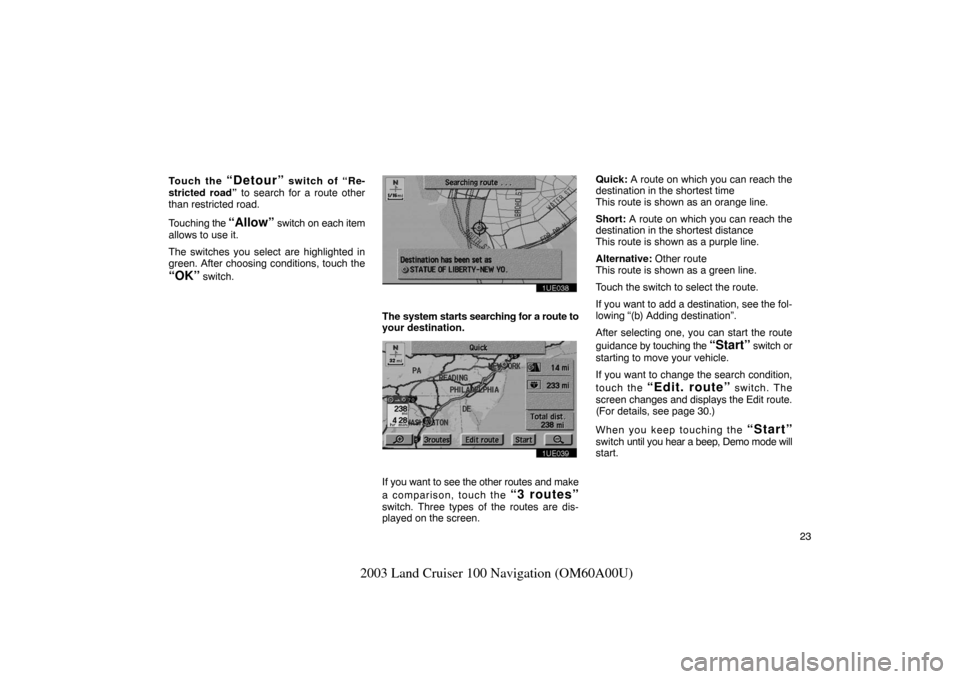

The system starts searching for a route to
your destination.
1UE039
If you want to see the other routes and make
a comparison, touch the
“3 routes”
switch. Three types of the routes are dis-
played on the screen. Quick:
A route on which you can reach the
destination in the shortest time
This route is shown as an orange line.
Short: A route on which you can reach the
destination in the shortest distance
This route is shown as a purple line.
Alternative: Other route
This route is shown as a green line.
Touch the switch to select the route.
If you want to add a destination, see the fol-
lowing “(b) Adding destination”.
After selecting one, you can start the route
guidance by touching the
“Start” switch or
starting to move your vehicle.
If you want to change the search condition,
touch the
“Edit. route” switch. The
screen changes and displays the Edit route.
(For details, see page 30.)
When you keep touching the
“Start”
switch until you hear a beep, Demo mode will
start.

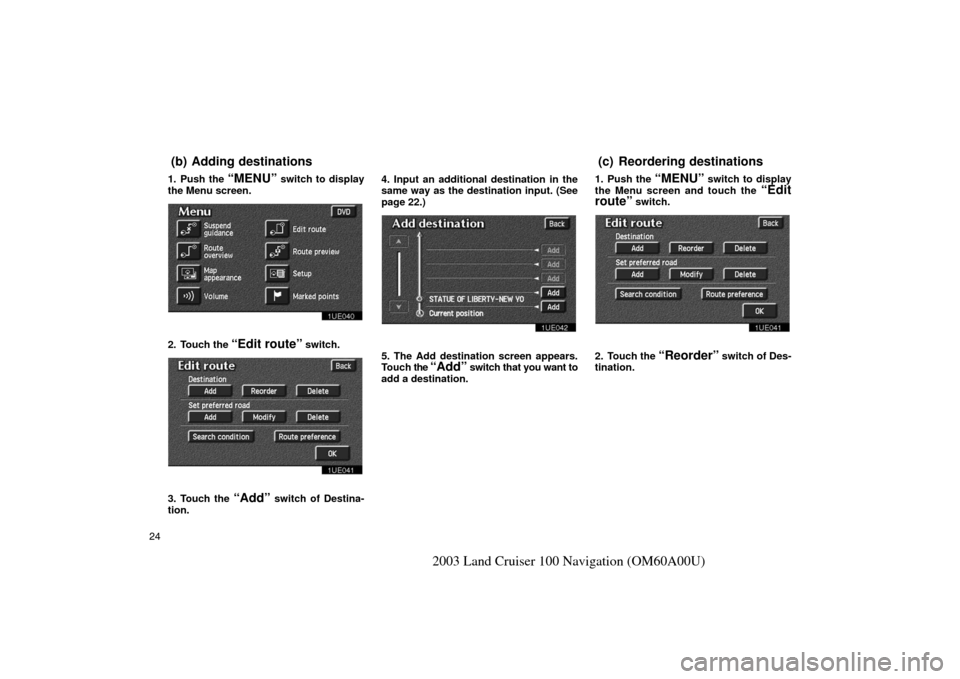

24
2003 Land Cruiser 100 Navigation (OM60A00U)
1. Push the “MENU” switch to display
the Menu screen.
1UE040
2. Touch the “Edit route” switch.
1UE041
3. Touch the “Add” switch of Destina-
tion. 4. Input an additional destination in the
same way as the destination input. (See
page 22.)
1UE042
5. The Add destination screen appears.
Touch
the “Add” switch that you want to
add a destination. 1. Push the
“MENU” switch to display
the Menu screen and touch the “Edit
route” switch.
1UE041
2. Touch the “Reorder” switch of Des-
tination.
(b) Adding destinations(c) Reordering destinations

25
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE043

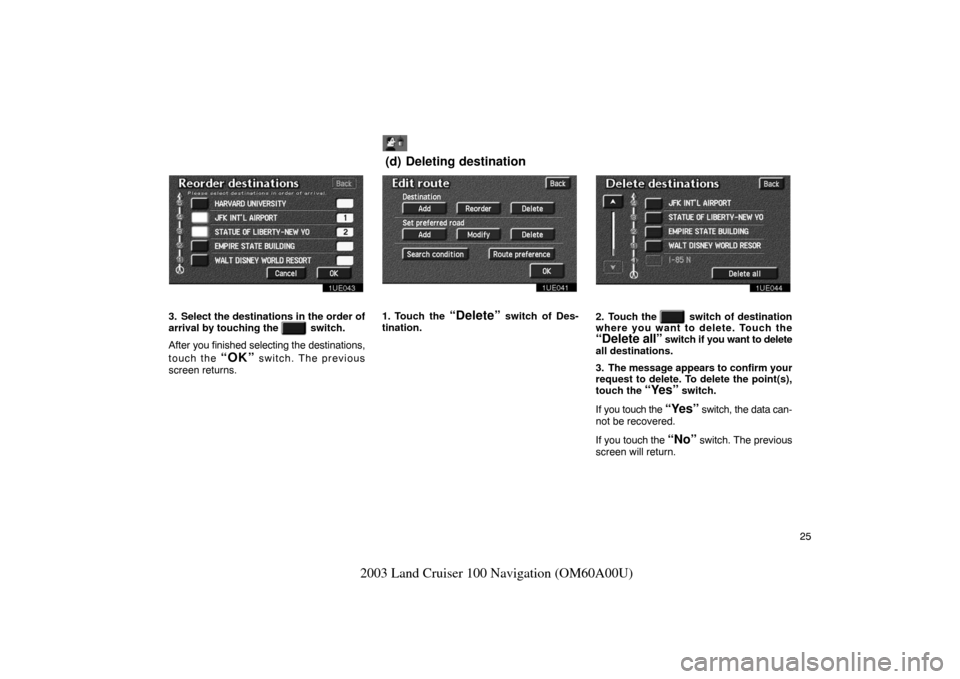

3. Select the destinations in the order of
arrival by touching the
switch.
After you finished selecting the destinations,
touch the
“OK” switch. The previous
screen returns.
1UE041
1. Touch the “Delete” switch of Des-
tination.
1UE044
2. Touch the switch of destination
where you want to delete. Touch the
“Delete all” switch if you want to delete
all destinations.
3. The message appears to confirm your
request to delete. To delete the point(s),
touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you touch the
“No” switch. The previous
screen will return.
(d) Deleting destination

26
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE040

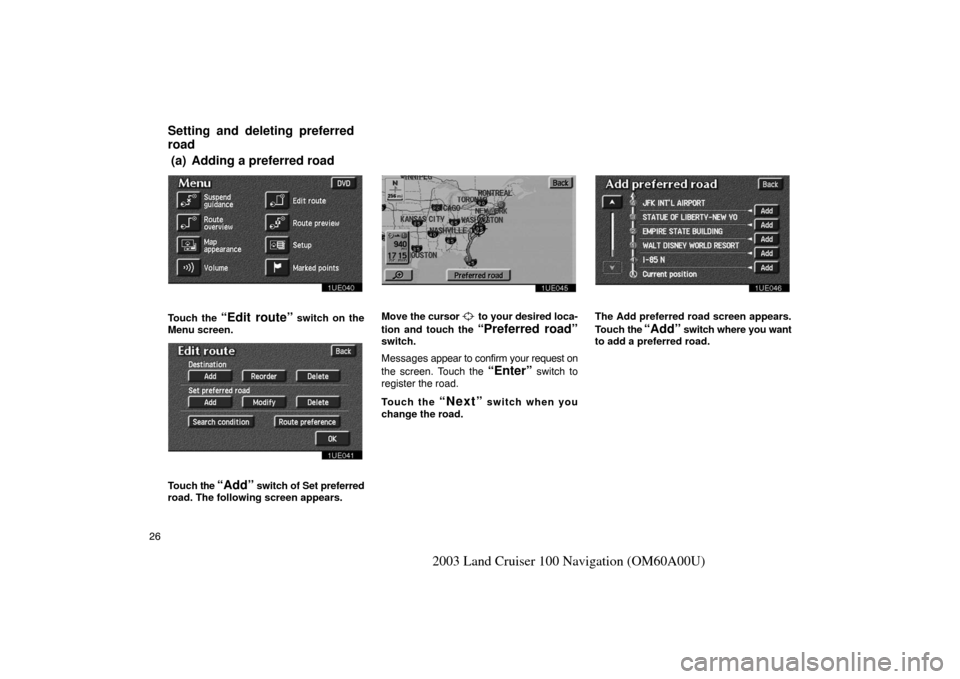

Touch the “Edit route” switch on the
Menu screen.
1UE041
Touch the “Add” switch of Set preferred
road. The following screen appears.
1UE045
Move the cursor to your desired loca-
tion and touch the
“Preferred road”
switch.
Messages appear to confirm your request on
the screen. Touch the
“Enter” switch to
register the road.
Touch the
“Next” switch when you
change the road.
1UE046
The Add preferred road screen appears.
Touch the
“Add” switch where you want
to add a preferred road.
Setting and deleting preferred
r
oad
(a) Adding a preferred road

27
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE041

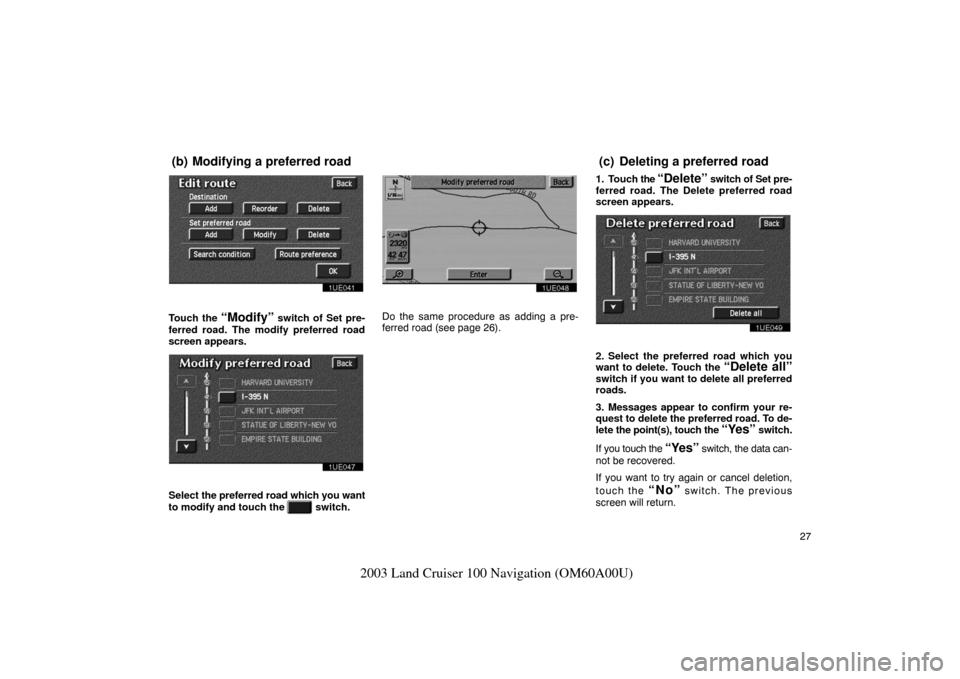

Touch the “Modify” switch of Set pre-
ferred road. The modify preferred road
screen appears.
1UE047
Select the preferred road which you want
to modify and touch the
switch.
1UE048
Do the same procedure as adding a pre-
ferred road (see page 26). 1. Touch
the
“Delete” switch of Set pre-
ferred road. The Delete preferred road
screen appears.
1UE049
2. Select the preferred road which you
want to delete. Touch the “Delete all”switch if you want to delete all preferred
roads.
3. Messages appear to confirm your re-
quest to delete the preferred road. To de-
lete the point(s), touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you want to try again or cancel deletion,
touch the
“No” switch. The previous
screen will return.
(b) Modifying a preferred road(c) Deleting a preferred road

28
2003 Land Cruiser 100 Navigation (OM60A00U)

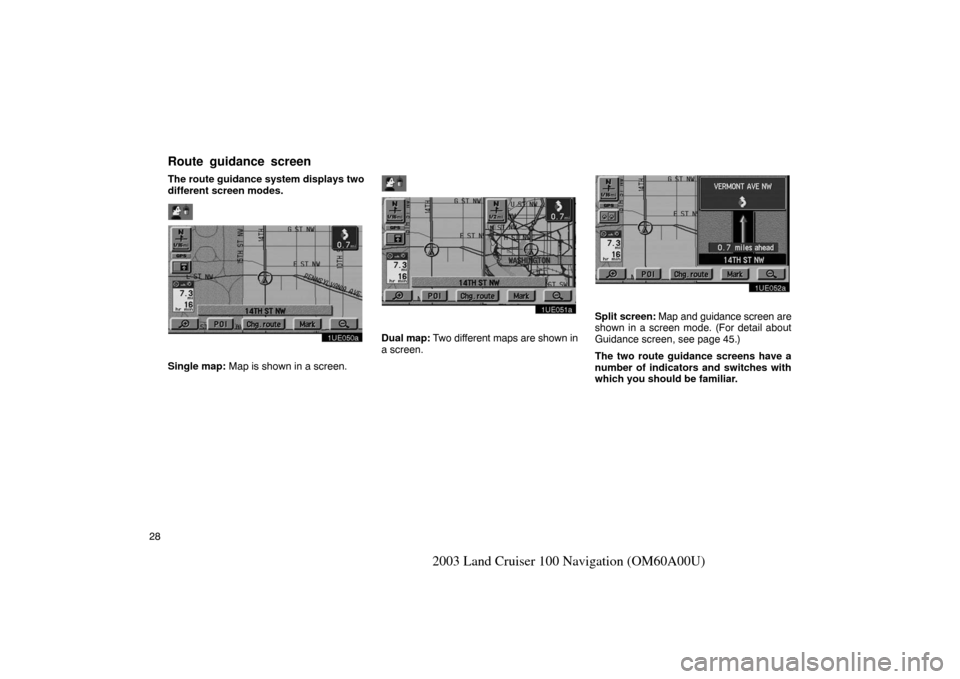

The route guidance system displays two
different screen modes.
1UE050a
Single map: Map is shown in a screen.
1UE051a
Dual map: Two different maps are shown in
a screen.
1UE052a
Split screen: Map and guidance screen are
shown in a screen mode. (For detail about
Guidance screen, see page 45.)
The two route guidance screens have a
number of indicators and switches with
which you should be familiar.
Route guidance screen

29
2003 Land Cruiser 100 Navigation (OM60A00U)
Map/guidance:
To change the screen mode.
Upon reception of signals from
the GPS (Global Positioning
System), this mark appears.
(For details, see page 50.)
These switches magnify or re-
duce the map scale. (For de-
tails, see page 48.)
Touch this switch, and sym-
bols of points of interest are
shown on the screen. (For de-
tails, see page 43.)
Touch this switch for one −touch
registration of the marked point.
(For details, see page 73.)
INFORMATION
 The distance to your destination ap-
pears on the left of the screen.
 The time to your destination can also
be displayed. (For the setting steps,
see page 84.)
The Change route screen
appears and the following
settings are available.
1UE053
Search condition: To change the condition
for Reroute.
Detour: To change the condition for Detour.
(For details, see page 42.)
Del. next dest.: To delete and skip the next
destination.

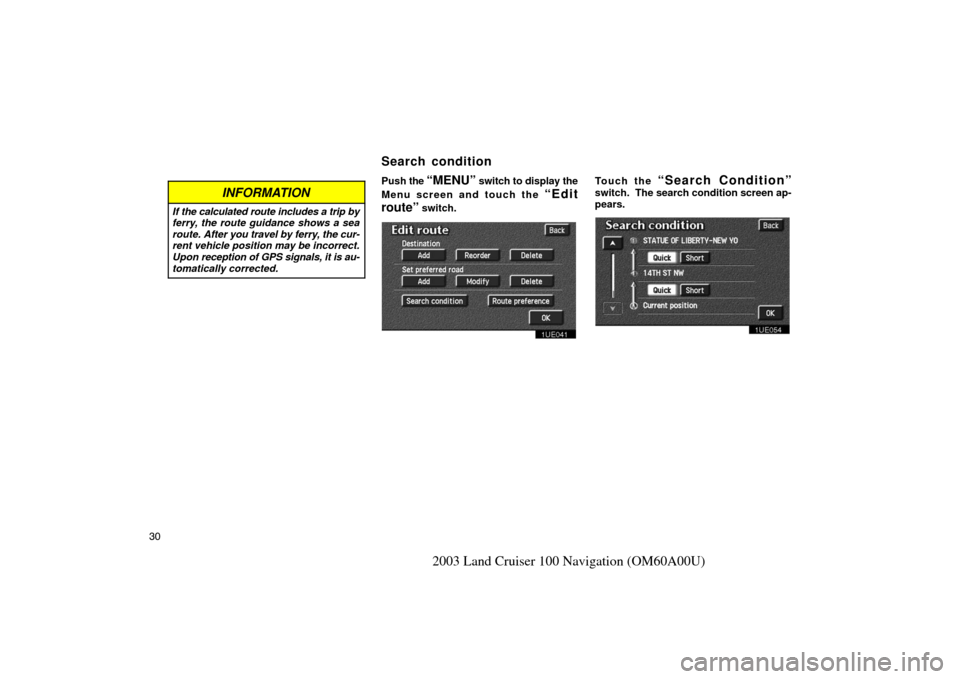

30
2003 Land Cruiser 100 Navigation (OM60A00U)
INFORMATION
If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After you travel by ferry, the cur-
rent vehicle position may be incorrect.
Upon reception of GPS signals, it is au-
tomatically corrected.
Push the “MENU” switch to display the
Menu screen and touch the
“Edit
route”
switch.
1UE041
Touch the “Search Condition”
switch. The search condition screen ap-
pears.
1UE041
Search condition

31
2003 Land Cruiser 100 Navigation (OM60A00U)

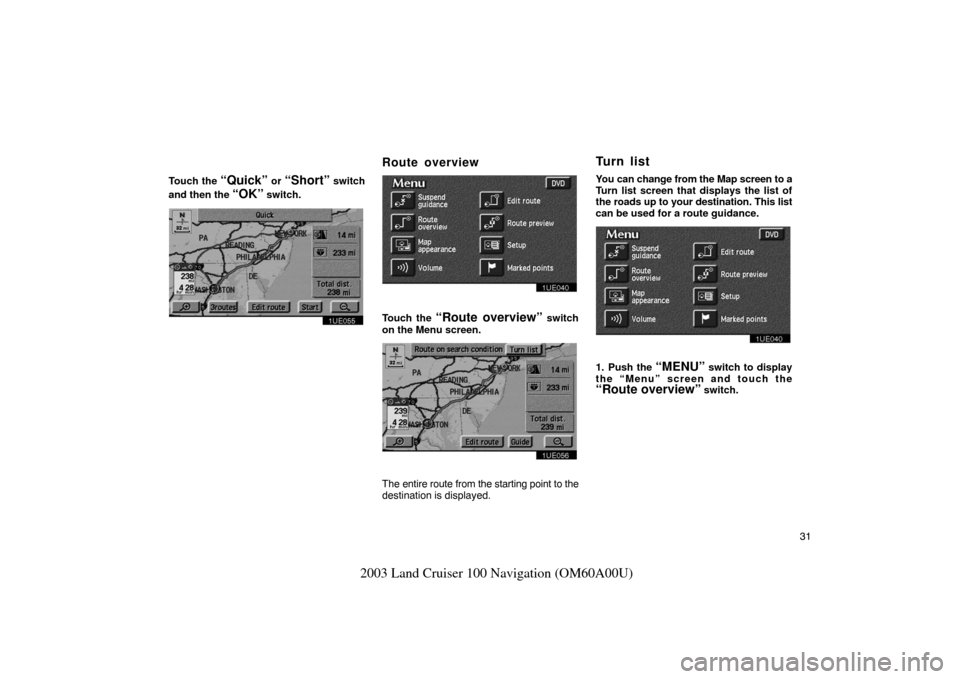

Touch the “Quick” or “Short” switch
and then the
“OK” switch.
1UE055
Route overview
1UE040
Touch the “Route overview” switch
on the Menu screen.
1UE056
The entire route from the starting point to the
destination is displayed. You can change from the Map screen to a
Turn list screen that displays the list of
the roads up to your destination. This list
can be used for a route guidance.
1UE040
1. Push the “MENU” switch to display
the “Menu” screen and touch the
“Route overview” switch.
Tu r n l i s t

32
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE076

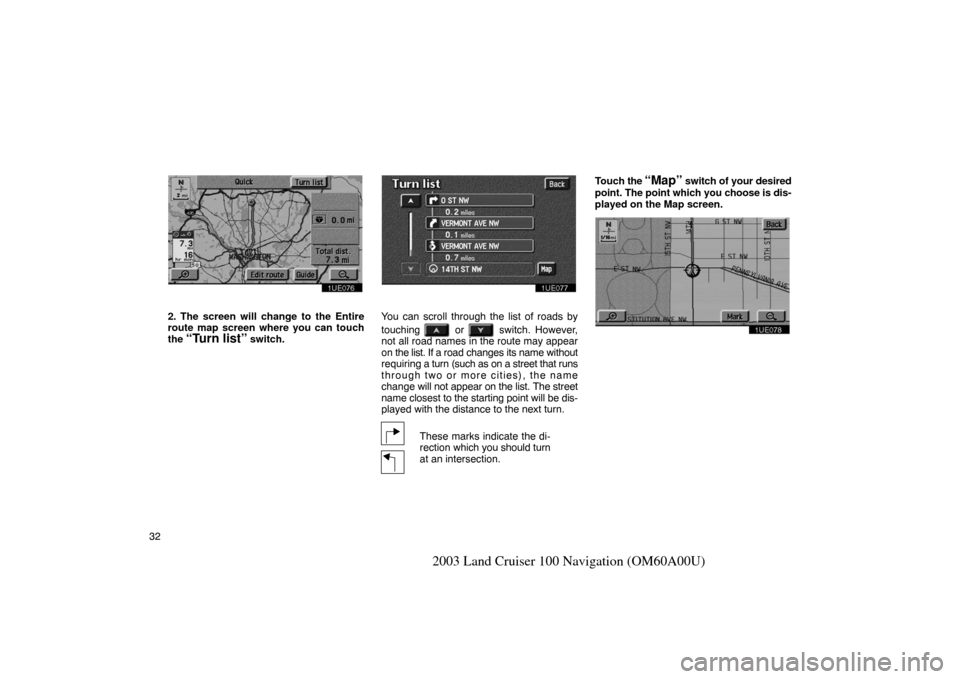

2. The screen will change to the Entire
route map screen where you can touch
the
“Turn list” switch.
1UE077
You can scroll through the list of roads by
touching
or switch. However,
not all road names in the route may appear
on the list. If a road changes its name without
requiring a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The street
name closest to the starting point will be dis-
played with the distance to the next turn.
These marks indicate the di-
rection which you should turn
at an intersection. Touch
the
“Map” switch of your desired
point. The point which you choose is dis-
played on the Map screen.
1UE078
