TOYOTA LAND CRUISER 2003 J100 Navigation Manual

63
2003 Land Cruiser 100 Navigation (OM60A00U)

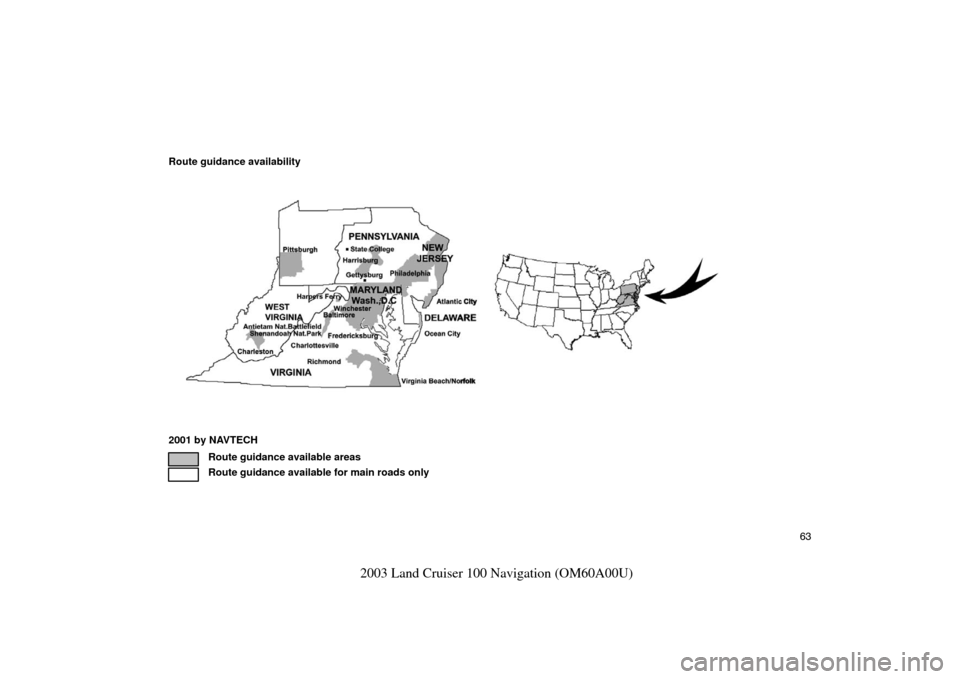

Route guidance availability
2001 by NAVTECH
Route guidance available areas
Route guidance available for main roads only

64
2003 Land Cruiser 100 Navigation (OM60A00U)

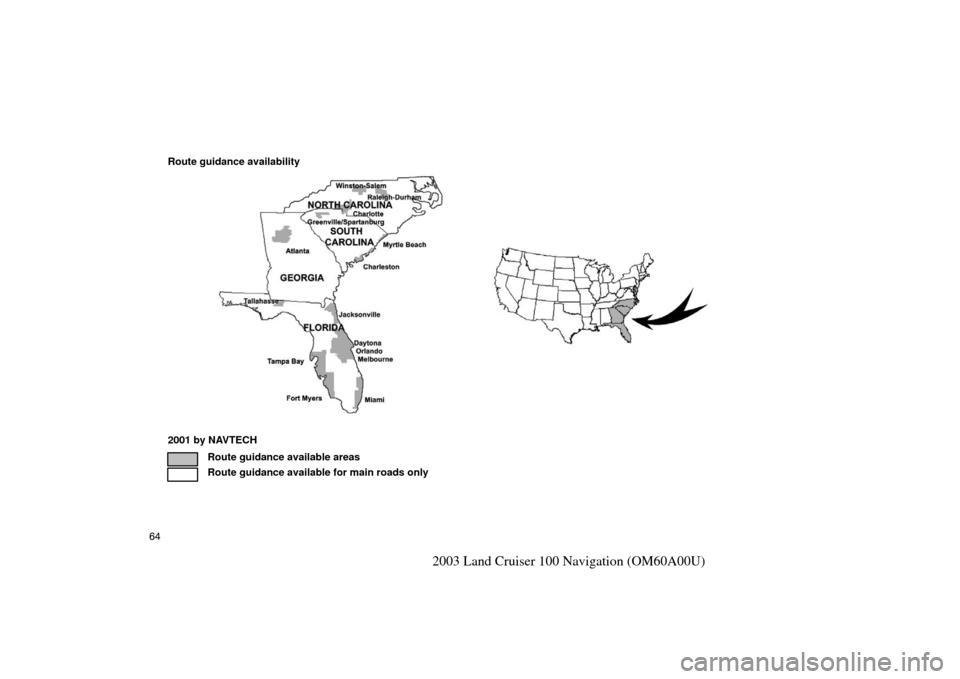

Route guidance availability
2001 by NAVTECH
Route guidance available areas
Route guidance available for main roads only

65
2003 Land Cruiser 100 Navigation (OM60A00U)
Route guidance availability
2001 by NAVTECH
Route guidance available areas
Route guidance available for main roads only

66
2003 Land Cruiser 100 Navigation (OM60A00U)

67
2003 Land Cruiser 100 Navigation (OM60A00U)
ADVANCED FUNCTIONS
Descriptions of operations for more effective use
Marked points68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Area to avoid 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Current position calibration 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
SECTION II

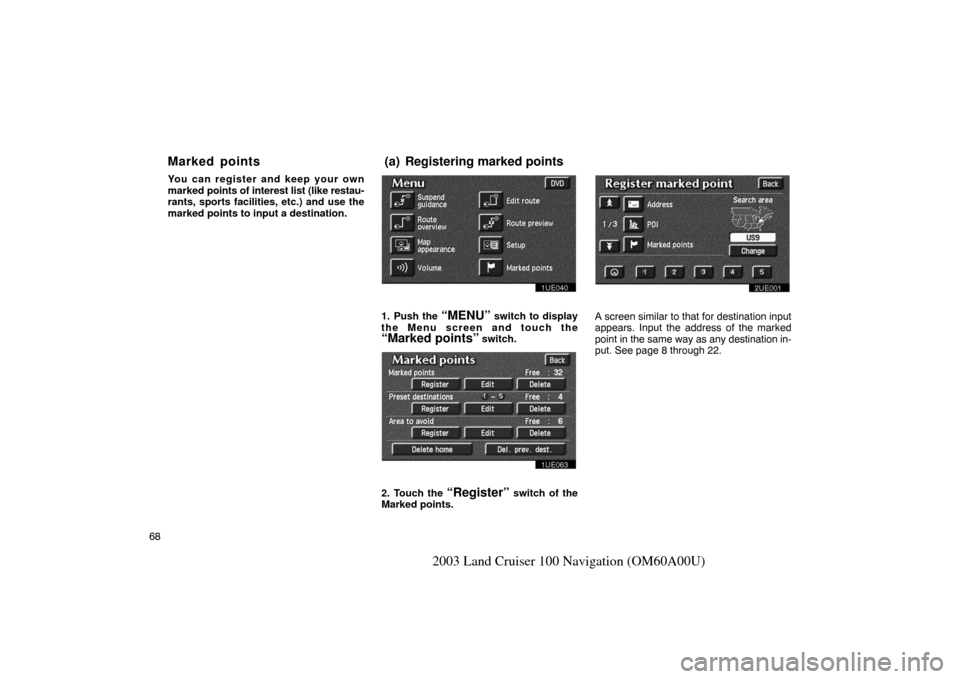

68
2003 Land Cruiser 100 Navigation (OM60A00U)
You can register and keep your own
marked points of interest list (like restau-
rants, sports facilities, etc.) and use the
marked points to input a destination.
1UE040
1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Register” switch of the
Marked points.
2UE001
A screen similar to that for destination input
appears. Input the address of the marked
point in the same way as any destination in-
put. See page 8 through 22.
Marked points(a) Registering marked points

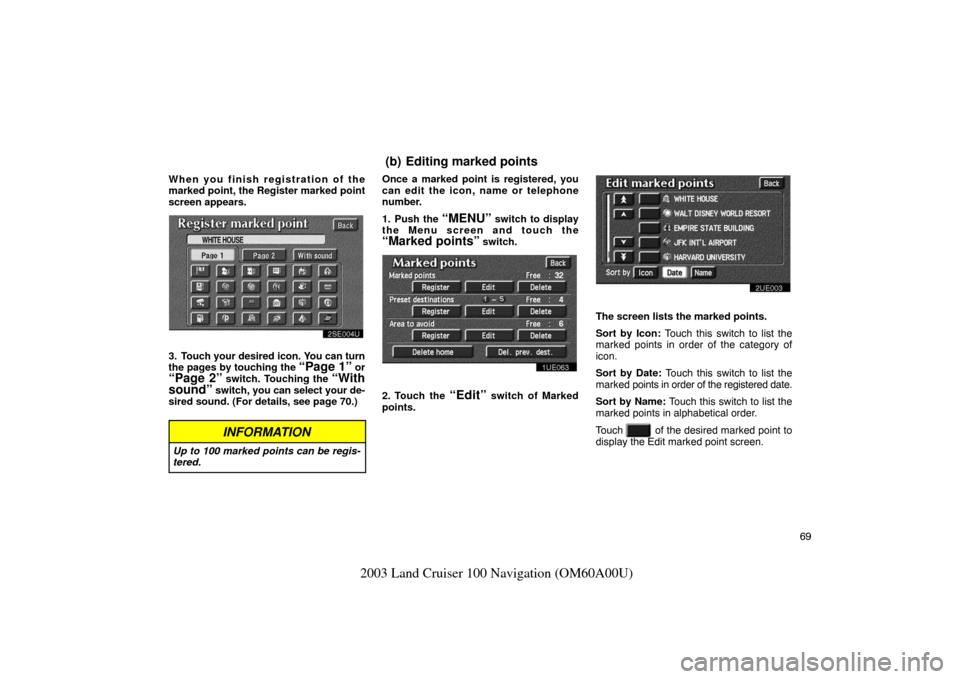

69
2003 Land Cruiser 100 Navigation (OM60A00U)
When you finish registration of the
marked point, the Register marked point
screen appears.
2SE004U
3. Touch your desired icon. You can turn
the pages by touching the “Page 1” or“Page 2” switch. Touching the “With
sound” switch, you can select your de-
sired sound. (For details, see page 70.)
INFORMATION
Up to 100 marked points can be regis-
tered.
Once a marked point is registered, you
can edit the icon, name or telephone
number.
1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Edit” switch of Marked
points.
2UE003
The screen lists the marked points.
Sort by Icon: Touch this switch to list the
marked points in order of the category of
icon.
Sort by Date: Touch this switch to list the
marked points in order of the registered date.
Sort by Name: Touch this switch to list the
marked points in alphabetical order.
Touch
of the desired marked point to
display the Edit marked point screen.
(b) Editing marked points

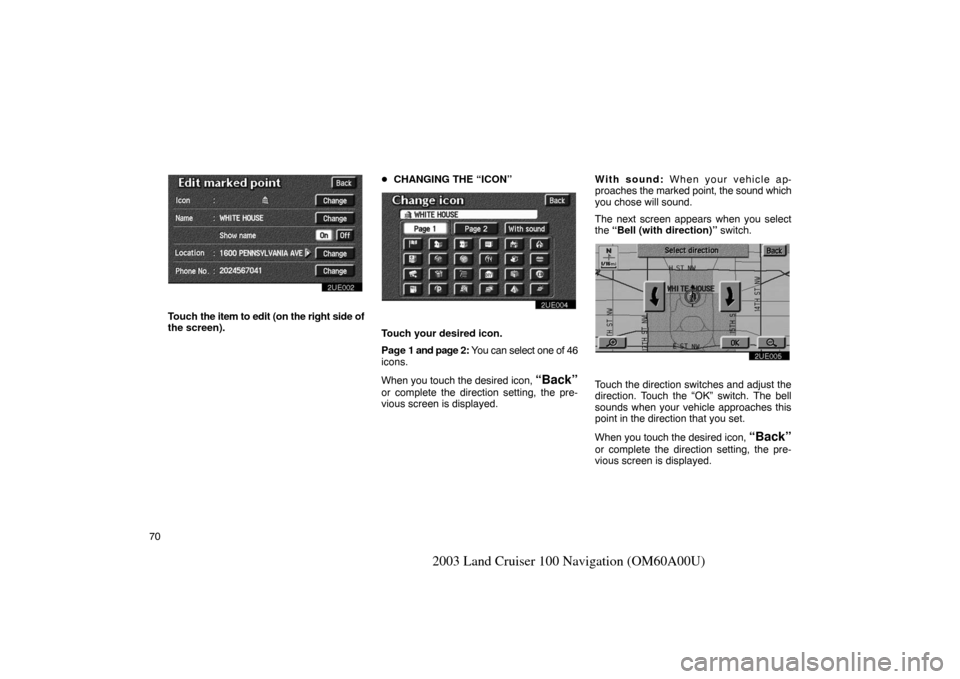

70
2003 Land Cruiser 100 Navigation (OM60A00U)
2UE002
Touch the item to edit (on the right side of
the screen).
CHANGING THE “ICON”
2UE004
Touch your desired icon.
Page 1 and page 2: You can select one of 46
icons.
When you touch the desired icon,
“Back”
or complete the direction setting, the pre-
vious screen is displayed. With sound:
When your vehicle ap-
proaches the marked point, the sound which
you chose will sound.
The next screen appears when you select
the “Bell (with direction)” switch.
2UE005
Touch the direction switches and adjust the
direction. Touch the “OK” switch. The bell
sounds when your vehicle approaches this
point in the direction that you set.
When you touch the desired icon,
“Back”
or complete the direction setting, the pre-
vious screen is displayed.

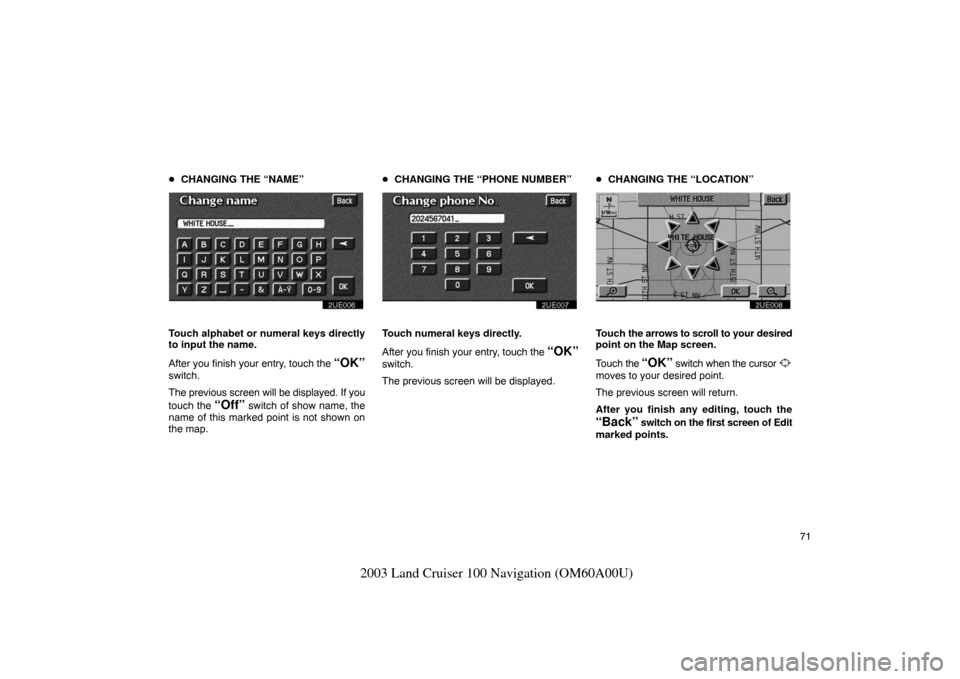

71
2003 Land Cruiser 100 Navigation (OM60A00U)
CHANGING THE “NAME”
2UE006
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed. If you
touch the
“Off” switch of show name, the
name of this marked point is not shown on
the map.
CHANGING THE “PHONE NUMBER”
2UE007
Touch numeral keys directly.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed.
CHANGING THE “LOCATION”
2UE008
Touch the arrows to scroll to your desired
point on the Map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will return.
After you finish any editing, touch the
“Back” switch on the first screen of Edit
marked points.

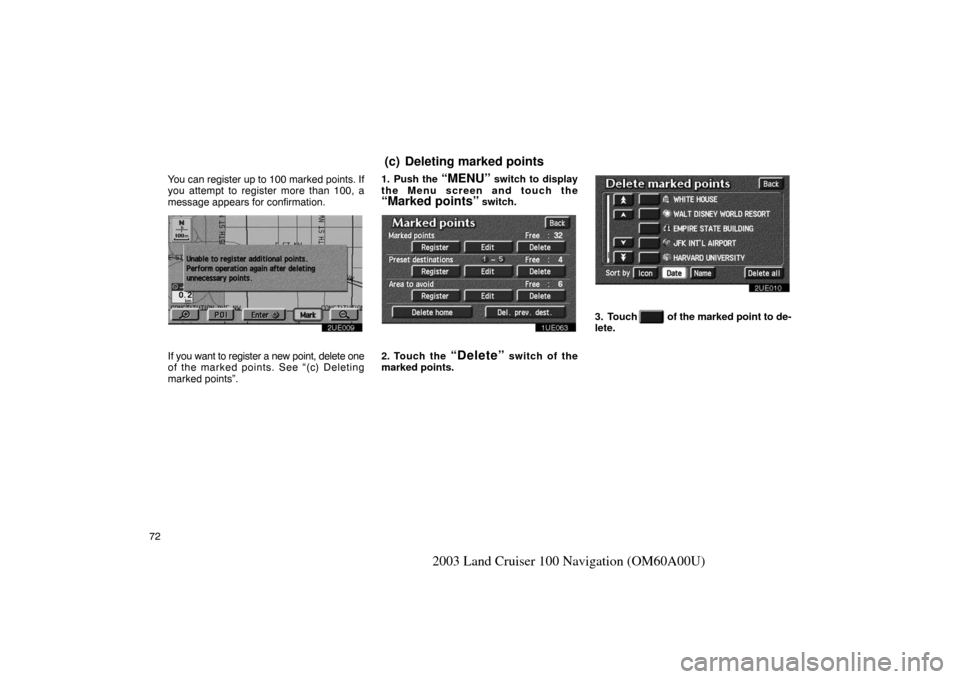

72
2003 Land Cruiser 100 Navigation (OM60A00U)
You can register up to 100 marked points. If
you attempt to register more than 100, a
message appears for confirmation.
2UE009
If you want to register a new point, delete one
of the marked points. See “(c) Deleting
marked points”.1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Delete” switch of the
marked points.
2UE010
3. Touch of the marked point to de-
lete.
(c) Deleting marked points
