TOYOTA LAND CRUISER 2007 J200 Navigation Manual

lxxxi

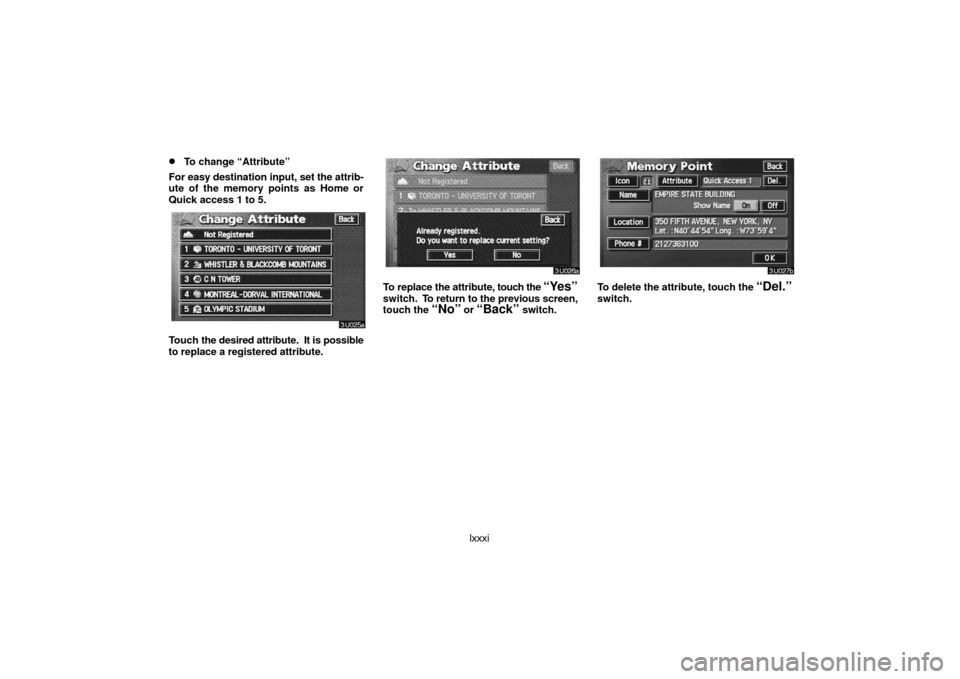

To change “Attribute”
For easy destination input, set the attrib-
ute of the memory points as Home or
Quick access 1 to 5.
Touch the desired attribute. It is possible
to replace a registered attribute.
To replace the attribute, touch the “Yes”
switch. To return to the previous screen,
touch the “No” or “Back” switch.
To delete the attribute, touch the “Del.”
switch.

lxxxii
To delete an attribute, touch the “Yes”
switch. To return to the previous screen,
touch the “No” or “Back” switch.
To change “Name”
Touch the alphabet and/or numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
“Show Name”
You can set the name of a memory point
to be displayed or not on the map.
To show the name, touch the
“On”
switch. Not to show it, touch the “Off”switch.
To change “Location”
Touch the eight direction switch to move
the cursor to the desired point on the
map.
Touch the
“Enter” switch and the previous
screen will be displayed.

lxxxiii
To change “Phone #” (telephone
number)
Touch numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
(c) Deleting memory points
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
2. Touch the “Delete” switch of the
“Memory Points”.
3. Touch the corresponding switch. To
delete all memory points, touch the
“De-
lete All” switch.
For efficient memory point search, memory
points can be sorted by the
“Date”,
“Icon”, “Name” or “Attribute”
switch.
To delete, touch the
“Yes” switch. To can-
cel the deletion, touch the “No” switch.

lxxxiv
Area to Avoid
Areas you wish to avoid because of traf-
fic jams, construction work or other rea-
sons can be registered as areas to avoid.
Push the
“MENU” button to display the
“Menu” screen and then touch the
“My
Places”
switch to display the following
screen.
INFORMATION
If a destination is inputted in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to avoid may be shown.
(a) Registering area to avoid
1. Touch the “Register” switch of the
“Areas to avoid”.
2. Enter the location in the same way as
inputting a destination, or display the
map of the area you wish to avoid. (See
page xxx.)
INFORMATION
Up to 10 locations can be registered as
point/area to avoid. If there are 10 loca-
tions already registered, the message
“Unable to register additional points.
Perform operation again after deleting
unnecessary points.” appears on the
screen.
3. Set the cursor in the center of the area
to avoid, and touch the
“Enter” switch.

lxxxv
4. Touch either or switch to
change the size of the area to avoid.
(b) Editing area to avoid
1. Touch the “Edit” switch of the
“Areas to Avoid” to display the “Edit Area
to Avoid” screen.
2. To edit an area to avoid, touch the cor-
responding switch.
3. Touch the “Name”, “Location” or
“Area Size” switch on this screen.

lxxxvi
To change “Name”
Touch alphabet or numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
“Show Name”
The avoid area name can be set to be dis-
played or not on the map. To show the
name, touch the
“On” switch. Not to
show it, touch the
“Off” switch.
To change “Location”
Set the cursor to the desired location,
then touch the
“Enter” switch. The pre-
vious screen will be displayed.
To change “Area size”
Touch either or switch to change
the size of area you want to avoid, and touch
the
“OK” switch. The previous screen will
be displayed.

lxxxvii
(c) Deleting area to avoid
1. Touch the “Delete” switch of the
“Areas to Avoid” to display the “Delete
Area to Avoid” screen.
2. Touch the area you wish to delete
from the list.
“Delete all”: To delete all registered areas to
avoid in the system.
3. To delete, touch the
“Yes” switch.
To cancel the deletion, touch the
“No”
switch.
Setup
You can set the items shown on the “Set-
up” screen.
1. Push the
“MENU” button.
2. To display the “Setup” menu screen,
touch the
“Setup” switch. Touch the
items you wish to set.
3. Touch the “OK” switch on the screen
and then the previous screen will be dis-
played.
“Default”: This switch initializes all of the
settings.
“Calibration”: You can adjust the current
vehicle position mark manually.
“Distance”: You can select “km” or “miles”
as the distance unit.
“Estimated Travel Time”: You can set the
system to display the travel time to the des-
tination on the route guidance screen.
“Auto Reroute”: You can set the system to
automatically search for a new route to the
destination.
“Adjust Time Zone”: You can select your
desired time zone.
“Auto Voice Guidance”: You can set the
automatic voice guidance.

lxxxviii “Voice Guidance in All Modes”: You can
set the voice guidance in all modes.
“Notify Traffic Restriction”: You can select
notification of seasonal restrictions.
“Intersection Guidance”: You can select
ON or OFF to display of intersection guid-
ance.
“Guidance Screen on Freeway”: You can
select ON or OFF to display the guidance
screen on the freeway.
“Street Name on Scroll Map”: You can se-
lect ON or OFF to display the street name on
the scroll map.
“Display Building Shape”: You can select
ON or OFF to display the building shape on
the map screen.
“
Function”: You can set to display or
not to display each switches and current
street name on the map screen.
“Show POI Icons”: You can choose 6 icons
displayed on “Show POI Icons” top screen.
“Previous Point”: You can delete the pre-
vious destination.
“Map Color (Day)”: You can select the de-
sired map color.
“Map Color (Night)”: You can select the de-
sired map color.“Screen Animation”: You can set some
screen displays to be animated.
Current position calibration
When driving, the current vehicle posi-
tion mark will be automatically corrected
by GPS signals. If GPS reception is poor
due to location, you can manually adjust
the current vehicle position mark.
1. Push the “MENU” button to display
the “Menu” screen, and then touch the
“Setup” switch.

lxxxix
2. Touch the “Adjust” switch of “Cal-
ibration”.
3. Touch the “Position/Direction”
switch.
INFORMATION
For additional information on the accu-
racy of a current vehicle position, see
“Limitations of the navigation system”
on page x.Position/Direction calibration
1. Touch the scroll arrows to move the
cursor to your desired location.
Touch the
“Enter” switch.

xc
2. Touch either the or switch to
adjust the direction of the current vehicle
position mark.
Touch the
“Enter” switch and the map
screen will be displayed.
Tire change calibration
The tire change calibration function will
be used when replacing the tires. This
function will adjust the miscalculation
caused by the circumference difference
between the old tires and new ones. If
this procedure is not performed when
tires are replaced, the current vehicle
position mark may be incorrectly dis-
played.
To perform a distance calibration procedure,
touch the
“Tire Change” switch on the
“Calibration” screen.
The message appears and the quick dis-
tance calibration is automatically started. A
few seconds later, a map screen will be dis-
played.
Distance unit
1. Push the “MENU” button.
2. Touch the “Setup” switch.
