display TOYOTA LAND CRUISER 2007 J200 Navigation Manual

vii
To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and
“Info.” switch are displayed on
the top of the screen.
Touch the “Info.” switch.
Information such as the name, address, and
phone number are displayed.
If you touch the
“Enter ” switch, the
position of cursor is set as a destination.
If there is already a preset destination, the
“Add to ” switch and the “Replace
” switch are displayed.
When there is already a preset destination,
using the
“Add to ” switch to set an
additional destination, will set the new one
as the first point of arrival.
To register this POI as a memory point,
touch the
“Mark” switch. (For details, see
page lxxvii.)
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (For de-
tails, see page lix.)

viii MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and
“Info.” switch are dis-
played on the top of screen.
Touch the “Info.” switch.
Information such as the name, location, and
phone number are displayed.
If you touch the
“Enter ” switch, the
position of cursor is set as a destination.If there is already a set destination, the
“Add to ” switch and the “Replace
” switch are displayed.
When there is already a preset destination,
using the
“Add to ” switch to set an
additional destination, will set the new one
as the first point of arrival.
To edit a memory point, touch the
“Edit”switch. (For details, see page lxxix.)
Map scale
Touch the or switch to change
the scale of the map display. The scale bar
and indicator at the bottom of the screen in-
dicates the map scale menu. The scale
ranges 150 feet (50 m) to 250 miles (400
km).
Touch the
or switch until the
scale bar changes normally. If you continue
to touch on the switch, the scale bar
changes smoothly.
You can change the scale of the map display
by touching the scale bar directly. It is not
available during driving.
The map scale is displayed under the north−
up symbol or heading−up symbol at the top
left of the screen.

x
Limitations of the navigation
system
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate position
may not be shown depending on the sat-
ellite condition, road configuration, ve-
hicle condition or other circumstances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position using 3 to 4 satellites.
The GPS system has a certain level of inac-
curacy. While the navigation system will
compensate for this most of the time, occa-
sional positioning errors of up to 300 feet
(100 m) can and should be expected. Gen-
erally, position errors will be corrected within
a few seconds.
When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The installation of window tinting may also
obstruct the GPS signals. Most window tint-
ing contains some metallic content that will
interfere with the GPS signal reception. We
advice against the use of window tinting on
vehicles equipped with navigation systems.
The GPS satellites may not send signals
due to repairs or improvements being made
to them.Even when the navigation system is receiv-
ing clear GPS signals, the vehicle position
may not be shown accurately or inappropri-
ate route guidance may occur in some
cases.

xii
(b) Inappropriate route guidance
may occur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will display a
route returning to the destination on the pre-
vious route.
When turning at an intersection for which
there is no route guidance.
When passing through an intersection
for which there is no route guidance.
During auto reroute, the route guidance
may not be available for the next turn to the
right or left.
It may take a long time to operate auto re-
route during high speed driving. In auto re-
route, a detour route may be shown.
After auto reroute, the route may not be
changed.
An unnecessary U−turn may be shown
or announced.
A location may have multiple names and
the system will announce one or more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.
Your destination point might be shown on
the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle that
vary by time or season or other reason.
The road and map data stored in your
navigation system may not be complete or
may not be the latest version.
After replacing the tire, implement the
operation described in the “ Tire
change calibration”. (For details, see
page xc.)
This navigation system uses the tire turning
data and is designed to work with factory−
specified tires for your vehicle. Installing
tires that are larger or smaller than the origi-
nally equipped diameter may cause inaccu-
rate display of the vehicle’s position. The tire
pressure also affects the diameter of the
tires so please make sure the tire pressure
of all four tires is correct.
Map database information
and updates
This system uses the maps of DENSO.

xxiv
Indemnity. You agree to indemnify,
defend and hold DENSO and its
licensors (including their respective
licensors, suppliers, assignees,
subsidiaries, affiliated companies, and
the respective officers, directors,
employees, shareholders, agents and
representatives of each of them) free and
harmless from and against any liability,
loss, injury (including injuries resulting in
death), demand, action, cost, expense,
or claim of any kind or character,
including but not limited to attorney’s
fees, arising out of or in connection with
any use or possession by you of this
information.
END USER NOTICE
The marks of companies displayed by
this product to indicate business
locations are the marks of their
respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement
by such companies of this product.

xxv There are two types of areas available for
route guidance. In one type of area, pri-
marily around metropolitan centers, de-
tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data
(no right turns, oneway traffic, etc.) is
not complete. It is still possible to reach
the destination by following the arrow di-
rection and distance as shown on the
bottom left of the screen. The arrow
points in the direction of the destination.
The distance shown is as measured in a
straight line from the current vehicle
position to the destination area.
In order to provide you with as accurate map
information as possible, we are always gath-
ering information such as on road repairs
and carrying out on−site investigations.
However, the names of roads, streets, facili-
ties, and their locations are often changed.
In some places, construction on roads may
be in progress. For that reason, information
on some areas in this system might be differ-
ent from the actual location.
1U020
The map database is normally updated once
a year. Contact your dealer for updating a
map database.
To confirm the database version and
disc coverage area
1. Push the
“MENU” button.
2. Touch the “Map DVD” switch.
Make sure the version of the database on
this screen. (The database version on the
screen above may be different from the ac-
tual screen.)

xxvi To display the disc coverage area, touch the
“Covered Area” switch. Confirm the
covered area on the screen.
Contact your dealer to find out if there is a
more recent update released.

xxx
Destination input —
Push the “DEST” button and the “Des-
tination” screen appears.
You can use one of 13 different methods to
enter your destination. (See pages xxxii
through xlviii.)
INFORMATION
When inputting the destination, the
response to the switch may be slow.
The route for returning may not be
the same as that for going.
The route guidance to the destina-
tion may not be the shortest route
nor a route without traffic conges-
tion.
Route guidance may not be avail-
able if there is no road data for the
specified location.
When setting the destination on a
map with a scale larger than 0.5 mile
(800 m), the map scale changes to
0.5 mile (800 m) automatically. Set
the destination again.
To select an
“Address”, “POI
Name”
, “Freeway Ent./Exit”,
“Intersection” or “Phone #” in
a different area, it is necessary to
change the search area.
If you enter a destination, the road
nearest to the point you selected is
set as the destination.
CAUTION
While you are driving, be sure to obey
traffic regulations and keep the road
conditions in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa-
tion.
— Selecting the search area
The “Destination” screen allows you to se-
lect the area to search for your destination.
Touch the
“Change” switch on the
“Destination” screen to display a map of
the United States and Canada divided
into 11 areas. See page xii for map data-
base information and updates.
Touch one of the “US1” through“CAN” switches to select a search area.
Touch the “OK” switch and the “Des-
tination” screen returns.

xxxii Canada
SwitchProvinces and regions included
in the search area
“CAN”All provinces and regions in
Canada included in this switch.
— Destination input by Home
Touch the home switch on the “Destina-
tion” screen.
The screen changes and displays the
map location of your home and the route
preference. (See “ — Entering destina-
tion” on page xlviii.)
To use this function, it is necessary to set the
“Attribute” for the memory point. (To register
the “Home”, see page lxxxi.)
INFORMATION
Guidance starts from your current
position to your home if you touch the
“Enter” switch even while driving.
— Destination input by Quick
access
Touch any of the quick access switches
on the “Destination” screen.
The screen changes and displays the
map location of the quick access point
and the route preference. (See “ — Enter-
ing destination” on page xlviii.)
To use this function, it is necessary to set the
“Attribute” for each memory point. (To regis-
ter the “Quick Access”, see page lxxxi.)
INFORMATION
Guidance starts from your current
position to the quick access point if
you touch the
“Enter” switch even
while driving.

xxxiii

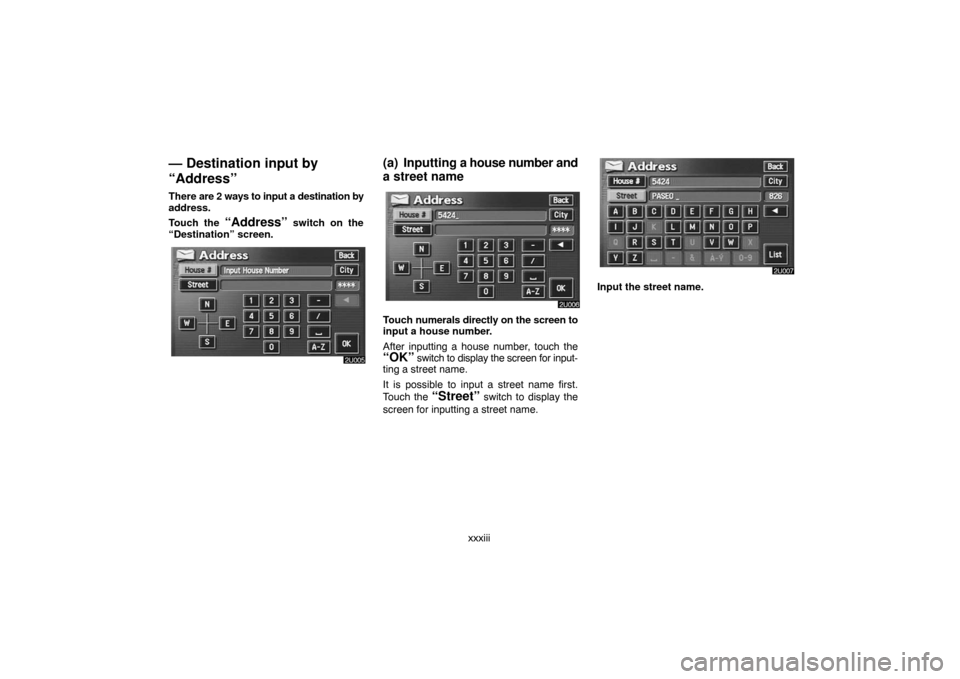

— Destination input by
“Address”
There are 2 ways to input a destination by
address.
Touch the
“Address” switch on the
“Destination” screen.
(a) Inputting a house number and
a street name
Touch numerals directly on the screen to
input a house number.
After inputting a house number, touch the
“OK” switch to display the screen for input-
ting a street name.
It is possible to input a street name first.
Touch the
“Street” switch to display the
screen for inputting a street name.
Input the street name.
