display TOYOTA LAND CRUISER 2007 J200 Navigation Manual

xlv
INFORMATION
You can delete the list of previous des-
tinations while your vehicle is stopped,
if you no longer need them. (See page
ciii.)
— Destination input by “Map”
Touch the “Map” switch on the “Des-
tination” screen.
The screen changes and displays the
map location that was previously dis-
played just before the destination input
operation and the route preference. (See
“ — Entering destination” on page xlviii.)
INFORMATION
Guidance starts if you touch the “En-
ter” switch even while driving. How-
ever, the cursor cannot be moved.

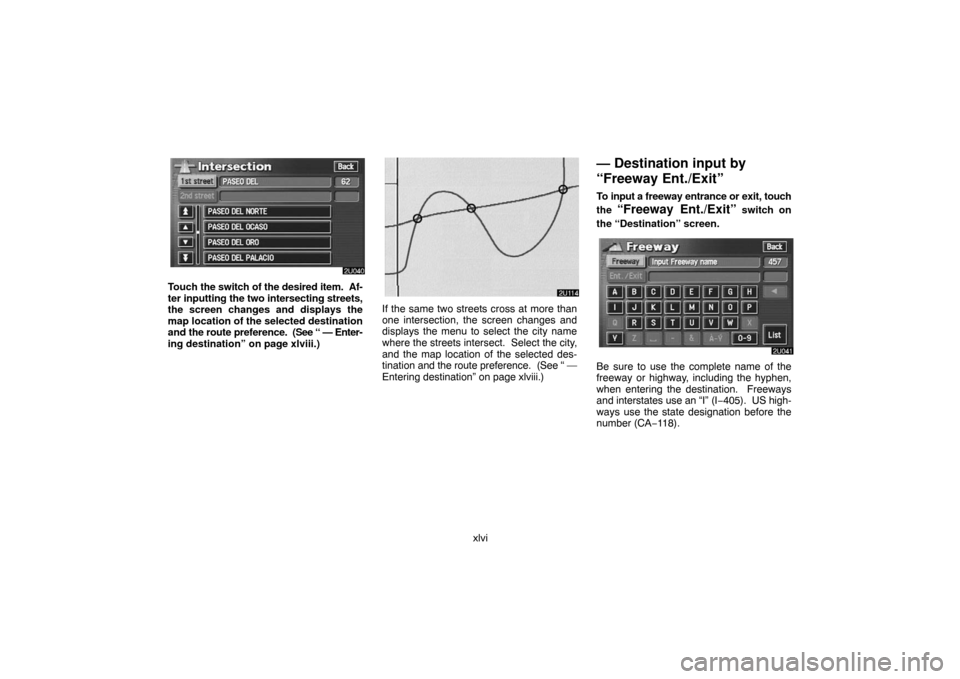

— Destination input by
“Intersection”
Touch the “Intersection” switch on
the “Destination” screen.
Input the name of the two intersecting
streets which are located near the des-
tination to be set.

xlvi
Touch the switch of the desired item. Af-
ter inputting the two intersecting streets,
the screen changes and displays the
map location of the selected destination
and the route preference. (See “ — Enter-
ing destination” on page xlviii.)
If the same two streets cross at more than
one intersection, the screen changes and
displays the menu to select the city name
where the streets intersect. Select the city,
and the map location of the selected des-
tination and the route preference. (See “ —
Entering destination” on page xlviii.)

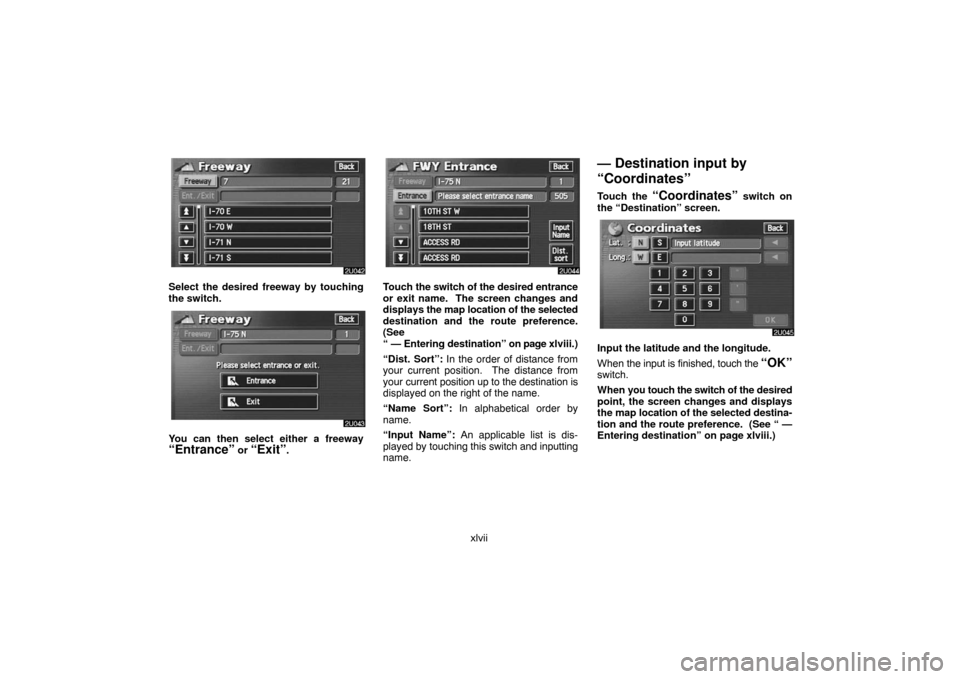

— Destination input by
“Freeway Ent./Exit”
To input a freeway entrance or exit, touch
the
“Freeway Ent./Exit” switch on
the “Destination” screen.
Be sure to use the complete name of the
freeway or highway, including the hyphen,
when entering the destination. Freeways
and interstates use an “I” (I−405). US high-
ways use the state designation before the
number (CA−118).

xlvii
Select the desired freeway by touching
the switch.
You can then select either a freeway“Entrance” or “Exit”.
Touch the switch of the desired entrance
or exit name. The screen changes and
displays the map location of the selected
destination and the route preference.
(See
“ — Entering destination” on page xlviii.)
“Dist. Sort”: In the order of distance from
your current position. The distance from
your current position up to the destination is
displayed on the right of the name.
“Name Sort”: In alphabetical order by
name.
“Input Name”: An applicable list is dis-
played by touching this switch and inputting
name.
— Destination input by
“Coordinates”
Touch the “Coordinates” switch on
the “Destination” screen.
Input the latitude and the longitude.
When the input is finished, touch the
“OK”switch.
When you touch the switch of the desired
point, the screen changes and displays
the map location of the selected destina-
tion and the route preference. (See “ —
Entering destination” on page xlviii.)

xlviii
— Destination input by
“Phone #”
Touch the “Phone #” switch on the
“Destination” screen.
Input a telephone number.
After inputting a telephone number,
touch the
“OK” switch, and the screen
changes and displays the map location
of the selected destination and the road
preference. (See “ — Entering destina-
tion” on page xlviii.)
If there is more than one site having the
same number, the following screen appears.
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers but with different area
codes will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered pre-
viously. (See page lxxxiii.)

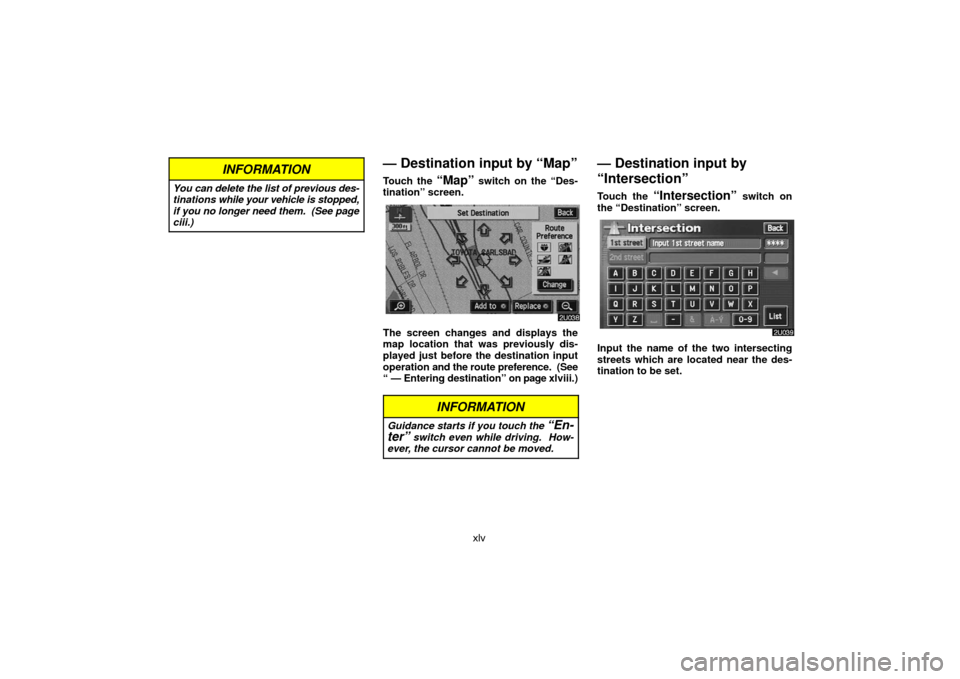

Starting route guidance —
— Entering destination
After you input the destination, the
screen changes and displays the map
location of the selected destination and
the route preference.
SCREEN A
1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
2. To set the destination and display
SCREEN B, touch the
“Enter” switch.
When the destination is already set, the
“Add to ” switch and the “Replace
” switch are displayed.
“Add to
”: To add a destination.

xlix “Replace
”: To delete the existing des-
tinations and set a new one.
“Change”: To change the route preference.
(See page xlix.)
“Info.”: If this switch is displayed on the top
of the screen, touch the switch to see name,
address, and phone number, etc.
SCREEN B
3. To start guidance, touch the
“Guide” switch.
“3 Routes”: To select the desired route from
three possible routes. (See page l.)
“Route”: To change the route. (See pages
liii and lv.)
INFORMATION
Guidance can be suspended or re-
sumed. (See page lxxiii.)
If you keep touching the
“Guide”switch until a beep sounds, Demo
mode will start.
To change the route before starting
guidance

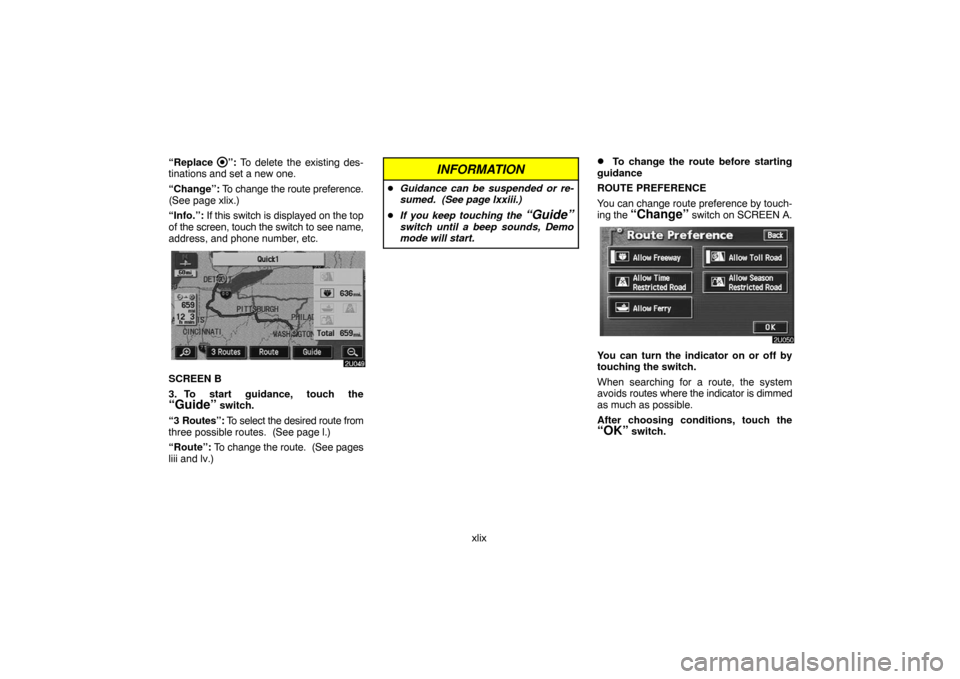

ROUTE PREFERENCE
You can change route preference by touch-
ing the
“Change” switch on SCREEN A.
You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing conditions, touch the
“OK” switch.

l
INFORMATION
Even if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in some
cases.
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS
signals, it is automatically cor-
rected.

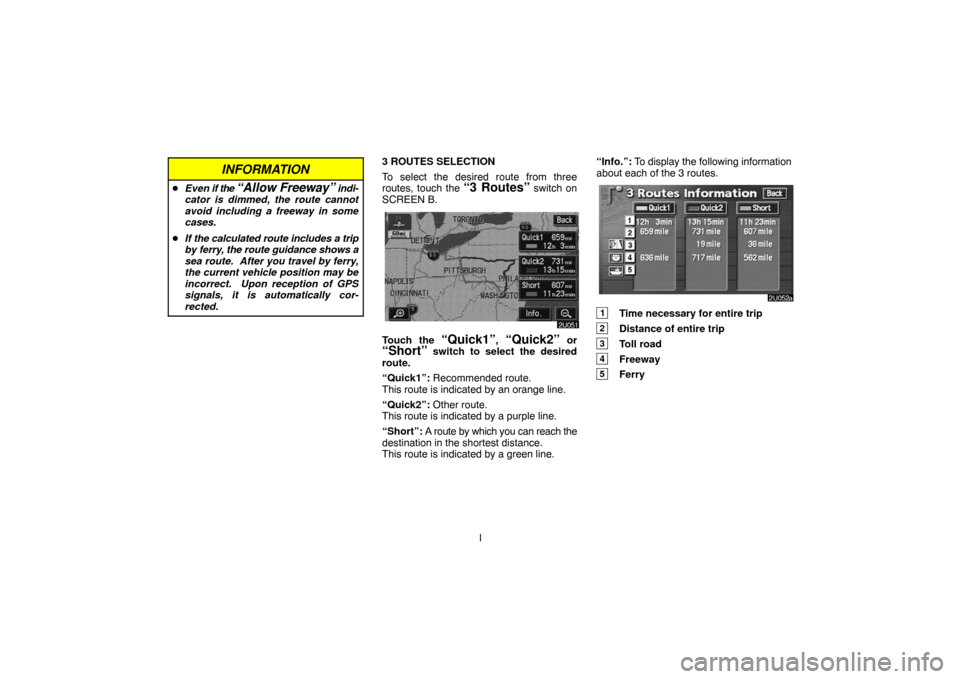

3 ROUTES SELECTION
To select the desired route from three
routes, touch the
“3 Routes” switch on
SCREEN B.
Touch the “Quick1”, “Quick2” or“Short” switch to select the desired
route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.
“Short”: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.“Info.”: To display the following information
about each of the 3 routes.
1Time necessary for entire trip
2Distance of entire trip
3Toll road
4Freeway
5Ferry

li
— Route guidance screen
When starting route guidance, the following
screen is displayed.
This screen displays the route that guides
the driver to the destination.
The route to the destination is indicated by
a highlighted line. Drive along the guided
route.
When the vehicle approaches a guidance
point such as an intersection or a freeway,
the screen automatically divides in two to
display the guidance screen. (For details,
see page lxiii.)
The current street name will be displayed at
the bottom of the screen.
In some areas, the roads have not been
completely digitized in our database yet. For
this reason, the route guidance may guide
the road that is not allowed to pass.
— Typical voice guidance
prompts
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
1“Proceed about 5 miles.”
2“In a quarter of a mile, right turn.”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the
voice guidance will be made at earlier
points than on city streets in order to al-
low time to maneuver.

liv

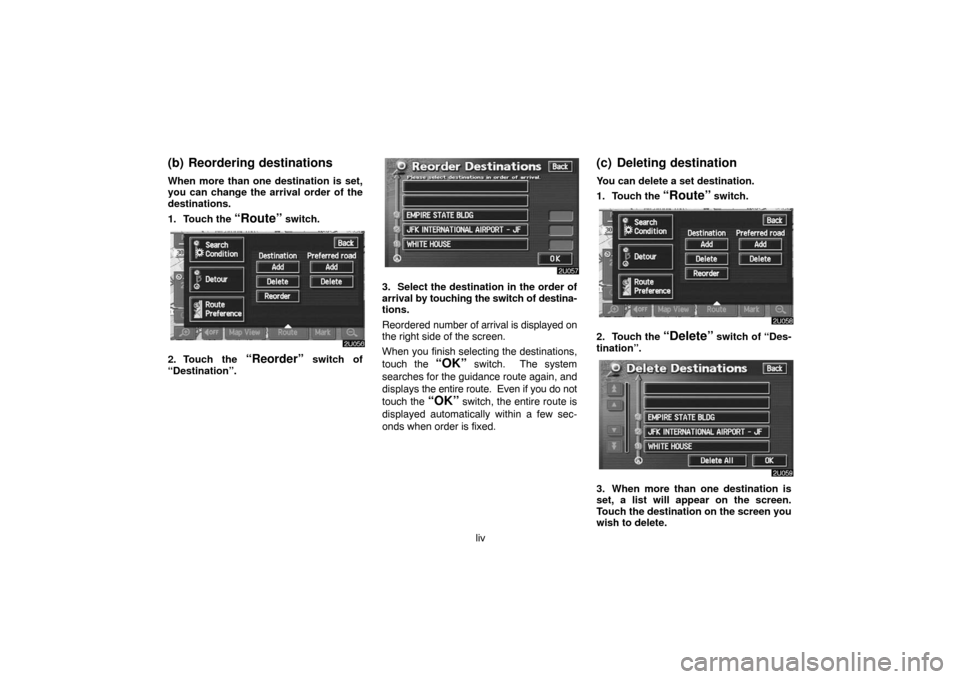

(b) Reordering destinations
When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch the
“Route” switch.
2. Touch the “Reorder” switch of
“Destination”.
3. Select the destination in the order of
arrival by touching the switch of destina-
tions.
Reordered number of arrival is displayed on
the right side of the screen.
When you finish selecting the destinations,
touch the
“OK” switch. The system
searches for the guidance route again, and
displays the entire route. Even if you do not
touch the
“OK” switch, the entire route is
displayed automatically within a few sec-
onds when order is fixed.
(c) Deleting destination
You can delete a set destination.
1. Touch the
“Route” switch.
2. Touch the “Delete” switch of “Des-
tination”.
3. When more than one destination is
set, a list will appear on the screen.
Touch the destination on the screen you
wish to delete.

lv “Delete All”: To delete all destinations on
the list.
4. A message appears to confirm your
request to delete. To delete the destina-
tion(s), touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you touch the
“No” switch, the previous
screen will return.
5. If more than one destination is set,
touch the
“OK” switch after deleting the
destinations. The system searches for
the guidance route again, and displays
the entire route.

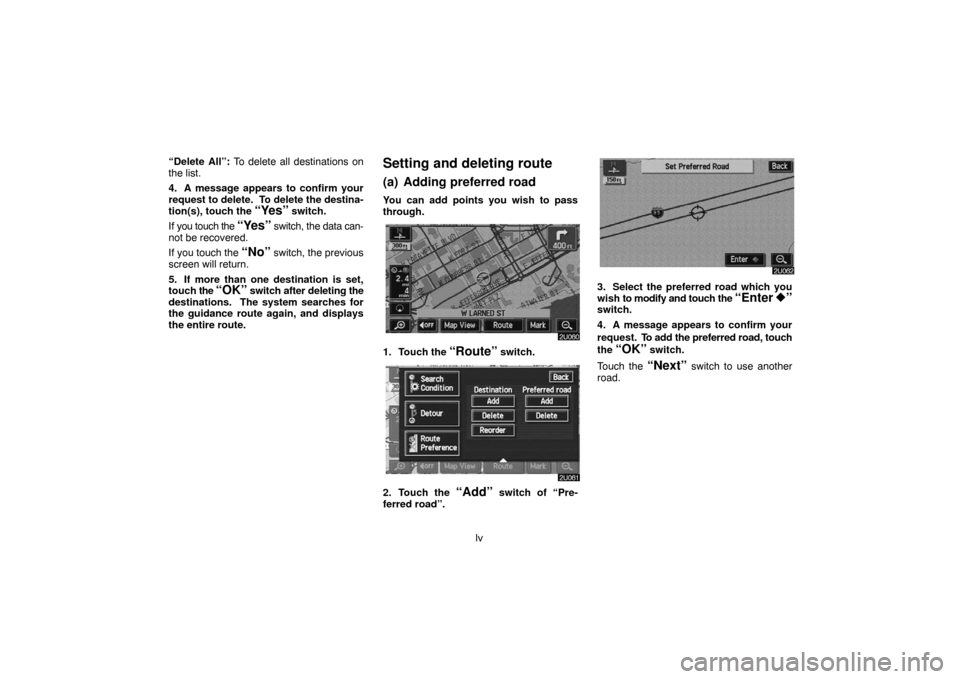

Setting and deleting route
(a) Adding preferred road
You can add points you wish to pass
through.
1. Touch the “Route” switch.
2. Touch the “Add” switch of “Pre-
ferred road”.
3. Select the preferred road which you
wish to modify and touch the “Enter ”switch.
4. A message appears to confirm your
request. To add the preferred road, touch
the
“OK” switch.
Touch the
“Next” switch to use another
road.

lvi

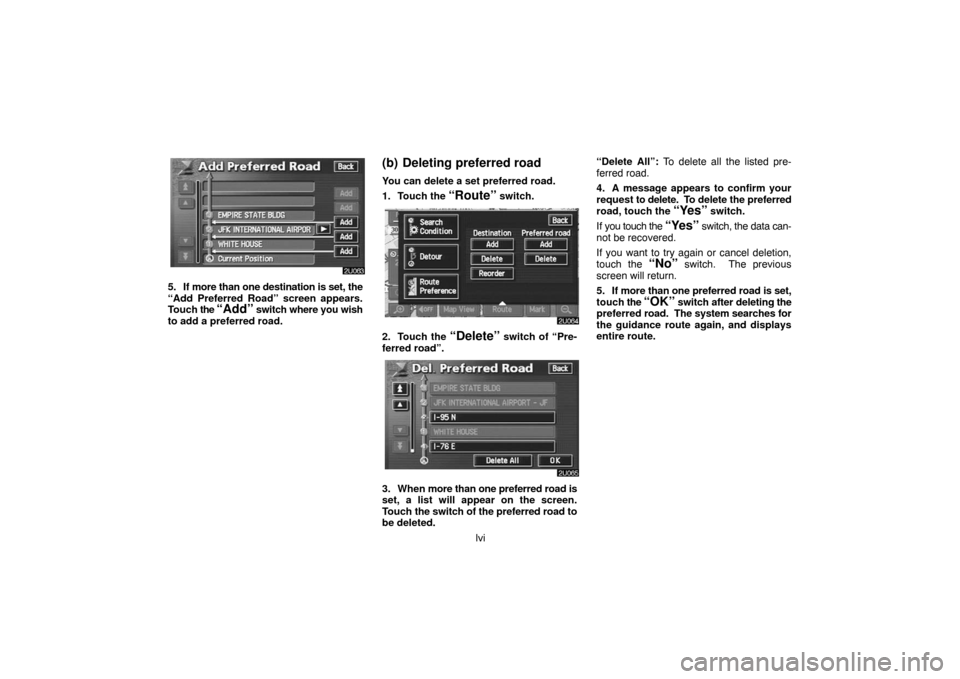

5. If more than one destination is set, the
“Add Preferred Road” screen appears.
Touch the
“Add” switch where you wish
to add a preferred road.
(b) Deleting preferred road
You can delete a set preferred road.
1. Touch the
“Route” switch.
2. Touch the “Delete” switch of “Pre-
ferred road”.
3. When more than one preferred road is
set, a list will appear on the screen.
Touch the switch of the preferred road to
be deleted.“Delete All”: To delete all the listed pre-
ferred road.
4. A message appears to confirm your
request to delete. To delete the preferred
road, touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you want to try again or cancel deletion,
touch the
“No” switch. The previous
screen will return.
5. If more than one preferred road is set,
touch the
“OK” switch after deleting the
preferred road. The system searches for
the guidance route again, and displays
entire route.
